1996 BUICK REGAL Owners Manual

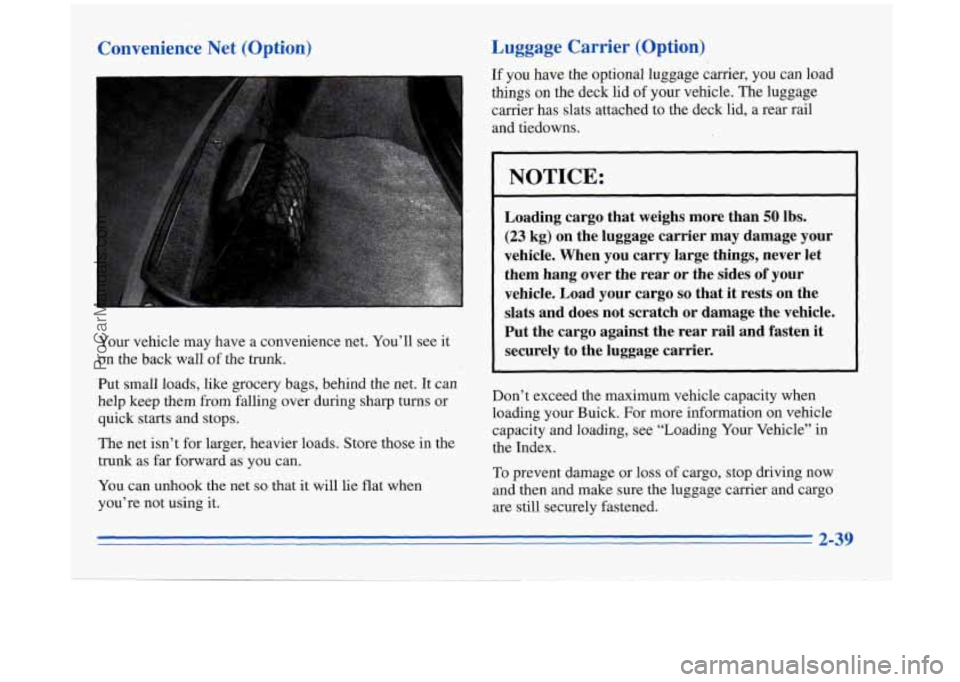

Convenience Net (Option)
I:x
Your vehicle may have a convenience net. You’ll see it
on the back wall of the
trunk.
Luggage Carrier (Option)
If you have the optional luggage carrier, you can load
things on the deck lid
of your vehicle. The luggage
carrier has slats attached to the deck lid, a rear rail
and tiedowns.
NOTICE:
~~
Loading cargo that weighs more than 50 lbs.
(23 kg) on the luggage carrier may damage your
vehicle. When you carry large things, never let
them hang over the rear or the sides of your
vehicle.
Load your cargo so that it rests on the
slats and does not scratch or damage the vehicle.
Put the cargo against the rear rail and fasten
it
securely to the luggage carrier.
Put small loads, like grocery bags, behind the net. It can
help keep them from falling over during sharp turns or
quick starts and stops.
The net isn’t for larger, heavier loads. Store those in the
trunk
as far forward as you can.
You can unhook the net
so that it will lie flat when
you’re not using it. Don’t exceed the maximum vehicle capacity when
loading your Buick. For more information on vehicle
capacity and loading, see “Loading Your Vehicle” in
the Index.
To prevent damage or loss of cargo, stop driving now
and then and make sure the luggage carrier and cargo are still securely fastened.
2-39
ProCarManuals.com

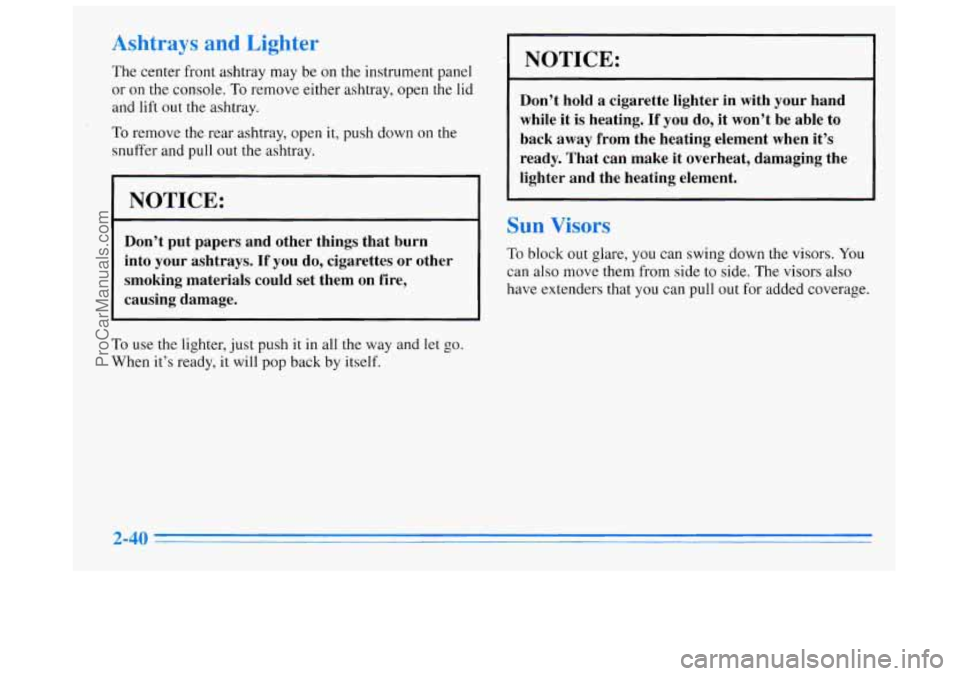

Ashtrays and Lighter . NOTICE: The center front ashtray may be on the instrument panel
or
on the console. To remove either ashtray, open the lid
and lift out the ashtray.
To remove the rear ashtray, open it, push down on the
snuffer and pull
out the ashtray.
Don’t hold a cigarette lighter in with your hand
while it is heating.
If you do, it won’t be able to
back away from the heating element when it’s
ready. That can make it overheat, damaging the
lighter and the heating element.
NOTICE:
Don’t put papers and other things that burn
into your ashtrays.
If you do, cigarettes or other
smoking materials could set them
on fire,
causing damage.
Sun Visors
To block out glare, you can swing down the visors. You
can also move them from side to side. The visors also
have extenders that
you can pull out for added coverage.
To use the lighter, just push it in all the way and let go.
When it’s ready, it will pop back by itself.
2-40
ProCarManuals.com

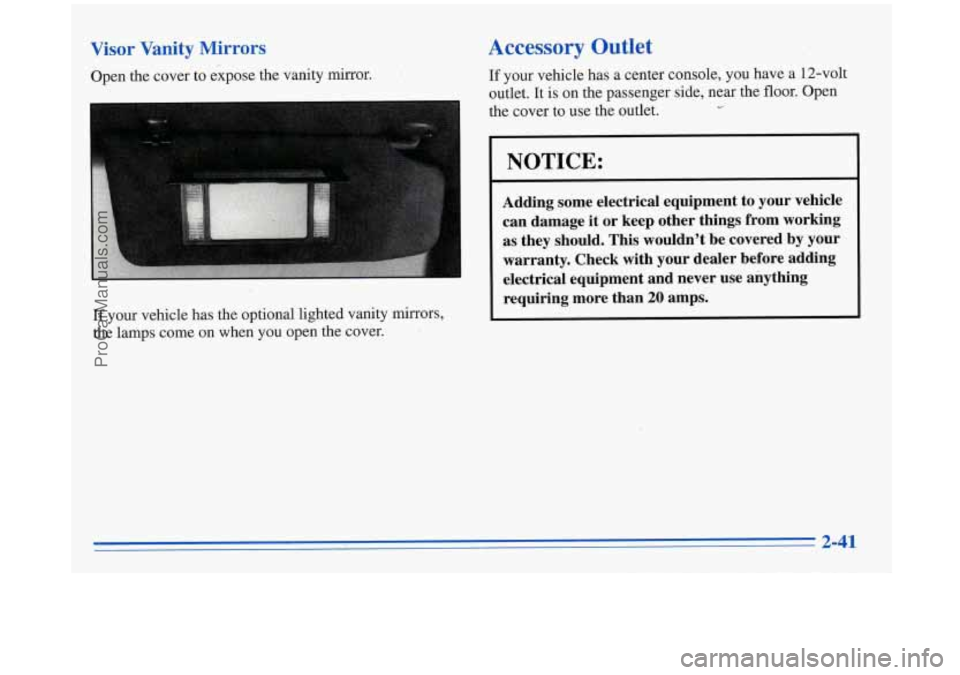

Visor Vanity Mirrors
Open the cover to expose the vanity mirror.
If your vehicle has the optional lighted vanity mirrors,
the lamps come on when you open the cover.
Accessory Outlet
If your vehicle has a center console, you have a 12-volt
outlet.
It is on the passenger side, near the floor. Open
the cover to use the outlet. -
NOTICE:
Adding some electrical .equipment to your vehicle
can damage it or keep other things from working
as they should. This wouldn’t be covered by your
warranty, Check with your dealer before adding electrical equipment and never use anything
requiring more than
20 amps.
__- 2-41
1. %
ProCarManuals.com

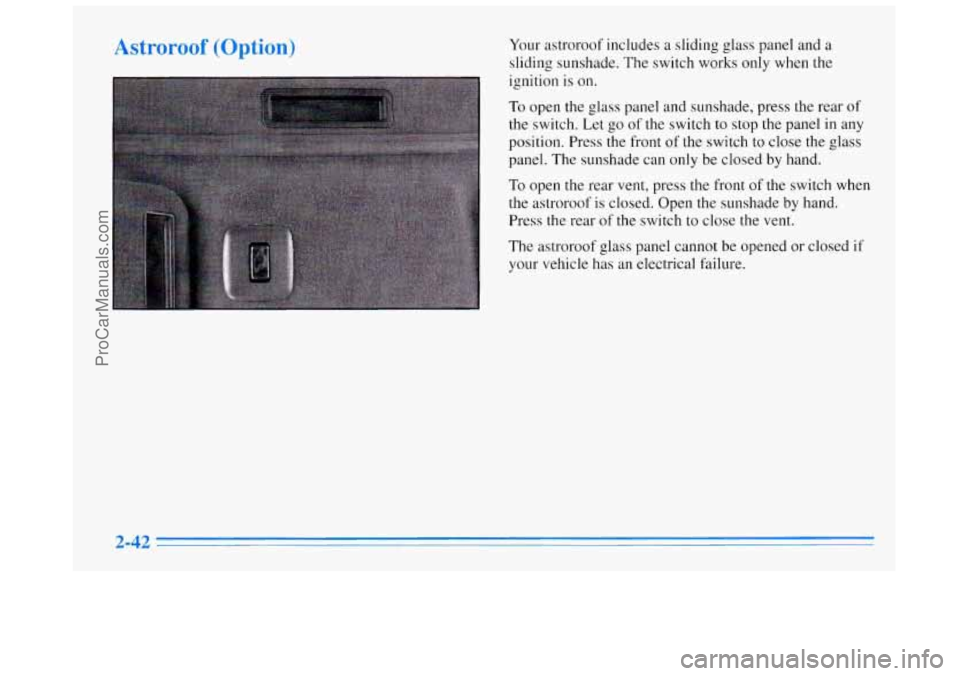

Astroroof (Option) Your astroroof includes a sliding glass panel and a
sliding sunshade. The switch works only when the
ignition is on.
To open the glass panel and sunshade, press the rear of
the switch. Let go of the switch to stop the panel in any
position. Press
the front of the switch to close the glass
panel. The sunshade can only be closed by hand.
To open the rear vent, press the front of the switch when
the astroroof
is closed. Open the sunshade by hand.
Press the rear of the switch to close the vent.
The astroroof glass panel cannot be opened or closed if
your vehicle has an electrical failure.
2-42
ProCarManuals.com

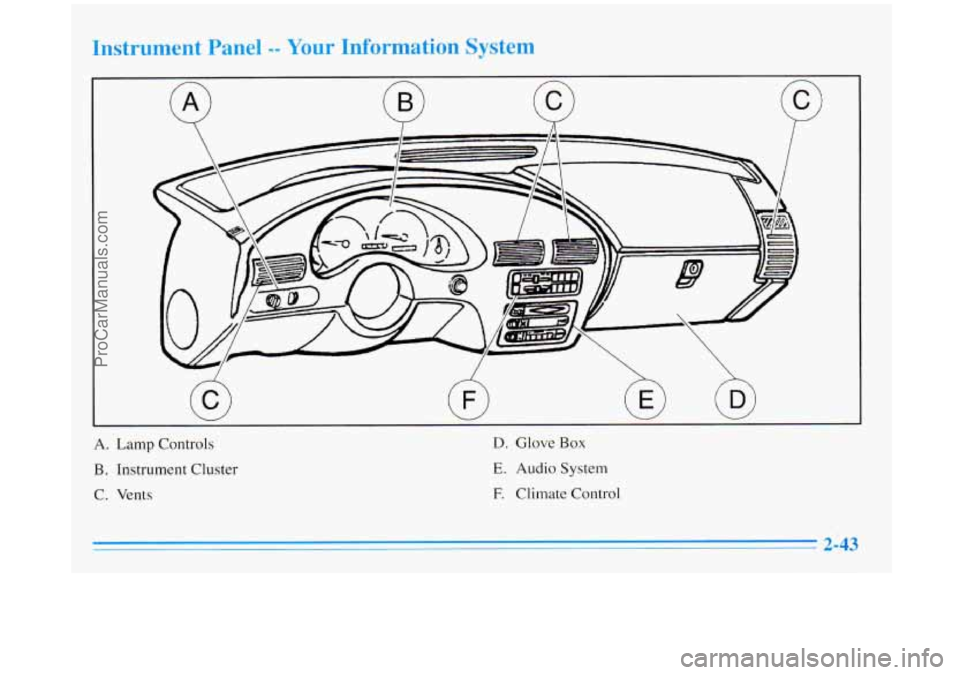

A. Lamp Controls
B. Instrument Cluster
C. Vents
D. Glove Box
E. Audio System
E Climate Control
ProCarManuals.com

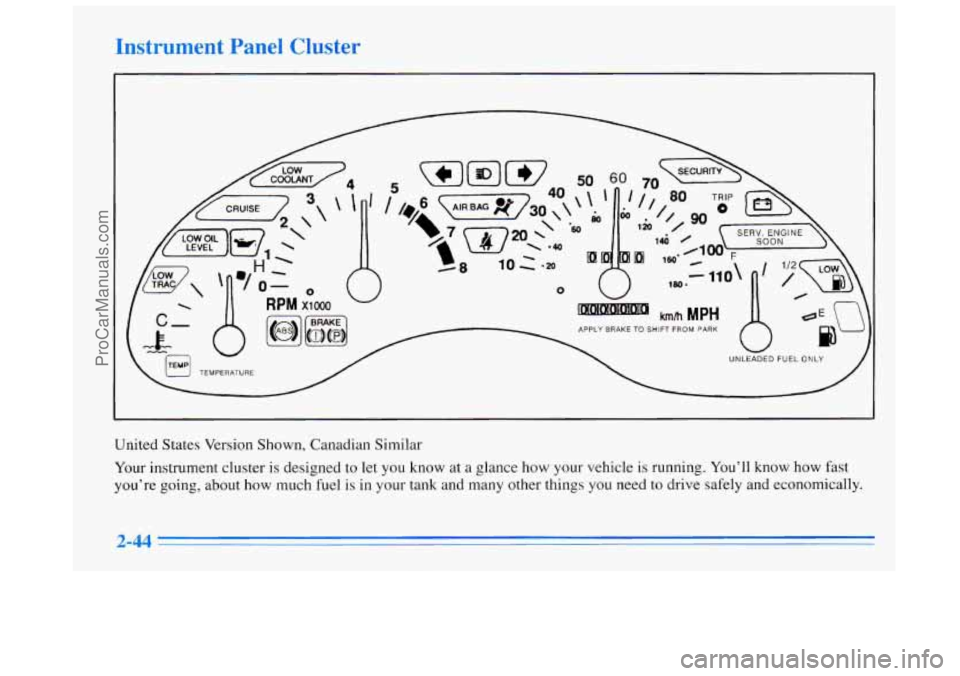

Instrum-It P: le1 Cluster
United States Version Shown, Canadian Similar
Your instrument cluster
is designed to let you know at a glance how your vehicle is running. You’ll know how fast
you’re going, about how much
fuel is in your tank and many other things you need to drive safely and economically.
2-44
ProCarManuals.com

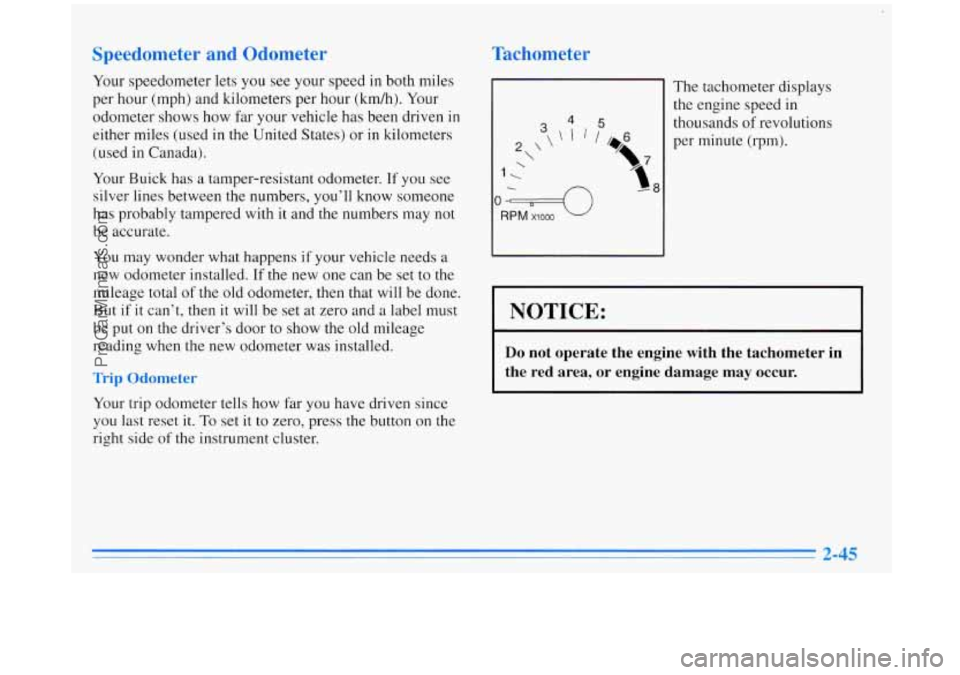

Speedometer and Odometer
Your speedometer lets you see your speed in both miles
per hour (mph) and kilometers per hour (km/h). Your
odometer shows how far your vehicle has been driven in
either miles (used
in the United States) or in kilometers
(used
in Canada).
Your Buick has a tamper-resistant odometer.
If you see
silver lines between the numbers, you’ll know someone
has probably tampered with it and the numbers may not
be accurate.
You may wonder what happens if your vehicle needs a
new odometer installed.
If the new one can be set to the
mileage total of the old odometer, then that will be done.
But if
it can’t, then it will be set at zero and a label must
be put
on the driver’s door to show the old mileage
reading when the new odometer was installed.
Trip Odometer
Your trip odometer tells how far you have driven since
you last reset it.
To set it to zero, press the button on the
right side of the instrument cluster.
Tachometer
1
The tachometer displays
the engine speed in
4
3\\l I
* \‘
1,
RPM XIOOO
8
thousands of revolutions
per minute (rpm).
I NOTICE:
Do not operate the engine with the tachometer in
the red area, or engine damage
1 may occur.
ProCarManuals.com

Warning Lights, Gages and
Indicators
This part describes the warning lights and gages that
may be on your vehicle. The pictures will help you
locate them.
Warning lights and gages can signal that something is
wrong before it becomes serious enough to cause an
expensive repair or replacement. Paying attention to
your warning lights and gages could also save you or
others from injury.
Warning lights come on when there may be or is
a
problem with one of your vehicle’s functions. As you
will see
in the details on the next few pages, some
warning lights come on briefly when you start
the
engine just to let you know they’re working. If you are
familiar with this section, you should not be alarmed
when this happens.
Gages can indicate
when there may be or is a problem
with one
of your vehicle’s functions. Often gages and
warning lights work together to let you know when
there’s
a problem with your vehicle. When
one of the warning lights comes
on and stays on
when you are driving,
or when one of the gages shows
there may be
a problem, check the section that tells you
what to do about it. Please follow this manual’s advice.
Waiting
to do repairs can be costly -- and even
dangerous.
So please get to know your warning lights
and gages. They’re
a big help.
Safety Belt Reminder Light
When the key is turned to RUN or START, a chime will
come on for about eight seconds
to remind people to
fasten their safety belts, unless the driver’s safety belt is
already buckled.
The safety belt light will
also come on and stay on
until the driver’s belt is buckled.
ProCarManuals.com
