1995 PONTIAC FIREBIRD Owners Manual

Page 217 of 386

PONTIAC FIREBIRD 1995  Owners Manual 4. Fill with  the proper mix. Add  coolant  until  you  see  a
steady  stream
of coolant  coming  fiom the bleed
valves.
5.
6.
7.
8.
Close  the  bleed  valves.
Continue  to fill  the  radiato

Page 218 of 386

PONTIAC FIREBIRD 1995  Owners Manual 9. Shut  the  engine off and replace  the  pressure  cap.  Be
sure  the arrows on the  cap  line up  like  this.
10. Then  fill the  coolant  recovery  tank  to  the proper
level.
For  a complete

Page 219 of 386

PONTIAC FIREBIRD 1995  Owners Manual If a Tire Goes  Flat
It’s unusual for  a  tire  to  “blow  out”  while you’re  driving,
especially
if you  maintain  your  tires  properly.  If air goes
out  of a  tire,  it’s  much  mor

Page 220 of 386

PONTIAC FIREBIRD 1995  Owners Manual The equipment  you’ll  need  is in the  right  (pasq-enger)
rear  area  behind  the  trim  panel.
The  following steps will  tell you how  to  use  the  jack and First you  must  remove  the  clos

Page 221 of 386

PONTIAC FIREBIRD 1995  Owners Manual On  convertible  models,  you  must also remove  the  trunk
accem  panel.  Its  at the  upper  back
of the  trunk. Turn the
two  screw  knobs  under  the trunk  edge  a quarter
turn
counterclock

Page 222 of 386

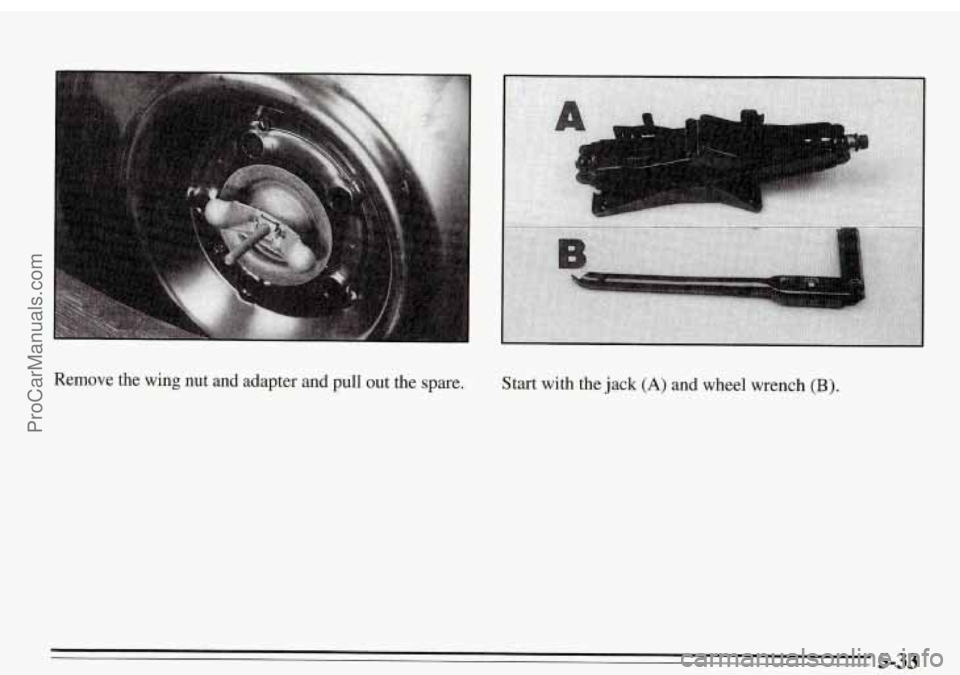

PONTIAC FIREBIRD 1995  Owners Manual Remove  the  wing  nut  and  adapter  and  pull out the  spare. Start with the jack (A) and wheel  wrench (B).
5-33 ProCarManuals.com

Page 223 of 386

PONTIAC FIREBIRD 1995  Owners Manual The  jack has a bolt at the  end.  Attach  the wheel  wrench
to the jack  bolt.
If your  wheel  has a bolt-on  center  cap,  loosen  the  plastic
caps  using  the  wheel  wrench.
Turn the  wheel

Page 224 of 386

PONTIAC FIREBIRD 1995  Owners Manual Then pry off the  center  cap  with  the  wheel  wrench. If your  vehicle has optional  alloy  wheels,  each wheel
may  have  one locknut in  place
of the  standard wheel
nut.
A special  wheel  lo
