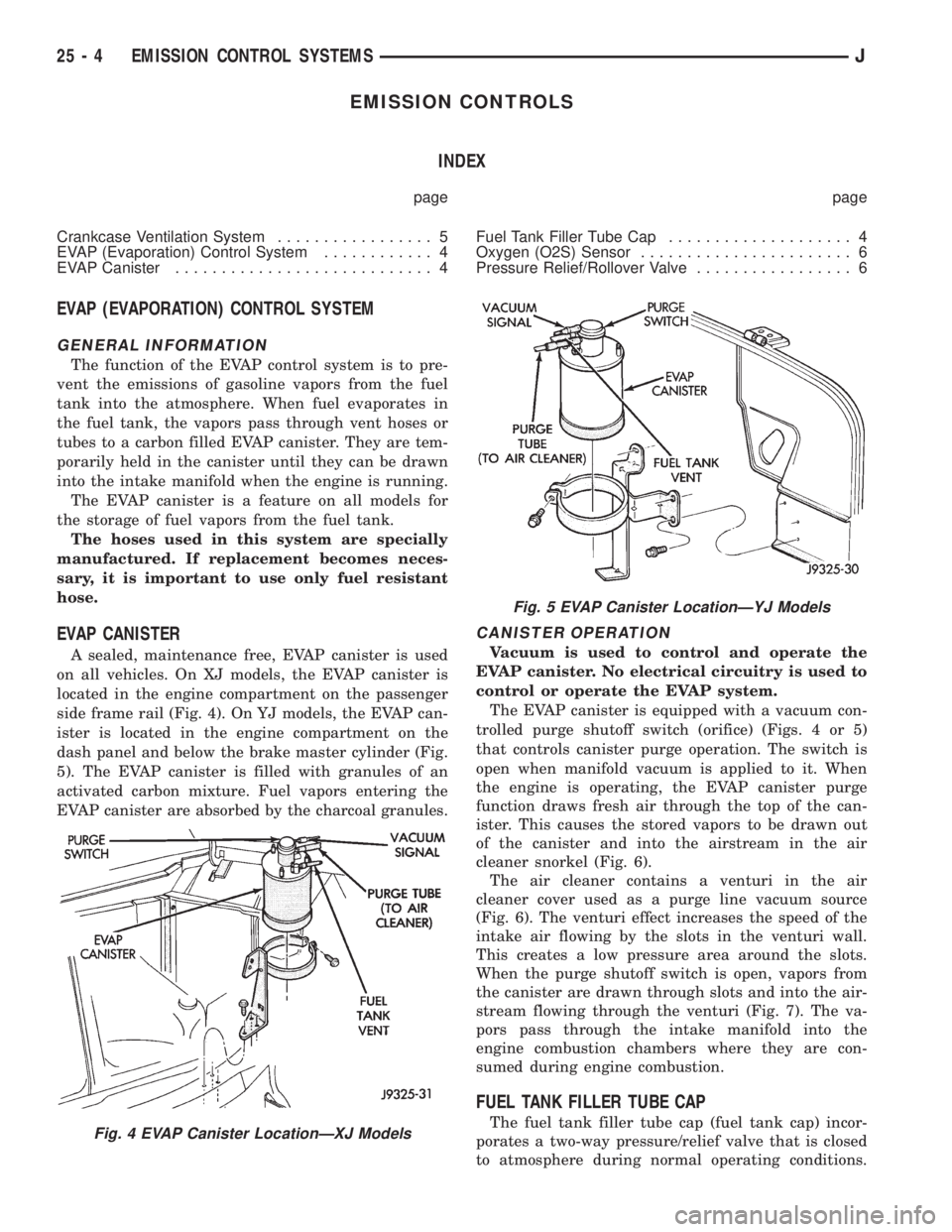

EMISSION CONTROLS
INDEX
page page
Crankcase Ventilation System................. 5
EVAP (Evaporation) Control System............ 4
EVAP Canister............................ 4Fuel Tank Filler Tube Cap.................... 4
Oxygen (O2S) Sensor....................... 6
Pressure Relief/Rollover Valve................. 6
EVAP (EVAPORATION) CONTROL SYSTEM
GENERAL INFORMATION
The function of the EVAP control system is to pre-
vent the emissions of gasoline vapors from the fuel
tank into the atmosphere. When fuel evaporates in
the fuel tank, the vapors pass through vent hoses or
tubes to a carbon filled EVAP canister. They are tem-
porarily held in the canister until they can be drawn
into the intake manifold when the engine is running.
The EVAP canister is a feature on all models for
the storage of fuel vapors from the fuel tank.
The hoses used in this system are specially
manufactured. If replacement becomes neces-
sary, it is important to use only fuel resistant
hose.
EVAP CANISTER
A sealed, maintenance free, EVAP canister is used
on all vehicles. On XJ models, the EVAP canister is
located in the engine compartment on the passenger
side frame rail (Fig. 4). On YJ models, the EVAP can-
ister is located in the engine compartment on the
dash panel and below the brake master cylinder (Fig.
5). The EVAP canister is filled with granules of an
activated carbon mixture. Fuel vapors entering the
EVAP canister are absorbed by the charcoal granules.
CANISTER OPERATION
Vacuum is used to control and operate the
EVAP canister. No electrical circuitry is used to
control or operate the EVAP system.
The EVAP canister is equipped with a vacuum con-
trolled purge shutoff switch (orifice) (Figs. 4 or 5)
that controls canister purge operation. The switch is
open when manifold vacuum is applied to it. When
the engine is operating, the EVAP canister purge
function draws fresh air through the top of the can-
ister. This causes the stored vapors to be drawn out
of the canister and into the airstream in the air
cleaner snorkel (Fig. 6).
The air cleaner contains a venturi in the air
cleaner cover used as a purge line vacuum source
(Fig. 6). The venturi effect increases the speed of the
intake air flowing by the slots in the venturi wall.
This creates a low pressure area around the slots.
When the purge shutoff switch is open, vapors from
the canister are drawn through slots and into the air-
stream flowing through the venturi (Fig. 7). The va-
pors pass through the intake manifold into the
engine combustion chambers where they are con-
sumed during engine combustion.
FUEL TANK FILLER TUBE CAP
The fuel tank filler tube cap (fuel tank cap) incor-
porates a two-way pressure/relief valve that is closed
to atmosphere during normal operating conditions.Fig. 4 EVAP Canister LocationÐXJ Models
Fig. 5 EVAP Canister LocationÐYJ Models
25 - 4 EMISSION CONTROL SYSTEMSJ

- XJ, ANTENNA REMOVE/INSTALL........8F-8
- XJ, GENERAL INFORMATION...........8K-1
- XJ, MULTI-FUNCTION SWITCH..........8J-4
- XJ, MULTI-FUNCTION SWITCH
REMOVE/INSTALL.....................8J-5
- XJ, RADIO REMOVE/INSTALL...........8F-6
- XJ, SOUND BAR REMOVE/INSTALL......8F-8
- XJ, SPEAKERS REMOVE/INSTALL........8F-6
- XJ, TURN SIGNAL/HAZARD WARNING
SYSTEM.............................8J-3
- YJ, ANTENNA REMOVE/INSTALL.......8F-10
- YJ, BUZZER MODULE SCHEMATIC......8U-4
- YJ, GENERAL INFORMATION..........8K-10
- YJ, HAZARD WARNING SYSTEM........8J-4
- YJ, RADIO REMOVE/INSTALL...........8F-9
- YJ, SERVICE PROCEDURES...........8K-17
- YJ, SOUND BAR REMOVE/INSTALL.....8F-10
- YJ, SPEAKERS REMOVE/INSTALL........8F-9
- YJ, TURN SIGNAL SYSTEM............8J-3
- YJ, TURN SIGNAL/HAZARD WARNING
SWITCH REMOVE/INSTALL..............8J-5
30RH/32RH AUTOMATIC TRANSMISSION . . 21-67
30RH/32RH GENERAL SPECIFICATIONS . . 21-335
30RH/32RH IN-VEHICLE SERVICE........21-99
30RH/32RH PRESSURE TEST
SPECIFICATIONS....................21-336
30RH/32RH TORQUE SPECIFICATIONS . . . 21-336
30RH/32RH TRANSMISSION DIAGNOSIS . . 21-70
30RH/32RH TRANSMISSION OVERHAUL . 21-119
30RH/32RH TRANSMISSION REMOVAL
AND INSTALLATION..................21-115
4-CYLINDER ENGINE, ENGINE FIRING
ORDERÐ2.5L.......................8D-32
60-WAY CONNECTOR, POWERTRAIN
CONTROL MODULE (PCM).............14-40
6-CYLINDER ENGINE, AUXILIARY
ELECTRIC COOLING FANÐXJ MODELS
WITH 4.0L...........................7-35
6-CYLINDER ENGINE, ENGINE FIRING
ORDERÐ4.0L.......................8D-32
ABS BRAKE DIAGNOSIS.................5-3
ABS COMPONENT SERVICEABILITY.......5-37
ABS DIAGNOSTIC CONNECTOR.......5-35,5-3
ABS OPERATION AND SERVICE..........5-33
ABS POWER RELAY; ANTI-LOCK BRAKES
(XJ).............................8W-32-1
ABS POWER RELAY; ANTI-LOCK BRAKES
(XJ-RHD).........................8W-32-1
ABS POWER RELAY; ANTI-LOCK BRAKES
(YJ).............................8W-32-1
ABS PUMP MOTOR RELAY; ANTI-LOCK
BRAKES (XJ)......................8W-32-1
ABS PUMP MOTOR RELAY; ANTI-LOCK
BRAKES (XJ-RHD).................8W-32-1
ABS PUMP MOTOR RELAY; ANTI-LOCK
BRAKES (YJ)......................8W-32-1
ABS SYSTEM POWER-UP AND
INITIALIZATION.......................5-35
ABS WARNING LAMP; ANTI-LOCK
BRAKES (XJ)......................8W-32-2
ABS WARNING LAMP; ANTI-LOCK
BRAKES (XJ-RHD).................8W-32-2
ABS WARNING LAMP; ANTI-LOCK
BRAKES (YJ)
......................8W-32-2
ABS WARNING LAMP; INSTRUMENT
CLUSTER (XJ)
.....................8W-40-2
ABS WARNING LAMP; INSTRUMENT
CLUSTER (XJ-RHD)
................8W-40-2
ABS WARNING LAMP; INSTRUMENT
CLUSTER (YJ)
.....................8W-40-2
ABS WARNING LIGHT DISPLAY
...........5-3
ABSOLUTE PRESSURE (MAP) SENSOR,
MANIFOLD; FUEL SYSTEM
.............14-63
ABSOLUTE PRESSURE (MAP) SENSOR,
MANIFOLD; FUEL/IGNITION (YJ)
......8W-30-4
ABSOLUTE PRESSURE (MAP) SENSOR,
MANIFOLD; IGNITION SYSTEMS
....8D-23,8D-5
ABSOLUTE PRESSURE (MAP) SENSOR
TEST, MANIFOLD; FUEL SYSTEM
........14-47
ABSOLUTE PRESSURE (MAP) SENSOR
TEST, MANIFOLD; IGNITION SYSTEMS
....8D-11
ABSOLUTE PRESSURE (MAP)
SENSORÐPCM INPUT, MANIFOLD
.......14-23
ABSOLUTE PRESSURE SENSOR,
MANIFOLD; FUEL/IGNITION (XJ)
......8W-30-4
ABSOLUTE PRESSURE SENSOR,
MANIFOLD; FUEL/IGNITION (XJ-RHD)
. . 8W-30-4ABSORBER, SHOCK; FRONT
SUSPENSION AND AXLE............2-13,2-16
ABSORBER, SHOCK; REAR SUSPENSION
AND AXLES........................3-4,3-7
A/C BLOWER MOTOR.................24-35
A/C COMPONENTS....................24-4
A/C COMPRESSOR; AIR CONDITIONING/
HEATER (YJ)......................8W-42-2
A/C COMPRESSOR CLUTCH............24-15
A/C COMPRESSOR CLUTCH RELAY . 24-15,24-16
A/C CONDENSER.....................24-34
A/C CONTROL REPLACEMENT, HEATER . . . 24-23
A/C OPERATION, HEATER...............24-1
A/C RECIRCULATING DOOR VACUUM
MOTOR REPLACEMENT...............24-27
ACCELERATION SWITCH; ANTI-LOCK
BRAKES (XJ)......................8W-32-1
ACCELERATION SWITCH; ANTI-LOCK
BRAKES (XJ-RHD).................8W-32-1
ACCELERATION SWITCH; ANTI-LOCK
BRAKES (YJ)......................8W-32-1
ACCELERATION SWITCH; BRAKES........5-35
ACCELERATION SWITCH INSTALLATION....5-39
ACCELERATION SWITCH OPERATION......5-37
ACCELERATION SWITCH REMOVAL.......5-39
ACCELERATOR PEDAL.................14-17
ACCELERATOR PEDAL AND THROTTLE
CABLE........................14-17,14-58
ACCESSORY DRIVE BELT...............0-21
ACCESSORY DRIVE BELTS, ENGINE.......7-38
ACCESSORY LAMP AND HEATER
CONTROL PANEL LAMP; INTERIOR
LIGHTING (YJ)....................8W-44-1
ACCUMULATOR PISTONS AND SPRINGS . 21-189
A/C-HEATER BLOWER MOTOR; AIR
CONDITIONING/HEATER (YJ).........8W-42-2
A/C-HEATER SYSTEM; AIR
CONDITIONING/HEATER (XJ).........8W-42-1
A/C-HEATER SYSTEM; AIR
CONDITIONING/HEATER (XJ-RHD).....8W-42-1
ADD-A-TRUNKÐYJ..................23-157
ADJUSTER/MOTORS, POWER SEAT . . . 8R-1,8R-2
ADJUSTER/MOTORS REMOVE/INSTALL,
POWER SEAT........................8R-3
ADJUSTMENT, BRAKELIGHT SWITCH......5-32
ADJUSTMENT, COMPASS VARIATION......8C-5
ADJUSTMENT, DIFFERENTIAL SHIM
PACK MEASUREMENT..................2-43
ADJUSTMENT, DRUM BRAKE............5-57
ADJUSTMENT, FRONT BAND...........21-102
ADJUSTMENT, GEARSHIFT CABLE/
LINKAGE...........................21-71
ADJUSTMENT, PARK INTERLOCK CABLE . 21-195
ADJUSTMENT PROCEDURES,
TRANSMISSION ASSEMBLY...........21-155
ADJUSTMENT, REAR WHEEL SENSOR
INSTALLATION........................5-38
ADJUSTMENT, SHIFT CABLE...........21-195
ADJUSTMENT, SHIFT LINKAGE . . . 21-286,21-309
ADJUSTMENT, TRANSMISSION
THROTTLE CABLE...................21-194
ADJUSTMENT, TRANSMISSION
THROTTLE VALVE CABLE..............21-71
ADJUSTMENT, VALVE BODY ASSEMBLY . . 21-153
ADJUSTMENT (XJ), PARK INTERLOCK
CABLE............................21-101
ADJUSTMENT (XJ), SHIFT CABLE.......21-100
ADJUSTMENT (XJ/YJ), PARKING BRAKE
CABLE TENSIONER....................5-69
ADJUSTMENT (XJ/YJ), THROTTLE VALVE
CABLE............................21-101
ADJUSTMENT (YJ), SHIFT LINKAGE.....21-100
ADJUSTMENTÐMAJOR, DOOR
ALIGNMENT.........................23-41
ADJUSTMENTÐMINOR, DOOR
ALIGNMENT.........................23-37
ADJUSTMENTÐXJ, DOOR LATCH........23-48
ADJUSTMENTÐXJ, HOOD.............23-10
ADJUSTMENTÐXJ, LIFTGATE...........23-63
ADJUSTMENTÐYJ, TAILGATE..........23-121
ADJUSTMENTS, ALIGNMENT
MEASUREMENTS
......................2-8
ADJUSTMENTS, STEERING GEAR
........19-24
AFTERMARKET PAINT AND TRIM
REPAIR PRODUCTSÐXJ
..............23-159
AFTERMARKET PAINT AND TRIM
REPAIR PRODUCTSÐYJ
..............23-160
AIR CLEANER
.......................14-29AIR CLEANER ELEMENT; EMISSION
CONTROL SYSTEMS...................25-7
AIR CLEANER ELEMENT; FUEL SYSTEM . . . 14-59
AIR CLEANER ELEMENT; LUBRICATION
AND MAINTENANCE...................0-18
AIR CLEANER HOUSING...............14-58
AIR CONDITIONING...................24-37
AIR CONDITIONING (A/C) CLUTCH
RELAY.............................14-58
AIR CONDITIONING (A/C) CLUTCH
RELAYÐPCM OUTPUT................14-26
AIR CONDITIONING (A/C) CONTROLSÐ
PCM INPUT.........................14-21
AIR CONDITIONING CONTROLSÐXJ
VEHICLES..........................24-15
AIR CONDITIONING CONTROLSÐYJ
VEHICLES..........................24-16
AIR CONDITIONING, HEATER; AIR
CONDITIONING/HEATER (YJ).........8W-42-2
AIR CONDITIONING OPERATION; AIR
CONDITIONING/HEATER (XJ).........8W-42-2
AIR CONDITIONING OPERATION; AIR
CONDITIONING/HEATER (XJ-RHD).....8W-42-2
AIR CONDITIONING PERFORMANCE
TESTS.............................24-12
AIR CONDITIONING SCHEMATICÐXJ......24-5
AIR CONDITIONING TEST PROCEDURES,
HEATING...........................24-15
AIR CONTROL (IAC) MOTOR, IDLE; FUEL
SYSTEM............................14-62
AIR CONTROL (IAC) MOTOR, IDLE;
FUEL/IGNITION (XJ)................8W-30-2
AIR CONTROL (IAC) MOTOR, IDLE;
FUEL/IGNITION (YJ)................8W-30-2
AIR CONTROL (IAC) MOTOR, IDLE;
FUEL/IGNITION (XJ-RHD)............8W-30-2
AIR CONTROL (IAC) MOTORÐPCM
OUTPUT, IDLE.......................14-27
AIR CONTROL MOTOR TEST, IDLE.......14-49
AIR DEFLECTORÐXJ, COWL
WEATHERSTRIP SEAL/CROSSMEMBER . . . 23-11
AIR DOOR VACUUM MOTOR, FRESH.....24-34
AIR EXHAUST GRILLEÐXJ.............23-25
AIR GAP, SPEED SENSOR...............5-37
AIR INTAKE DUCT, FRESH..............24-34
AIR PRESSURE TEST.................21-74
AIR TEMPERATURE SENSOR, INTAKE;
FUEL/IGNITION (XJ)................8W-30-4
AIR TEMPERATURE SENSOR, INTAKE;
FUEL/IGNITION (YJ)................8W-30-4
AIR TEMPERATURE SENSOR, INTAKE;
FUEL/IGNITION (XJ-RHD)............8W-30-4
AIR TEMPERATURE SENSOR, INTAKE
MANIFOLD; FUEL SYSTEM.............14-60
AIR TEMPERATURE SENSOR, INTAKE
MANIFOLD; IGNITION SYSTEMS....8D-23,8D-5
AIR TEMPERATURE, SENSOR
RESISTANCE (OHMS)ÐCOOLANT
TEMPERATURE SENSOR/MANIFOLD......14-46
AIR TEMPERATURE SENSOR TEST,
INTAKE MANIFOLD; FUEL SYSTEM.......14-46
AIR TEMPERATURE SENSOR TEST,
INTAKE MANIFOLD; IGNITION
SYSTEMS..........................8D-11
AIR TEMPERATURE SENSORÐPCM
INPUT, INTAKE MANIFOLD.............14-22
AIRBAG MODULE.....................8M-1
AIRBAG MODULE HANDLING............8M-2
AIRBAG MODULE REMOVE/INSTALL......8M-3
AIRBAG MODULE REMOVEÐINSTALL....19-49
AIRBAG SYSTEM; RESTRAINT SYSTEMS . . 8M-1
AIRBAG SYSTEM; STEERING...........19-47
AIRBAG SYSTEM SERVICE (DEPLOYED) . . . 8M-2
AIR-CONDITIONER COMPRESSOR........0-21
ALIGNMENT ADJUSTMENTÐMAJOR,
DOOR.............................23-41
ALIGNMENT ADJUSTMENTÐMINOR,
DOOR.............................23-37
ALIGNMENT, FRONT WHEEL..............2-5
ALIGNMENTÐXJ, HEADLAMP...........8L-6
ALIGNMENTÐYJ, HEADLAMP
..........8L-22
ALIGNMENTÐYJ, HOOD
..............23-107
ANCHOR AND BUMPERÐXJ, LIFTGATE
LICENSE PLATE SCREW
...............23-65
ANGLE, GROUND CLEARANCE AND
RAMP
..............................0-11
ANGLE MEASUREMENT, UNIVERSAL
JOINT
..............................16-4
JINDEX 1
Description Group-Page Description Group-Page Description Group-Page

ANTENNA........................8F-2,8F-5
ANTENNA, POWER; RADIO (XJ-RHD) . . . 8W-47-1
ANTENNA REMOVE/INSTALL - XJ.........8F-8
ANTENNA REMOVE/INSTALL - YJ........8F-10
ANTILOCK BRAKES (ABS)................5-1
ANTILOCK BRAKING MODE, ABS
OPERATION IN.......................5-36
ANTILOCK ECU AND HCU DIAGNOSIS......5-3
APPLICATION CHARTS, GEARTRAIN
OPERATION........................21-169
APPLICATION, TRANSMISSION..........21-67
APPLICATIONÐXJ VEHICLES, BULB......8L-18
APPLICATIONÐYJ VEHICLES, BULB......8L-32
APPLIQUEÐXJ, QUARTER WINDOW.....23-25
APPLIQUEÐYJ, RADIATOR GRILLE.....23-104
APRONSÐYJ, FENDER SPLASH........23-115
ARM, LOWER SUSPENSION.............2-13
ARM, PITMAN..................19-17,19-20
ARM REMOVE/INSTALL, LIFTGATE
WIPER.............................8K-17
ARM REMOVE/INSTALL, WINDSHIELD
WIPER.............................8K-17
ARM, UPPER SUSPENSION.............2-12
ARMING/DISARMING MECHANISM;
RESTRAINT SYSTEMS.................8M-2
ARMING/DISARMING MECHANISM;
STEERING..........................19-48
ARMS AND PUSH RODS, ROCKER....9-23,9-65
ASH RECEIVER TRAY LAMPÐXJ, I/P.....23-80
ASSEMBLY....................19-63,19-71
ASSEMBLY AND ADJUSTMENT, VALVE
BODY.............................21-153
ASSEMBLY, CALIPER...................5-50
ASSEMBLY, COMPRESSOR CLUTCH......24-20
ASSEMBLY, DIFFERENTIAL; FRONT
SUSPENSION AND AXLE................2-38
ASSEMBLY, DIFFERENTIAL; REAR
SUSPENSION AND AXLES...............3-21
ASSEMBLY, FINAL; FRONT SUSPENSION
AND AXLE...........................2-46
ASSEMBLY, FINAL; REAR SUSPENSION
AND AXLES..........................3-29
ASSEMBLY, FUEL RAIL................14-62
ASSEMBLY, GEAR....................19-43
ASSEMBLY, IMPACT SENSOR/INFLATOR . . . 8M-2
ASSEMBLY, PINION MEASUREMENT.......3-22
ASSEMBLY REMOVE/INSTALL, CLUSTER . . 8E-17,
8E-35
ASSEMBLY REPLACEMENT, ADJUSTER
PLUG..............................19-29
ASSEMBLY REPLACEMENT, COLUMN.....19-52
ASSEMBLY REPLACEMENTÐXJ
VEHICLES, DRIVE AXLE; FRONT
SUSPENSION AND AXLE................2-23
ASSEMBLY REPLACEMENTÐXJ
VEHICLES, DRIVE AXLE; REAR
SUSPENSION AND AXLES...........3-14,3-31
ASSEMBLY REPLACEMENTÐYJ
VEHICLES, DRIVE AXLE; FRONT
SUSPENSION AND AXLE................2-24
ASSEMBLY REPLACEMENTÐYJ
VEHICLES, DRIVE AXLE; REAR
SUSPENSION AND AXLES...............3-14
ASSEMBLY (SHORT BLOCK), SERVICE
ENGINE..............................9-4
ASSEMBLY TIPS, TRANSMISSION......21-155
ASSEMBLY, TRANSFER CASE
....21-294,21-319
ASSEMBLY/INSTALLATION, PINION GEAR
. . 2-42
ASSEMBLYÐXJ VEHICLES, ENGINE
. . . 9-18,9-59
ASSEMBLYÐYJ VEHICLES, ENGINE
. . . 9-20,9-62
ASSIST HANDLEÐXJ
.................23-89
ASSIST HANDLEÐYJ, FULL-METAL
DOOR
............................23-136
AUTO SHUTDOWN (ASD) RELAYÐPCM
OUTPUT
............................14-26
AUTOMATIC BELT TENSIONERÐXJ
MODELS WITH RIGHT HAND DRIVE
.......7-42
AUTOMATIC SHUT DOWN (ASD) RELAY;
FUEL/IGNITION (XJ)
................8W-30-1
AUTOMATIC SHUT DOWN (ASD) RELAY;
FUEL/IGNITION (YJ)
................8W-30-1
AUTOMATIC SHUT DOWN (ASD) RELAY;
FUEL/IGNITION (XJ-RHD)
............8W-30-1
AUTOMATIC SHUTDOWN (ASD) RELAY;
FUEL SYSTEM
.......................14-59
AUTOMATIC SHUTDOWN (ASD) RELAY;
IGNITION SYSTEMS
..............8D-17,8D-1AUTOMATIC SHUTDOWN (ASD) RELAY
TEST...............................8D-6
AUTOMATIC SHUTDOWN (ASD) RELAY
TESTING...........................14-46
AUTOMATIC SHUTDOWN (ASD)
SENSEÐPCM INPUT..................14-21
AUTOMATIC TRANSMISSION............0-23
AUTOMATIC TRANSMISSION, 30RH/
32RH..............................21-67
AUTOMATIC TRANSMISSION, AW-4.....21-165
AUTOMATIC TRANSMISSION SHIFTER/
IGNITION INTERLOCK MECHANISM......19-55
AUXILIARY ELECTRIC COOLING FANÐXJ
MODELS WITH 4.0L 6-CYLINDER
ENGINE.............................7-35
AW-4 ACCUMULATOR COMPONENT
IDENTIFICATION....................21-342
AW-4 AUTOMATIC TRANSMISSION......21-165
AW-4 BUSHING AND PISTON
CLEARANCE........................21-339
AW-4 CLUTCH AND BRAKE PACK
REQUIREMENTS....................21-341
AW-4 CLUTCH DISC AND PLATE
THICKNESS........................21-338
AW-4 GENERAL SPECIFICATIONS.......21-337
AW-4 IN-VEHICLE SERVICE............21-182
AW-4 OIL PUMP WEAR LIMITS........21-338
AW-4 RETAINER AND PISTON
SPECIFICATIONS....................21-340
AW-4 TORQUE SPECIFICATIONS........21-344
AW-4 TRANSMISSION DIAGNOSIS......21-176
AW-4 TRANSMISSION OVERHAUL......21-201
AW-4 TRANSMISSION REMOVAL AND
INSTALLATION......................21-198
AW-4 VALVE AND SPRING
IDENTIFICATION....................21-343
AW-4 VALVE BODY CHECK BALL
DIMENSIONS.......................21-341
AWAY, PEDAL FALLS....................5-5
AX 15 MANUAL TRANSMISSION........21-33
AX 4/5 MANUAL TRANSMISSION.........21-1
AXLE (2WD), MODEL 30 AXLE AND
TUBE...............................2-22
AXLE, 8 1/4......................3-30,3-51
AXLE ALIGNMENT, REAR...............3-10
AXLE AND TUBE AXLE (2WD), MODEL
30 .................................2-22
AXLE ASSEMBLY REPLACEMENTÐXJ
VEHICLES, DRIVE; FRONT
SUSPENSION AND AXLE................2-23
AXLE ASSEMBLY REPLACEMENTÐXJ
VEHICLES, DRIVE; REAR SUSPENSION
AND AXLES......................3-14,3-31
AXLE ASSEMBLY REPLACEMENTÐYJ
VEHICLES, DRIVE; FRONT
SUSPENSION AND AXLE................2-24
AXLE ASSEMBLY REPLACEMENTÐYJ
VEHICLES, DRIVE; REAR SUSPENSION
AND AXLES..........................3-14
AXLE BUSHING REPLACEMENT......2-12,2-34
AXLE, FRONT DRIVE....................2-3
AXLE, MODEL 30.....................2-49
AXLE, MODEL 30 FRONT...............2-49
AXLE, MODEL 35.................3-13,3-51
AXLE NOISE/VIBRATION DIAGNOSIS;
FRONT SUSPENSION AND AXLE..........2-18
AXLE NOISE/VIBRATION DIAGNOSIS;
REAR SUSPENSION AND AXLES
..........3-9
AXLE SHAFT
.........................3-16
AXLE SHAFT, HUB BEARING
.............2-25
AXLE SHAFT OIL SEAL REPLACEMENT,
INNER
..............................2-35
AXLE SHAFT SEAL AND BEARING
........3-17
AXLE SHAFT, SEAL AND BEARING
SERVICE
............................3-32
AXLE SPECIFICATIONS; FRONT
SUSPENSION AND AXLE
................2-49
AXLE SPECIFICATIONS; REAR
SUSPENSION AND AXLES
...............3-51
AXLEÐYJ VEHICLES, VACUUM
DISCONNECT
.........................2-27
AXLES
...............................3-1
AXLES, FRONT AND REAR
..............0-24
AXLE/SHIFT MOTOR DIAGNOSIS
(CONT'D), DISCONNECT
................2-30
AXLE/SHIFT MOTOR DIAGNOSIS,
DISCONNECT
.........................2-29BACKLASH AND CONTACT PATTERN
ANALYSIS; FRONT SUSPENSION AND
AXLE...............................2-45
BACKLASH AND CONTACT PATTERN
ANALYSIS; REAR SUSPENSION AND
AXLES..............................3-27
BACK-UP LAMPS; REAR LIGHTING (XJ) . 8W-51-1
BACK-UP LAMPS; REAR LIGHTING
(XJ-RHD).........................8W-51-1
BACK-UP LAMPS; REAR LIGHTING (YJ) . 8W-51-1
BACK-UP/REAR TURN SIGNAL/TAIL
LAMP BULB REPLACEMENTÐXJ........8L-12
BACK-UP/REAR TURN SIGNAL/TAIL
LAMP BULB REPLACEMENTÐYJ........8L-28
BALANCE, TIRE AND WHEEL............22-6
BALL DIMENSIONS, AW-4 VALVE BODY
CHECK............................21-341
BALL STUD REPLACEMENTÐXJ,
LIFTGATE SUPPORT ROD..............23-63
BALL STUDS, STEERING KNUCKLE.......2-32
BAR, STABILIZER; FRONT SUSPENSION
AND AXLE.......................2-11,2-15
BAR, STABILIZER; REAR SUSPENSION
AND AXLES...........................3-5
BAR, TRACK; FRONT SUSPENSION AND
AXLE...........................2-11,2-15
BAR, TRACK; REAR SUSPENSION AND
AXLES...............................3-8
BARÐXJ, SOUND....................23-94
BARÐYJ, SPORT...................23-132
BARRIERÐXJ, CARGO...............23-101
BASE COAT/CLEAR COAT FINISH.........23-158
BATTERY; BATTERY/STARTER/
GENERATOR SERVICE..................8B-1
BATTERY; BATTERY/STARTING/
CHARGING SYSTEMS DIAGNOSTICS......8A-2
BATTERY; LUBRICATION AND
MAINTENANCE.......................0-20
BATTERY CHARGING...................8A-7
BATTERY CHARGING TIME TABLE........8A-8
BATTERY CLASSIFICATIONS AND
RATINGS...........................8A-23
BATTERY DIAGNOSIS..................8A-4
BATTERY FEED; FUEL/IGNITION (XJ) . . . 8W-30-1
BATTERY FEED; FUEL/IGNITION (YJ) . . . 8W-30-2
BATTERY FEED; FUEL/IGNITION
(XJ-RHD).........................8W-30-1
BATTERY RATINGS....................8A-3
BATTERY REMOVE/INSTALL.............8B-1
BATTERY SPECIFICATIONS; BATTERY/
STARTER/GENERATOR SERVICE..........8B-8
BATTERY SPECIFICATIONS; BATTERY/
STARTING/CHARGING SYSTEMS
DIAGNOSTICS.......................8A-23
BATTERY TRAYÐXJ..................23-14
BATTERY TRAYÐYJ.................23-110
BATTERY VOLTAGEÐPCM INPUT........14-21
B/C-PILLAR AND LIFTGATE PILLAR TRIM
COVERSÐXJ........................23-88
BEARING AND AXLE SHAFT, HUB.........2-25
BEARING, AXLE SHAFT SEAL............3-17
BEARING LUBRICANTS, CHASSIS
COMPONENT AND WHEEL..............0-28
BEARING NOISE, GEAR; FRONT
SUSPENSION AND AXLE................2-18
BEARING NOISE, GEAR; REAR
SUSPENSION AND AXLES................3-9
BEARING REPLACEMENT, PILOT..........6-12
BEARING REPLACEMENT, PITMAN
SHAFT SEALS.......................19-34
BEARING REPLACEMENT, RELEASE.......6-11
BEARING SERVICE, AXLE SHAFT, SEAL....3-32
BEARINGS, CRANKSHAFT MAIN......9-45,9-87
BEARINGS, FRONT WHEEL..............0-28
BELT, ACCESSORY DRIVE...............0-21
BELT DIAGNOSIS......................7-38
BELT INDICATOR WARNING LAMP, SEAT;
INSTRUMENT CLUSTER (XJ).........8W-40-2
BELT INDICATOR WARNING LAMP, SEAT;
INSTRUMENT CLUSTER (XJ-RHD).....8W-40-2
BELT SCHEMATICS....................7-38
BELT SERVICEÐEXCEPT RIGHT HAND
DRIVE
..............................7-40
BELT SERVICEÐXJ MODELS WITH
RIGHT HAND DRIVE
...................7-42
BELT SWITCH, DRIVER'S SEAT
......8U-1,8U-3
BELT TENSION, DRIVE
.................7-45
BELT TENSION SPECIFICATIONS
..........7-38
2 INDEXJ
Description Group-Page Description Group-Page Description Group-Page

CLUSTER GROUND; INSTRUMENT
CLUSTER (XJ-RHD)................8W-40-2
CLUSTER ILLUMINATION LAMPS . . 8E-16,8E-26,
8E-34,8E-4
CLUSTER, INSTRUMENT; INSTRUMENT
CLUSTER (XJ).....................8W-40-1
CLUSTER, INSTRUMENT; INSTRUMENT
CLUSTER (XJ-RHD)................8W-40-1
CLUSTER, INSTRUMENT; INSTRUMENT
CLUSTER (YJ).....................8W-40-1
CLUSTER (LHD), HIGH-LINE GAUGE.......8E-9
CLUSTER (LHD), TELL-TALE............8E-10
CLUSTER, LOW-LINE GAUGE............8E-8
CLUSTER, MAIN.....................8E-30
CLUSTERS, INSTRUMENT..........8E-24,8E-1
CLUTCH, A/C COMPRESSOR............24-15
CLUTCH AND BRAKE PACK
REQUIREMENTS, AW-4...............21-341
CLUTCH AND BRAKE PEDAL BUSHINGS . . . 0-22
CLUTCH ASSEMBLY, COMPRESSOR......24-20
CLUTCH COMPONENT LUBRICATION......6-10
CLUTCH COMPONENTS..................6-1
CLUTCH, COMPRESSOR...............24-16
CLUTCH CONTAMINATION...............6-3
CLUTCH COVER AND DISC
INSTALLATION........................6-10
CLUTCH COVER AND DISC REMOVAL.....6-10
CLUTCH COVER AND DISC RUNOUT.......6-3
CLUTCH DIAGNOSIS.....................6-3
CLUTCH DISC AND PLATE THICKNESS,
AW-4 .............................21-338
CLUTCH FLUID LEVEL..................6-14
CLUTCH HOUSING MISALIGNMENT........6-4
CLUTCH HOUSING REPLACEMENT........6-13
CLUTCH HYDRAULIC LINKAGE
INSTALLATION........................6-14
CLUTCH HYDRAULIC LINKAGE REMOVAL . . 6-13
CLUTCH INSPECTION, TORQUE
CONVERTER STATOR................21-199
CLUTCH LINKAGE FLUID.................6-1
CLUTCH MASTER CYLINDER............0-22
CLUTCH MISALIGNMENT................6-3
CLUTCH OPERATION....................6-2
CLUTCH OVERHAUL, DIRECT..........21-228
CLUTCH OVERHAUL, OVERDRIVE
PLANETARY GEAR...................21-218
CLUTCH OVERHAUL, SUN GEAR AND
NO. 1 ONE-WAY....................21-238
CLUTCH PEDAL INSTALLATION..........6-15
CLUTCH PEDAL REMOVAL..............6-15
CLUTCH RELAY, A/C COMPRESSOR . 24-15,24-16
CLUTCH RELAY, AIR CONDITIONING
(A/C)..............................14-58
CLUTCH RELAY TEST, TORQUE
CONVERTER........................14-48
CLUTCH RELAY, TORQUE CONVERTER....14-65
CLUTCH RELAYÐPCM OUTPUT, AIR
CONDITIONING (A/C)..................14-26
CLUTCH RELAYÐPCM OUTPUT, TORQUE
CONVERTER........................14-29
CLUTCH SAFETY PRECAUTIONS..........6-10
CLUTCH SERVICE
.....................6-10
CLUTCH SWITCH, FIN SENSING
CYCLING
......................24-15,24-31
CLUTCH (TCC) SOLENOID AND RELAY,
TORQUE CONVERTER; FUEL/IGNITION
(XJ)
.............................8W-30-4
CLUTCH (TCC) SOLENOID AND RELAY,
TORQUE CONVERTER; TRANSMISSION
CONTROLS (YJ)
...................8W-31-1
CLUTCH (TCC) SOLENOID AND
RELAYÐ2.5L ENGINE ONLY, TORQUE
CONVERTER; TRANSMISSION
CONTROLS (XJ)
...................8W-31-1
CLUTCHÐLOW-REVERSE DRUMÐREAR
SUPPORT OVERHAUL, OVERRUNNING
. . . 21-125
CODE DECODING, VEHICLE
...........Intro.-5
CODE DESIGNATIONS, VEHICLE
........Intro.-1
CODE (DTC), DIAGNOSTIC TROUBLE
.....14-54
CODE, GENERATOR DIAGNOSTIC
TROUBLE
...........................8A-22
CODE IDENTIFICATION, WIRE; WIRING
DIAGRAMSÐGENERAL INFORMATION
(XJ)
...............................8W-1
CODE PLATE, VEHICLE
...............Intro.-4
CODE, SPEED CONTROL DIAGNOSTIC
TROUBLE
...........................8H-5CODES AND DIMENSIONS,
DESIGNATIONS, LABELS/PLATES.......Intro.-1
COIL, EVAPORATOR..................24-30
COIL, IGNITION; FUEL SYSTEM.........14-62
COIL, IGNITION; FUEL/IGNITION (XJ) . . . 8W-30-2
COIL, IGNITION; FUEL/IGNITION (YJ) . . . 8W-30-2
COIL, IGNITION; IGNITION SYSTEMS....8D-22,
8D-4,8D-9
COIL, IGNITION; FUEL/IGNITION
(XJ-RHD).........................8W-30-2
COIL RESISTANCE, IGNITION............8D-9
COIL SPRING........................2-14
COILÐPCM OUTPUT, IGNITION.........14-28
COLD CRANKING SPECIFICATIONS, 2.5L
STARTING SYSTEM...................8A-23
COLD CRANKING SPECIFICATIONS, 4.0L
STARTING SYSTEM...................8A-23
COLUMN ASSEMBLY REPLACEMENT.....19-52
COLUMN COMPONENT SERVICE........19-54
COLUMN GENERAL SERVICEÐXJ,
STEERING..........................19-47
COLUMN, NON-TILT STEERING..........19-60
COLUMN REPLACEMENT..............19-58
COLUMN, TILT STEERING..............19-66
COLUMNÐXJ, STEERING..............19-78
COLUMNÐYJ, STEERING.........19-58,19-78
COMBINATION BUZZER; INTERIOR
LIGHTING (YJ)....................8W-44-1
COMBINATION FLASHER; TURN SIGNALS
(XJ).............................8W-52-1
COMBINATION VALVE..................5-34
COMBINATION VALVE INSTALLATION
(WITH ABS), MASTER CYLINDER.........5-20
COMBINATION VALVE REMOVAL (WITH
ABS), MASTER CYLINDER..............5-17
COMBINATION VALVE REPLACEMENT
(NON-ABS)..........................5-16
COMBUSTION PRESSURE LEAKAGE
TEST, CYLINDER.......................9-6
COMBUSTION PRESSURE LEAKAGE
TEST DIAGNOSIS, CYLINDER.............9-7
COMFORT SWITCH, TRANSMISSION;
TRANSMISSION CONTROLS (XJ-RHD) . . 8W-31-1
COMPASS...........................8C-1
COMPASS/DISPLAY SELF-DIAGNOSTIC
TEST...............................8C-2
COMPASS/THERMOMETER DIAGNOSIS....8C-4
COMPENSATION, CALIPER OPERATION
AND WEAR..........................5-45
COMPONENTSÐYJ, EVAPORATIVE
HOUSING............................24-6
COMPONENTSÐYJ, INSTRUMENT
PANEL............................23-152
COMPONENTSÐYJ VEHICLES, BODY....23-102
COMPRESSION PRESSURE TEST,
CYLINDER............................9-5
COMPRESSOR.......................24-19
COMPRESSOR, A/C; AIR CONDITIONING/
HEATER (YJ)......................8W-42-2
COMPRESSOR, AIR-CONDITIONER........0-21
COMPRESSOR CLUTCH...............24-16
COMPRESSOR CLUTCH, A/C............24-15
COMPRESSOR CLUTCH ASSEMBLY......24-20
COMPRESSOR CLUTCH RELAY, A/C . 24-15,24-16
COMPRESSOR SERVICE...............24-19
CONDENSER, A/C
....................24-34
CONDENSER FILTER DRIERÐ2.5L
ENGINES
...........................24-27
CONDENSERÐ4.0L ENGINES
...........24-28
CONDITION, CHECKING FLUID LEVEL
....21-182
CONDITIONING (A/C) CLUTCH RELAY,
AIR
...............................14-58
CONDITIONING (A/C) CLUTCH
RELAYÐPCM OUTPUT, AIR
............14-26
CONDITIONING (A/C) CONTROLSÐPCM
INPUT, AIR
.........................14-21
CONDITIONING, AIR
..................24-37
CONDITIONING CONTROLSÐXJ
VEHICLES, AIR
......................24-15
CONDITIONING CONTROLSÐYJ
VEHICLES, AIR
......................24-16
CONDITIONING, HEATER AND AIR; AIR
CONDITIONING/HEATER (YJ)
.........8W-42-2
CONDITIONING OPERATION, AIR; AIR
CONDITIONING/HEATER (XJ)
.........8W-42-2
CONDITIONING OPERATION, AIR; AIR
CONDITIONING/HEATER (XJ-RHD)
.....8W-42-2CONDITIONING PERFORMANCE TESTS,
AIR ...............................24-12
CONDITIONING SCHEMATICÐXJ, AIR.....24-5
CONDITIONING TEST PROCEDURES,
HEATING AND AIR....................24-15
CONDITIONS, NORMAL OPERATING........5-3
CONNECTING ROD BEARING FITTING
CHART..........................9-41,9-83
CONNECTING RODS, PISTONS.......9-39,9-81
CONNECTIONS, INTERMITTENT AND
POOR; WIRING DIAGRAMSÐGENERAL
INFORMATION (XJ)...................8W-4
CONNECTIONS, RADIO ILLUMINATION
RELAY..............................8F-4
CONNECTIONS, STARTER RELAY........8A-15
CONNECTOR, ABS DIAGNOSTIC.......5-35,5-3
CONNECTOR AND TERMINAL
REPLACEMENT; WIRING DIAGRAMSÐ
GENERAL INFORMATION (XJ)...........8W-7
CONNECTOR, DATA LINK; ANTI-LOCK
BRAKES (XJ)......................8W-32-2
CONNECTOR, DATA LINK; ANTI-LOCK
BRAKES (XJ-RHD).................8W-32-2
CONNECTOR, DATA LINK; ANTI-LOCK
BRAKES (YJ)......................8W-32-2
CONNECTOR, DATA LINK; FUEL/IGNITION
(XJ).............................8W-30-5
CONNECTOR, DATA LINK; FUEL/IGNITION
(YJ).............................8W-30-5
CONNECTOR, DATA LINK;
TRANSMISSION CONTROLS (XJ-RHD) . . 8W-31-1
CONNECTOR, DATA LINK; FUEL/IGNITION
(XJ-RHD)..........................8W-30-4
CONNECTOR LOCATIONS; CONNECTOR
LOCATIONS (XJ)...................8W-90-1
CONNECTOR LOCATIONS; CONNECTOR
LOCATIONS (XJ-RHD)...............8W-90-1
CONNECTOR LOCATIONS; CONNECTOR
LOCATIONS (YJ)...................8W-90-1
CONNECTOR LOCATIONS; CONNECTOR
PIN OUTS (XJ)....................8W-80-1
CONNECTOR LOCATIONS; CONNECTOR
PIN OUTS (XJ-RHD)................8W-80-1
CONNECTOR LOCATIONS; CONNECTOR
PIN OUTS (YJ)....................8W-80-1
CONNECTOR LOCATIONS; WIRING
DIAGRAMS (XJ)......................8W-1
CONNECTOR LOCATIONS; WIRING
DIAGRAMS (XJ-RHD)..................8W-1
CONNECTOR LOCATIONS; WIRING
DIAGRAMS (YJ)......................8W-1
CONNECTOR, POWERTRAIN CONTROL
MODULE (PCM) 60-WAY...............14-40
CONNECTOR REPLACEMENT; WIRING
DIAGRAMSÐGENERAL INFORMATION
(XJ)...............................8W-6
CONNECTORÐPCM INPUT, DATA LINK . . . 14-22
CONNECTORÐPCM OUTPUT, DATA LINK . . 14-27
CONNECTORS; WIRING DIAGRAMSÐ
GENERAL INFORMATION (XJ)...........8W-2
CONNECTORS (RHD), CLUSTER.........8E-11
CONNECTORS, TERMINAL/CONNECTOR
REPAIRÐMOLEX; WIRING
DIAGRAMSÐGENERAL INFORMATION
(XJ)...............................8W-6
CONSOLE, OVERHEAD; OVERHEAD
CONSOLE (XJ)....................8W-49-1
CONSOLE, OVERHEAD; OVERHEAD
CONSOLE (XJ-RHD)................8W-49-1
CONSOLE REMOVE/INSTALL, OVERHEAD . . . 8C-6
CONSOLE SHIFT, DISASSEMBLYÐ
COLUMN OR........................19-60
CONSOLEÐXJ, FULL FLOOR...........23-95
CONSOLEÐXJ, MINI-FLOOR............23-94
CONSOLEÐXJ, OVERHEAD; BODY
COMPONENTSÐXJ VEHICLES..........23-93
CONSOLEÐXJ, OVERHEAD; LAMPS......8L-17
CONSOLESÐYJ, FLOOR..............23-155
CONTACT PATTERN ANALYSIS,
BACKLASH; FRONT SUSPENSION AND
AXLE...............................2-45
CONTACT PATTERN ANALYSIS,
BACKLASH; REAR SUSPENSION AND
AXLES
..............................3-27
CONTACT/CLOCKSPRING, HORN
.........8G-4
CONTAMINATED BRAKELINING
............5-7
CONTAMINATION, BRAKE FLUID
.......5-10,5-7
CONTAMINATION, CLUTCH
...............6-3
JINDEX 5
Description Group-Page Description Group-Page Description Group-Page

CONTENTS; INSTRUMENT PANEL AND
GAUGESÐXJ........................8E-24
CONTENTS; LAMPS...................8L-19
CONTINUITY (LEFT POSITION), POWER
MIRROR SWITCH.....................8T-3
CONTINUITY, POWER SEAT SWITCH......8R-2
CONTINUITY (RIGHT POSITION), POWER
MIRROR SWITCH.....................8T-3
CONTINUITY TESTS, IGNITION SWITCH . . . 8D-30
CONTROL AND DISPLAY SYMBOLS,
INTERNATIONAL VEHICLE.............Intro.-5
CONTROL AND DISPLAY SYMBOLS,
VEHICLE.........................Intro.-10
CONTROL CABLES, VENT DOOR.........24-32
CONTROL DIAGNOSTIC TROUBLE CODE,
SPEED..............................8H-5
CONTROL, FUEL PUMP ELECTRICAL......14-5
CONTROL (IAC) MOTOR, IDLE AIR; FUEL
SYSTEM............................14-62
CONTROL (IAC) MOTOR, IDLE AIR;
FUEL/IGNITION (XJ)................8W-30-2
CONTROL (IAC) MOTOR, IDLE AIR;
FUEL/IGNITION (YJ)................8W-30-2
CONTROL (IAC) MOTOR, IDLE AIR;
FUEL/IGNITION (XJ-RHD)............8W-30-2
CONTROL (IAC) MOTORÐPCM OUTPUT,
IDLE AIR...........................14-27
CONTROL INFORMATION (VECI) LABEL,
VEHICLE EMISSION....................25-1
CONTROL MODULE (PCM) 60-WAY
CONNECTOR, POWERTRAIN............14-40
CONTROL MODULE (PCM),
POWERTRAIN; EMISSION CONTROL
SYSTEMS...........................25-7
CONTROL MODULE (PCM),
POWERTRAIN; FUEL SYSTEM......14-20,14-64
CONTROL MODULE (PCM),
POWERTRAIN; IGNITION SYSTEMS......8D-11,
8D-23,8D-5
CONTROL MODULE, POWERTRAIN . . . 8H-1,8H-7
CONTROL MODULE (TCM) SERVICE,
TRANSMISSION.....................21-183
CONTROL MODULE, TRANSMISSION;
TRANSMISSION CONTROLS (XJ-RHD) . . 8W-31-1
CONTROL MODULEÐ4.0L ENGINE ONLY,
TRANSMISSION; TRANSMISSION
CONTROLS (XJ)...................8W-31-1
CONTROL MOTOR TEST, IDLE AIR.......14-49
CONTROL PANEL LAMP, ACCESSORY
LAMP AND HEATER; INTERIOR
LIGHTING (YJ)....................8W-44-1
CONTROL REPLACEMENT, HEATER.......24-32
CONTROL REPLACEMENT, HEATER AND
A/C................................24-23
CONTROL SERVO REMOVE/INSTALL,
SPEED..............................8H-9
CONTROL SERVO, SPEED..........8H-1,8H-6
CONTROL SWITCH REMOVE/INSTALL,
SPEED..............................8H-9
CONTROL SWITCH, SPEED.........8H-1,8H-6
CONTROL SYSTEM, EMISSION...........0-20
CONTROL SYSTEM, EVAP
(EVAPORATION)......................25-4
CONTROL SYSTEM MAINTENANCE,
EMISSION............................0-4
CONTROL THERMOSTAT, TEMPERATURE . . 24-34
CONTROL, THERMOSTATIC.............24-16
CONTROL UNIT (ECU), ELECTRONIC......5-34
CONTROL UNIT (HCU), HYDRAULIC.......5-33
CONTROL UNIT, HYDRAULIC; ANTI-LOCK
BRAKES (XJ)......................8W-32-2
CONTROL UNIT, HYDRAULIC; ANTI-LOCK
BRAKES (XJ-RHD).................8W-32-2
CONTROL UNIT, HYDRAULIC; ANTI-LOCK
BRAKES (YJ)......................8W-32-2
CONTROL VALVE FITTING O-RING SEAL,
FLOW..............................19-14
CONTROL, VEHICLE SPEED; VEHICLE
SPEED CONTROL (XJ)..............8W-33-1
CONTROL, VEHICLE SPEED; VEHICLE
SPEED CONTROL (XJ-RHD)..........8W-33-1
CONTROLÐPCM INPUT, SPEED
.........14-25
CONTROLÐPCM OUTPUT, SPEED
.......14-29
CONTROLS AND COMPONENTS,
TRANSMISSION
......................21-67
CONTROLS, EMISSION
.................25-4
CONTROLSÐPCM INPUT, AIR
CONDITIONING (A/C)
..................14-21CONTROLSÐXJ VEHICLES, AIR
CONDITIONING......................24-15
CONTROLSÐYJ VEHICLES, AIR
CONDITIONING......................24-16
CONVERSION FORMULAS AND
EQUIVALENT VALUES...............Intro.-11
CONVERSION, METRIC..............Intro.-16
CONVERSION, METRIC AND ENGLISH/
SAE .............................Intro.-11
CONVERTER, CATALYTIC............11-1,11-4
CONVERTER CLUTCH RELAY TEST,
TORQUE............................14-48
CONVERTER CLUTCH RELAY, TORQUE....14-65
CONVERTER CLUTCH RELAYÐPCM
OUTPUT, TORQUE....................14-29
CONVERTER CLUTCH (TCC) SOLENOID
AND RELAY, TORQUE; FUEL/IGNITION
(XJ).............................8W-30-4
CONVERTER CLUTCH (TCC) SOLENOID
AND RELAY, TORQUE; TRANSMISSION
CONTROLS (YJ)...................8W-31-1
CONVERTER CLUTCH (TCC) SOLENOID
AND RELAYÐ2.5L ENGINE ONLY,
TORQUE; TRANSMISSION CONTROLS
(XJ).............................8W-31-1
CONVERTER DIAGNOSIS, TORQUE . 21-86,21-87,
21-88
CONVERTER HOUSING LEAK DIAGNOSIS . . 21-75
CONVERTER INSTALLATION,
TRANSMISSION.....................21-117
CONVERTER INSTALLATION,
TRANSMISSION AND TORQUE.........21-199
CONVERTER REMOVAL, TRANSMISSION . 21-115
CONVERTER REMOVAL, TRANSMISSION
AND TORQUE......................21-198
CONVERTER STALL TEST..............21-74
CONVERTER STALL TEST, TORQUE.....21-178
CONVERTER STATOR CLUTCH
INSPECTION, TORQUE................21-199
CONVERTER, TORQUE...........21-167,21-67
CONVERTERÐPUMP SEALÐDRIVE
PLATE SERVICE.....................21-116
CONVERTOR, CATALYTIC................25-1
COOLANT............................7-20
COOLANT RESERVE/OVERFLOW SYSTEM . . 7-24
COOLANT ROUTING, SYSTEM.............7-1
COOLANT TEMPERATURE GAUGE,
ENGINE; INSTRUMENT CLUSTER (XJ) . . 8W-40-1
COOLANT TEMPERATURE SENSOR.......25-7
COOLANT TEMPERATURE SENSOR,
ENGINE; FUEL SYSTEM................14-60
COOLANT TEMPERATURE SENSOR,
ENGINE; FUEL/IGNITION (XJ).........8W-30-3
COOLANT TEMPERATURE SENSOR,
ENGINE; FUEL/IGNITION (YJ).........8W-30-3
COOLANT TEMPERATURE SENSOR,
ENGINE; IGNITION SYSTEMS.......8D-19,8D-5
COOLANT TEMPERATURE SENSOR,
ENGINE; FUEL/IGNITION (XJ-RHD).....8W-30-3
COOLANT TEMPERATURE SENSOR TEST,
ENGINE; FUEL SYSTEM................14-46
COOLANT TEMPERATURE SENSOR TEST,
ENGINE; IGNITION SYSTEMS............8D-9
COOLANT TEMPERATURE SENSORÐ
PCM INPUT, ENGINE
..................14-23
COOLANT TEMPERATURE WARNING
LAMP, ENGINE; INSTRUMENT
CLUSTER (XJ)
.....................8W-40-1
COOLANT TEMPERATURE WARNING
LAMP, ENGINE; INSTRUMENT
CLUSTER (XJ-RHD)
................8W-40-1
COOLER FLOW TESTING,
TRANSMISSION
.....................21-113
COOLER LINE AND FITTING SERVICE,
TRANSMISSION
.....................21-111
COOLER LINE FITTINGS, TRANSMISSION
. 21-197
COOLER REVERSE FLUSHING,
TRANSMISSION
.....................21-114
COOLER SERVICE, TRANSMISSION
.....21-196
COOLERS, TRANSMISSION OIL
..........7-36
COOLING FANÐXJ MODELS WITH 4.0L
6-CYLINDER ENGINE, AUXILIARY
ELECTRIC
...........................7-35
COOLING SYSTEM; COOLING SYSTEM
......7-1
COOLING SYSTEM; HEATING AND AIR
CONDITIONING
......................24-10
COOLING SYSTEM CAPACITIES
..........7-45COOLING SYSTEM CLEANING/REVERSE
FLUSHING...........................7-22
COOLING SYSTEM COMPONENTS.........7-1
COOLING SYSTEM DIAGNOSIS............7-6
COOLING SYSTEM, DRAINING...........7-21
COOLING SYSTEM, ENGINE.............0-18
COOLING SYSTEM FANS................7-32
COOLING SYSTEM FOR LEAKS, TESTING . . . 7-22
COOLING SYSTEM HOSES..............7-32
COOLING SYSTEM, REFILLING...........7-21
CORE AND HOUSING, HEATER..........24-33
CORE, HEATER......................24-26
COURTESY LAMPS AND DOME LAMP,
CARGO LAMP; INTERIOR LIGHTING
(XJ).............................8W-44-1
COURTESY LAMPS AND DOME LAMPS;
INTERIOR LIGHTING (YJ)............8W-44-1
COURTESY LAMPS, READING...........8C-1
COVER AND DISC INSTALLATION,
CLUTCH.............................6-10
COVER AND DISC REMOVAL, CLUTCH.....6-10
COVER AND DISC RUNOUT, CLUTCH.......6-3
COVER AND FRAMEÐXJ, BUCKET
SEATBACK..........................23-81
COVER, ENGINE CYLINDER HEAD....9-22,9-64
COVER, FRAME CROSSMEMBER........13-16
COVER OIL SEAL REPLACEMENT,
TIMING CASE....................9-30,9-73
COVER REPLACEMENT, PITMAN SHAFT
AND SIDE..........................19-28
COVER, TIMING CASE..............9-31,9-72
COVERÐXJ, BUCKET SEAT CUSHION....23-81
COVERÐXJ, PARKING BRAKE HANDLE . . . 23-94
COVERÐXJ, REAR SEAT CUSHION......23-82
COVERÐXJ, REAR SEATBACK..........23-84
COVERSÐXJ, B/C-PILLAR AND
LIFTGATE PILLAR TRIM...............23-88
COWL GRILLE AND SCREENÐXJ........23-12
COWL GRILLE AND SCREENÐYJ.......23-109
COWL WEATHERSTRIP SEAL/
CROSSMEMBER AIR DEFLECTORÐXJ....23-11
COWL WEATHERSTRIP SEALÐYJ......23-109
CRANKCASE VENTILATION SYSTEM;
EMISSION CONTROL SYSTEMS..........25-5
CRANKCASE VENTILATION SYSTEM;
LUBRICATION AND MAINTENANCE........0-19
CRANKING SPECIFICATIONS, 2.5L
STARTING SYSTEM COLD..............8A-23
CRANKING SPECIFICATIONS, 4.0L
STARTING SYSTEM COLD..............8A-23
CRANKSHAFT MAIN BEARINGS......9-45,9-87
CRANKSHAFT POSITION SENSOR; FUEL
SYSTEM............................14-60
CRANKSHAFT POSITION SENSOR;
FUEL/IGNITION (XJ)................8W-30-3
CRANKSHAFT POSITION SENSOR;
FUEL/IGNITION (YJ)................8W-30-3
CRANKSHAFT POSITION SENSOR;
IGNITION SYSTEMS..............8D-17,8D-3
CRANKSHAFT POSITION SENSOR;
FUEL/IGNITION (XJ-RHD)............8W-30-3
CRANKSHAFT POSITION SENSOR TEST;
FUEL SYSTEM.......................14-47
CRANKSHAFT POSITION SENSOR TEST;
IGNITION SYSTEMS...................8D-7
CRANKSHAFT POSITION SENSORÐPCM
INPUT.............................14-22
CROSSMEMBER COVER, FRAME........13-16
CROSSMEMBERÐXJ, RADIATOR
SUPPORT...........................23-6
CUSHION AND COVERÐXJ, BUCKET
SEAT ..............................23-81
CUSHION COVERÐXJ, REAR SEAT......23-82
CUSHIONÐXJ, REAR SEAT.............23-82
CUT-OFF SWITCH, LOW-PRESSURE
HIGH-PRESSURE................24-15,24-16
CYCLING CLUTCH SWITCH, FIN
SENSING......................24-15,24-31
CYLINDER AND COMBINATION VALVE
INSTALLATION (WITH ABS), MASTER.....5-20
CYLINDER AND COMBINATION VALVE
REMOVAL (WITH ABS), MASTER.........5-17
CYLINDER BENCH BLEEDING, MASTER
....5-21
CYLINDER BLOCK
.................9-49,9-91
CYLINDER BORES, HONING
..............9-2
CYLINDER, CLUTCH MASTER
............0-22
CYLINDER COMBUSTION PRESSURE
LEAKAGE TEST
........................9-6
6 INDEXJ
Description Group-Page Description Group-Page Description Group-Page

CYLINDER COMBUSTION PRESSURE
LEAKAGE TEST DIAGNOSIS..............9-7
CYLINDER COMPRESSION PRESSURE
TEST................................9-5
CYLINDER DISPOSALÐXJ, LIFTGATE
SUPPORT ROD......................23-63
CYLINDER ENGINE, VACUUM ROUTING
SCHEMATICÐ2.5L 4...................25-3
CYLINDER ENGINE, VACUUM ROUTING
SCHEMATICÐ4.0L 6...................25-3
CYLINDER HEAD COVER, ENGINE....9-22,9-64
CYLINDER HEAD, ENGINE...........9-25,9-67
CYLINDER HEAD GASKET FAILURE
DIAGNOSIS, ENGINE....................9-5
CYLINDER INSTALLATION (NON-ABS),
MASTER............................5-16
CYLINDER INSTALLATION, WHEEL........5-58
CYLINDER OVERHAUL (4-CYLINDER
MODELS), MASTER....................5-16
CYLINDER OVERHAUL, WHEEL...........5-57
CYLINDER REMOVAL (NON-ABS),
MASTER............................5-15
CYLINDER REMOVAL, WHEEL...........5-57
CYLINDER SERVICE, IGNITION SWITCH
AND KEY...........................8D-26
CYLINDERÐCOMBINATION VALVE,
MASTER............................5-15
CYLINDERÐXJ, DOOR KEY LOCK.......23-47
CYLINDERÐXJ, LIFTGATE SUPPORT
ROD...............................23-62
CYLINDERÐYJ, FULL-METAL DOOR KEY
LOCK..............................23-139
CYLINDERÐYJ, TAILGATE LOCK.......23-122
CYLINDER/POWER BOOSTER TEST,
MASTER.............................5-8
CYLINDER/POWER BRAKE BOOSTER,
MASTER............................5-34
CYLINDER/STRIKERÐXJ, LIFTGATE
LATCH/KEY LOCK....................23-61
DAMAGED OR WORN THREADS, REPAIR....9-4
DAMPER, ENGINE.....................9-17
DAMPER, STEERING.............19-17,19-20
DAMPER, VIBRATION..............9-30,9-72
DASH PANEL INSULATOR PANELÐXJ....23-12
DATA LINK CONNECTOR; ANTI-LOCK
BRAKES (XJ)......................8W-32-2
DATA LINK CONNECTOR; ANTI-LOCK
BRAKES (XJ-RHD).................8W-32-2
DATA LINK CONNECTOR; ANTI-LOCK
BRAKES (YJ)......................8W-32-2
DATA LINK CONNECTOR; FUEL/IGNITION
(XJ).............................8W-30-5
DATA LINK CONNECTOR; FUEL/IGNITION
(YJ).............................8W-30-5
DATA LINK CONNECTOR;
TRANSMISSION CONTROLS (XJ-RHD) . . 8W-31-1
DATA LINK CONNECTOR; FUEL/IGNITION
(XJ-RHD).........................8W-30-4
DATA LINK CONNECTORÐPCM INPUT....14-22
DATA LINK CONNECTORÐPCM OUTPUT . . 14-27
DATA, VEHICLE DIMENSION.....Intro.-5,Intro.-6
DATA, VEHICLE LOAD................Intro.-5
DATAÐXJ, VEHICLE LOAD............Intro.-7
DATAÐYJ, VEHICLE LOAD............Intro.-8
DAYTIME RUNNING LAMP (DRL)
MODULE; FRONT LIGHTING (XJ)......8W-50-2
DAYTIME RUNNING LAMP (DRL)
MODULEÐCANADIAN VEHICLES ONLY;
FRONT LIGHTING (YJ)
..............8W-50-2
DAYTIME RUNNING LIGHTS (CANADA
ONLY)ÐXJ
.........................8L-15
DAYTIME RUNNING LIGHTS (CANADA
ONLY)ÐYJ
.........................8L-30
DECODING, VEHICLE CODE
...........Intro.-5
DECODING, VEHICLE IDENTIFICATION
NUMBER (VIN)
.....................Intro.-4
DEFLECTORÐXJ, COWL WEATHERSTRIP
SEAL/CROSSMEMBER AIR
.............23-11
DEFOGGER RELAY
....................8N-3
DEFOGGER RELAY/TIMER
...............8N-1
DEFOGGER RELAY/TIMER REMOVE/
INSTALL
............................8N-4
DEFOGGER SWITCH
...............8N-1,8N-3
DEFOGGER SWITCH REMOVE/INSTALL
....8N-4
DEFROSTER NOZZLE AND DUCT
........24-33
DELAY FUNCTION TROUBLE
DIAGNOSISÐXJ, HEADLAMP
...........8L-14DELAY MODULE, HEADLAMP; FRONT
LIGHTING (XJ)....................8W-50-2
DELAY MODULE, HEADLAMP; FRONT
LIGHTING (XJ-RHD)................8W-50-1
DELAY MODULE REPLACEMENTÐXJ,
HEADLAMP.........................8L-14
DELAY MODULEÐXJ, SENTINEL
HEADLAMP.........................8L-14
DELIVERY SYSTEM, FUEL...............14-3
DEMAGNETIZING, COMPASS............8C-5
DEPTH INFORMATION, PINION GEAR;
FRONT SUSPENSION AND AXLE..........2-39
DEPTH INFORMATION, PINION GEAR;
REAR SUSPENSION AND AXLES..........3-21
DEPTH VARIANCE, PINION GEAR; FRONT
SUSPENSION AND AXLE................2-40
DEPTH VARIANCE, PINION GEAR; REAR
SUSPENSION AND AXLES...........3-22,3-39
DESCRIPTION; HEATING AND AIR
CONDITIONING............24-19,24-23,24-32
DESCRIPTION; TRANSMISSION AND
TRANSFER CASE....................21-165
DESCRIPTION/SYSTEM OPERATION,
MULTI-PORT FUEL INJECTION
(MFI)ÐCOMPONENT..................14-19
DESIGNATIONS, LABELS/PLATES, CODES
AND DIMENSIONS..................Intro.-1
DESIGNATIONS, VEHICLE.............Intro.-1
DESIGNATIONS, VEHICLE CODE........Intro.-1
DETECTION AND REPAIRÐXJ,
STATIONARY GLASS WATER LEAK.......23-76
DETECTION AND REPAIRÐYJ,
STATIONARY GLASS WATER LEAK.......23-150
DEVICES, ELECTROSTATIC DISCHARGE
(ESD) SENSITIVE; WIRING
DIAGRAMSÐGENERAL INFORMATION
(XJ)...............................8W-2
DIAGNOSING PARKING BRAKE
MALFUNCTIONS.......................5-8
DIAGNOSIS; AUDIO SYSTEMS...........8F-2
DIAGNOSIS; BATTERY/STARTING/
CHARGING SYSTEMS DIAGNOSTICS.....8A-10,
8A-11,8A-17,8A-3
DIAGNOSIS; CHIME/BUZZER WARNING
SYSTEMS...........................8U-2
DIAGNOSIS; COOLING SYSTEM...........7-4
DIAGNOSIS; HORNS...................8G-2
DIAGNOSIS; INSTRUMENT PANEL AND
GAUGESÐXJ....................8E-27,8E-5
DIAGNOSIS; OVERHEAD CONSOLE........8C-2
DIAGNOSIS; POWER LOCKS.............8P-2
DIAGNOSIS; POWER MIRRORS..........8T-1
DIAGNOSIS; POWER SEATS.............8R-2
DIAGNOSIS; POWER WINDOWS..........8S-1
DIAGNOSIS; REAR WINDOW DEFOGGER . . . 8N-1
DIAGNOSIS; RESTRAINT SYSTEMS.......8M-2
DIAGNOSIS; STEERING................19-37
DIAGNOSIS; TURN SIGNAL AND HAZARD
WARNING SYSTEMS...................8J-3
DIAGNOSIS; VEHICLE SPEED CONTROL
SYSTEM............................8H-2
DIAGNOSIS, 2.5L STARTER NOISE.......8A-16
DIAGNOSIS, 30RH/32RH TRANSMISSION . 21-70
DIAGNOSIS, ABS BRAKE.................5-3
DIAGNOSIS, ANTILOCK ECU AND HCU......5-3
DIAGNOSIS, AW-4 TRANSMISSION.....21-176
DIAGNOSIS, AXLE NOISE/VIBRATION;
FRONT SUSPENSION AND AXLE..........2-18
DIAGNOSIS, AXLE NOISE/VIBRATION;
REAR SUSPENSION AND AXLES..........3-9
DIAGNOSIS, BATTERY..................8A-4
DIAGNOSIS, BELT.....................7-38
DIAGNOSIS, CHARGING SYSTEM........8A-19
DIAGNOSIS, CLUTCH...................6-3
DIAGNOSIS, COMPASS/THERMOMETER....8C-4
DIAGNOSIS (CONT.), COOLING SYSTEM . . . 7-10,
7-11,7-12,7-7,7-8,7-9
DIAGNOSIS (CONT.), SERPENTINE DRIVE
BELT ...............................7-40
DIAGNOSIS (CONT'D), DISCONNECT
AXLE/SHIFT MOTOR
...................2-30
DIAGNOSIS (CONT'D), SERVICE; FRONT
SUSPENSION AND AXLE
................2-21
DIAGNOSIS (CONT'D), SERVICE; REAR
SUSPENSION AND AXLES
...............3-12
DIAGNOSIS, CONVERTER HOUSING
LEAK
..............................21-75
DIAGNOSIS, COOLING SYSTEM
...........7-6DIAGNOSIS, CYLINDER COMBUSTION
PRESSURE LEAKAGE TEST...............9-7
DIAGNOSIS, DISCONNECT AXLE/SHIFT
MOTOR.............................2-29
DIAGNOSIS, ENGINE....................9-5
DIAGNOSIS, ENGINE CYLINDER HEAD
GASKET FAILURE......................9-5
DIAGNOSIS, EXHAUST SYSTEM..........11-2
DIAGNOSIS, FOG LAMP...........8L-21,8L-3
DIAGNOSIS, GEAR LEAKAGE............19-10
DIAGNOSIS, HEADLAMP...........8L-20,8L-2
DIAGNOSIS, HEATER..................24-17
DIAGNOSIS, HEATING SYSTEM..........24-18
DIAGNOSIS, IGNITION SECONDARY
CIRCUIT...........................8D-10
DIAGNOSIS INFORMATION, GENERAL;
CLUTCH..............................6-3
DIAGNOSIS INFORMATION, GENERAL;
TRANSMISSION AND TRANSFER CASE . . 21-176
DIAGNOSIS, INTAKE MANIFOLD
LEAKAGE.............................9-5
DIAGNOSIS, MANUAL STEERING
SYSTEM............................19-38
DIAGNOSIS, MULTI-PORT FUEL
INJECTION (MFI)ÐGENERAL...........14-35
DIAGNOSIS, NP231 SERVICE..........21-285
DIAGNOSIS, NP242 SERVICE..........21-308
DIAGNOSIS, PERFORMANCE............24-14
DIAGNOSIS, POWER STEERING SYSTEM . . 19-3,
19-4,19-5,19-6,19-7,19-8,19-9
DIAGNOSIS, PUMP LEAKAGE...........19-10
DIAGNOSIS, RADIO....................8F-3
DIAGNOSIS, SERPENTINE DRIVE BELT.....7-39
DIAGNOSIS, SERVICE; FRONT
SUSPENSION AND AXLE................2-20
DIAGNOSIS, SERVICE; PROPELLER
SHAFTS.............................16-3
DIAGNOSIS, SERVICE; REAR
SUSPENSION AND AXLES...............3-11
DIAGNOSIS, SERVICE; TRANSMISSION
AND TRANSFER CASE . 21-180,21-181,21-34,21-2
DIAGNOSIS, SERVICE BRAKE.............5-4
DIAGNOSIS, SPRING AND SHOCK;
FRONT SUSPENSION AND AXLE......2-13,2-15
DIAGNOSIS, SPRING AND SHOCK; REAR
SUSPENSION AND AXLES.............3-3,3-6
DIAGNOSIS, SPRING AND SHOCK
ABSORBER........................3-3,3-6
DIAGNOSIS, STARTER NOISE...........8A-16
DIAGNOSIS, STARTING SYSTEM........8A-12
DIAGNOSIS, SUSPENSION AND
STEERING SYSTEM.....................2-7
DIAGNOSIS, THERMOMETER............8C-2
DIAGNOSIS, TORQUE CONVERTER . 21-86,21-87,
21-88
DIAGNOSIS, TRANSMISSION . 21-78,21-79,21-80,
21-81,21-82,21-83,21-84,21-85
DIAGNOSIS, VIBRATION..........22-10,22-11
DIAGNOSISÐLUBRICATION SERVICE......9-12
DIAGNOSISÐXJ, DOME/COURTESY
LAMP TROUBLE.....................8L-16
DIAGNOSISÐXJ, HEADLAMP DELAY
FUNCTION TROUBLE..................8L-14
DIAGNOSISÐXJ, LIGHTED VANITY
MIRROR TROUBLE...................8L-16
DIAGNOSISÐYJ, DOME/COURTESY
LAMP TROUBLE.....................8L-31
DIAGNOSTIC CONNECTOR, ABS.......5-35,5-3
DIAGNOSTIC PROCEDURESÐXJ.........8L-1
DIAGNOSTIC PROCEDURESÐYJ........8L-19
DIAGNOSTIC SYSTEM, USING
ON-BOARD; BATTERY/STARTING/
CHARGING SYSTEMS DIAGNOSTICS.....8A-22
DIAGNOSTIC SYSTEM, USING
ON-BOARD; VEHICLE SPEED CONTROL
SYSTEM............................8H-5
DIAGNOSTIC TROUBLE CODE (DTC)......14-54
DIAGNOSTIC TROUBLE CODE,
GENERATOR........................8A-22
DIAGNOSTIC TROUBLE CODE, SPEED
CONTROL
...........................8H-5
DIAGNOSTICS (OBD), ON-BOARD;
COOLING SYSTEM
.....................7-4
DIAGNOSTICS (OBD), ON-BOARD; FUEL
SYSTEM
............................14-51
DIAGNOSTICS, ON-BOARD
.............8D-15
DIAGRAM INDEX; AIR CONDITIONING/
HEATER (XJ)
......................8W-42-2
JINDEX 7
Description Group-Page Description Group-Page Description Group-Page

DIAGRAM INDEX; AIR CONDITIONING/
HEATER (XJ-RHD)..................8W-42-2
DIAGRAM INDEX; AIR CONDITIONING/
HEATER (YJ)...............8W-42-1,8W-42-2
DIAGRAM INDEX; ANTI-LOCK BRAKES
(XJ).............................8W-32-3
DIAGRAM INDEX; ANTI-LOCK BRAKES
(XJ-RHD).........................8W-32-3
DIAGRAM INDEX; ANTI-LOCK BRAKES
(YJ).............................8W-32-2
DIAGRAM INDEX; CHARGING SYSTEM
(XJ).............................8W-20-1
DIAGRAM INDEX; CHARGING SYSTEM
(XJ-RHD).........................8W-20-1
DIAGRAM INDEX; CHARGING SYSTEM
(YJ).............................8W-20-1
DIAGRAM INDEX; FRONT LIGHTING (XJ) . 8W-50-2
DIAGRAM INDEX; FRONT LIGHTING
(XJ-RHD).........................8W-50-3
DIAGRAM INDEX; FRONT LIGHTING (YJ) . 8W-50-2
DIAGRAM INDEX; FUEL/IGNITION (YJ) . . 8W-30-5
DIAGRAM INDEX; FUSE/FUSE BLOCK
(XJ).............................8W-10-1
DIAGRAM INDEX; FUSE/FUSE BLOCK
(XJ-RHD).........................8W-10-1
DIAGRAM INDEX; FUSE/FUSE BLOCK
(YJ).............................8W-10-1
DIAGRAM INDEX; GROUND
DISTRIBUTION (XJ)................8W-15-1
DIAGRAM INDEX; GROUND
DISTRIBUTION (XJ-RHD)............8W-15-1
DIAGRAM INDEX; GROUND
DISTRIBUTION (YJ)..................8W-15-1
DIAGRAM INDEX; HEATED REAR
WINDOW (XJ).....................8W-48-1
DIAGRAM INDEX; HEATED REAR
WINDOW (XJ-RHD).................8W-48-1
DIAGRAM INDEX; HEATED REAR
WINDOW (YJ).....................8W-48-1
DIAGRAM INDEX; HORN/CIGAR LIGHTER . . . 8E-1
DIAGRAM INDEX; HORN/CIGAR LIGHTER
(YJ).............................8W-41-1
DIAGRAM INDEX; INSTRUMENT
CLUSTER (XJ).............8W-40-1,8W-40-3
DIAGRAM INDEX; INSTRUMENT
CLUSTER (XJ-RHD)................8W-40-3
DIAGRAM INDEX; INSTRUMENT
CLUSTER (YJ).....................8W-40-2
DIAGRAM INDEX; INTERIOR LIGHTING
(XJ).............................8W-44-2
DIAGRAM INDEX; INTERIOR LIGHTING
(XJ-RHD).........................8W-44-2
DIAGRAM INDEX; INTERIOR LIGHTING
(YJ).............................8W-44-2
DIAGRAM INDEX; OVERHEAD CONSOLE
(XJ).............................8W-49-1
DIAGRAM INDEX; OVERHEAD CONSOLE
(XJ-RHD).........................8W-49-1
DIAGRAM INDEX; POWER DISTRIBUTION
(XJ).............................8W-11-1
DIAGRAM INDEX; POWER DISTRIBUTION
(XJ-RHD).........................8W-11-1
DIAGRAM INDEX; POWER DISTRIBUTION
(YJ).............................8W-11-1
DIAGRAM INDEX; POWER DOOR LOCKS
(XJ)
.............................8W-61-1
DIAGRAM INDEX; POWER DOOR LOCKS
(XJ-RHD)
.........................8W-61-1
DIAGRAM INDEX; POWER MIRRORS
(XJ)
.............................8W-62-1
DIAGRAM INDEX; POWER MIRRORS
(XJ-RHD)
.........................8W-62-1
DIAGRAM INDEX; POWER SEAT (XJ)
. . . 8W-63-1
DIAGRAM INDEX; POWER SEAT
(XJ-RHD)
.........................8W-63-1
DIAGRAM INDEX; POWER WINDOWS
(XJ)
.............................8W-60-2
DIAGRAM INDEX; POWER WINDOWS
(XJ-RHD)
.........................8W-60-2
DIAGRAM INDEX; REAR LIGHTING (XJ)
. 8W-51-1
DIAGRAM INDEX; REAR LIGHTING
(XJ-RHD)
.........................8W-51-1
DIAGRAM INDEX; REAR LIGHTING (YJ)
. 8W-51-1
DIAGRAM INDEX; STARTING SYSTEM
(XJ)
.............................8W-21-1
DIAGRAM INDEX; STARTING SYSTEM
(XJ-RHD)
.........................8W-21-1DIAGRAM INDEX; STARTING SYSTEM
(YJ).............................8W-21-1
DIAGRAM INDEX; TRAILER TOW (XJ) . . 8W-54-1
DIAGRAM INDEX; TRAILER TOW
(XJ-RHD).........................8W-54-1
DIAGRAM INDEX; TRANSMISSION
CONTROLS (XJ)...................8W-31-1
DIAGRAM INDEX; TRANSMISSION
CONTROLS (XJ-RHD)...............8W-31-1
DIAGRAM INDEX; TRANSMISSION
CONTROLS (YJ)...................8W-31-1
DIAGRAM INDEX; TURN SIGNALS (XJ) . 8W-52-1
DIAGRAM INDEX; TURN SIGNALS
(XJ-RHD).........................8W-52-1
DIAGRAM INDEX; TURN SIGNALS (YJ) . 8W-52-1
DIAGRAM INDEX; VEHICLE SPEED
CONTROL (XJ)....................8W-33-1
DIAGRAM INDEX; VEHICLE SPEED
CONTROL (XJ-RHD)................8W-33-1
DIAGRAM INDEX; WIPERS (XJ).......8W-53-2
DIAGRAM INDEX; WIPERS (XJ-RHD) . . . 8W-53-2
DIAGRAM INDEX; WIPERS (YJ).......8W-53-2
DIAGRAM INDEX; FUEL/IGNITION
(XJ-RHD).........................8W-30-5
DIAGRAM INDEXÐ2.5L ENGINE;
FUEL/IGNITION (XJ)................8W-30-6
DIAGRAM INDEXÐ4.0L ENGINE;
FUEL/IGNITION (XJ)................8W-30-6
DIFFERENTIAL AND PINION
MEASUREMENT.......................2-40
DIFFERENTIAL ASSEMBLY; FRONT
SUSPENSION AND AXLE.................2-38
DIFFERENTIAL ASSEMBLY; REAR
SUSPENSION AND AXLES...............3-21
DIFFERENTIAL DISASSEMBLY; FRONT
SUSPENSION AND AXLE................2-35
DIFFERENTIAL DISASSEMBLY; REAR
SUSPENSION AND AXLES...............3-18
DIFFERENTIAL INSTALLATION............2-44
DIFFERENTIAL, LIMITED SLIP............3-10
DIFFERENTIAL MEASUREMENT AND
INSTALLATION........................3-25
DIFFERENTIAL OVERHAUL..............3-46
DIFFERENTIAL REMOVAL; FRONT
SUSPENSION AND AXLE................2-34
DIFFERENTIAL REMOVAL; REAR
SUSPENSION AND AXLES...............3-18
DIFFERENTIAL SERVICE................3-34
DIFFERENTIAL SHIM PACK
MEASUREMENT AND ADJUSTMENT.......2-43
DIFFERENTIAL, TRAC-LOK..............3-45
DIMENSION DATA, VEHICLE.....Intro.-5,Intro.-6
DIMENSIONS, AW-4 VALVE BODY CHECK
BALL.............................21-341
DIMENSIONS, DESIGNATIONS,
LABELS/PLATES, CODES..............Intro.-1
DIMENSIONS, FRAME.............13-13,13-1
DIMMER SWITCH REMOVE/INSTALL,
HEADLAMP OR PANEL................8E-42
DIMMER SWITCH REPLACEMENTÐYJ,
HEADLAMP.........................8L-26
DIMMING MODULE; FRONT LIGHTING
(XJ-RHD).........................8W-50-1
DIODE REPLACEMENT; WIRING
DIAGRAMSÐGENERAL INFORMATION
(XJ)...............................8W-8
DIRECT CLUTCH OVERHAUL...........21-228
DISASSEMBLY AND INSPECTION, VALVE
BODY.............................21-147
DISASSEMBLY AND OVERHAUL,
TRANSFER CASE..............21-289,21-310
DISASSEMBLY AND OVERHAUL,
TRANSMISSION.................21-37,21-5
DISASSEMBLY, CALIPER................5-48
DISASSEMBLY, DIFFERENTIAL; FRONT
SUSPENSION AND AXLE................2-35
DISASSEMBLY, DIFFERENTIAL; REAR
SUSPENSION AND AXLES...............3-18
DISASSEMBLY, TRANSMISSION . . 21-119,21-201
DISASSEMBLYÐCOLUMN OR CONSOLE
SHIFT..............................19-60
DISC AND PLATE THICKNESS, AW-4
CLUTCH...........................21-338
DISC BRAKE ROTOR REFINISHING
........5-53
DISC BRAKE ROTOR RUNOUT
...........5-52
DISC BRAKE ROTOR THICKNESS
.........5-52
DISC BRAKES
........................5-45
DISC BRAKESHOE INSTALLATION
.........5-47DISC BRAKESHOE REMOVAL............5-46
DISC INSTALLATION, CLUTCH COVER.....6-10
DISC REMOVAL, CLUTCH COVER.........6-10
DISC RUNOUT, CLUTCH COVER...........6-3
DISCHARGE (ESD) SENSITIVE DEVICES,
ELECTROSTATIC; WIRING
DIAGRAMSÐGENERAL INFORMATION
(XJ)...............................8W-2
DISCONNECT AXLEÐYJ VEHICLES,
VACUUM............................2-27
DISCONNECT AXLE/SHIFT MOTOR
DIAGNOSIS..........................2-29
DISCONNECT AXLE/SHIFT MOTOR
DIAGNOSIS (CONT'D)..................2-30
DISPLAY, ABS WARNING LIGHT...........5-3
DISPLAY SYMBOLS, INTERNATIONAL
VEHICLE CONTROL..................Intro.-5
DISPLAY SYMBOLS, VEHICLE CONTROL . Intro.-10
DISPOSALÐXJ, LIFTGATE SUPPORT
ROD CYLINDER......................23-63
DISTRIBUTOR.......................8D-19
DISTRIBUTOR CAP....................8D-7
DISTRIBUTOR CAP AND ROTOR,
IGNITION CABLES.....................0-20
DISTRIBUTOR ROTOR.................8D-8
DISTRIBUTORS.......................8D-4
DOME LAMP, CARGO LAMP; INTERIOR
LIGHTING (XJ-RHD)................8W-44-1
DOME LAMP, CARGO LAMP, COURTESY
LAMPS; INTERIOR LIGHTING (XJ).....8W-44-1
DOME LAMP REPLACEMENTÐXJ.........8L-17
DOME LAMPÐXJ....................23-93
DOME LAMPS, COURTESY LAMPS;
INTERIOR LIGHTING (YJ)............8W-44-1
DOME/CARGO LAMP BULB
REPLACEMENTÐYJ VEHICLES,
HARDTOP..........................8L-31
DOME/COURTESY LAMP SERVICE
INFORMATIONÐXJ...................8L-16
DOME/COURTESY LAMP SERVICE
INFORMATIONÐYJ...................8L-31
DOME/COURTESY LAMP TROUBLE
DIAGNOSISÐXJ.....................8L-16
DOME/COURTESY LAMP TROUBLE
DIAGNOSISÐYJ.....................8L-31
DOOR ALIGNMENT ADJUSTMENTÐ
MAJOR............................23-41
DOOR ALIGNMENT ADJUSTMENTÐ
MINOR.............................23-37
DOOR ASSIST HANDLEÐYJ, FULL-
METAL............................23-136
DOOR BUMPERSÐXJ, FUEL FILLER.....23-27
DOOR CONTROL CABLES, VENT.........24-32
DOOR EDGE GUARD/EDGE PROTECTOR
STRIPÐXJ.........................23-54
DOOR EXTERNAL HANDLEÐXJ.........23-48
DOOR FRAME GLASS CHANNEL
REPLACEMENTÐYJ.................23-142
DOOR HINGE/HINGE PIN
REPLACEMENTÐXJ..................23-52
DOOR HINGESÐYJ, FULL-METAL.......23-140
DOOR INSIDE LATCH RELEASE AND
LOCK RODSÐXJ.....................23-50
DOOR JAMB SWITCH, DRIVER'S.....8U-1,8U-2
DOOR KEY LOCK CYLINDERÐXJ........23-47
DOOR KEY LOCK CYLINDERÐYJ,
FULL-METAL.......................23-139
DOOR LATCH ADJUSTMENTÐXJ........23-48
DOOR LATCH EXTERNAL RELEASE
HANDLEÐYJ, FULL-METAL............23-140
DOOR LATCH INSIDE RELEASE AND
LOCK HANDLEÐYJ, FULL-METAL.......23-137
DOOR LATCH STRIKERÐYJ, HALF-
METAL............................23-135
DOOR LATCHÐXJ....................23-49
DOOR LATCHÐYJ, FULL-METAL........23-140
DOOR LOCKS, POWER; POWER DOOR
LOCKS (XJ).......................8W-61-1
DOOR LOCKS, POWER; POWER DOOR
LOCKS (XJ-RHD)
..................8W-61-1
DOOR MIRROR (EXTERNAL)ÐYJ, HALF
METAL
............................23-121
DOOR MOTOR SWITCH REPLACEMENT,
BLOWER MOTOR/AIR
.................24-32
DOOR OPENER STORAGE, REMOTE
GARAGE
............................8C-1
DOOR OPENING WEATHERSTRIP
SEALSÐXJ, DOOR WINDOW GLASS
.....23-55
8 INDEXJ
Description Group-Page Description Group-Page Description Group-Page

INDEX, DIAGRAM; FRONT LIGHTING
(XJ).............................8W-50-2
INDEX, DIAGRAM; FRONT LIGHTING
(XJ-RHD).........................8W-50-3
INDEX, DIAGRAM; FRONT LIGHTING
(YJ).............................8W-50-2
INDEX, DIAGRAM; FUEL/IGNITION (YJ) . 8W-30-5
INDEX, DIAGRAM; FUSE/FUSE BLOCK
(XJ).............................8W-10-1
INDEX, DIAGRAM; FUSE/FUSE BLOCK
(XJ-RHD).........................8W-10-1
INDEX, DIAGRAM; FUSE/FUSE BLOCK
(YJ).............................8W-10-1
INDEX, DIAGRAM; GROUND
DISTRIBUTION (XJ)................8W-15-1
INDEX, DIAGRAM; GROUND
DISTRIBUTION (XJ-RHD)............8W-15-1
INDEX, DIAGRAM; GROUND
DISTRIBUTION (YJ)................8W-15-1
INDEX, DIAGRAM; HEATED REAR
WINDOW (XJ).....................8W-48-1
INDEX, DIAGRAM; HEATED REAR
WINDOW (XJ-RHD).................8W-48-1
INDEX, DIAGRAM; HEATED REAR
WINDOW (YJ).....................8W-48-1
INDEX, DIAGRAM; HORN/CIGAR
LIGHTER............................8E-1
INDEX, DIAGRAM; HORN/CIGAR
LIGHTER (YJ).....................8W-41-1
INDEX, DIAGRAM; INSTRUMENT
CLUSTER (XJ).............8W-40-1,8W-40-3
INDEX, DIAGRAM; INSTRUMENT
CLUSTER (XJ-RHD)................8W-40-3
INDEX, DIAGRAM; INSTRUMENT
CLUSTER (YJ).....................8W-40-2
INDEX, DIAGRAM; INTERIOR LIGHTING
(XJ).............................8W-44-2
INDEX, DIAGRAM; INTERIOR LIGHTING
(XJ-RHD).........................8W-44-2
INDEX, DIAGRAM; INTERIOR LIGHTING
(YJ).............................8W-44-2
INDEX, DIAGRAM; OVERHEAD CONSOLE
(XJ).............................8W-49-1
INDEX, DIAGRAM; OVERHEAD CONSOLE
(XJ-RHD).........................8W-49-1
INDEX, DIAGRAM; POWER
DISTRIBUTION (XJ)................8W-11-1
INDEX, DIAGRAM; POWER
DISTRIBUTION (XJ-RHD)............8W-11-1
INDEX, DIAGRAM; POWER
DISTRIBUTION (YJ)................8W-11-1
INDEX, DIAGRAM; POWER DOOR LOCKS
(XJ).............................8W-61-1
INDEX, DIAGRAM; POWER DOOR LOCKS
(XJ-RHD).........................8W-61-1
INDEX, DIAGRAM; POWER MIRRORS
(XJ).............................8W-62-1
INDEX, DIAGRAM; POWER MIRRORS
(XJ-RHD).........................8W-62-1
INDEX, DIAGRAM; POWER SEAT (XJ) . . 8W-63-1
INDEX, DIAGRAM; POWER SEAT
(XJ-RHD).........................8W-63-1
INDEX, DIAGRAM; POWER WINDOWS
(XJ).............................8W-60-2
INDEX, DIAGRAM; POWER WINDOWS
(XJ-RHD).........................8W-60-2
INDEX, DIAGRAM; REAR LIGHTING
(XJ).............................8W-51-1
INDEX, DIAGRAM; REAR LIGHTING
(XJ-RHD).........................8W-51-1
INDEX, DIAGRAM; REAR LIGHTING
(YJ).............................8W-51-1
INDEX, DIAGRAM; STARTING SYSTEM
(XJ).............................8W-21-1
INDEX, DIAGRAM; STARTING SYSTEM
(XJ-RHD).........................8W-21-1
INDEX, DIAGRAM; STARTING SYSTEM
(YJ).............................8W-21-1
INDEX, DIAGRAM; TRAILER TOW (XJ) . . 8W-54-1
INDEX, DIAGRAM; TRAILER TOW
(XJ-RHD)
.........................8W-54-1
INDEX, DIAGRAM; TRANSMISSION
CONTROLS (XJ)
...................8W-31-1
INDEX, DIAGRAM; TRANSMISSION
CONTROLS (XJ-RHD)
...............8W-31-1
INDEX, DIAGRAM; TRANSMISSION
CONTROLS (YJ)
...................8W-31-1
INDEX, DIAGRAM; TURN SIGNALS (XJ)
. 8W-52-1INDEX, DIAGRAM; TURN SIGNALS
(XJ-RHD).........................8W-52-1
INDEX, DIAGRAM; TURN SIGNALS (YJ) . 8W-52-1
INDEX, DIAGRAM; VEHICLE SPEED
CONTROL (XJ)....................8W-33-1
INDEX, DIAGRAM; VEHICLE SPEED
CONTROL (XJ-RHD)................8W-33-1
INDEX, DIAGRAM; WIPERS (XJ).......8W-53-2
INDEX, DIAGRAM; WIPERS (XJ-RHD) . . 8W-53-2
INDEX, DIAGRAM; WIPERS (YJ).......8W-53-2
INDEX, DIAGRAM; FUEL/IGNITION
(XJ-RHD).........................8W-30-5
INDEX, GROUP; COOLING SYSTEM.......8E-1
INDEX, GROUP; INSTRUMENT PANEL
AND GAUGES........................8E-1
INDEX, SPLICE; SPLICE INFORMATION
(XJ).............................8W-70-1
INDEX, SPLICE; SPLICE INFORMATION
(XJ-RHD).........................8W-70-1
INDEX, SPLICE; SPLICE INFORMATION
(YJ).............................8W-70-1
INDEXÐ2.5L ENGINE, DIAGRAM......8W-30-6
INDEXÐ4.0L ENGINE, DIAGRAM......8W-30-6
INDICATOR LAMP, CHARGING SYSTEM . 8W-40-3
INDICATOR LAMP, HIGH-BEAM;
INSTRUMENT CLUSTER (XJ).........8W-40-2
INDICATOR LAMP, HIGH-BEAM;
INSTRUMENT CLUSTER (XJ-RHD).....8W-40-2
INDICATOR LAMP (MIL), MALFUNCTION;
FUEL/IGNITION (XJ)................8W-30-5
INDICATOR LAMP (MIL), MALFUNCTION;
FUEL/IGNITION (YJ)................8W-30-5
INDICATOR LAMP (MIL), MALFUNCTION;
INSTRUMENT CLUSTER (XJ).........8W-40-2
INDICATOR LAMP (MIL), MALFUNCTION;
INSTRUMENT CLUSTER (XJ-RHD).....8W-40-1
INDICATOR LAMP (MIL), MALFUNCTION;
FUEL/IGNITION (XJ-RHD)............8W-30-4
INDICATOR LAMPÐPCM OUTPUT,
MALFUNCTION......................14-28
INDICATOR LAMPS.....8E-12,8E-25,8E-32,8E-3
INDICATOR LAMPS, TURN SIGNAL;
INSTRUMENT CLUSTER (XJ).........8W-40-2
INDICATOR LAMPS, TURN SIGNAL;
INSTRUMENT CLUSTER (XJ-RHD).....8W-40-2
INDICATOR (SRI) LAMP, SERVICE
REMINDER..........................25-1
INDICATOR WARNING LAMP, SEAT BELT;
INSTRUMENT CLUSTER (XJ).........8W-40-2
INDICATOR WARNING LAMP, SEAT BELT;
INSTRUMENT CLUSTER (XJ-RHD).....8W-40-2
INDICATORÐPCM OUTPUT, SHIFT.......14-29
INDICATORS, TREAD WEAR.............22-3
INFLATION PRESSURES, TIRE...........22-2
INFORMATIONÐXJ, DOME/COURTESY
LAMP SERVICE......................8L-16
INFORMATIONÐXJ, UNDERHOOD LAMP
SERVICE...........................8L-12
INFORMATIONÐYJ, DOME/COURTESY
LAMP SERVICE......................8L-31
INFORMATIONÐYJ, SOFT TOP SERVICE . 23-127
INFORMATIONÐYJ, UNDERHOOD LAMP
SERVICE...........................8L-28
INITIALIZATION, ABS SYSTEM
POWER-UP..........................5-35
INJECTION (MFI)ÐCOMPONENT
DESCRIPTION/SYSTEM OPERATION,
MULTI-PORT FUEL...................14-19
INJECTION (MFI)ÐCOMPONENT
REMOVAL/INSTALLATION, MULTI-PORT
FUEL..............................14-58
INJECTION (MFI)ÐGENERAL
DIAGNOSIS, MULTI-PORT FUEL.........14-35
INJECTOR DIAGNOSISÐVEHICLE RUNS
ROUGH AND/OR HAS A MISS...........14-52
INJECTOR, FUEL.....................14-60
INJECTOR TEST, FUEL.................14-51
INJECTORS, FUEL; FUEL/IGNITION (XJ) . 8W-30-1
INJECTORS, FUEL; FUEL/IGNITION (YJ) . 8W-30-2
INJECTORS, FUEL; FUEL/IGNITION
(XJ-RHD).........................8W-30-1
INJECTORSÐPCM OUTPUT, FUEL
.......14-27
IN-LINE FUSE
........................8F-1
INNER AXLE SHAFT OIL SEAL
REPLACEMENT
.......................2-35
INNER SCUFF PLATE/COWL SIDE TRIM
PANELÐXJ, FRONT
...................23-86
INNER SPLASH SHIELDSÐYJ, FENDER
. . 23-116INPUT, AIR CONDITIONING (A/C)
CONTROLSÐPCM....................14-21
INPUT, AUTOMATIC SHUTDOWN (ASD)
SENSEÐPCM.......................14-21
INPUT, BATTERY VOLTAGEÐPCM........14-21
INPUT, BRAKE SWITCH; ANTI-LOCK
BRAKES (XJ)......................8W-32-2
INPUT, BRAKE SWITCH; ANTI-LOCK
BRAKES (XJ-RHD).................8W-32-2
INPUT, BRAKE SWITCH; ANTI-LOCK
BRAKES (YJ)......................8W-32-2
INPUT, BRAKE SWITCH; FUEL/IGNITION
(XJ).............................8W-30-5
INPUT, BRAKE SWITCH; FUEL/IGNITION
(YJ).............................8W-30-5
INPUT, BRAKE SWITCH; FUEL/IGNITION
(XJ-RHD).........................8W-30-5
INPUT, BRAKE SWITCHÐPCM..........14-22
INPUT, CAMSHAFT POSITION SENSORÐ
PCM...............................14-22
INPUT, CRANKSHAFT POSITION
SENSORÐPCM......................14-22
INPUT, DATA LINK CONNECTORÐPCM . . . 14-22
INPUT, ENGINE COOLANT
TEMPERATURE SENSORÐPCM.........14-23
INPUT, EXTENDED IDLE SWITCHÐPCM . . . 14-23
INPUT, IGNITION CIRCUIT SENSEÐPCM . . 14-23
INPUT, INTAKE MANIFOLD AIR
TEMPERATURE SENSORÐPCM.........14-22
INPUT, MANIFOLD ABSOLUTE
PRESSURE (MAP) SENSORÐPCM.......14-23
INPUT, OXYGEN (O2S) SENSORÐPCM.....14-24
INPUT, PARK/NEUTRAL SWITCHÐPCM . . . 14-24
INPUT, POWER STEERING PRESSURE
SWITCHÐPCM......................14-24
INPUT, SCI RECEIVEÐPCM............14-24
INPUT, SENSOR RETURNÐPCM.........14-25
INPUT SIGNALS, WHEEL/TIRE SIZE........5-3
INPUT, SPEED CONTROLÐPCM.........14-25
INPUT, THROTTLE POSITION SENSOR
(TPS)ÐPCM........................14-25
INPUT, VEHICLE SPEED SENSORÐPCM . . 14-25
INSERTÐXJ, REAR QUARTER WINDOW
GLASS/REAR QUARTER PLASTIC........23-73
INSIDE LATCH RELEASE AND LOCK
RODSÐXJ, DOOR....................23-50
INSIDE RELEASE AND LOCK HANDLEÐ
YJ, FULL-METAL DOOR LATCH.........23-137
INSPECTION AND ADJUSTMENT,
PRELIMINARY......................21-176
INSPECTION AND DIAGNOSIS CHARTS.....6-4
INSPECTION AND PARK LOCK
COMPONENT OVERHAUL, ADAPTER/
EXTENSION HOUSING................21-127
INSPECTION, CALIPER CLEANING........5-50
INSPECTION (ENGINE OIL LEAKS IN
GENERAL)............................9-6
INSPECTION, GEAR CLEANING..........19-42
INSPECTION, OVERHAUL CLEANING....21-294,
21-318
INSPECTION, PRE-ALIGNMENT............2-6
INSPECTION, RUBBER AND PLASTIC
COMPONENT.........................0-20
INSPECTION, TORQUE CONVERTER
STATOR CLUTCH....................21-199
INSPECTION, TRANSMISSION CASE
CLEANING.........................21-125
INSPECTION, VALVE BODY
DISASSEMBLY......................21-147
INSTALLATION, 30RH/32RH
TRANSMISSION REMOVAL............21-115
INSTALLATION, ACCELERATION SWITCH . . . 5-39
INSTALLATION AND ADJUSTMENT, REAR
WHEEL SENSOR......................5-38
INSTALLATION, AW-4 TRANSMISSION
REMOVAL.........................21-198
INSTALLATION, BRAKE PEDAL...........5-31
INSTALLATION, BRAKELIGHT SWITCH.....5-32
INSTALLATION, CALIPER................5-51
INSTALLATION, CLUTCH COVER AND
DISC...............................6-10
INSTALLATION, CLUTCH HYDRAULIC
LINKAGE
............................6-14
INSTALLATION, CLUTCH PEDAL
..........6-15
INSTALLATION, DIFFERENTIAL
...........2-44
INSTALLATION, DIFFERENTIAL
MEASUREMENT
.......................3-25
INSTALLATION, DISC BRAKESHOE
........5-47
14 INDEXJ
Description Group-Page Description Group-Page Description Group-Page
