1995 GMC SIERRA bulb

Fender Marker Lamps - Dual Rear Wheel Pickup
Models
I 1. Remove the
4
screws and take
the fender mark
assembly out of
the fender.
I 2. Turn the bulb er
socket to the left
and remove
it
from the lens
assembly.
3. Pull the bulb
straight out
of the
socket.
3. Put a new bulb into the socket and push it in until it is tight.
5. Put the socket back into the lens assembly and turn it to the right to
tighten it.
6. Replace the lens and tighten the screws.
Tailgate Marker Lamps
I. Use a screwdriver to gently pry the lens/bulb assembly from the lens
holder.
2. Unplug the lens/bulb assembly at the connector wire.
3. Plug in a new lens/bulb assembly and push the connector wire into the
hole in the tailgate.
4. Snap the lens/bulb assembly into the lens holder.
6-53
ProCarManuals.com

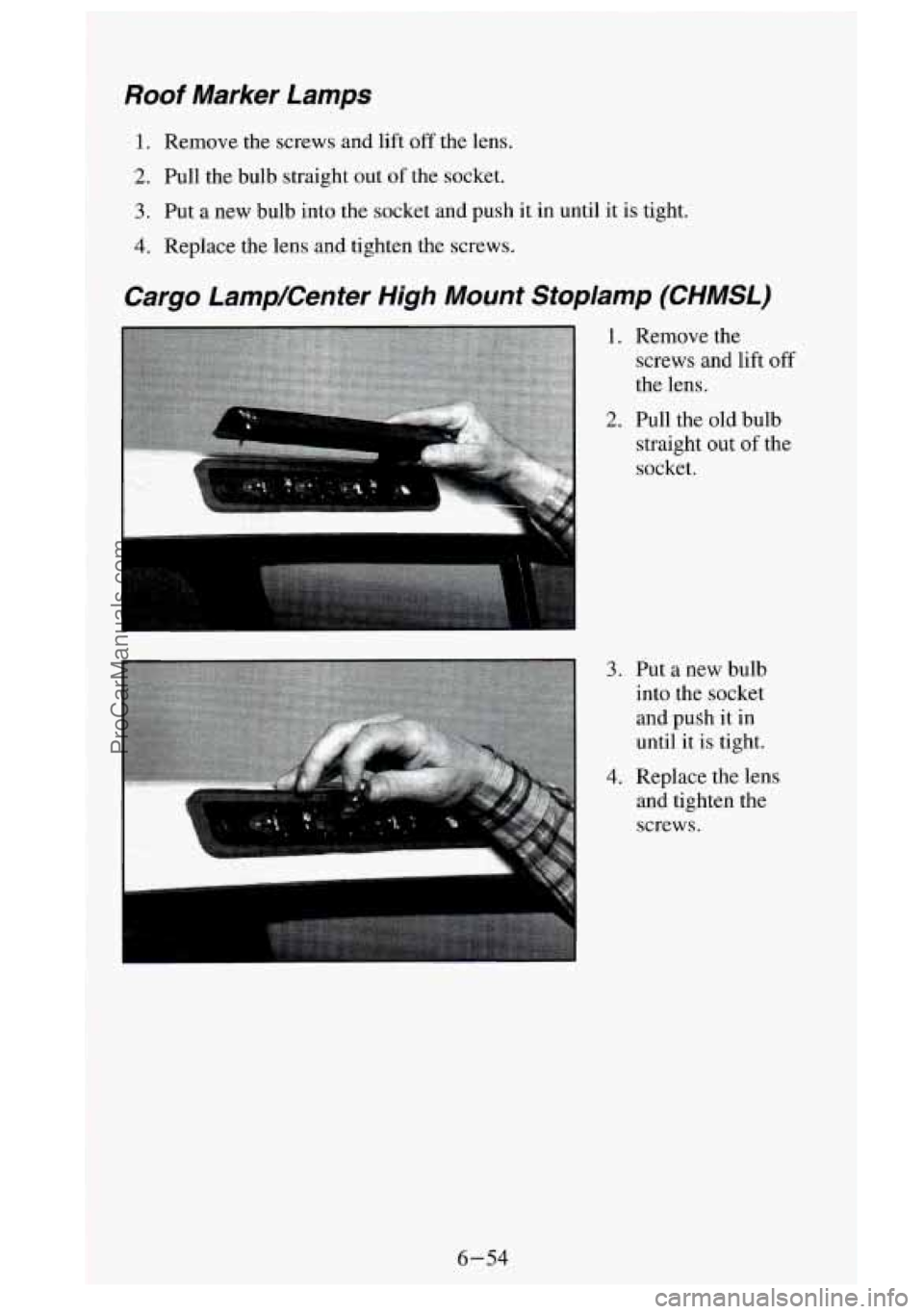

Roof Marker Lamps
1. Remove the screws and lift off the lens.
2. Pull the bulb straight out of the socket.
3. Put a new bulb into the socket and push it in until it is tight.
4. Replace the lens and tighten the screws.
Cargo LampKenter High Mount Stoplamp (CHMSL)
LI
.. . . .
~
1. Remove the
screws and lift
off
the lens.
2. Pull the old bulb
straight out of the
socket.
3. Put a new bulb
into the socket
and push it in
until it is tight.
4. Replace the lens
and tighten the
screws.
6-54
ProCarManuals.com

Rear Lamps - Pickup Models
1. Open the tailgate.
2. Remove the two
rear lamp
assembly screws
near the tailgate
latch and pull out
the lamp assembly.
3. Remove the
screws from the
bulb retainer and
take it
off the
lamp assembly.
4. Pull the old bulb
straight out
of the
socket.
5. Put in a new bulb
and push it in
until it is tight.
6. Replace the bulb
retainer.
7. Replace the rear lamp assembly and tighten the screws.
8. Close the tailgate.
6-55
ProCarManuals.com

Rear Lamps - Chassis Cab Models
d
1. Using your
hands, peel the
rubber seal away
from the lens.
2. Lift the lens off
the lamp
assembly.
3. Slide the socket
out
of the lamp
assembly.
4. Push in gently on
the bulb, turn it to
the left and remove
it from
the socket.
5. Put in a new bulb
and, pushing
in
gently, turn it to
the right
until it is
tight.
6. Put the socket back in the lamp assembly and replace the lens and lens
seal.
Exhaust System
To help prevent damage to your exhaust system, do not continue to drive
your vehicle
if you notice:
0 Engine misfiring
0 Loss of performance
0 Exhaust system components hanging lower than normal
0 Loud exhaust system noises
0 Other unusual operating conditions
Have
your engine and exhaust system serviced regularly.
6-56
ProCarManuals.com

POSITION
23.
24.
A.%
B . -1-
NAME
Not Used
CIRCUITS PROTECTED
Not Used
4WD Frt
Axle, 4WD Indicator Lamp
PWR ACCY Pwr Door Lock, 6-Way Pwr Seat, Keyless
Entry Module
PWR
WDOS
?Circuit Breaker
Lamp and Bulb Data
LAMP OR
BULB
HEADLAMPS
2 Headlamp
System (Sealed
Beam)
Low/High Beam
4 Headlamp
System
(Composite)
Low/High Beam
High Beam
LAMP OR BULB
EXTERIOR
Front Marker Lamp
Front Park and Turn
Lamp
Rear Parking
Lamp
Rear Stop and Turn
Lamp
Backup Lamp
Backup
Lamp
Rear Park, Stop, and
Turn Lamp* Power Windows
TRADE NO.
H6054
6052
9005 POWER
RATING AT
12.8V, WATTS
35/65
TRADE NO.
55/65
65
194
2357NA
3057
3057
3 156
1156
1157 2
2
2
2
4
2
2
2
2
2
6-88
ProCarManuals.com

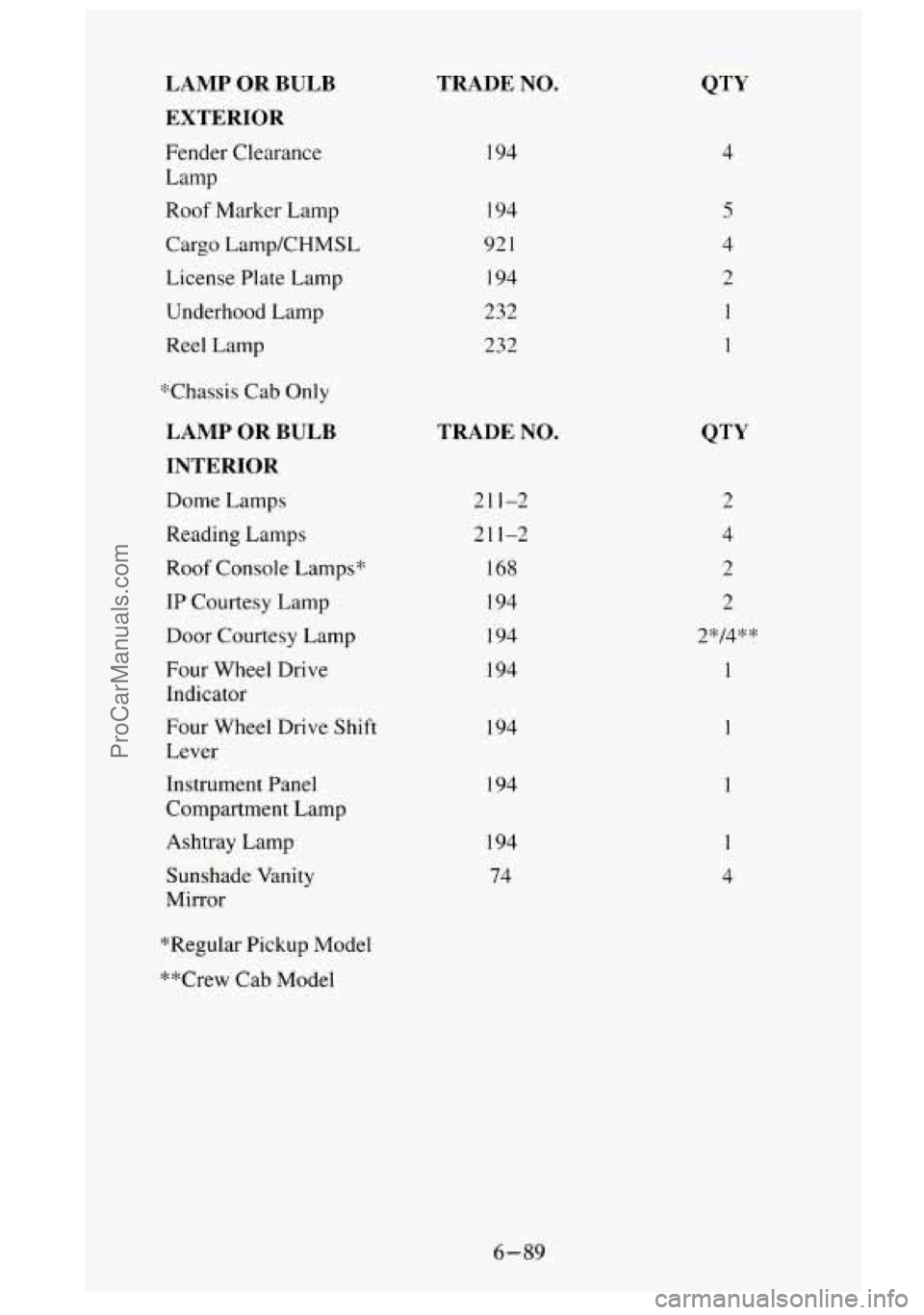

LAMP OR BULB EXTERIOR
Fender Clearance
Lamp
Roof Marker Lamp
Cargo Lamp/CHMSL License Plate Lamp
Underhood Lamp
Reel Lamp
Thassis Cab Only
LAMP OR BULB
INTERIOR
Dome Lamps
Reading Lamps
Roof Console Lamps:':
IP Courtesy Lamp
Door Courtesy Lamp
Four Wheel Drive
Indicator
Four Wheel Drive
Shift
Lever
Instrument Panel
Compartment Lamp
Ashtray Lamp
Sunshade Vanity
Mirror
TRADE NO.
I94
I94
92
I
I94
232
232
TRADE NO.
211-2
21 1-2
168
I94
194
194
194
194
194
74 4
2
4
2
1
1
1
1
4
"Regular Pickup Model
**Crew Cab Model
6-89
ProCarManuals.com

LAMP OR BULB
INSTRUMENT
PANEL
Daytime Running
Lamps Indicator?
Charging System
Indicator Lamp
Instrument Cluster
Illumination
Headlamp Beam
Indicator
Directional Signal
Indicator
Brake Warning
Indicator
SIR (Air Bag)
Safety Belt Warning
Check Gages Indicator
Malfunction Indicator
(“Service Engine
Soon”) Lamp
Upshift Indicator Glow Plugs Lamp**
Low Coolant Lamp**
Water in Fuel Lamp**
Service Throttle Soon
Lamp**
**Diesel only
“fanadian Vehicles only
TRADE NO.
74
74
194
74
74
74
74
74
74
74
74
74
74
74
74
1
I
6
1
2
1
6-90
ProCarManuals.com
