1995 GMC SIERRA rear view mirror

Electrochromic Inside Rearview Mirror with Compass (Option)
Your vehicle may have an optional electrochromic inside rearview mirror.
An electrochromic inside rearview mirror, when
on, automatically dims to
the proper level to minimize glare from lights behind you after dark.
The mirror also includes an eight point compass display in the upper right
corner
of the mirror face. When on, the compass automatically calibrates as
the vehicle is driven.
To use the electrochromic mirror only, move the switch at the bottom of the
mirror to the
M position. To use the electrochromic mirror as well as the
compass, move the switch to the
C/M position. To turn both features off,
move the switch to the OFF position.
Compass Operation
When the ignition is on and the mirror switch is in the C/M position, the
compass display
will show two character boxes for approximately two
seconds.
If, after two seconds, the display does not show a compass heading
(“N” for North, for example), there may be strong magnetic field interfering
with the compass. Such interference may include magnetic antenna mounts,
a magnetic note pad holder, or a similar magnetic item. If removing these
items does not correct the condition, see your
GM dealer for assistance.
When cleaning
the mirror, use a paper towel or similar material dampened
with glass cleaner.
Do not spray glass cleaner directly on the mirror as that
may cause liquid cleaner to enter the mirror housing.
2-54
ProCarManuals.com

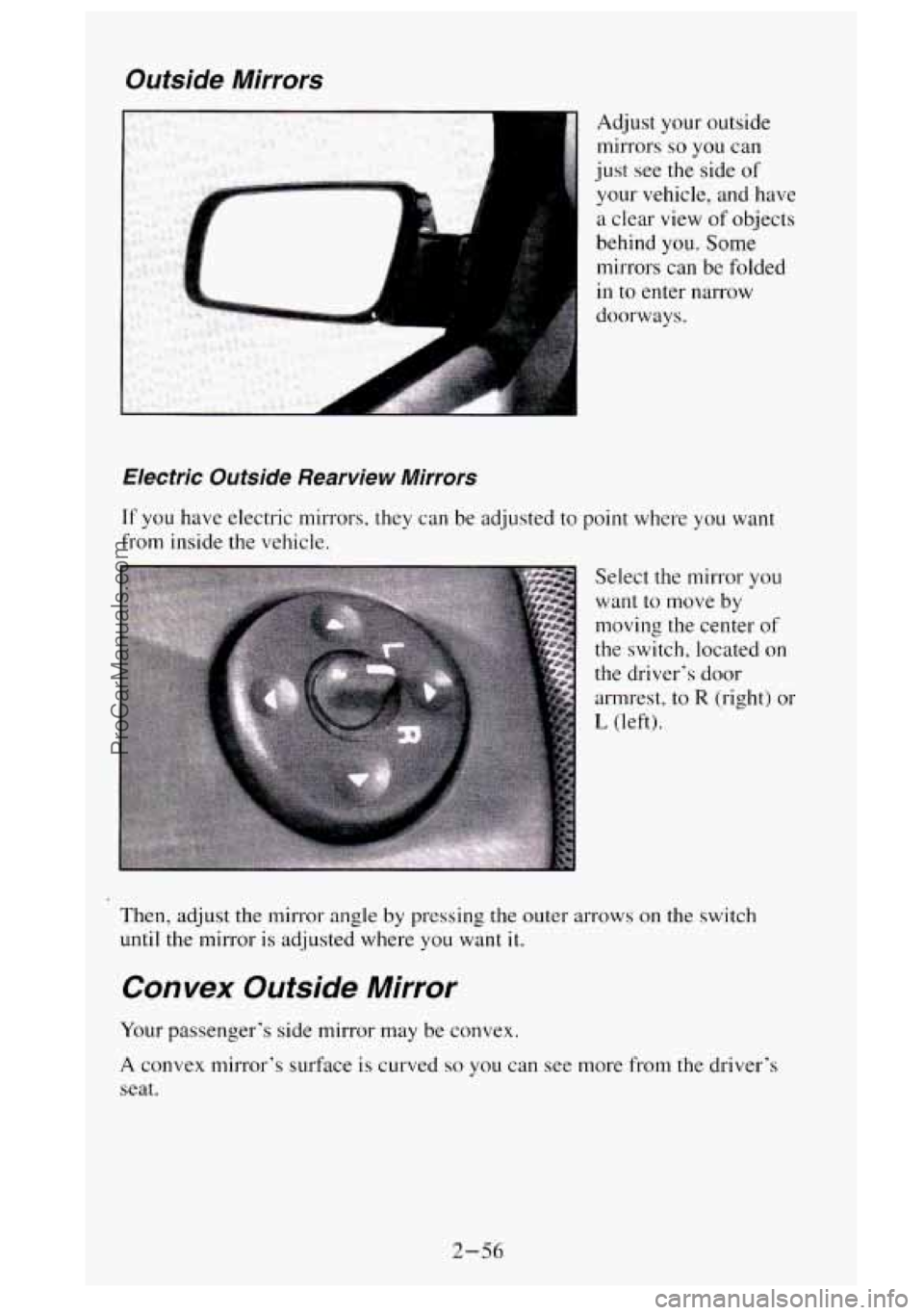

Ouiside Mirrors
F
Adjust your outside
mirrors
so you can
just see the side
of
your vehicle, and have
a clear view
of objects
behind
you. Some
mirrors can be folded
in to enter narrow
doorways.
Electric Outside Rearview Mirrors
If you have electric mirrors. they can be adjusted to point where you want
from inside the vehicle.
Select the mirror
you
want to move by
moving the center
of
the switch, located on
the driver’s door
armrest, to
R (right) or
L (left).
Then, adjust the mirror angle
by pressing the outer arrows on the switch
until the mirror is adjusted where you want
it.
Convex Outside Mirror
Your passenger’s side mirror may be convex.
A convex mirror’s surface is curved so you can see more from the driver’s
seat.
2-56
ProCarManuals.com

After Off-Road Driving
Remove any brush or debris that has collected on the underbody, chassis or
under the hood. These accumulations can be
a fire hazard.
After operation
in mud or sand, have the brake linings cleaned and checked.
These substances can cause glazing and uneven braking. Check the body
structure, steering, suspension. wheels, tires, and exhaust system for
damage.
Also, check the fuel lines and cooling system for any leakage.
Your vehicle
will require more frequent service due to off-road use. Refer
to the Maintenance Schedule for additional information.
Driving at Night
Night driving is more dangerous than day driving. One reason is that some
drivers are likely
to be impaired - by alcohol or drugs, with night vision
problems,
or by fatigue.
Here are some tips on night driving.
0 Drive defensively.
Don’t drink and drive.
Adjust your inside rearview mirror to reduce the glare from headlamps
Since you can’t see as well, you may need to slow down and keep more
behind
you.
space
between you and other vehicles.
a Slow down, especially on higher speed roads. Your headlamps can light
up only
so much road ahead.
0 In remote areas, watch for animals.
If you’re tired, pull off the road in a safe place and rest.
4-23
ProCarManuals.com

Lamps (continued)
Lamp and Bulb Data
........................................... 6-88
Reading
..................................................... 2-51
Replacement (See “Bulb Replacement“)
Underhood Reel Lamp
......................................... 2-52
Lights ......................................................... 2-70
Air Bag Readiness Light
................................... 1-20, 2-71
Anti-. Lock Brake System Warning Light
........................... 2-73
Brake System Warning Light
.................................... 2-72
Charging System Warning Light
.................................. 2-76
Daytime Running Lamps (DRL) Indicator Light
................ 2-50, 2-77
Check
Gages Light
............................................ 2-77
Glow Plugs Light
............................................. 2-75
Headlamp High Beam Indicator Light
............................. 2-78
Headlights (See “Headlamps”) Low Coolant Warning Light
................................ 2-75, 6-38
Malfunction Indicator
..................................... 2-76, 6-57
Safety Belt Reminder Light
..................................... 2-71
Service Throttle Soon
.......................................... 2-74
ShiftLight
.............................................. 2-25, 2-78
Turn Signal and Lane Change Indicator Light .................. 240, 2-79
Water
in Fuel (Diesel Engine) .................................... 2-74
Loading Your Vehicle
............................................ 4-37
Trailering Package
............................................ 4-39
Truck-Camper Loading
........................................ 4-39
Lock Cylinders (See “Key Lock Cylinders“)
Loss of Control (See “Driving-Loss
of Control”)
Lubrication (See “Recommended Fluids and Lubricants“)
M
Malfunction Indicator Lamp (See “Lights”)
Maintenance (See “Scheduled Maintenance Services”)
Master Cylinder (See “Brakes”)
Mirrors Convexoutside
............................................... 2-56
Electric Outside Rearview Mirrors
................................ 2-56
Electrochromic Inside Rearview Mirror
............................ 2-54
Inside
....................................................... 2-53
Outside
..................................................... 2-56
ModelReference
.................................................. iv
Multifunction Lever .............................................. 2-39
N
Noise Control System ............................................ 6-14
0
Odometer (See “Gages“)
Off-Road Driving (See ”Driving-Off Road Driving”)
Off-Road Recovery
............................................... 4-9
6
