1995 GMC SIERRA service schedule

I Maintenance Schedule II - Diesel Engines
(Continued)
0 Inspect shields and underhood insulation for damage or looseness.
Adjust or replace
as required. This is a Noise Emission Control
Service. Applicable only to vehicles sold in the United States.\

0 Check the air intake system installation to assure that gaskets are
properly sealed and that all hose connections, fasteners and other
components are tight. Also check
to be sure that the air cleaner housing
is properly seated, the cover fits tightly and the wing nuts are tight.
Tighten connections and fasteners or replace damaged parts as
necessary.
This is a Noise Emission Control Service. Applicable only
to vehicles sold in the United States.
0 If your engine has a thermostatically controlled cooling fan, inspect all
hoses and ducts for proper hook-up (or every 12 months, whichever
occurs first). Be sure the valve works properly.
This is a Noise
Emission Control Service. Applicable only to vehicles sold in the
United States.
0 Check readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.
't''g
15,000 Miles (24 000 km)
Change engine oil and filter (or every 3 months, whichever occurs
Lubricate the front suspension, king pin bushings, steering linkage,
transmission shift linkage, transfer case shift linkage, parking brake
cable guides, rear driveline center splines, front axle propshaft splines,
brake pedal springs and clutch pedal springs. Ball joints and king pin
bushings should not be lubricated unless their temperature is
10" F
(-12" C), or higher. When weather is cold, let the ball joints and king
pin bushings warm up before lubrication or
they could be damaged.
Perform each of the listed lubrication service items at this mileage
interval (or every
12 months, whichever occurs first).
first).
An Emission Control Service.
(Contimred)
7-82
ProCarManuals.com

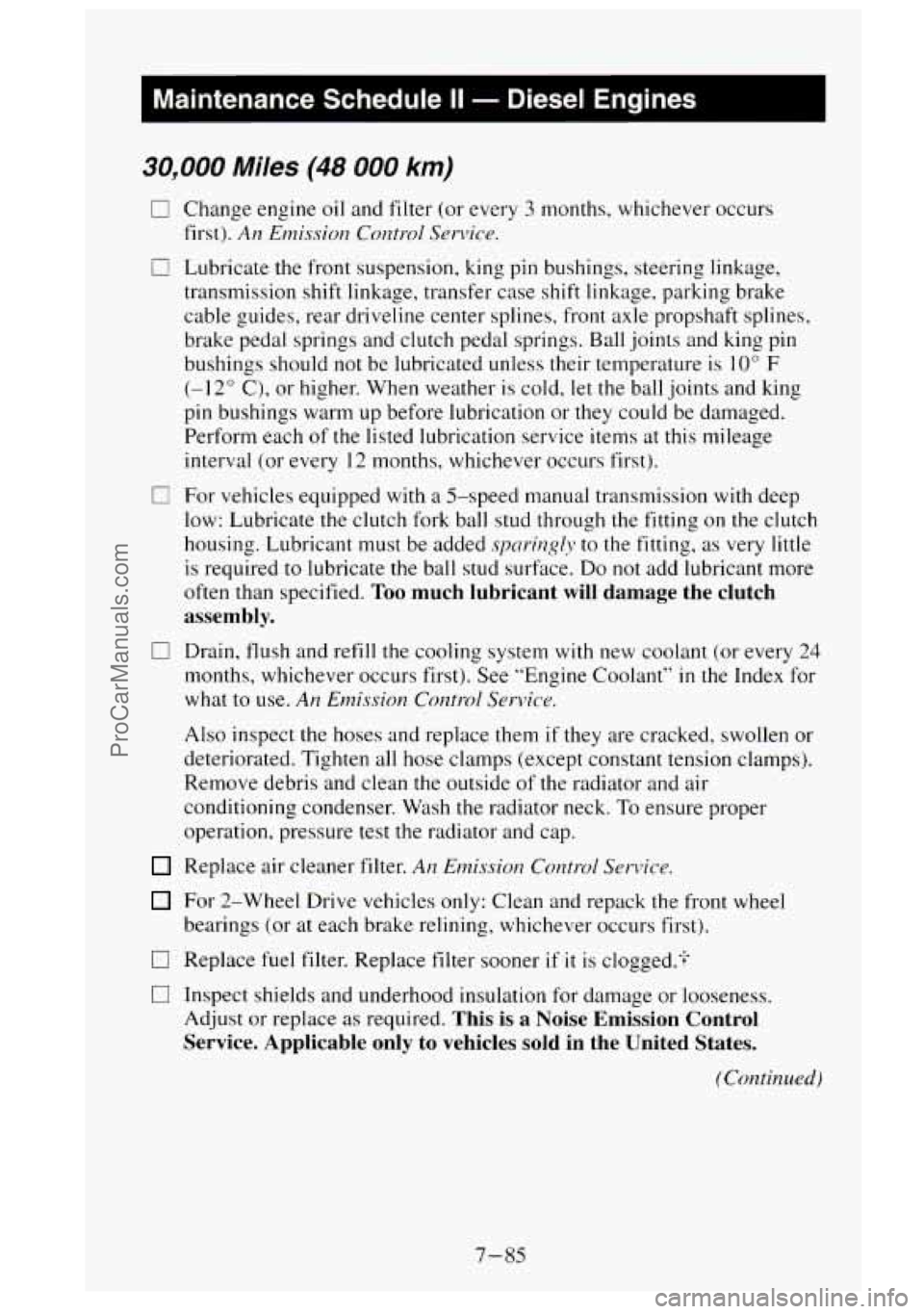

I Maintenance Schedule II - Diesel Engines
30,000 Miles (48 000 km)
0
0
0
Change engine oil and filter (or every 3 months, whichever occurs
first).
An Emission Control Service.
Lubricate the front suspension, king pin bushings, steering linkage,
transmission shift linkage, transfer case shift linkage, parking brake
cable guides, rear driveline center splines, front axle propshaft splines,
brake pedal springs and clutch pedal springs. Ball joints and king pin
bushings should not be lubricated unless their temperature is
10" F
(-12" C), or higher. When weather is cold, let the ball joints and king
pin bushings warm up before lubrication or they could be damaged.
Perform each of the listed lubrication service items at this mileage
interval (or every 12 months, whichever occurs first).
For vehicles equipped with a 5-speed manual transmission with deep
low: Lubricate the clutch fork ball stud through the fitting
on the clutch
housing. Lubricant must be added
spring1-y to the fitting, as very little
is required to lubricate the ball stud surface. Do not add lubricant more
often than specified.
Too much lubricant will damage the clutch
assembly.
Drain, flush and refill the cooling system with new coolant (or every 24
months, whichever occurs first). See "Engine Coolant" in the Index for
what to use.
An Ernission Control Service.
Also inspect the hoses and replace them if they are cracked, swollen or
deteriorated. Tighten all hose clamps (except constant tension clamps).
Remove debris and clean the outside of the radiator and air
conditioning condenser. Wash the radiator neck.
To ensure proper
operation, pressure test the radiator and cap.
Replace air cleaner filter.
An Emission Coratrol Service.
For 2-Wheel Drive vehicles only: Clean and repack the front wheel
bearings (or at each brake relining, whichever occurs first).
Replace fuel filter. Replace filter sooner
if it is clogged:?
Inspect shields and underhood insulation for damage or looseness.
Adjust
or replace as required. This is a Noise Emission Control
Service. Applicable only to vehicles sold in the United States.
(Continued)
7-85
ProCarManuals.com

I Maintenance Schedule II - Diesel Engines
(Continued)
0 Check the air intake system installation to assure that gaskets are
properly sealed and that all hose connections, fasteners and other
components are tight. Also check to be sure that the air cleaner housing
is properly seated, the cover fits tightly and the wing nuts are tight.
Tighten connections and fasteners or replace damaged parts as
necessary.
This is a Noise Emission Control Service. Applicable only
to vehicles sold in the United States.
0 If your engine has a thermostatically controlled cooling fan, inspect all
hoses and ducts for proper hook-up (or every 12 months, whichever
occurs first). Be sure the valve works properly.
This is a Noise
Emission Control Service. Applicable only to vehicles sold in t\
he
United States.
0 Check readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.
**
I DATE I ACTUALMILEAGE I SERVICED BY: I
35,000 Miles (56 000 km)
0 Change engine oil and filter (or every 3 months, whichever occurs
first).
An Emission Control Service.
Lubricate the front suspension, king pin bushings, steering linkage,
transmission shift linkage, transfer case shift linkage, parking brake
cable guides, rear driveline center splines, front axle propshaft splines,
brake pedal springs and clutch pedal springs, Ball joints and king pin
bushings should not be lubricated unless their temperature is
10” F
(-12” C), or higher. When weather is cold, let the ball joints and king
pin bushings warm up before lubrication or they could be damaged.
Perform each of the listed lubrication service items at
this mileage
interval
(or every 12 months, whichever occurs first).
Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
rotation pattern and additional information. See “Tires”
in the Index.
(Continued)
7-86
ProCarManuals.com

I Maintenance Schedule II - Diesel Engines I
(Continued)
0 Check readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.
*'%
I DATE I ACTUALMILEAGE I SERVICED BY:
40,000 Miles (64 000 km)
0 Change engine oil and filter (or every 3 months, whichever occurs
first).
An Emission Control Service.
0 Lubricate the front suspension, king pin bushings, steering linkage,
transmission shift linkage, transfer case shift linkage, parking brake
cable guides, rear driveline center splines, front axle propshaft splines,
brake pedal springs and clutch pedal springs.
Ball joints and king pin
bushings should not be lubricated unless their temperature is
10" F
(-1 2" C), or higher. When weather is cold, let the ball joints and king
pin bushings warm up before lubrication or they could be damaged.
Perform each
of the listed lubrication service items at this mileage
interval (or every
12 months, whichever occurs first).
0 Inspect shields and underhood insulation for damage or looseness.
Adjust or replace
as required. This is a Noise Emission Control
Service. Applicable only to vehicles sold in the United States.\

0 Check the air intake system installation to assure that gaskets are
properly sealed and that all hose connections, fasteners and other
components are tight.
Also check to be sure that the air cleaner housing
is properly seated, the cover fits tightly and the wing nuts are tight.
Tighten connections and fasteners or replace damaged parts
as
necessary. This is a Noise Emission Control Service. Applicable only
to vehicles sold in the United States.
0 If your engine has a thermostatically controlled cooling fan, inspect all
hoses and ducts for proper hook-up (or every
12 months, whichever
occurs first). Be sure the valve works properly.
This is a Noise
Emission Control Service. Applicable only
to vehicles sold in the
United States.
(Continued)
7-87
ProCarManuals.com

I Maintenance Schedule II - Diesel Engines
( Con t in ~t ed)
0 Check readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.
**
I DATE I ACTUALMILEAGE I SERVICED BY: I
45,000 Miles (72 000 km)
0 Change engine oil and filter (or every 3 months, whichever occurs
first).
An Emission Control Service.
cj Lubricate the front suspension, king pin bushings, steering linkage,
transmission shift linkage, transfer case shift linkage, parking brake
cable guides, rear driveline center splines, front axle propshaft splines,
brake pedal springs and clutch pedal springs. Ball joints and king
pin
bushings should not be lubricated unless their temperature is 10" F
(-12" C), or higher. When weather is cold, let the ball joints and king
pin bushings warm up before lubrication or they could be damaged.
Perform each of the listed lubrication service items at this mileage
interval (or every
I2 months, whichever occurs first).
Rotate tires. See "Tire Inspection and Rotation" in the Index for proper
rotation pattern and additional information. See "Tires"
in the Index.
0 Check readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.
$:'%
DATE SERVICED BY: ACTUAL MILEAGE
1-88
ProCarManuals.com

Maintenance Schedule II - Diesel Engines I-
(Continued)
0 Check rear/fi-ont axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.
‘!”:’
DATE
SERVICED BY: ACTUAL MILEAGE
r
55,000 Miles (88 000 km)
0 Change engine oil and filter (or every 3 months, whichever occurs
first).
An Emission Control Sen7ic.e.
0 Lubricate the front suspension, king pin bushings, steering linkage,
transmission shift linkage, transfer case shift linkage, parking brake
cable guides, rear driveline center splines, front axle propshaft splines,
brake pedal springs and clutch pedal springs. Ball joints and king pin
bushings should not be lubricated unless their temperature is
10” F
(-12” C), or higher. When weather is cold, let the ball joints and king
pin bushings warm up before lubrication or they could be damaged.
Perform each of the listed lubrication service items at this mileage
interval (or every
I2 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and Rotation’‘ in the Index for proper
rotation pattern and additional information. See “Tires”
in the Index.
0 Check rear/front axle fluid level and add i-luid as needed. Check
constant velocity joints and axle seals for leaking.
-I--’- .:. +
DATE I ACTUALMILEAGE I SERVICED BY:
~~~
7-90
ProCarManuals.com

USAGE
Column Shift Lever and Propeller
Shaft
Windshield Washer Solvent
Propeller Shaft Spline/Universal
Joint
Hood Latch Assembly
a. Pivots and Spring Anchor
b. Release Pawl
Hood and Door Hinges
Body Door Hinge Pins, Tailgate
Hinge and Linkage, Folding Seat,
Fuel
Door Hinge
Outer Tailgate Handle Pivot Points
Weatherstrip Conditioning
Weatherstrip Squeaks
Gas Line
FLUIDLUBRICANT
Chassis lubricant meeting require-
ments
of NLGI Grade 2, Category
LB
or GC-LB (GM Part No.
12346003).
GM Optikleen’ Washer Solvent
(GM Part
No. 105 1 5 1 5) or equiva-
lent.
Chassis lubricant (GM Part
No.
12346003 or equivalent) or lubri-
cant meeting requirements
of NLGI
Grade 2, Category LB or GC-LB.
a. Engine oil.
b. Chassis lubricant (GM Part No.
12346003 or equivalent) or lubri-
cant meeting requirements
of NLGI
Grade 2, Category LB or GC-LB.
Engine oil or Lubriplate Lubricant
(GM Part
No. 1050109).
Engine Oil.
Multi-Purpose Lubricant (GM Part
No. 12345 120 or equivalent).
Dielectric Silicone Grease (GM
Part
No. 12345579 or equivalent).
Spray-A-Squeek (GM
Part No.
1 05 2277).
Gas Line De-Icer (GM Part No.
105 15 16).
Part E: Maintenance Record
After the scheduled services are performed, record the date, odometer
reading and who performed the service
in the boxes provided after the
maintenance interval. Any additional information from “Owner Checks and
Services” or “Periodic Maintenance” can be added on the following record
pages. Also, you should retain all maintenance receipts. Your owner
information portfolio
is a convenient place to store them.
7-100
ProCarManuals.com

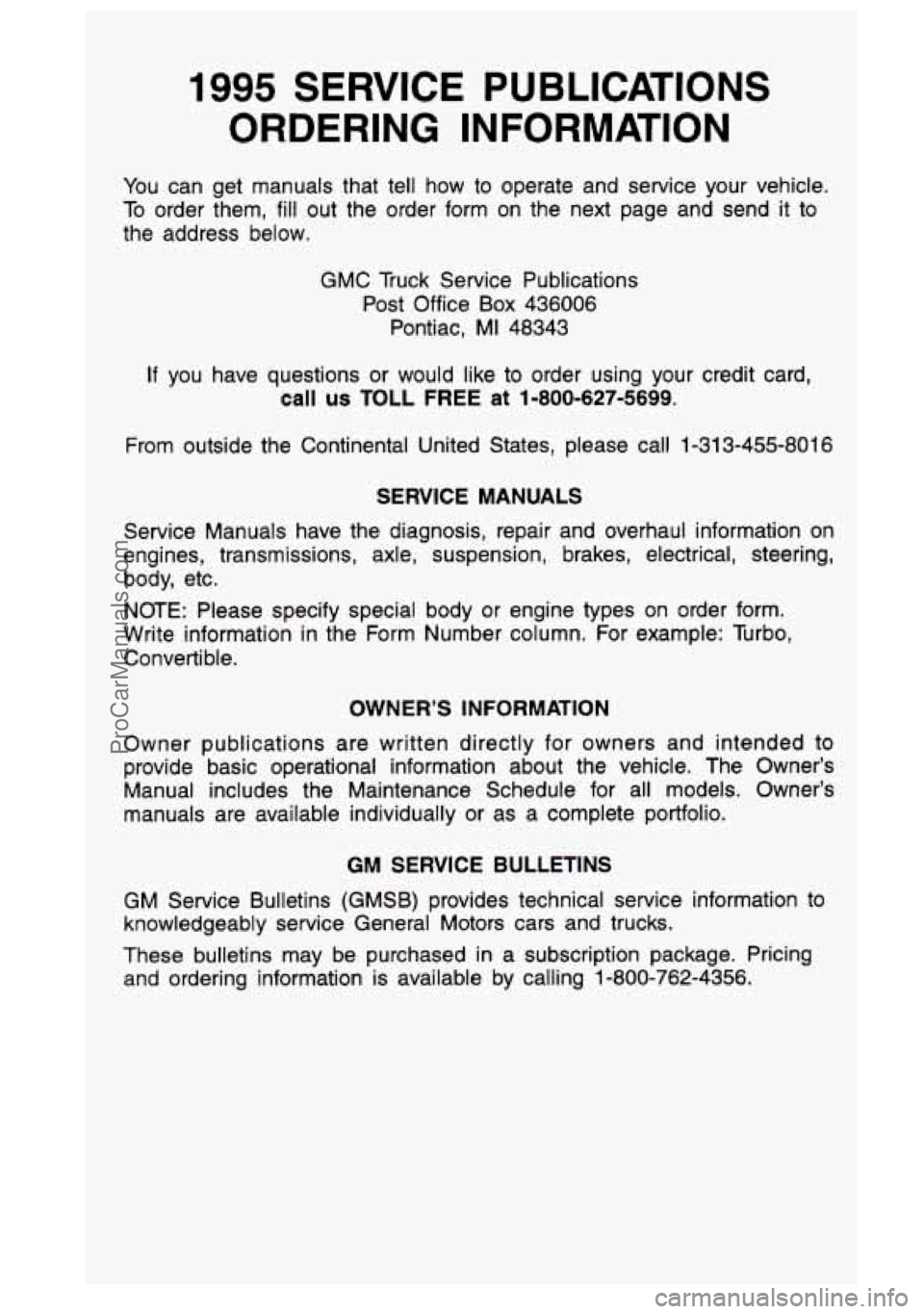

1995 SERVICE PUBLICATIONS
ORDERING INFORMATION
You can get manuals that tell how to operate and service your vehicle.
To order them,
fill out the order form on the next page and send it to
the address below.
GMC Truck Service Publications
Post Office Box 436006
Pontiac, MI 48343
If you have questions or would like to order using your credit c\
ard,
call us TOLL FREE at 1-800-627-5699.
From outside the Continental United States, please call 1-31 3-455-801 6
SERVICE MANUALS
Service Manuals have the diagnosis, repair and overhaul informat\
ion on
engines, transmissions, axle, suspension, brakes, electrical, stee\
ring,
body, etc.
NOTE: Please specify special body or engine types on order form.
Write information in the Form Number column. For example: Turbo,
Convertible.
OWNER’S INFORMATION
Owner publications are written directly for owners and intended to
provide basic operational information about the vehicle. The Own\
er’s
Manual includes the Maintenance Schedule for all models. Owner’s
manuals are available individually or as a complete portfolio.
GM SERVICE BULLETINS
GM Service Bulletins (GMSB) provides technical service informat\
ion to
knowledgeably service General Motors cars and trucks.
These bulletins may
be purchased in a subscription package. Pricing
and ordering information is available by calling 1-800-762-4356,
ProCarManuals.com
