1995 CHEVROLET CORVETTE clock

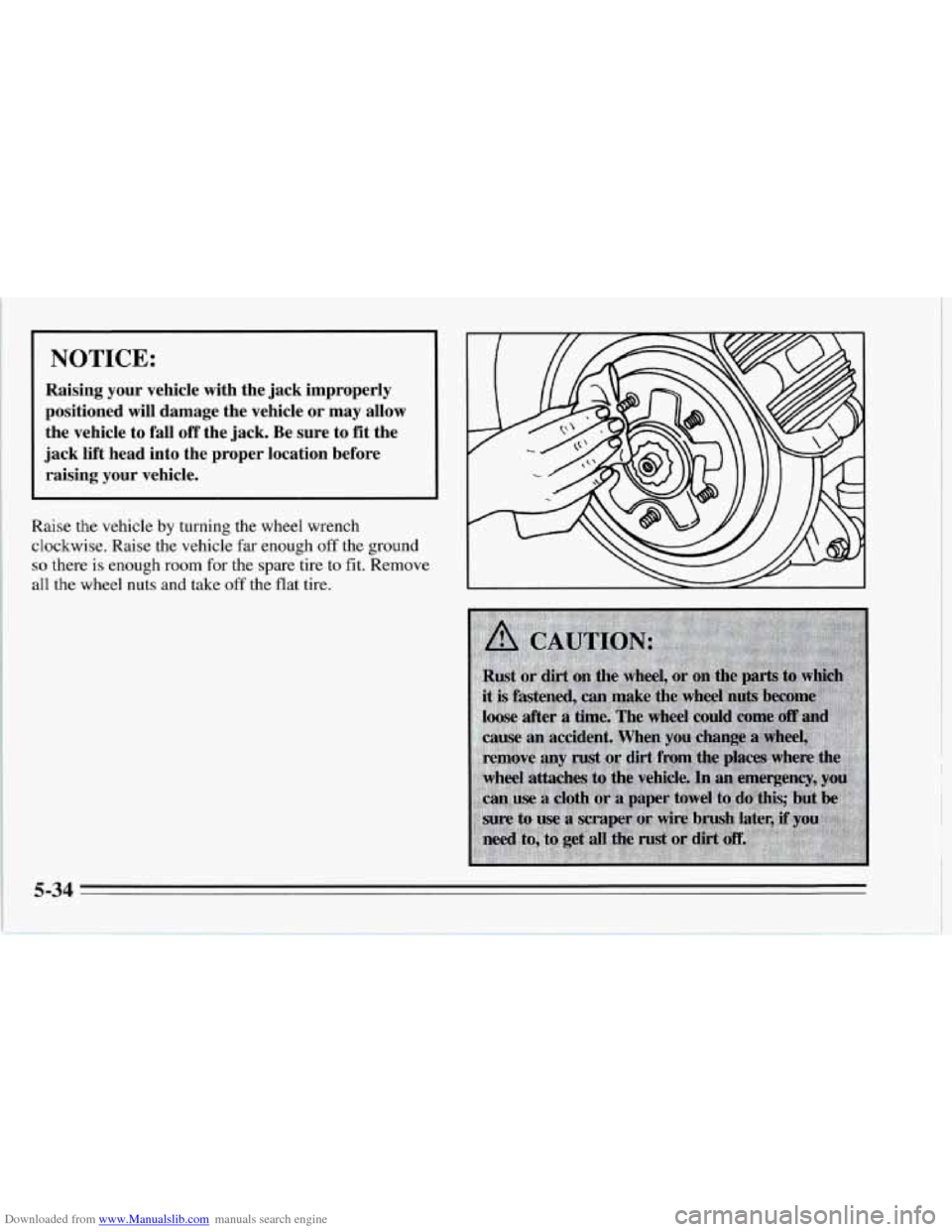

Downloaded from www.Manualslib.com manuals search engine NOTICE:
Raising your vehicle with the jack improperly
positioned will damage the vehicle or may allow
the vehicle to fall off the jack. Be sure
to fit the
jack lift head into the proper location before raising your vehicle.
Raise the vehicle by turning the wheel wrench
clockwise. Raise the vehicle far enough off the ground
so there is enough room for the spare tire to fit. Remove
all the wheel nuts and take
off the flat tire.
5-34

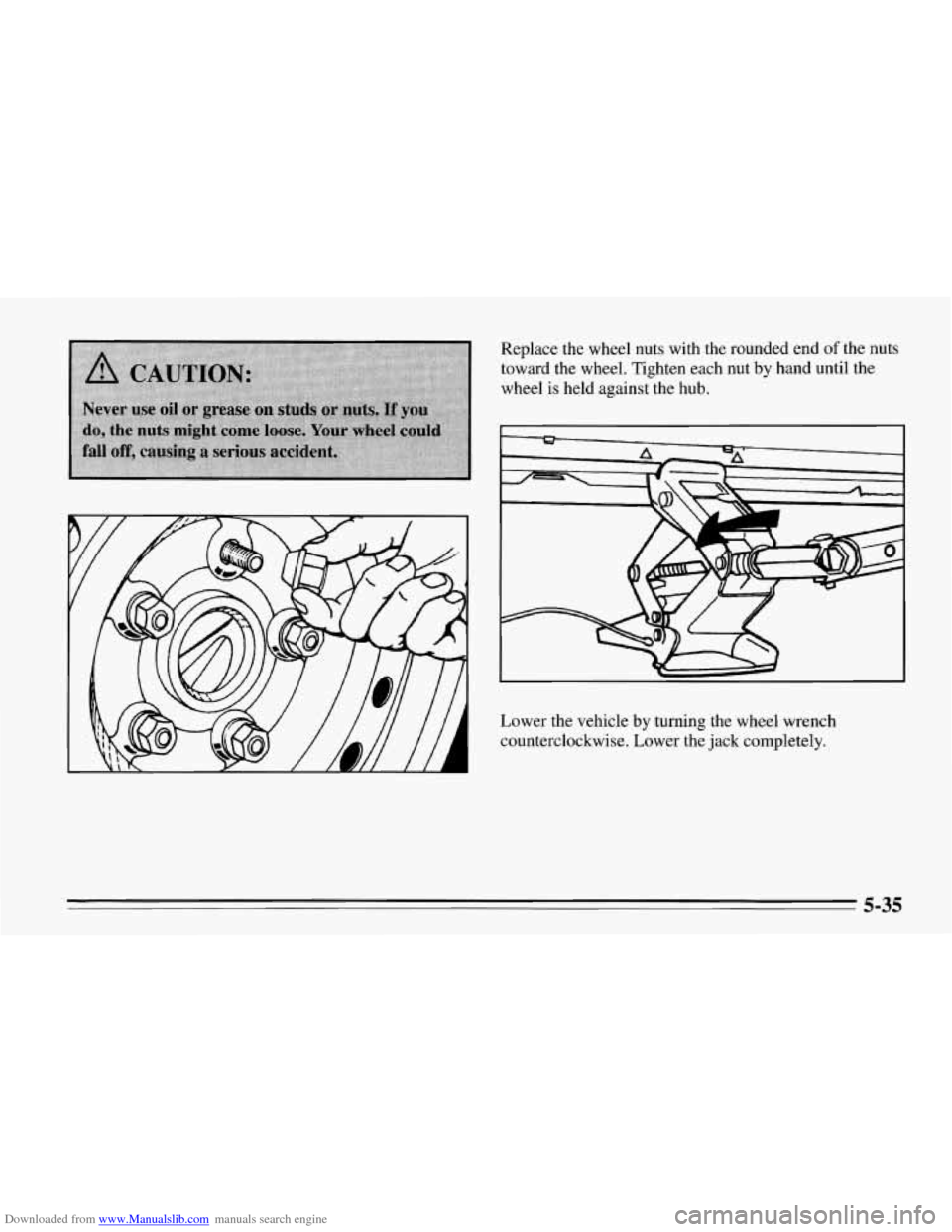

Downloaded from www.Manualslib.com manuals search engine Replace the wheel nuts with the rounded end of the nuts
toward the wheel. Tighten each nut by hand until the
wheel
is held against the hub.
Lower the vehicle by turning the wheel wrench
counterclockwise. Lower the jack completely.
5-35

Downloaded from www.Manualslib.com manuals search engine F

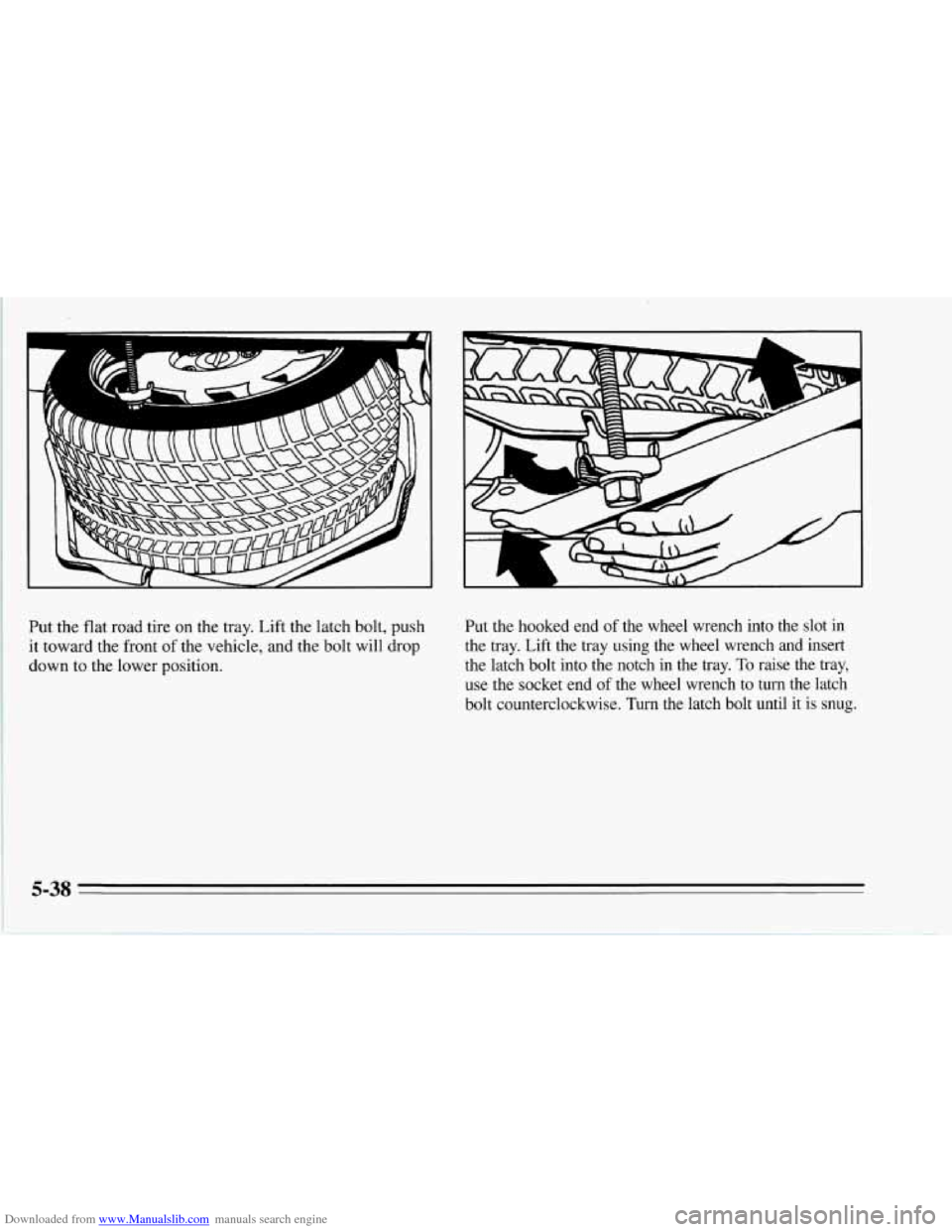

Put the flat road tire on the tray. Lift the latch bolt, push
it toward the front
of the vehicle, and the bolt will drop
down to the lower position. Put
the hooked end of the wheel wrench into the slot in
the tray. Lift the tray using the wheel wrench and insert
the latch bolt into the notch in the tray.
To raise the tray,
use the socket end
of the wheel wrench to turn the latch
bolt counterclockwise. Turn the latch bolt until it is snug.
5-38

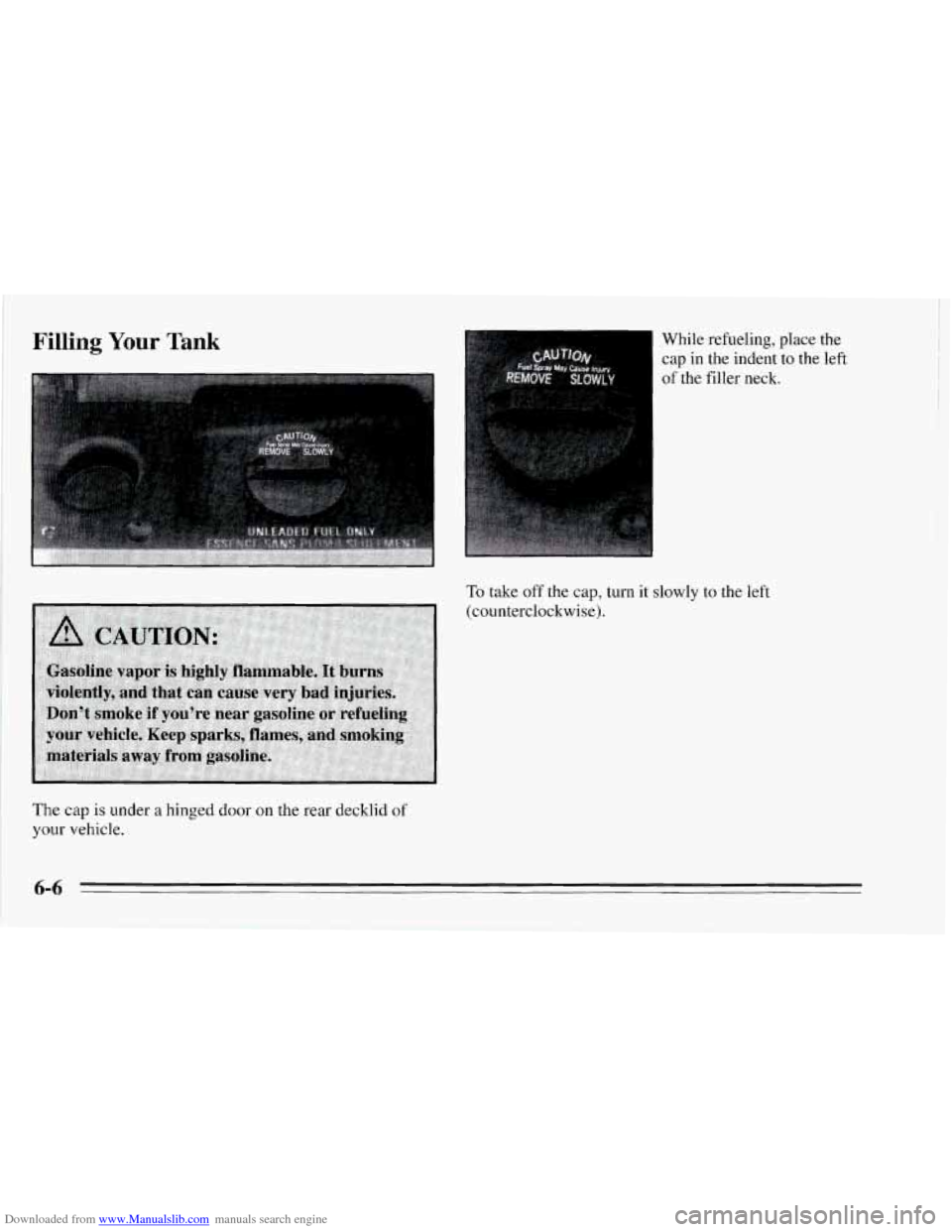

Downloaded from www.Manualslib.com manuals search engine Filling Your Tank While refueling, place the
cap in the indent to the left
of the filler neck.
To take off the cap, turn it slowly to the left
(counterclockwise).
The cap is under a hinged door on the rear decklid of
your vehicle.

Downloaded from www.Manualslib.com manuals search engine Fog Lamp
You can reach the fog lamps from under the front
bumper.
1. Remove the screw in the access door. Open the door.
2. Turn the bulb base counterclockwise 118 turn and
pull it out.
3. Disconnect the bulb base from the wiring harness.
4. Reverse the steps with a new bulb.
6. Remove the four screws from the retainer near each
comer of the headlamp. Don’t move the large-head
adjusting screws
or your headlamp will not be aimed
properly.
Hold the headlamp and remove the retainer.
7. Remove the headlamp and unplug the electrical
8. Reverse the steps with a new headlamp.
connector.

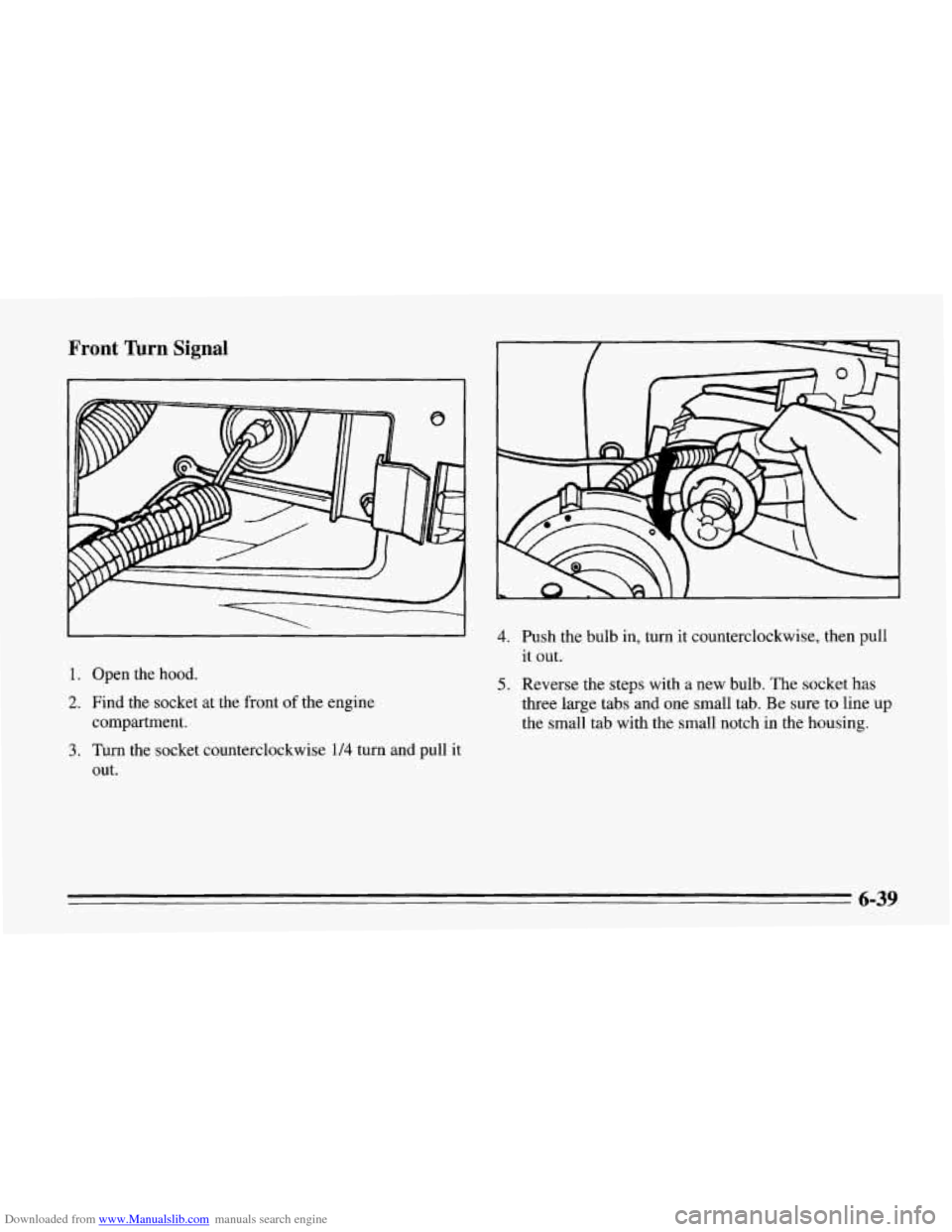

Downloaded from www.Manualslib.com manuals search engine Front Turn Signal
1. Open the hood.
2. Find the socket at the front of the engine
compartment.
3. Turn the socket counterclockwise 1/4 turn and pull it
out.
4. Push the bulb in, turn it counterclockwise, then pull
5. Reverse the steps with a new bulb. The socket has
it out.
three large tabs and one small tab. Be sure to line
up
the small tab with the small notch in the housing.
6-39

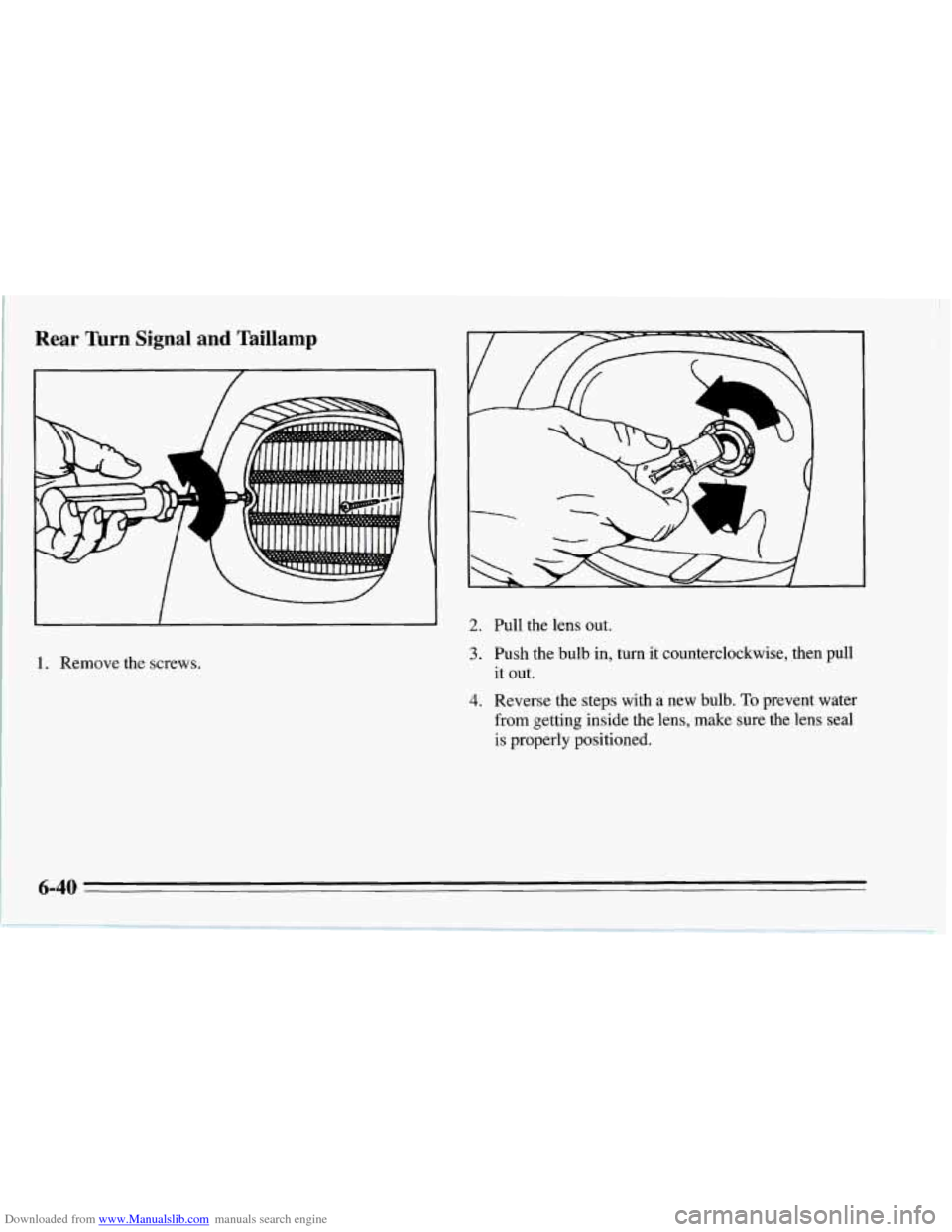

Downloaded from www.Manualslib.com manuals search engine Rear Turn Signal and Taillamp
I
I
1. Remove the screws.
2.
3.
4.
Pull the lens out.
Push the bulb in, turn it counterclockwise, then pull
it out.
Reverse the steps with a new bulb.
To prevent water
from getting inside the lens, make sure the lens seal
is properly positioned.
6-40

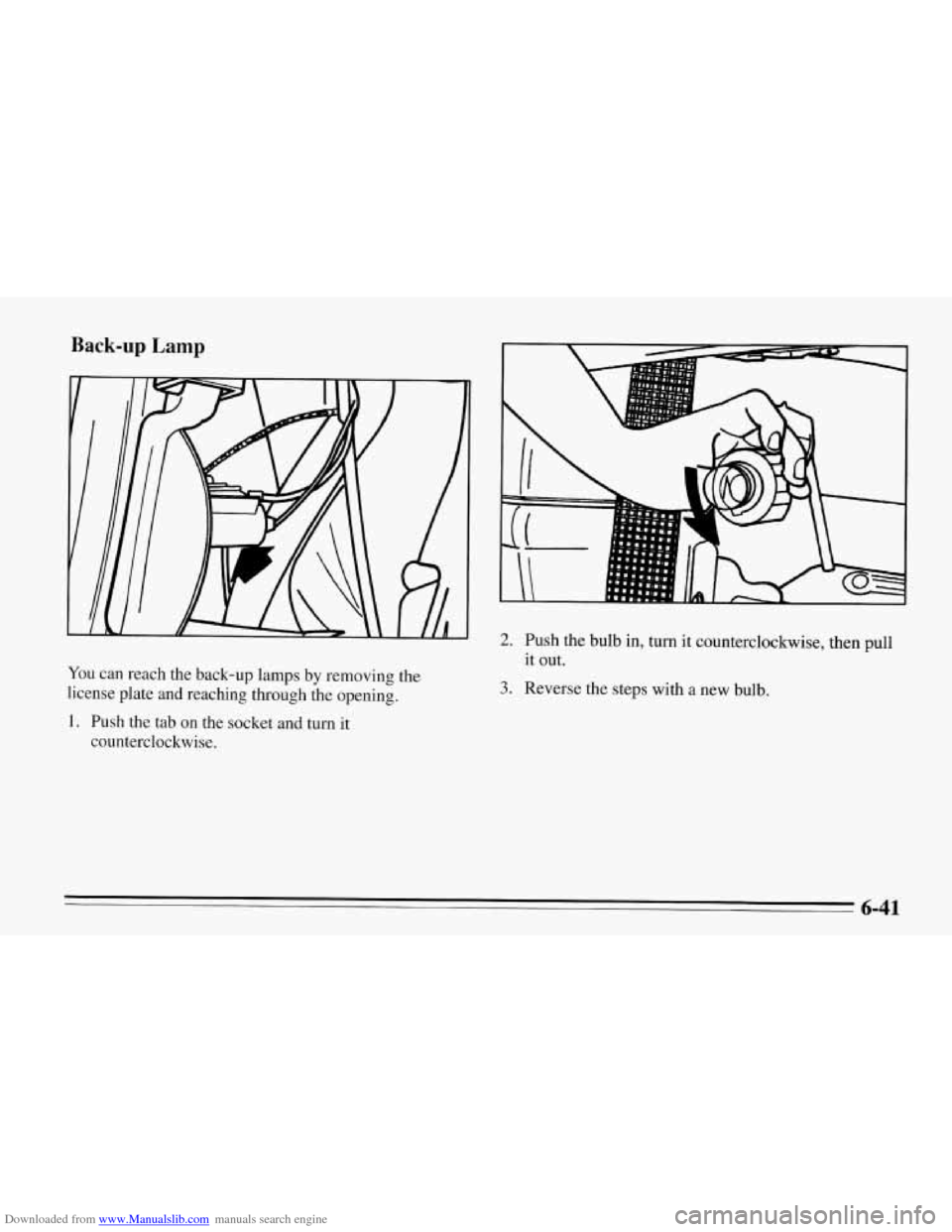

Downloaded from www.Manualslib.com manuals search engine Back-up Lamp
You can reach the back-up lamps by removing the
license plate and reachmg through the opening.
1. Push the tab on the socket and turn it
counterclockwise.

2. Push the bulb in, turn it counterclockwise, then pull
it out.
3. Reverse the steps with a new bulb.
6-41
