1995 CADILLAC FLEETWOOD Owners Manual

Downloaded from www.Manualslib.com manuals search engine Vehicle Identification Number (VIN)
a
bl SAMPLE4UXTM072675 1
ENGINEA6 f ASSEMBLY
-
CODE MODEL YEAR PLANT
This is the legal identifier for your Cadillac. It appears
on
a plate in the front corner of the instrument panel, on
the driver's side. You can
see it if you look through the
windshield from outside your vehicle. The
VIN also
appears on the Vehicle Certification and Service Parts
labels and the certificates of title and registration.
Engine Identification
The eighth character in your VIN is the engine code.
This code will help you identify your engine,
specifications and replacement parts.
Service Parts Identification Label
You'll find this label on the underside of the trunk lid.
It's very helpful
if you ever need to order parts. On this
label is:
0 your VIN,
the model designation,
0 paint information, and
a list of all production options and
special equipment.
Be sure that this label is not removed from the vehicle.
6-56

Downloaded from www.Manualslib.com manuals search engine Electrical System
Add-on Electrical Equipment
1 NOTICE:
Don’t add anything electrical to your Cadillac
unless you check with your dealer first. Some
electrical equipment can damage your vehicle
and the damage wouldn’t be covered by your
warranty. Some add-on electrical equipment
can keep other components from working as they should.
I I
Your vehicle has an air bag system. Before attempting to
add anything electrical to your Cadillac, see “Servicing
Your Air Bag-Equipped Cadillac”
in the Index.
Headlamps
The headlamp wiring is protected by an internal circuit
breaker.
An electrical overload will cause the lamps to go
on and
off, or in some cases to remain off. If this happens,
have your headlamp wiring checked right away.
Windshield Wipers
The windshield wiper motor is protected by an internal
circuit breaker and a
fuse. If the motor overheats due to
heavy snow, etc., the wipers will stop until the motor
cools. If the overload is caused by some electrical
problem, be sure to get it fixed.
Power Windows and Other Power Options
Circuit breakers protect the power windows and other
power accessories. When the current load is
too heavy,
the circuit breaker opens and closes, protecting the
circuit until the problem is fixed or goes away.
6-57

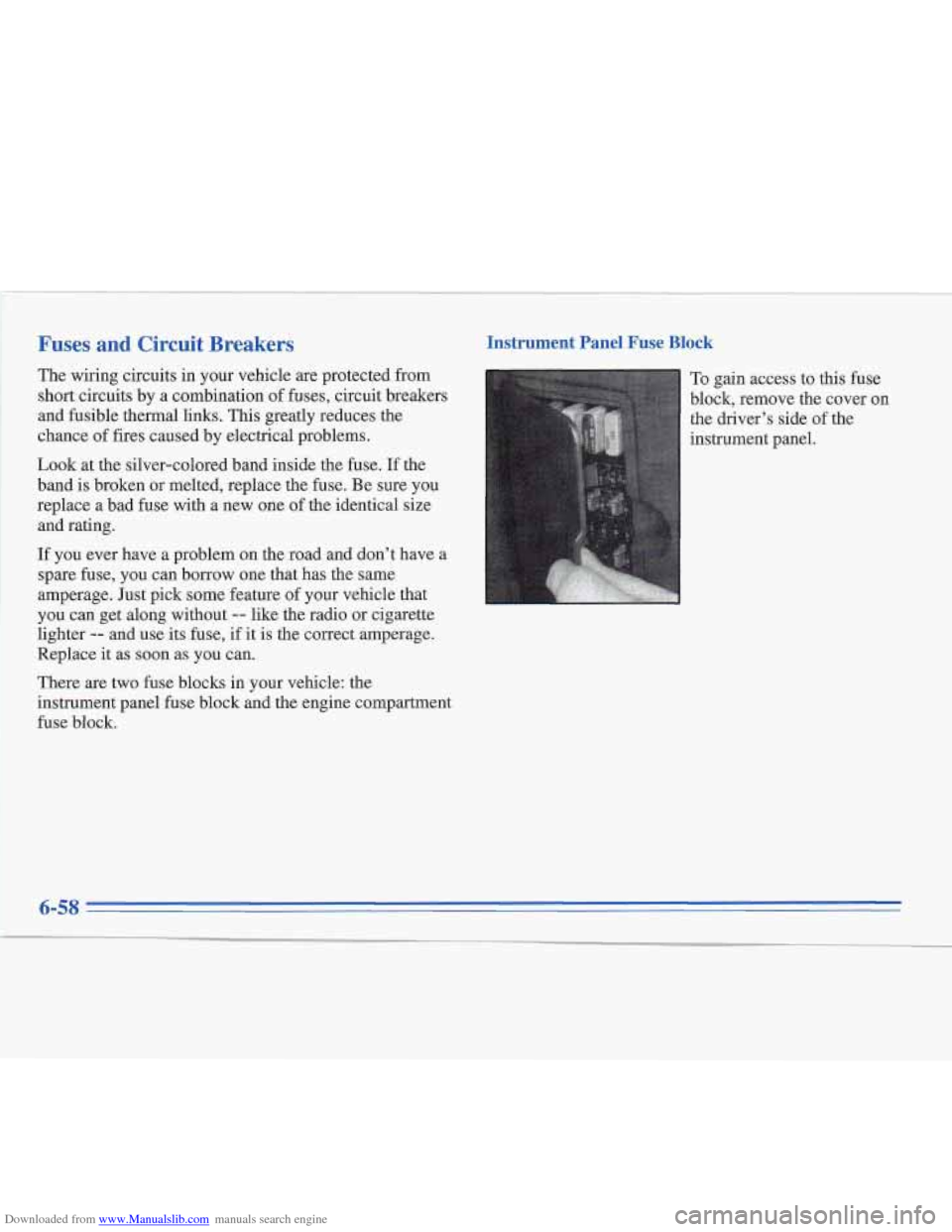

Downloaded from www.Manualslib.com manuals search engine Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses, circuit breakers
and fusible thermal
links. This greatly reduces the
chance of fires caused by electrical problems.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical size
and rating.
li you ever have a problem on the road and don’t have a
spare fuse, you can borrow one that has the same
amperage. Just pick some feature
of your vehicle that
you can get along without
-- like the radio or cigarette
lighter
-- and use its fuse, if it is the correct amperage.
Replace it as soon as you can.
There are two fuse blocks in your vehicle: the
instrument panel fuse block and the engine compartment fuse block.
Instrument Panel Fuse Bloc
To gain access to this fuse
block, remove the cover on the driver’s side of the
instrument panel.

Downloaded from www.Manualslib.com manuals search engine 117
18

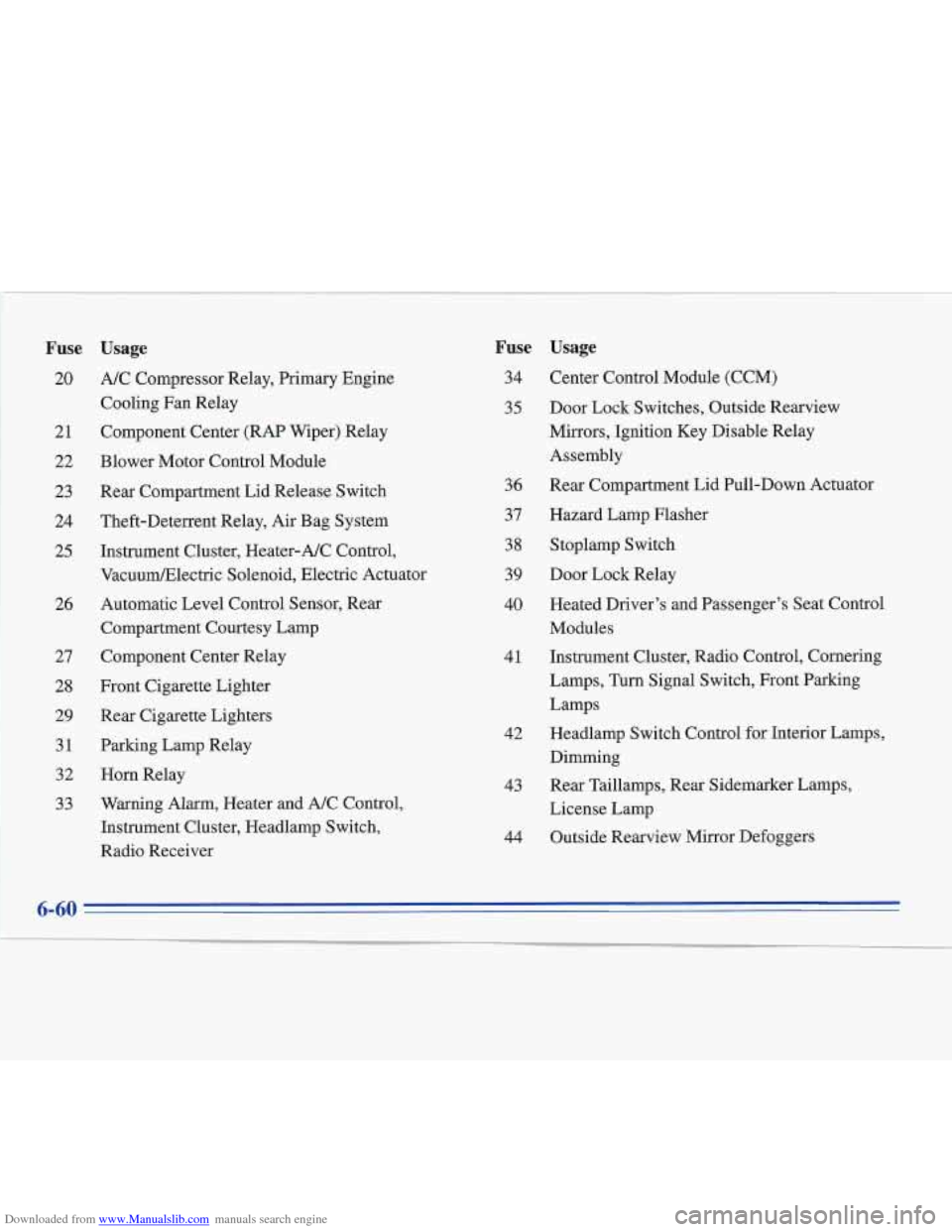

Downloaded from www.Manualslib.com manuals search engine Fuse
20
21
22
23
24 25
26
27
28 29
31 32
33
Usage
A/C Compressor Relay, Primary Engine
Cooling Fan Relay
Component Center (RAP Wiper) Relay
Fuse
34
35
Blower Motor Control Module
Rear Compartment Lid Release Switch
Theft-Deterrent Relay, Air Bag System
Instrument Cluster, Heater-A/C Control,
VacuundElectric Solenoid, Electric Actuator
Automatic Level Control Sensor, Rear
Compartment Courtesy Lamp
Component Center Relay
Front Cigarette Lighter
Rear Cigarette Lighters
Parking Lamp Relay
Horn Relay
Warning Alarm, Heater and A/C Control,
Instrument Cluster, Headlamp Switch, Radio Receiver
36
37
38
39
40
41
42
43
44
Usage
Center Control Module (CCM)
Door Lock Switches, Outside Rearview
Mirrors, Ignition Key Disable Relay
Assembly
Rear Compartment Lid Pull-Down Actuator
Hazard Lamp Flasher
Stoplamp Switch
Door Lock Relay
Heated Driver’s and Passenger’s Seat Control
Modules
Instrument Cluster, Radio Control, Cornering
Lamps, Turn Signal Switch, Front Parking
Lamps
Headlamp Switch Control for Interior Lamps,
Dimming
Rear Taillamps, Rear Sidemarker Lamps,
License Lamp
Outside Rearview Mirror Defoggers
6-60
~
~ r

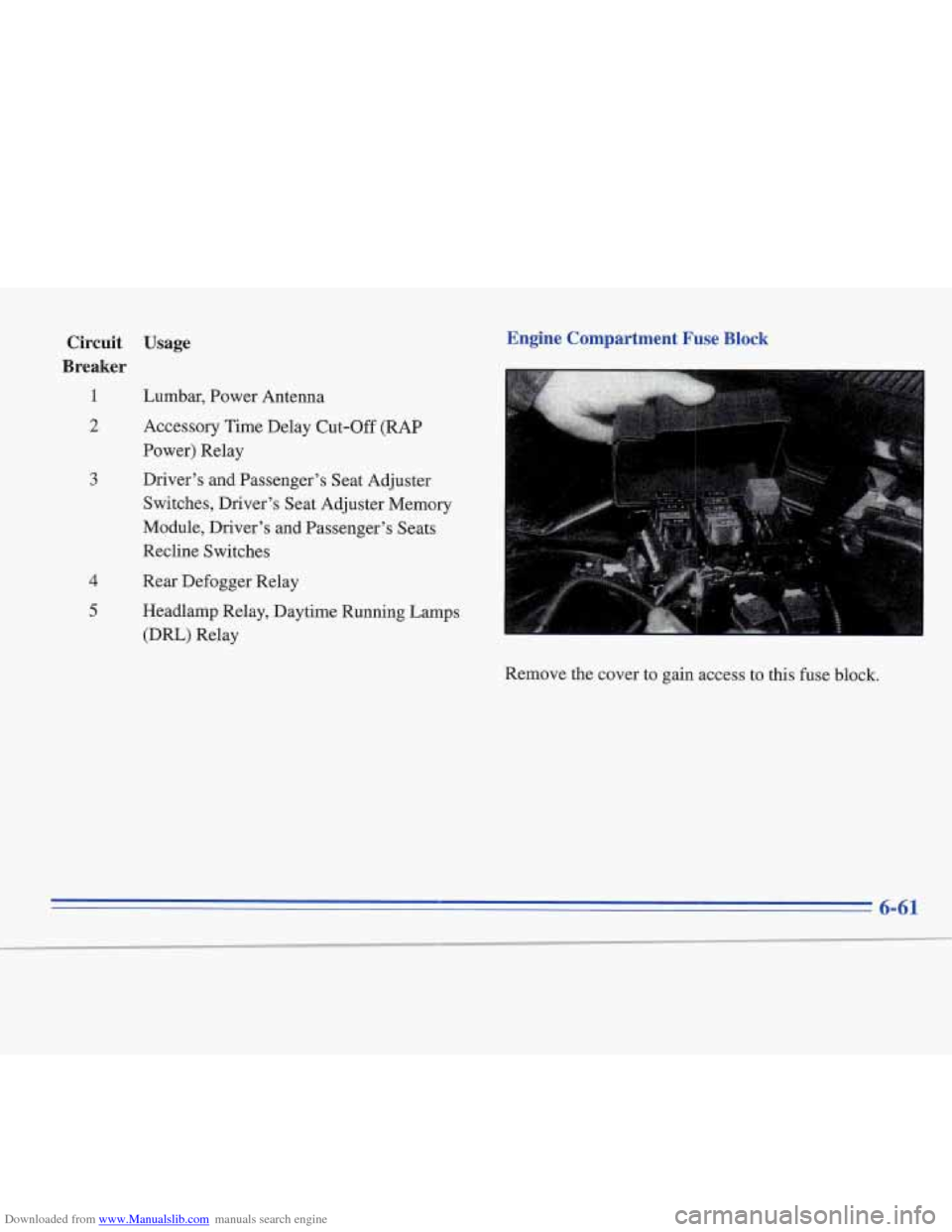

Downloaded from www.Manualslib.com manuals search engine Circuit Usage
Breaker
1 Lumbar, Power Antenna
2
3
4
5
Accessory Time Delay Cut-Off (RAP
Power) Relay
Driver’s and Passenger’s Seat Adjuster
Switches, Driver’s Seat Adjuster Memory
Module, Driver’s and Passenger’s Seats
Recline Switches
Rear Defogger Relay
Headlamp Relay, Daytime Running Lamps
(DRL) Relay
Engine Compartment Fuse Block
Remove the cover to gain access to this fuse block.
6-61

Downloaded from www.Manualslib.com manuals search engine I

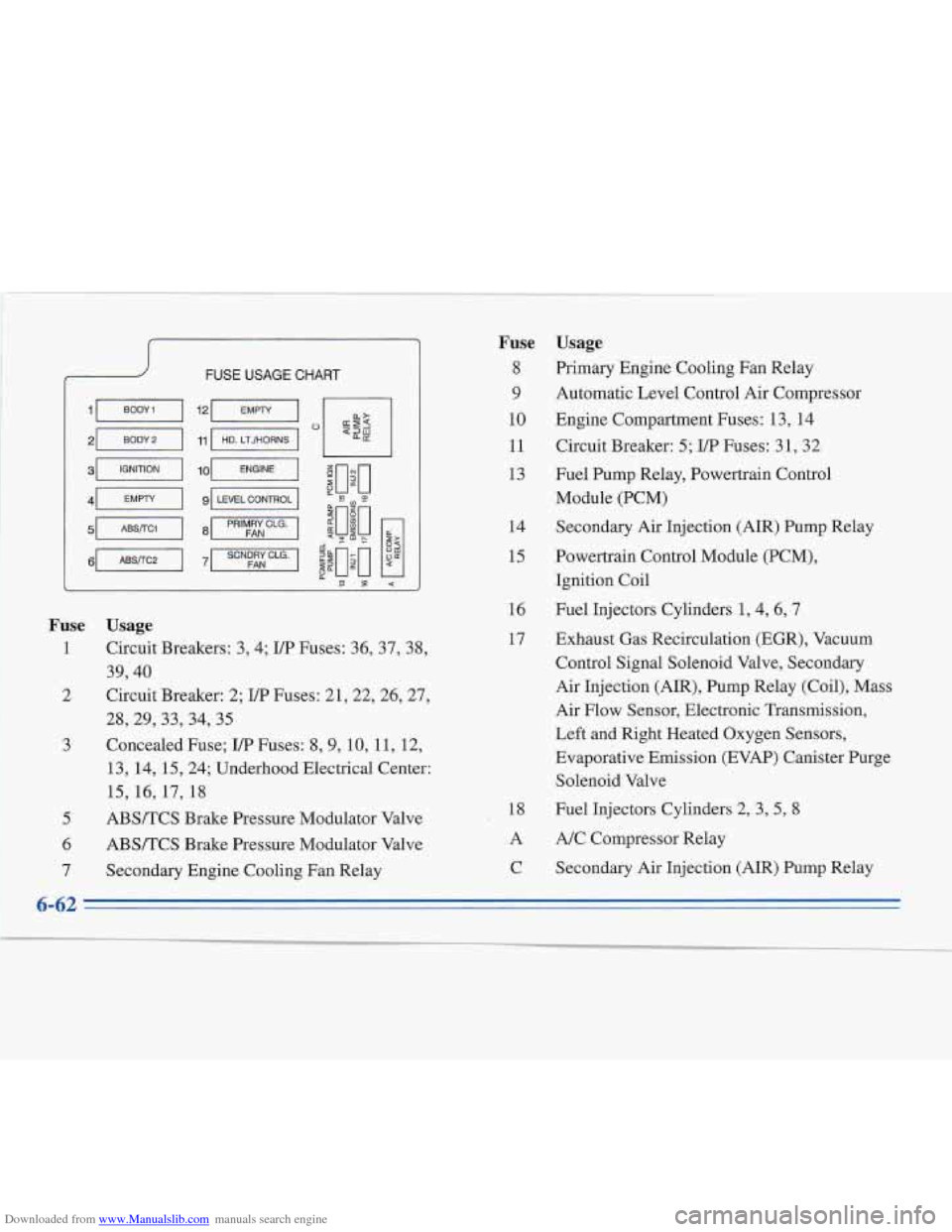

FUSE USAGE CHART
91 LEVEL CONTROL I
zuu *P U
Fuse
1
2
3
5
6
7
Usage
Circuit Breakers: 3,4; I/P Fuses: 36,37, 38,
39,40
Circuit Breaker: 2;
UP Fuses: 21,22,26,27,
28,29,33,34,35
Concealed Fuse;
I/P Fuses: 8,9, 10, 11, 12,
13, 14, 15,24; Underhood Electrical Center:
15, 16, 17, 18
ABS/TCS Brake Pressure Modulator Valve
ABS/TCS Brake Pressure Modulator Valve
Secondary Engine Cooling EmRelay 16
17
18
A C
6-62
Fuse
8
9
10
11
13
14
15
Usage
Primary Engine Cooling Fan Relay
Automatic Level Control Air Compressor
Engine Compartment Fuses: 13, 14
Circuit Breaker:
5; I/P Fuses: 31, 32
Fuel Pump Relay, Powertrain Control
Module (PCM)
Secondary Air Injection (AIR) Pump Relay
rowertrain Control Module (PCM),
Ignition Coil
Fuel Injectors Cylinders 1,4, 6,7
Exhaust Gas Recirculation (EGR), Vacuum
Control Signal Solenoid Valve, Secondary
Air Injection (AIR), Pump Relay (Coil), Mass
Air Flow Sensor, Electronic Transmission,
Left and Right Heated Oxygen Sensors,
Evaporative Emission (EVAP) Canister Purge
Solenoid Valve
Fuel Injectors Cylinders 2, 3,
5, 8
A/C Compressor Relay
Secondary Air Injection (AIR) Pump Relay

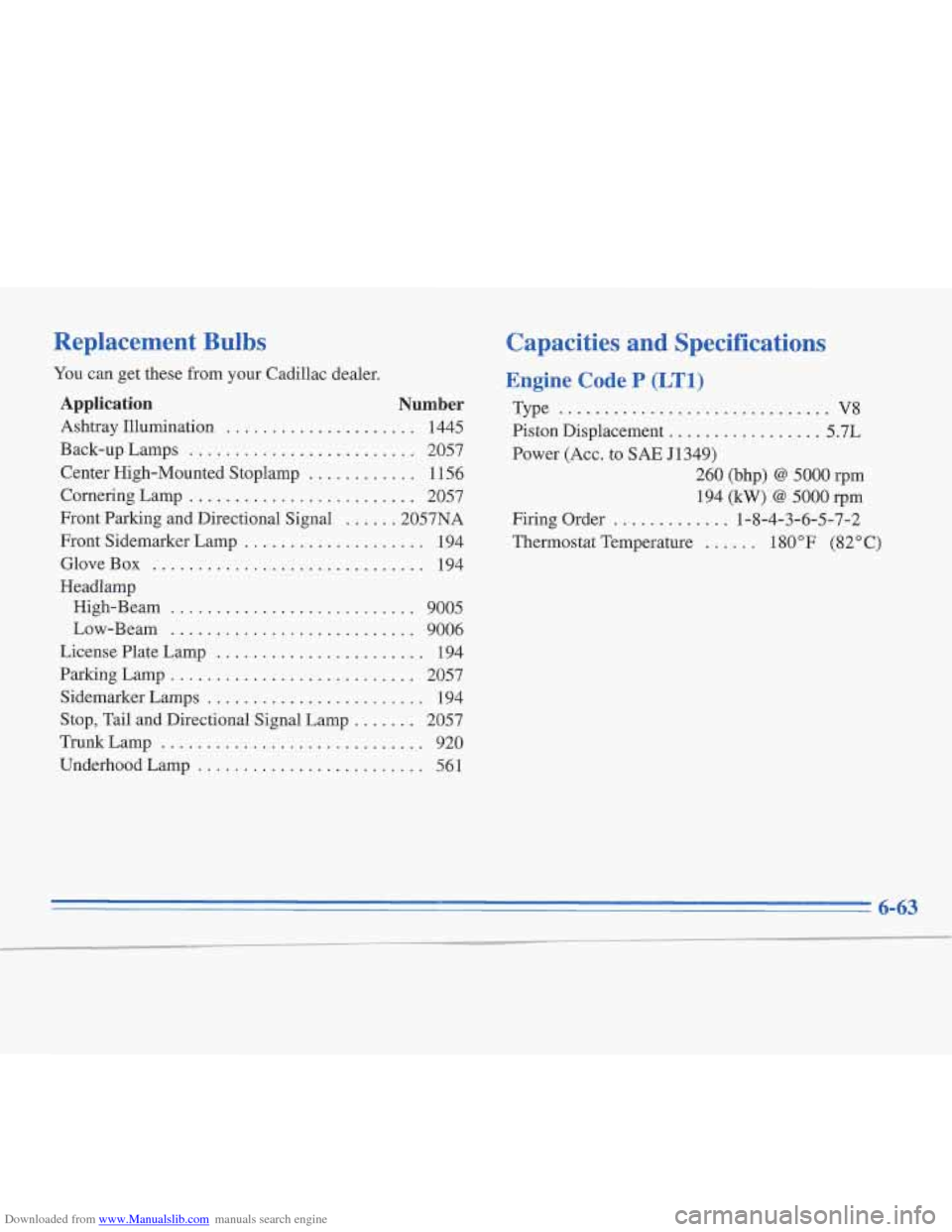

Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
You can get these from your Caddlac dealer .
Application Number
Ashtray Illumination ..................... 1445
Back-up Lamps
......................... 2057
Center High-Mounted Stoplamp
............ 1156
Cornering Lamp
......................... 2057
Front Parking and Directional Signal
...... 2057NA
Front Sidemarker Lamp
.................... 194
GloveBox
.............................. 194
Headlamp High-Beam
........................... 9005
Low-Beam
........................... 9006
License Plate Lamp
....................... 194
Parking Lamp
........................... 2057
Sidemarker Lamps
........................ 134
Stop. Tail and Directional Signal Lamp
....... 2057
Trunk Lamp
............................. 920
Underhood Lamp
......................... 561
Capacities and Specifications
Engine Code P (LTl)
Type .............................. V8
Piston Displacement
................. 5.71
Power (Acc . to SAE J1349)
260 (bhp)
@ 5000 rpm
194
(kW) @ 5000 rpm
Firing Order
............. 1-8-4-3-6-5-7-2
Thermostat Temperature
...... 180 "F (82" C)
6-63
