Manual Transmission & Clutch (AJ16)
GEARSHIFT LEVER KNOB, RENEW
:RY 37.16.11
. Displace the gearshift lever gaiter for access and slacken
the gearshift lever knob lock nut (1 Fig. 1) and remove the
gearshift lever knob
(2 Fig. 1).
- Fit the new gearshift lever knob and align to its final posi- tion.
. Tighten the lock nut and reposition the gearshift lever
gaiter.
7.1.8 GEARSHIFT LEVER/ REMOTE CONTROL
ASSEMBLY, RENEW
SRO 37.16.20
. Disconnect the battery.
. Remove inlet manifold rear securing nuts.
. Fit lifting bracket 18G 1465 and secure with the nuts.
. Fit Service Tool MS 538 (Fig. 2) across the wing channels
and align to rear lifting bracket.
Fit and engage retaining hook.
. Tighten hook nut to take weight of engine.
Select third gear and remove the gearshift lever knob.
. Disconnect lambda sensor block connectors.
Remove the exhaust front pipe to the intermediate pipe
securing nut / bolt.
. Remove the sealing olive.
. Take the weight of the rear engine mounting using a jack,
. Remove the rear mounting securing bolts.
. Lower and remove the rear mounting assembly.
Carefully ease exhaust system down for access.
jack channel
and a suitable block.
. Remove the drive (propeller) shaft assembly, see Section 9, SRO 47.15.01.
. From above: undo retaining hook nut to lower rear of
transmission (do not allow engine to foul steering rack).
From below: slacken but do not remove the selector shaft
bolt
(3 Fig. 3).
. Remove the gear selector remote control securing bolts (1 Fig. 1) and reposition for access.
Finally remove the selector shaft bolt (3 Fig. 3).
. Remove the gear selector remote control assembly from
the selector shaft.
b: To aid removal, invert the gear selector remote con- trol assembly, i.e. gearshift lever pointing down- wards.
2
Fig. 1
Fig. 2
Fig. 3
X300 VSM 7 Issue 1 August 1994

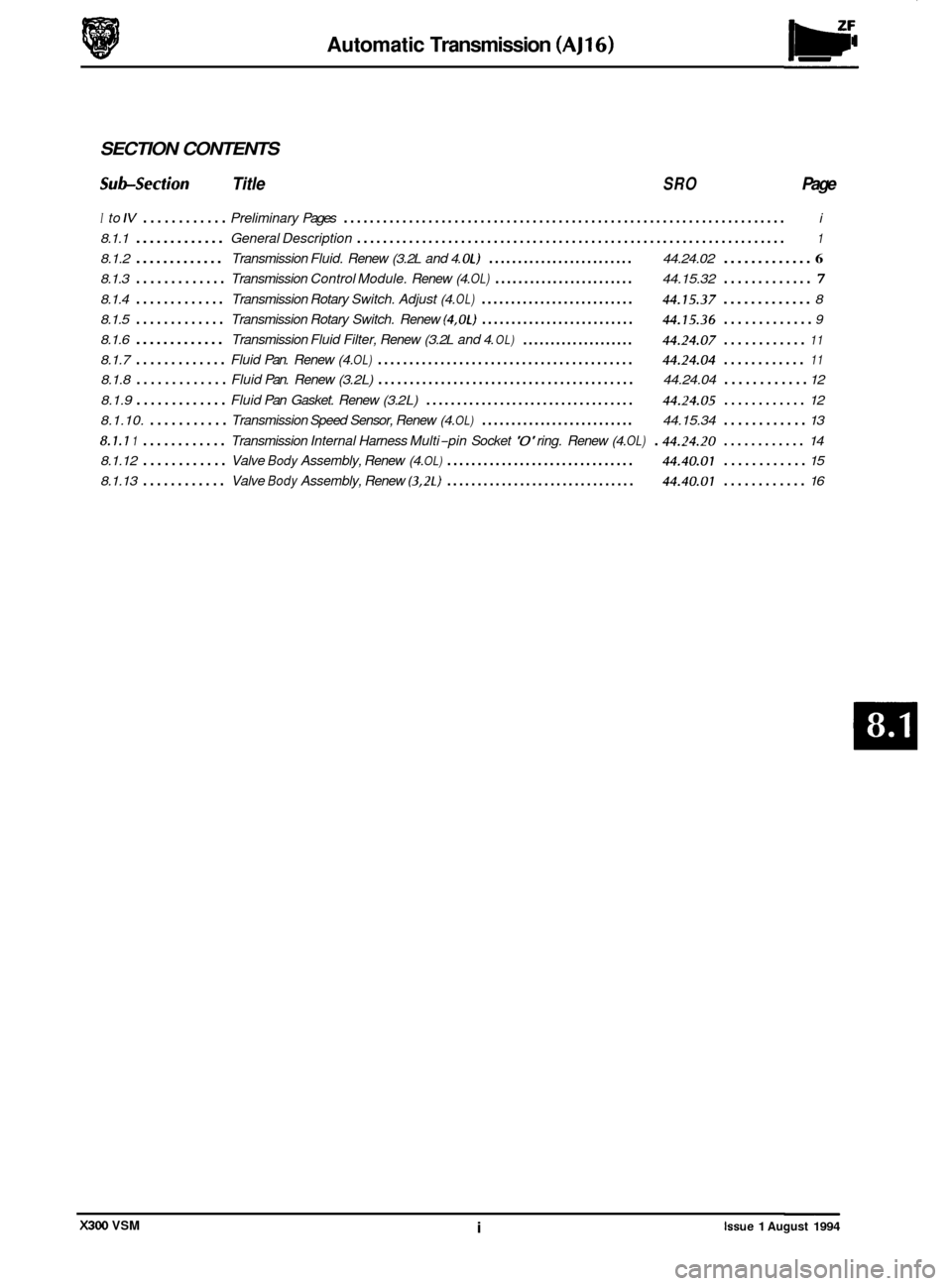

Automatic Transmission (AJ16)
SECTION CONTENTS
Subsection Title SRO Page
I to IV ............ Preliminary Pages .................................................................... i
8.1.1 ............. General Description .................................................................. 1
8.1.2 ............. Transmission Fluid. Renew (3. 2L and 4. OL) ......................... 44.24.02 ............. 6
8.1.3 ............. Transmission Control Module. Renew (4. OL) ........................ 44.15.32 ............. 7
8.1.4 ............. Transmission Rotary Switch. Adjust (4. OL) .......................... 44.15.37 ............. 8
8.1.5
............. Transmission Rotary Switch. Renew (4.0L) .......................... 44.15.36 ............. 9
8.1.6 ............. Transmission Fluid Filter, Renew (3. 2L and 4. OL)
8.1.7 ............. Fluid Pan. Renew (4. OL) ......................................... 44.24.04 ............
8.1.8 ............. Fluid Pan. Renew (3. 2L) ......................................... 44.24.04 ............ 12
8.1.9
............. Fluid Pan Gasket. Renew (3. 2L) .................................. 44.24.05 ............ 12
8.1.10.
........... Transmission Speed Sensor, Renew (4. OL) .......................... 44.15.34 ............ 13
8.1.1 1 ............ Transmission Internal Harness Multi-pin Socket '0' ring. Renew (4. OL) . 4424.20 ............ 14
Valve Body Assembly, Renew (4. OL) ............................... 44.40.01 ............ 15
.................... 44.24.07 ............ 11
11
8.1.12 ............
8.1.13 ............ Valve Body Assembly, Renew (3.2L) ............................... 44.40.01 ............ 16
X300 VSM i Issue 1 August 1994

Automatic Transmission (AJ16)
8.1.10 TRANSMISSION SPEED SENSOR, RENEW (4,OL)
SRO 44.15.34
9 Raise the hood and fit a fender cover.
. Raise the vehicle on a ramp.
. Drain the transmission lubrication system, see Sub-sec-
Remove the fluid pan, see Sub-section 8.1.7.
. Displace the transmission speed sensor harness from the
valve body rear securing clip.
Release and remove the speed sensor and connector re-
taining clip from the valve body.
. Displace the speed sensor and connector from the trans-
mission main casing.
9 Disconnect and remove the speed sensor from the har-
ness connector.
. Clean the speed sensor, retaining clip and mating surface.
Connect the new speed sensor to the harness connector.
Fully seat the speed sensor into the transmission unit
tion
8.1.2.
main
casing.
. Fit the speed sensor and connector retaining clip to the
valve body, engaging the tangs onto the connector.
clip securing screws.
the valve body rear; secure the clip.
. Fit and tighten the speed sensor and connector retaining
. Reposition and fully seat the speed sensor harness into
. Refit the fluid pan, see Sub-section 8.1.7.
. Lower the vehicle on the ramp.
. Refill the transmission unit with fluid, see Sub-section
8.1.2.
Remove the fender cover and lower the hood.
X300 VSM 13 Issue 1 August 1994

Automatic Transmission (AJ16)
8.1.11 TRANSMISSION INTERNAL HARNESSMULTI-
PIN SOCKET '0' RING, RENEW (4,OL)
SRO 44.24.20
. Disconnect the battery.
. Raise the vehicle on a ramp.
. Drain the transmission lubrication system, see Sub-sec-
. Remove the fluid pan, see Sub-section 8.1.7.
. Remove the fluid filter, see Sub-section 8.1.6.
. Remove the transmission speed sensor, see Sub-section
8.1.10.
. Disconnect the rotary switch harness multi-pin plug
(1 Fig. 1) from the transmission multi-pin socket.
. Release and remove the multi-pin socket to main trans-
mission casing securing nut.
. Release and remove the valve body assembly, ensuring
that the
multi-pin socket is freed from the main case aper-
ture.
. Remove the valve body harness multi-pin socket '0' ring
and discard.
. Clean the valve body and mating faces.
. Fit a new '0' ring to the multi-pin socket
. Fit thevalve body assembly to the transmission unit. Dur-
ing valve body fitment, engage the shift lever quadrant
peg into the manual valve and seat the
multi-pin socket
through the main case orifice.
m. Theflat onthesideofthe multi-pinsocket should be
located on the vertical (left-hand) side of the case.
. Fit but do not tighten the valve body assembly securing
screws.
. Gently push the valve body assembly forward to assume
this position
during the final tightening operation.
. Carry out final tightening of the valve body assembly to
main casing securing screws.
Fit and tighten the harness
multi-pin socket to main casing
securingnut.
. Connect the rotary switch harness multi-pin plug to the
transmission
multi-pin socket.
. Refit the speed sensor, see Sub-section 8.1.10.
Renew the fluid filter, see Sub-section 8.1.6.
. Refit the fluid pan, see Sub-section 8.1.7.
. Lower the vehicle on the ramp.
. Reconnect the battery.
. Refill the transmission unit with fluid, see Sub-section
8.1.2.
. Remove the fender cover and lower the hood.
Raise
the hood and
fit a fender cover.
tion
8.1.2.
Fig. 1
Issue 1 August 1994 14 X300 VSM

Automatic Transmission (AJ16)
8.1.12 VALVE BODY ASSEMBLY, RENEW (4,Ol)
SRO 44.40.01
Raise the hood and fit a fender cover.
. Disconnect the battery.
. Raise the vehicle on a ramp.
. Drain the transmission lubrication system, see Sub-sec-
. Remove the fluid pan, see Subsection 8.1.7.
. Remove the fluid filter, see Sub-section 8.1.6.
. Remove the transmission speed sensor, see Subsection
8.1.10.
. Disconnect the rotary switch harness multi-pin plug from
the transmission multi
-pin socket.
. Release and remove the multi-pin socket to main trans-
mission casing securing nut.
Release and remove the valve body assembly to main cas-
ing securing screws.
. DisDlace and remove the valve body assemblv, ensurina
tion
8.1.2.
that
the multi-pin socket is freed from the main case apery
ture. - . Remove the valve body harness multi-pin socket '0' ring
. Clean the valve body and main case mating faces. Check
. Fit a new '0' ring to the multi-pin socket.
. Fit the valve body assembly to the transmission unit. Dur-
ing valve body fitment, engage the shift lever quadrant
peg into the manual valve and seat the multi
-pin socket
through the main case orifice.
m: Theflat on the side of the multi-pin socket should be
located on the vertical (left-hand) side of the case.
. Fit but do not tighten the valve body assembly securing
screws.
Gently push the valve body assembly forward to assume
this position during the final tightening operation.
Carry out final tightening of the valve body assembly to
main casing securing screws.
. Fit and tighten the harness multi-pin socket to main casing
. Connect the rotary switch harness multi-pin plug to the
. Refit the speed sensor, see Subsection 8.1.10.
. Renew the fluid filter, see Subsection 8.1.6.
Refit the fluid pan, see Sub-section 8.1.7.
* Lower the vehicle on the ramp.
. Reconnect the battery.
. Refill the transmission unit with fluid, see Sub-section
8.1.2.
. Remove the fender cover and lower the hood.
and discard.
for any signs of damage.
securing nut.
transmission multi
-pin socket.
Issue 1 August 1994 X300 VSM 15

Ponnrtrain Automatic Transmission (V12 & AJ16 Supercharged)
SECTION CONTENTS
Sub-Section Title SRO Page
It0 IV ............ Preliminary Pages .................................................................... i
8.2.1 ............. General Description .................................................................. 1
8.2.2 ............. Transmission internal Harness. Renew (4. OL SC and 6. OL) ............ 44.15.35 ............. 5
8.2.3 ............. Pressure Switch Manifold. Renew (4. OL SC and 6. OL) ................ 44.15.39 ............. 6
8.2.4 ............. Input Speed Sensor, Renew (4. OL SC) .............................. 44.15.40 ............. 7
8.2.5 ............. OutputSpeedSensor, Renew(4. OL SC) ............................ 44.75.41 ............. 7
8.2.6 ............. input Speed Sensor, Renew (6. OL} ................................. 44.15.40 ............. 8
8.2.7
............. Output Speed Sensor, Renew (6. OL) ............................... 44.15.41 ............. 9
8.2.8.
............ Temperature Sensor, Renew (4. OL SC and 6. OL) .......................................... 10
8.2.9
............. Variable Force Motor, Renew(4. 0L SC and 6.OL) ..................... 44.15.43 ............ 70
8.2.10. ........... Pulse Width Modulator (TCC Solenoid). Renew (4. OL SC and 6. OL) ..... 44.15.44 ............ 11
8.2.17 ............ 'A' Shift Solenoid. Renew (4. OL SC and 6. OL) ....................... 44.15.45 ............ 12
8.2.12.
........... '6' Shift Solenoid. Renew (4. OL SC and 6. OL) ....................... 44.15.46 ............ 13
8.2.13
............ Lubrication System. Drain and Refill (4. OL SCand 6. OL) .............. 44.24.02 ............ 14
8.2.14
............ Fluid Pan. Renew (4. OL SC} ...................................... 44.24.04 ............ 15
8.2.15 ............ Fluid Pan. Renew (6. OL) ......................................... 44.24.04 ............ 16
8.2.16.
............ Fluid Pan Gasket. Renew (4. OL SC) ................................ 44.24.05 ............ 17
8.2.17. ........... Fluid Pan Gasket. Renew (6. OL) .................................. 44.24.05 ............ 78
8.2.18. ........... Fluid Filter, Renew (4. OL SC and 6. OL) ............................. 44.24.07 ............ 19
8.2.19 ............ Transmission Internal Harness Multi-pin Socket '0' Ring.
Renew (4.
OL SC and 6. OL) ....................................... 44.24.20 ............ 20
8.2.20
............ Internal Lubrication Pipe. Renew (4. OL SC and 6. OL) ................ 44.24.21 ............ 21
8.2.21
............ internal Dipstick Stop. Renew (4. OL SC and 6. OL) ................... 44.24.22 ............ 22
8.2.22.
........... Manual Detent Spring. Renew (4. OL SC and 6. OL) ................... 44.26.10 ............ 23
X300 VSM i Issue 1 August 1994

Automatic Transmission (V12 & AJ16 Supercharged) Powortrain
Fixing
Drain plug to fliud pan
Fluid pan
to case
Pressure control solenoid bracket
to valve body
Solenoid to valve body
Speed sensor and bracket assembly to case
Valve body
to case 1 lubrication pipe
Valve body to case
I PSM
1. SERVICE TOOLS & EQUIPMENT
No Jaguar service tools are required for the operations covered by this Sub-section.
lightening Torque
(Nm)
34
24
8
8
11
11
11
Description
Tivoli Kay Adhesives No. 5696
sealant
UseS Notes
Exhaust system joints
Description
I To be issued I I
Data
Issue 1 August 1994 ii X300 VSM

Automatic Transmission (V12 & AJl6 Supercharged) Pomrtrain
8.2.1 GENERAL DESCRIPTION
This section provides information relating to the Powertrain 4L80-E transmissions fitted to the 4,O liter supercharged
engine (4,OL SC) and to the 6,O liter engine (6,OL).
The Powertrain 4L80-E is a four-speed, high torque capacity, electronically controlled automatic transmission, which
comprises a torque converter with lock-up direct drive clutch and three planetary gear sets. Five multiple diskclutches,
one intermediate sprag clutch assembly, two roller clutch assemblies and two band assemblies provide the drive el- ements necessary for correct sequential gear engagement and operation.
The torque converter containing
a pump, a turbine (rotor), a stator assembly, and a clutch pressure disksplined to the
turbine, acts as a fluid coupling for smooth torque transmission from the engine. The converter also supplies addi- tional torque multiplication when necessary, and the torque converter clutch (TCC) pressure disk provides a mechan- ical direct drive or 'lock-up' above a certain speed in top gear for greater fuel economy.
Gearshift operations are controlled from the Transmission Control Module (TCM), which governs the electronically
controlled valve body situated within the transmission.
Three planetary gear sets provide reverse and the four forward ratios, the changing of which is fully automatic in rela
- tion to load, vehicle speed and throttle opening. The Transmission Control Module receives and integrates various ve- hicle sensor input signals, and transmits operating signals to the solenoids located in the control valve assembly.
These solenoids govern the transmission operating pressures, up-shift and down-shift gear selection patterns and
also the torque converter clutch operation by pulse width modulated control.
8.2.1.1 Gear Ranges
Selectable gear positions are: P - Park, R - Reverse, N - Neutral, D - Drive, 3, 2.
P - Park position of the shift lever provides a mechanical locking of the output shaft of the transmission, and as such,
must only be engaged when the the vehicle is stationary. In addition, and for
extra safety, the handbrake should also
be applied. It is necessary to have the ignition ON and the footbrake applied to move the shift lever from the Park
position. For ignition key removal the shift lever must be in the Park position. The engine can be started in the Park
position.
R - Reverse enables the vehicle to be operated in a rearwards direction. The engine cannot be started in the Reverse
position.
N
-Neutral position enables the engine to be started and operated without driving the vehicle. It also allows the vehicle
to be moved manually for access, ie for removal of the propeller shaft.
D
-Drive position allows the automatic selection of all four forward gear ratios during normal driving conditions for
maximum efficiency and fuel economy. On acceleration, down-shifts are obtained by depressing the accelerator pedal
or by manual selection. The engine cannot be started in this position.
3
- Manual third position allows automatic operation of the three lower gear ratios but inhibits selection of the fourth
ratio. This position is used for towing a trailer or negotiating hilly terrain when greater engine braking control is re- quired. The engine cannot be started in this position.
2 - Manual second position allows automatic operation of the two lower gear ratios but inhibits selection of the third
and fourth ratios. This position is used for heavy traffic congestion or negotiating hilly terrain when even greater en
- gine braking control is required than is provided by manual third. This ratio may be selected at any vehicle speed - even if the transmission is in third or fourth ratio, the transmission will immediately down-shift to second gear pro- vided the vehicle speed is below 137 km / h (85 mile / h). The engine cannot be started in this position.
N.g!b: With the Performance Mode switch in the NORMAL position, the vehicle will pull away in second gear. How- ever, if more than 75 per cent of throttle is applied when the vehicle speed is between zero and 13 km/ h (8 mile / h), then first gear will be selected. From 13 to 61 km/ h (8 to 38 mile/ h) first gear is obtainable by 'kick-down'.
In 'sport' mode thevehicle pulls away in first gear and the transmission operatesfully in all four forward gears.
X300 VSM 1 Issue 1 August 1994
