1994 CADILLAC FLEETWOOD headlight bulb

A green arrow on the
instrument panel will
flash in the direction
of
the turn or lane
change.
To signal a lane change, just raise or lower the lever until the green arrow
starts to flash. Hold it there until you complete your lane change. The
lever will return by itself when you release it.
As you signal a turn or a lane change, if the arrows don’t flash but just
stay on, a signal bulb may be burned out and other drivers won’t see your
turn signal.
If a bulb is burned out, replace it to help avoid an accident. If the green
arrows don’t go on at all when you signal a turn, check the fuse (see
“Fuses” in the Index) and for burned-out bulbs.
If you have
a trailer towing option with added wiring for the trailer lights,
a different turn signal flasher is used. With this flasher installed, the
signal indicator will flash even if a turn signal bulb is burned out. Check
the front and rear turn signal lights regularly to make sure they are
working.
Operation of Lights
Although your vehicle’s lighting system (headlights, parking lights, fog
lamps, side marker lights and taillights) meets all applicable federal
lighting requirements, certain states and provinces may apply their own
lighting regulations that may require special attention before you operate
these lights.
For example, some jurisdictions may require that you operate your lower
beam lights with fog lamps at all times, or that headlights be turned on
whenever you must use your windshield wipers. In addition, most
106
-1 I
E,
3’
ii
i
-I
J

0. Remove the
socket by
.rotating it
counterclockwise
slightly, then
gently push and
rotate bulb
counterclockwise and remove it.
0 Once you have replaced the bulb just reverse the steps to reassemble
the cornering lamp.
Halogen Headlight Bulb Removal
Here’s how to change the bulb:
0 Rotate the
headlight housing
socket
counterclockwise
to unlock the
socket from the
lamp housing.
279

-

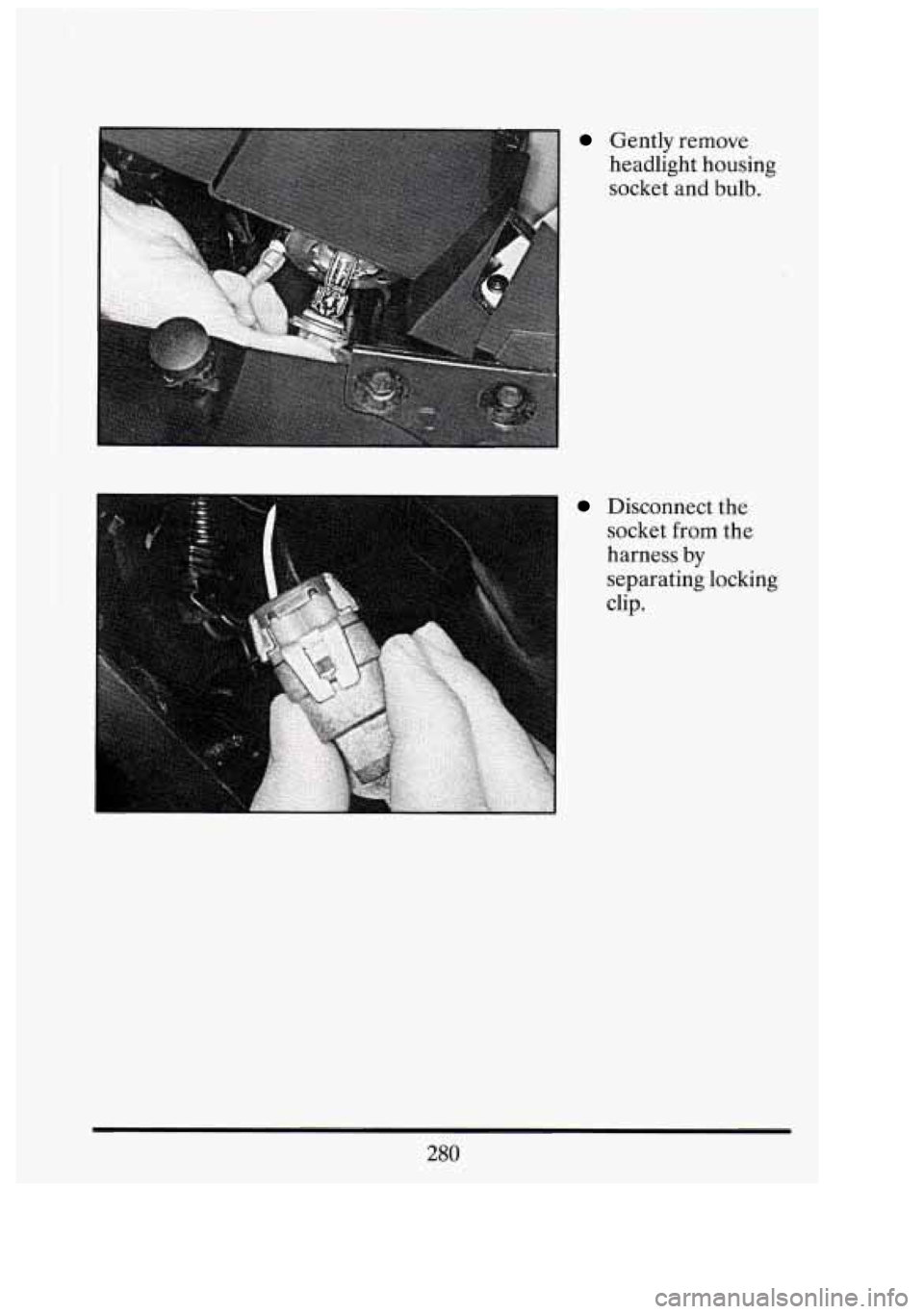

Gently remove
headlight housing
socket and bulb.
I
Disconnect the
socket from the
harness by
separating locking
clip.
280
-J
I
U
Li

0 Install new bulb
and socket and
connect the wiring
harness. Make sure
that harness
is
locked to bulb
socket.
NOTICE:
Do not touch glass portion of the new halogen bulb! The oil
from you fingers
will shorten the life of your new halogen bulb.
Install the headlight housing socket into the headlamp assembly.
TMLLIGHT BULB REPLACEMENT
Remove the upper
screw from the
bezel.
281

.
BULB. CILL4RT .
.
.
.
.
.
.
.
You can get these from your Cadillac dealer .
DESCRIPTION BULB NO .
Ash Tray Illumination .................................. 1445
Center High Mounted Stop Light
........................ 1141
Cornering Light
....................................... 2057
BackupLights
......................................... 2057
Courtesy Light
. Front Door ............................ S214-2
Courtesy Light
. Rear Door ............................ S214-2
CourtesyMap Light
..................................... 192
Front Parking
& Directional Signal .................... 2057NA
Front Side Marker Light
................................. 194
Glove Box
............................................. 194
Headlight High Beam
...................... 906/HB4 (H2990 4)
Headlight Low Beam
....................... 905/HB3 (K1790 3)
License Plate Light ..................................... 194
Side Marker Lights
..................................... 194
Stop, Tail.
& Directional Signal Light ..................... 2057
TrunkLight
......................................... 5 92081
Vanity Mirror Light
..................................... 194
Parking
Light
.......................................... 2057
Underhood Light
........................................ -93
317

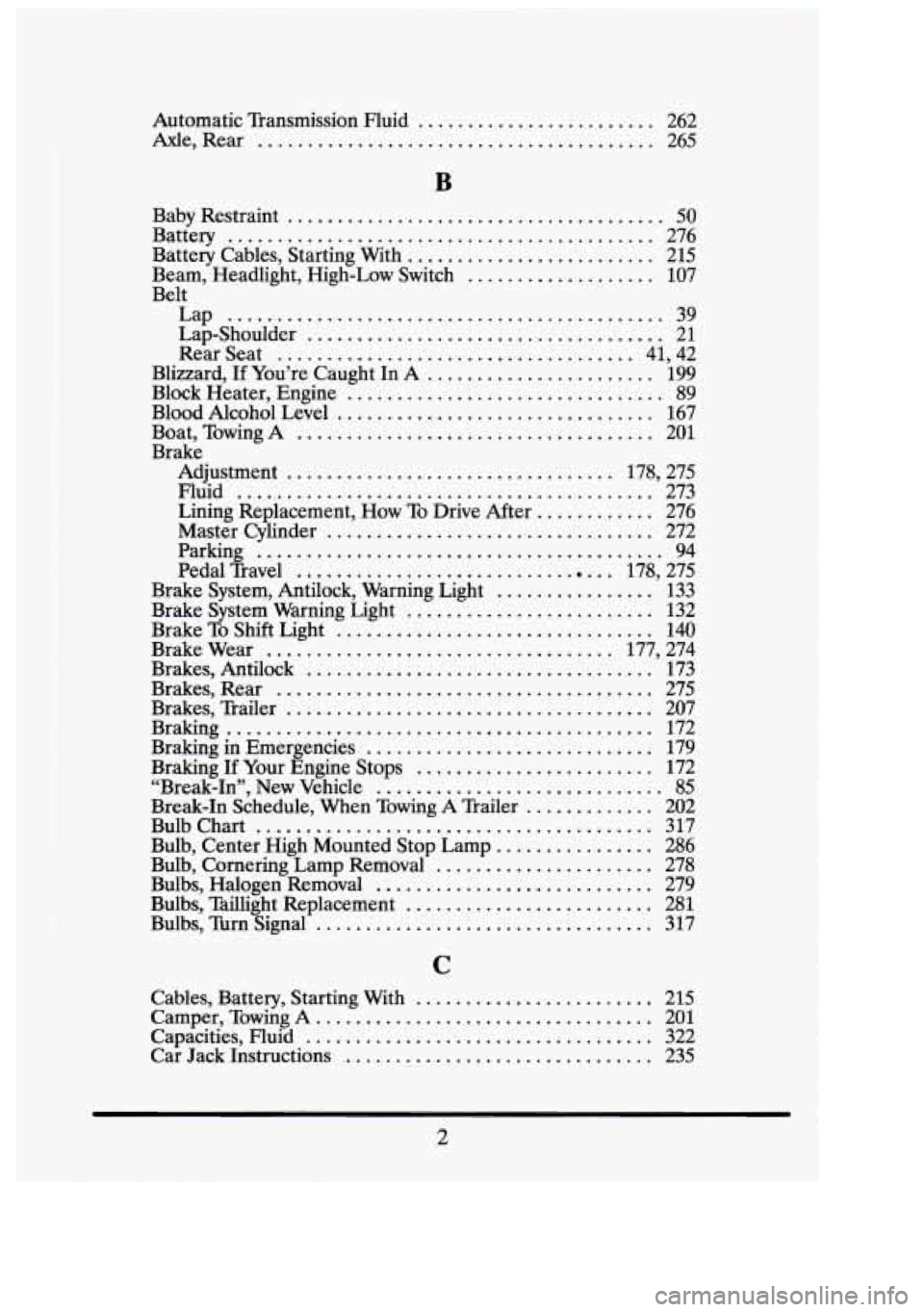

Automatic Transmission Fluid ........................ 262
Axle. Rear
........................................ 265
Baby Restraint
...................................... 50
Battery ........................................... 276
Battery Cables. Starting With
......................... 215
Beam. Headlight. High-Low Switch
................... 107
Belt Lap
............................................ 39
Lap-Shoulder
.................................... 21
RearSeat
.................................... 41. 42
Blizzard. If You’re Caught In
A ....................... 199
Block Heater. Engine
................................ 89
BloodAlcoholLevel
................................ 167
Boat. Towing A
.................................... 201
Brake Adjustment
................................. 178. 275
Master Cylinder
................................. 272
Parking
......................................... 94
Pedal Travel
................................ 178. 275
Brake System. Antilock. Warning Light
................ 133
Brake System Warning Light
......................... 132
Brake
To Shift Light ................................ 140
Brakes. Antilock
................................... 173
Brakes. Trailer
..................................... 207
Braking
........................................... 172
Braking
If Your Engine Stops ........................ 172
“Break.1n”. New Vehicle
............................. 85
Break-In Schedule. When Towing
A Trailer ............. 202
Bulb Chart
........................................ 317
Bulb. Center High Mounted Stop Lamp
................ 286
Bulb. Cornering Lamp Removal
...................... 278
Bulbs. Taillight Replacement
......................... 281
Bulbs. Turn Signal
.................................. 317
Fluid
.......................................... 273
Lining Replacement. How To Drive After
............ 276
Brakewear
................................... 177. 274
Brakes. Rear
...................................... 275
Braking in Emergencies
............................. 179
Bulbs. Halogen Removal
............................ 279
C
Cables. Battery. Starting With ......................... 215
Camper. Towing
A .................................. 201
Capacities. Fluid
................................... 322
Car Jack Instructions
............................... 235
I !
i3
I
31
nl
2

.
.
i
1
.
.
.
.
.
G
Garage Door Opener (Option) ....................... 128
Gear Positions
...................................... 90
Gearshift Lever. Positions Of
.......................... 90
Gasoline
.......................................... 247
Gasoline Tank. Filling Your
.......................... 251
Glass Cleaning
..................................... 305
GloveBox
.......................................... 73
Graphic Symbols
..................................... 3
Guard Against Theft
................................. 81
Guide En Francais ..................... See “Introduction”
H
HalogenBulbs ..................................... 277
Halogen Headlight Bulb Removal
..................... 279
Hazard Warning Flashers
............................ 213
Headlight High-Low Beam
.......................... 107
Headlight On Warning
.............................. 116
Head Restraints
..................................... 11
Heater ............................................ 147
Heater. Engine Block
................................ 89
Heater. Engine Coolant
.............................. 89
High-Low Headlight Beam
.......................... 107
Highway Hypnosis
.................................. 193
Hill and Mountain Roads
............................ 194
Hills. Parking On
................................... 210
Holding
A Baby In Your Car .......................... 48
Hood. Don’t Open If You See Steam
.................. 223
Hood Release
..................................... 253
Horn
............................................. 104
Hot Coolant. Warning Light For ...................... 136
Hot Engine. Safety Warnings About
................... 223
How The Air Bag System Works
....................... 33
How
To Obtain Roadside Service ...... See Roadside Service
How To Operate Your Sound System
.................. 153
How
To Order
Owner Manual
................... See Owner Assistance
Maintenance Coupon Book
........ See Owner Assistance
Service Manual
................... See Owner Assistance
Warranty Book
................... See Owner Assistance
How To Use This Manual
.............................. 1
How To Wear Safety Belts Properly ..................... 20
Hydroplaning
..... ’. ................................ 189
High Speed. Shifting When
Your Engine Is Running At
... 92
.
