1994 CADILLAC FLEETWOOD height

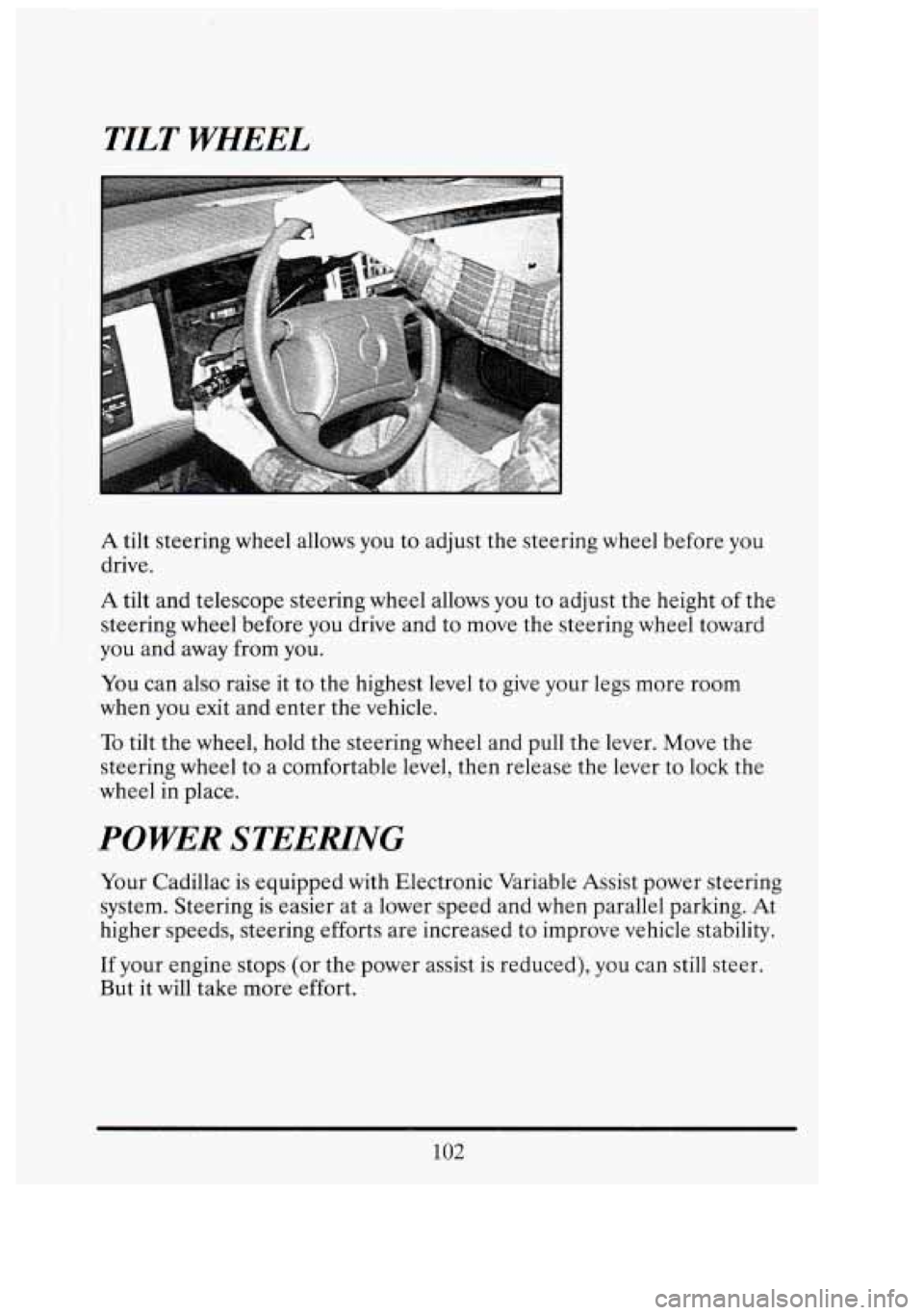

TILT WHEEL
A tilt steering wheel allows you to adjust the steering wheel before you
drive.
A tilt and telescope steering wheel allows you to adjust the height of the
steering wheel before you drive and to move the steering wheel toward
you and away
from you.
You can also raise it to the highest level to give your legs more room
when you exit and enter the vehicle.
To tilt the wheel, hold the steering wheel and pull the lever. Move the
steering wheel to a comfortable level, then release the lever
to lock the
wheel
in place.
POWER STEERLNG
Your Cadillac is equipped with Electronic Variable Assist power steering
system. Steering is easier at a lower speed and when parallel parking. At
higher speeds, steering efforts are increased to improve vehicle stability.
If your engine stops (or the power assist is reduced),
you can still steer.
But it will take more effort.
102
GI
nr

I

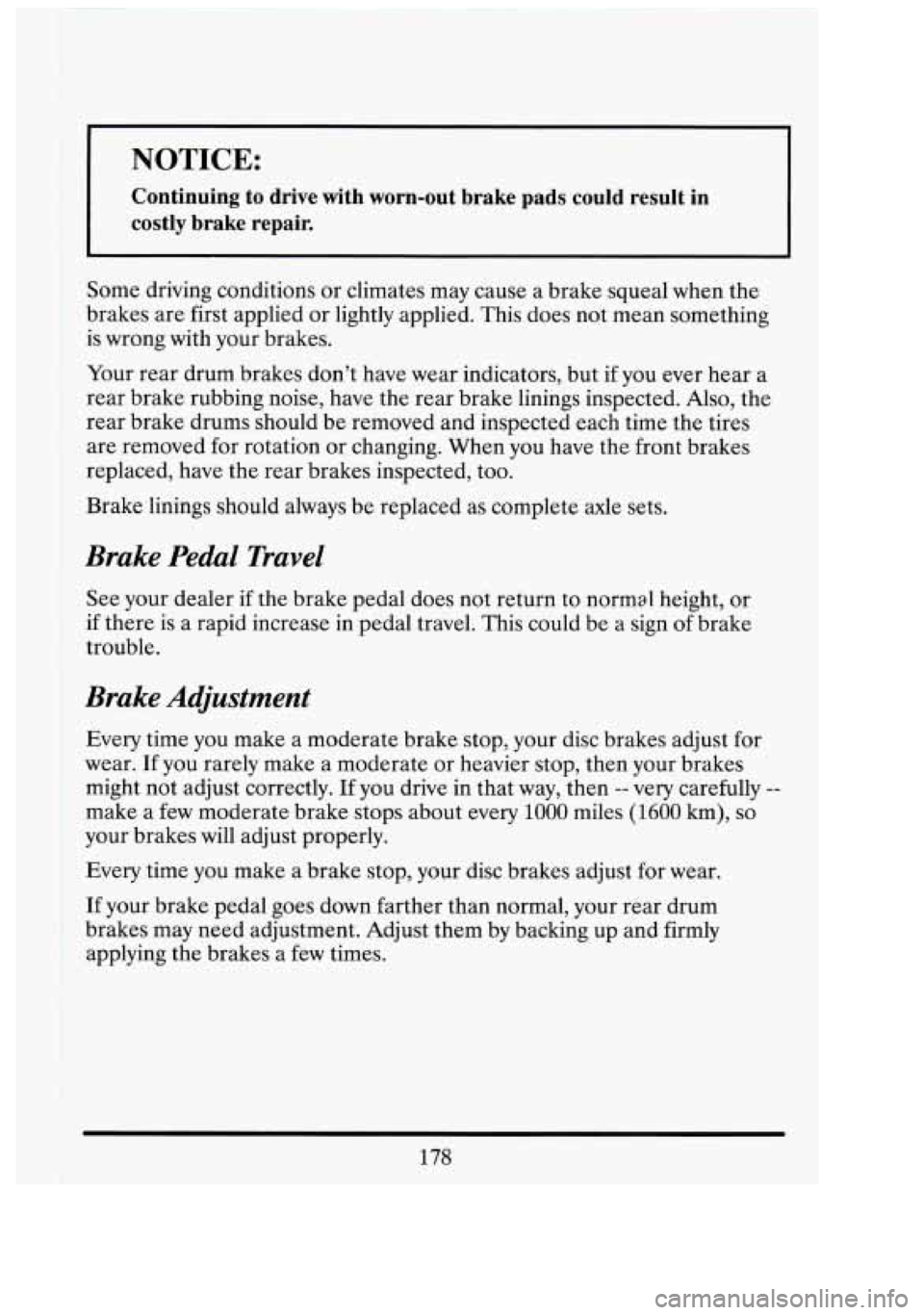

I NOTICE:
Continuing to drive with worn-out brake pads coula result in
I
costly brake repair.
Some driving conditions or climates may cause a brake squeal when the
brakes are first applied or lightly applied. This does not mean something
is wrong with your brakes.
Your rear drum brakes don't have wear indicators, but if you ever hear a
rear brake rubbing noise, have the rear brake linings inspected.
Also, the
rear brake drums should be removed and inspected each time the tires
are removed for rotation or changing. When you have the front brakes
replaced, have the rear brakes inspected, too.
Brake linings should always be replaced as complete axle sets.
Brake Pedal Travel
See your dealer if the brake pedal does not return to normal height, or
if there is a rapid increase in pedal travel. This could be a sign of brake
trouble.
I
I
Brake Adjustment
Every time you make a moderate brake stop, your disc brakes adjust for
wear.
If you rarely make a moderate or heavier stop, then your brakes
might not adjust correctly.
If you drive in that way, then -- very carefully --
make a few moderate brake stops about every 1000 miles (1600 km), so
your brakes will adjust properly.
Every time you make a brake stop, your disc brakes adjust for wear.
If your brake pedal goes down farther than normal, your rear drum
brakes may need adjustment. Adjust them by backing up and firmly
applying the brakes a
few times.
ni

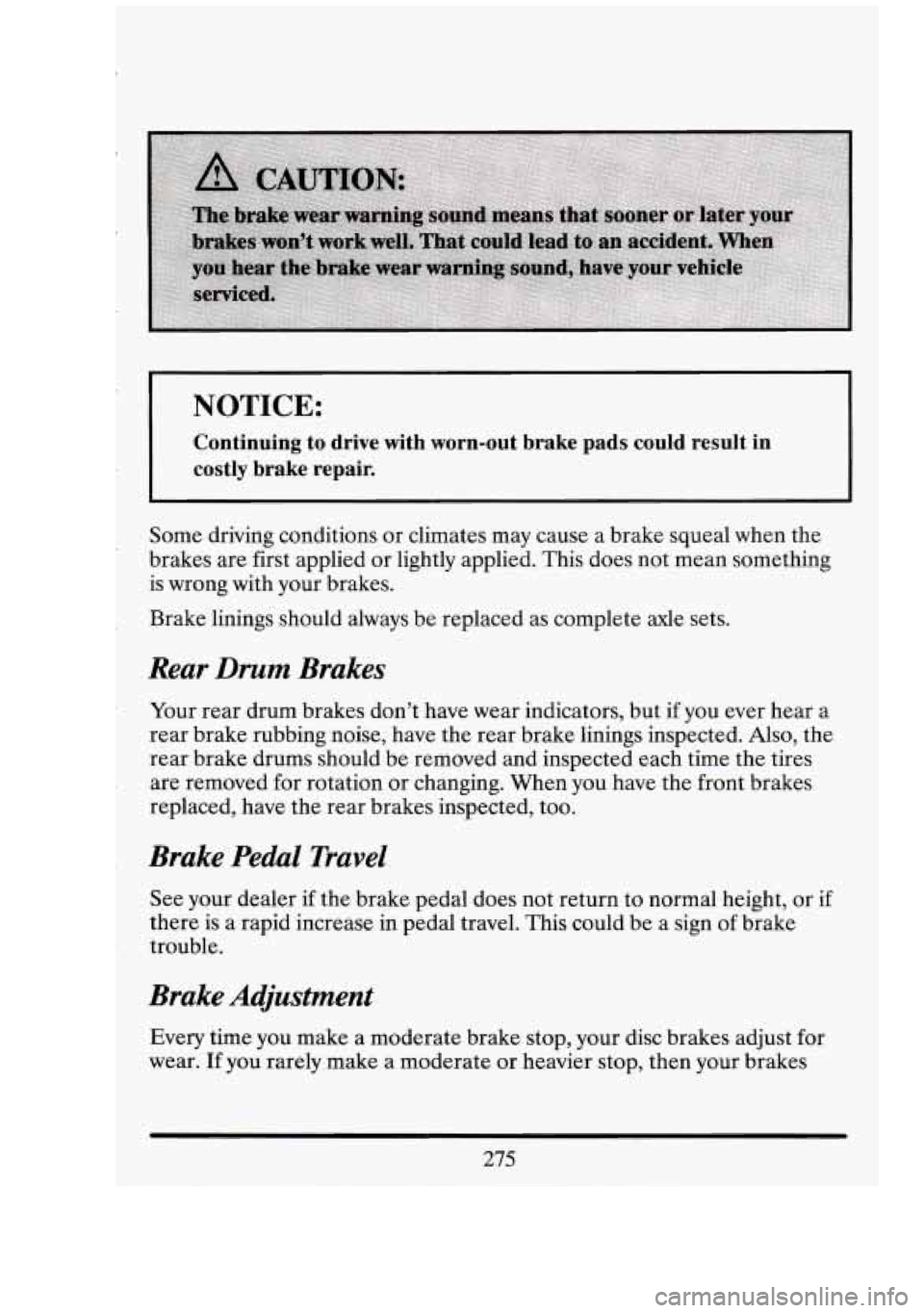

NOTICE:
Continuing to drive with worn-out brake pads could result in
costly brake repair.
Some driving conditions or climates may cause a brake squeal when the
brakes are first applied or lightly applied. This does not mean something
is wrong with your brakes.
Brake linings should always be replaced as complete axle sets.
Rear Drum Brakes
Your rear drum brakes don’t have wear indicators, but if you ever hear a
rear brake rubbing noise, have the rear brake linings inspected. Also, the
rear brake drums should be removed and inspected each time the tires
are removed for rotation or changing. When you have
the front brakes
replaced, have the rear brakes inspected, too.
Brake Pedal Travel
See your dealer if the brake pedal does not return to normal height, or if
there is a rapid increase in pedal travel. This could be a sign of brake
trouble.
Brake Adjustment
Every time you make a moderate brake stop, your disc brakes adjust for
wear.
If you rarely make a moderate or heavier stop, then your brakes
275

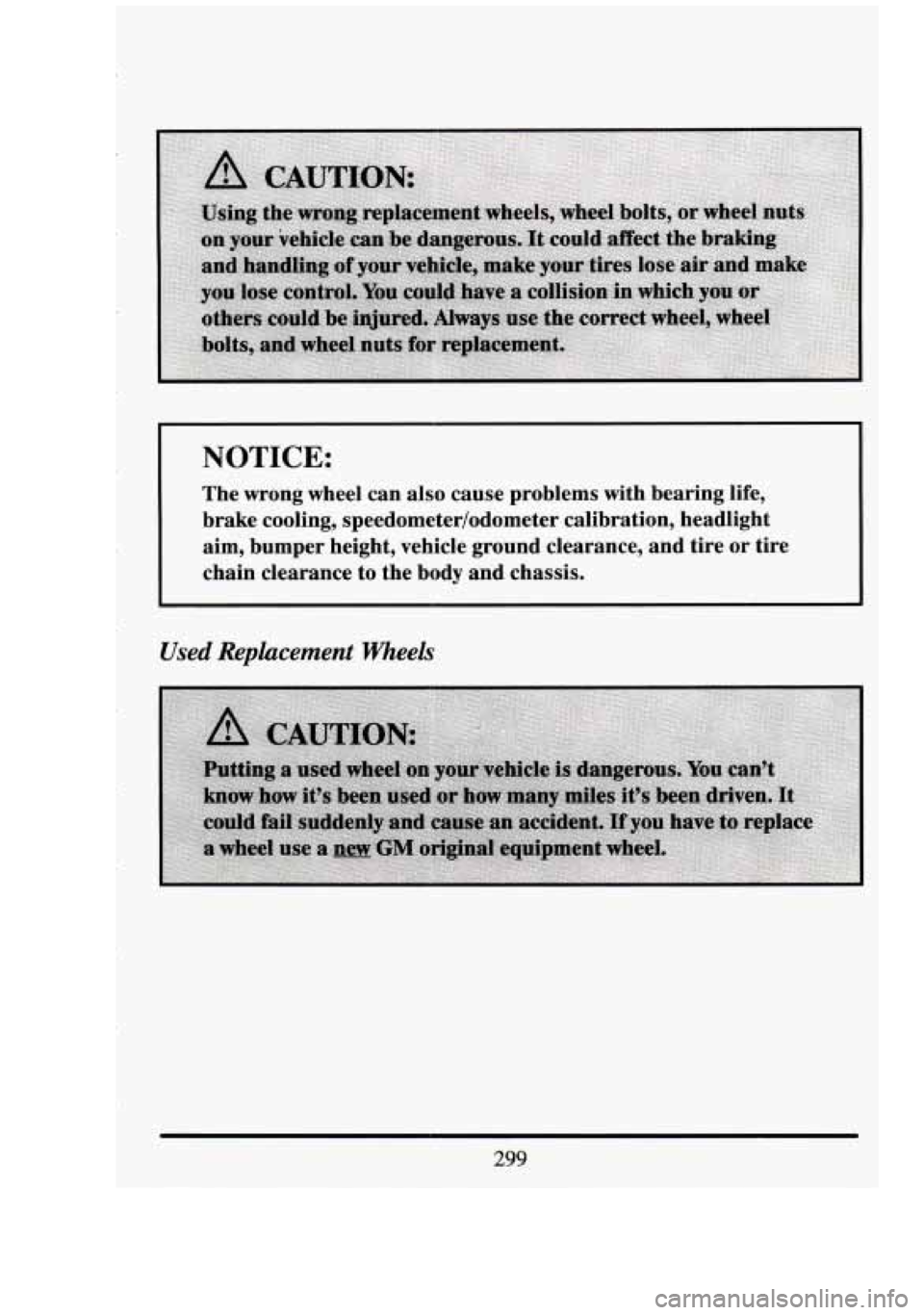

NOTICE:
The wrong wheel can also cause problems with bearing life,
brake cooling, speedometer/odometer calibration, headlight
aim, bumper height, vehicle ground clearance, and tire or tire \
chain clearance to the body and chassis.
Used Replacement Wheels
299

FLUID CAPACITIES
Auto Trans (4L60) Pan Removal ................... 5 qts. (4.7 L)
Auto Trans (4L60) Overhaul (245mm Torque Conv.)
. . 8 qts. (7.9 L)
Auto Trans (4L60) Overhaul (298mm Torque Conv.) 11 qts. (10.6 L)
Engine Oil
& Filter Change ..................... 5.0 qts. (4.7 L)
Engine Cooling ............................. 17.6 qts. (16.6 L)
Fuel Tank
................................ .23 gallons (87.4 L)
Power Steering
.................................. 2 qts. (1.9 L)
Rear Axle .................................... 4.3 pts. (2.0 L)
Washer Solvent.
............................... 2.5 qts. (2.4 L)
TIGHTEN TORQUE
Spark Plug ................................ 15 Nom (11 lb. ft.)
Oil Filter
.................................. 19 Nom (14 lb. ft.)
Wheel Lug Nut.
.......................... 135 Nom (100 lb. ft.)
Rear Axle Filler Plug
........................ 35 Nom (26 lb. ft.)
Oil
Pan Drain Plug
.......................... 41 Nom (30 lb. ft.)
VEHICLE DIMENSIONS
Shipping Weight .......................... 4410 Ibs. (1999.9 kg)
Wheel Base
............................... 121.5 in (3085 mm)
Length
.................................... .224 in (5696 mm)
Height
..................................... .57 in (145 1 mm)
Width
...................................... .77 in (1952 mm)
Front Tread
................................ 61.7 in (1568 mm)
Rear Tread
................................ 60.7 in (1542 mm)
ti
t
-1
I
322
