1993 CHEVROLET LUMINA Owners Manual

Downloaded from www.Manualslib.com manuals search engine What to Add:
Refer to the Maintenance Schedule to
deterrriine' what kind
of fluid to use. See
the
Index under Fluids G Lubricants.
NOTlCE I
Vhen adding power steering fluid I
r making a complete fluid changc
-1ways use the proper fluid. Failul
to
use the proper fluid can cause
leaks and damage hoses and seals
2.2L L4: Checklng Pbwer Steering Fluid
3.1 L & 3.4L V6: Checking Power
Steering
Fluid
Wjn&h@d 'Washer
To Add:
Open the cap labeled WASHER
.FLUID ONLY. Add washer fluid until
the bottle
is .full.

Downloaded from www.Manualslib.com manuals search engine Service & Appearance Care

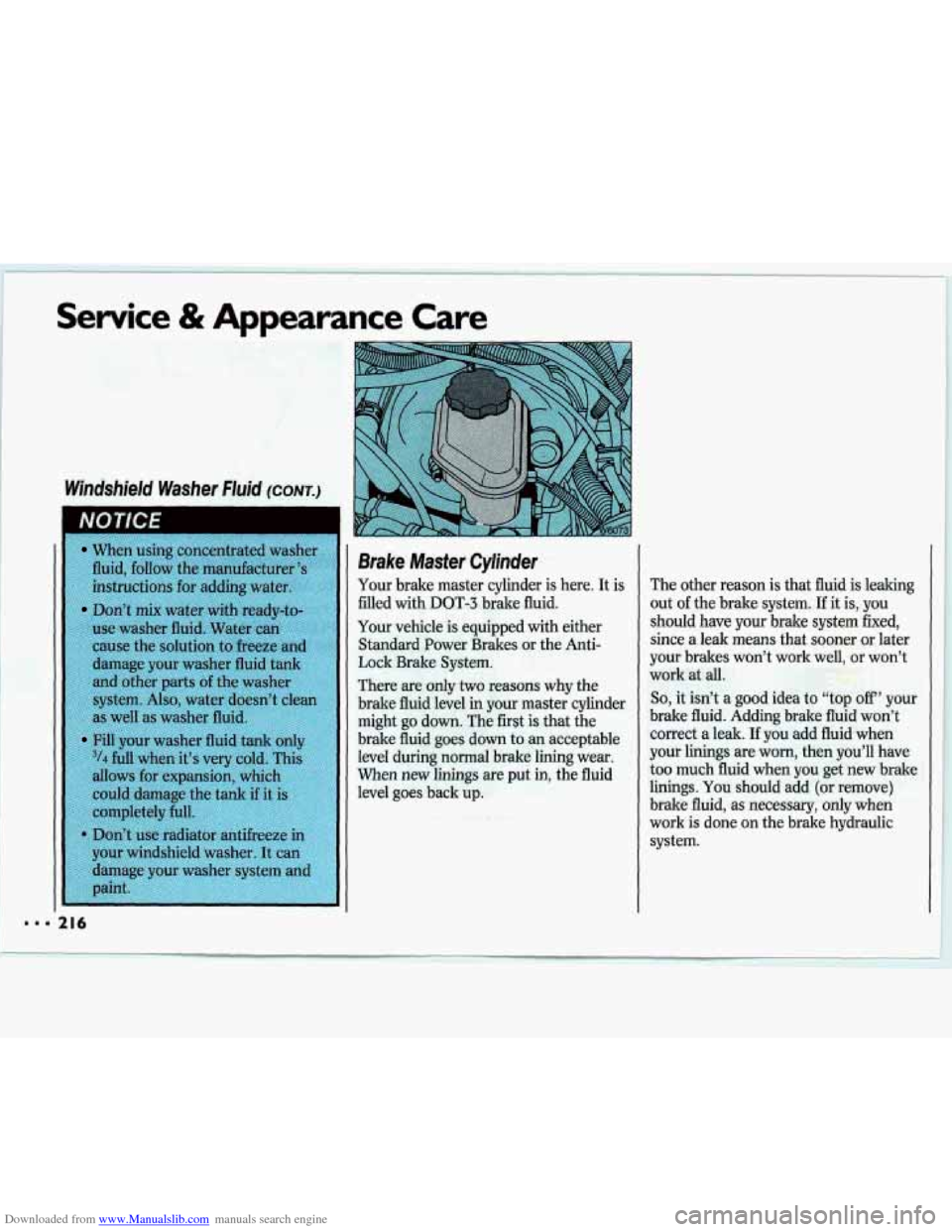

Windshield Washer Fluid (CONT.)
When using concentrated washer fluid, follow the manufacturer’s
instructions for adding water.
Don’t mix water with ready-to-
use washer fluid. Water can
cause the solution
to freeze and
damage your washer fluid tank
and other parts
of the washer
system. Also, water doesn’t clean
as well as washer fluid.
3/4 full when it’s very cold.
allows for expansion, whic
Fill your washer fluid tank only
could damage
t
completely full.
Don’t use radiator antifreeze in
your windshield washer. It can
damage your washer system and
paint.
216
Brake Master Cylinder
Your brake master cylinder is here. It is
filled with DOT-3 brake fluid.
Your vehicle is equipped with either Standard Power Brakes or the Anti-
Lock Brake System.
There are only two reasons why the
brake fluid level in your master cylinder
might go down. The first is that the
brake fluid goes down to an acceptable
level during normal brake lining wear.
When new linings are
Dut in, the fluid
level goes back up. The other reason is
that fluid is leaking
out of the brake system. If it
is, you
should have your brake system fixed,
since a leak means that sooner or later
your brakes won’t work well, or won’t
work at all.
So, it isn’t a good idea to “top off” your
brake fluid. Adding brake fluid won’t correct a leak. If you add fluid when
your linings are worn, then you’ll have
too much fluid when you get new brake
linings. You should add
(or remove)
brake fluid, as necessary, only when
work is done
on the brake hydraulic
system.

Downloaded from www.Manualslib.com manuals search engine p LA

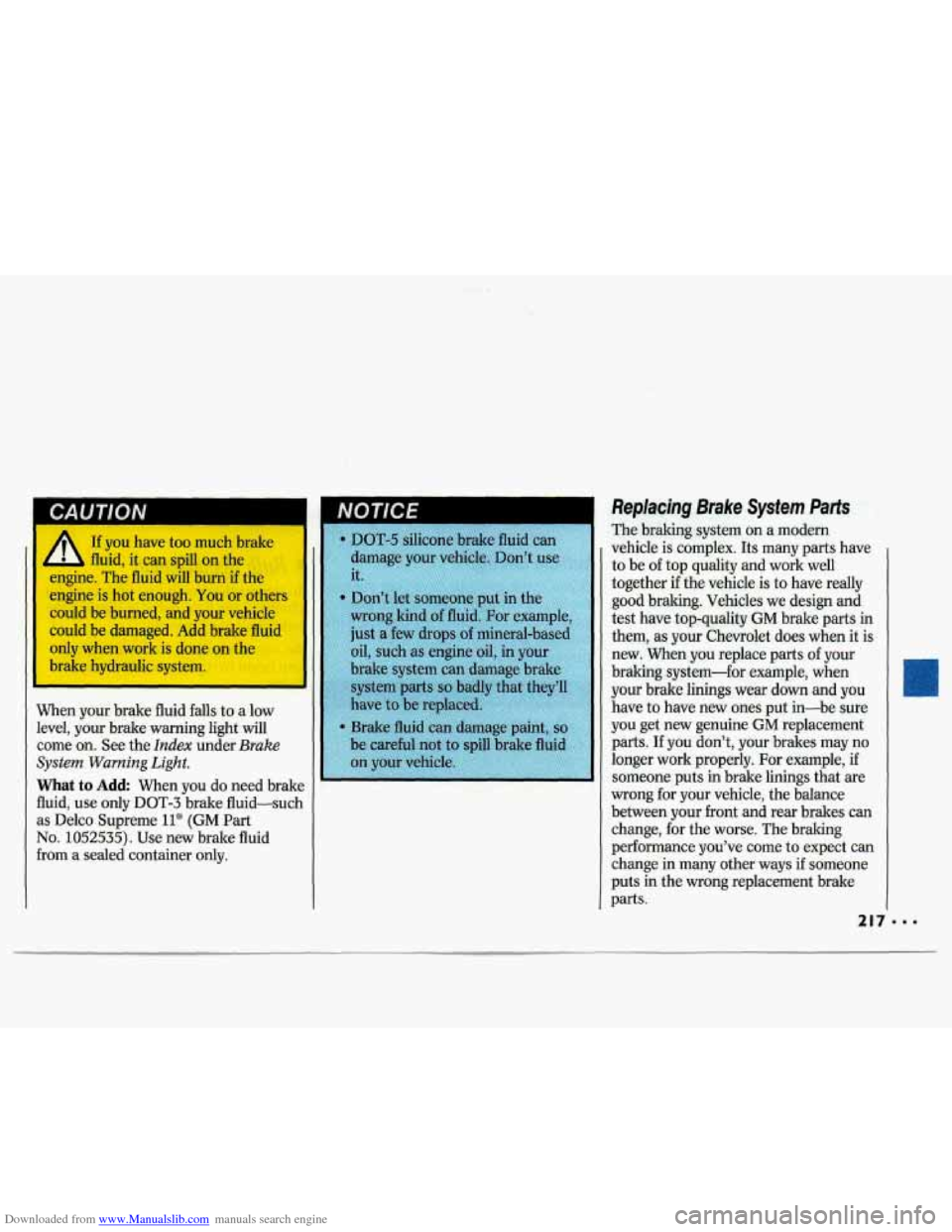

If you have too much brake
fluid, it can spill on the
engine. The fluid will burn
if the
engine is hot enough. You or others
could be burned, and your vehicle
could be damaged. Add brake fluid only when work is done on the
brake hydraulic system.
When your brake fluid falls
to a low
level, your brake warning light will
come
on. See the Index under Brake
System Warning Light.
What to Add When you do need brake
fluid, use only DOT-3 brake fluid-such as Delco Supreme
11@ (GM Part
No. 1052535). Use new brake fluid
from a sealed container only.
NOTICE I
Replacing Brake System Parts
The braking system on a modern
vehicle is complex. Its many parts have
to be of top quality and work well
together
if the vehicle is to have really
good braking. Vehicles we design and
test have top-quality
GM brake parts in
them, as your Chevrolet does when it is
new. When you replace parts of your
braking system-for example, when
your brake linings wear
down and you
have to have new ones put in-be sure
you get new genuine
GM replacement
parts. If you don’t, your brakes may no
longer work properly. For example,
if
someone puts in brake linings that are
wrong for your vehicle, the balance
between your front and rear brakes can
change, for the worse. The braking
performance you’ve come to expect can
change in many other ways
if someone
puts in the wrong replacement brake
parts.

Downloaded from www.Manualslib.com manuals search engine Service & Appearance Care
I

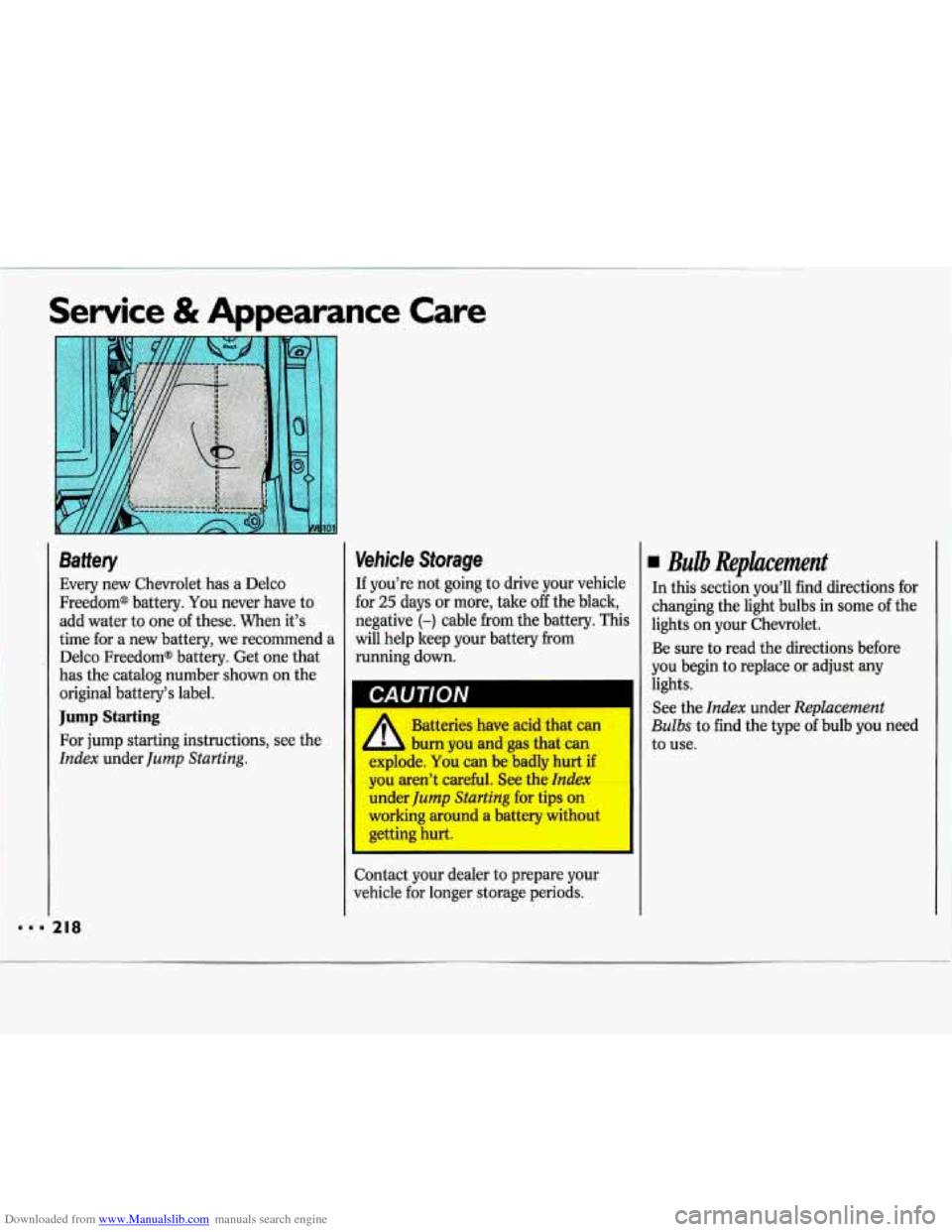

Battery
Every new Chevrolet has a Delco
Freedom@ battery. You never have to
add water to one of these. When it’s
time for a new battery, we recommend a
Delco Freedom@ battery. Get one that
has the catalog number shown on the
original battery’s label.
Jump Starting
For jump starting instructions, see the
Index under Jump Starting.
Vehicle Storage
If you’re not going to drive your vehicle
for
25 days or more, take off the black,
negative
(-) cable from the battery. This
will help keep your battery from
running down.
x Batteries have acid that can
L burn you and gas that can
explode. You can be badly hurt if
you aren’t careful. See the Index
under Jump Starting for tips on
working around
a battery without
getting hurt.
Contact your dealer to prepare your
vehicle for longer storage periods.
Bulb Rephcement
In this section you’ll find directions for
changing the light bulbs in some of the
lights on your Chevrolet.
Be sure to read the directions before
you begin to replace or adjust any
lights.
See the
Index under Replacement
Bulbs to find the type of bulb you need
to use.

Downloaded from www.Manualslib.com manuals search engine Halogen Bulbs I Headlight Bulb Replacement
Halogen bulbs have
pressurized
gas inside and
can burst if you drop or scratch the
bulb.
You or others could be
injured. Take special care when
handling and disposing
of halogen
bulbs.
Bulbs to check the type-of bulb to use.
To Replace a Bulb:
1. Open the hood. Open the protective
panel above the headlights.
2. Reach behind the headlights and turn
the socket counterclockwise until it
pops loose
from the housing.
3. Pull the socket and bulb free.

Downloaded from www.Manualslib.com manuals search engine Service & Appearance Care

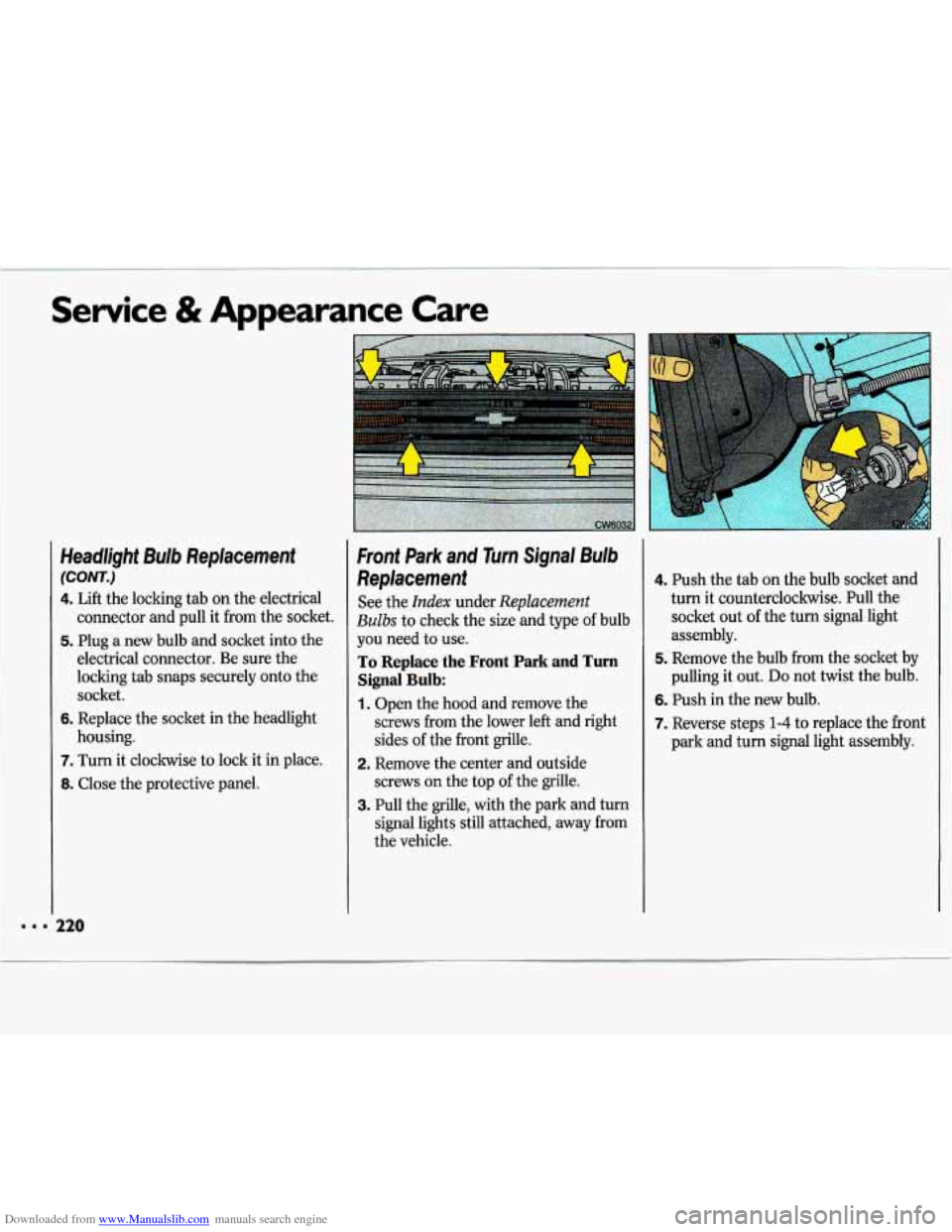

HwdDghf Bulb Replacement
(COW..)
4. Lift the lacking tab on the electrical
connector
and pd it from the socket.
5. plug a new bulb ayld socket into the
electxical cannectur, Be sure the
lacking tab
snaps securely onto the
socket.
6. Replace the socket in the headlight
housing.
7. Turn it clockwise to lo& it in place.
8. Close the protective panel,
4. Push the tab on the bulb socket and I
turn it c=own.t~do;ckwise. 9ull the
assembly.
5. Remove the bulb from the socket by
palling
it out. De not twist the bulb.
6. Push in the new bulb.
7. Reverse steps 1-4 to replace the front
park and turn signal light assembly.
socket out of the tw [email protected]
I

Downloaded from www.Manualslib.com manuals search engine Front Side Marker Bulb
Replacement
See the Index under Replacement
Bulbs to check the type of bulb to use.
To Replace a Bulb:
1. Open the hood. Open the panel
2. Unscrew the bolt behind the front
above
the headlights.
side marker
light assembly.
3. Turn the socket counterclockwise
until
it stops. Then pull the socket
and bulb from the side marker light
assembly.
4. Pull the bulb out of the socket. Do
not twist the bulb.
5. Plug the new bulb in the socket.
6. Replace the bulb and socket in the
7. Replace the assembly in the vehicle.
side marker light assembly.
Replace the bolt.
Center High-Mounted Stoplight
Bulb Repkcememt
See the Index under Replacement
BuZbs to check the type of bulb to use.
If you would like to clean the inside
surface
of the rear window or need to
replace a bulb, you can remove the
stoplight housing by following these
steps:
1. Remove the screws and pull the cover
down.

Downloaded from www.Manualslib.com manuals search engine Service & Appearance Care
Center High-Mounted Stoplight
Bulb Replacement
(CONT.)
2. Lift the locking tabs at the top and
bottom and pull the bulb and socket
out of the center high-mounted
stoplight assembly.
3. Pull the bulb from the socket.
4. Push the new bulb into the socket.
5. Replace the bulb and socket in the
assembly. Make sure the locking tabs
snap in place.
6. Replace the cover and screws.
TailStop/Turn Signal Bulb
Replacement
See the Index under Replacement
Bulbs to check the type of bulb to use.
To Replace a Bulb:
1. Open the trunk. Remove the
convenience net
if you have one.
Remove the carpet fasteners by
twisting them a little as you pull them
away from the carpet.
the vehicle.
2. Pull the carpet away from the rear of
3. Unscrew the three wing nuts and pull
the light assembly
from the vehicle.
