1993 CHEVROLET LUMINA Owners Manual

Downloaded from www.Manualslib.com manuals search engine Warning Lights, Gages and
Indicators
This section describes the warning lights
and gages that may be on your vehicle.
The pictures will help you locate them.
Warning lights and gages can signal that
something is wrong before it becomes
serious enough to cause an expensive
repair or replacement. Paying attention
to your warning lights and gages could
also save you or others
from injury.
Warning lights go on when there may
be or is a problem with one of your
vehicle’s functions.
As you will see in the
details on the next few pages, some
warning lights come on briefly when
you turn the ignition key just to let you
lmow they’re working. If you are
familiar with this section, you should
not be alarmed when this happens.
Gages can indicate when there may be
or is a problem with one
of your
vehicle’s functions. Often gages and
warning lights work together to let you
know when there’s a problem with your
vehicle. When
one of the warning lights comes
on and stays on when you are driving,
or when one of the gages shows there
may be a problem, check the section
that tells you what to do about it. Please
follow the manual’s advice. Waiting to
do repairs can be costly-and even
dangerous, So please get to how your
warning lights and gages. They’re a big
help.
87

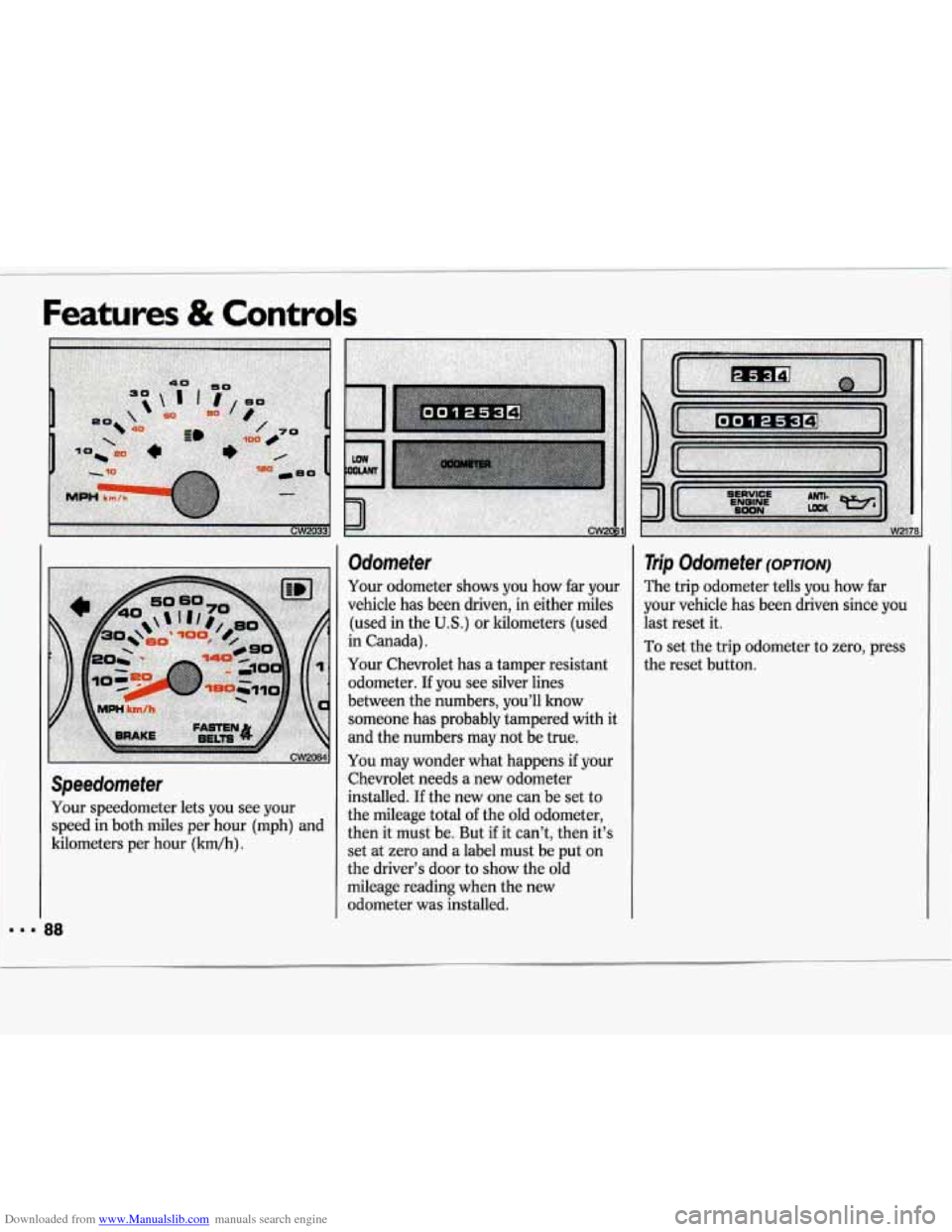

Downloaded from www.Manualslib.com manuals search engine Speedometer
Your speedometer lets you see your speed in both miles per hour (mph) and
kilometers per hour (kdh)
.
Odometer
Your odometer shows you how far your
vehicle has been driven, in either miles
(used in the
U.S.) or kilometers (used
in Canada).
Your Chevrolet has a tamper resistant odometer.
If you see silver lines
between the numbers, you’ll know
someone has probably tampered with it
and the numbers may not be true.
You may wonder what happens if your
Chevrolet needs a new odometer
installed.
If the new one can be set to
the mileage total of the old odometer,
then it must be. But
if it can’t, then it’s
set at zero and a label must be put on
the driver’s door to show the old
mileage reading when the new
odometer was installed.
Trip Odometer (OPTION)
The trip odometer tells you how far
your vehicle has been driven since you
last reset it.
To set the trip odometer to zero, press
the reset button.

Downloaded from www.Manualslib.com manuals search engine Tachometer (OPTION)
The tachometer displays the engine
speed in revolutions per minute
(rpm) .
I
engine damage may occur.
Fuel Cage
You have one of the fuel gages shown.
The fuel gage tells you about how much
fuel you have left, when the ignition
is
on. When the indicator nears E (Empty),
you still have a little fuel left, but
you
should get more soon.
Here are three things that some owners
ask about. None of these show a
problem with your fuel gage:
At the gas station, with your ignition
on, the gas pump shuts off before the
gage reads
F (Full).
It takes a little more or less fuel to fill
up than the gage indicated. For
example, the gage may have indicated
the tank was half full, but it actually .
took a little more or less than half the
tank's capacity to fill the tank.
The gage moves a little when you turn '
a corner or speed up.
For your fuel tank capacity,
see Service
Station Information
on the last page of
this manual.
8
U

Downloaded from www.Manualslib.com manuals search engine Features & Controls

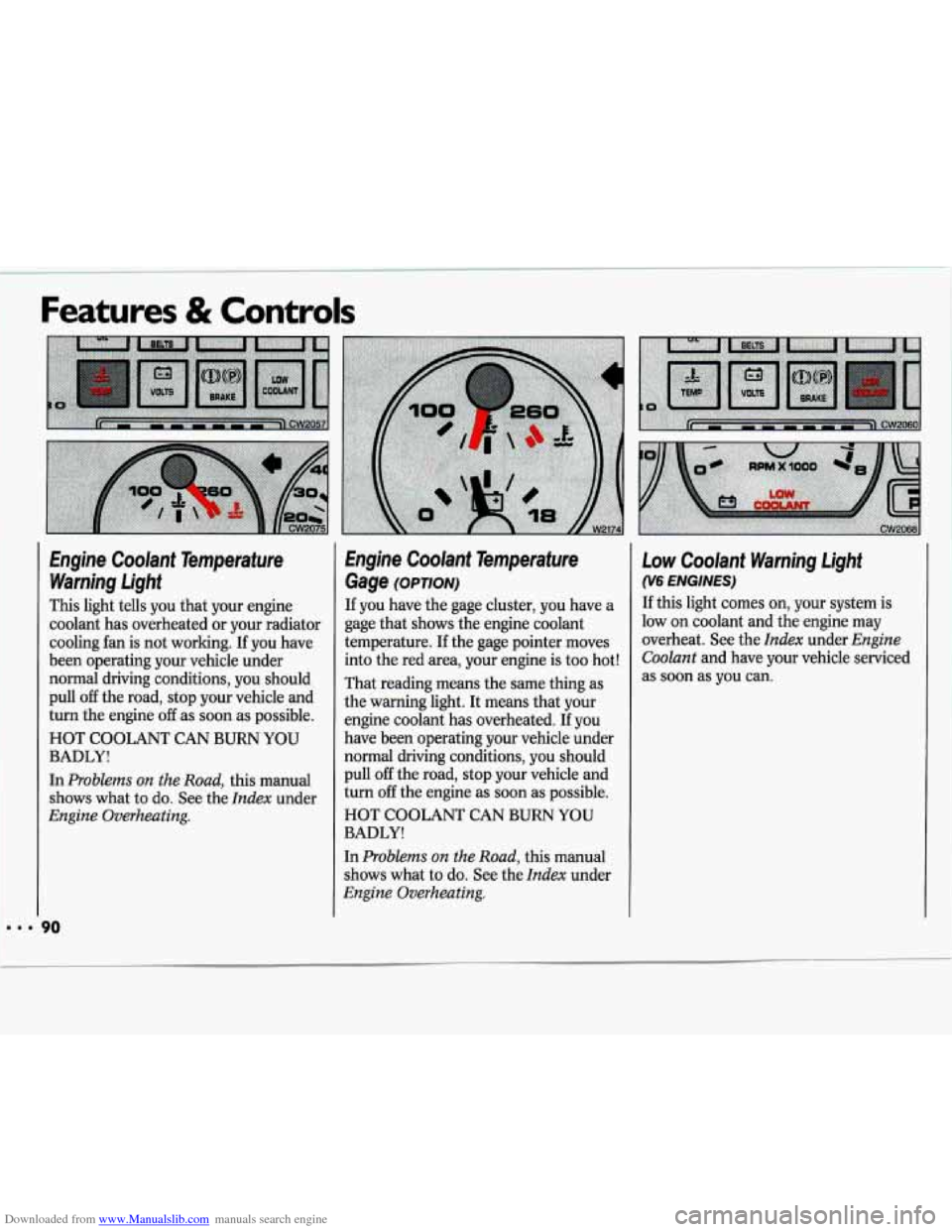

Engine Coolant Temperature Warning Light
This light tells you that your engine
coolant has overheated or your radiator
cooling fan is not working. If you have
been operating your vehicle under normal driving conditions, you should
pull
off the road, stop your vehicle and
turn the engine
off as soon as possible.
HOT COOLANT CAN BURN YOU
BADLY!
In
Problems on the Road, this manual
shows what to
do. See the Index under
Engine Overheating.
Engine Coolant Temperature
Gage
(OPTION)
If you have the gage cluster, you have a
gage that shows the engine coolant
temperature. If the gage pointer moves
into the red area, your engine is too hot!
That reading means the same thing as
the warning light. It means that your
engine coolant has overheated. If you
have been operating your vehicle under
normal driving conditions, you should
pull
off the road, stop your vehicle and
turn off the engine as soon as possible.
HOT COOLANT CAN BURN
YOU
BADLY!
In
Problems on the Road, this manual
shows what to do. See the
Index under
Engine Overheating.
Low Coolant Warning Light
(v6 ENGINES)
If this light comes on, your system is
low on coolant and the engine may
overheat. See the
Index under Engine
Coolant and have your vehicle serviced
as soon as you can.

Downloaded from www.Manualslib.com manuals search engine Oil Warir;bg, Light
If you have: a problem with your oil, this
light may stay on after you start your
engine, or come on when you
ate
driving. This indicates that oil is not
going though your engine quickJy
enou.gh
to keep it lubricated. The
engine cadd below on oil, or could
have
some other oil problem. Have it
fixed right away.
V
A
Don’t keep driving if the oil
pressure is low.
If you do,
your engine can become
so hot that
it catches fire.
You or others could
be burned. Check your oil
as soon
as possible and have your vehicle
serviced.
NOTICE
91

Downloaded from www.Manualslib.com manuals search engine Features & Controls
Voltmeter (OPTION)
When the engine is running, the gage
shows the condition of the charging
system. Readings between the red
warning zones indicate the normal
operating range.
Readings in either red warning zone
indicate
a possible problem in the
electrical system. Have your vehicle
serviced immediately.
When your engine is not running, but
the ignition is on (in
the Run position),
the gage shows your battery’s state of
charge.
Battery Warning Light
The charging system light will come on
briefly when you turn on the ignition as
a check to show you it is working. Then
it should
go out. If it stays on, or comes
on while you are driving, you may have
a problem with the electrical charging
system. It could indicate that you have
a loose generator drive belt or another
electrical problem. Have it checked
right away. Driving while this light is on could drain your battery.
If you must drive a short distance with
the light
on, be certain to turn off all
your accessories, such as the radio and
air conditioner.
Brake System Warning Light
Your Chevrolet’s hydraulic brake
system
is divided into two parts. If one
part isn’t working, the other part can
still work and stop you.
For good
braking, though, you need both parts
working well.
If the warning light goes
on, there could be a brake problem.
Have your brake system inspected right
away.
This light should come on as you start
the vehicle. If it doesn’t come on then,
have it fixed
so it will be ready to warn
you
if there’s a problem.

Downloaded from www.Manualslib.com manuals search engine This light will also come on when you
set your parking brake, and
will stay on
if your parking brake doesn’t release
fully. If it stays on after your parking
brake is fully released, it means you
have a brake problem.
If the light comes on while driving, pull
off the road and stop carefully. You may
notice that the pedal is harder to push.
Or, the pedal may go closer to the floor.
It may take longer to stop.
If the light is
still on, have the vehicle towed for
service. (See the
Index under Towing
Your Chevrolet.)
-
gu1/QIv ,1
A Your brake system may not ’ ‘ be working properly if the
LJlimt; warning light is on. Driving
with the brake warning light on can
lead to an accident. If the light is
still on after you’ve pulled off the
road and stopped carefully, have
the vehicle towed for service.
I I
Anti-Lock Brake System Warning
Light
(OPTION)
With anti-lock, this light will go on
when you start your engine and it will
stay on for three seconds. That’s
normal.
If the light doesn’t come on,
have it fixed
so it will be ready to warn
you
if there is a problem.
If the light stays on or comes on when
you’re driving, stop as soon
as possible
and turn the key
off. Then start the
engine to reset the system. If the light
still stays on, or comes
on again while
you’re driving, your Chevrolet needs service. Unless the regular brake system
warning light is also on, you will still
have brakes, but not anti-lock brakes. If
the regular brake system warning light

Downloaded from www.Manualslib.com manuals search engine Features & Controls
Anti-Lock Brake System Warning Light
(CONT.)
is also on, see Brake System Warning
Light
earlier in this section.
If the anti-lock brake system warning
light ever flashes, your anti-lock brake system is still working but needs service
as
soon as possible.
Upshift lndicafor Light
(MANUAL TRANSAXLE)
This light comes on when you need to
shift to the next higher gear. See the
Index under Shift Light.
Malfunction lndicafor Lamp
(Service Engine Soon Light)
A computer monitors operation of your
fuel, ignition and emission control
systems. This light should come
on
when the ignition is on, but the engine
is not running, as a check to show you
it is working. If it does not come on at
all, have it fixed right away. If it stays
on, or it comes
on while you are driving,
the computer is indicating that you
have a problem.
You should take your
vehicle in for service soon.
94
