1993 CHEVROLET CAMARO engine coolant

Gages Engine Coolant Temperature
... 102
Engine Oil Pressure .......... 104
Fuel ...................... 100
Warning Lights and Indicators ... 99
Gasolines for Cleaner Air ....... 221
Glass ........................ 269
Glove Box .................... 92
GM Participation in Better ...........
Business Bureau Mediation/
Arbitration Program
........ 3 16
Halogen Bulbs ............... 247
Hatch Release .................. 51
Hatch Release. Remote .......... 51
Hazard Warning Flashers ........ 184
Head Restraints ................ 14
Headlight Aiming .............. 248
Headlight Highbow Beam ....... 78
Heater Controls ................ 110
Heater. Engine Block ............ 61
Heating ....................... 11 1
Heating. Bi-Level ............... 111
High Beams .................. 154
Highway Hypnosis ............. 164
Hill and Mountain Roads ........ 165
Hills. Parking on .............. 168
Hitches ...................... 176
Hood Release ................. 223
Hood. Checking Things
under the
................... 223
Hook-Ups Front Towing ........ 19 1
Hook-Ups. Rear Towing ........ 192
Horn ......................... 76
How to Add Coolant to the
Coolant Recovery Tank
....... 197
How to Add Coolant to the
Radiator
............... 199. 201
Hydraulic Clutch .............. 237
Hydroplaning ................. 157
Hypnosis. Highway ............ 164
Identification Number.
Vehicle
.................... 275
If a Tire Goes Flat ............. 204
If You’re Stuck in Deep
Snow
..................... 173
If You’re Stuck: In Sand.
Mud. Ice or Snow ............ 215
Ignition Switch ................. 55
Inflatable Restraint. Supplemental . . 25
335 . .
ProCarManuals.com

9 9 9 336
Inflation . Tire Pressure ......... 257
Instrument Panel ............... 96
Instrument Panel and Clusters ..... 98
Instrument Panel. Cleaning the Top
of ..................... 269
Interior Lights ................. 86
Jump Starting ................ 185
Keys ........................ 48
Lane Change Indicator.
Turn Signal
and .............. 77
Lap-Shoulder Belt (Safety
Belts)
...................... 21
Larger Children (Seats and
Safety Belts)
................. 43
Latches. Front Seatback .......... 14
Leaving the Freeway ........... 162
Leaving Your Vehicle with the
Engine Running
.............. 72
Lighter. Ashtray and ............. 94
Lights Air Bag System
.............. 26
Anti-lock Brake System
Brake System Warning
........ 100
Bulb Replacement ........... 279
Check Gages ............... 105
Courtesy .................... 86
Daytime Running ............. 85
Fog ........................ 86
Front Map ................... 87
Gages and Indicators. Warning . . 99
Interior ..................... 86
Warning ................. 101
Low Coolant ................ 105
Low Oil ................... 105
Main Control ................ 85
Operation of ................. 84
Safety Belt Reminder .......... 20
Service Engine Soon ......... 103
Traffic ..................... 134
Lights On Reminder ............. 85
Limited-Slip Rear Axle .......... 70
Loading Your Vehicle .......... 255
Locks
Door
....................... 50
Power Door ................. 51
Long Distance. Driving a ........ 163
Loss of Control ............... 151
Low Coolant Light ............. 105
Low Oil Light ................ 105
Malfunction Indicator Lamp ... 103
ProCarManuals.com

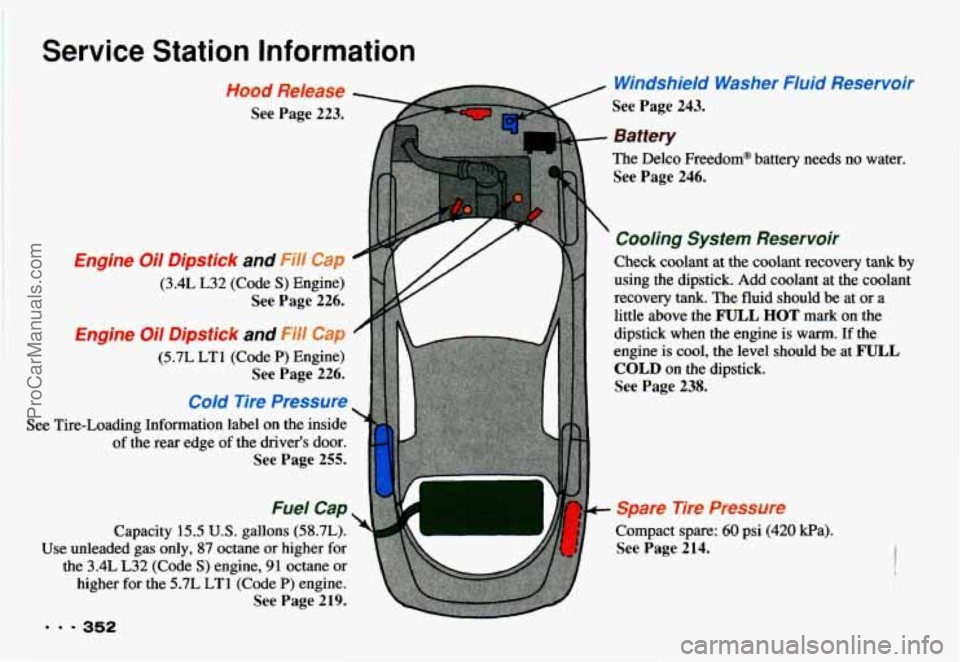

Service Station Information
Hood Release
See Page 223.
Engine Oil Dipstick and Fill Cap
(3.4L L32 (Code S) Engine)
See Page 226.
Engine Oil Dipstick and Fill Cap
(5.7L LT1 (Code P) Engine)
See Page 226.
Cold Tire Pressure
See Tire-Loading Information label on the inside
of the
rear edge of the driver's door.
See Page 255.
Fuel Cap
Capacity 15.5.U.S. gallons (58.7L).
Use unleaded gas only, 87 octane
or higher for
the 3.4L
L32 (Code S) engine, 91 octane or
higher
for the 5.7L LT1 (Code P) engine.
See Page 219.
Windshield Washer Fluid Reservorr
See Page 243.
Battery
The Delco Freedom@ battery needs no water.
See Page 246.
Cooling System Reservoir
Check coolant at the coolant recovery tank by
using the dipstick. Add coolant at the coolant
recovery tank. The fluid should be at
or a
little above
the FULL HOT mark on the
dipstick when
the engine is warm. If the
engine is cool, the level should be at
FULL
COLD on the dipstick.
See Page 238.
_?are Tire Pressure
Compact spare: 60 psi (420 kPa).
See Page 214.
