1993 CADILLAC DEVILLE key

Downloaded from www.Manualslib.com manuals search engine _HAZARD WMING FLASHERS
'/
..
Your hazard warning flashers let you warn others. They also let police
know you have a problem. Your front and rear turn signal lights will flash
on and
off.
Press the button in to
make your front and
rear turn signal lights
flash on and
off.
I
Your hazard warning flashers work no matter what position your key is in,
and even if the key isn't in.

Downloaded from www.Manualslib.com manuals search engine When the towing service arrives, let the tow operator know that this
manual contains detailed towing instructions and illustrations. The
operator may want to see them.
~ A CAUTION:
, To help avoid injury to you or others: .. B c
Never let passengers ride in a vehicle that is being towed.
N- . er tow faster than safe or posted speeds.
0
0 Never tow with damaged parts not fully secured.
0 Never get under your vehicle after it has been lifted by the
tow truck.
0 Always use separate safety chains on each side when towing a
vehicle.
0 Never use “J” hooks. Use T-hooks instead.
*, 1 J
f
L
When your vehicle is being towed, have the ignition key off. The steering
wheel should be clamped in a straight-ahead position, with a clamping
device designed for towing service.
Do not use the vehicle’s steering
column lock for this. The transaxle should be in Neutral and the parking
brake released.
Don’t have
your vehicle towed on the front wheels, unless you must. If
the vehicle must be towed on the front wheels, don’t go more than 55
mph (88 km) or farther than 500 miles (800 km) or your transaxle will be
damaged.
If these limits must be exceeded, then the front wheels have to
be supported on a dolly.

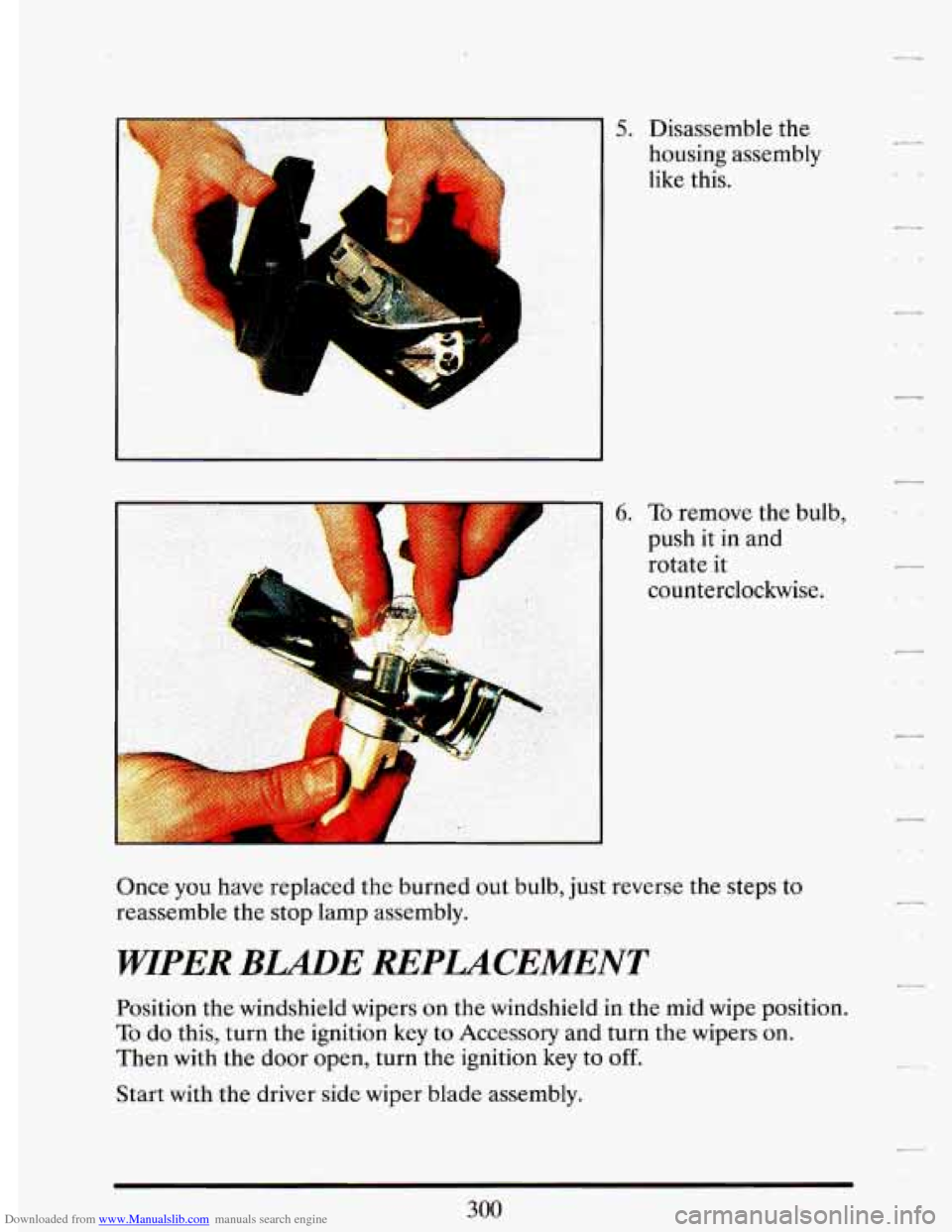

Downloaded from www.Manualslib.com manuals search engine 5. Disassemble the
housing assembly
like this.
r-1 push it in and
6. To remove the bulb,
rotate it
counterclockwise.
Once you have replaced the burned out bulb, just reverse the steps to
reassemble the stop lamp assembly.
WIPER BLADE REPUCEMENT
Position the windshield wipers on the windshield in the mid wipe position.
To do this, turn the ignition key to Accessory and turn the wipers on.
Then with the door open, turn the ignition key to off.
th
.-L
c*
300
Start with the driver side wiper blade assembly.

Downloaded from www.Manualslib.com manuals search engine Retained Accessory Power
When you stop your Cadillac and turn the key to Off, you can use these
accessories for
10 more minutes:
Radio
-.
LLr
e Brake/Shift Interlock
Power Windows
Trunk Release
Astroroof
Windshield Wipers
If
you open a door, everything will go off. And, after 10 minutes
everything
will go off.
If you want this power for another
10 minutes, just turn the key to Run
and then back
to Off.
FUSES AND CIRCUIT BREAKERS
The wiring circuits in your car are protected from short circuits by a
combination of fuses and circuit breakers. This greatly reduces the chance
of fires caused by electrical problems.
If you ever have a problem
on the road and don’t have a spare fuse, you
can “borrow” one of the correct value. Just pick some feature of your car
that you can get along without
-- like the radio or cigarette lighter -- and
use its fuse,
if it is of the value you need. Be sure to use the correct fuse.
Replace it as soon as you can. There
is a fuse removal tool provided on
the fuse panel cover.
-.
328

Downloaded from www.Manualslib.com manuals search engine - 7
0-0 4 9
Ezl no 5 10
14 I!
15 20
24
1 25
1 - 10 AMP - CRANK - DIAG. ENERGY
RESERVE
MODULE
- STARTER ENABLE RELAY 2 - 10 AMP - SPARE 3 - 15 AMP - SPARE 4 - 10 AMP - RADIO - RADIO - BODY COMPUTER MODULE 5 - 25 AMP - WSHIELD
WIPE/WASH
- WIPER/WASHER SWITCH 6 - 10 AMP - COOLING FAN
RELAYS
- HIGH SPEED COOLANT FAN - LOW SPEED COOLANT FAN 7 - 20 AMP - AIR CONDITIONIN(; - A/C COMPRESSOR RELAY - BODY COMPUTER MODULE - ELECTRONIC CLIMATE
CONTROL
- CRUISE CONTROL SWITCH - ELEC. CLIMATE CTRL PROG. - ELEC. HEIGHT SENSOR - FUEL DATA CENTER - HEATED WlS CONTROL
MODULE
- INSTRUMENT CLUSTER - REAR DEFOGGER RELAY - WINDOW LOCKOUT SWITCH 8 - 10 AMP - AhTI-LOCK
BRAKE-CONTR
* - 20 AMP - VAC PUMP (H.D. CHASSIS ONLY)
MODULE - ELEC. BRAKE CONTROL
- BR.4KE PRESSURE MODULE - MAIN RELAY 9- BLAVK 10 - BLANK 11 - 20 AMP - CHIME/ClG LTH/RADIO/PWK ANT - POWER ANT. RELAY - FRONT CIGAR LIGHTER - LEFT HAND INFO. CENTER - GLOVE COMPARTMENT LIGHT - MULTIFUNCTION CHIME
MODULE
- RADIO
12 - 20 AMP - AUTO LEVEL
CONTROL
- ELEC. COMPRESSOR - ELEC. HEIGHT SENSOR - ELEC. RELAY 13 - 20 AMP - BRAKE & HAZARD LPS - BRAKE LIGHT SWITCH - HAZARD FLASHER
- INSTRUMENT CLUSTER
- TWILIGHT SENTINEL/DAYTIME
RUNNING LIGHTS MODULE
MIRROR
GARAGE DOOR OPENER - FRONT DOOR LOCK FIBER
OPTIC LIGHTS
- FRONTIREAR DOOR WARNING
LIGHTS
- FRONT/FLEET VANITY MIRROR
LIGHTS
- FRONT/REAR/QTR PANEL
COURTESY1READING LIGHTS
- TRUNK LIGHT - LT POWER SEAT SWITCH
14 - 20 AMP - PARK LAMPS
- LIGHT SWITCH
15 - 15 AMP - CTSY LP/PWR
- DOME/MAP LIGHTS AND
16 - 15 AMP - GAUCES/DR
LUCK/ILL ENT
- AUTO. DAY/NIGHT MIRROR - AUTO. DOOR LOCK MODULE - BODY COMPUTER MODULE - COMPUTER CONTROLLED
RIDE MODULE
MODULE
- DIAG. ENERGY RESERVE
- FUEL TANK UNIT - ILLUMINATED ENTRY - INSTRUMENT CLUSTER - POWER SEATS - KEYLESS ENTRY - L & R GO SPECIAL SEAT CTRLS - MULTIFUNCTION CHIME
- RIGHT SIDE INFO. CENTER - SEAT MEMORY MODULE - THEFT DETERRENT MODIJLE MODULE
I7 - 15 AMP - ENGINE CTRL MOD - POWER CONTROL MODULE - PASS KEY
DECODER MODULE 18 - 10 AMI' - SUP INFL REST - DIAGNOSTIC/ENERGY
RESERVE MODULE (DERM)
- DUAL SENSOR 19 - 20 AhW - TURN SIGN/BACK UP LPS
sw. - NEUTRAL SAFETY BACKUP
- TURN FLASHER - TURN/HAZARD SWITCH 20 - 20 AMP - SPARE
21 - 25 AMP - SPARE 22 - 20 AMP - TRULVK RELWEL
FILLER
- TRUNK LID RELEASE SWITCH - FUEL DOOR RELEASE SWITCH 23 - 30 AMP CB - PWR WDO/SUN
ROOF
MODULE
MODULE
AND LOCKOUT RELAY
DEFOG
- ASTROROOF CONTROL
- EXPRESS DOWN WINDOW
- POWER WINDOW SWITCHES
24 - 30 AMP CB - DR LKS/RR
- DOOR LOCK RELAY - LEFT & RIGHT SIDE RECLINER
- LEFT & RIGHT SEAT SWITCHES - L & R 60 SPECIAL SEAT CTRL
- REAR DEFOGGER - SEAT MEMORY MODULE
SWITCHES
sw.
- KEYLESS
ENTRY 25 - 10 AMP - INST PANEL LAMPS - ASHTRAY LIGHT - BODY COMPUTER MODULE - ENGINE COMPARTMENT LIGHT - I/P AND SWITCH BACK LIGHTS - RADIO DISPLAY DIMMING
INPUT
330

Downloaded from www.Manualslib.com manuals search engine E D C B A I I I I I
* + * +
15 AMP
20 AMP 15 AMP- @ fz[ (F] 'p'
ERLS TRUNKPULL DN 25 AMP-HORN/ \'I
FUEL PUMP DOOR LOCK
RELAY CENTER IDENTIFICATION
10 AMP- 10 AMP
HEATED
io AMP-A/C
MIRROR
INJECTOR
INJECTOR BLOWER
@ @ @ )s(
10 AMP-
4 4 4 4
F
RELAY PANEL
25 AMP - HORN/TRUNK PULL ON
- H.ORN RELAY
- PULL DOWN UNIT
15
AMP DOOR LOCK
- DOOR LOCK SWITCHES
- OUTSIDE MIRROR
CONTROL SWITCH
- LT AND RT REAR CIGAR LIGHTS
- KEYLESS ENTRY
- TRUNK LID RELEASE
- AUTOMATIC DOOR LOCKS
- ILLUMINATED ENTRY
- LT AND RT REAR
DOOR LOCK SWITCHES
LIGHTS
- LT AND RT REAR DOOR COURTESY
10 AMP HEATED MIRROR
10 AMP A/C PROGRAMMER
15 AMP ERLS
- A/C COMPRESSOR
CONTROL RELAY
SWITCH
- VISCOVS CONVERTER CLUTCH BRAKE
- EGR SOLENOID
- VAPOR CANISTER
PURGE SOLENOID
G H J
- POWER STEERING
PRESSURE SWITCH
20 AMP FUEL PUMP
- FUEL PUMP RELAY
- ENGINE OIL PRESSURE SWITCH
10 AMP INJECTOR
- FUEL INJECTORS 2,3,5
AND a
10 AMP INJECTOR
- FUEL INJECTORS 1,4,6
AND 7
RELAYS
A. ANTENNA RELAY
B. BOSE RELAY
(IF EQUIPPED)
C. DEFOGGER RELAY
D. WINDOW LOCKOUT RELAY
E. RETAINED ACCESSORY POWER REMY
NO.
2
F. RETAINED ACCESSORY POWER RELAY
NO.
1
G. ELECTRONIC LEVEL CONTROL (ELC)
H. FUEL PUMP RELAY
J. HORN RELAY
I-

Downloaded from www.Manualslib.com manuals search engine LEFT HAND SIDE
RIGHT HAND SIDE
SPARE (30 AMP)
1GN
SW (60 AMP)
- RETAINED ACCESSORY POWER
- IGNITION SWITCH
BLWR (30 AMP)
- ELECTRONIC CLIMATE CONTROL
- POWER MODULE
- BLOWER CONTROL MODULE
ECM (20 AMP)
- BODY CONTROL MODULE (BCM)
- ELECTRONIC CONTROL MODULE
(ECM)
- PASS KEY DECODER MODULE
BOSE/SPARE (20 AMP)
- BOSE RADIO RELAY IF EQUIPPED
PWR LK SEATS RR DEF (50 AMP)
- POWER TO CB 24 (SEE FUSE
BLOCK)
HORN (40 AMP)
- POWER TO FUSES 1 AND 2 (SEE
FUSE BLOCK)
HTD W/S SPARE (20 AMP)
- HEATED WINDSHIELD IF
EQUIPPED
ABS PMP (40 AMP)
ABS MA
(30 AMP)
ELC
(40 AMP)
- ABS PUMP RELAY
- MAIN RELAY
- POWER TO FUSES 11 AND 12
(SEE FUSE BLOCK)
COOL FAN (40 AMP)
- COOLANT FAN RELAYS
MlSC LTS (60 AMP)
- POWERS FOR FUSES 13,14
AND 15 (SEE FUSE BLOCK)
HDLPS (30 AMP)
- HEADLIGHT SWITCH
IGN (60 AMP)
- THEFT DETERRENT
- IGNITION SWITCH
' SPARE (60 AMP)
333

Downloaded from www.Manualslib.com manuals search engine OUR COMMITMENT TO YOUR SATISFACTION
We are committed to providing you the finest ownership experience in the
world, starting the moment you take delivery of your
new Cadillac.
Cadillac offers another major step toward your continued satisfaction
... with
Cadillac Roadside Service. Roadside Service is your key to peace of mind
ownership-one that covers you on the road, far from home, all day and
night, and during the weekend. Roadside Service represents the spirit
of
luxury leadership at Cadillac Motor Car Division. We hone the need never
arises, but
if it does, Roadside Service can help.
How Can Roadside Service Help You?
Cadillac Roadside Service with a staff of phone advisors trained in Cadillac
service excellence offers assistance exclusively to Cadillac owners. In many
cases, the advisor can quickly help resolve your car problem over the phone.
If the phone advisor determines that it may be possible
to repair your car at
experienced Cadillac dealership technician to contact you, and
if appropri-
ate, travel to your location
in a specially equipped vehicle and attempt to
repair your car on-site. The Roadside Service vehicle contains
the necessary
tools and parts to complete
most minor repairs to get you back on the road.
-. roadside and a technician is available, the advisor will arrange for an
Roadside Service phone advisors
and technicians are trained by Cadillac and
are familiar
with your car, which provides a level of service knowledge
usually found only at your Cadillac Dealership.
Because Roadside Service
assists Cadillac owners exclusively, your call always receives top priority and
immediate action. Should you require a tow truck, locksmith, hotel
accommodations, or other vital services on a moments notice, Roadside
Service
will locate and make the arrangements for you promptly.
