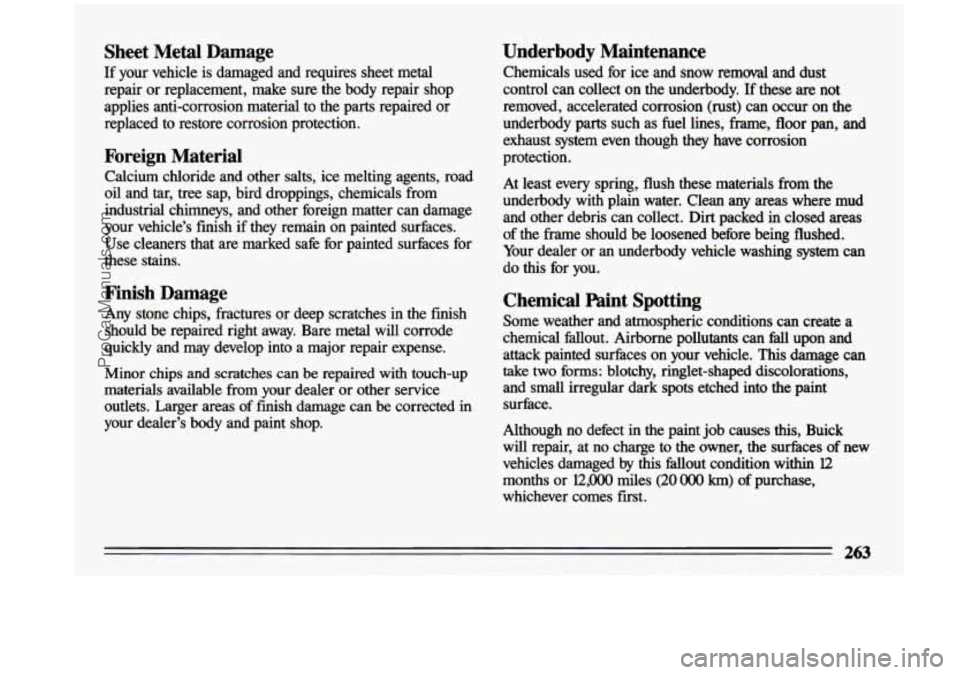

Sheet Metal Damage
If your vehicle is damaged and requires sheet metal
repair or replacement, make sure the body repair shop
applies anti-corrosion material to the parts repaired or
replaced to restore corrosion protection.
Foreign Material
Calcium chloride and other salts, ice melting agents, road
oil and tar, tree sap, bird droppings, chemicals from
industrial chimneys, and other foreign matter can damage
your vehicle’s finish if they remain on painted surfaces. Use cleaners that are marked safe for painted surfaces for
these stains.
Finish Damage
Any stone chips, fractures or deep scratches in the finish
should be repaired right away. Bare metal will corrode
quickly and may develop into a major repair expense.
Minor chips and scratches
can be repaired with touch-up
materials available from your dealer or other service
outlets. Larger areas of finish damage can be corrected in
your dealer’s body and paint shop.
Underbody Maintenance
Chemicals used for ice and snow removal and dust
control can collect on the underbody. If these
are not
removed, accelerated corrosion (rust) can occur on the
underbody parts such as fuel lines, frame,
floor pan, and
exhaust system even though they have corrosion
protection.
At least every spring, flush these materials from the
underbody
with plain water. Clean any areas where mud
and other debris can collect. Dirt packed
in closed areas
of the frame should be loosened before being flushed.
Your dealer or an underbody vehicle washing system can
do this for you.
Chemical paint Spotting
Some weather and atmospheric conditions can create a
chemical fdlout. Airborne pollutants can
f$ll upon and
attack painted surfaces on your vehicle. This damage can
take
two forms: blotchy, ringlet-shaped discolorations,
and small irregular dark
spots etched into the paint
surhce.
Although no defect in the paint job causes
this, Buick
will repair, at no charge to the owner, the surfaces
of new
vehicles damaged by this fallout condition within 12
months or 12,OOO miles (20 OOO km) of purchase,
whichever comes first.
ProCarManuals.com

Appearance Care and Maintenance Materials
You can get these from your Buick dealer .
DESCRIPTION USAGE PAFlT NUMBER
Magic Mirror Creme Wax ............. Exterior cleaner and polish ......... 12345343
Spray-A-Squeak
..................... Weatherstrips ..................... 1052277
Silicone Grease
..................... Stops squeaks ..................... 1052863
Tar and Road
Oil Remover ............ Also removes old waxes, polishes .... 1050172
Chrome Cleaner and Polish
........... Removes rust and corrosion .......... 1050173
White Sidewall Tire Cleaner
.......... Cleans white and black tires ......... 1050174
VinyULeather Cleaner
............... Spot and stain removal .............. 1050214
Fabric Cleaner
...................... Spot and stain removal .............. 1050244
Multi-Purpose Powdered Cleaner
........ Cleans vinyl and cloth, also. tires ...... 1050429
and
mats
latches
Glass Cleaner
....................... Also spot cleans vinyls ............. 1050427
Lubriplate
(Wh~te Grease) ............ For hood. trunk, door hinges and ..... 1052349
Preservatone
.................. .... Vinyl Top Dressing ................ 1051055
Washer Solvent
..................... Windshield-washing system .......... 1051515
Spot Lifter
........................ For cloth ........................ 105l398*
Wash-Wax (concentrate)
.............. Exterior Wash ..................... 1052870
SIZE
16 oz . (0.473L)
12 oz . (0.354L)
1
oz . (0.02Skg)
16 oz . (0.473L)
16
oz . (0.473L)
16
oz . (0.473L)
32
oz . (0.946L)
16
oz . (0.473L)
23
oz . (0.680L)
6 lb
. (2.72kg)
12 oz . (0.340kg)
16
oz . (0.473L)
8 oz . (0.237L)
32
oz . (0.946L)
16
oz . (0.473L)
* Not recommended .for pigskin suede leather .
See your General Motors dealers for these products .
See your Maintenance Schedule for other products .
264
I
ProCarManuals.com

Vehicle Identification Number 0
1
0
SAMPLE4UXPM072675 (cml
This is the legal identifier. for your Buick. It appears on a
plate in the front comer
of the instrument panel, on the
driver’s side.
You can see it if you look through the
windshield from outside, your vehicle. The VIN also
appears on the Vehicle Certification and Service
Parts
labels and the certificates of title and registration.
Engine Identification
The eighth character in your VIN is the engme code for
your
GM engine. This code will help you identify your
engine, specifications, and replacement parts
in this
section.
Service Parts Identification Label
You’ll find this label on your spare tire cover in the coupe
or sedan.
In the wagon, you’ll find the label on the wheel
well (remove the spare tire cover to expose the wheel
well). It’s very helpful
if you ever need to order parts.. On
this label is:
Your VIN.
Its model designation.
Paint information.
A list of all production options and special equipment.
Be sure that
this label is not. removed from. the vehicle.
Add-on Electrical Equipment
265
ProCarManuals.com

2
Fuses & Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination
of fuses, circuit breakers,
and fusible thermal links
in the wiring itself. This greatly
reduces the chance
of fires caused by electrical problems.
The fuse panel is located inside the glove box, on the left side.
To change a fuse, open the glove box. Pull down on the
fuse panel latch and open
the door. Pull the fuse straight
out.
To identify and check fuses, refer to the Fuse Usage chart.
GOOD
FUSE
7
GM PART NO. - ' RATING ' '2 COLOR I
12004003 ................... 3 AMP VIOLET
12004005
................... 5 AMP TAN
12004006
... ..... 7.5 AMP BROWN
12004007
... , ..... 10 AMP RED
12004008 ... ... 15 AMP LIGHT BLUE
12004009
... ... 20 AMP YELLOW
12004010
... ... 25 AMP WHITE
12004011
... ... 30 AMP LIGHT GREEN I
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you replace a bad fuse with a new one
of the identical size
and rating.
266
ProCarManuals.com

Fuse Usage
I
I
Fuse Rating
(AMPS)
A
B
C
D E
15
20
10
10
15
ECM; MAF Sensor (3300 Engine only)
ECM Injectors/Coil
Eng. A/C Relay; EGR Solenoid; Canister Purge Solenoid
Fan/Elect; Generator; DRL Module
Turn Signal Flasher; Back-up Lights;
TruWLiftgate Release
Fuse
F
G
H
I
J
K
L
M
Rating
(AMPS)
10
20
20
10
20
20
30"
5
Circuitry N
0
P
Q
10
30"
25
20
15
15
15
Circuitry
Supplemental Inflatable Restraint (Air Bagj
Tail; Park; Side Marker; License Plate; Stop/Turn Signal
Heater/Air Conditioner
Gages; Warning Indicators; Torque Convert
Clutch; Audible Warning System; Computer Command Control; Trunk Release; Brake
Warning Indicator; Rear Defog Switch;
Speedometer
Stop Lights; Hazard Flashers
Interior, Underhood, Courtesy, I/P, Trunk Lights; Door
Locks; Horn Relay, Passive Restraint
System, Deck Lid Release, Power Antenna
Liftgate Release; Power Windows
Illumination for: I/P, Radio,
Pod Lights,
Ashtray, Console Light, Heater-A/C Control,
Defog Switch, Headlight Switch
Radio, Cruise Control
Seats, Door
Locks, Rear Defog
Windshield Wipe/Wash
Cigarette Lighter
Safety Belt/Chirne (ICAM) Module (Located
behind the fuse block, above the hush panel.)
Remote Lock Control (Located behind the fuse
block, above the hush panel.) Fuel Pump, ECM (Located under the hood.)
*Circuit Breaker
267
ProCarManuals.com

Headlights
The headlight wiring is protected by a circuit breaker in
the light switch. An electrical overload will cause the
lights
to go 'on and off or, in some cases, to remain off. If
this happens, have your headlight system checked right
away.
Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker and a fuse.
If the motor overheats due to heavy
snow, etc., the wiper will
stop until the motor cools. If
the overload is caused by some electrical problem, have it
fixed.
Power Windows and Other Power Options
Circuit breakers in the.fuse panel protect the power
windows and other power accessories. When the current
load is
too heavy, the circuit breaker opens and closes,
protecting the ,circuit until the problem
is fixed.
Cigarette Lighter Fuse and Safety Belt Fuse
These fuses are located behind the glove box. The fuse
holders are
taped together with gray tape.
268
ProCarManuals.com

Century Dimensions
Inches unless otherwise noted .
Overall: COUPE SEDAN WAGON
Length ................
. Width .................
Height ................
Wheelbase .............
Front Tread ............
Rear Tread .............
Interior Front:
Leg Room
.............
Head Room ............
Shoulder Room .........
Hip Room ..............
Interior Rear:
Leg Room .............
Head Room ............
Shoulder Room .........
Hip Room ..............
Tzvnk Capacity-Cubic Feet
Number of Passengers:
Front .................
Rear ..................
Rear-Facing Third Seat ...
Base Curb Weight--Po unds 189.1
69.4 53.7
104.9 58.7
56.7
42.1 38.6
55.8
50.2
35.9
38.3
57
. 0
53.6
16.2
3
3
.
2862 189.1
69.4
54.2
104.9 58.7
56.7 190.9
69.4
54.2
104.9 58.7
56.7
42.1 42.1
38.6 38.6
55.9 55.9
50.0 50.0
35.9
38.3
56.0
54.3
16.2
3
3
.
2914 34.8
38.9
56.0
54.3
41.6
3
3
2
3054
Replacement Bulbs
APPLICATION NUMBER
Exterior
Headlight High Beam
........................
Low Beam .........................
ParW Turn ...........................
Side Marker ....... .................
Backup .............................
High Level Stop (w/o luggage carrier) .....
High Level Stop (w/luggage carrier) .......
License .............................
Side Marker .........................
Tail/Stop ............................
Tail/Stop/Turn .........................
Underhood ..........................
9005
9006
2057 194
1156
1141
577 194
194
194
2057
561
Interior
Ashtray ............................. 194
Door Courtesy
....................... 214-2
Dome
.............................. 211-2
Front Reading
........................ 906
Glove Box ............................ 194
Map
............................... 168
Rear Dome (Wagon)
................... 211-2
Trunk
.............................. 1003
Vanity Mirror ........................ 124
269
.
ProCarManuals.com

Capacities and Specifications
Engine Code N1 (LGP2 3300 (3.3L) V6 MFI
Belt Tensions-Automatically controlled by a self-tensioning idler pulley. Tension
Cooling System Capacity
adjustment should never be necessary.
Complete System
................................................. 10.5 Quarts
Radiator and Recovery
Tank Only .................................... 3.4 Quarts
crankcase Capacity
(Less Filter) ..................................... 4 Quarts
Air Conditioning Refrigerant Capacity (Rl2) ........................... 2.38 Pounds
Not all air conditioning refrigerants are the same. If the air\
conditioning system in your vehicle needs refrigerant, be sure the proper refrigera\
nt is used. If
you’re not sure, ask your Buick dealer.
Fuel Tank Capacity
................................................ 16.5 Gallons
8th Character of the Vehicle Identification Number. * Made in a GM plant in the United States.
9.9 Liters
3.2 Liters
3.8 Liters
1.07 Kilograms
62.6 Liters
270
ProCarManuals.com
