1991 LEXUS SC400 check engine

OKNG
OKNG
INSPECTION PROCEDURE
1Check output condition of diag. code 51.
C
OK
Hint
PSetting the test mode.
(2) Turn ignition switch OFF.
(2) Connect terminals TE2 and E1 and TDCL.
(2) Turn ignition switch ON.(For checking terminal A/C, start the engine.)
(2) Connect terminals TE1 and E1 of TDCL.
Check if code ª51º is output by the ªCHECKº engine
warning light.
*: Before the STA signal is input (ST is not ON), diagnostic code 43 is also output.
Diag. code 42 is output with vehicle speed 5 km/h (3
mph) or below
IDL1 .... Go to step 2 NSW ... Go to page TR±22.
A/C ..... Go to step 3
Proceed to next circuit inspection shown on
maxtrix chart (See page TR±35).
2Check throttle position sensor.
C
OK
PDisconnect throttle position sensor connector.
Measure resistance between terminals IDL1 and E2 of
throttle position sensor connector.
Adjust or replace throttle position sensor
See page FI±73).
Check and repair harness or connector between
engine & ECT ECU and throttle position sensor.
TR±120±
ENGINE TROUBLESHOOTING Circuit Inspection
WhereEverybodyKnowsYourName

NGOK
OKNG
3Disconnect A/C control assembly connector, check voltage between terminal MGC of A/C con-
trol assembly connector and body ground.
C
OK
P(2) Remove air conditioner control assembly.
(2) Disconnect air conditioner control assembly con-
nector.
(2) Turn ignition switch on.
Measure voltage between terminal MGC of air condi-
tioner control assembly connector and body ground.
Voltage: 10 ± 14 V
Check and replace A/C control assembly.
4Check for open and short in harness and connector between engine & ECT ECU and\
A/C control
assembly (See page IN±27)
Repair or replace harness or connector.
Check and replace engine & ECT ECU.
±
ENGINE TROUBLESHOOTING Circuit InspectionTR±121
WhereEverybodyKnowsYourName

Check voltage of ECU power source.
Check continuity between terminals E1 and
body ground.
Check voltage of terminal IGSW.
Check IGN fuse.
Check ignition switch.
Check for open in harness and connector
between battery and ECU.
Check voltage of terminal M±REL.
Check EFI fuse.
Check EFI main relay.Check for open and short in harness and
connector between terminal M±REL and
body ground.
Check and repair harness or connector
between EFI fuse and battery.
Repair or replace harness or
connector.
Replace EFI main relay.
Check for short in all the harness
and components connected to the
EFI fuse.
Check and replace ECU.
Replace ignition switch.
Check for short in all the harness and
components connected to IGN fuse.
Repair or replace harness or
connector.
Proceed to next circuit inspection
shown on matrix cart (See page
TR±39
).

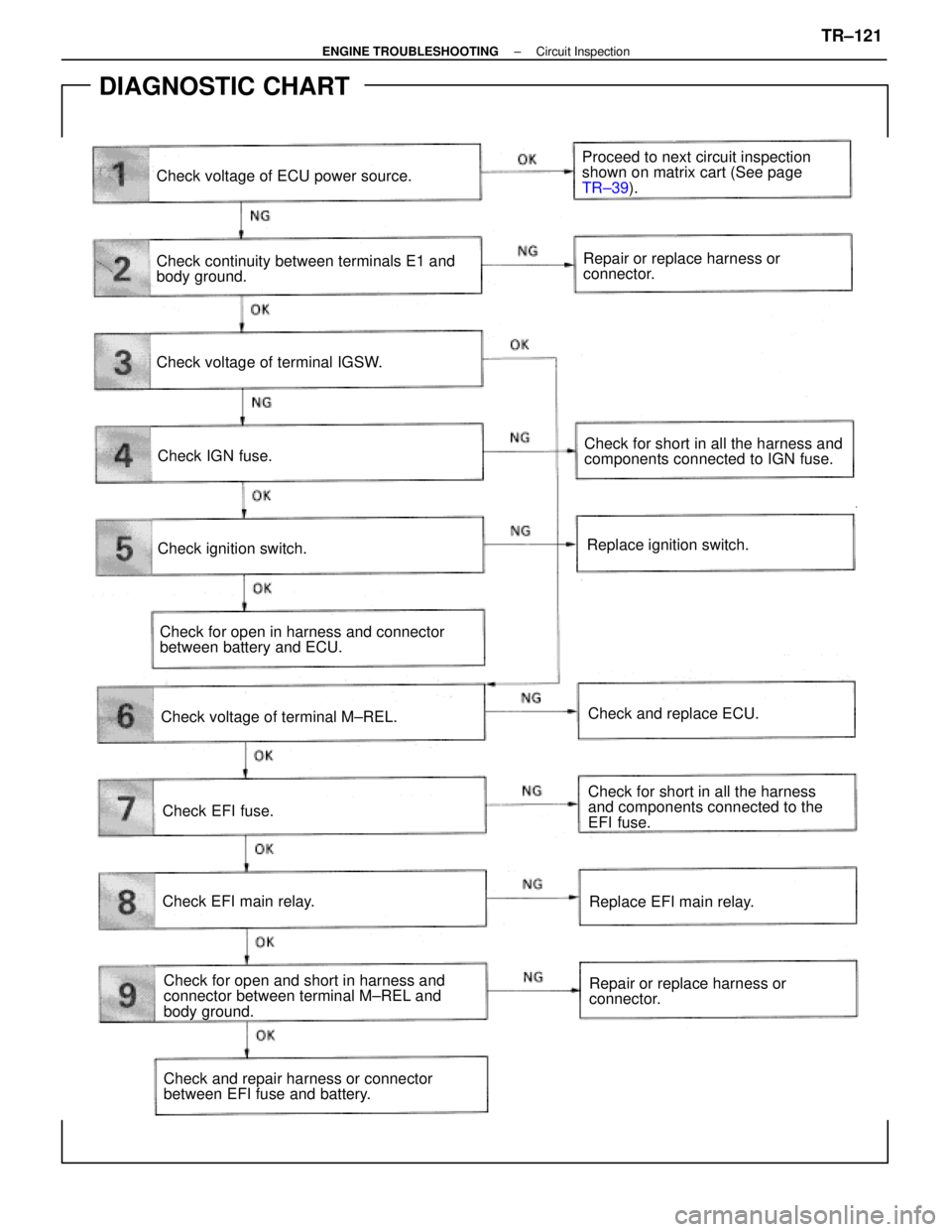

DIAGNOSTIC CHART
±
ENGINE TROUBLESHOOTING Circuit InspectionTR±121
WhereEverybodyKnowsYourName

NGOK
OKNG
NGOK
INSPECTION PROCEDURE
1Check voltage between terminals +B, +B1 and E1 of engine (& ECT) ECU connec\
tor.
C
OK
P1. Connect the Check Harness A. (See page TR±34)
2. Turn ignition switch on.
Measure voltage between terminals +B, +B1 and E1
of engine (& ECT) ECU connector.
Voltage: 10 ± 14 V
Proceed to next circuit inspection shown on matrix chart
(See page TR±39).
2Check for open in harness and connector between terminal E1 of engine (\
& ECT) ECU and
body ground. (See page IN±27).
Repair or replace harness or connector.
3Check voltage between terminal IGSW of engine (& ECT) ECU connector an\
d body ground.
C
OK
PTurn ignition switch on.
Measure voltage between terminal IGSW of engine
(& ECT) ECU connector and body ground.
Voltage: 10 ± 14 V
Go to step
.
TR±122
±
ENGINE TROUBLESHOOTING Circuit Inspection
WhereEverybodyKnowsYourName

OKNG
OKNG
4Check IGN fuse.
C
OK
PRemove IGN fuse from J/B No. 1.
Check continuity of IGN fuse.
Continuity
Check for short in all the harness and components con-
nected to IGN fuse (See attached wiring diagram).
5Check ignition switch.
C
OK
PRemove under cover and finish panel.
Check continuity between terminals.
Replace ignition switch.
Check and repair harness and connector between
battery and ignition switch, ignition switch and en-
gine (& ECT) ECU.
±
ENGINE TROUBLESHOOTING Circuit InspectionTR±123
WhereEverybodyKnowsYourName

OKNG
OKNG
6Check voltage between terminal M±REL of engine (& ECT) ECU connector and\
body ground.
C
OK
PTurn ignition switch on.
Measure voltage between terminal M±REL of engine
(& ECT) ECU connector and body ground.
Voltage: 10 ± 14 V
Check and replace engine (& ECT) ECU.
7Check EFI fuse.
C
OK
PRemove EFI fuse from R/B No. 2.
Check continuity of EFI fuse.
Continuity
Check for short in all the harness and components
connected to EFI fuse (See attached wiring diagram).
TR±124
±
ENGINE TROUBLESHOOTING Circuit Inspection
WhereEverybodyKnowsYourName

OKNG
OKNG
8Check EFI main relay.
C
OK
P
OK
C
Remove EFI main relay.
Check continuity between terminals of EFI main relay
shown below.
1. Apply battery positive voltage between terminals 1and 3.
2. Check continuity between terminals 2 and 4.
Replace EFI main relay.
9Check for open and short in harness and connector between terminal M±REL of\
engine (& ECT)
ECU and body ground (See page IN±27).
Repair or replace harness or connector.
Check and repair harness or connector between
EFI fuse and battery.
±
ENGINE TROUBLESHOOTING Circuit InspectionTR±125
WhereEverybodyKnowsYourName

Neutral Start Switch Circuit
CIRCUIT DESCRIPTION
The neutral start switch goes on when the shift lever is in the N or P shif\
t position. When it goes on the terminal
NSW of the ECU is grounded to body ground via the starter relay and theft deterrent ECU\
, thus the terminal
NSW voltage becomes 0V. When the shift lever is in the D, 2, L or R position, the neutral start\
switch goes off,
so the voltage of ECU terminal NSW becomes battery voltage, the voltage of the ECU internal power source.
If the shift lever is moved from the N range to the D range, this signal\
is used for air±fuel ratio correction and
for idle speed control (estimated control), etc.
When the neutral start switch is off, code º51º is output in the test mode diagnosis. (This is not a\
bnormal.)
DIAGNOSTIC CHARTDIAGNOSTIC CHART
HINT: This diagnosis chart is based on premise that the engine is cranked norm\
ally. If the engine is notcranked, proceed to the matrix chart of problem symptoms on page TR±35.
Check output condition of diag. code 51.
Proceed to next circuit inspection shown
on matrix chart (See page TR±35).
Check for open in harness and connector
between neutral start switch and ECU.
Repair or replace harness or connector.
Check and replace ECU.
Check and replace ECU.
Replace neutral start switch.Check neutral start switch (See page
AT±100 ).
TR±122
±
ENGINE TROUBLESHOOTING Circuit Inspection
