11. REMOVE WATER PUMP(a) Remove the five mounting bolt, two mounting stud boltsand mounting nut.
(b) Remove the water pump by prying the portions between
the water pump and cylinder block with a screwdriver.
12. REMOVE NO.2 AND NO.1 OIL PANS (See steps 7 to 12 on pages LU±9 to 11)
13. REMOVE OIL PUMP (a) Remove the eight mounting bolts.
(b) Remove the oil pump by prying the portions between the
oil pump and cylinder block with a screwdriver.
(c) Remove the O±ring from the cylinder block.
14. REMOVE ALTERNATOR BRACKET Remove the bolt and bracket.
15. REMOVE WATER SEAL PLATE
Remove the two nuts and seal plate.
EM±134
±
ENGINE MECHANICAL Cylinder Block
WhereEverybodyKnowsYourName

POST ASSEMBLY
(See Components on page EM±131)
1. INSTALL WATER SEAL PLATE (a) Remove any old packing (FIPG) material and be careful
not to drop any oil on the contact surfaces of the seal
plate and cylinder block.
w Using a razor blade and gasket scraper, remove all
the old packing (FIPG) material from the gasket
surfaces and sealing groove.
w Thoroughly clean all components to remove all the
loose material.
w Using a non±residue solvent, clean both sealing
surfaces.
(b) Apply seal packing to the seal plate as shown in the
illustration.
Seal packing: Part No.08826±00100 or equivalent
w Install a nozzle that has been cut to a 2±3 mm
(0.08±0.12 in.) opening.
w Parts must be assembled within 5 minutes of
application. Otherwise the material must be
removed and reapplied.
w Immediately remove nozzle from the tube and
reinstall cap.
(c) Install the seal plate with the two nuts.
Torque: 14 N Vm (145 kgf Vcm, 10 ft Vlbf)
2. INSTALL ALTERNATOR BRACKET
Install the bracket with the bolt.
Torque: 18 N Vm (185 kgf Vcm, 13 ft Vlbf)
3. INSTALL OIL PUMP
(a) Remove any old packing (FIPG) material and be carefulnot to drop any oil on the contact surfaces of the oil
pump and cylinder block.
w Using a razor blade and gasket scraper, remove all
the old packing (FIPG) material from the gasket
surfaces and sealing groove.
w Thoroughly clean all components to remove all the
loose material.
w Using a non±residue solvent, clean both sealing
surfaces.
(b) Apply seal packing to the oil pump as shown in the
illustration.
Seal packing: Part No.08826±00080 or equivalent
w Install a nozzle that has been cut to a 2±3 mm
(0.08±0.12 in.) opening.
w Parts must be assembled within 3 minutes of
application. Otherwise the material must be
removed and reapplied.
w Immediately remove nozzle from the tube and
reinstall cap.
±
ENGINE MECHANICAL Cylinder BlockEM±161
WhereEverybodyKnowsYourName

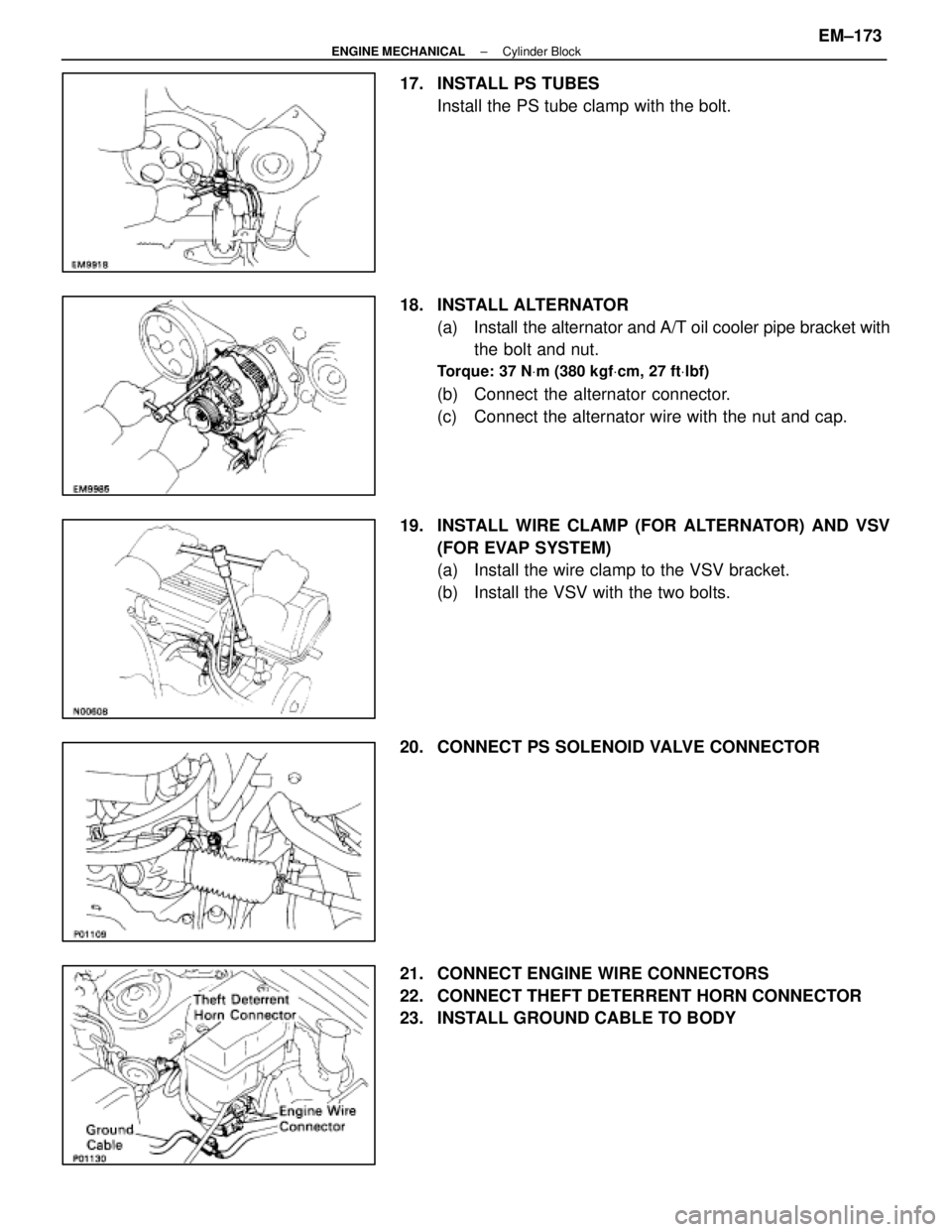

17. INSTALL PS TUBESInstall the PS tube clamp with the bolt.
18. INSTALL ALTERNATOR (a) Install the alternator and A/T oil cooler pipe bracket withthe bolt and nut.
Torque: 37 N Vm (380 kgf Vcm, 27 ft Vlbf)
(b) Connect the alternator connector.
(c) Connect the alternator wire with the nut and cap.
19. INSTALL WIRE CLAMP (FOR ALTERNATOR) AND VSV (FOR EVAP SYSTEM)
(a) Install the wire clamp to the VSV bracket.
(b) Install the VSV with the two bolts.
20. CONNECT PS SOLENOID VALVE CONNECTOR
21. CONNECT ENGINE WIRE CONNECTORS
22. CONNECT THEFT DETERRENT HORN CONNECTOR
23. INSTALL GROUND CABLE TO BODY
±
ENGINE MECHANICAL Cylinder BlockEM±173
WhereEverybodyKnowsYourName

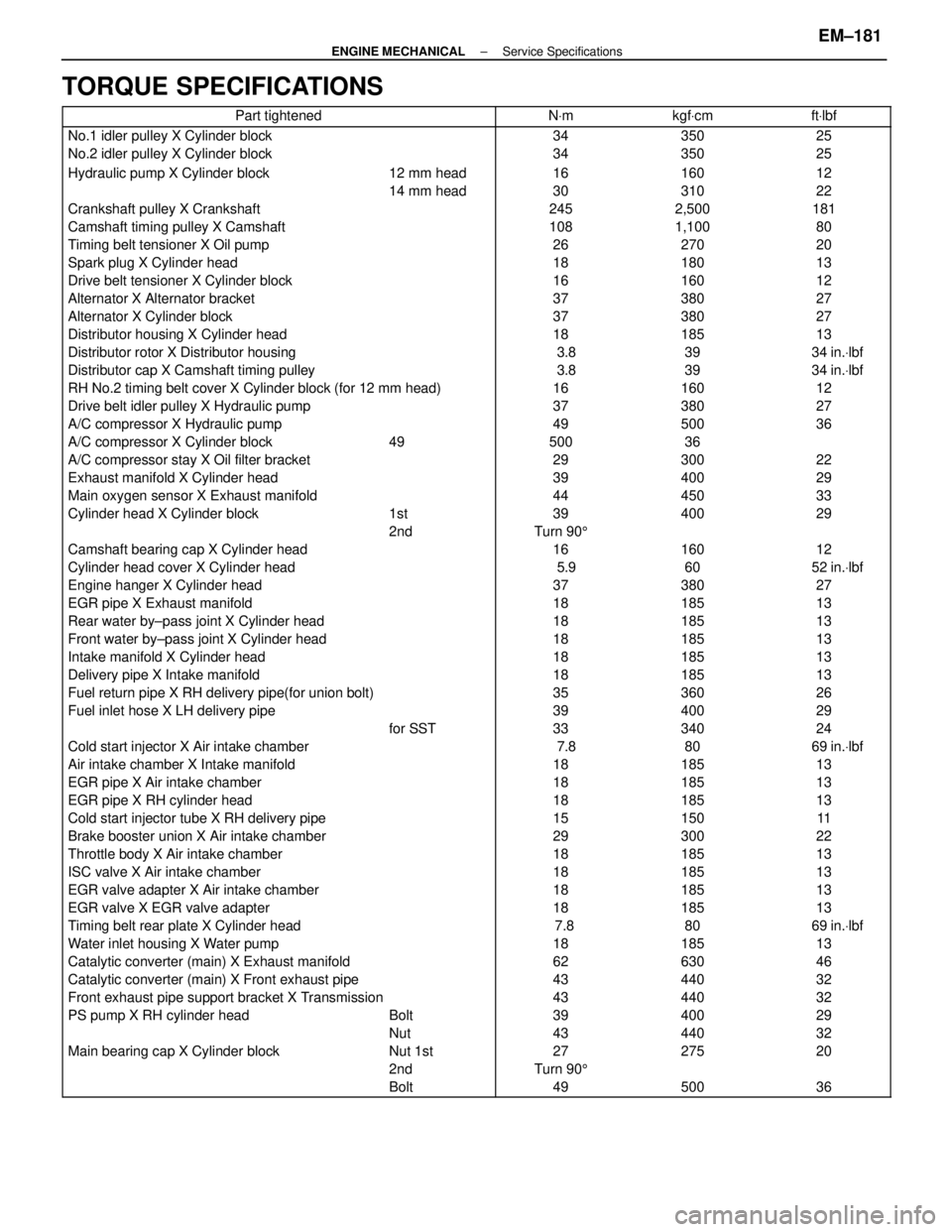

TORQUE SPECIFICATIONS
\
 \
Part tightened NVm kgf Vcm ft Vlbf
 No.1 idler pulley X Cylinder block  34 350 25
No.2 idler pulley X Cylinder block3435025 Hydraulic pump X Cylinder block 12 mm head 16 160 12  14 mm head 30 310 22
 Crankshaft pulley X Crankshaft  245 2,500 181
Camshaft timing pulley X Camshaft1081,10080 Timing belt tensioner X Oil pump  26 270 20 Spark plug X Cylinder head  18 180 13
 Drive belt tensioner X Cylinder block  16 160 12
Alternator X Alternator bracket3738027 Alternator X Cylinder block  37 380 27 Distributor housing X Cylinder head  18 185 13
 Distributor rotor X Distributor housing   3.8 39  34 in. Vlbf
Distributor cap X Camshaft timing pulley 3.839 34 in. Vlbf\
 \
RH No.2 timing belt cover X Cylinder block (for 12 mm head) 16 160 12 Drive belt idler pulley X Hydraulic pump  37 380 27
 A/C compressor X Hydraulic pump  49 500 36
A/C compressor X Cylinder block4950036 A/C compressor stay X Oil filter bracket  29 300 22 Exhaust manifold X Cylinder head  39 400 29
 Main oxygen sensor X Exhaust manifold  44 450 33
Cylinder head X Cylinder block1st3940029  2nd Turn 90 5
 Camshaft bearing cap X Cylinder head  16 160 12
 Cylinder head cover X Cylinder head   5.9 60  52 in. Vlbf
Engine hanger X Cylinder head3738027 EGR pipe X Exhaust manifold  18 185 13 Rear water by±pass joint X Cylinder head  18 185 13
 Front water by±pass joint X Cylinder head  18 185 13
Intake manifold X Cylinder head1818513 Delivery pipe X Intake manifold  18 185 13\
 \
Fuel return pipe X RH delivery pipe(for union bolt) 35 360 26
 Fuel inlet hose X LH delivery pipe  39 400 29
for SST3334024 Cold start injector X Air intake chamber   7.8 80  69 in. Vlbf Air intake chamber X Intake manifold  18 185 13
 EGR pipe X Air intake chamber  18 185 13
EGR pipe X RH cylinder head1818513 Cold start injector tube X RH delivery pipe  15 150 11 Brake booster union X Air intake chamber  29 300 22
 Throttle body X Air intake chamber  18 185 13
ISC valve X Air intake chamber1818513 EGR valve adapter X Air intake chamber  18 185 13 EGR valve X EGR valve adapter  18 185 13
 Timing belt rear plate X Cylinder head   7.8 80  69 in. Vlbf
Water inlet housing X Water pump1818513\
 \
Catalytic converter (main) X Exhaust manifold 62 630 46\
 \
Catalytic converter (main) X Front exhaust pipe 43 440 32
\
 \
Front exhaust pipe support bracket X Transmission 43 440 32
PS pump X RH cylinder headBolt3940029  Nut 43 440 32 Main bearing cap X Cylinder block Nut 1st 27 275 20
  2nd Turn 90 5
Bolt4950036
±
ENGINE MECHANICAL Service SpecificationsEM±181
WhereEverybodyKnowsYourName

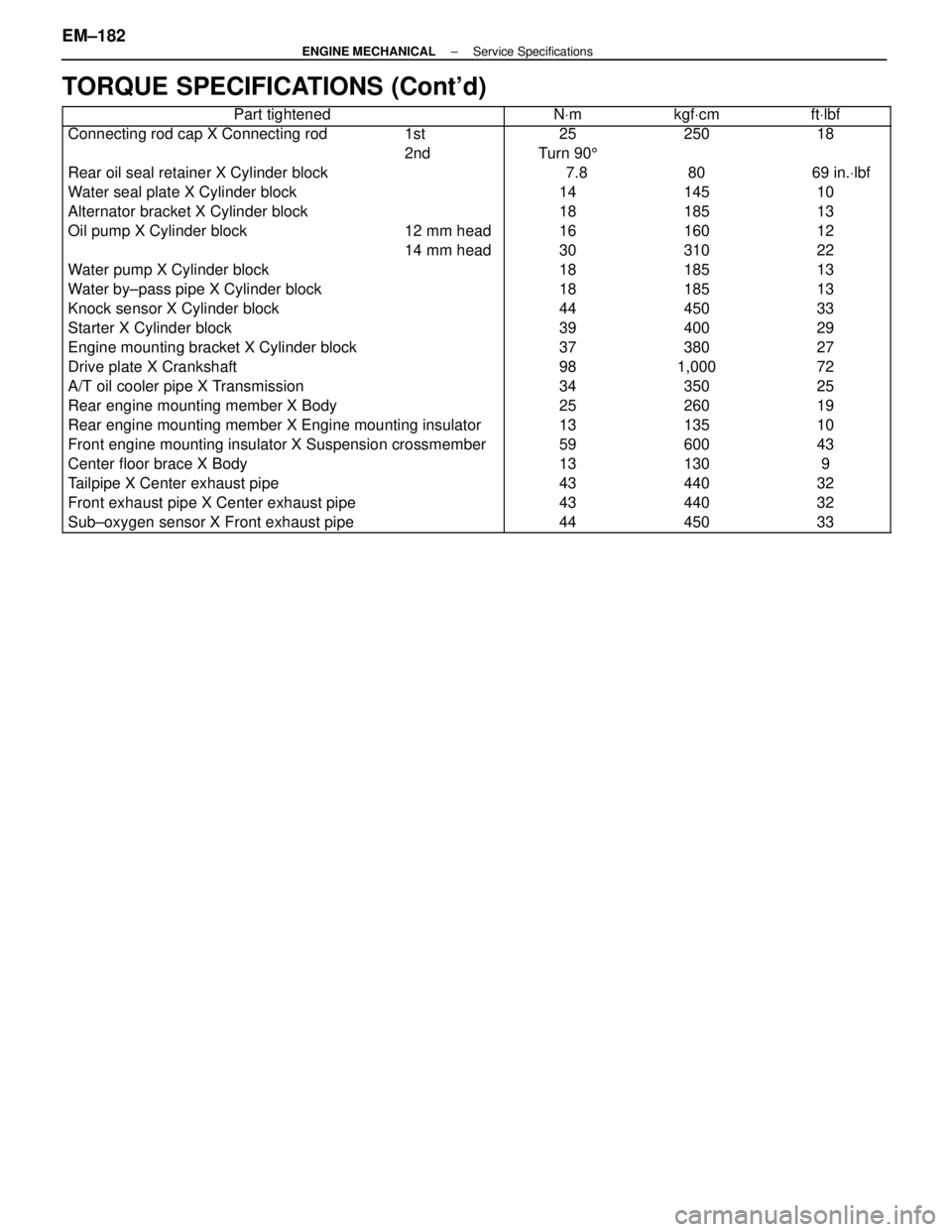

TORQUE SPECIFICATIONS (Cont'd)
\
 \
Part tightened NVm kgf Vcm ft Vlbf
 Connecting rod cap X Connecting rod 1st 25 250 18
2ndTurn 90 5 Rear oil seal retainer X Cylinder block   7.8 80  69 in. Vlbf Water seal plate X Cylinder block  14 145 10
 Alternator bracket X Cylinder block  18 185 13
 Oil pump X Cylinder block 12 mm head 16 160 12
14 mm head3031022 Water pump X Cylinder block  18 185 13 Water by±pass pipe X Cylinder block  18 185 13
 Knock sensor X Cylinder block  44 450 33
 Starter X Cylinder block  39 400 29
Engine mounting bracket X Cylinder block3738027 Drive plate X Crankshaft  98 1,000 72 A/T oil cooler pipe X Transmission  34 350 25 Rear engine mounting member X Body  25 260 19
\
 \
Rear engine mounting member X Engine mounting insulator 13 135 10
\
 \
Front engine mounting insulator X Suspension crossmember 59 600 43
Center floor brace X Body131309 Tailpipe X Center exhaust pipe  43 440 32 Front exhaust pipe X Center exhaust pipe  43 440 32
 Sub±oxygen sensor X Front exhaust pipe  44 450 33
EM±182±
ENGINE MECHANICAL Service Specifications
WhereEverybodyKnowsYourName

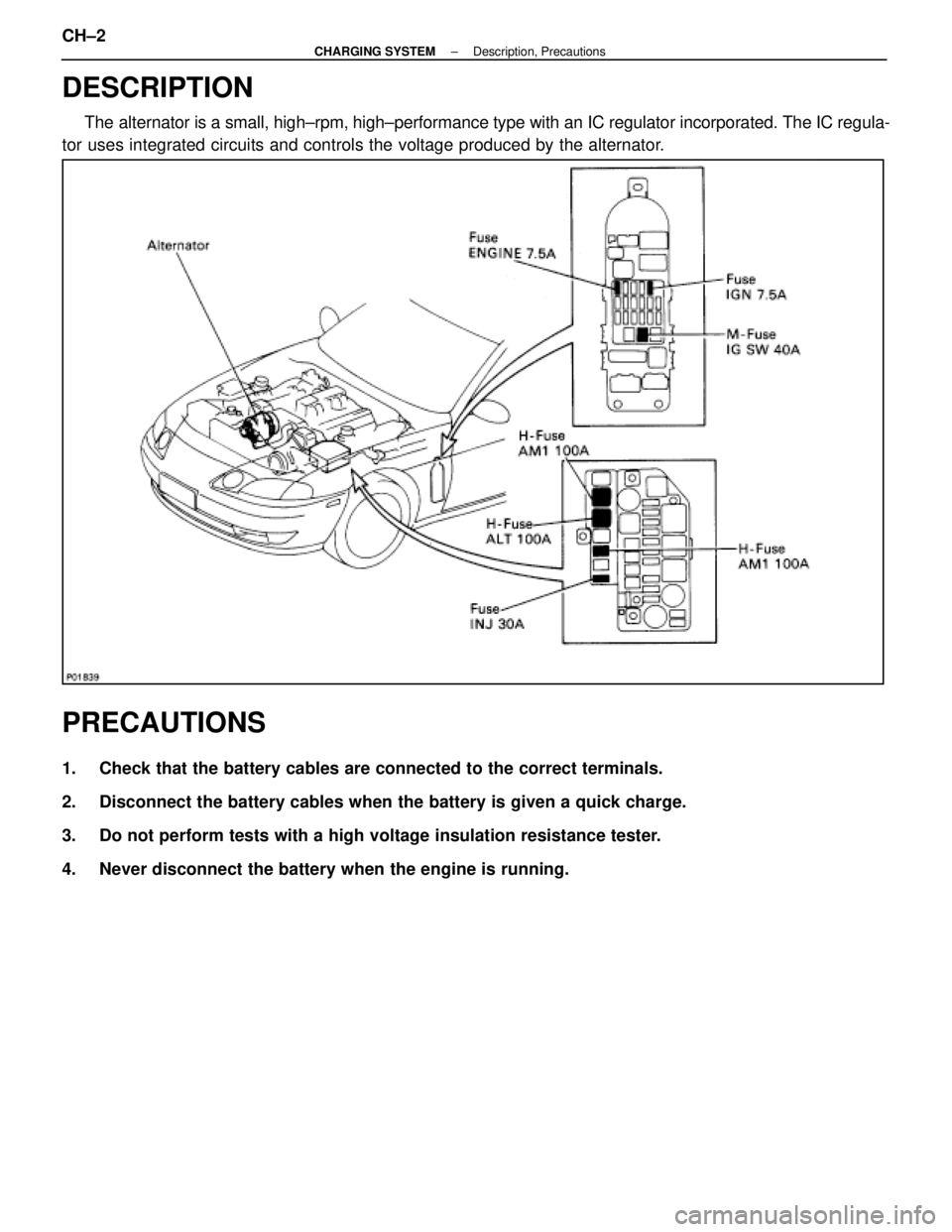

DESCRIPTION
The alternator is a small, high±rpm, high±performance type with an IC\
regulator incorporated. The IC regula-
tor uses integrated circuits and controls the voltage produced by the alter\
nator.
PRECAUTIONS
1. Check that the battery cables are connected to the correct terminals.
2. Disconnect the battery cables when the battery is given a quick charge.
3. Do not perform tests with a high voltage insulation resistance tester.
4. Never disconnect the battery when the engine is running. CH±2
±
CHARGING SYSTEM Description, Precautions
WhereEverybodyKnowsYourName

DESCRIPTION
The alternator is a small, high±rpm, high±performance type with an\
IC regulator incorporated. The IC regula-
tor uses integrated circuits and controls the voltage produced by the alter\
nator.
PRECAUTIONS
1. Check that the battery cables are connected to the correct terminals.
2. Disconnect the battery cables when the battery is given a quick charge.
3. Do not perform tests with a high voltage insulation resistance tester.
4. Never disconnect the battery when the engine is running. CH±2
±
CHARGING SYSTEM Description, Precautions
WhereEverybodyKnowsYourName

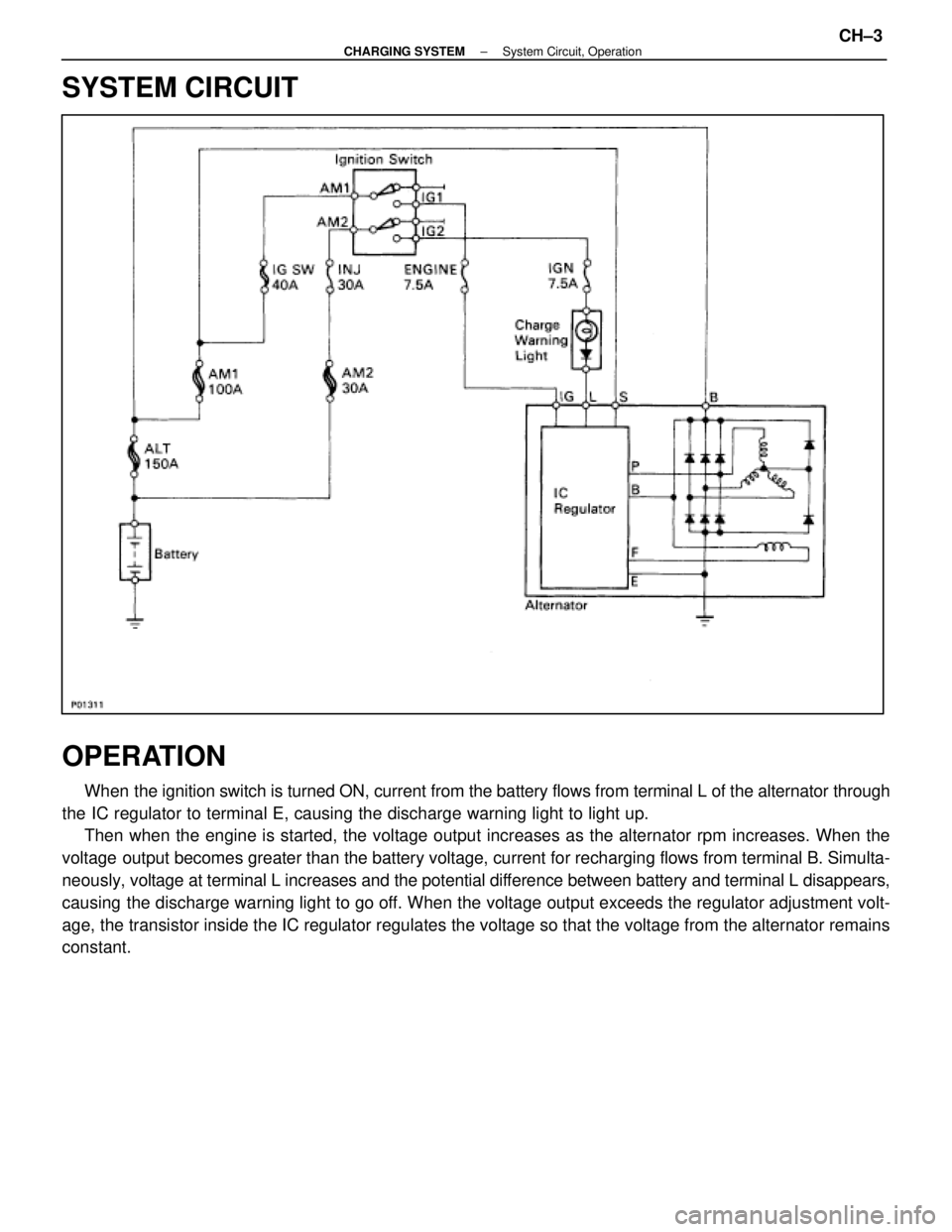

SYSTEM CIRCUIT
OPERATION
When the ignition switch is turned ON, current from the battery flows from t\
erminal L of the alternator through
the IC regulator to terminal E, causing the discharge warning light to ligh\
t up. Then when the engine is started, the voltage output increases as the alt\
ernator rpm increases. When the
voltage output becomes greater than the battery voltage, current for recharging\
flows from terminal B. Simulta-
neously, volt age at terminal L increases and the potential difference between battery and terminal L disappears,
causing the discharge warning light to go off. When the voltage output exceeds the regulator adjustment volt-
age, the transistor inside the IC regulator regulates the voltage so tha\
t the voltage from the alternator remains
constant.
±
CHARGING SYSTEM System Circuit, OperationCH±3
