1991 HONDA CIVIC Owners Manual

Shoulder Belt Buckle (Sedan)
Proceed as follows if the shoulder belt buckle stalls. 1. Lift the hood and remove the cover from the fuse case (for the automatic shoulder belt buckle motor) located on the battery's
terminal.
2. Remove the fuse for the automatic ("passive") shoulder belt buckle motor that does not work.
LEFT MOTOR
RIGHT MOTOR

BLOWN
3. If the fuse has blown, replacing it
with a new fuse of the same am-perage should allow the shoulder
belt buckle motor to work. How-
ever, if the fuse hasn't blown, or if a new fuse did not solve theproblem, remove the fuse and
operate the motor manually.

CAUTION:

Always remove the fuse before manually operating the shoulder belt buckle motor, otherwise the motor may suddenly activate.

(cont'd)ProCarManuals.comMain Menu s t

5. Set the wrench extension into the wrench grip (both provided in
the tool bag) then insert the wrench into the socket and turn it
counterclockwise until the shoulder belt buckle reaches its rear locked position.

WRENCHEXTENSION WRENCH

NOTE:

After the manual operation, make sure that the seat belt warning light is off and the shoulder belt buckle is seated properly in its
locked position.
6. Replace the cover on the center pillar.7. Reinstall the fuse, the fuse remover and both fuse box covers.

Shoulder Belt Buckle (cont'd) (Sedan)

4. Remove the cover located on the center pillar.

COVER

WRENCH GRIPProCarManuals.comMain Menu s t

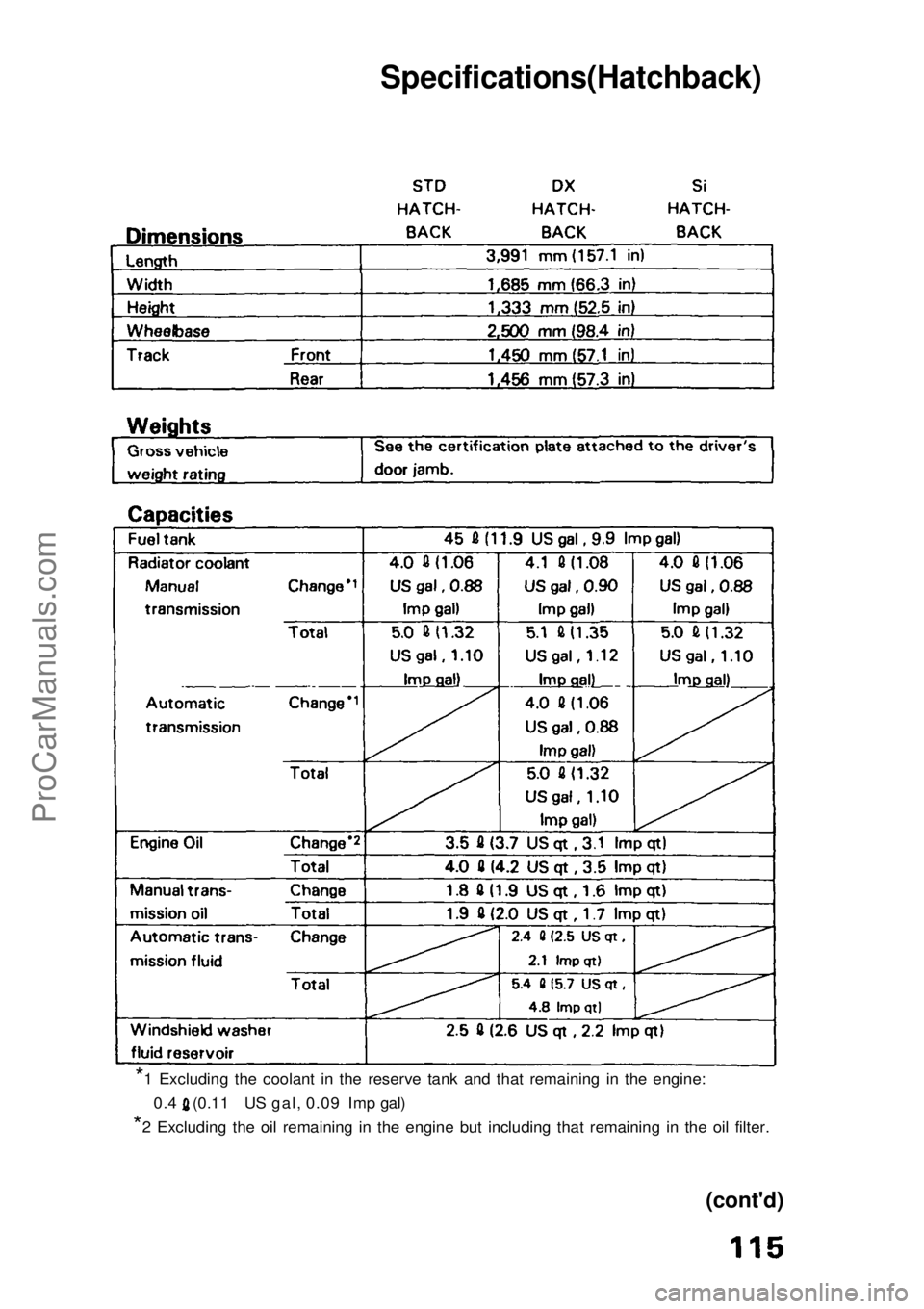

Specifications(Hatchback)*1 Excluding the coolant in the reserve tank and that remaining in the en\
gine:

0.4 (0.11 US gal, 0.09 Imp gal)

*
2
Excluding the oil remaining in the engine but including that remaining \
in the oil filter.
(cont'd)
ProCarManuals.comMain Menu s t

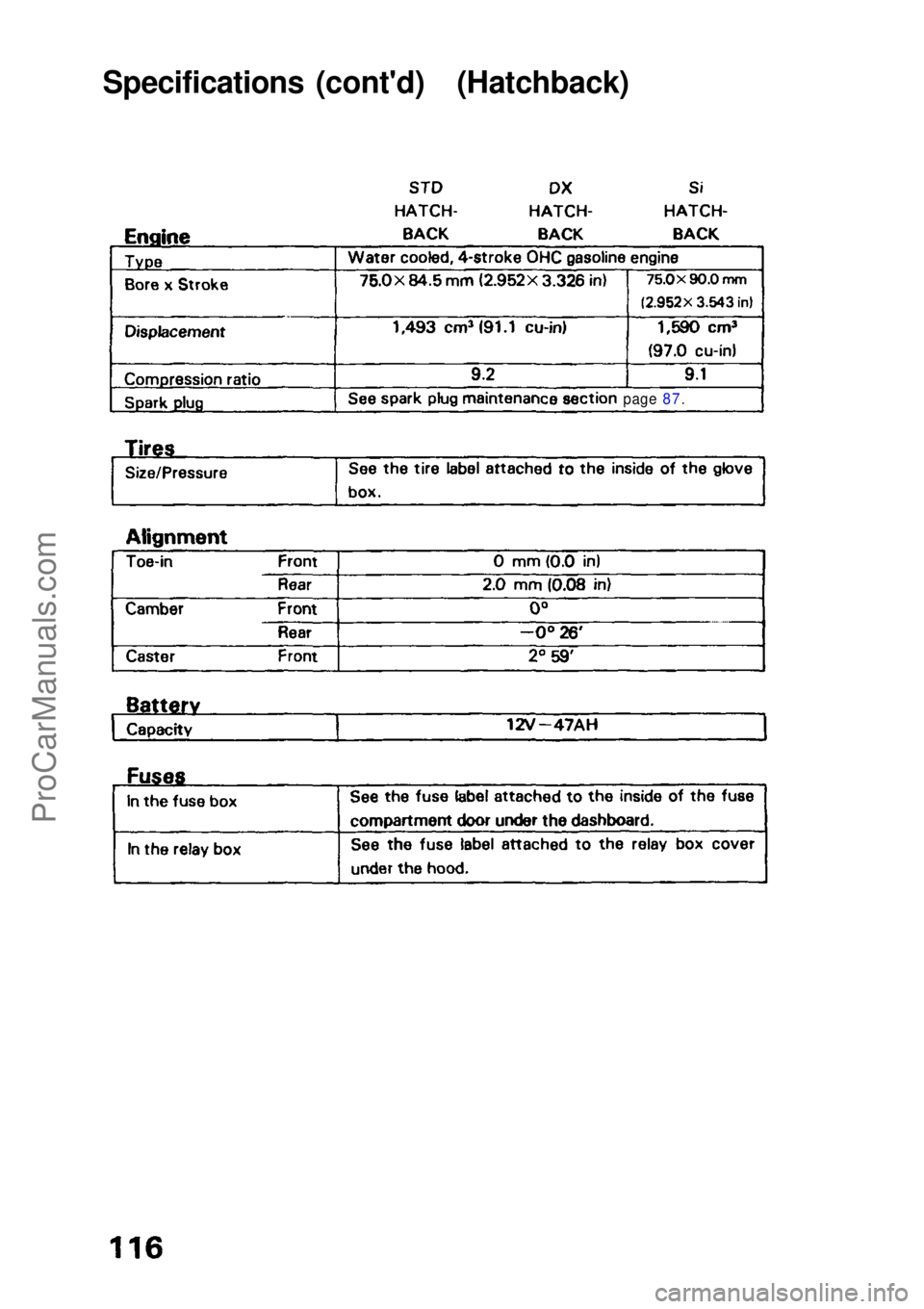

Specifications (cont'd) (Hatchback)

page 87.ProCarManuals.comMain Menu s t

ProCarManuals.comMain Menu s t

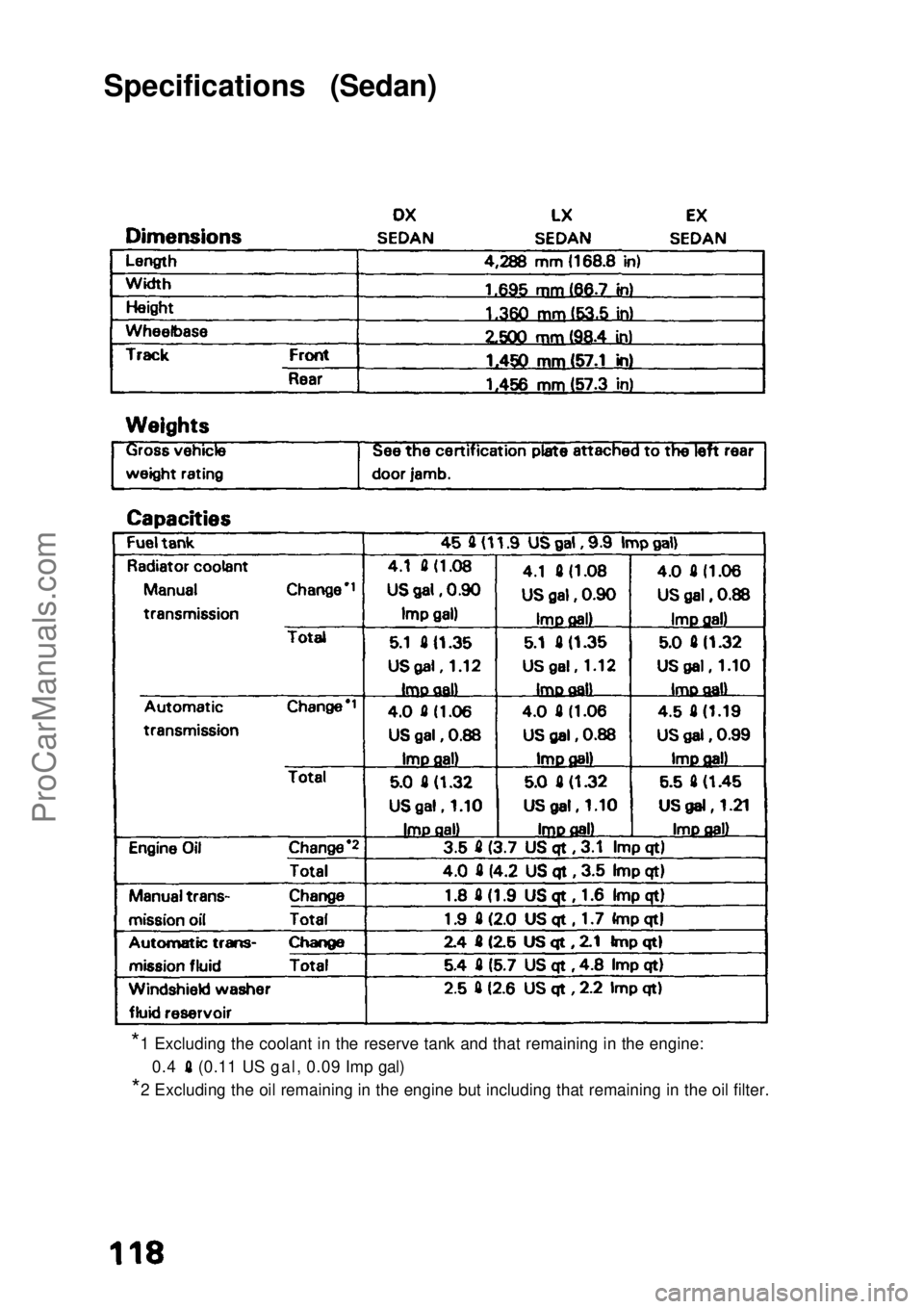

Specifications (Sedan)
*
1
Excluding the coolant in the reserve tank and that remaining in the eng\
ine:

0.4 (0.11 US gal, 0.09 Imp gal)

*
2
Excluding the oil remaining in the engine but including that remaining \
in the oil filter.
ProCarManuals.comMain Menu s t

(cont'd)

page 87.ProCarManuals.comMain Menu s t

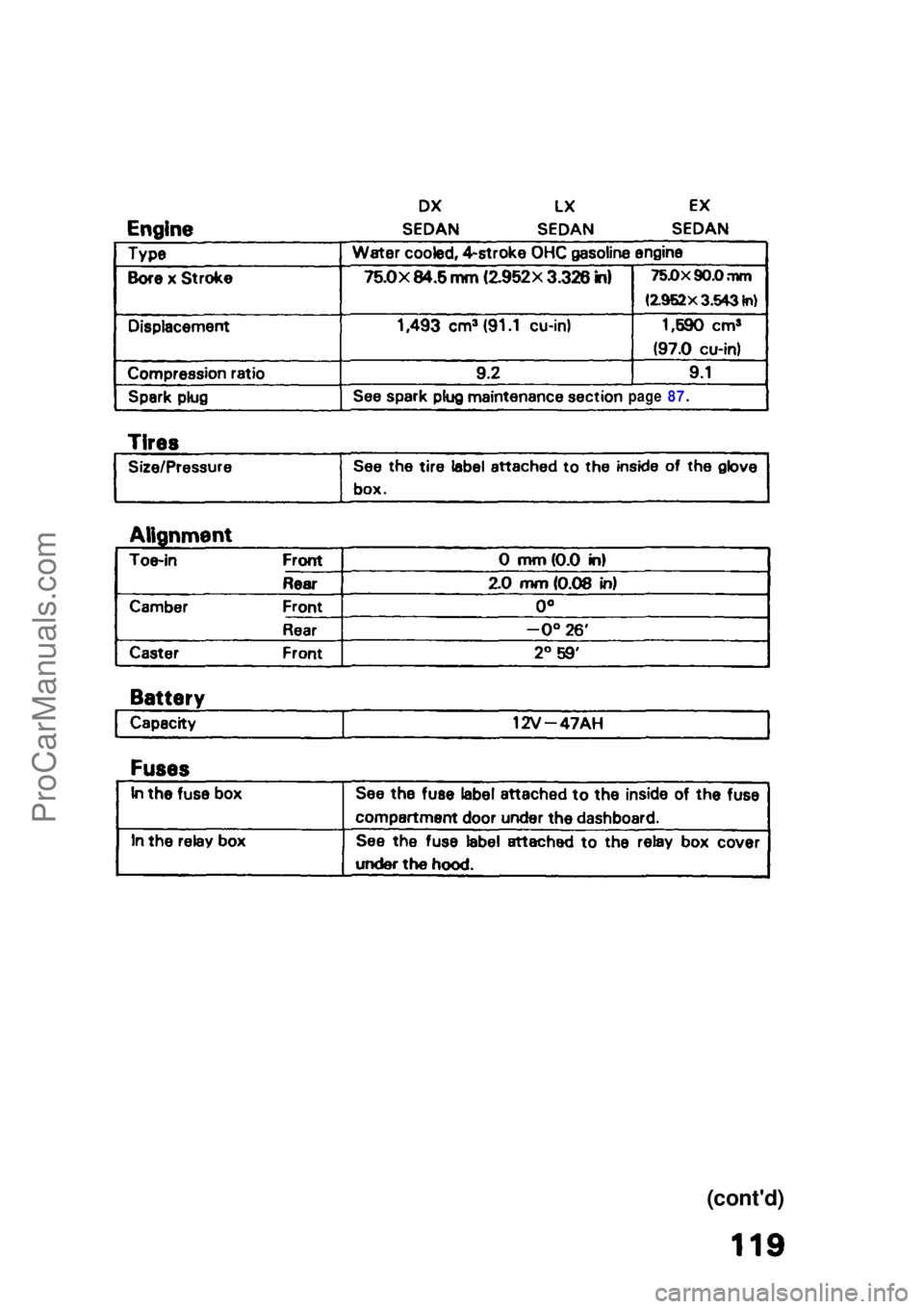

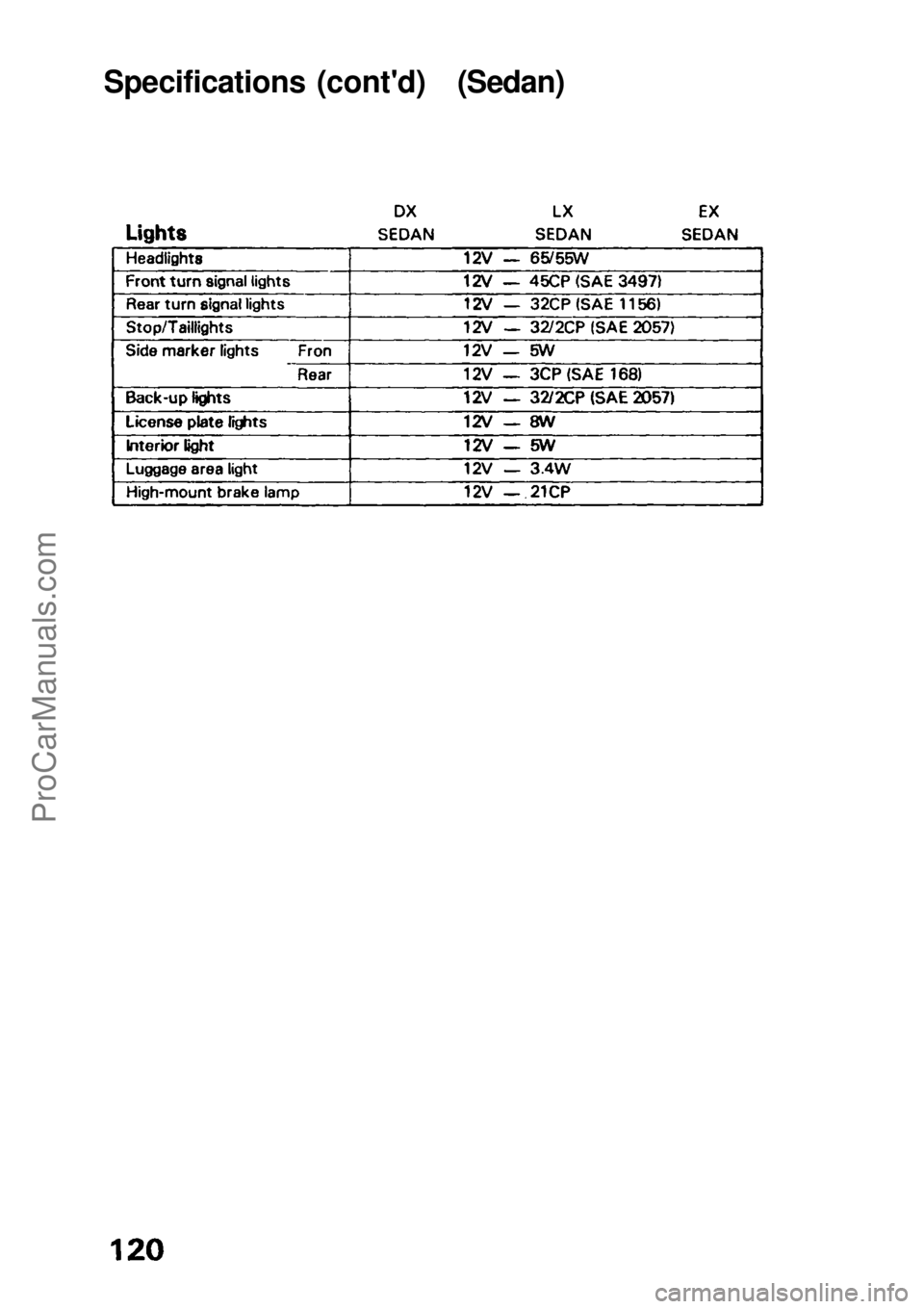

Specifications (cont'd) (Sedan)ProCarManuals.comMain Menu s t
