CONTROLS AND EQUIPMENT
Setting
 the
 time
 •
 Press
 and hold clock button E.
• Set clock
 with
 buttons A.
The
 display lights up as long as button is
 oressed.
 When button is released the dis
play goes out or, if a time has been pre
selected,
 the selected time lights up for 2
sees.
To
 switch
 heater
 on or off  • This is done by pressing button
 F.
 When
-eater is switched on the warning lamp G  ghts up.
To
 ensure
 that
 the heater starts the lever  ;or the heat output must be pushed fully to
:ie
 right.
 This
 closes
 an electrical contact.
Preselecting
 starting
 time
 for
 heater
 stationary operation, ignition off)
With buttons C two different switch-on
 :imes
 can be selected within 24 hours.
•
 Press
 and hold button. The appropriate
*:gure 1 or 2 appears in display. The ready- •or-action lamp lights up.
• Set required switch-on time
 with
 but
tons A. The display remains on for about  20 seconds after releasing button C.
 To
 ensure
 that
 the heater starts up at the
selected
 time, the lever for the heat output must be pushed fully over to the
 right.
 In
addition to this the blower must be
switched to Stage 1. On account of the  higher current consumption, a higher
stage
 should only be selected in isolated
cases.
Switching
 preselected
 time
 off • The preselected time can be switched
off by briefly pressing the appropriate but
ton C. The ready-for-action lamp and the  figure in display then go out.
Fuses
The
 fuses for the auxiliary heater are in an  additional holder behind the main fuse
box.
 Notes
• Every time the heater is switched off,
the warm air and combustion air blowers
continue running briefly to cool the heater
down quicker.
• To avoid draining the battery, do not run
the heater repeatedly when the engine is  not running.
• When driving through mud and snow,
the exhaust pipe may tend to get blocked.
 Have
 a look at it occasionally to see
 that
 it
is
 clear.
WARNING
Never
 start
 the
 heater
 or let the
 engine
or the
 heater
 run in an enclosed,
 unventilated
 area.
 Exhaust
 fumes
 from
the
 engine
 or the
 heater
 contain
 carbon  monoxide,
 which
 is colorless and odor
less.
 Carbon monoxide,
 however
 is a
very
 harmful
 gas, and may be
 fatal
 if in haled.
Due to the
 risk
 of
 fire
 the
 heater
 must
not be used
 when
 vehicle
 is
 parked
 on
dry grass, brush or leaves.


www.westfaliaT3.info  - a  useful  website  for owners  and enthusiasts  of VW  Westfalia  T25 / T3  Campervans


        Page 133 of 165

Downloaded from www.Manualslib.com manuals search engine

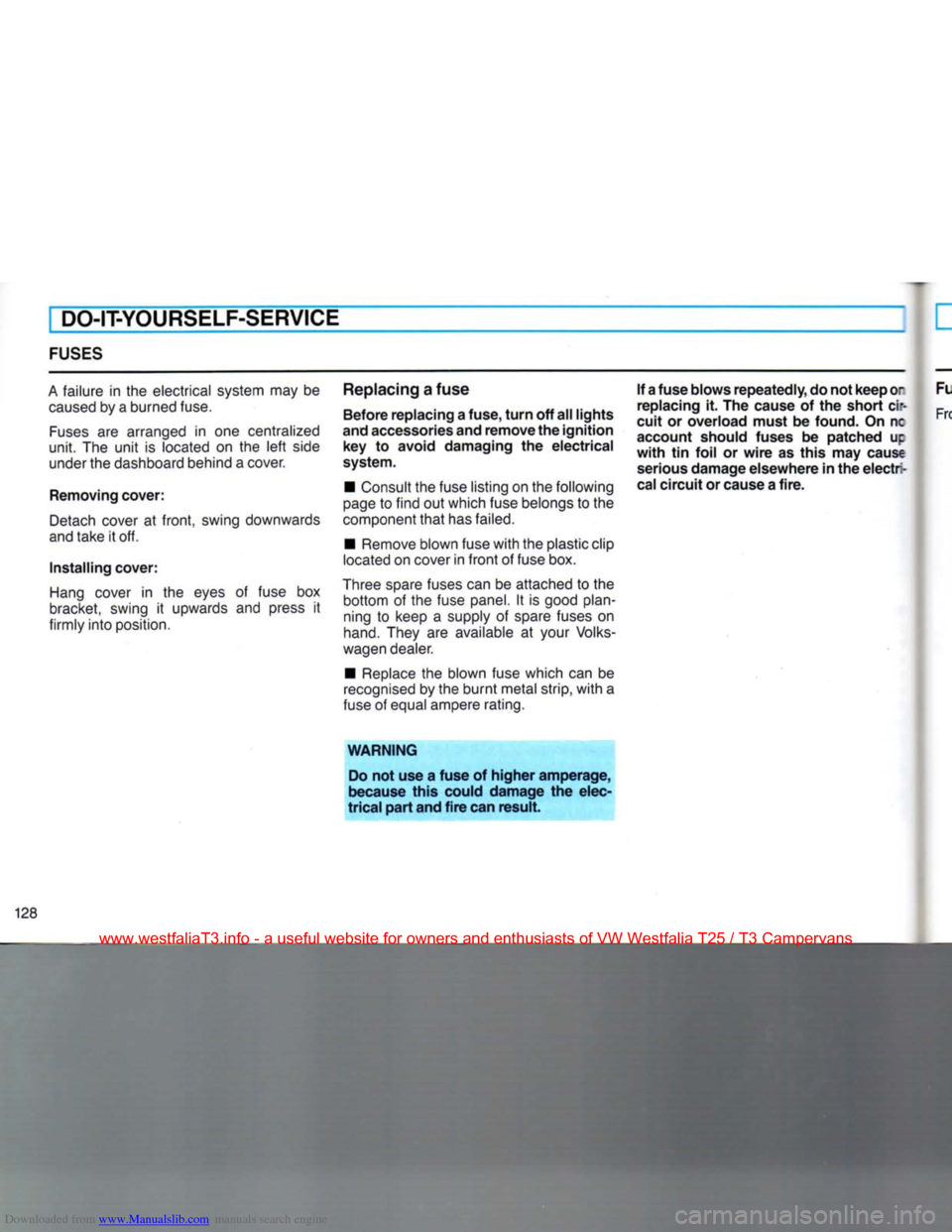

DO-IT-YOURSELF-SERVICE
