1990 VOLKSWAGEN TRANSPORTER Owners Manual

Downloaded from www.Manualslib.com manuals search engine
CONTROLS AND EQUIPMENT

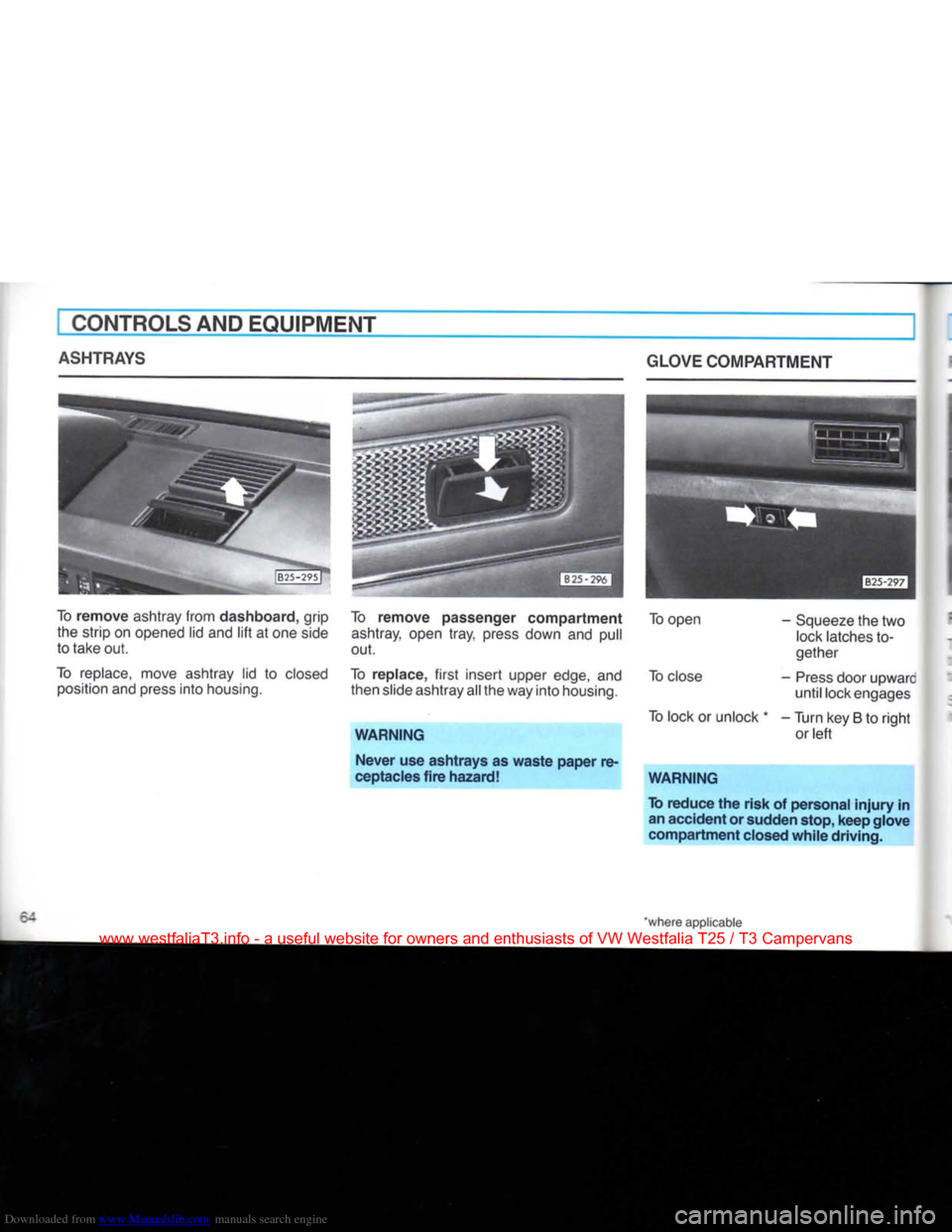

ASHTRAYS
To remove ashtray from dashboard, grip the strip on opened lid and lift at one side
to take out.
To replace, move ashtray lid to closed position and press into housing. To remove passenger compartment
ashtray, open tray, press down and pull
out.
To replace, first insert upper edge, and then slide ashtray all the way into housing.
WARNING Never use ashtrays as waste paper re­
ceptacles fire hazard! GLOVE COMPARTMENT
To open - Squeeze the two lock latches to­
gether
To close - Press door upwarc until lock engages
To lock or unlock * - Turn key B to right or left
WARNING
To reduce the risk of personal injury in an accident or sudden stop, keep glove compartment closed while driving.
*where applicable


www.westfaliaT3.info - a useful website for owners and enthusiasts of VW Westfalia T25 / T3 Campervans

Downloaded from www.Manualslib.com manuals search engine
CONTROLS
AND EQUIPMENT

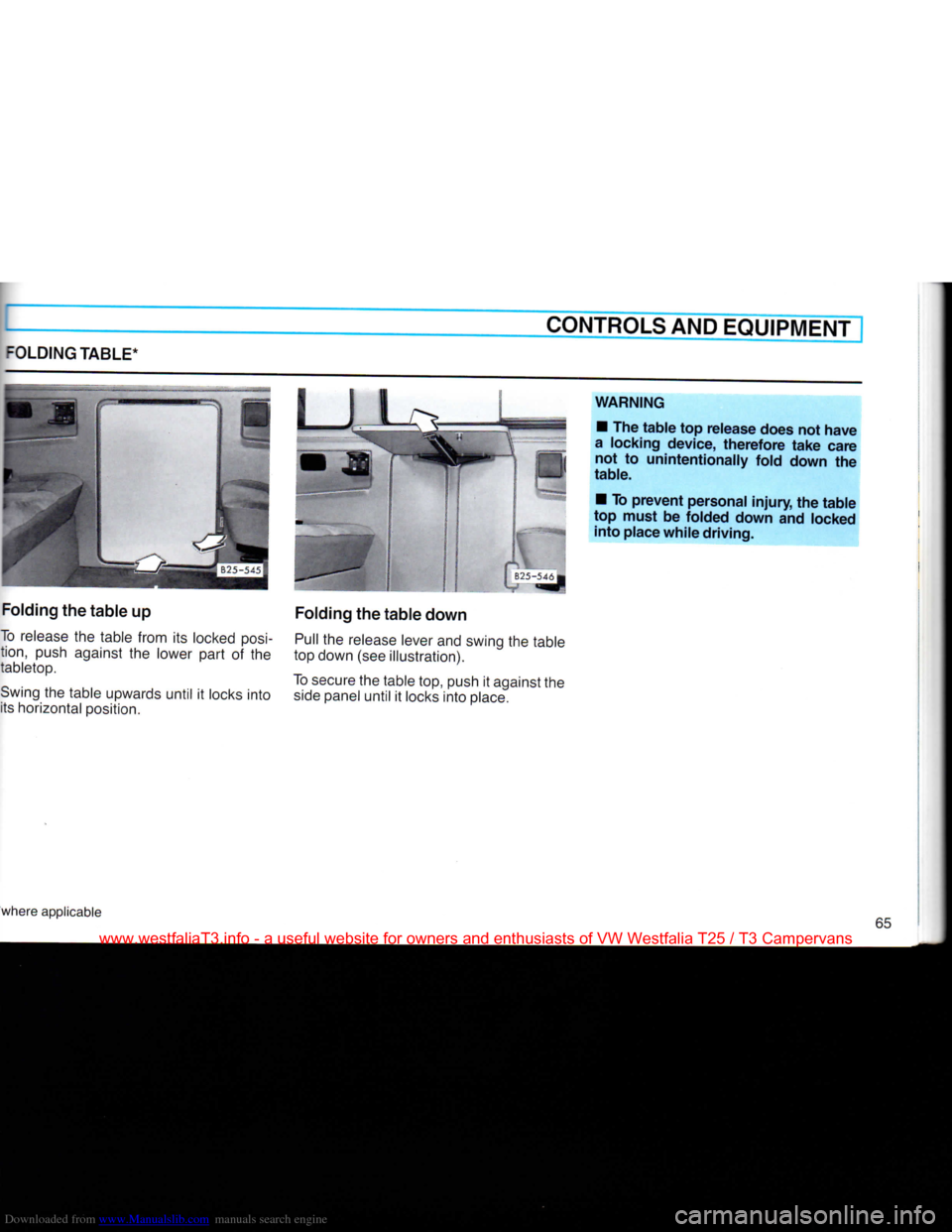

FOLDING
TABLE*

Folding
the table up

To
release
the table from its
locked
posi­

tion,
push against the lower part of the
:abletop.

Swing
the table upwards until it
locks
into
its horizontal position.
Folding
the table down

Pull
the
release
lever and swing the table
top down (see illustration).

To
secure
the table top, push it against the
side
panel until it
locks
into
place.
WARNING

•
The
table
top release does not have
a locking device,
therefore
take
care not to unintentionally fold down the
table.

•
To prevent personal
injury,
the
table

top must be folded down and locked
into
place
while
driving.

where
applicable


www.westfaliaT3.info - a useful website for owners and enthusiasts of VW Westfalia T25 / T3 Campervans

Downloaded from www.Manualslib.com manuals search engine
CONTROLS AND EQUIPMENT

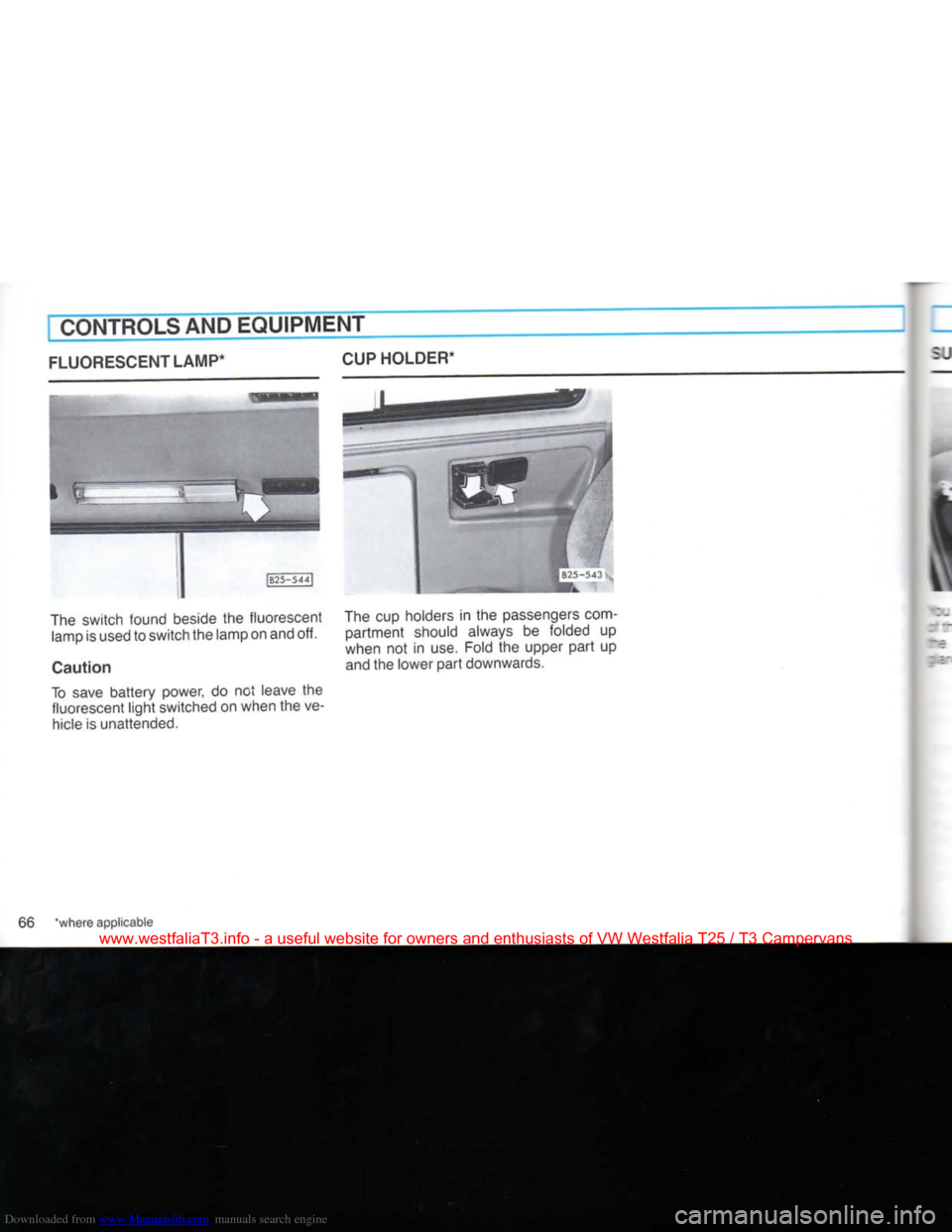

FLUORESCENT LAMP* CUP HOLDER*
1B25-544]
The switch found beside the fluorescent lamp is used to switch the lamp on and off.
Caution
To save battery power, do not leave the fluorescent light switched on when the ve­hicle is unattended. The cup holders in the passengers com­
partment should always be folded up
when not in use. Fold the upper part up
and the lower part downwards.
66 'where applicable


www.westfaliaT3.info - a useful website for owners and enthusiasts of VW Westfalia T25 / T3 Campervans

Downloaded from www.Manualslib.com manuals search engine
CONTROLS AND EQUIPMENT]

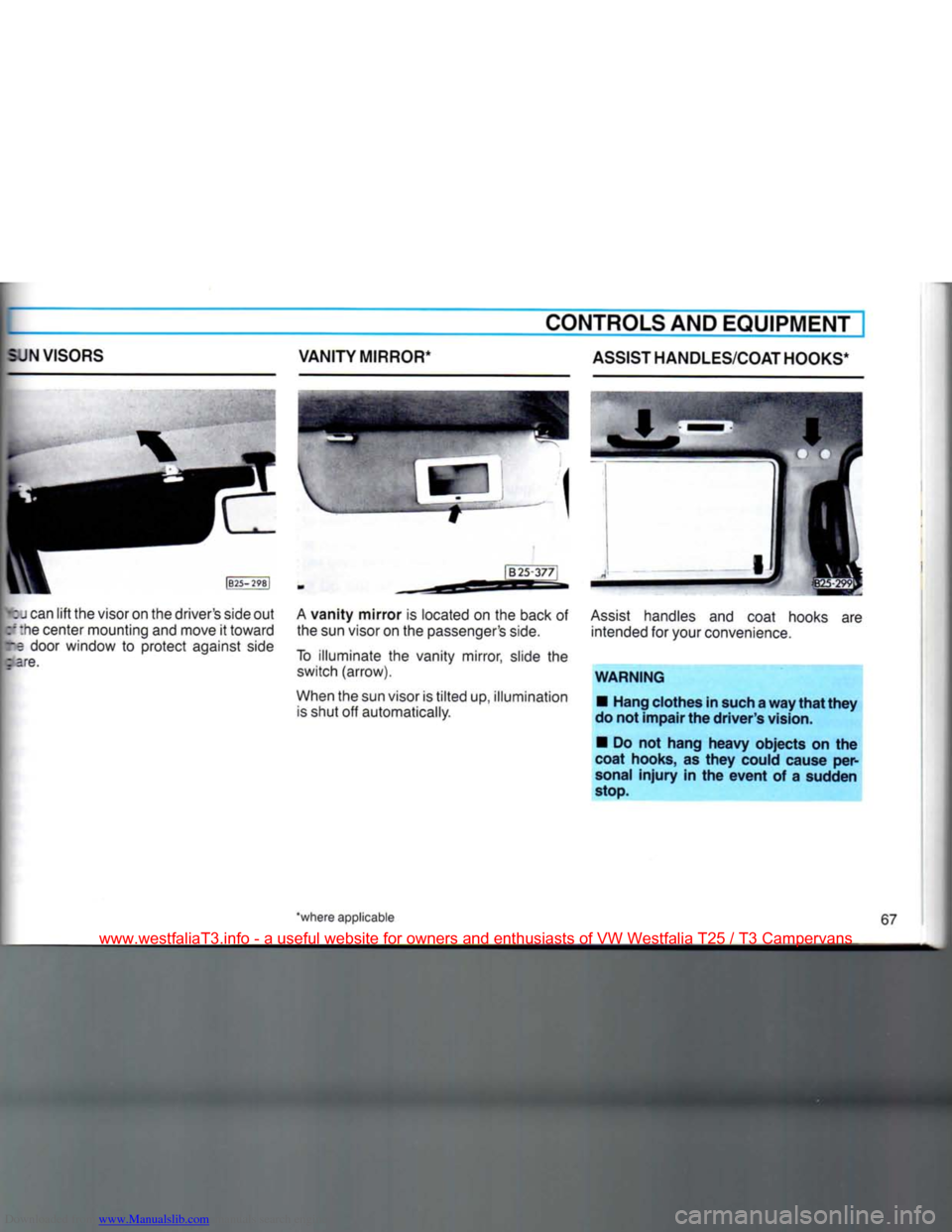

VANITY MIRROR* ASSIST HANDLES/COAT HOOKS*
N VISORS
>fcu
can
lift
the
visor
on the
driver's side
out

cf
the
center mounting
and
move
it
toward
Te
door window
to
protect against side :
are.
[B25-377J

A
vanity mirror is
located
on the
back
of
the
sun
visor
on the
passenger's side.
To illuminate
the
vanity mirror, slide
the
switch (arrow).
When
the sun
visor
is
tilted
up,
illumination is shut
off
automatically. Assist handles
and
coat hooks
are

intended
for
your convenience.
WARNING • Hang clothes
in
such a way that they
do
not
impair
the
driver's vision.
•
Do not
hang heavy objects
on the

coat hooks,
as
they could cause per­
sonal injury
in the
event
of a
sudden
stop.
'where applicable 67


www.westfaliaT3.info - a useful website for owners and enthusiasts of VW Westfalia T25 / T3 Campervans

Downloaded from www.Manualslib.com manuals search engine
CONTROLS
AND
EQUIPMENT

ROOF RACK 3REAK-
If a roof rack should be installed, note the
following:
• Use only roof racks which attach to the
rain gutters.
• Always distribute loads evenly.
• Never exceed the vehicle's
total
load
carrying capacity. See page 150 for de­
tails.
• When transporting maximum permis­

sible
loads, large or bulky items, or long,

flat
shaped objects, bear in mind
that
they

will
influence the vehicle's aerodynamics,
center of gravity and overall handling. To
counterbalance these influences, adjust steering habits and driving speed accord­
ingly.
• When the roof rack is not in use,
remove the roof rack to reduce wind

noise,
improve on fuel consumption and
to guard against
theft.

68


www.westfaliaT3.info - a useful website for owners and enthusiasts of VW Westfalia T25 / T3 Campervans

Downloaded from www.Manualslib.com manuals search engine

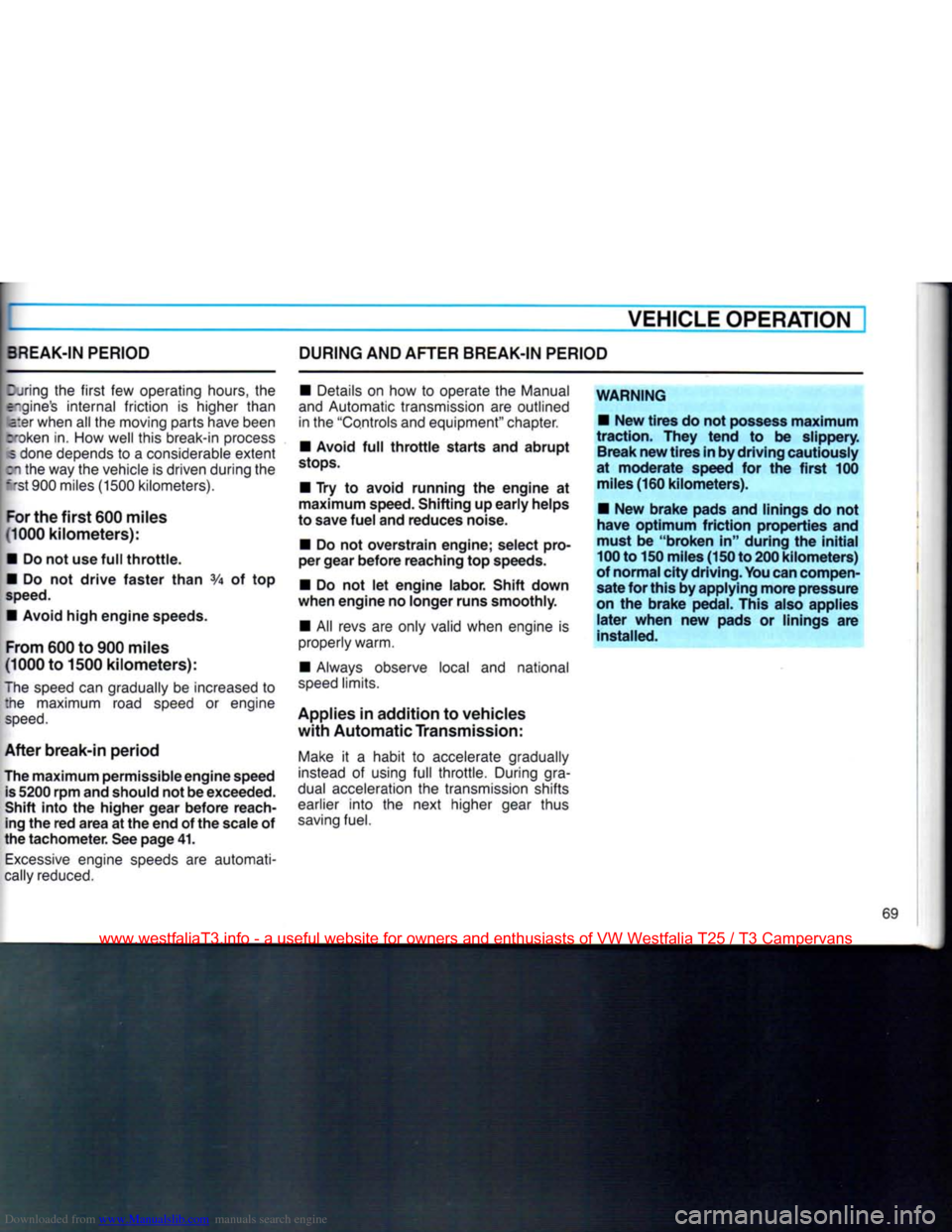

3REAK-IN
PERIOD

VEHICLE
OPERATION]
DURING AND
AFTER
BREAK-IN PERIOD

Turing
the first few operating
hours,
the

r-gine's
internal friction is higher than
a:er
when all the moving parts
have
been

:-oken
in. How well this break-in
process

e
done
depends
to a
considerable
extent
:n
the way the
vehicle
is driven during the

-"-3t
900
miles
(1500 kilometers).

For
the first 600 miles
(1000 kilometers):

•
Do not use full
throttle.

•
Do not drive faster
than
3A of top

speed.

•
Avoid high engine speeds.

From
600 to 900 miles
(1000 to 1500 kilometers):

The
speed
can gradually be
increased
to
:he
maximum road
speed
or
engine
speed.

After break-in period
The maximum permissible engine speed
is
5200
rpm and should not be exceeded.
Shift into the higher gear before reach­ing the red area at the end of the scale of
the tachometer. See page 41.

Excessive
engine
speeds
are automati­

cally
reduced.
•
Details
on how to operate the
Manual

and
Automatic
transmission
are outlined

in
the
"Controls
and
equipment"
chapter.

•
Avoid full
throttle
starts and abrupt

stops.

•
Try to avoid running the engine at
maximum speed. Shifting up early helps
to save fuel and reduces noise.

•
Do not overstrain engine; select pro­
per gear before reaching top speeds.

•
Do not let engine labor. Shift down
when engine no longer runs smoothly.

•
All
revs
are only
valid
when
engine
is

properly
warm.

•
Always
observe
local
and national

speed
limits.

Applies
in addition to vehicles
with
Automatic
Transmission:

Make
it a habit to
accelerate
gradually

instead
of
using
full throttle. During
gra­

dual
acceleration
the
transmission
shifts

earlier
into the next higher
gear
thus

saving
fuel.
WARNING

•
New tires do not
possess
maximum
traction. They tend to be slippery. Break new tires in by driving cautiously
at moderate speed for the first 100 miles (160 kilometers).

•
New brake pads and linings do not
have optimum friction properties and
must be "broken in" during the
initial
100 to 150 miles (150 to 200 kilometers)
of normal city driving. You can compen­ sate for this by applying more pressure

on
the brake pedal. This also applies
later
when new pads or linings are
installed.


www.westfaliaT3.info - a useful website for owners and enthusiasts of VW Westfalia T25 / T3 Campervans

Downloaded from www.Manualslib.com manuals search engine

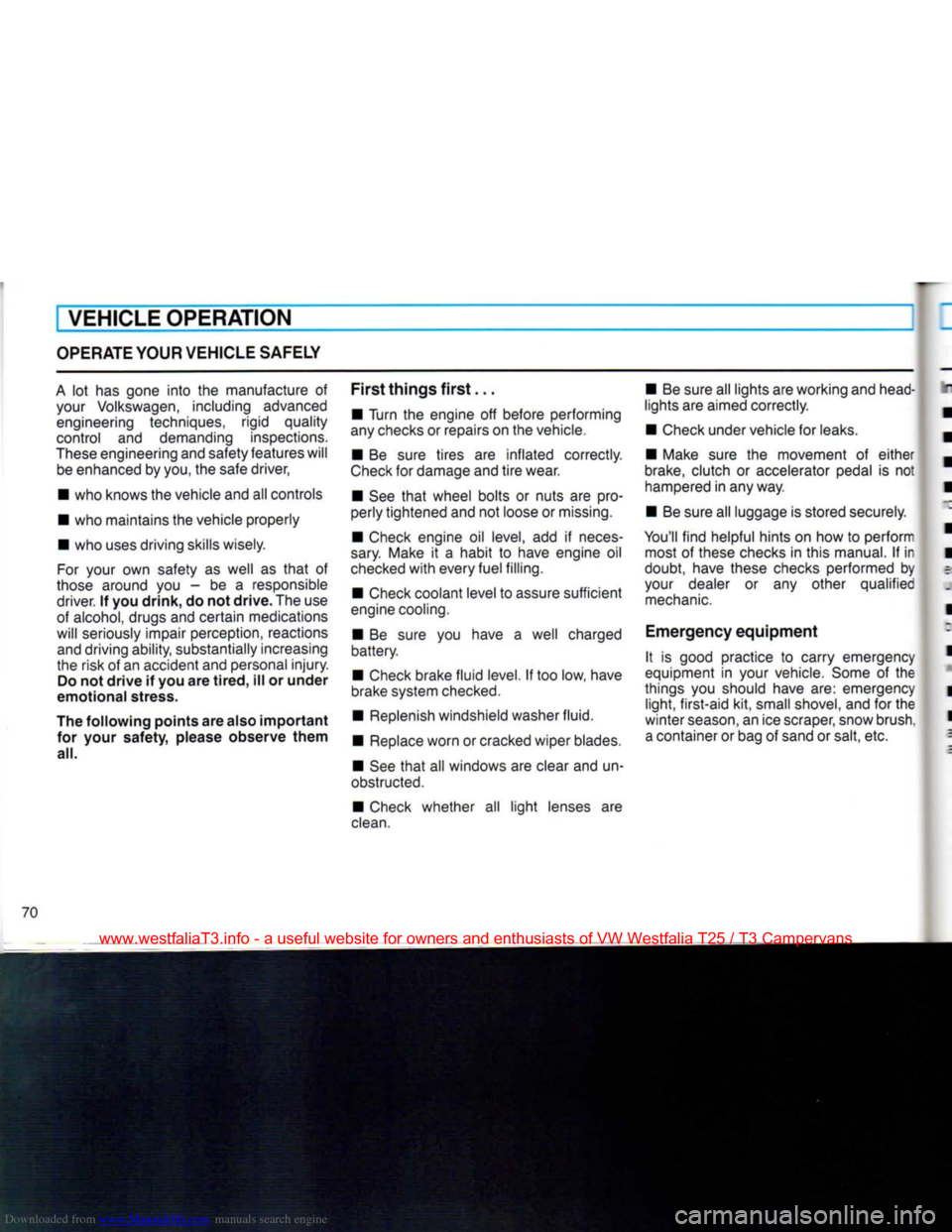

VEHICLE OPERATION

OPERATE
YOUR VEHICLE SAFELY

A
lot has gone
into
the manufacture of your Volkswagen, including advanced engineering techniques, rigid quality
control and demanding inspections.

These
engineering and safety features will be enhanced by you, the safe driver,
• who knows the vehicle and all controls
• who maintains the vehicle properly
• who uses driving skills wisely.

For
your own safety as well as
that
of
those around you - be a responsible
driver. If you
drink,
do not
drive.
The use
of alcohol, drugs and certain medications
will seriously impair perception, reactions and driving ability, substantially increasing
the risk of an accident and personal
injury.
Do not
drive
if you are
tired,
ill or
under

emotional
stress.
The
following
points
are also
important
for
your
safety,
please
observe
them

all.
First
things
first...

• Turn the engine off before performing
any checks or repairs on the vehicle.
• Be sure tires are inflated correctly.

Check
for damage and
tire
wear.
• See
that
wheel bolts or nuts are pro­
perly tightened and not loose or missing.
• Check engine oil level, add if neces­

sary.
Make it a habit to have engine oil

checked
with
every fuel filling.
• Check coolant level to assure sufficient
engine cooling.
• Be sure you have a well charged
battery.
• Check brake fluid level. If too low, have
brake system checked.
• Replenish windshield washer fluid.
• Replace worn or cracked wiper blades.
• See
that
all windows are clear and un­
obstructed.
• Check whether all
light
lenses are

clean.
• Be sure all lights are working and head­
lights are aimed correctly.
• Check under vehicle for leaks.
• Make sure the movement of either

brake,
clutch or accelerator pedal is not hampered in any way.
• Be sure all luggage is stored securely.

You'll
find helpful hints on how to perform most of these checks in this manual. If in
doubt, have these checks performed by
your dealer or any other qualified
mechanic.

Emergency
equipment

It is good practice to carry emergency
equipment in your vehicle. Some of the
things you should have are: emergency
light,
first-aid kit, small shovel, and for the
winter
season,
an ice scraper, snow brush,
a
container or bag of sand or salt, etc.
70


www.westfaliaT3.info - a useful website for owners and enthusiasts of VW Westfalia T25 / T3 Campervans

Downloaded from www.Manualslib.com manuals search engine
VEHICLE
OPERATION

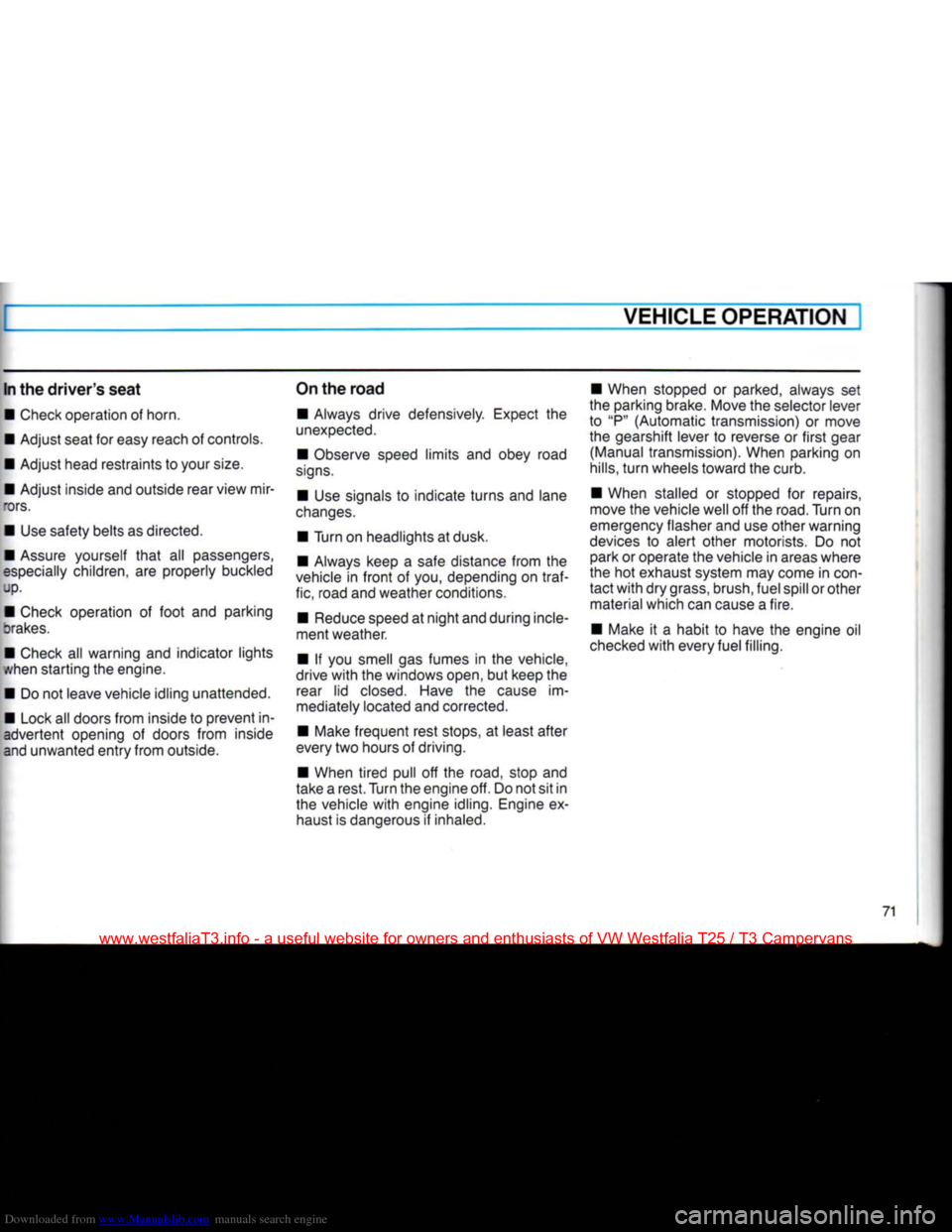

In the
driver's
seat
•
Check operation of horn.

•
Adjust seat for easy reach of controls.

•
Adjust head restraints to your
size.

•
Adjust inside and outside rear view mir-
brs.

•
Use safety belts as directed.

•
Assure yourself
that
all passengers,

especially
children, are properly buckled up.

•
Check operation of
foot
and parking

orakes.

•
Check all warning and indicator lights
v/hen starting the engine.

•
Do not leave vehicle idling unattended.

•
Lock all doors
from
inside to prevent in­ advertent opening of doors
from
inside
and unwanted
entry
from
outside. On the
road

•
Always drive defensively. Expect the

unexpected.

•
Observe speed
limits
and obey road

signs.

•
Use signals to indicate
turns
and lane

changes.

•
Turn on headlights at dusk.

•
Always keep a safe distance
from
the
vehicle in
front
of you, depending on
traf­

fic, road and weather conditions.

•
Reduce speed at
night
and during incle­
ment weather.

•
If you smell gas fumes in the vehicle,
drive
with
the windows open, but keep the rear lid
closed.
Have the cause im­
mediately located and corrected.

•
Make frequent rest stops, at least
after

every two hours of driving.

•
When
tired
pull off the road, stop and
take a rest. Turn the engine off. Do not sit in the vehicle
with
engine idling. Engine ex­haust is dangerous if inhaled.
•
When stopped or parked, always set
the parking brake. Move the selector lever
to "P" (Automatic transmission) or move
the gearshift lever to reverse or
first
gear (Manual transmission). When parking on

hills,
turn
wheels
toward
the curb.

•
When stalled or stopped for repairs,
move the vehicle well off the road. Turn on
emergency flasher and use other warning

devices
to alert other motorists. Do not park or operate the vehicle in areas where
the hot exhaust system may come in
con­

tact
with
dry
grass,
brush, fuel spill or other material which can cause a fire.

•
Make it a habit to have the engine oil

checked
with
every fuel filling.


www.westfaliaT3.info - a useful website for owners and enthusiasts of VW Westfalia T25 / T3 Campervans
