1987 MAZDA 626 window

1 4 FRONT DOORS
1. Regulator handle
2. Arm rest
3. Power window switch
4. Inner handle cover
5. Door trim
6. Door screen
7. Weatherstrip
8. Regulator (power type)
9. Regulator (manual type)
10. Glass guide
11. Glass
12. Runchannel
13. Weatherstrip
14. Door
15. Door checker
16. Beltline molding
17. Weatherstrip
18. Door mirror
19. Outer handle
20. Key cylinder
21. Sail inner garnish
86U14X-035
14—14

FRONT DOORS 14
REMOVAL
Front Door Glass and Regulator
Note
Raise the door glass 100 mm (3.94 in) from the
fully open position.
1. Remove the clip and regulator handle.
(Manual type)
86U14X-036
Remove the inner handle cover, the screws (ar-
rows), and the door trim.
Note
For vehicles with power windows, disconnect
the connectors.
86U14X-037
3. Remove the door screen.
Caution
Remove the screen carefully so that it may be
reused.
86U14X-038
86U14X-039
4. Position the door glass so that the mounting bolts
can be removed from the service holes.
5. Remove the mounting bolts.
14—15

1 4 FRONT DOORS
86U14X-060
86U14X-040
86U14X-041
6. Remove the beltline molding. (Refer to page
14-39)
7. Remove the door glass upward.
8. Remove the mounting bolts, and remove the regu-
lator through the service hole.
9. Remove the window motor mounting bolt, and re-
move the motor from the regulator (power window).
Removal of Outer Handle and Key Cylinder
1. Disconnect the rod from the outer handle.
69G14X-036
14—16

FRONT DOORS 1 4
86U14X-042
86U14X-043
69G14X-038
2. Remove the key cylinder spring.
3. Remove the key cylinder.
4. Remove the mounting nuts and remove the outer
handle.
Removal of Door Lock Assembly
1. Remove the mounting screws.
2. Remove the door lock assembly.
INSTALLATION
Install in the reverse order of removal, noting the fol-
lowing.
Power Window
Before installing the motor, connect the leads to a bat-
tery and run the regulator down to the position shown.
63U14X-035
14—17

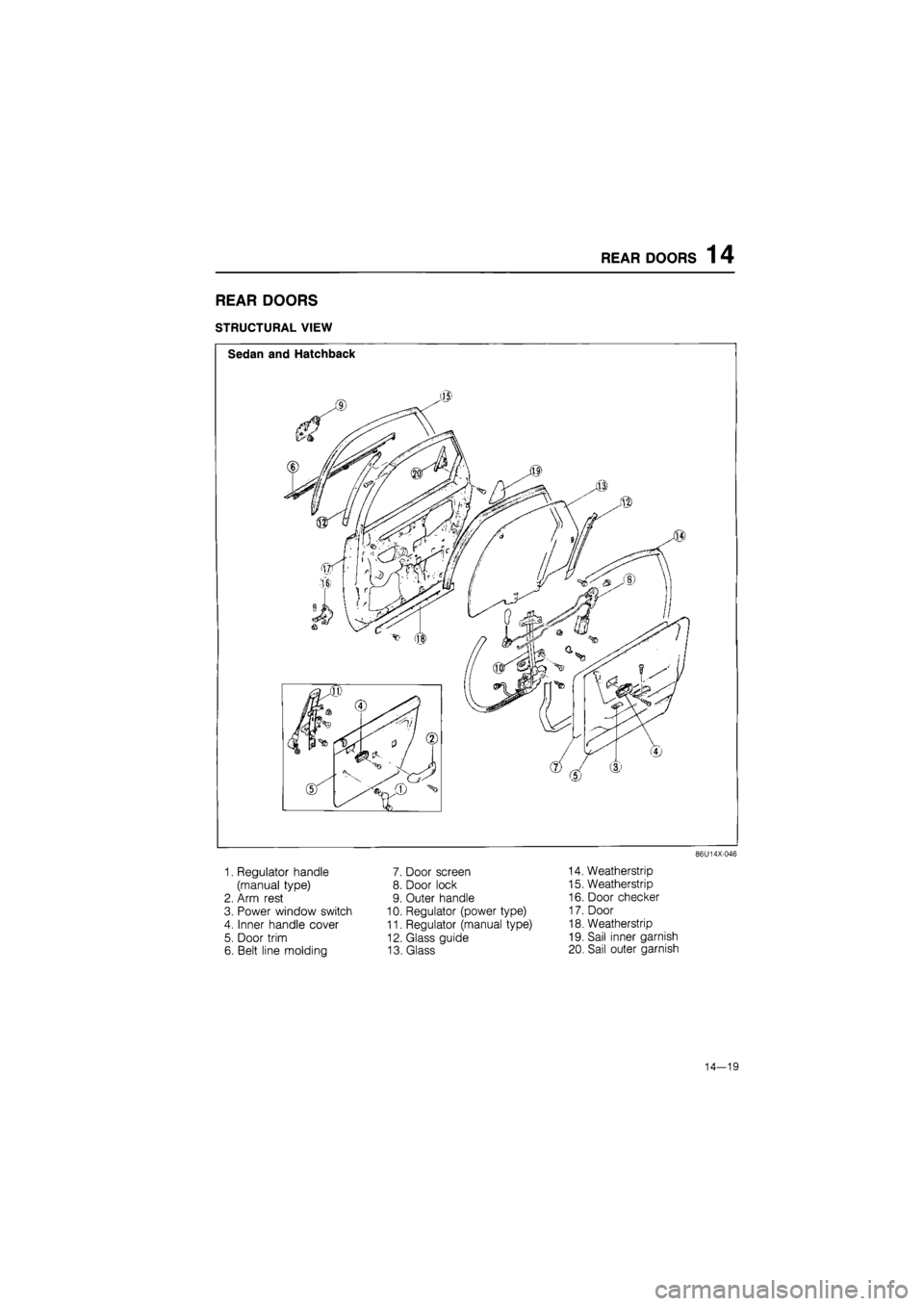

REAR DOORS 1 4
REAR DOORS
STRUCTURAL VIEW
Sedan and Hatchback
86U14X-046
1. Regulator handle
(manual type)
2. Arm rest
3. Power window switch
4. Inner handle cover
5. Door trim
6. Belt line molding
7. Door screen
8. Door lock
9. Outer handle
10. Regulator (power type)
11. Regulator (manual type)
12. Glass guide
13. Glass
14. Weatherstrip
15. Weatherstrip
16. Door checker
17. Door
18. Weatherstrip
19. Sail inner garnish
20. Sail outer garnish
14—19

1 4 REAR DOORS
86U14X-047
86U14X-048
86U14X-049

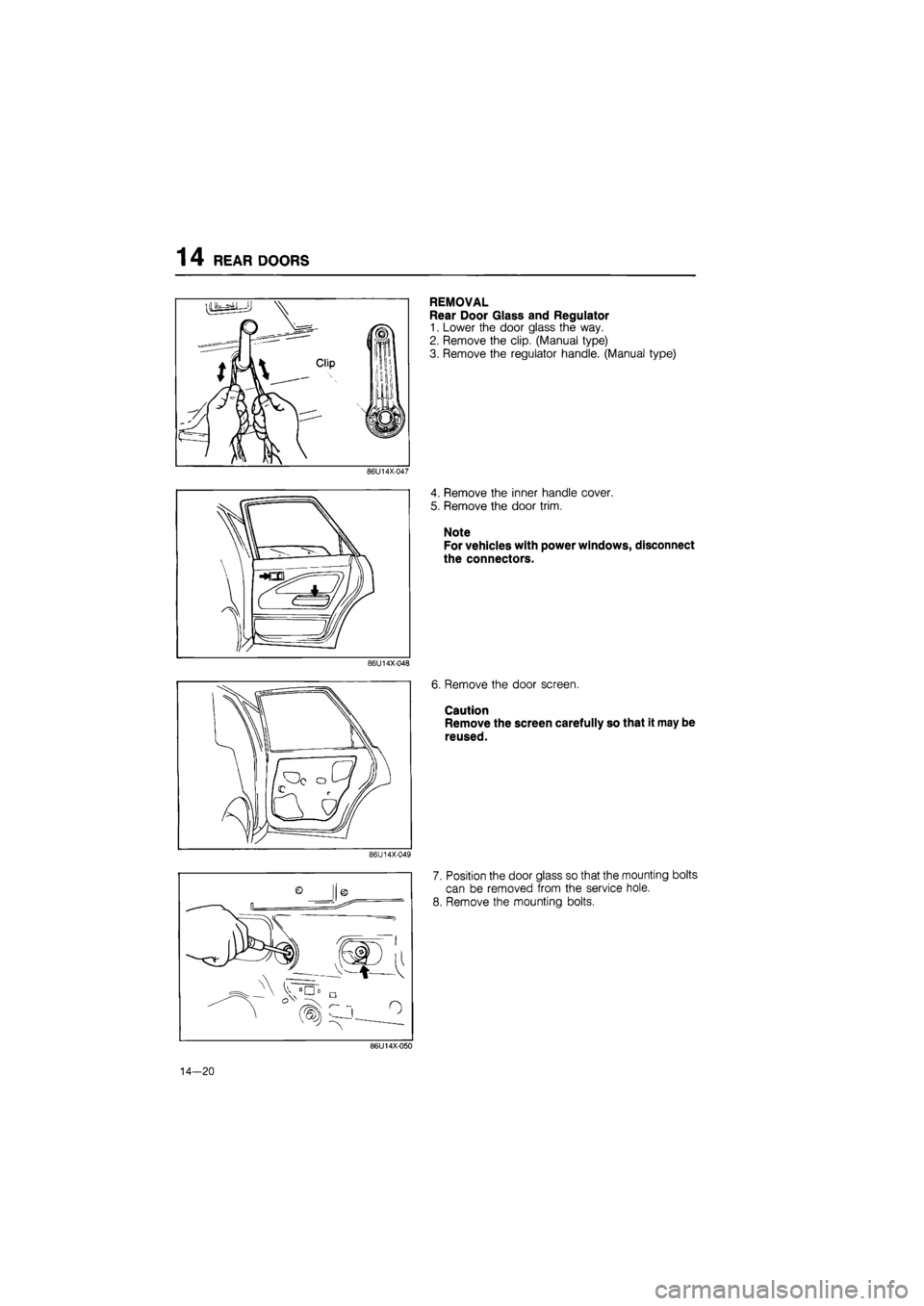

REMOVAL
Rear Door Glass and Regulator
1. Lower the door glass the way.
2. Remove the clip. (Manual type)
3. Remove the regulator handle. (Manual type)
4. Remove the inner handle cover.
5. Remove the door trim.
Note
For vehicles with power windows, disconnect
the connectors.
6. Remove the door screen.
Caution
Remove the screen carefully so that it may be
reused.
7. Position the door glass so that the mounting bolts
can be removed from the service hole.
8. Remove the mounting bolts.
86U14X-050
14—20

REAR DOORS 1 4

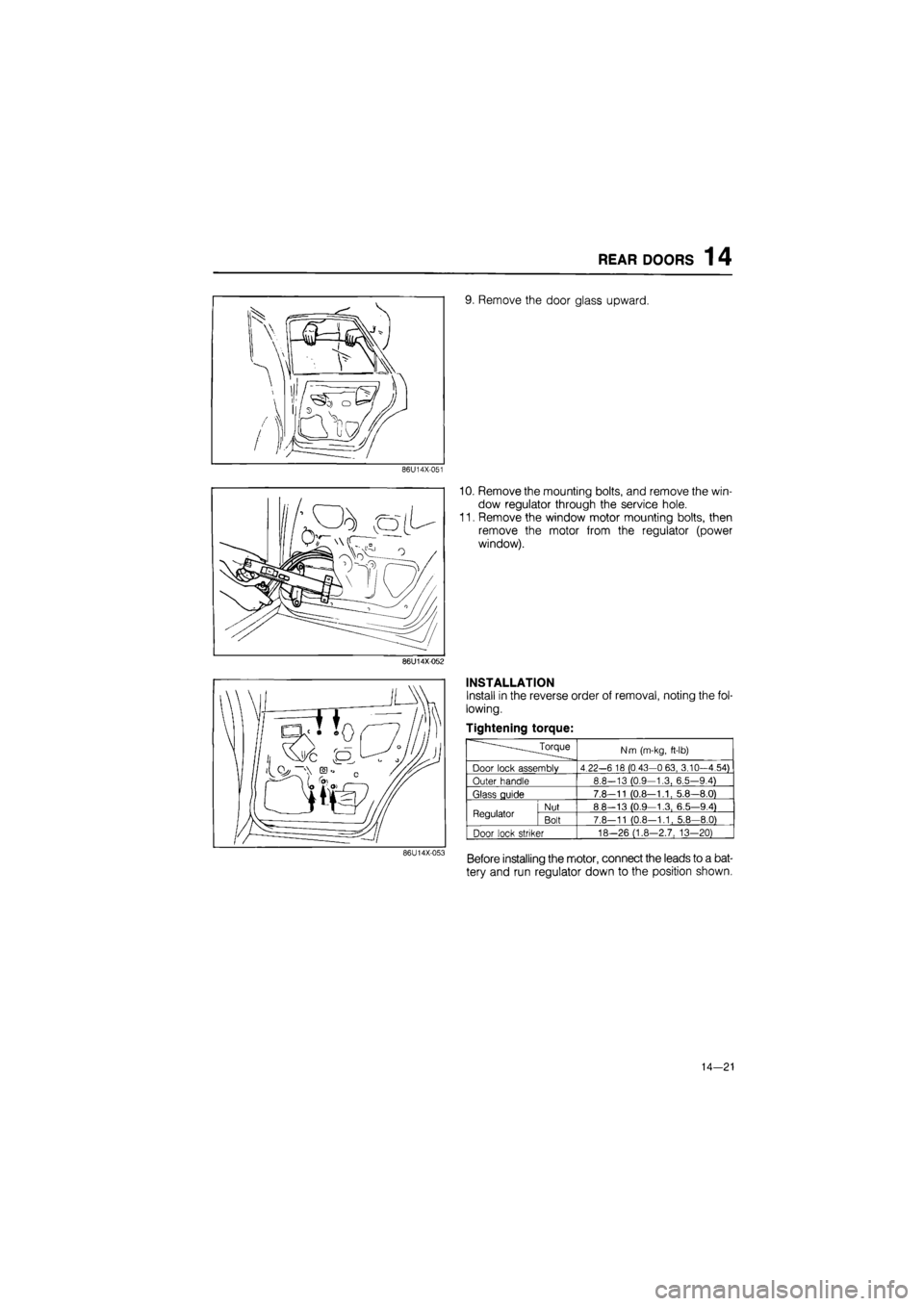

9. Remove the door glass upward.
86U14X-051
Remove the mounting bolts, and remove the win-
dow regulator through the service hole.
Remove the window motor mounting bolts, then
remove the motor from the regulator (power
window).
86U14X052
INSTALLATION
Install in the reverse order of removal, noting the fol-
lowing.
Tightening torque:
Nm (m-kg, ft-lb)
Door lock assembly 4.22-6 18 (0 43-0 63, 3,10—4.54)
Outer handle 8.8-13 (0.9-1.3. 6.5-9.4)
Glass Quide 7.8—11 (0.8—1.1, 5.8—8.0)
Regulator Nut 8 8—13 (0.9—1.3, 6.5—9.4) Regulator Bolt 7.8-11 (0.8-1.1. 5.8-8.0)
Door lock striker 18-26 (1.8-2.7, 13-20)
Before installing the motor, connect the leads to a bat-
tery and run regulator down to the position shown.
14—21

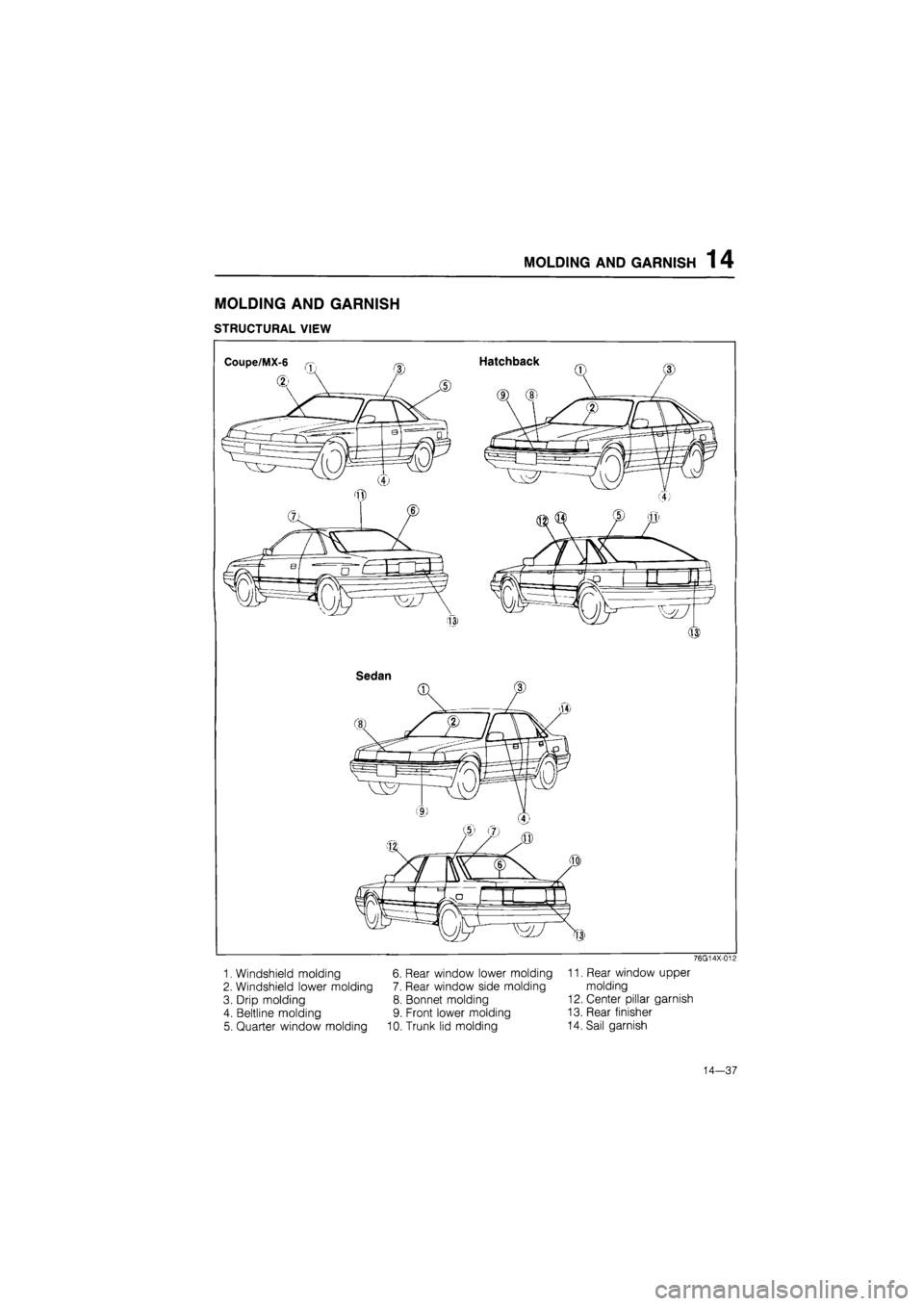

MOLDING AND GARNISH 1 4
MOLDING AND GARNISH
STRUCTURAL VIEW
Coupe/MX-6
Sedan
76G14X-012
1. Windshield molding 6. Rear window lower molding 11. Rear window upper
2. Windshield lower molding 7. Rear window side molding molding
3. Drip molding 8. Bonnet molding 12. Center pillar garnish
4. Beltline molding 9. Front lower molding 13. Rear finisher
5. Quarter window molding 10. Trunk lid molding 14. Sail garnish
14—37
