1986 CHEVROLET CORVAIR steering

Downloaded from www.Manualslib.com manuals search engine Also, all hoses, fittings and the inlet air filter should be
inspected, cleaned and replciced if necessary.
NOTE: If the positive crankcase ventilator valve should
become
dogged, the engine idle will be adversely
affect~d. Therefore, if the engine idle becomes too slow
or rough, the ventilator valve should be checked before
any carburetor ad;ustments are made to compensate for
the trouble.
AIR INJECTION REACTOR (A.I.R.l
The Air
Injection Reactor system is designed to re­
duce .air pollution caused by exhaust emissions. It is entirely separate from the Positive Crankcase Ventilating
system. The Air
Injection Reactor system operates by
oxidizing (or burning) the
hydrocarbons and carbon
monoxide as they are expelled from the combustion
chamber into the exhaust. A positive displacement air
pump, driven by the engine, compresses clean frltered
air, which
is distributed and injected at the exhaust part
of each cylinder. This fresh air mixes with the hot exhaust
gases and promotes further oxidation (or burning) of
both hydrocarbons and carbon monoxide by converting
some
of them to carbon dioxide and water. This does not
reduce the danger of inhaling carbon monoxide in con­
frned areas. See page 7 for carbon monoxide warning.
Supplementing
the air pump a special carburetor and
distributor plus related components are required.
The Air
Injection Reactor system should have the A.I.R. pump filter serviced and the drive belt inspected
for
wear and tension every 12 months or 12,000 miles,
38
whichever occurs frrst. In addition, complete effectiveness
of the system, as well as full power and performance,
depends upon idle speed, ignition timing, and idle fuel
mixture being
set according to specifrcation. A quality
tune-up which includes
these adjustments should be per­
formed periodically to assure normal engine efficiency,
operation and performance.
STEERING GEAR
Every 36,000 miles -Re­
move frller plug and
check lubricant level. If
necessary, add water
resistant EP chassis lu­
bricant which meets
General Motors Specifr­
cation GM 6031 M to
bring to level
of frller
plug hole.
FAN BELT
Every 6000 miles-check condition of belt. Check belt
guide to belt clearance. Belt guide ciearance should
be approximately 1/16" after belt is tensioned.
(See page 49). Retensioning a belt unnecessarily
may result
in premature belt fciilure.
ENGINE OIL CHANGE INTERVAL
Change engine oil each 4 months. If more than
6000 miles are driven in a 4-month period, change oil

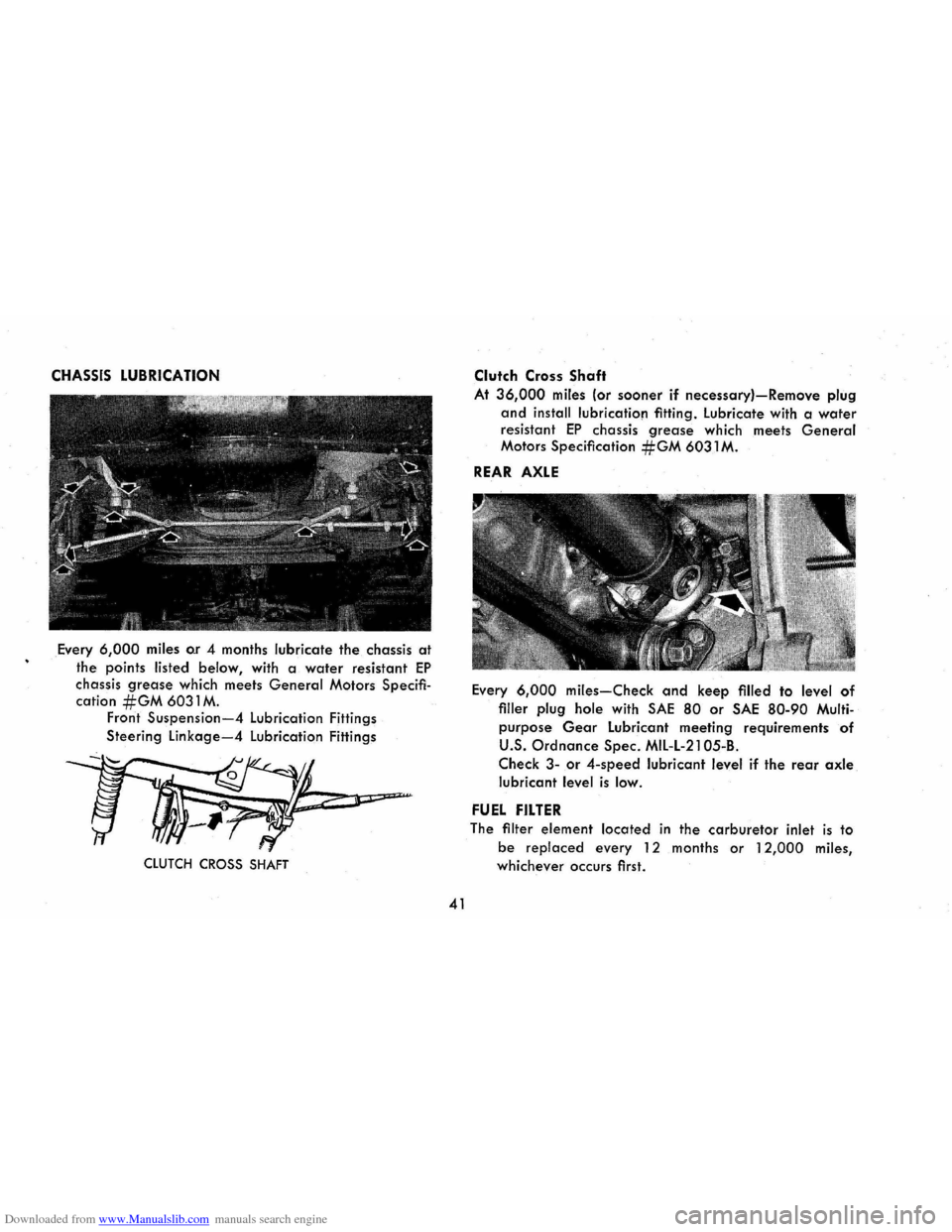

Downloaded from www.Manualslib.com manuals search engine CHASSIS LUBRICATION
Every 6,000 miles o.r 4 months lubricate the chassis at
the points listed below, with a water resistant EP
chassis grease which meets General Motors Specifi­
cation #GM 6031 M. Front Suspension-4 Lubrication Fittings
Steering
Linkage-4 Lubrication Fittings
, WJ~P;=-
CLUTCH CROSS SHAFT
41
Clutch Cross Shaft
At 36,000 miles (or sooner if necessary)-Remove plug
and install lubrication fitting. Lubricate with a water
resistant EP chassis grease which meets General
Motors Specification #GM 6031 M.
REAR AXLE
Every 6,000 miles-Check and keep filled to level of
filler plug hole with SAE 80 or SAE 80-90 Multi­
purpose Gear Lubricant meeting requirements of
U.S. Ordnance Spec. MIL-L-21 05-B.
Check 3-or 4-speed lubricant level if the rear axle
lubricant level is low.
FUEL FILTER
The filter element located in the carburetor inlet is to
be replaced every 12 months or 12,000 miles,
whichever occurs first.
