1985 TOYOTA TERCEL Repair Manual

BRAKE SYSTEM - Rear Brake (W

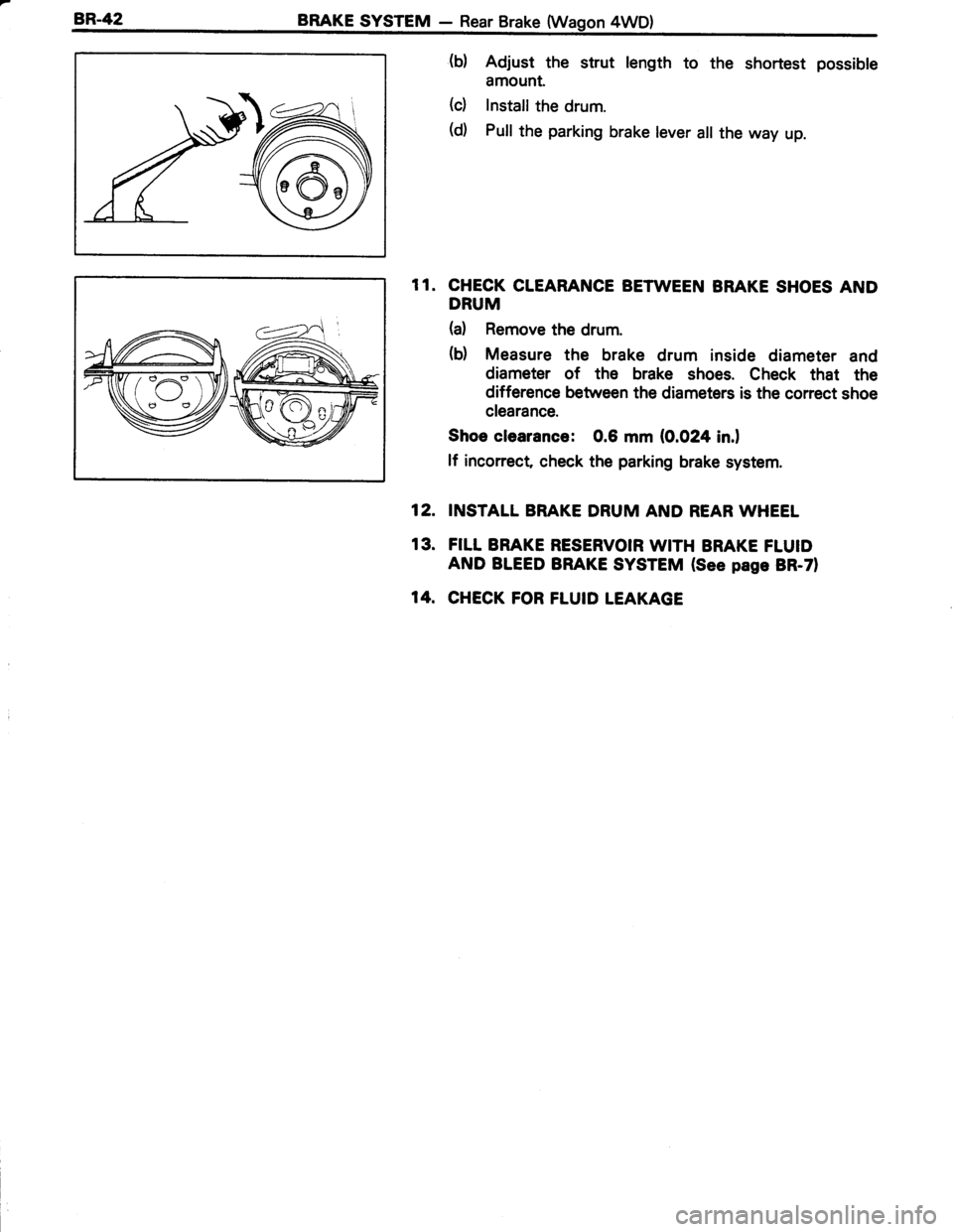

(b) Adjust the strut length to the shortest possible
amount.
(c) Install the drum.
(d) Pull the parking brake lever all the way up.
CHECK CLEARANCE BETWEEN BRAKE SHOES AND
DRUM
(a) Remove the drum.
(b) Measure the brake drum inside diameter and
diameter of the brake shoes. Check that the
difference between the diameters is the correct shoe
clearance.
Shoe clearance: 0.6 mm (0.024 in.l
lf incorrect check the parking brake system.
INSTALL BRAKE DRUM AND REAR WHEEL
FILL BRAKE RESERVOIR WITH BRAKE FLUID
AND BLEED BRAKE SYSTEM (See page BR-71
CHECK FOR FLUID LEAKAGE
11.
12.
13.
14.

BRAKE SYSTEM - Brake Hoses and Tubes
\$-crio

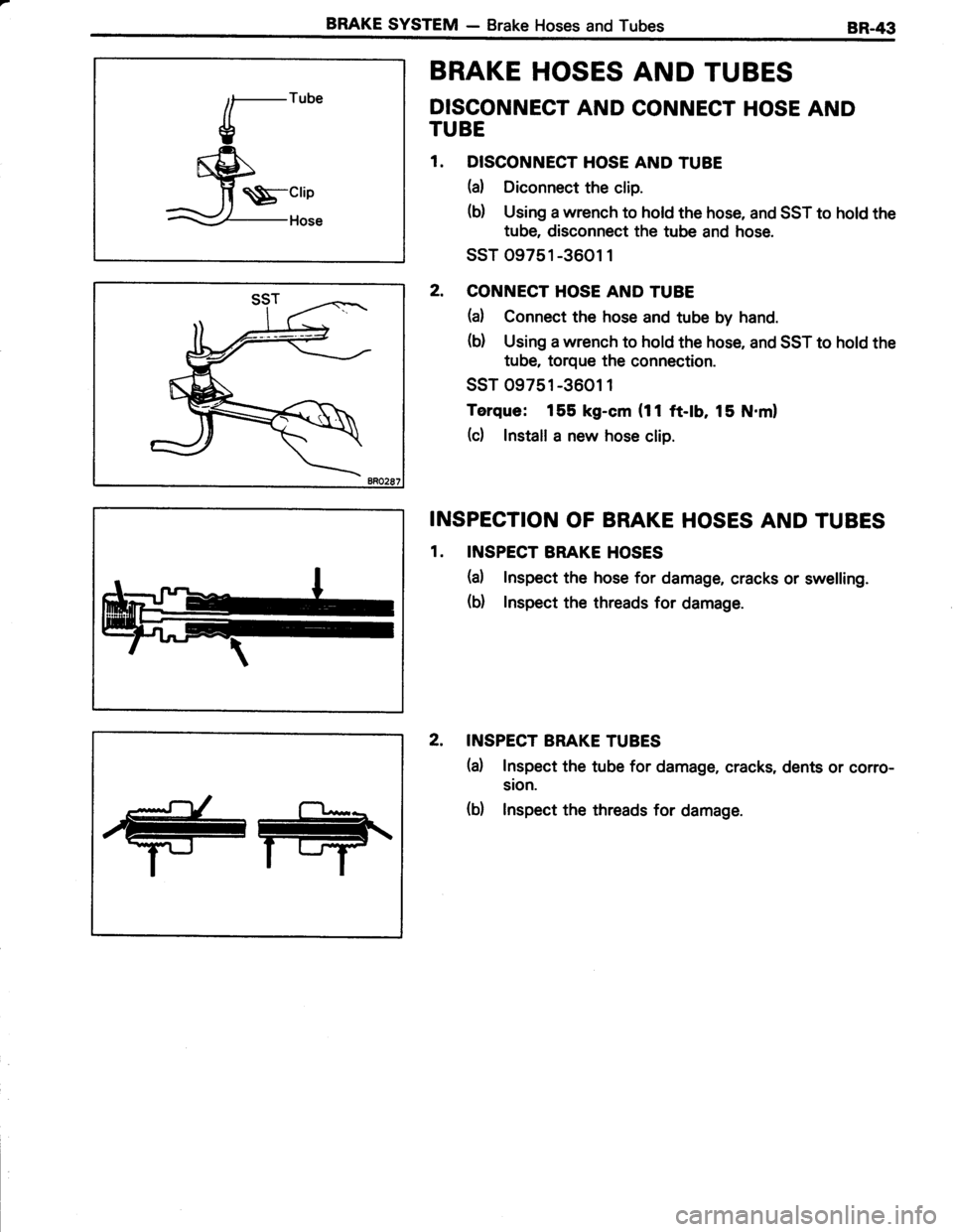

BRAKE HOSES AND TUBES
DISCONNECT AND CONNECT HOSE AND
TUBE
1. DISCONNECT HOSE AND TUBE
(a) Diconnect the clip.
(b) Using a wrench to hold the hose, and SST to hold the
tube, disconnect the tube and hose.
ssT 09751 -3601 1
2. CONNECT HOSE AND TUBE
(a) Connect the hose and tube by hand.
(b) Using a wrench to hold the hose, and SST to hold the
tube, torque the connection.
ssT 09751 -3601 1
Torque: 155 kg-cm (11 ft-lb, 15 N.ml
(c) Install a new hose clip.
INSPECTION OF BRAKE HOSES AND TUBES
1. INSPECT BRAKE HOSES
(a) Inspect the hose for damage, cracks or swelling.
(b) Inspect the threads for damage.
2. INSPECT BRAKE TUBES
(d Inspect the tube for damage, cracks, dents or corro-
sion.
(b) Inspect the threads for damage.
