1976 CHEVROLET VEGA Owners Manual

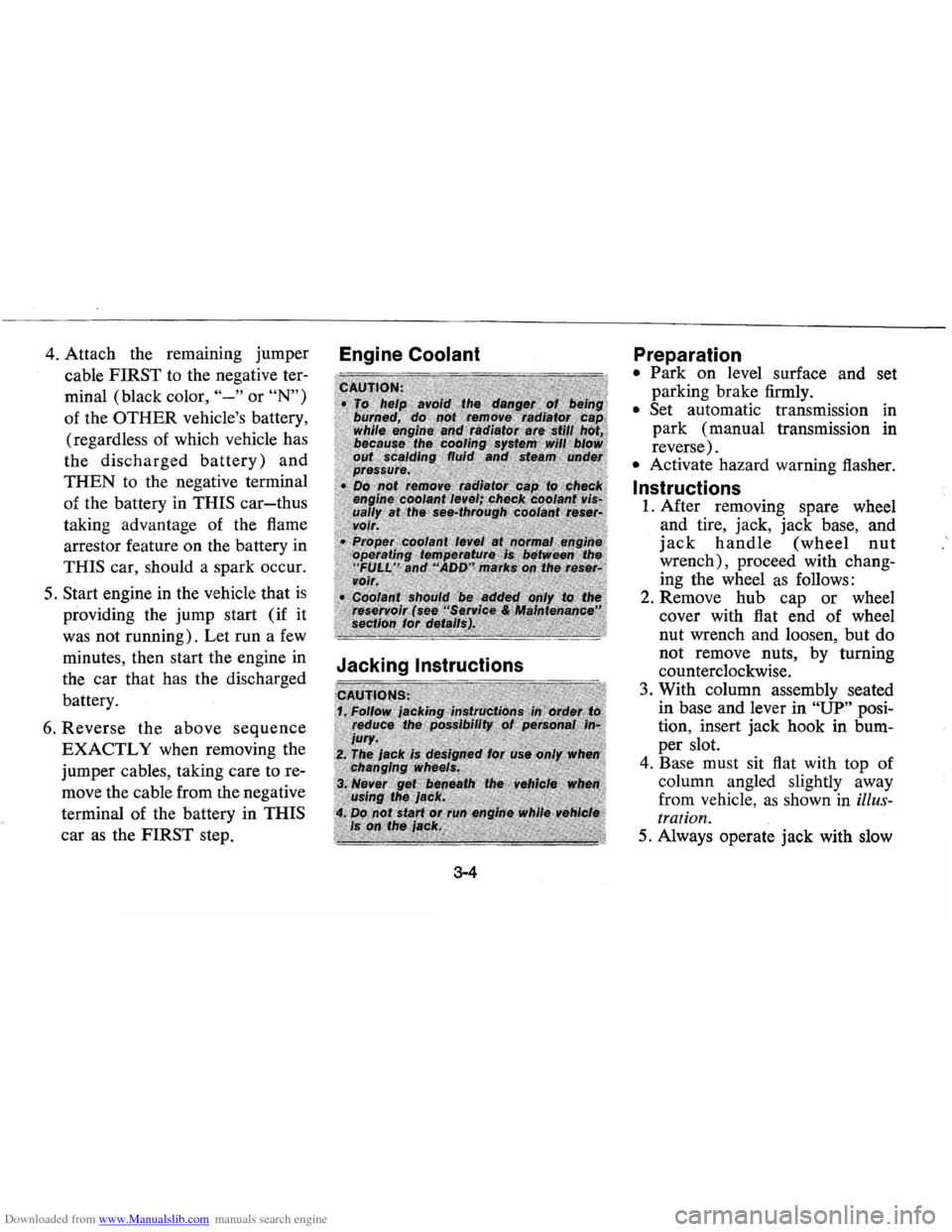

Downloaded from www.Manualslib.com manuals search engine 4. Attach the remammg jumper Engine Coolant
cable FIRST to the negative ter­
minal (black color,
"-" or "N")
of the OTHER vehicle's battery,
(regardless of which vehicle has
the discharged
battery) and
THEN to the negative terminal
of the battery in THIS
car-thus
taking advantage of the flame
arrestor feature on the battery in
THIS car, should a spark occur.
5. Start engine in the vehicle that is
providing the jump start (if it
was not running). Let run a few
minutes, then start the engine in Jacking Instructions
the car that has the discharged
battery.
6. Reverse the above sequence
EXACTL Y when removing the
jumper cables, taking care to re­
move the cable from
[he negative
terminal of the battery in THIS
car
as the FIRST step.
3-4
Preparation
• Park on level surface and set
parking brake firmly.
• Set automatic transmission in
park (manual transmission in
reverse).
• Activate hazard warning flasher.
Instructions
1. After removing spare wheel
and tire, jack, jack base, and
jack handle (wheel nut
wrench), proceed with chang­
ing the wheel
as follows:
2. Remove hub cap or wheel
cover with flat end of wheel
nut wrench and loosen, but do
not remove nuts, by turning
counterclockwise.
3. With column assembly seated
in base and lever in
"UP" posi­
tion, insert jack hook in bum­
per slot.
4. Base must sit flat with top of
column angled slightly away
from vehicle,
as shown in illus­
tration.
5. Always operate jack with slow

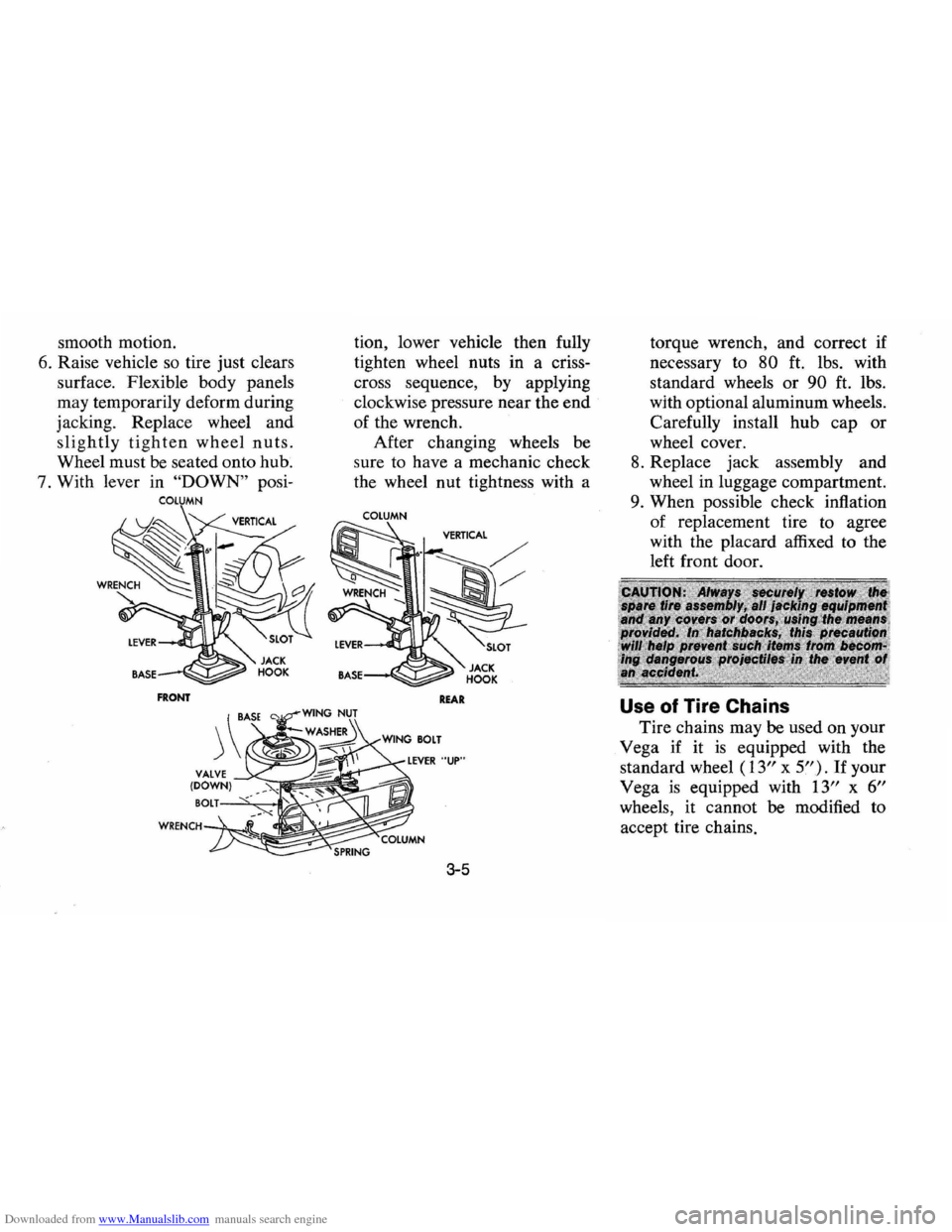

Downloaded from www.Manualslib.com manuals search engine smooth motion.
6. Raise vehicle so tire just clears
surface. Flexible body panels
may temporarily deform during
jacking. Replace wheel and
slightly tighten wheel nuts.
Wheel must be seated onto hub.
7. With lever in
"DOWN" posi­
COLUMN
FRONT
tion, lower vehicle then fully
tighten wheel nuts in a criss­
cross sequence, by applying
clockwise pressure near the
end
of the wrench.
After changing wheels
be
sure to have a mechanic check
the wheel nut tightness with a
COLUMN
REAR
3-5
torque wrench, and correct if
necessary to
80 ft. lbs. with
standard wheels
or 90 ft. lbs.
with optional aluminum wheels.
Carefully install
hub cap or
wheel cover.
8. Replace jack assembly and
wheel in luggage compartment.
9. When possible check inflation
of replacement tire to agree
with the placard affixed to the
left front door.
Use of Tire Chains
Tire chains may be used on your
Vega if it
is equipped with the
standard wheel
(13" x 5"). If your
Vega
is equipped with 13" x 6"
wheels, it cannot be modified to
accept tire chains.

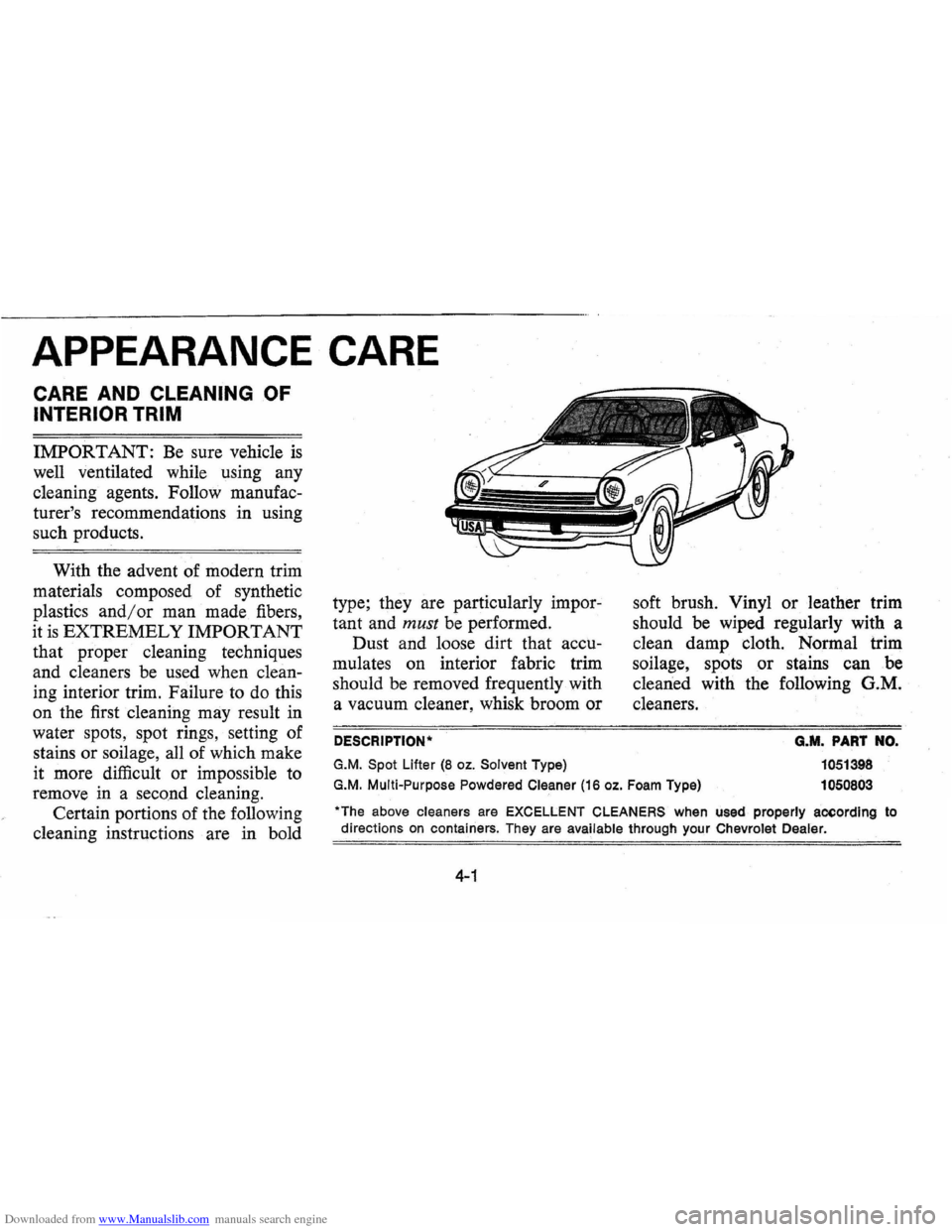

Downloaded from www.Manualslib.com manuals search engine APPEARANCE CARE
CARE AND CLEANING OF
INTERIOR TRIM
IMPORTANT: Be sure vehicle is
well ventilated while using any
cleaning agents. Follow manufac­
turer's recommendations in using
such products.
With the advent of modern trim
materials composed of synthetic
plastics and/or man made fibers,
it
is EXTREMELY IMPORTANT
that proper cleaning techniques
and cleaners be used when clean­
ing interior trim. Failure to
do this
on the first cleaning may result in
water spots, spot rings, setting of
stains or soilage, all of which make
it more difficult or impossible to
remove in a second cleaning.
Certain portions of the following
cleaning instructions are in bold type;
they are particularly impor­
tant and
must be performed.
Dust and loose dirt that accu­
mulates on interior
fabric trim
should be removed frequently with
a vacuum cleaner, whisk broom or
DESCRIPTION*
G.M. Spot Lifter (8 oz. Solvent Type)
soft brush. Vinyl or leather trim
should
be wiped regularly with a
clean damp cloth. Normal trim
soilage, spots or stains can be
cleaned with the following G.M.
cleaners.
G.M. Multi-Purpose Powdered Cleaner (16 oz. Foam Type)
G.M. PART NO.
1051398
1050803
·T~e a,bove cJeaner~ are EXCELLENT CLEANERS when used properly aooording to
directions on containers, They are available through your Chevrolet Dealer.
4-1

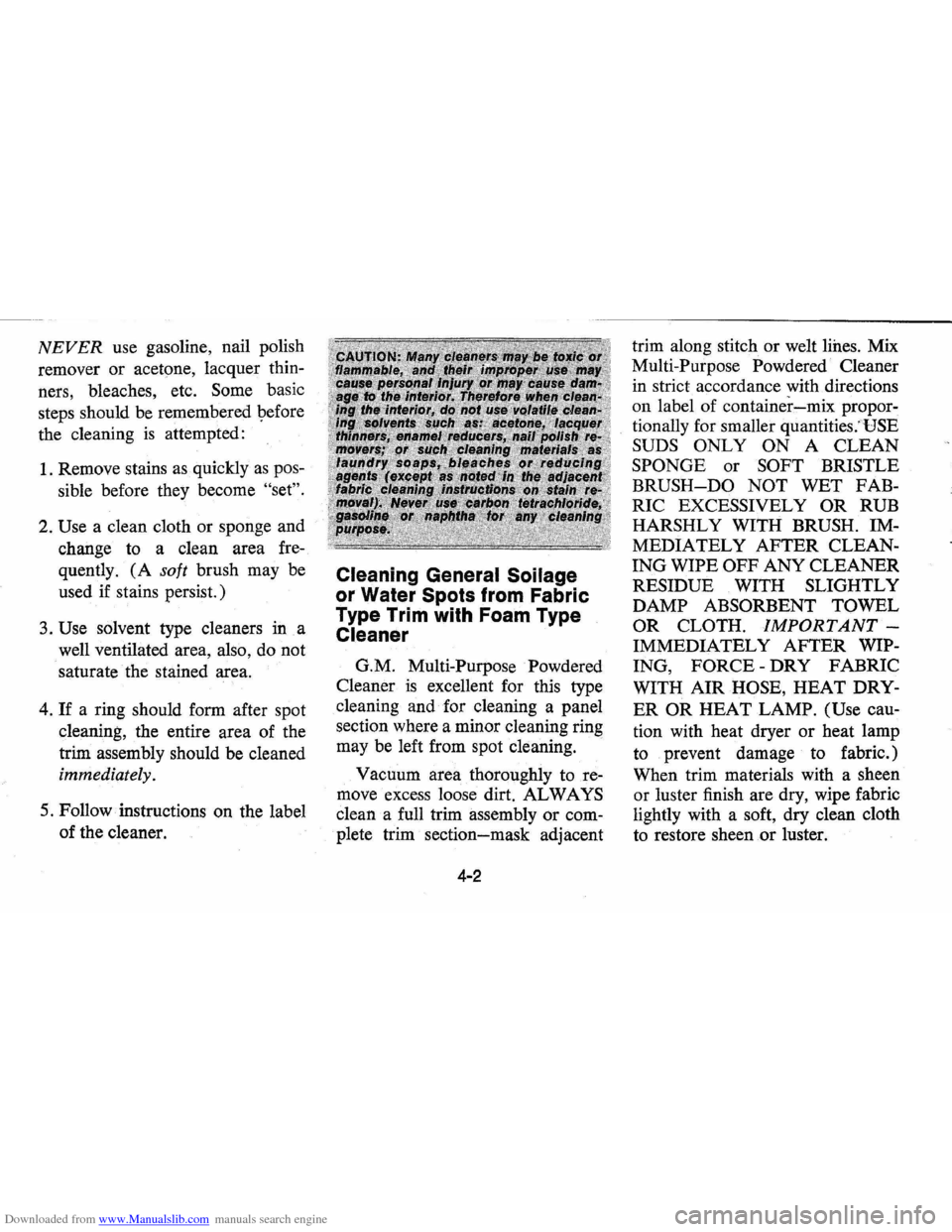

Downloaded from www.Manualslib.com manuals search engine NEVER use gasoline, nail polish
remover or acetone, lacquer
thin­
ners, bleaches, etc. Some basic
steps should be remembered
l;>efore
the cleaning is attempted:
1. Remove stains as. quickly as pos­
sible before they become "set".
2. Use a clean cloth or sponge and
change to a clean area
fre­
quently. (A soft brush may be
used if stains persist.)
3. Use solvent type cleaners in a
well ventilated area, also, do not
saturate the stained area.
4.
If a ring should form after spot
cleaning, the entire area of the
trim assembly should be cleaned
immediately.
5. Follow instructions on the label
of the cleaner.
Cleaning General Soilage
or Water Spots from Fabric
Type Trim with Foam Type
Cleaner
G.M. Multi-Purpose Powdered
Cleaner
is excellent for this type
cleaning and for cleaning a panel
section where a minor cleaning ring
may be left from spot cleaning.
Vacuum area thoroughly to
re­
move excess loose dirt. ALWAYS
clean a full trim assembly or com­
plete trim section-mask adjacent
4-2
trim along stitch or welt liiles. Mix
Multi-Purpose Powdered Cleaner
in strict accordance with directions
on label of container
___ mix propor-
tionally for smaller
quantities/USE
SUDS ONLY ON A CLEAN
SPONGE or SOFT BRISTLE
BRUSH-DO NOT
WET FAB­
RIC EXCESSIVELY OR RUB
HARSHL
Y WITH BRUSH. IM­
MEDIATELY AFTER CLEAN­
ING WIPE OFF ANY CLEANER
RESIDUE WITH SLIGHTLY
DAMP ABSORBENT TOWEL
OR CLOTH.
IMPORTANT­
IMMEDIATELY AFTER WIP­
ING, FORCE -DRY FABRIC
WITH AIR
HOSE, HEAT DRY­
ER OR HEAT LAMP. (Use cau­
tion with heat dryer or heat lamp
to prevent damage to fabric. )
When trim materials with a sheen
or luster finish are dry, wipe fabric
lightly with a soft, dry clean cloth
to restore sheen or luster.

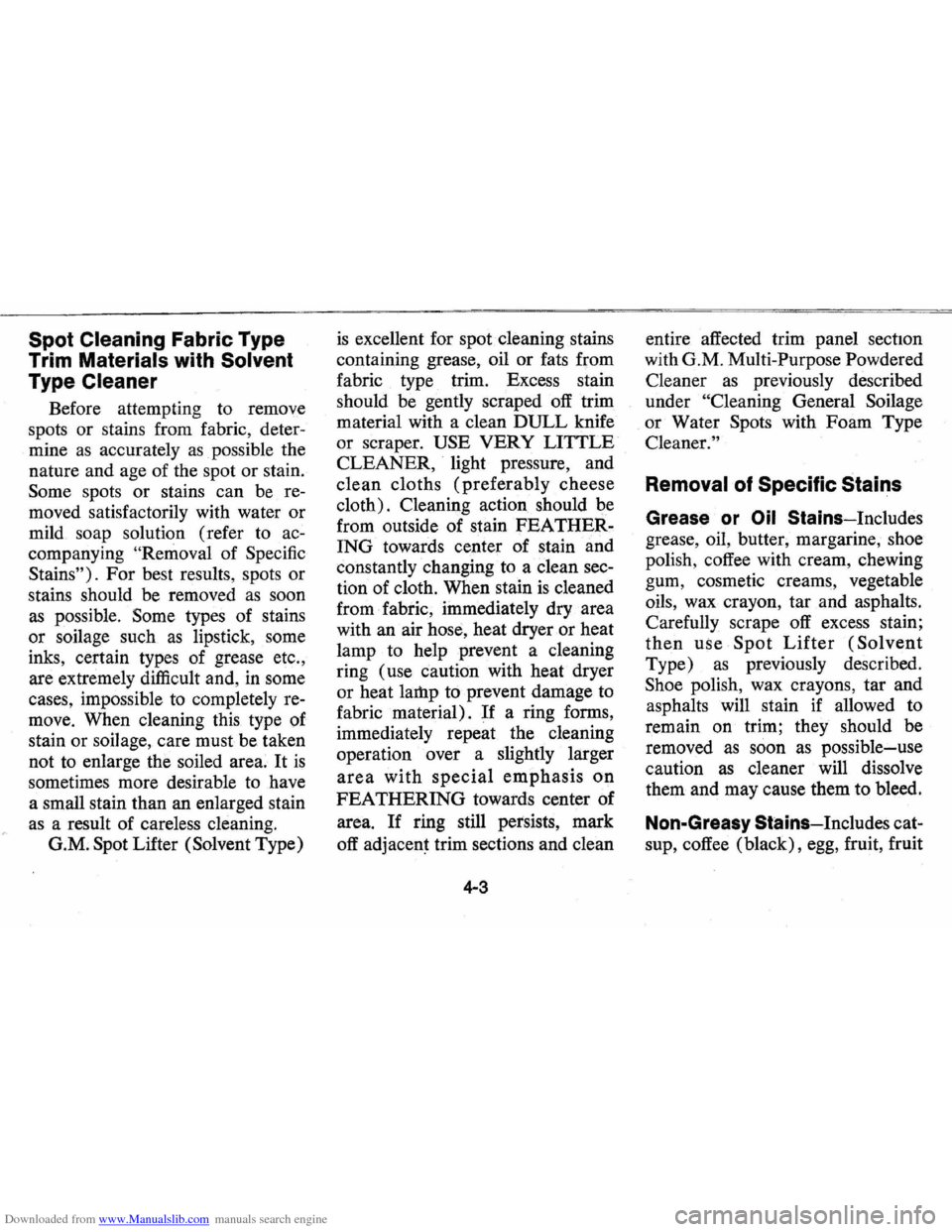

Downloaded from www.Manualslib.com manuals search engine Spot Cleaning Fabric Type
Trim Materials with
Solvent
Type Cleaner
Before attempting to remove
spots or stains from fabric, deter­
mine
as accurately as possible the
nature and age of the spot or stain.
Some spots or stains can be re­
moved satisfactorily with water or
mild soap solution (refer to ac­
companying
"Removal of Specific
Stains"). For best results, spots or
stains should be removed
as soon
as possible. Some types of stains
or soilage such
as lipstick, some
inks, certain types of grease etc.,
are extremely difficult and,
in some
cases, impossible to completely re­
move. When cleaning this type of
stain or soilage, care must be taken
not to enlarge the soiled area.
It is
sometimes more desirable to have
a small stain than an enlarged stain
as a result of careless cleaning.
G.M.
Spot Lifter (Solvent Type)
is excellent for spot cleaning stains
containing grease, oil or fats from
fabric type trim. Excess stain
should be gently scraped off trim
material with a clean DULL knife
or scraper.
USE VERY LITTLE
CLEANER, light pressure, and
clean cloths (preferably cheese
cloth). Cleaning action should be
from outside of stain FEATHER­
ING towards center of stain and
constantly changing· to a clean sec­
tion of cloth.
When stain is cleaned
from · fabric, immediately dry area
with an· air
hose, heat dryer or heat
l~mp to help prevent a cleaning
flng (use caution with heat dryer
or heat
lamp to prevent damage to
fabric material).
If a ring forms,
immediately repeat the
. cleaning
operation over a slightly larger
area with special emphasis on
FEATHERING towards center of
area.
If ring still persists, mark
off adjacent trim sections and clean
4-3
entire affected trim panel sectIOn
with G.M. Multi-Purpose Powdered
Cleaner
as previously described
under
"Cleaning General Soilage
or Water
Spots with Foam Type
Cleaner."
Removal of Specific Stains
Grease or Oil Stains-Includes
grease, oil, butter, margarine shoe
polish, coffee with cream,
ch~wing
gum, cosmetic creams, vegetable
oils, wax crayon, tar and asphalts.
Carefully scrape off excess stain;
then use Spot Lifter (Solvent
Type) as previously described.
Shoe polish, wax crayons, tar and
asphalts
will stain if allowed to
remain on trim; they should be
removed
as soon as possible-use
caution
as cleaner will dissolve
them and may cause them to bleed.
Non-Greasy Stains-Includes cat­
sup, coffee (black), egg, fruit, fruit

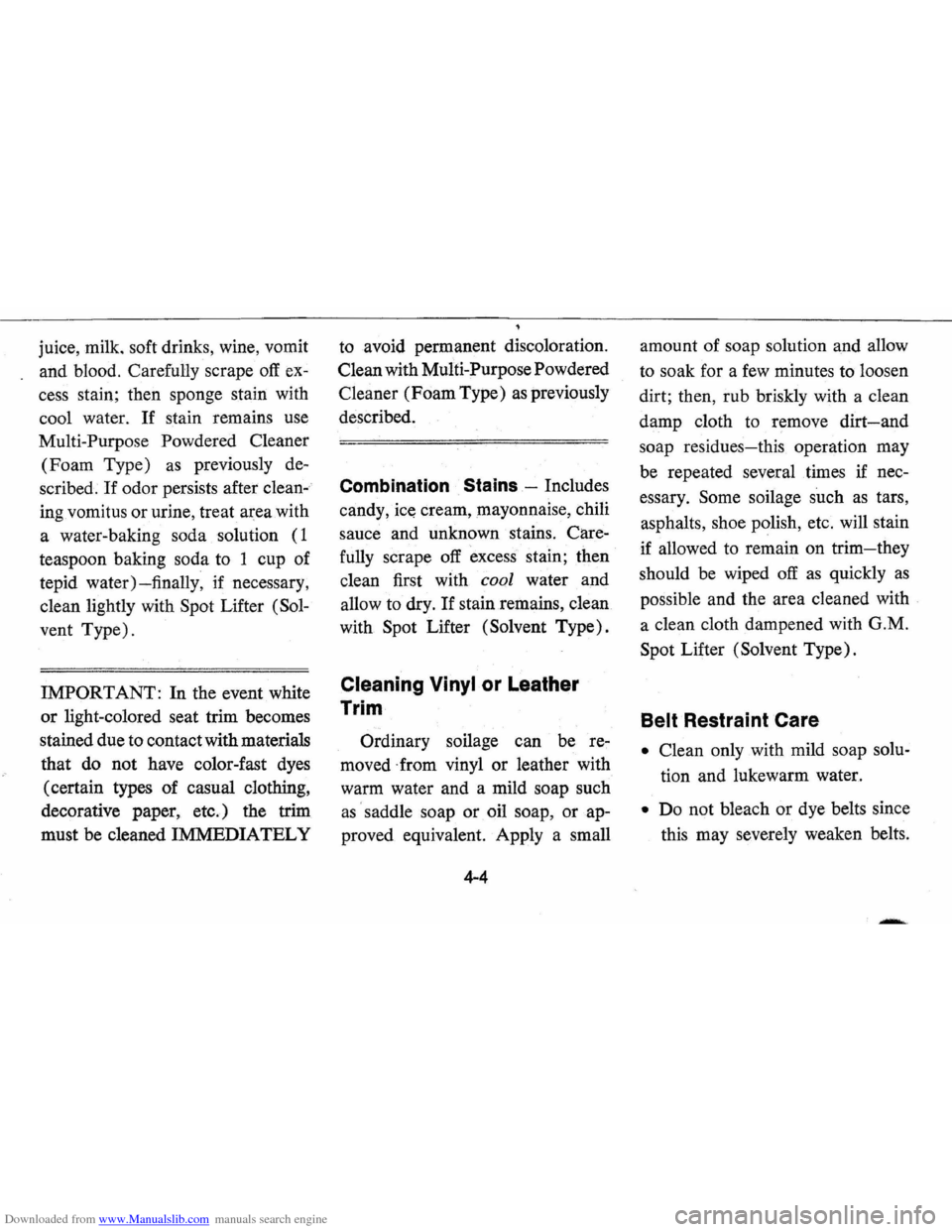

Downloaded from www.Manualslib.com manuals search engine juice, milk, soft drinks, wine, vomit
and blood. Carefully scrape
off eX­
cess stain; then sponge stain with
cool water.
If stain remains use
Multi-Purpose Powdered Cleaner
(Foam Type)
as previously de­
scribed .
If odor persists after clean-'
ingvomitus or urine, treat area with
a water-baking soda solution ( 1
teaspoon baking soda to 1 cup of
tepid water) -finally , if necessary ,
clean lightly with
Spot Lifter (Sol­
vent Type).
IMPORTANT: In the event white
or light-colored seat trim becomes
stained due to contact with materials
that do not have color-fast dyes
(certain types of casual clothing,
decorative paper, etc.) the
trim
must be cleaned IMMEDIATELY to
avoid permanent discoloration.
Clean with Multi-Purpose Powdered
Cleaner (Foam Type)
as previously
described.
Combination Stains-Includes
candy, ice cream, mayonnaise, chili
sauce and unknown stains. Care­
fully scrape
off excess stain; then
clean first with
cool water and
allow to dry.
If stain remains, clean
with
Spot Lifter (Solvent Type).
Cleaning Vinyl or Leather
Trim
Ordinary soilage can be re­
moved
·from vinyl or leather with
warm water and a mild soap such
as' saddle soap or oil soap, orap­
proved equivalent. Apply a small
4-4
amount of soap solution and allow
to soak for a few minutes to loosen
d irt; then , rub briskly with a clean
damp cloth to remove
dirt-and
soap residues-this operation may
be repeated several times
if nec­
essary.
Some soilage such as tars ,
asphalts, shoe polish, etc. will stain
if allowed to remain on trim-they
should be wiped off as quickly as
possible and the area cleaned with .
a clean cloth dampened with G.M.
Spot Lifter (Solvent Type).
Belt Restraint Care
• Clean only with mild soap solu­
tion and lukewarm water.
• Do not bleach or dye belts since
this may severely weaken belts.

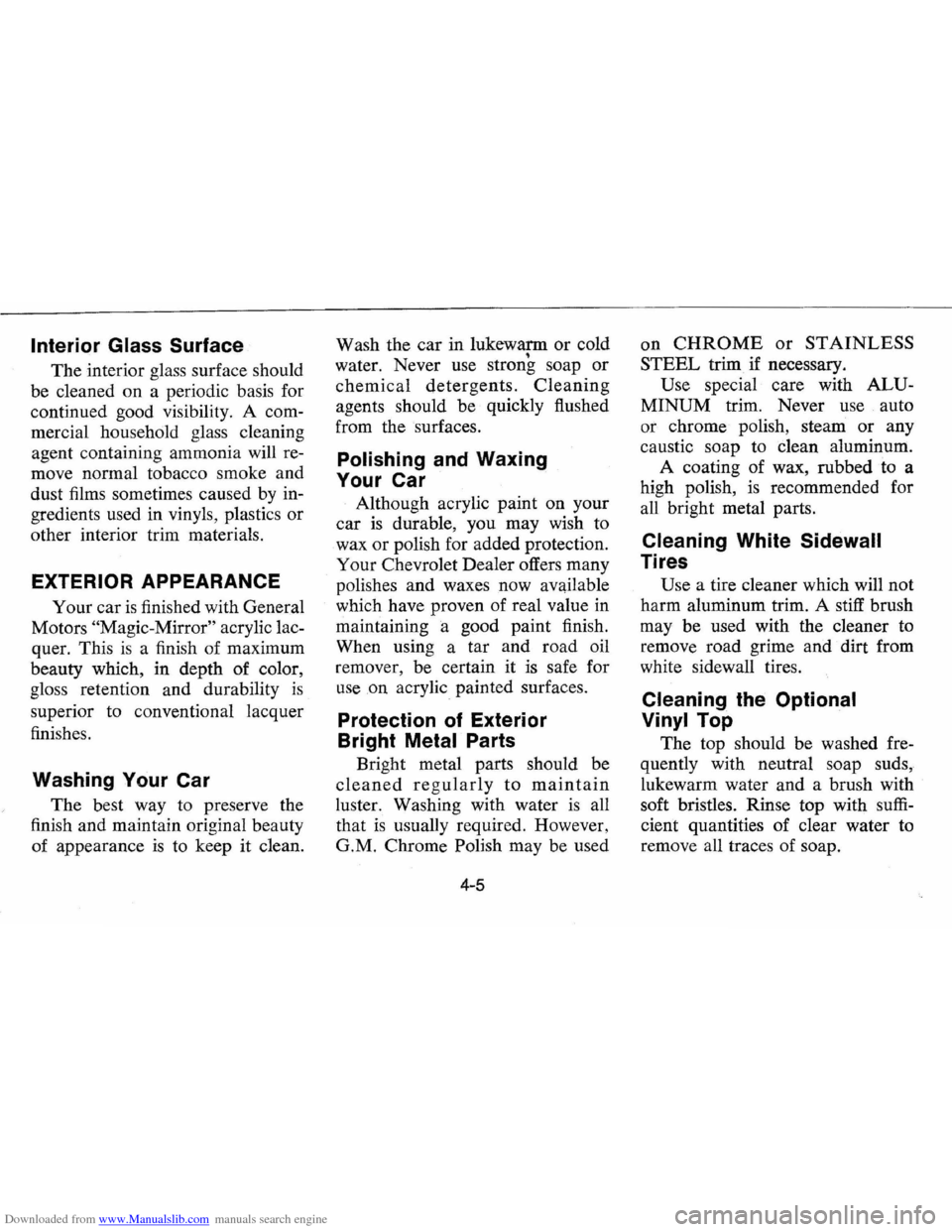

Downloaded from www.Manualslib.com manuals search engine Interior Glass Surface
The interior glass surface should
be cleaned
on a periodic basis for
continued good visibility. A com­
mercial household glass cleaning
agent containing ammonia will re­
move normal tobacco smoke
and
dust films sometimes caused by in­
gredients used in vinyls, plastics
or
other interior trim materials.
EXTERIOR APPEARANCE
Your car is finished with General
Motors
"Magic-Mirror" acrylic lac­
quer. This
is a finish of maximum
beauty which,
in depth of color,
gloss retention
and durability is
superior to conventional lacquer
finishes.
Washing Your Car
The best way to preserve the
finish
and maintain original beauty
of appearance
is to keep it clean. Wash
the
car in lukewarm or cold • water. Never use strong soap or
chemical detergents. Cleaning
agents should be quickly flushed
from the surfaces.
Polishing and Waxing
Your Car
Although acrylic paint on your
car is durable, you may wish to
wax
or polish for added protection.
Your Chevrolet Dealer offers many
polishes
and waxes now ava,ilable
which have proven of real value in
maintaining a good
paint finish.
When using a
tar and road oil
remover, be certain
it is safe for
use
on acrylic painted surfaces.
Protection of Exterior
Bright
Metal Parts
Bright metal parts should be
cleaned regularly to maintain
luster. Washing with water is all
that
is usually required. However,
G.M. Chrome Polish may be used
4-5
on CHROME or STAINLESS
STEEL trim . if necessary.
Use special care with ALU­
MINUM trim. Never use auto
or chrome polish, stearn
or any
caustic soap to clean aluminum.
A coating of wax,
rubbed to a
high polish,
is recommended for
all bright metal parts.
Cleaning White Sidewall
Tires
Use a tire cleaner which will not
harm aluminum trim. A stiff brush
may
be used with the cleaner to
remove road grime
and dirt from
white sidewall tires.
Cleaning the Optional
Vinyl
Top
The top should be washed fre­
quently with neutral soap suds,
lukewarm water
and a brush with
soft bristles. Rinse top with suffi­
cient quantities of clear water to
remove all traces of soap.

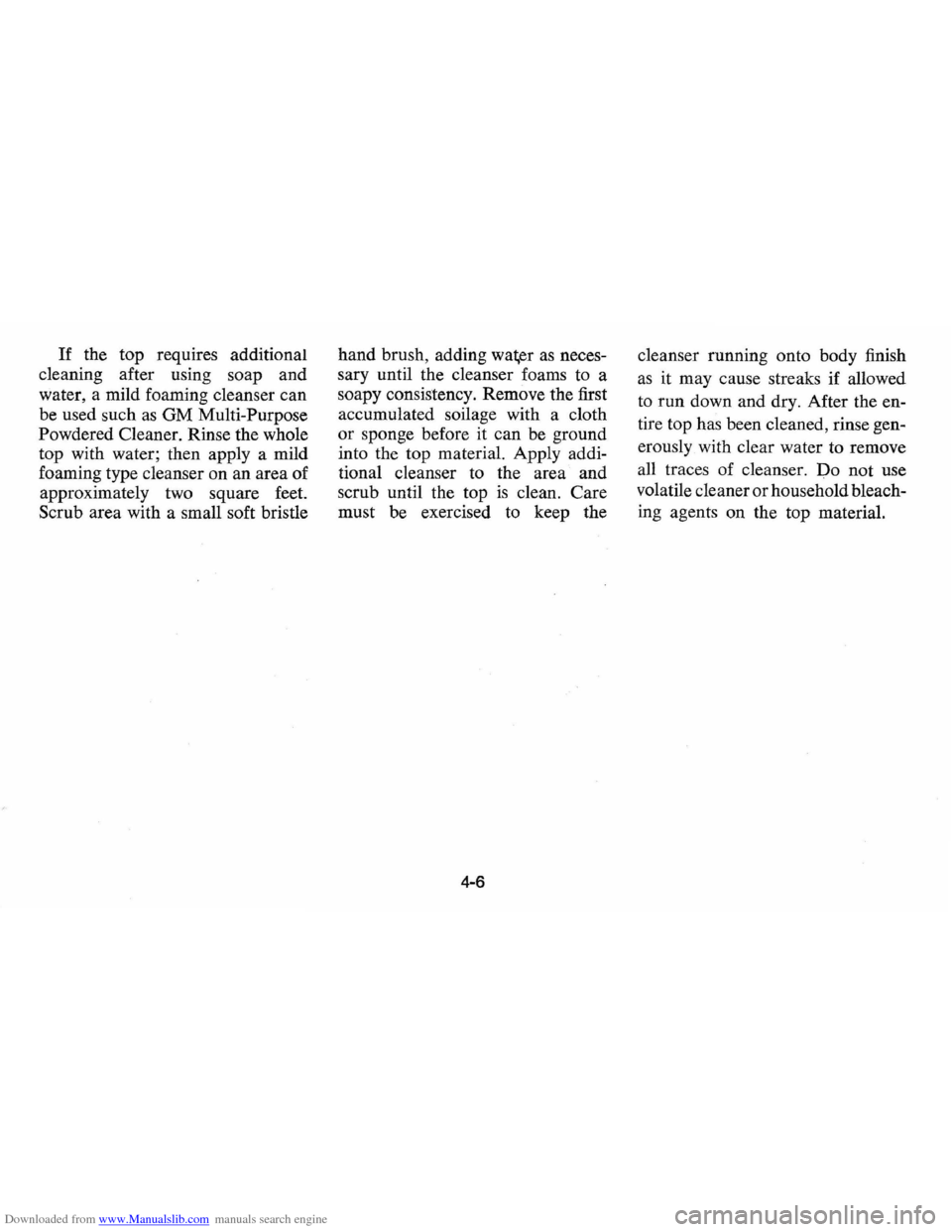

Downloaded from www.Manualslib.com manuals search engine If the top requires additional
cleaning after using soap and
water, a mild foaming cleanser can
be used such
as GM Multi-Purpose
Powdered Cleaner. Rinse the whole
top with water; then apply a mild
foaming type cleanser on an area of
approximately two square feet.
Scrub area with a small soft bristle hand
brush, adding
wa~er as neces­
sary until the cleanser foams to a
soapy consistency. Remove the first
accumulated soilage with a cloth
or sponge before it can be ground
into the top material. Apply addi­
tional cleanser to the area and
scrub until the top
is clean. Care
must be exercised to keep the
4-6
cleanser running onto body finish
as it may cause streaks if allowed
to run down and dry. After the en­
tire top has been cleaned, rinse gen­
erously with clear water to remove
all traces of cleanser. Do not use
volatile cleaner or household bleach­
ing agents on the top material.
