2023 TOYOTA RAV4 PRIME ECO mode

5728-2. Steps to take in an emergency
was in before the 12-volt battery
was discharged. Before discon-
necting the 12-volt battery, turn
the power switch off.
If you are unsure what mode the
power switch was in before the
12-volt battery discharged, be
especially careful when recon-
necting the 12-volt battery.
■When replacing the 12-volt bat-
tery
●Use a 12-volt battery that con-
forms to European regulations.
●Use a 12-volt battery that the case
size is same as the previous one
(LN2), 20 hours rate capacity
(20HR) is equivalent (55Ah) or
greater, and performance rating
(CCA) is equivalent (345A) or
greater.
• If the sizes differ, the 12-volt bat- tery cannot be properly secured.
• If the 20 hour rate capacity is low,
even if the time period where the
vehicle is not used is a short time,
the 12-volt battery may discharge
and hybrid system may not be
able to start.
●Use a ventilation t ype calcium bat-
tery
●Use a 12-volt battery with a han-
dle. If a 12-volt b attery without a
handle is used, removal is more
difficult.
●When removing the 12-volt bat-
tery: P.496
●After replacing, firmly attach the
following items to the exhaust hole
of the 12-volt battery.
• Use the exhaust hose that was
attached to the 12-volt battery
before replacing an d confirm that
it is firmly connected to the hole
section of t he vehicle.
• Use the exhaust hole plug included with the new 12-volt bat-
tery or the one installed on the
battery prior to t he replacement.
(Depending on the new 12-volt
battery installed, the exhaust hole
may be plugged.) For details, consu
lt your Toyota
dealer.
Exhaust hole
Exhaust hose
Hole section of the vehicle
●The terminals can be connected
to the body side when the nega-
tive terminal of the 12-volt battery
is disconnected, as shown in the
illustration.
WARNING
■When removing the battery
terminals
Always remove the negative (-)
terminal first. If the positive (+) ter-
minal contacts any metal in the
surrounding area when the posi-
tive (+) terminal is removed, a
spark may occur, leading to a fire
in addition to ele ctrical shocks
and death or serious injury.
A
B
C

5969-1. Specifications
Intended outboard side-
wall
(a)The sidewall that contains a whitewall, bears
white lettering, or bear s manufacturer, brand,
and/or model name molding that is higher or
deeper than the same molding on the other
sidewall of the tire, or
(b)The outward facing sidewall of an asymmetri-
cal tire that has a par ticular side that must
always face outward whe n mounted on a vehi-
cle
Light truck (LT) tire
A tire designated by its manufacturer as primar-
ily intended for use on lightweight trucks or mul-
tipurpose passenger vehicles
Load ratingThe maximum load that a tire is rated to carry
for a given inflation pressure
Maximum load ratingThe load rating for a tire at the maximum per-
missible inflation pressure for that tire
Maximum permissible
inflation pressureThe maximum cold inflation pressure to which a
tire may be inflated
Measuring rimThe rim on which a tire is fitted for physical
dimension requirements
Open spliceAny parting at any junction of tread, sidewall, or
innerliner that extends to cord material
Outer diameterThe overall diameter o f an inflated new tire
Overall width
The linear distance between the exteriors of the
sidewalls of an inflated ti re, including elevations
due to labeling, decorations, or protective bands
or ribs
Passenger car tire
A tire intended for use on passenger cars, multi-
purpose passenger vehicles, and trucks, that
have a gross vehicle weight rating (GVWR) of
10,000 lb. or less.
PlyA layer of rubber-coated parallel cords
Ply separationA parting of rubber compound between adjacent
plies
Tire related termMeaning

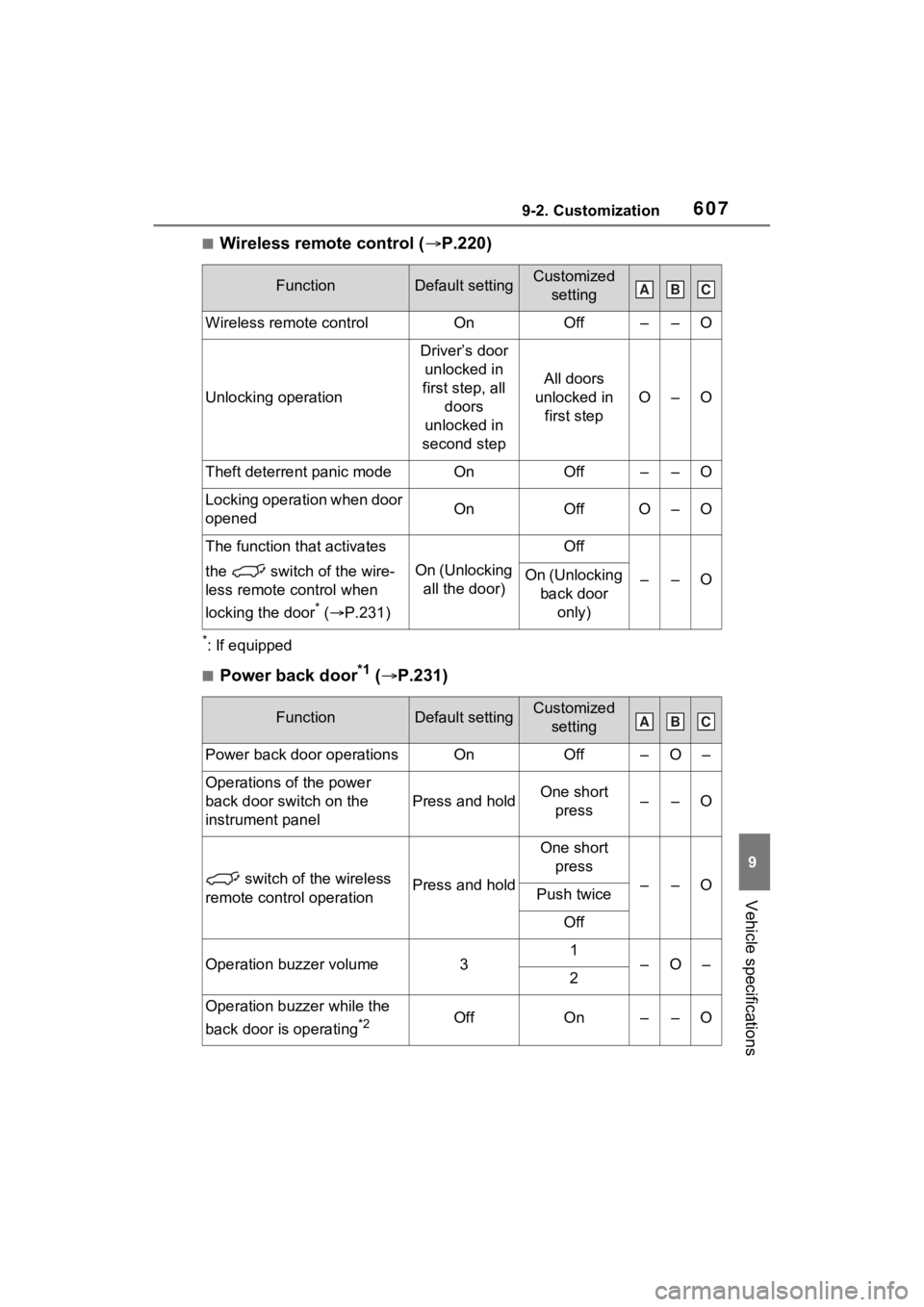

6079-2. Customization
9
Vehicle specifications
■Wireless remote control (P.220)
*: If equipped
■Power back door*1 ( P.231)
FunctionDefault settingCustomized
setting
Wireless remote controlOnOff––O
Unlocking operation
Driver’s door unlocked in
first step, all doors
unlocked in
second step
All doors
unlocked in first step
O–O
Theft deterrent panic modeOnOff––O
Locking operation when door
openedOnOffO–O
The function that activates
the switch of the wire-
less remote control when
locking the door
* ( P.231)
On (Unlocking
all the door)
Off
––OOn (Unlocking back door only)
FunctionDefault settingCustomized setting
Power back door operationsOnOff–O–
Operations of the power
back door switch on the
instrument panel
Press and holdOne short press––O
switch of the wireless
remote control operationPress and hold
One short press
––OPush twice
Off
Operation buzzer volume31–O–2
Operation buzzer while the
back door is operating
*2OffOn––O
ABC
ABC

6139-2. Customization
9
Vehicle specifications
■Automatic air conditioning system (P.422)
■Seat ventilators* ( P.433)
*: If equipped
■Remote Air Conditioning System ( P.431)
■Illumination ( P.436)
FunctionDefault settingCustomized
setting
A/C Auto switch operationOnOffO–O
Switching to t he outside air
mode when the vehicle is
parked
OnOff––O
FunctionDefault settingCustomized setting
Blower levelNormalDecrease––O
FunctionDefault settingCustomized setting
Operation using the “A/C”
button on the wireless
remote controlPress and hold (short)
Press once
––O
Press twice
Press and hold (long)
Off
Stopping operation using the
“A/C” button on the wireless
remote control
Press twice
Press once
––O
Press and hold (short)
Press and hold (long)
Off
FunctionDefault settingCustomized setting
Time elapsed before the inte-
rior lights turn off15 seconds
Off
O–O7.5 seconds
30 seconds
ABC
ABC
ABC
ABC

635Alphabetical Index
Alphabetical Index
A
A/C“My Room Mode” ................. 148
Air conditioning filter ............. 513
Automatic air conditioning sys-tem ..................................... 422
Eco air conditioning mode .... 423
Front seat concentrated airflow mode (S-FLOW) ................. 428
Humidity sensor ................... 430
Remote Air Conditioning System ........................................... 431
ABS (Anti-lock Brake System) ............................................... 407Function ............................... 407
Warning light ........................ 543
ACA (Active Cornering Assist) ............................................... 407
AC charging cable .................. 100 CCID (Charging Circuit Interrupt-ing Device) ......................... 101
If the charging connector cannot be unlocked ........................ 108
Indicator ............................... 102
Locking and unlocking.......... 106
Maintenance......................... 104
Safety functions.................... 102
Acoustic Vehicle Alerting Sys- tem ........................................... 83
Active Cornering Assist (ACA) ............................................... 407
Airbags ...................................... 33 Airbag operating conditions.... 35
Airbag precautions for your child............................................. 38
Airbag warning light.............. 543
Correct driving posture ........... 27
Curtain shield airbag operating conditions ............................. 36
Curtain shield airbag precautions ............................................. 38 Front passenger occupant clas-
sification system ...................43
General airbag precautions ....38
Locations of airbags ...............33
Modification and disposal of air- bags......................................41
Seat cushion airbag................33
Side airbag operating conditions .............................................36
Side airbag precautions..........38
Side and curtain shield airbags operating conditions .............36
Side and curtain shield airbags precautions ...........................38
SRS airbag instructions for Canadian owners ...............621
SRS airbags ...........................33
SRS warning light .................543
Air conditioning filter .............513
Air conditioning system “My Room Mode” ..................148
Air conditioning filter .............513
Automatic air conditioning sys-tem .....................................422
Eco air conditioning mode ....423
Front seat concent rated airflow
mode (S-FLOW) .................428
Remote Air Conditioning System ...........................................431
Air intake vent (DC/DC converter) .................................................89Cleaning ...............................515
Alarm .........................................71 Warning buzzer .. ..................541
Anchor brackets ... ..............52, 61
Antenna (Smart key system) .241
Anti-lock brake system (ABS)407 Function................................407
Warning light ........................543
Approach warning ..................373
Armrest ......... ......................... ..454
Assist grips .............................454

636Alphabetical Index
Audio system-linked display190, 202
AUTO EV/HV mode ................... 75
AUTO EV/HV mode switch....... 76
Automatic air conditioning sys- tem ......................................... 422“My Room Mode” ................. 148
Air conditioning filter ............. 513
Eco air conditioning mode .... 423
Front seat concentrated airflow mode (S-FLOW) ................. 428
Remote Air Conditioning System ........................................... 431
Automatic door locking and unlocking systems ............... 226
Automatic High Beam (AHB) . 324
Automatic light control system ............................................... 322
Auxiliary box ........................... 440
Average fuel economy ... 186, 199
Average vehicle speed .. 190, 202
B
Back door ................................ 227 Hands Free Power Back Door........................................... 232
Power back door .................. 231
Wireless remote control ....... 231
Back-up lights Replacing light bulbs ............ 528
Wattage ................................ 586
Battery (12-volt battery) ......... 495 If the 12-volt battery is dis-charged .............................. 569
Preparing and c hecking before
winter.................................. 413
Replacing ............................. 572
Warning light ........................ 541
Battery (traction battery) ......... 85 Charging....................... 113, 121
Location.................................. 85
Specification ......................... 582 Blind Spot Monitor (BSM) ......378
Blind Spot Monitor function ..381
Rear Cross Traffic Alert function...........................................383
Bottle holders .........................440
Brake Brake Hold ............................318
Fluid......................................493
Parking brake .......................314
Regenerative braking .............80
Warning light ........................541
Brake assist ............................407
Brake Hold...............................318
Brake Override System ..........283
Break-in tips ............................283
Brightness control Instrument panel light control177
BSM (Blind Spot Monitor) ......378 Blind Spot Monitor function ..381
Rear Cross Traffic Alert function...........................................383
C
Care Aluminum wheels .................472
Exterior .................................472
Front camera ........................336
Interior ..................................475
Radar sensor ........................336
Seat belts .............................475
Water-repellent coating ........473
Cargo capacity ................289, 292
Cargo hooks............................442
Chains......................................415
Charging “My Room Mode” ..................148
AC charging cable ................100
Charging equipment ...............97
Charging indicator ..................98
Charging messages .............158
Charging precautions ...........123
Charging procedure..............121

Alphabetical Index639
Brake System) ...................... 407
Eco drive mode ...................... 404
EDR (Event data recorder)......... 8
E-Four (Electronic On-Demand AWD system) ........................ 408
Elapsed time ................... 190, 202
Electric motor Location.................................. 74
Specification ......................... 582
Electric Power Steering (EPS) Function ............................... 408
Warning light ........................ 543
Electronically Controlled Brake System (ECB) ....................... 407
Electronic key Battery-saving function......... 242
If the electronic key does not operate properly ................. 567
Replacing the battery ........... 522
Electronic sunshade .............. 276 Jam protection function ........ 277
Operation ............................. 276
Emergency, in case of If a warning buzzer sounds .. 541
If a warning light turns on ..... 541
If a warning message is dis-played................................. 552
If the 12-volt battery is dis- charged .............................. 569
If the electronic key does not operate properly ................. 567
If the fuel filler door cannot be opened ............................... 566
If the hybrid sy stem will not start
........................................... 564
If the vehicle is submerged or water on the road is rising .. 536
If you have a flat tire ............. 557
If you lose your keys ............ 566
If you think something is wrong ........................................... 540
If your vehicle becomes stuck ...........................................578
If your vehicle has to be stopped in an emergency .................535
If your vehicle needs to be towed ...........................................538
If your vehicle ove rheats ......574
Emergency flashers ...............534
Energy monitor .......................212
Engine Compartment........................489
Exhaust gas precautions ........48
Hood .....................................486
How to start the hybrid system...........................................304
Identification number ............581
If the hybrid sys tem will not start
...........................................564
If your vehicle has to be stopped in an emergency .................535
Overheating ..........................574
Power switch ........................304
Tachometer ..........................178
Engine coolant Capacity ...............................583
Checking ..............................491
High coolant temperature warn-ing light ...............................542
Preparing and checking before winter ..................................413
Warning light ........................542
Engine oil Capacity ...............................582
Checking ..............................489
Preparing and checking before winter ..................................413
Warning light ........................542
Enhanced Vehicle Stability Con- trol (Enhanced VSC ) .............407
Enhanced VSC (Enhanced Vehi- cle Stability Control).............407
EPS (Electric Po wer Steering)
Function................................408

640Alphabetical Index
Warning light ........................ 543
EV/HV mode selection switch . 76
EV driving range ....................... 93
Event data recorder (EDR)......... 8
EV mode .................................... 75
Exhaust gas precautions ......... 48
F
Flat tire .................................... 557 Tire pressure warning system........................................... 500
Floor mats ................................. 26
Fluid Brake ............................ 493, 585
Hybrid transmission.............. 584
Rear differential .................... 584
Washer ................................. 494
Footwell lights ..... ................... 436
Front passenger’s seat belt reminder light ....................... 548
Front passenger occupant clas- sification system .................... 43
Front seat concentrated airflow mode (S-FLOW) .................... 428
Front seat heaters .................. 433
Front seats .............................. 247 Adjustment ........................... 247
Cleaning ............................... 475
Correct driving posture ........... 27
Driving position memory....... 250
Head restraints ..................... 253
Memory recall function ......... 252
Seat heaters ......................... 433
Seat position memory .......... 250
Seat ventilators .................... 433
Front side marker lights ........ 321 Light switch .......................... 321
Replacing light bulbs ............ 528
Front turn signal lights Replacing light bulbs ............ 528
Turn signal lever................... 313
Fuel Capacity ...............................581
Fuel gauge ...................173, 178
Gas station information ........664
Information .........
..................587
Refueling ..............................332
Type .............................581, 587
Warning light ........................547
Fuel filler door.........................333 If the fuel filler door cannot be opened ...............................566
Opener .................................333
Refueling ..............................332
Fuel gauge...............................178
Fuses .......................................524
G
Garage door opene r ...............463
Gas station information .........664
Gauges ....................................178
Glove box ................................439
H
Headlights ...............................321 Automatic High Beam (AHB) 324
Light switch...........................321
Replacing light bulbs ............528
Headlights aim ........................527 Headlight aim instructions for Canadian owners ...............628
Head restraints .......................253
Head-up display ......................208
Heated steering wheel............433
Heaters Automatic air conditioning sys-tem .....................................422
Heated steering wheel..........433
Hybrid battery (tr action battery)
...........................................113
Outside rear view mirrors .....424
Seat heaters ....... ..................433
High coolant temperature warn-
