2023 TOYOTA RAV4 PRIME turn signal bulb

15Pictorial index
To prevent freezing (windshield wiper de-icer)*...................P.429
Precautions against car wash
(Rain-sensing windshield wipers)
*.......................................P.473
Replacing the wiper insert .................................... ...............P.519
Fuel filler door ............................................... .....................P.332
Refueling method ............................................... ..................P.332
Fuel type/fuel tan k capacity .................................................P.581
Charging port .................................................. .....................P.97
Charging method ................................................ .................P.113
Tires ....................................................................................P.497
Tire size/inflation pressure ................................... ................P.585
Winter tires/tire chain ........................................ ...................P.413
Checking/rotation/tire pressure warning system
*.................P.497
Coping with flat tires......................................... ....................P.557
Hood ....................................................................................P.486
Opening ........................................................ .......................P.486
Engine oil ..................................................... ........................P.582
Coping with overheat ........................................... ................P.574
Warning messages ..............................................................P.552
Headlights..................................................... ......................P.321
Turn signal lights ...............................................................P.313
Parking lights .....................................................................P.321
Daytime running lights .. ....................................................P.321
Side marker lights ............................................. .................P.321
LED accessory lights
*........................................................P.321
Stop lights/tail lights ........................................ ..................P.321
Tail lights .................................................... ........................P.321
Light bulbs of the exterior lights for driving
(Replacing method: P.528, Watts: P.586)
E
F
G
H
I
J
K
L
M
N
O
P

3135-2. Driving procedures
5
Driving
■S mode
●You can choose from 6 levels of
accelerating force and engine
braking force.
●A lower shift range will provide
greater accelerating force and
engine braking force than a higher
shift range, and the engine revolu-
tions will also increase.
●To prevent the e ngine from over-
revving, upshifti ng may automati-
cally occur when the shift range is
1 or 2.
●When the shift range is 4 or lower,
holding the shift lever toward “+”
sets the shift range to 6.
■Downshifting restriction warn-
ing buzzer
To help ensure safety and driving
performance, downshifting opera-
tion may sometimes b e restricted. In
some circumstances, downshifting
may not be possible even when the
shift lever or paddle shift switches (if
equipped) is operated. (A buzzer
will sound twice.)
■If the “S” indicator does not
come on or the “D” indicator is
displayed even after shifting the
shift lever to S
This may indicate a malfunction in
the transmission system. Have the
vehicle inspected by your Toyota
dealer immediately. (In this situa-
tion, the transmissi on will operate in
the same manner as when the shift
lever is in D.)
1 Right turn
2 Lane change to the right
(move the lever partway and
release it)
The right hand s ignals will flash 3
times.
3 Lane change to the left
(move the lever partway and
release it)
The left hand signals will flash 3
times.
4Left turn
■Turn signals can be operated
when
The power switch is in ON.
■If the indicator flashes faster
than usual
Check that a light bulb in the front or
rear turn signal lights has not
Turn signal lever
Operating instructions

5287-3. Do-it-yourself maintenance
Check the wattage of the light
bulb to be replaced. ( P.586)
Rear
Rear turn signal lights
Back-up lights
■Lights that need to be
replaced by your Toyota
dealer
 Headlights 
Front turn signal lights
 Daytime running lights and
parking lights
 Front side marker lights
 LED accessory lights (if
equipped)
 Side turn signal lights
 Tail lights
 Stop lights
 Rear side marker lights
 High mounted stoplight
 License plate lights
 Outer foot lights (if equipped)
■LED lights
The lights other than the following
lights each consist of a number of
LEDs. If any of t he LEDs burn out,
take your vehicle to your Toyota
dealer to have the light replaced.
●Rear turn signal lights
●Back-up lights
■Condensation build-up on the
inside of the lens
Temporary condensation build-up
on the inside of the light lens does
not indicate a mal function. Contact
your Toyota dealer for more infor-
mation in the following situations:
●Large drops of water have built up
on the inside of the lens.
●Water has built up inside the light.
■When replacing an electronic
component, such as a lights,
etc.
 P.526
Light bulbs
You may replace the follow-
ing bulbs by yourself. The
difficulty level of replace-
ment varies depending on
the bulb. If necessary bulb
replacement seems difficult
to perform, contact your
Toyota dealer.
For more information about
replacing other light bulbs,
contact your Toyota dealer.
Preparing for light bulb
replacement
Bulb location
A
B

5297-3. Do-it-yourself maintenance
7
Maintenance and care
■Rear turn signal lights
1 Open the back door and
remove the cover.
2 Remove the screws and
remove the unit.
Remove the lamp assembly by pull-
ing it directly backward from the
rear of the vehicle.
3Turn the bulb base counter-
clockwise. 4
Remove the light bulb.
5 Install a new light bulb then
install the bulb base to the
light unit by inserting it and
turning the bulb base clock-
wise.
6 Align the grooves on the light
unit with the claws, and insert
the light unit straight so that
the pin on the light unit fit into
the hole.
Confirm that the light unit is com-
Replacing light bulb

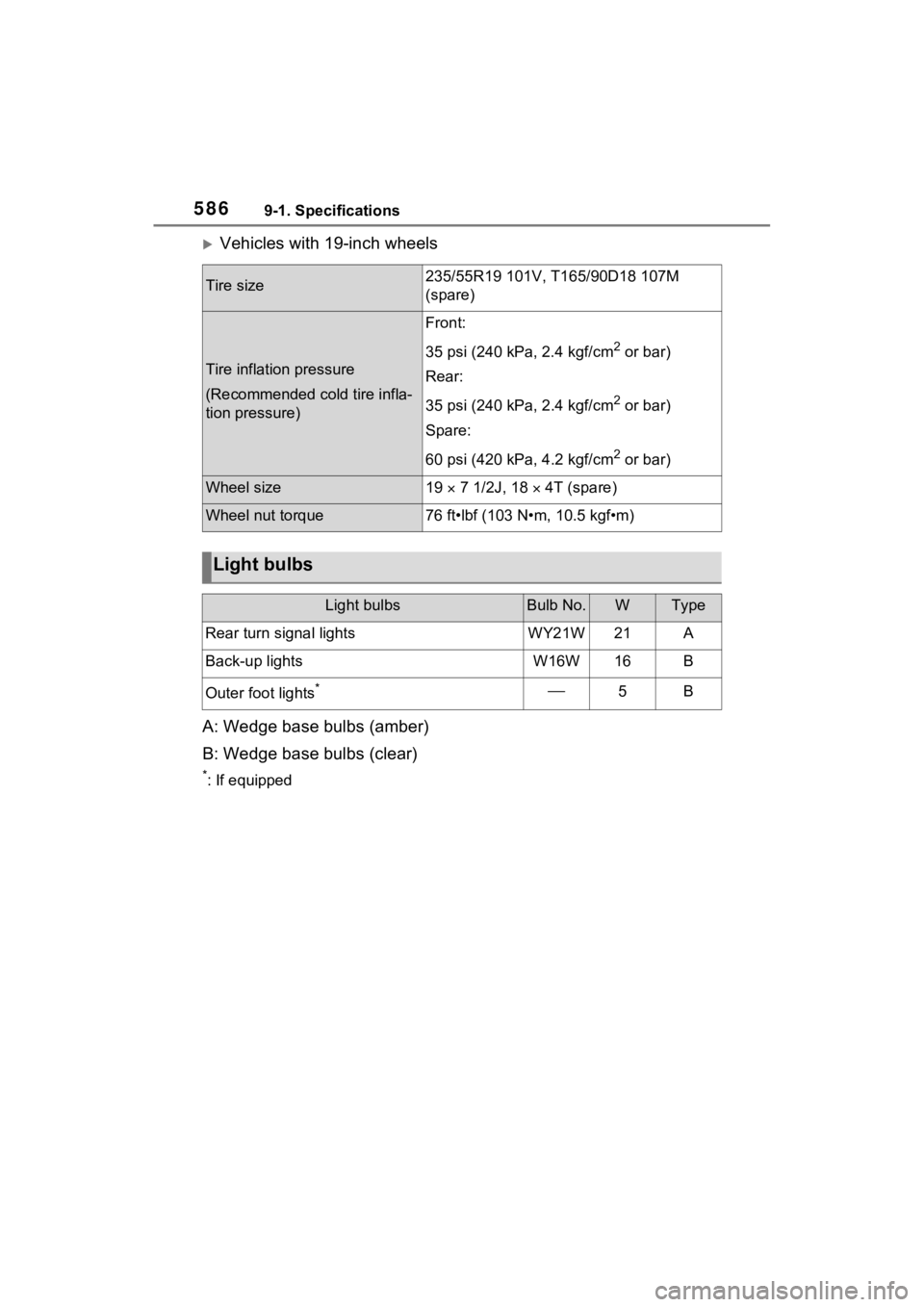

5869-1. Specifications
Vehicles with 19-inch wheels
A: Wedge base bulbs (amber)
B: Wedge base bulbs (clear)
*: If equipped
Tire size235/55R19 101V, T165/90D18 107M
(spare)
Tire inflation pressure
(Recommended cold tire infla-
tion pressure)
Front:
35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Rear:
35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Spare:
60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
Wheel size19  7 1/2J, 18  4T (spare)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Light bulbs
Light bulbsBulb No.WType
Rear turn signal lightsWY21W21A
Back-up lightsW16W16B
Outer foot lights*5B

640Alphabetical Index
Warning light ........................ 543
EV/HV mode selection switch . 76
EV driving range ....................... 93
Event data recorder (EDR)......... 8
EV mode .................................... 75
Exhaust gas precautions ......... 48
F
Flat tire .................................... 557 Tire pressure warning system........................................... 500
Floor mats ................................. 26
Fluid Brake ............................ 493, 585
Hybrid transmission.............. 584
Rear differential .................... 584
Washer ................................. 494
Footwell lights ..... ................... 436
Front passenger’s seat belt reminder light ....................... 548
Front passenger occupant clas- sification system .................... 43
Front seat concentrated airflow mode (S-FLOW) .................... 428
Front seat heaters .................. 433
Front seats .............................. 247 Adjustment ........................... 247
Cleaning ............................... 475
Correct driving posture ........... 27
Driving position memory....... 250
Head restraints ..................... 253
Memory recall function ......... 252
Seat heaters ......................... 433
Seat position memory .......... 250
Seat ventilators .................... 433
Front side marker lights ........ 321 Light switch .......................... 321
Replacing light bulbs ............ 528
Front turn signal lights Replacing light bulbs ............ 528
Turn signal lever................... 313
Fuel Capacity ...............................581
Fuel gauge ...................173, 178
Gas station information ........664
Information .........
..................587
Refueling ..............................332
Type .............................581, 587
Warning light ........................547
Fuel filler door.........................333 If the fuel filler door cannot be opened ...............................566
Opener .................................333
Refueling ..............................332
Fuel gauge...............................178
Fuses .......................................524
G
Garage door opene r ...............463
Gas station information .........664
Gauges ....................................178
Glove box ................................439
H
Headlights ...............................321 Automatic High Beam (AHB) 324
Light switch...........................321
Replacing light bulbs ............528
Headlights aim ........................527 Headlight aim instructions for Canadian owners ...............628
Head restraints .......................253
Head-up display ......................208
Heated steering wheel............433
Heaters Automatic air conditioning sys-tem .....................................422
Heated steering wheel..........433
Hybrid battery (tr action battery)
...........................................113
Outside rear view mirrors .....424
Seat heaters ....... ..................433
High coolant temperature warn-

642Alphabetical Index
Positioning a floor jack ......... 487
Vehicle-equipped jack .......... 558
Jack handle ............................. 558
Jam protection function Electronic sunshade ............. 277
Moon roof ............................. 273
Panoramic moon roof ........... 277
Power back door .................. 234
Power windows .................... 270
K
Keyless entrySmart key system................. 241
Wireless remote control ....... 220
Keys ......................................... 218 Battery-saving function......... 242
Electronic key ....................... 218
If the electronic key does not operate properly ................. 567
If you lose your keys ............ 566
Key number plate ................. 218
Keyless entry................ 220, 241
Mechanical key .................... 220
Power switch ........................ 304
Replacing the battery ........... 522
Warning buzzer .................... 242
Wireless remote control key . 220
Knee airbags ............................. 33
L
Lane Tracing Assist (LTA) ..... 351 Operation ............................. 351
Warning messages .............. 362
Language (multi-information dis- play) ....................... 194, 203, 601
LATCH anchors ........................ 59
LED accessory lights ............. 322 Replacing light bulbs ............ 528
Lever Auxiliary catch lever ............. 486
Hood lock release lever........ 486 Shift lever .............................309
Turn signal lever .
..................313
Wiper lever ...................327, 330
License plate lights Light switch...........................321
Replacing light bulbs ............528
Light bulbs Replacing .............................528
Wattage ................................586
Lights Automatic High Beam (AHB) 324
Emergency flasher switch ....534
Front interior lights................437
Headlight switch ...................321
Illuminated entry system .......436
Interior lights .........................437
Luggage compartment light 230, 233
Personal lights ......................437
Rear interior light ..................437
Replacing light bulbs ............528
Turn signal lever . ..................313
Vanity lights ..........................445
Wattage ................................586
Load capacity..........................292
LTA (Lane Tracing Assist) .....351 Operation..............................351
Warning messages ...............362
Luggage compartment light 230, 233
Luggage cover ........................443M
Maintenance Do-it-yourself maintenance ..484
General maintenance ...........480
Maintenance data .................580
Maintenance requirements ...478
Malfunction indicator lamp ....542
Menu icons ..............................186
Meter “ODO TRIP” switch ...............177

Alphabetical Index645
Power steering (Electric Power Steering system) .................. 408Warning light ........................ 543
Power switch .......................... 304 Auto power off function ........ 308
Changing the power switch modes ................................ 307
If your vehicle has to be stopped in an emergency................. 535
Starting the hybrid system.... 304
Power windows Catch protection function ..... 270
Door lock linked window opera-tion ..................................... 271
Jam protection function ........ 270
Operation ............................. 270
Window lock switch .............. 272
Pre-Collision System (PCS) Enabling/disabling the pre-colli-sion system ........................ 343
Function ............................... 340
Warning light ........................ 544
Warning message ........ 338, 555
Predictive efficient drive .......... 83
R
Radar cruise control Dynamic radar cruise control with full-speed range .......... 366
Radiator ................................... 492
RCTA (Rear Cross Traffic Alert) RCTA Function............. 378, 383
Warning message ................ 380
Rear Cross Traffic Alert (RCTA) ............................................... 378
Rear passengers’ seat belt reminder light ....................... 548
Rear seat ................................. 248 Folding down the rear seatbacks........................................... 249
Head restraints ..................... 253
Seat heaters ......................... 434 Rear side marker lights
Light switch...........................321
Replacing light bulbs ............528
Rear turn signal lights Replacing light bulbs ............528
Turn signal lever . ..................313
Wattage ................................586
Rear view mirror Digital Rear-view Mirror ........258
Inside rear view mirror ..........257
Outside rear view mirrors .....268
Rear window defogger ...........424
Rear window wiper .................330
Refueling ............ .....................332
Capacity ...............................581
Fuel types .....................581, 587
If the fuel filler door cannot be opened ...............................566
Opening the fuel tank cap ....333
Regenerative braking ...............80
Remote Air Conditioning System ...............................................431
Replacing Electronic key battery ...........522
Fuses....................................524
Light bulbs ............................528
Tires .....................................557
Wiper insert ..........................519
Reporting safety defects for Canadian owners ..................619
Reporting safety defects for U.S. owners ...................................618
Resetting the message indicat- ing maintenance is required 479
Road accident cautions ...........87
Road Sign Assist ....................363
RSA (Road Sign Assist) .........363
S
Safety Connect .........................65
Seat belt reminder light..........548
Seat belts...................................29
