1433-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
Operation of each component
3
Closing the back door

Hold the back door inner handle to
lower the back door
Make sure to close it from the outside by
pushing it down.

⬛Luggage compartment light (door-linked) The luggage compartment light
(door-linked) will light up when the
back door or any door other than the
back door is opened.
When the engine switch is “ACC” or
“OFF”, the light will automatically turn
off approximately after 10 minutes.

⬛Unlocking the back door
If the back door cannot be opened by unlocking with the back door opener
switch, check to see if the b ack door is slightly open.
⬛Open door warning buzzer
➞P. 381, 390
⬛Customizations
You can customize the operations performed by the back door switch.
(List of customizable features: ➞ P. 430)
KBRO320203N
KBRO530105N
Parts.fm 143 ページ ２０２２年６月１７日　金曜日　午前９時２分

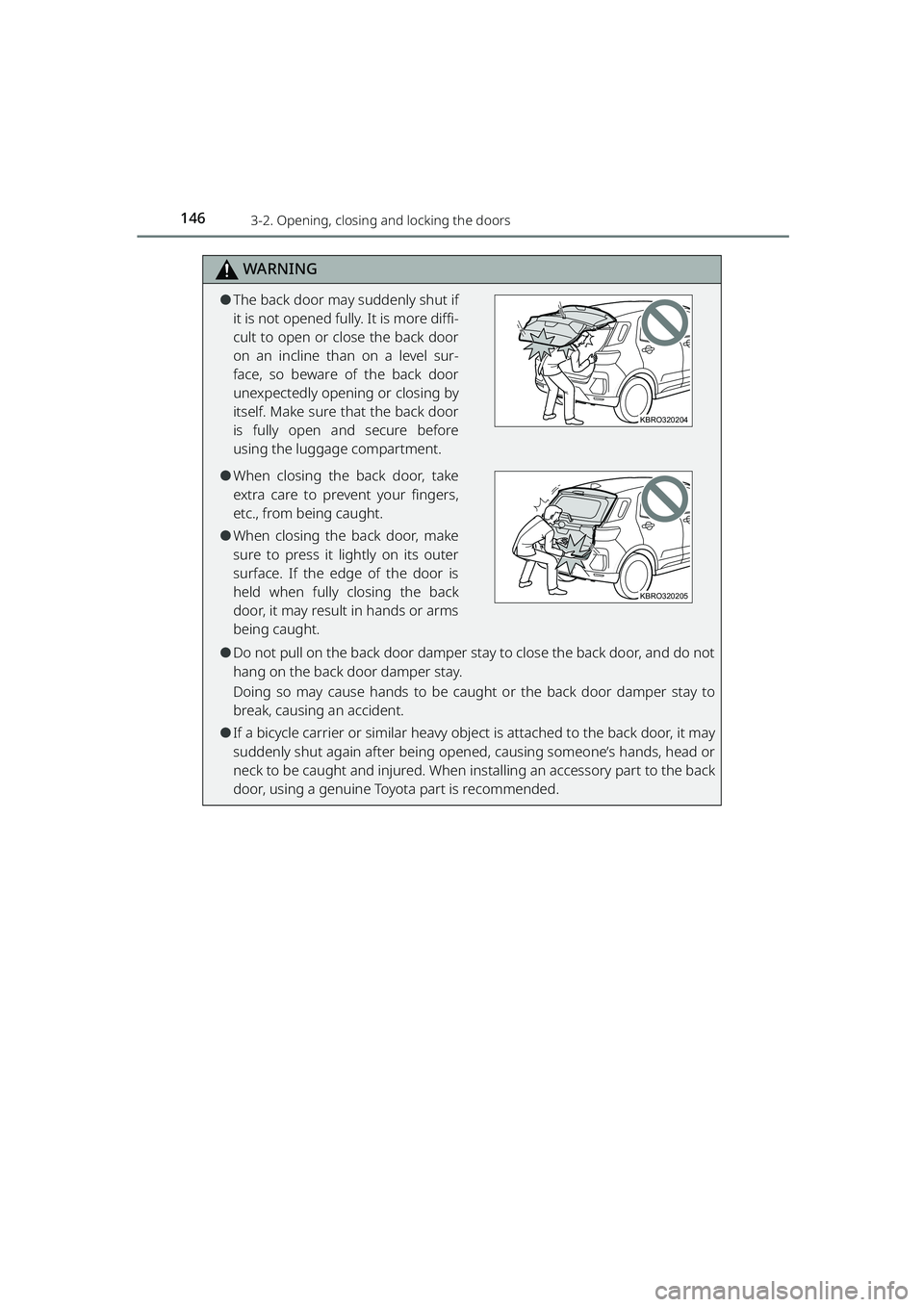

1463-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
WARNING
⚫The back door may suddenly shut if
it is not opened fully. It is more diffi-
cult to open or close the back door
on an incline than on a level sur-
face, so beware of the back door
unexpectedly opening or closing by
itself. Make sure that the back door
is fully open and secure before
using the luggage compartment.
⚫When closing the back door, take
extra care to prevent your fingers,
etc., from being caught.
⚫When closing the back door, make
sure to press it lightly on its outer
surface. If the edge of the door is
held when fully closing the back
door, it may result in hands or arms
being caught.
⚫Do not pull on the back door damper stay to close the back door, and do not
hang on the back door damper stay.
Doing so may cause hands to be caught or the back door damper stay to
break, causing an accident.
⚫If a bicycle carrier or similar heavy object is attached to the back door, it may
suddenly shut again after being open ed, causing someone’s hands, head or
neck to be caught and injured. When in stalling an accessory part to the back
door, using a genuine Toyo ta part is recommended.
KBRO320204
KBRO320205
RAIZE_OM_General_BZ358E.book 146 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1563-4. Steering wheel position and mirrors
RAIZE_OM_General_BZ358E
Inside rear view mirror
The inside rear view mirror’s position can be adjusted to enable suffi-
cient confirmation of the rear view.Adjustment procedure
The inside rear view mirror’s position can be adjusted according to the
driver’s position.
Adjust it by holding the inside rear
view mirror body
Anti-glare function
Operate the lever to reduce the reflected light by the headlights of the
vehicle behind you.
a Normal use
b Anti-glare ON
WARNING
⬛Caution while driving
Do not adjust the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident, result-
ing in death or serious injury.
KBRO340201E
12
KBRO340202E
RAIZE_OM_General_BZ358E.book 156 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1593-4. Steering wheel position and mirrors
RAIZE_OM_General_BZ358E
Operation of each component
3
⬛Operating conditions (electric type)
When the engine switch is “ACC” or “ON”
⬛Using “Automatic mode” in cold weather (vehicles with key-free system)
When using “Automatic mode” in cold weather, the mirrors may not be folded
or extended automatically if the outsid e rear view mirrors get frozen. If this
happens, remove ice or snow covering the outside rear view mirrors, and acti-
vate them by using “Manual mode” or move the mirrors with your hands.
⬛Disabling folding (or extension) in the automatic mode (vehicles with key-
free system)
Set the switch to the extend (or fold) position.
⬛Customization (vehicles with key-free system)
You can customize the operation contents of the automatic mode. (List of cus-
tomizable features: ➞ P. 430)
WARNING
⬛Important points while driving
Be sure to observe the following pr ecautions while driving the vehicle.
Failure to do so may result in mishandling of the vehicle and cause an accident,
resulting in death or serious injury.
⚫Do not adjust the mirrors while driving
⚫Do not drive with the outside rear view mirrors folded
⚫Both the driver and passenger side mirrors must be extended and properly
adjusted before driving
⬛When the mirror is moving (electric type)
Do not touch it with your hands.
Doing so could get your hands caught and cause injury or the mirror to mal-
function.
⬛Adjusting the mirrors (manual type)
Do not adjust them with dirty hands. If the mirror surface gets dirty, it will
cause diffused reflection of the lights fr om behind during nighttime etc., which
is extremely dangerous as it could compromise the visibility.
RAIZE_OM_General_BZ358E.book 159 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1684-1. Driving the vehicle
RAIZE_OM_General_BZ358E
⬛Starting off on an uphill
The hill-start assist control will be activated. (➞P. 232)
⬛Driving in the rain
⚫Drive carefully when it is raining, bec ause visibility will be reduced, the win-
dows may become fogged-up, and the road will be slippery.
⚫Drive carefully when it starts to rain, because the road surface will be espe-
cially slippery.
⚫Refrain from driving at high speeds on an expressway in the rain, because
there may be a layer of water between the tires an d the road surface, pre-
venting the steering and brakes from operating properly.
⬛Engine speed while driving (continuous ly variable transmission vehicles)
In the following conditions, the engine speed may become high while driving.
This is due to automatic up-shifting re striction or down-shifting implementa-
tion to meet driving conditions. It do es not indicate sudden acceleration.
⚫The vehicle is judged to be driving uphill or downhill
⚫When the accelerator pedal is released
⬛Engine power suppression control (Brake Override System)
When the accelerator pedal and the brake pedal are depressed simultane-
ously, the engine output may be suppressed.
▶Vehicles without TFT color multi-information display
⚫When the Brake Override System is op erating, the warning light turns on.
( ➞ P. 381)
▶Vehicles with TFT color multi-information display
⚫When the Brake Override System is op erating, the warning message is dis-
played. ( ➞P. 390)
⬛Idling before stopping the engine (turbo vehicles)
Immediately after driving at high-speed or climbing on a hill, idle the engine
for approx. 1 minute and then stop the engine in order to prevent the turbo
system from being damaged.
⬛Overheating
The following severe driving situations can cause overheating.
⚫Driving up a long uphill on a hot day
⚫Sudden deceleration or stop imme diately after high-speed driving
RAIZE_OM_General_BZ358E.book 168 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1704-1. Driving the vehicle
RAIZE_OM_General_BZ358E
WARNING
Observe the following precautions. Failure to do so may cause death or serious
injury.
⬛When starting to move the vehicle (continuously variable transmission
vehicles)
Always depress the brake pedal while st opped with the engine running. This
prevents the vehicle from creeping.
⬛When driving the vehicle
⚫Do not drive if you are unfamiliar with the location of the brake and accelera-
tor pedals to avoid depressing the wrong pedal.
⦁ Accidentally depressing the accelera tor pedal instead of the brake pedal
will result in sudden acceleratio n that may lead to an accident.
⦁ When backing up, you may twist your body around, leading to difficulty in
operating the pedals. Make sure to operate the pedals properly.
⦁ Make sure to keep a correct driving posture even when moving the vehicle
only slightly. This allows you to depress the brake and accelerator pedals
properly.
⦁ Depress the brake pedal using your right foot. Depressing the brake pedal
using your left foot may delay response in an emergency, resulting in an
accident.
⚫Do not drive the vehicle over or stop the vehicle near flammable materials.
The exhaust pipes and exhaust gases can be extremely hot, and may cause a
fire if there is any flammable material nearby.
⚫During normal driving, do not turn of f the engine. Turning the engine off
while driving will not cause loss of steering or braking control, but the power
assist to these systems will be lost. This will make it more difficult to steer
and brake, so you should pull over and st op the vehicle as soon as it is safe
to do so.
However, in the event of an emergency, such as if it becomes impossible to
stop the vehicle in the normal way: ➞P. 3 6 7
⚫Use engine braking to maintain a safe speed when driving down a steep hill.
Using a foot brake continuously may cause the brake to overheat and lose
effectiveness. ( ➞P. 189)
⚫Depending on the road surface and speed, shift down as follows and also
use engine braking.
⦁Set the shift lever to S (continuousl y variable transmission vehicles)
⦁ Set Manual Mode ( ➞P. 190) and downshift by 1 gear at a time (continu-
ously variable transmission vehicles)
⦁ Lower the gear by 1 level (Manual transmission vehicles)
RAIZE_OM_General_BZ358E.book 170 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1714-1. Driving the vehicle
RAIZE_OM_General_BZ358E
WARNING
Driving
4
⚫Avoid sudden engine braking (shift lever operation). The tires may lock and
slip, causing an accident.
⚫Do not adjust the positions of the steering wheel, the seat, or the inside or
outside rear view mirrors while driving.
Doing so could cause the driver to mishandle the vehicle.
⚫Always check that all occupants’ arms , heads or other parts of their bodies
are not outside the vehicle.
⚫Do not drive off-road.
If you must drive off-road, drive carefully.
⚫Do not drive underwater such as crossing a river.
It may cause a serious vehicle failure such as short-circuiting of electrical
components or damage to the engine.
⚫Do not drive with luggage on or near the seats.
If the vehicle brakes or turns sudden ly, the luggage may be thrown out and
hit occupants, the luggage may be dama ged, or the driver may be distracted
by the luggage, which may lead to an unforeseen accident.
⚫Drive carefully where there are large steps or where there are wheel chocks.
The bumper may be damaged.
⚫Do not release the clutch pedal all the way at once. Doing so could move the
vehicle forward and may lead to an unforeseen accident. (➞ P. 194)
⬛When driving on slippery road surfaces
⚫Sudden braking, acceleration or steering may cause tire slippage and reduce
your ability to control the vehicle.
⚫Sudden acceleration, engine braking due to shifting, or changes in engine
speed could cause the vehicle to skid.
⚫After driving through a puddle, lightly depress the brake pedal to make sure
that the brakes are functioning prop erly. Wet brake pads may prevent the
brakes from functioning properly. If th e brakes on only one side are wet and
not functioning properly, steering control may be affected.
⬛When operating the shift lever
⚫For the continuously variable transmissi on vehicles, never let the vehicle roll
backward while the shift lever is in a driv ing position, or roll forward while the
shift lever is in R.
Doing so may cause the engine to sta ll or lead to poor brake and steering
performance, resulting in an acci dent or damage to the vehicle.
RAIZE_OM_General_BZ358E.book 171 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1734-1. Driving the vehicle
RAIZE_OM_General_BZ358E
WARNING
Driving
4
⚫Avoid revving or racing the engine.
Running the engine at high speed while the vehicle is stopped may cause
the exhaust system to overheat, which could result in a fire if combustible
material is nearby.
⬛When parking the vehicle
⚫Do not leave glasses, cigarette lighters, aerosol cans, or carbonated bever-
age cans in the vehicle under the scorching sun.
Doing so may result in the following:
⦁ Gas may leak from a cigarette lighter or aerosol can, and may lead to a fire
⦁ The glasses with plastic lenses and plastic material may deform or crack
⦁ Carbonated beverage cans may fracture, causing the contents to spill over
the interior of the vehicle, and may al so cause a short circuit in the vehi-
cle’s electrical components
⚫Do not leave cigarette lighters in the vehi cle. If a cigarette lighter is in a stor-
age compartment or on the floor, it ma y be lit accidentally when luggage is
loaded or the seat is adjusted, causing a fire.
⚫Do not attach adhesive discs to the windshield or windows. Do not place
containers such as fragrance on the instrument panel or dashboard.
Adhesive discs or containers may act as lenses, causing a fire in the vehicle.
⚫Do not leave a door or window open if the curved glass is coated with a
metallized film such as a silver-colored one.
Reflected sunlight may cause the glass to act as a lens, causing a fire.
⚫For continuously variable transmission vehicles, always apply the parking
brake, set the shift lever to P, stop the engine, and lock the vehicle when
leaving the vehicle unattended.
Do not leave the vehicle unattende d while the engine is running.
If the vehicle is parked wi th the shift lever in P but the parking brake is not
set, the vehicle may start to move, possibly leading to an accident.
⚫Do not touch the exhaust pipes while th e engine is running or immediately
after turning the engine off.
Doing so may cause burns.
⬛When taking a nap in the vehicle
Always turn the engine off.
Otherwise, if you accidentally move the shift lever or depress the accelerator
pedal, this could cause an accident or fire due to engine overheating. Addition-
ally, if the vehicle is parked in a poorly ventilated area, exhaust gases may enter
the vehicle, leading to death or a serious health hazard.
RAIZE_OM_General_BZ358E.book 173 ページ ２０２２年５月１７日　火曜日　午後１時５９分
