2023 TOYOTA RAIZE warning light

3847-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E ✽
: If equipped
⬛If the open door warning light✽ comes on
To avoid battery discharge, the warning light will automatically turn OFF after
about 10 minutes with the engine switch in “ACC” or “OFF”, and the door left
open.
⬛When the tire pressure warning light comes on (vehicles with a tire
pressure warning system)
Inspect the appearance of the tire to check that the tire is not punctured.
If the tire is punctured: ➞P. 3 9 6
If the tire is not punctured:
Carry out the following procedure after the tire temperature has lowered suffi-
ciently.
⚫Check the tire inflation pressure and adjust to the appropriate level.
⚫If the warning light does not go out even after several minutes, check that
the tire inflation pressure is at the sp ecified level and carry out initialization.
The warning light may come on again if the above operations are conducted
without first allowing the tire temperature to lower sufficiently.
⬛The tire pressure warning light may come on due to natural causes
(vehicles with a tire pressure warning system)
The tire pressure warning light may come on due to natural causes such as
natural air leaks and tire inflation pressure changes caused by temperature.
In this case, adjusting the tire inflatio n pressure will turn off the warning light
(after a few minutes).
⬛When a tire is replaced with a spare tire (vehicles with a tire pressure
warning system)
The spare tire is also equipped with a tire pressure warning valve and transmit-
ter. The tire pressure warning light will tu rn on if the tire inflation pressure of
the spare tire is low. If a tire goes flat, the tire pressure warning light will not
turn off even though the flat tire has been replaced with the spare tire. Replace
the spare tire with the repaired tire an d adjust the tire inflation pressure. The
tire pressure warning light will go off after a few minutes.
⬛If the tire pressure warning system is not functioning✽
The tire pressure warning system will be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
⚫If tires not equipped with tire pressure warning valves and transmitters are
used
⚫If the ID code on the tire pressure warning valves and transmitters is not reg-
istered in the tire pressure warning computer
⚫If the tire inflation pressure is higher than the specified tire air pressure.
RAIZE_OM_General_BZ358E.book 384 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3857-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
When trouble arises
7
The tire pressure warning system may be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
⚫If electronic devices or facilities us ing similar radio wave frequencies are
nearby
⚫If a radio set at a similar frequency is in use in the vehicle
⚫If a window tint that affects the radio wave signals is installed
⚫If there is a lot of snow or ice on th e vehicle, particularly around the wheels
or wheel housings
⚫If non-genuine Toyota wheels are used (Even if you use Toyota wheels, the
tire pressure warning system may no t work properly with some types of
tires.)
⚫If tire chains are used
⚫If the spare tire is in a location subject to poor radio wave signal reception.
⚫If a large metallic object which can in terfere with signal reception is put in
the luggage room.
⬛If the tire pressure warning light freq uently comes on after blinking for 1
minute (vehicles with a tire pressure warning system)
If the tire pressure warning light freque ntly comes on after blinking for 1 min-
ute when the engine switch is turned on, have it checked by your Toyota
dealer.
RAIZE_OM_General_BZ358E.book 385 ページ ２０２２年５月１７日　火曜日　午後１時５９分

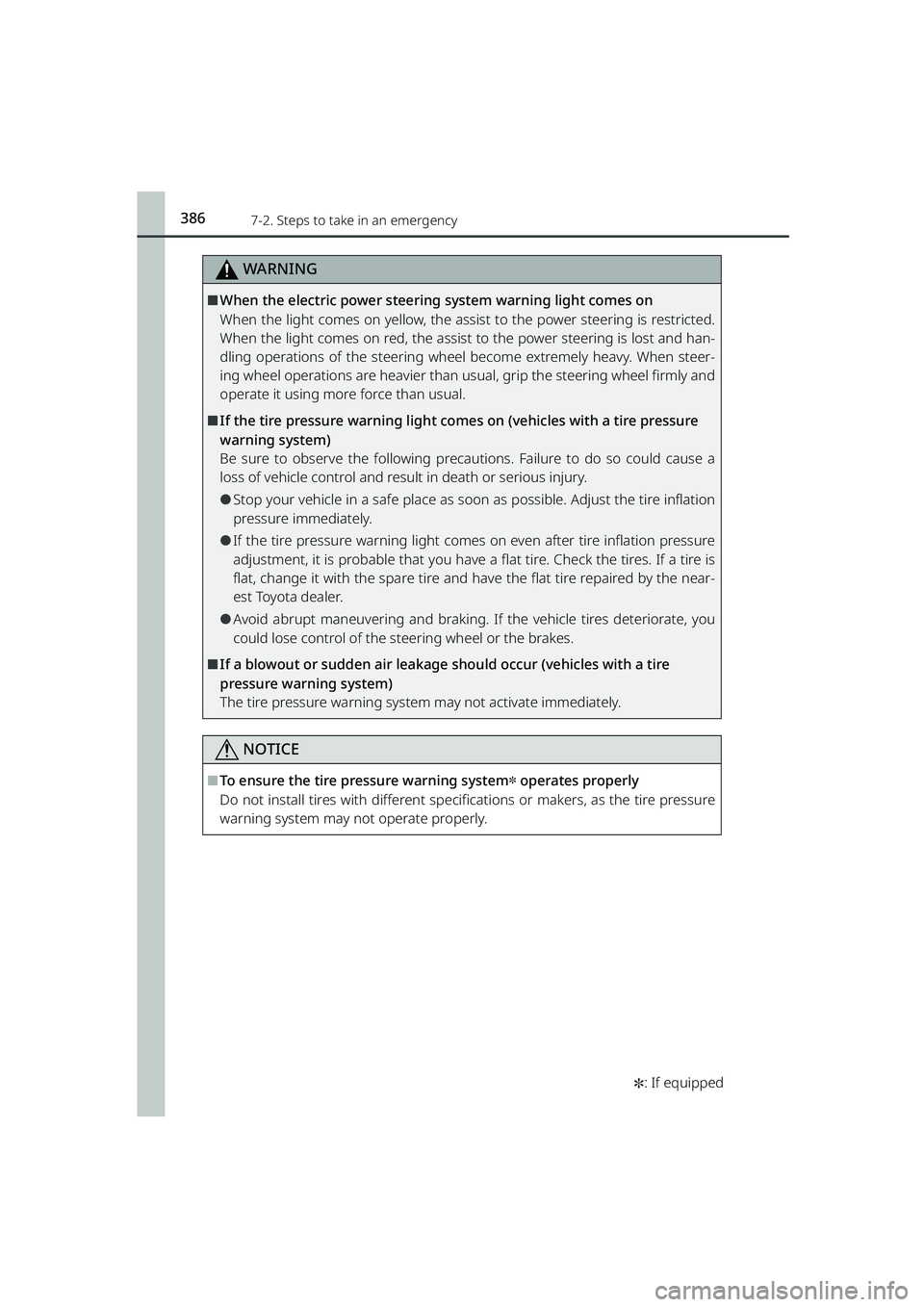

3867-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E ✽
: If equipped
WARNING
⬛When the electric power steering system warning light comes on
When the light comes on yellow, the assist to the power steering is restricted.
When the light comes on red, the assist to the power steering is lost and han-
dling operations of the steering wheel become extremely heavy. When steer-
ing wheel operations are heavier than us ual, grip the steering wheel firmly and
operate it using more force than usual.
⬛If the tire pressure warning light comes on (vehicles with a tire pressure
warning system)
Be sure to observe the following precaut ions. Failure to do so could cause a
loss of vehicle control and result in death or serious injury.
⚫Stop your vehicle in a safe place as soon as possible. Adjust the tire inflation
pressure immediately.
⚫If the tire pressure warning light come s on even after tire inflation pressure
adjustment, it is probable that you have a flat tire. Check the tires. If a tire is
flat, change it with the spare tire and ha ve the flat tire repaired by the near-
est Toyota dealer.
⚫Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.
⬛If a blowout or sudden air leakage sh ould occur (vehicles with a tire
pressure warning system)
The tire pressure warning system may not activate immediately.
NOTICE
⬛To ensure the tire pressure warning system✽ operates properly
Do not install tires with different specif ications or makers, as the tire pressure
warning system may not operate properly.
RAIZE_OM_General_BZ358E.book 386 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3877-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E ✽
: If equipped
When trouble arises
7
When warning messages are displayed✽
If the warning message appears on the TFT color multi-information
display, be calm and take action as specified below.
If the message appears again after tr oubleshooting, contact your Toyota
dealer.
Messages and warnings
Warning messages
Indicators/Warning lights
Warning content/Action to take
“Brake Fluid Low Stop
in a Safe Place. Contact
Your Dealer.”
Low brake fluid level
When the vehicle speeds exceeds approx. 5
km/h (3 mph), the warning buzzer will
sound.
➞ Immediately stop the vehicle in a safe
place and contact your Toyota dealer.
Continuing to drive the vehicle is danger-
ous.
“Brake System Mal-
function Stop in a Safe
Place. Contact Your
Dealer.”Malfunction in the brake system
➞ Immediately stop the vehicle in a safe
place and contact your Toyota dealer.
Continuing to drive the vehicle is danger-
ous.
“Charging System Mal-
function Stop in a Safe
Place. Contact Your
Dealer.”Malfunction in the ve hicle’s charging sys-
tem
➞ Immediately stop the vehicle in a safe
place and contact your Toyota dealer.
“Oil Pressure Low Stop
in a Safe Place. Contact
Your Dealer.”Abnormal engine oil pressure
The warning buzzer will sound.
➞ Immediately stop the vehicle in a safe
place and contact your Toyota dealer.
“Engine Coolant Temp
High Stop in a Safe
Place. Contact Your
Dealer.”
(Red)
Abnormally high temperature of engine
coolant
➞Immediately stop the vehicle in a safe
place and contact your Toyota dealer.
RAIZE_OM_General_BZ358E.book 387 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3887-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E ✽
: If equipped
“Engine Control Sys-
tem Malfunction Visit
Your Dealer”
Malfunction in the electronic engine control
system
Electronic control throttle error
➞ Have the vehicle inspected at your Toy-
ota dealer immediately.
“Transmission System
Malfunction Visit Your
Dealer”Malfunction in the e lectronic automatic
transmission control system
✽
➞ Have the vehicle inspected at your Toy-
ota dealer immediately.
“SRS Airbag Malfunc-
tion Visit Your Dealer”
Malfunction in the SRS airbag system
Malfunction in the seat belt pretensioner &
force limiter system
➞ Have the vehicle inspected at your Toy-
ota dealer immediately.
“ABS System Malfunc-
tion Visit Your Dealer”Malfunction in the ABS system
➞Have the vehicle inspected at your Toy-
ota dealer immediately.
“Power Steering Mal-
function Visit Your
Dealer”
(Red)
Malfunction in EPS (Electric Power Steering)
system
The warning buzzer will sound.
➞ Have the vehicle inspected at your Toy-
ota dealer immediately.
“Steering Performance
Is Reduced Steering
Power Low”
(Yellow)
Low battery voltage/Electric power steering
overheating
The warning buzzer will sound.
➞ Steering wheel operation becomes
heavy. Restrain from operating the
steering wheel for a short while. When
about 10 minutes has passed, it will
return to its usual weight.
“Smart Entry & Start
System Malfunction
Visit Your Dealer”Malfunction in th e key-free system
➞ Have the vehicle inspected at your Toy-
ota dealer immediately.
Warning messages
Indicators/
Warning lights
Warning content/Action to take
RAIZE_OM_General_BZ358E.book 388 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3897-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E ✽
: If equipped
When trouble arises
7
“Sonar Sensor Mal-
function Visit Your
Dealer”
Malfunction of the front corner sensors or
reverse sensors
✽
The warning buzzer will sound.
➞ Have the vehicle inspected at your Toy-
ota dealer.
“Sonar Sensor Func-
tion Stop”―
Degraded functionality of the front corner
sensors or reverse sensors
✽
The warning buzzer will sound.
➞ Check if the sonar is not covered with
rain, snow, ice, or dirt and remove those
attached.
“VSC System Malfunc-
tion Visit Your Dealer”
Malfunction in the brake assist
Malfunction in the VSC system
Malfunction in the TRC system
Malfunction in the hill -start assist control
system
➞ Have the vehicle inspected at your Toy-
ota dealer.
“BSM Malfunction Visit
Your Dealer”(Flashing)
(Flashing)Malfunction of the BSM✽
➞Have the vehicle inspected at your Toy-
ota dealer.
“BSM Temporary Una-
vailable”(Flashing)
(Flashing)
Degraded BSM function✽
If you use the function in an extremely hot
or cold environment or if the battery voltage
is lower or higher than the specified level,
the display is turned on.
➞ When the above causes are resolved, the
display will disappear.
If the display persists for a long time,
have the vehicle inspected at your Toy-
ota dealer.
Warning messages
Indicators/
Warning lights
Warning content/Action to take
RAIZE_OM_General_BZ358E.book 389 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3907-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
“BSM Radar Blocked
Temporarily Unavaila-
ble”(Flashing)
(Flashing)
Dirty BSM radar✽
➞Check if the bumper sensors are not cov-
ered with rain, snow, ice, or dirt and
remove those attached.
“Check Vehicle Com-
munication Visit Your
Dealer”Malfunction in the vehicle communication
system
➞Have the vehicle inspected at your Toy-
ota dealer.
“Brake Override Sys-
tem Malfunction Visit
Your Dealer”
―
Malfunction in the Brake Override System
➞Have the vehicle inspected at your Toy-
ota dealer.
“Brake & Accelerator
Pressed Simultane-
ously”
―
Brake Override System is activated
➞Release your foot from the accelerator
pedal.
“Open”―
At least one of the doors or the hood is not
completely closed
The open doors and/or hood will be dis-
played.
The open door warning buzzer sounds
when at least one of the doors or the hood
of the vehicle is not completely closed and
the vehicle’s speed exceeds approx. 5 km/h
(3 mph).
➞ Close all doors and/or the hood
“Refuel”
Fuel level has become approx. 5.5 L (1.5
gal., 1.2 Imp.gal.) or lower
➞Refuel the vehicle
“Fasten Seat Belt”
Driver’s or front passenger’s seat belt is not
fastened
The warning buzzer will sound.
It will be displayed when the vehicle speed
exceeds approx. 20 km/h (12 mph).
➞ Wear a seat belt
Warning messages
Indicators/
Warning lights
Warning content/Action to take
RAIZE_OM_General_BZ358E.book 390 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3917-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E ✽
: If equipped
When trouble arises
7
“Fasten Seat Belt”
Rear seat belt is not fastened
The warning buzzer will sound.
It will be displayed when the vehicle speed
exceeds approx. 20 km/h (12 mph) and the
seat belt is unfastened.
➞ Wear a seat belt
“Release Parking
Brake”
The parking brake is not released
If the vehicle speed exceeds approx. 5 km/h
(3 mph) with the parking brake being
applied, the warning buzzer will sound.
➞ Release the parking brake
“Sonar Sensor in Oper-
ation Pay Attention”―
Front corner sensors or reverse sensors is
activated
✽
The activated sonar is displayed.
The warning buzzer may sound.
➞ Check the situation around you and drive
accordingly such as stepping on the
brake pedal
“VSC in Operation”
(Flashing)
VSC is activated
➞Drive with extreme caution
“Turn Lights OFF”
The driver’s door was opened while the
front position lights are turned on
The warning buzzer will sound.
➞ Turn off the front position lights
“Steering Angle Left”
―
The steering wheel is mo ved to left or right
while the vehicle is stopped
➞ Check the tire direction and move the
vehicle safety
“Steering Angle Right”
“Roads may be Icy”―
The outside temperature has become
approx. 3°C (37 ℉) or below
➞ Since the road could be frozen, check the
road condition and drive with extreme
caution
Warning messages
Indicators/
Warning lights
Warning content/Action to take
RAIZE_OM_General_BZ358E.book 391 ページ ２０２２年５月１７日　火曜日　午後１時５９分
