2023 TOYOTA RAIZE ECO mode

1854-2. Driving procedures
RAIZE_OM_General_BZ358E
Driving
4
Stopping the engine
aStop the vehicle completely
b Continuously variable transmission vehicles: Apply the parking brake
( ➞ P. 197) and set the shift lever in P
Manual transmission vehicles: Apply the parking brake ( ➞P. 197) and
set the shift lever in N
c Press the engine switch
d Release your foot from the brake pedal, and make sure that the engine
switch indicator light is off
Changing the engine switch mode
You can switch the modes by pushing the engine switch without stepping
on the brake pedal (continuously vari able transmission vehicles) or the
clutch pedal (manual transmission ve hicles). (Each time the switch is
pressed, the mode changes)
“OFF”*
The emergency flashers can be used.
“ACC”
You can use electrical components, such
as a power outlet.
The indicator of the engine switch will
flash in green at a slow pace.
“ON”
All electrical components can be used.
The indicator of the engine switch will
flash in green at a slow pace.
*When the shift lever is set to other
than the P position, it becomes “ACC”,
but will not be switched to “OFF”. (Con-
tinuously variable transmission vehi-
cles)
KBRO420203E
RAIZE_OM_General_BZ358E.book 185 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1874-2. Driving procedures
RAIZE_OM_General_BZ358E
Driving
4
⬛Steering wheel lock
⚫Opening or closing one of the doors (except for opening the back door) after
turning the engine switch “OFF” will lock the steering wheel. Operating the
engine switch will automatically unlock the steering wheel.
⚫If the vehicle’s battery is dead, the st eering wheel lock will not be activated.
⬛When unable to unlock the steering wheel
The indicator of the engine switch will
continue to flash in green at a fast
pace.
Once you have verified that the shift le ver is set to P (continuously variable
transmission vehicles), try operating the engine switch while rotating the steer-
ing wheel in a clockwise and counterclockwise direction.
⬛Overheat protection of the steering wheel lock motor
If you repeat the engine start and stop operation in a short period, the opera-
tion may be restricted to prevent th e motor from being overheated. If that
happens, stop the operation. The system will return to normal in about 10 sec-
onds.
⬛The indicator of the engine switch lights up or flashes in yellow
It may indicate a malfunction in the systems. Have the vehicle inspected at
your Toyota dealer immediately.
⬛When the electronic key runs out of battery
➞ P. 3 4 4
⬛Engine switch operation
⚫If the switch was not pushed firmly or the switch was pushed quickly several
times, the mode may not switch or the engine may not start.
⚫If you start the engine again right afte r turning “OFF” the engine switch, the
engine may not start. If you want to start the engine again after turning
“OFF” the engine switch, wait for a few seconds.
⬛When the key-free system was deactivated by customization
➞ P. 4 0 6
KBRO420204
RAIZE_OM_General_BZ358E.book 187 ページ ２０２２年５月１７日　火曜日　午後１時５９分

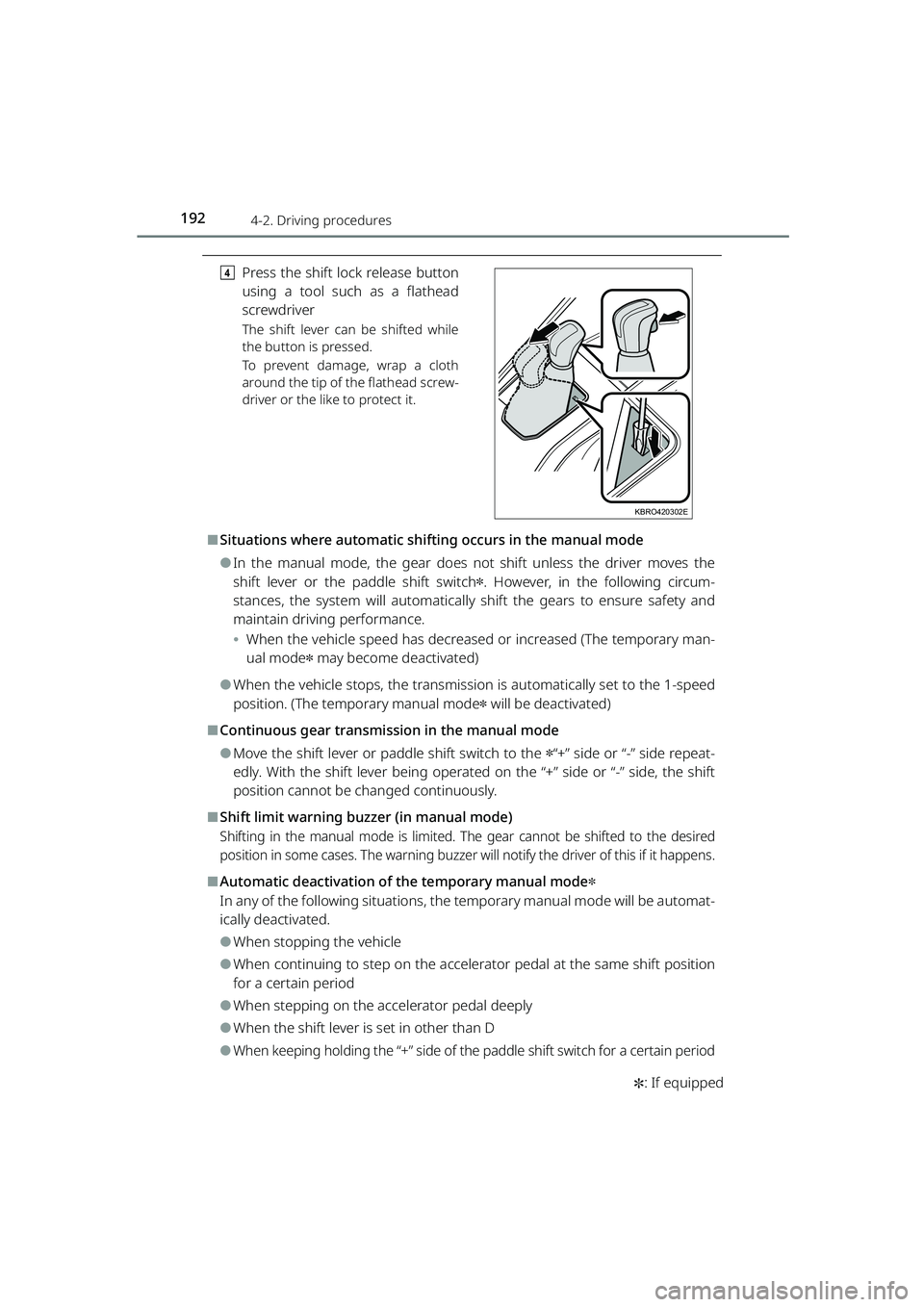

1924-2. Driving procedures
RAIZE_OM_General_BZ358E
✽: If equipped
d
Press the shift lock release button
using a tool such as a flathead
screwdriver
The shift lever can be shifted while
the button is pressed.
To prevent damage, wrap a cloth
around the tip of the flathead screw-
driver or the like to protect it.
⬛Situations where automatic shif ting occurs in the manual mode
⚫In the manual mode, the gear does not shift unless the driver moves the
shift lever or the paddle shift switch
✽. However, in the following circum-
stances, the system will automatically shift the gears to ensure safety and
maintain driving performance.
⦁ When the vehicle speed has decrease d or increased (The temporary man-
ual mode
✽ may become deactivated)
⚫When the vehicle stops, the transmission is automatically set to the 1-speed
position. (The temporary manual mode
✽ will be deactivated)
⬛Continuous gear transmis sion in the manual mode
⚫Move the shift lever or paddle shift switch to the ✽“+” side or “-” side repeat-
edly. With the shift lever being operated on the “+” side or “-” side, the shift
position cannot be changed continuously.
⬛Shift limit warning buzzer (in manual mode)
Shifting in the manual mode is limited. Th e gear cannot be shifted to the desired
position in some cases. The warning buzzer w ill notify the driver of this if it happens.
⬛Automatic deactivation of the temporary manual mode✽
In any of the following situations, the temporary manual mode will be automat-
ically deactivated.
⚫When stopping the vehicle
⚫When continuing to step on the accelerator pedal at the same shift position
for a certain period
⚫When stepping on the accelerator pedal deeply
⚫When the shift lever is set in other than D
⚫When keeping holding the “+” side of the paddle shift switch for a certain period
KBRO420302E
RAIZE_OM_General_BZ358E.book 192 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2414-6. Driving tips
RAIZE_OM_General_BZ358E
Driving
4
Eco-friendly driving tips
For improved fuel economy and reduced CO2 emissions, pay atten-
tion to the following points:
◆Accelerator pedal/brake pedal operation
Drive your vehicle smoothly. Avoid abrupt acceleration and deceleration.
Gradual acceleration and deceleration will help reduce excessive fuel con-
sumption.
◆When braking
Observe conditions in front of and around the vehicle, and estimate your
stopping position. Release the accele rator pedal early and continue coast-
ing. Use the brake pedal to adjust your stopping position.
Make sure to operate the brake pedal gently.
◆Delays
Repeated acceleration and deceleration, as well as long waits at traffic
lights, will lead to bad fuel economy. Check traffic reports before leaving
and avoid delays as much as possible.
◆Highway driving
Control and maintain the vehicle at a constant speed. Before stopping at a
toll booth or similar, allow plenty of time to release the accelerator pedal
and gently apply the brakes.
◆Air conditioning
Use the air conditioning only when necessary. Doing so can help
reduce excessive fuel consumption.
In summer: When the ambient temper ature is high, use the recirculated
air mode. Doing so will help to redu ce the burden on the air conditioning
system and reduce fuel consumption as well.
In winter: Turn the A/C switch on on ly when both heating and dehumidify-
ing are needed, and if only heating is needed, turn the A/C switch off.
Turning the A/C switch on when unnece ssary leads to excessive fuel con-
sumption.
RAIZE_OM_General_BZ358E.book 241 ページ ２０２２年５月１７日　火曜日　午後１時５９分

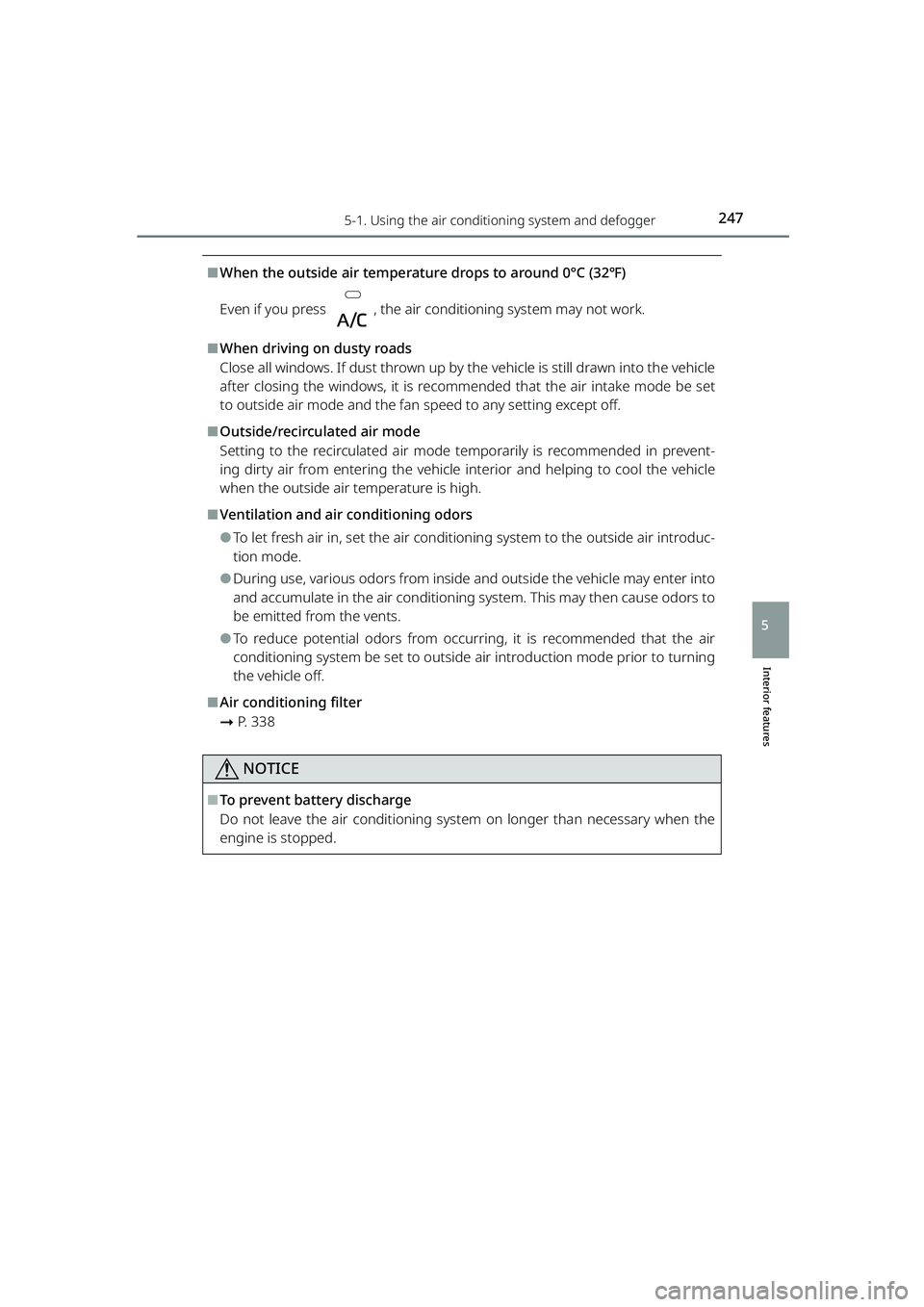

2475-1. Using the air conditioning system and defogger
RAIZE_OM_General_BZ358E
Interior features
5
⬛When the outside air temperature drops to around 0°C (32℉)
Even if you press , the air conditioning system may not work.
⬛When driving on dusty roads
Close all windows. If dust thrown up by the vehicle is still drawn into the vehicle
after closing the windows, it is recomme nded that the air intake mode be set
to outside air mode and the fan speed to any setting except off.
⬛Outside/recirculated air mode
Setting to the recirculated air mode temporarily is recommended in prevent-
ing dirty air from entering the vehicle interior and helping to cool the vehicle
when the outside air temperature is high.
⬛Ventilation and air conditioning odors
⚫To let fresh air in, set the air conditio ning system to the outside air introduc-
tion mode.
⚫During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odors to
be emitted from the vents.
⚫To reduce potential odors from occurri ng, it is recommended that the air
conditioning system be set to outside air introduction mode prior to turning
the vehicle off.
⬛Air conditioning filter
➞ P. 3 3 8
NOTICE
⬛To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.
RAIZE_OM_General_BZ358E.book 247 ページ ２０２２年５月１７日　火曜日　午後１時５９分

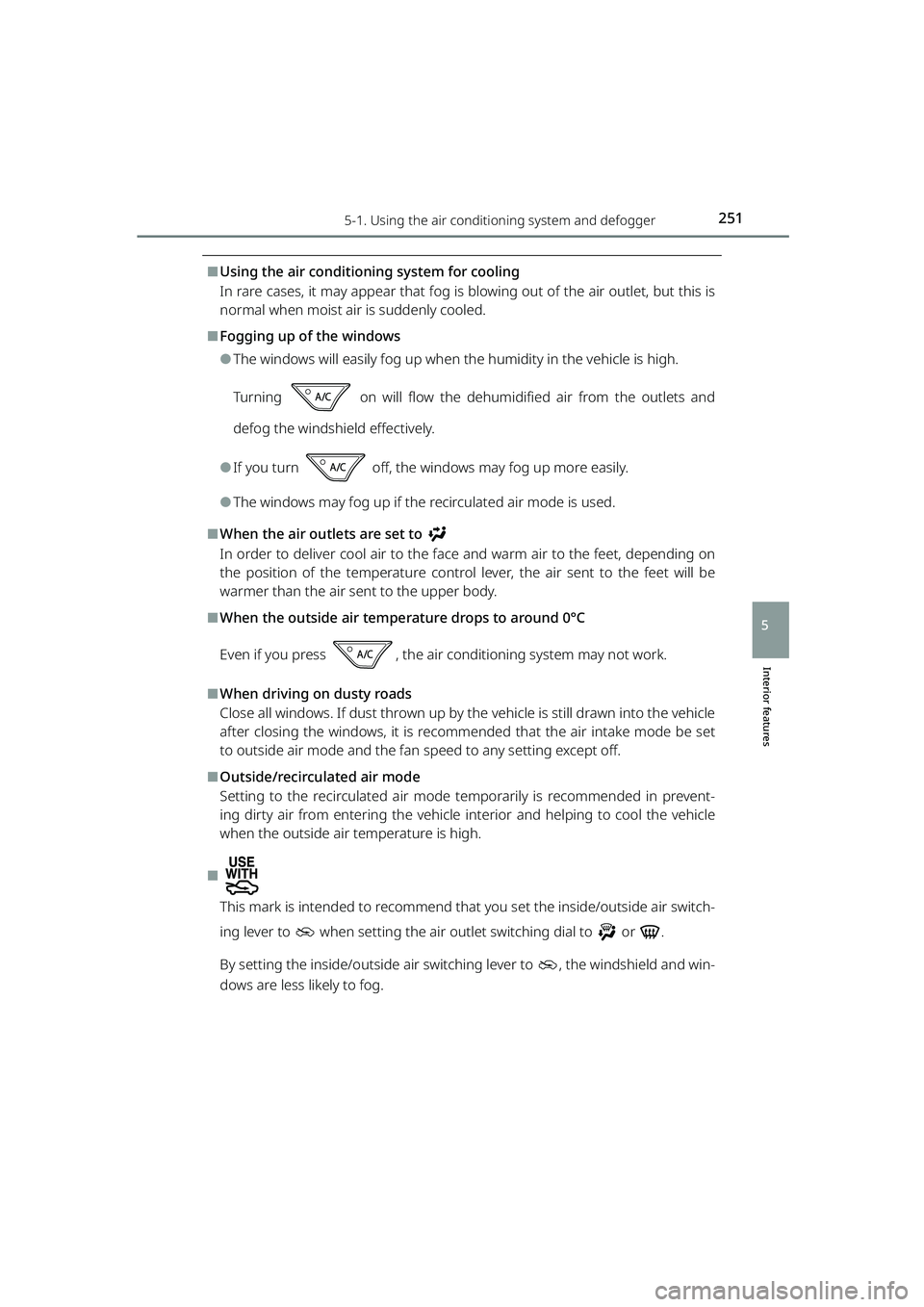

2515-1. Using the air conditioning system and defogger
RAIZE_OM_General_BZ358E
Interior features
5
⬛Using the air conditioning system for cooling
In rare cases, it may appear that fog is blowing out of the air outlet, but this is
normal when moist air is suddenly cooled.
⬛Fogging up of the windows
⚫The windows will easily fog up when th e humidity in the vehicle is high.
Turning on will flow the dehumi dified air from the outlets and
defog the windshield effectively.
⚫If you turn off, the windows may fog up more easily.
⚫The windows may fog up if the re circulated air mode is used.
⬛When the air outlets are set to
In order to deliver cool air to the f ace and warm air to the feet, depending on
the position of the temperature control lever, the air sent to the feet will be
warmer than the air sent to the upper body.
⬛When the outside air temperature drops to around 0°C
Even if you press , the air conditioning system may not work.
⬛When driving on dusty roads
Close all windows. If dust thrown up by the vehicle is still drawn into the vehicle
after closing the windows, it is recomme nded that the air intake mode be set
to outside air mode and the fan speed to any setting except off.
⬛Outside/recirculated air mode
Setting to the recirculated air mode temporarily is recommended in prevent-
ing dirty air from entering the vehicle interior and helping to cool the vehicle
when the outside air temperature is high.
⬛
This mark is intended to recommend that you set the inside/outside air switch-
ing lever to when setting the air outlet switching dial to or .
By setting the inside/outside air swit ching lever to , the windshield and win-
dows are less likely to fog.
RAIZE_OM_General_BZ358E.book 251 ページ ２０２２年５月１７日　火曜日　午後１時５９分

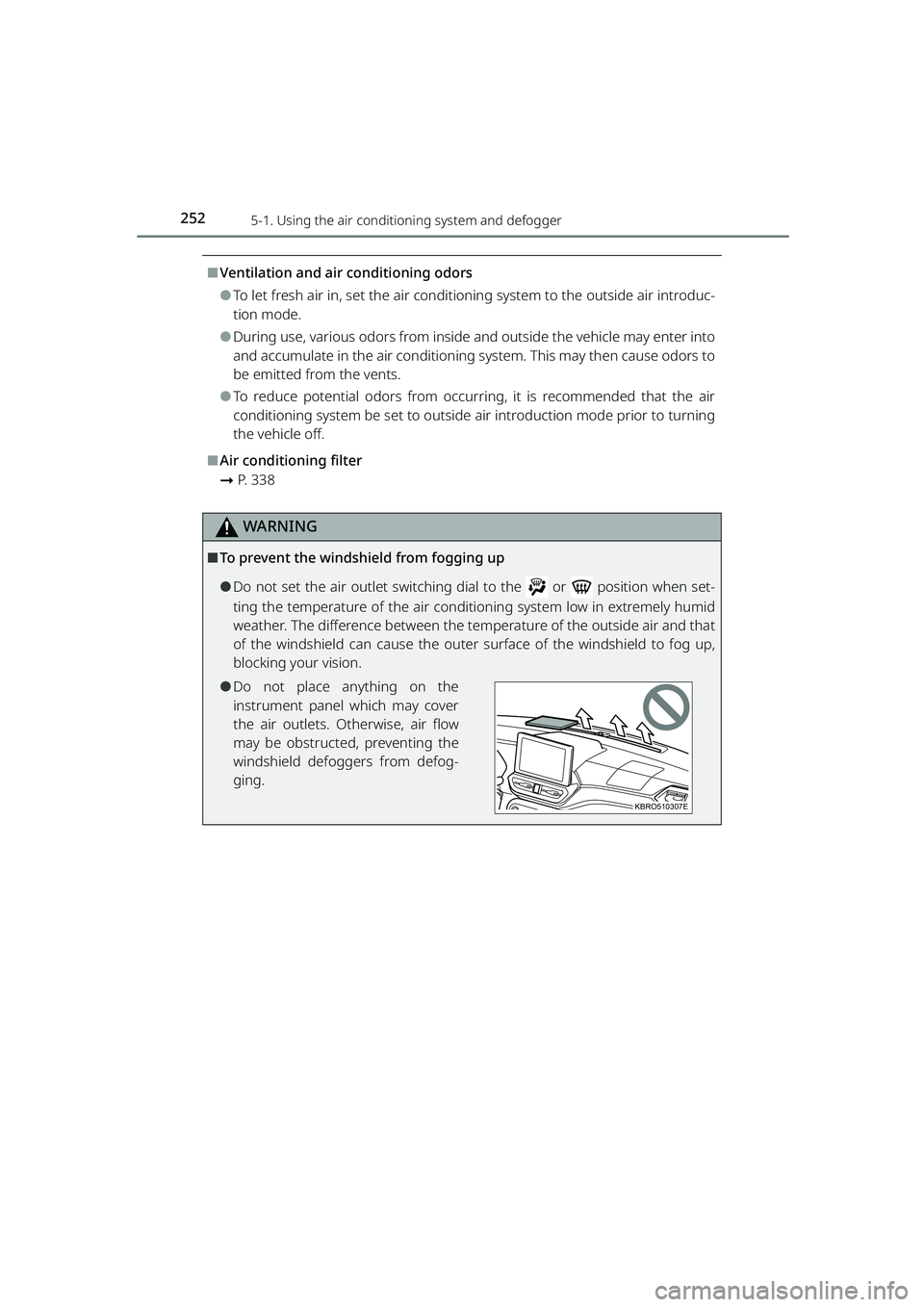

2525-1. Using the air conditioning system and defogger
RAIZE_OM_General_BZ358E
⬛Ventilation and air conditioning odors
⚫To let fresh air in, set the air conditioning system to the outside air introduc-
tion mode.
⚫During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odors to
be emitted from the vents.
⚫To reduce potential odors from occurri ng, it is recommended that the air
conditioning system be set to outside air introduction mode prior to turning
the vehicle off.
⬛Air conditioning filter
➞ P. 3 3 8
WARNING
⬛To prevent the windshield from fogging up
⚫Do not set the air outlet switching dial to the or position when set-
ting the temperature of the air conditioning system low in extremely humid
weather. The difference between the te mperature of the outside air and that
of the windshield can cause the outer surface of the windshield to fog up,
blocking your vision.
⚫Do not place anything on the
instrument panel which may cover
the air outlets. Otherwise, air flow
may be obstructed, preventing the
windshield defoggers from defog-
ging.
KBRO510307E
RAIZE_OM_General_BZ358E.book 252 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2605-1. Using the air conditioning system and defogger
RAIZE_OM_General_BZ358E
⬛When the outside air temperature drops to around 0°C (32℉)
Even if you press , the air conditioning system may not work.
⬛When the air outlets are set to (vehicles with heaters)
In order to deliver cool air to the driver and passe ngers’ faces and warm air to
their feet, depending on the set temperature, the air sent to the driver and
passengers’ feet will be warmer than the air sent to the upper body.
⬛When driving on dusty roads
Close all windows. If dust thrown up by the vehicle is still drawn into the vehicle
after closing the windows, it is recomme nded that the air intake mode be set
to outside air mode and the fan speed to any setting except off.
⬛Outside/recirculated air mode
Setting to the recirculated air mode temporarily is recommended in prevent-
ing dirty air from entering the vehicle interior and helping to cool the vehicle
when the outside air temperature is high.
⬛Ventilation and air conditioning odors
⚫To let fresh air in, set the air conditio ning system to the outside air introduc-
tion mode.
⚫During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odors to
be emitted from the vents.
⚫When the automatic mode is used, the fan may stop for a while immediately
after the air conditioning system starts to reduce potential odors generated
during startup. In addition, it is re commended that the air conditioning sys-
tem be set to outside air introduction mode prior to turning the vehicle off.
⬛Air conditioning filter
➞P. 3 3 8
RAIZE_OM_General_BZ358E.book 260 ページ ２０２２年５月１７日　火曜日　午後１時５９分
