3526-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E✽
: If equipped
Replacing light bulbs
You can replace the bulbs listed below yourself. The difficulty of
replacing bulbs depends on the bulb. We recommend that you
replace the parts at your Toyota dealer because they may get dam-
aged.
Preparing light bulbs
Check the W (wattage) of the defective light bulb. ( ➞P. 428)
Bulb position
⬛Front
a Front turn signal/emergency flashers (vehicles with halogen head-
lights)
b Front fog lights
✽
cFront position lights (vehicles with halogen headlights)
d Headlight low beam (vehicles with halogen headlights)
e Headlight high beam (vehicles with halogen headlights)
12345KBRO620815E
RAIZE_OM_General_BZ358E.book 352 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3546-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Bulb replacement procedure
▶Vehicles with halogen headlights
Open the hood before you work on th e headlights, front position lights, or
front turn signal/emergency flashers.
⬛Headlight low beam/high beam (v ehicles with halogen headlights)
a Open the hood, and rotate the
socket to remove it
aLow beam (outside)
b High beam (inside)
b Hold down the claw and remove
the light bulb
12
KBRO620816N
KBRO620817N
RAIZE_OM_General_BZ358E.book 354 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3556-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6

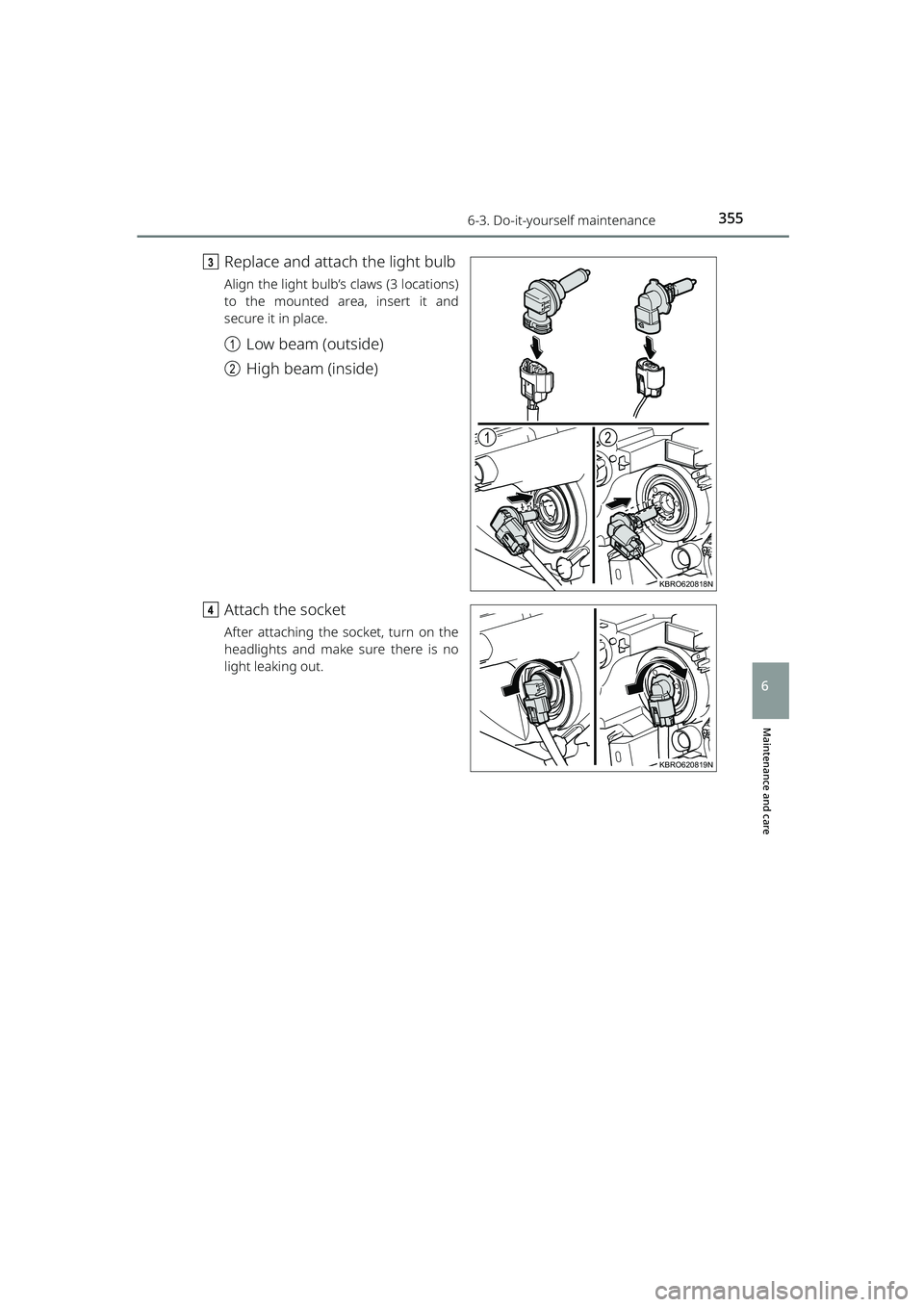

cReplace and attach the light bulb
Align the light bulb’s claws (3 locations)
to the mounted area, insert it and
secure it in place.
aLow beam (outside)
b High beam (inside)
d Attach the socket
After attaching the socket, turn on the
headlights and make sure there is no
light leaking out.
12
KBRO620818N
KBRO620819N
RAIZE_OM_General_BZ358E.book 355 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3566-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E

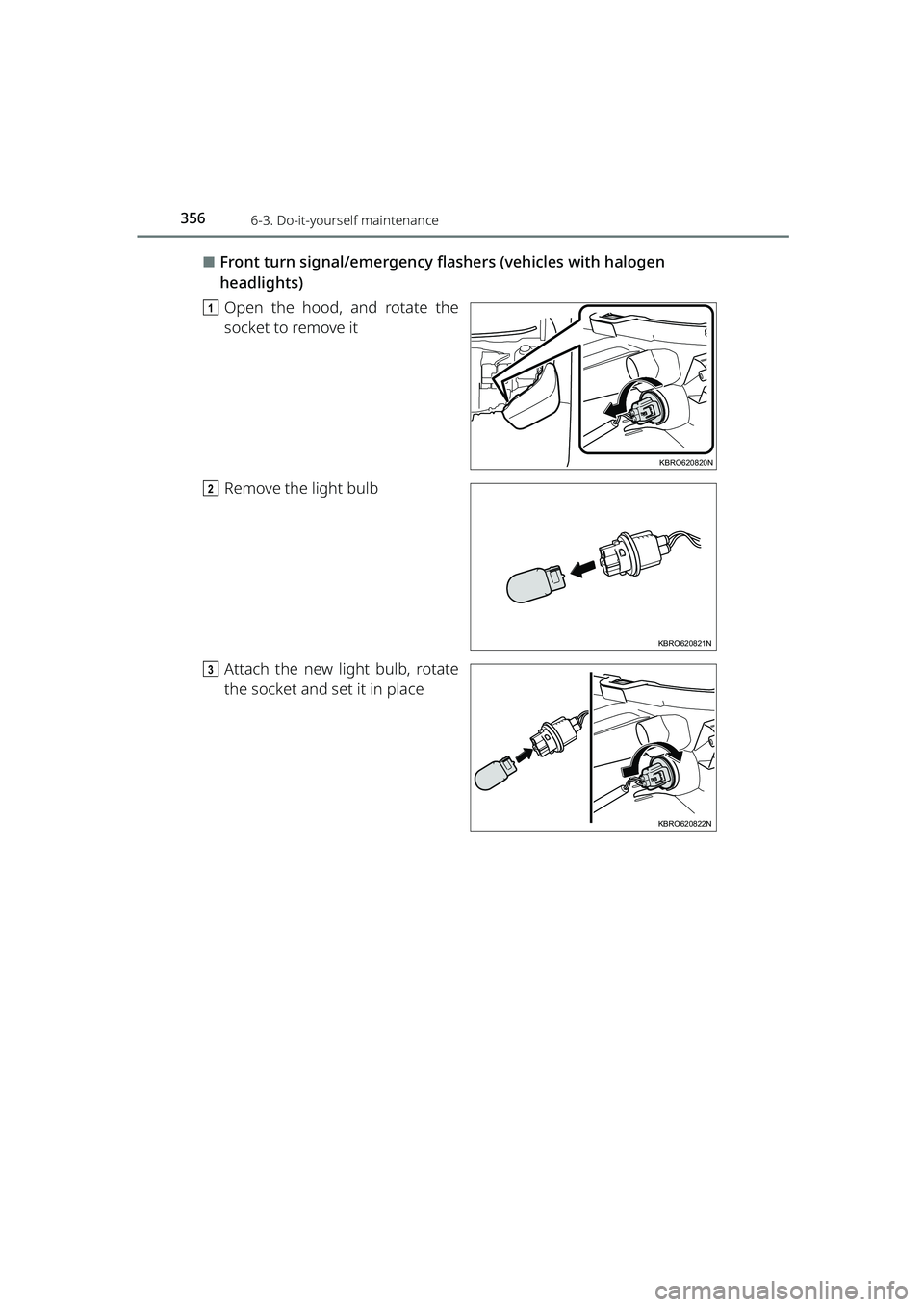

⬛Front turn signal/emergency flashers (vehicles with halogen
headlights)
a Open the hood, and rotate the
socket to remove it
b Remove the light bulb
c Attach the new light bulb, rotate
the socket and set it in place
KBRO620820N
KBRO620821N
KBRO620822N
RAIZE_OM_General_BZ358E.book 356 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3576-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6

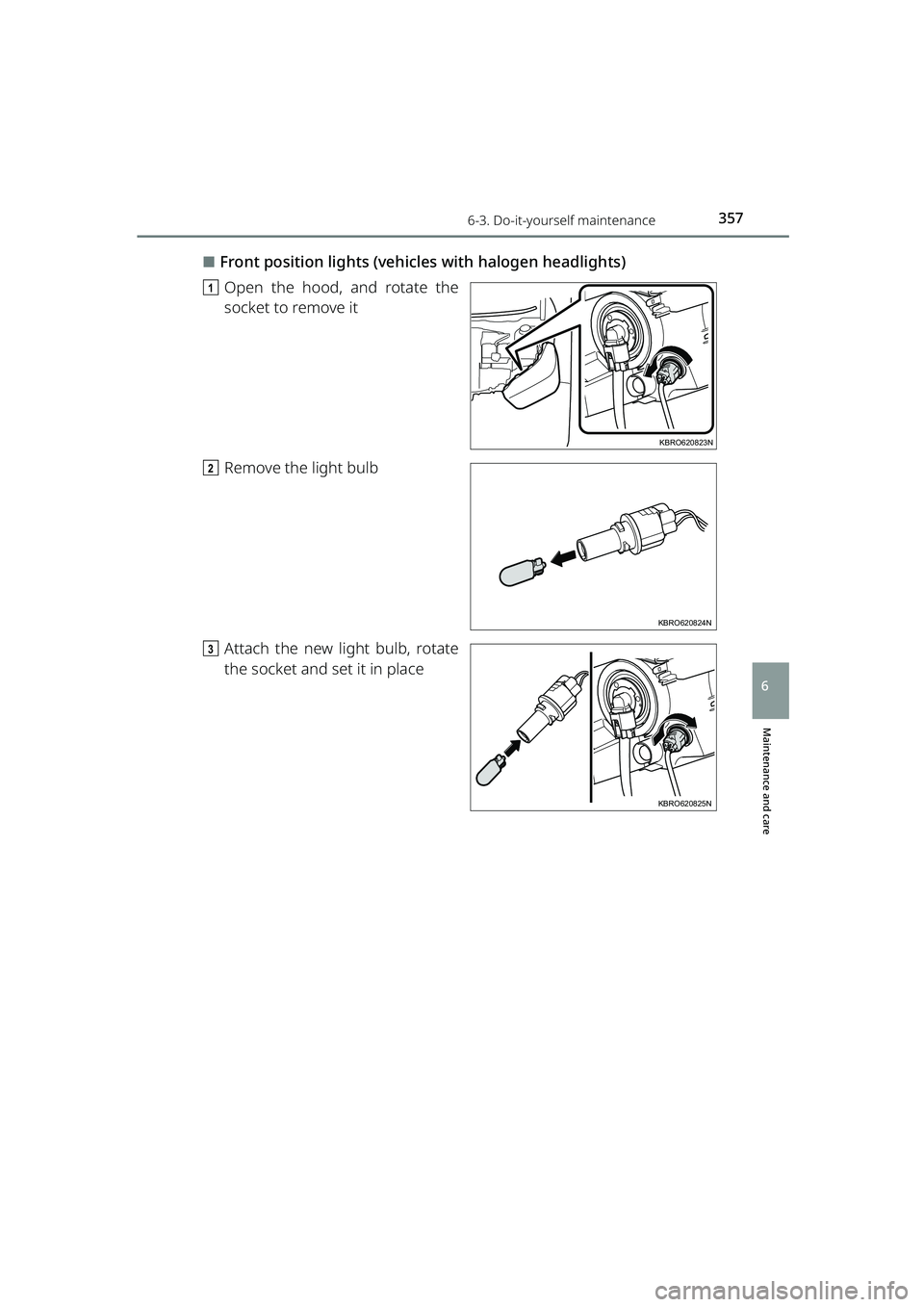

⬛Front position lights (vehicles with halogen headlights)
a Open the hood, and rotate the
socket to remove it
b Remove the light bulb
c Attach the new light bulb, rotate
the socket and set it in place
KBRO620823N
KBRO620824N
KBRO620825N
RAIZE_OM_General_BZ358E.book 357 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3636-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E✽
: If equipped
Maintenance and care
6
⬛Other light bulbs
If any other light bulbs go out, replace them at your Toyota dealer.
⚫Headlight high beam/low beam (vehicles with LED headlights)
⚫Daytime running lights✽
⚫Front position lights (vehicles with LED headlights)
⚫Front turn signal/emergency flashe rs (vehicles with LED headlights)
⚫Side turn signal lights/emergency flashers
⚫Stop lights/tail lights
⚫High mounted stoplight
⚫Rear fog light✽
⬛LED lights
Each unit of LED headlights,
✽ daytime running lights✽, and high mounted stop-
light are made of several LEDs. If any one of the LEDs do not light up, replace it
at your Toyota dealer.

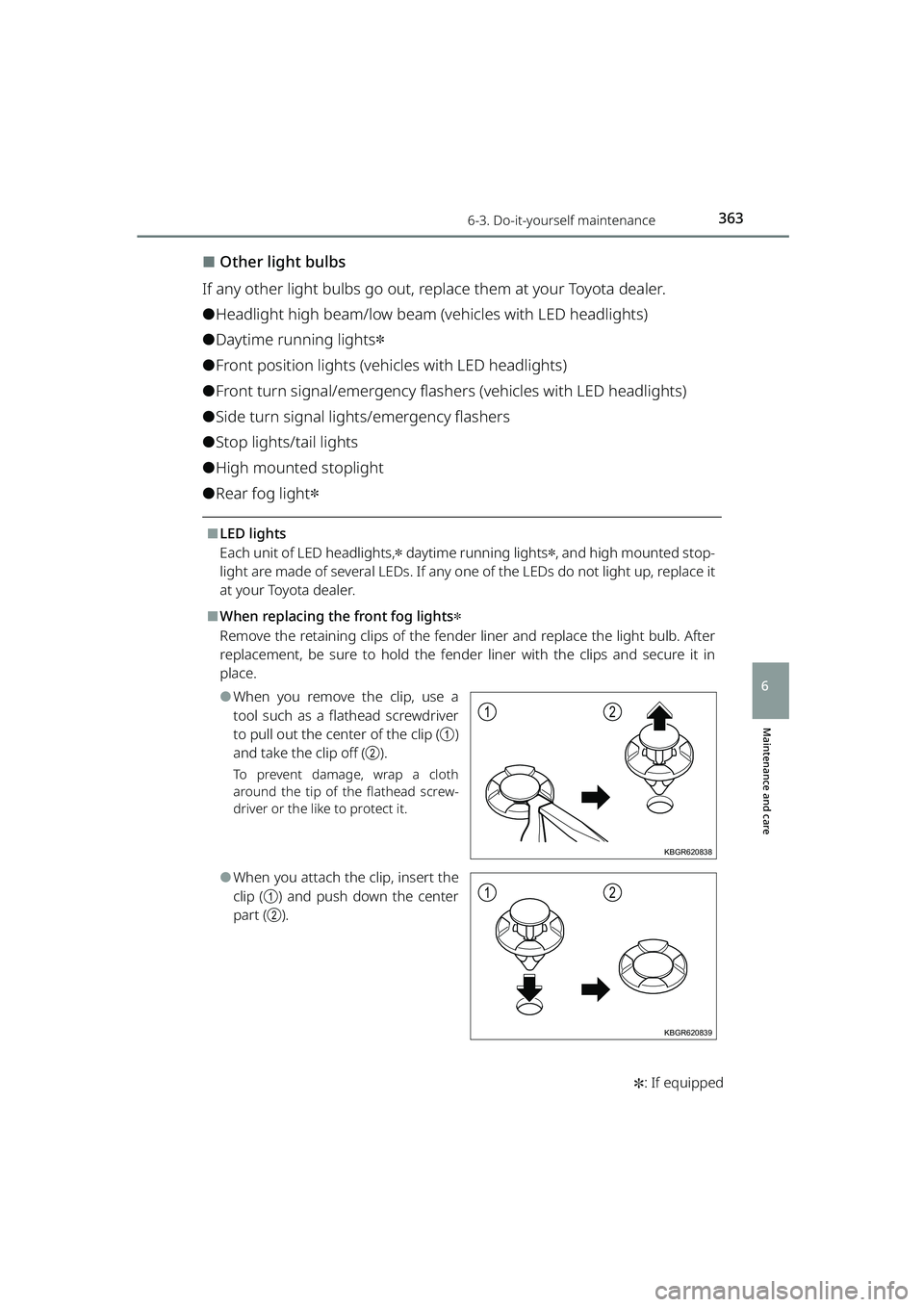

⬛When replacing the front fog lights✽
Remove the retaining clips of the fender liner and replace the light bulb. After
replacement, be sure to hold the fender liner with the clips and secure it in
place.
⚫When you remove the clip, use a
tool such as a flathead screwdriver
to pull out the center of the clip ( a)
and take the clip off ( b).
To prevent damage, wrap a cloth
around the tip of the flathead screw-
driver or the like to protect it.
⚫When you attach the clip, insert the
clip ( a) and push down the center
part ( b).
12
KBGR620838
12
KBGR620839
RAIZE_OM_General_BZ358E.book 363 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3646-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E

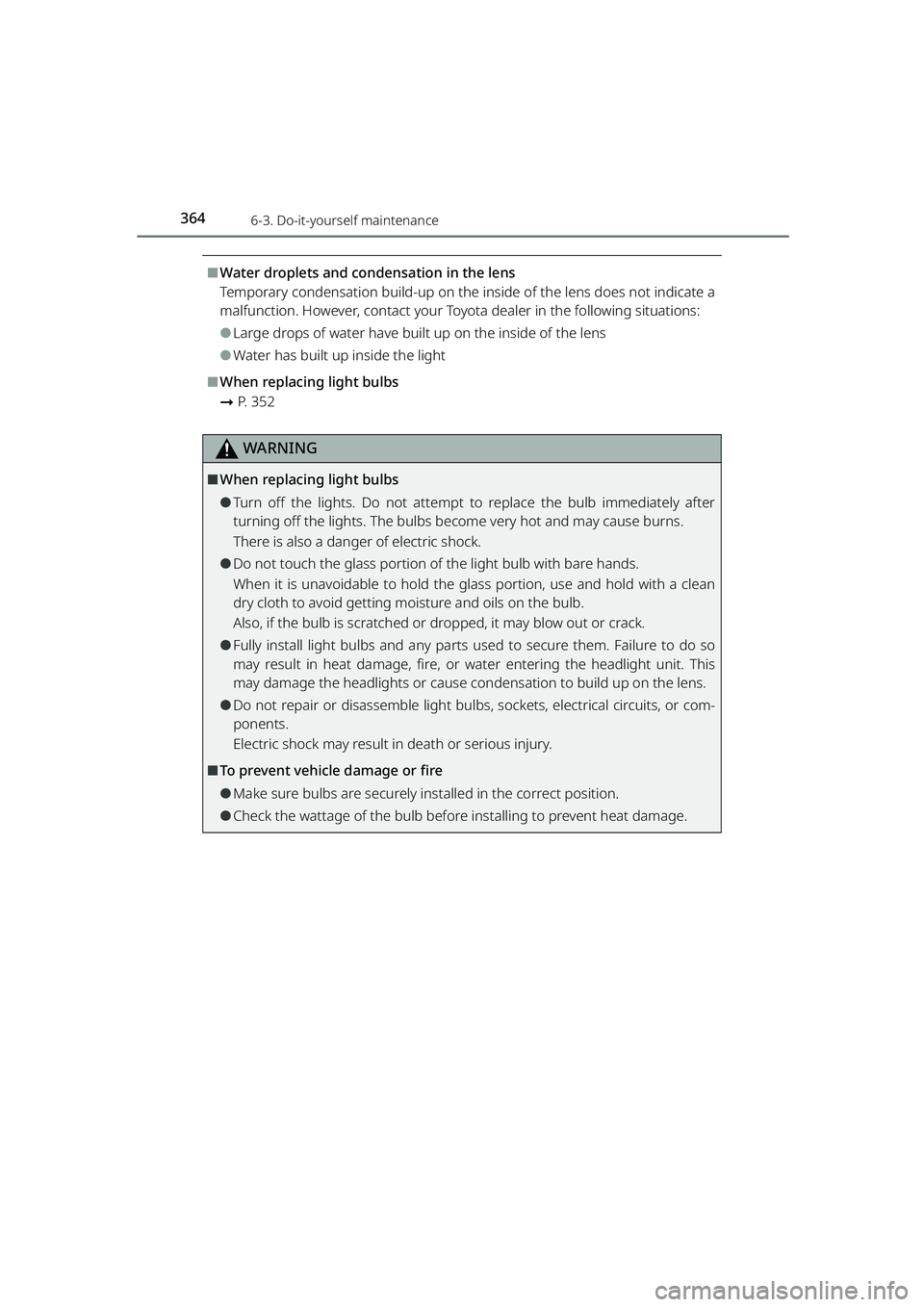

⬛Water droplets and condensation in the lens
Temporary condensation build-up on the inside of the lens does not indicate a
malfunction. However, contact your Toyota dealer in the following situations:
⚫Large drops of water have built up on the inside of the lens
⚫Water has built up inside the light
⬛When replacing light bulbs
➞P. 3 5 2
WARNING
⬛When replacing light bulbs
⚫Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights. The bulbs be come very hot and may cause burns.
There is also a danger of electric shock.
⚫Do not touch the glass portion of the light bulb with bare hands.
When it is unavoidable to hold the gl ass portion, use and hold with a clean
dry cloth to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
⚫Fully install light bulbs and any parts us ed to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
⚫Do not repair or disassemble light bulbs, sockets, electrical circuits, or com-
ponents.
Electric shock may result in death or serious injury.
⬛To prevent vehicle damage or fire
⚫Make sure bulbs are securely in stalled in the correct position.
⚫Check the wattage of the bulb before installing to prevent heat damage.
RAIZE_OM_General_BZ358E.book 364 ページ ２０２２年５月１７日　火曜日　午後１時５９分
