2023 TOYOTA PRIUS PLUG-IN HYBRID Owners Manual

7
1
9
8
7
6
5
4
2
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
3

8
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
For your infor mation
Please note that this manual applies to all models and explains all equipment,
including options. Therefore, you may find some explanations for equipment
not installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of equipment.
Both genuine Toyota and a wide variety of other spare parts and accessories
for Toyota vehicles are currently available on the market. Should it be deter-
mined that any of the genuine Toyota parts or accessories supplied with the
vehicle need to be replaced, Toyota recommends that genuine Toyota parts
or accessories, be used to replace them. Other parts or accessories of
matching quality can also be used.
Toyota cannot accept any liability or guarantee spare parts and accessories
which are not genuine Toyota products, nor for replacement or installation
involving such parts. In addition, damage or performance problems resulting
from the use of non-genuine Toyota spare parts or accessories may not be
covered under warranty.
Also, remodeling like this will have an effect on advanced safety equipment
such as Toyota Safety Sense and there is a danger that it will not work prop-
erly or the danger that it may work in situations where it should not be work-
ing.
Main Owner’s Manual
Accessories, spare parts and modification of your Toyota

9
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
The installation of an RF-transmitter system in your vehicle could affect elec-
tronic systems such as:
●Hybrid system
●Multiport fuel injection system/sequential multiport fuel injection system
●Toyota Safety Sense
●Anti-lock brake system
●SRS airbag system
●Seat belt pretensioner system
Be sure to check with any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer for precautionary measures or special
instructions regarding installation of an RF-transmitter system.
Further information regarding frequency bands, power levels, antenna posi-
tions and installation provisions for the installation of RF-transmitters, is avail-
able on request at any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
High voltage parts and cables on the hybrid vehicles emit approximately the
same amount of electromagnetic waves as the conventional gasoline pow-
ered vehicles or home electronic appliances despite of their electromagnetic
shielding.
Unwanted noise may occur in the reception of the radio frequency transmitter
(RF-transmitter).
Installation of an RF-transmitter system

10
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
The vehicle is equipped with sophisticated computers that will record certain
data, such as:
• Engine speed/Electric motor speed (traction motor speed)
• Accelerator status
• Brake status
• Vehicle speed
• Operation status of the driving assist systems
• Images from the cameras
Your vehicle is equipped with cameras. Contact any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer for the loca-
tion of recording cameras.
• Hybrid battery (traction battery) status
The recorded data varies according to the vehicle grade level, options and
destinations with which it is equipped.
These computers do not record conversations or sounds, and only record
images outside of the vehicle in certain situations.
●Data usage
Toyota may use the data recorded in this computer to diagnose malfunc-
tions, conduct research and development, and improve quality.
Toyota will not disclose the recorded data to a third party except:
• With the consent of the vehicle owner or with the consent of the lessee if
the vehicle is leased
• In response to an official request by the police, a court of law or a govern-
ment agency
• For use by Toyota in a lawsuit
• For research purposes where the data is not tied to a specific vehicle or
vehicle owner
●Recorded image information can be erased by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
The image recording function can be disabled. However, if the function is
disabled, data from when the system operates will not be available.
The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer, before
you scrap your vehicle.
Vehicle data recording
Scrapping of your Toyota

11
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
The word “QR Code” is registered trademark of DENSO WAVE INCORPO-
RATED in Japan and other countries.
“QR Code”
WARNING
■ General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impair ed your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that
distracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■ General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows, or other features of the vehicle. In addition, heat build-up or
extremely cold temperatures inside the vehicle can be fatal to children.

12
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
Reading this manual
WARNING:
Explains something that, if not obeyed, could cause death or
serious injury to people.
NOTICE:
Explains something that, if not obeyed, could cause damage to
or a malfunction in the vehicle or its equipment.
Indicates operating or working procedures. Follow the steps
in numerical order.
Indicates the action (push-
ing, turning, etc.) used to
operate switches and other
devices.
Indicates the outcome of an
operation (e.g. a lid opens).
Indicates the component or
position being explained.
Means “Do not”, “Do not do
this”, or “Do not let this hap-
pen”.
123

13
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

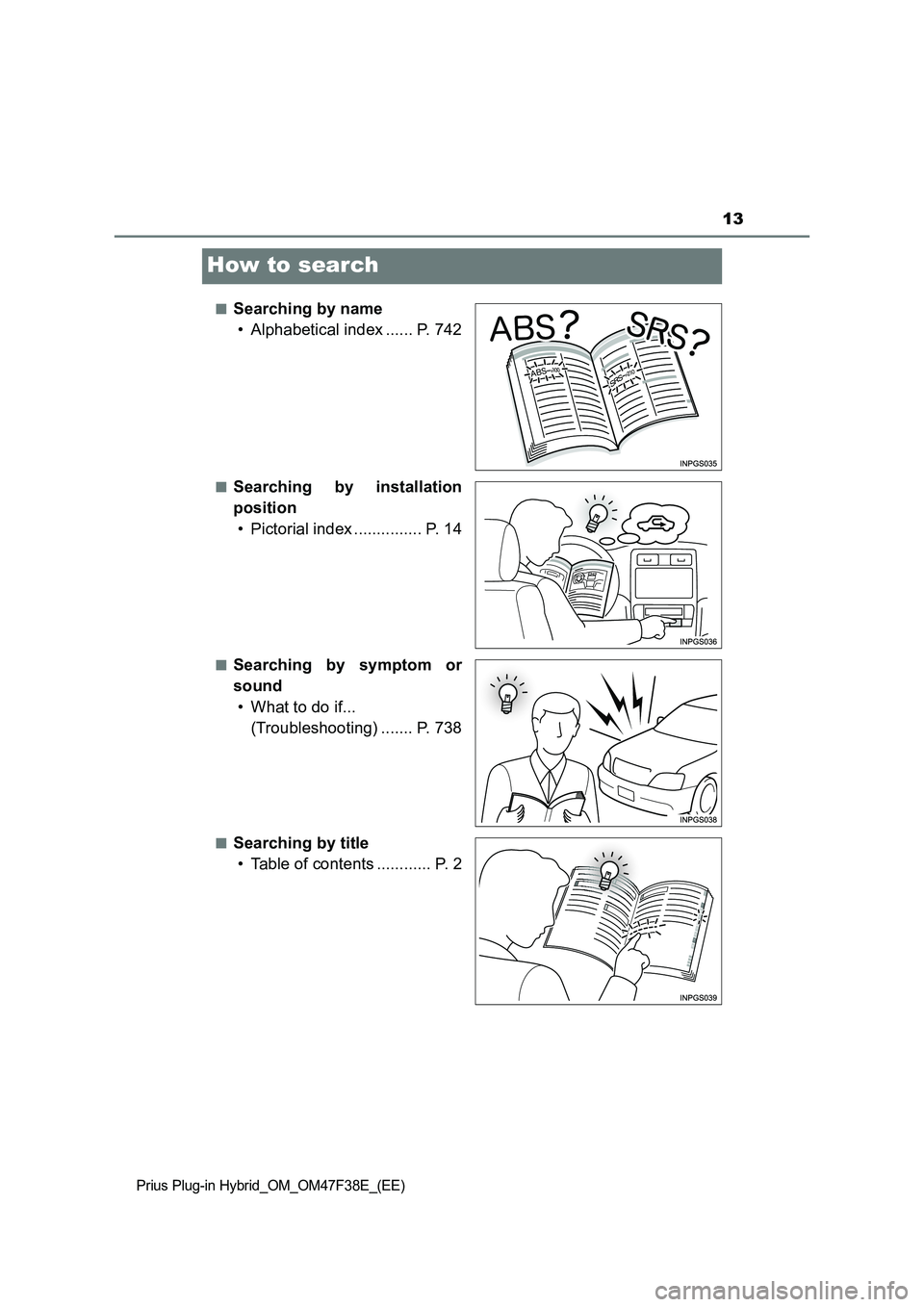

How to search
■Searching by name
• Alphabetical index ...... P. 742
■Searching by installation
position
• Pictorial index ............... P. 14
■Searching by symptom or
sound
• What to do if...
(Troubleshooting) ....... P. 738
■Searching by title
• Table of contents ............ P. 2

14Pictorial index
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
Pictorial index
■Exterior
Side doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 273
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 273
Opening/closing the side windows . . . . . . . . . . . . . . . . . . . . . P. 303
Locking/unlocking by using the mechanical key . . . . . . . . . . . P. 695
Warning lights/warning messages . . . . . . . . . . . . . . . . . . P. 662, 667
Back door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 278
Opening from outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 278
Warning lights/warning messages . . . . . . . . . . . . . . . . . . P. 662, 667
Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 301
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 301
Folding the mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 301
Defogging the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 527
1
2
3
