2023 TOYOTA PRIUS PLUG-IN HYBRID Owners Manual

111
2
2-2. Charging
Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

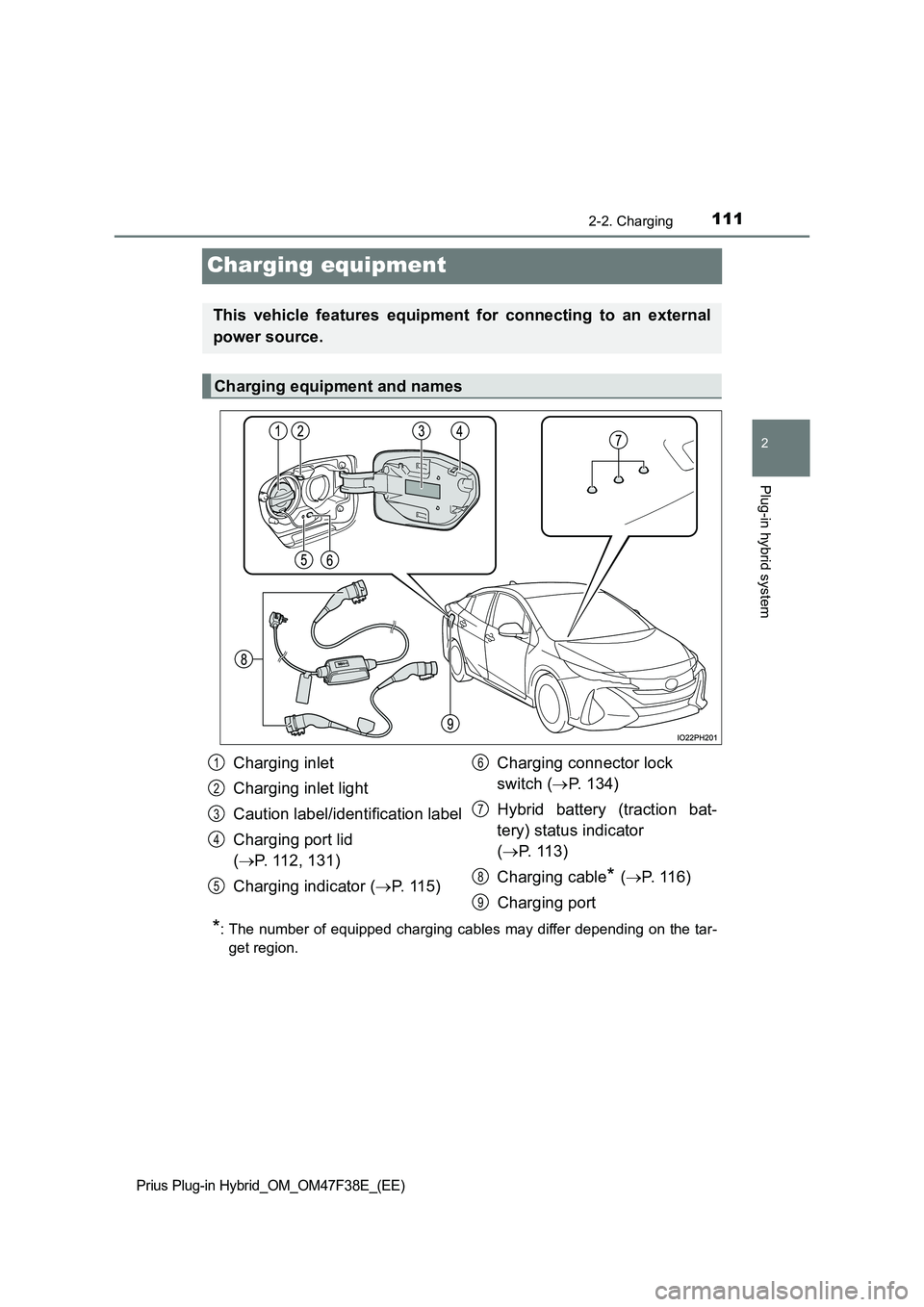

Charging equipment
*: The number of equipped charging cables may differ depending on the tar-
get region.
This vehicle features equipment for connecting to an external
power source.
Charging equipment and names
Charging inlet
Charging inlet light
Caution label/identification label
Charging port lid
( P. 112, 131)
Charging indicator ( P. 1 1 5 )
Charging connector lock
switch ( P. 134)
Hybrid battery (traction bat-
tery) status indicator
( P. 113)
Charging cable* ( P. 1 1 6 )
Charging port
1
2
3
4
5
6
7
8
9

1122-2. Charging
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
■Opening the charging port lid
Press the rear edge of the
charging port lid (the position
shown in the illustration) with
the doors unlocked.
Push and take your hand away
to slightly open the charging port
lid. Then open the lid fully by
hand.
While the doors are locked, only
the charging port lid can be
unlocked by carrying an elec-
tronic key and pressing the
charging port lid. (P. 1 3 1 )
■
Closing the charging port lid
Close the charging port lid and
press the rear edge of the
charging port lid (the position
shown in the illustration).
When the doors are locked with
the smart entry & start system,
wireless remote control or door
lock switch, the charging port lid
is also locked. (P. 273, 275)
If the charging port lid is closed
with the doors locked, the
charging port lid locks.
Opening and closing the charging port lid

1132-2. Charging
2
Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

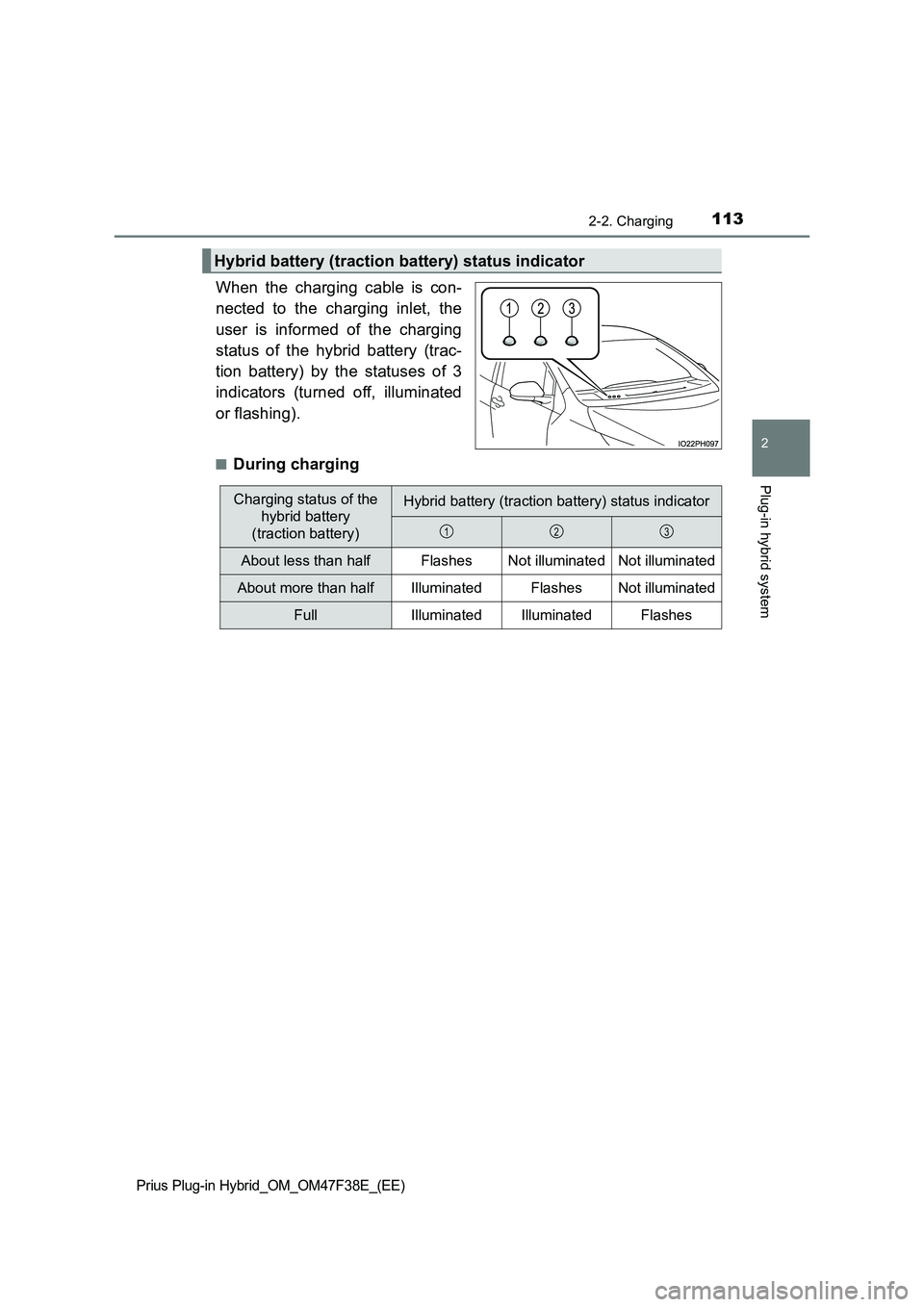

When the charging cable is con-
nected to the charging inlet, the
user is informed of the charging
status of the hybrid battery (trac-
tion battery) by the statuses of 3
indicators (turned off, illuminated
or flashing).
■During charging
Hybrid battery (traction battery) status indicator
Charging status of the
hybrid battery
(traction battery)Hybrid battery (traction battery) status indicator
About less than halfFlashesNot illuminatedNot illuminated
About more than halfIlluminatedFlashesNot illuminated
FullIlluminatedIlluminatedFlashes
123

1142-2. Charging
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
■Except during charging
The hybrid battery (traction battery) status indicators illuminate
*1
while the charging port lid is open and any of the followings are per-
formed.
●When an electronic key is carried near the effective range
*2
(P. 284)
●When the doors are unlocked
*1: The indicators illuminate for a maximum of approximately 15 seconds.
*2: Excluding the effective range of the charging port lid.
■When the hybrid battery (traction battery) is fully charged
When the charging cable is connected, all 3 hybrid battery (traction battery)
status indicators illuminate to inform the user that the hybrid battery (traction
battery) is fully charged.
*
*
: If the push lifter (P. 161) is pushed in, the hybrid battery (traction battery)
status indicators may flash.
Charging status of the
hybrid battery
(traction battery)Hybrid battery (traction battery) status indicator
About less than halfIlluminatedNot illuminatedNot illuminated
About more than halfIlluminatedIlluminatedNot illuminated
FullIlluminatedIlluminatedIlluminated
123

1152-2. Charging
2
Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
The illumination/flashing pattern
changes to inform the user of the
charging status in the following
ways.
*1: If equipped
*2: Turns off after flashing for a certain period of time.
■Charging indicator
When a system malfunction occurs while charging or using the Remote Air
Conditioning System, the charging indicator rapidly flashes for a certain
period of time, and then turns off.
If this occurs, the next time the hybrid system is started, a message is dis-
played on the multi-information display. When a message is displayed, follow
the instructions displayed on the screen.
Charging indicator
Illumination/flashing
patternVehicle condition
Illuminated
• Charging is in progress
• Charging is possible
• “Traction Battery Heater” (P. 144) is operating
• “Traction Battery Cooler” (P. 145) is operating
*1
Flashing
(normally)
*2When charge schedule is registered (P. 166) and
charging cable is connected to vehicle
Rapidly flashing*2When charging cannot be carried out due to mal-
function in a power source or the vehicle etc.
(P. 184)
Not illuminated
• Charging connector is not inserted into charging
inlet
• When the charging schedule (P. 166) is on
standby
• When charging is completed

1162-2. Charging
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

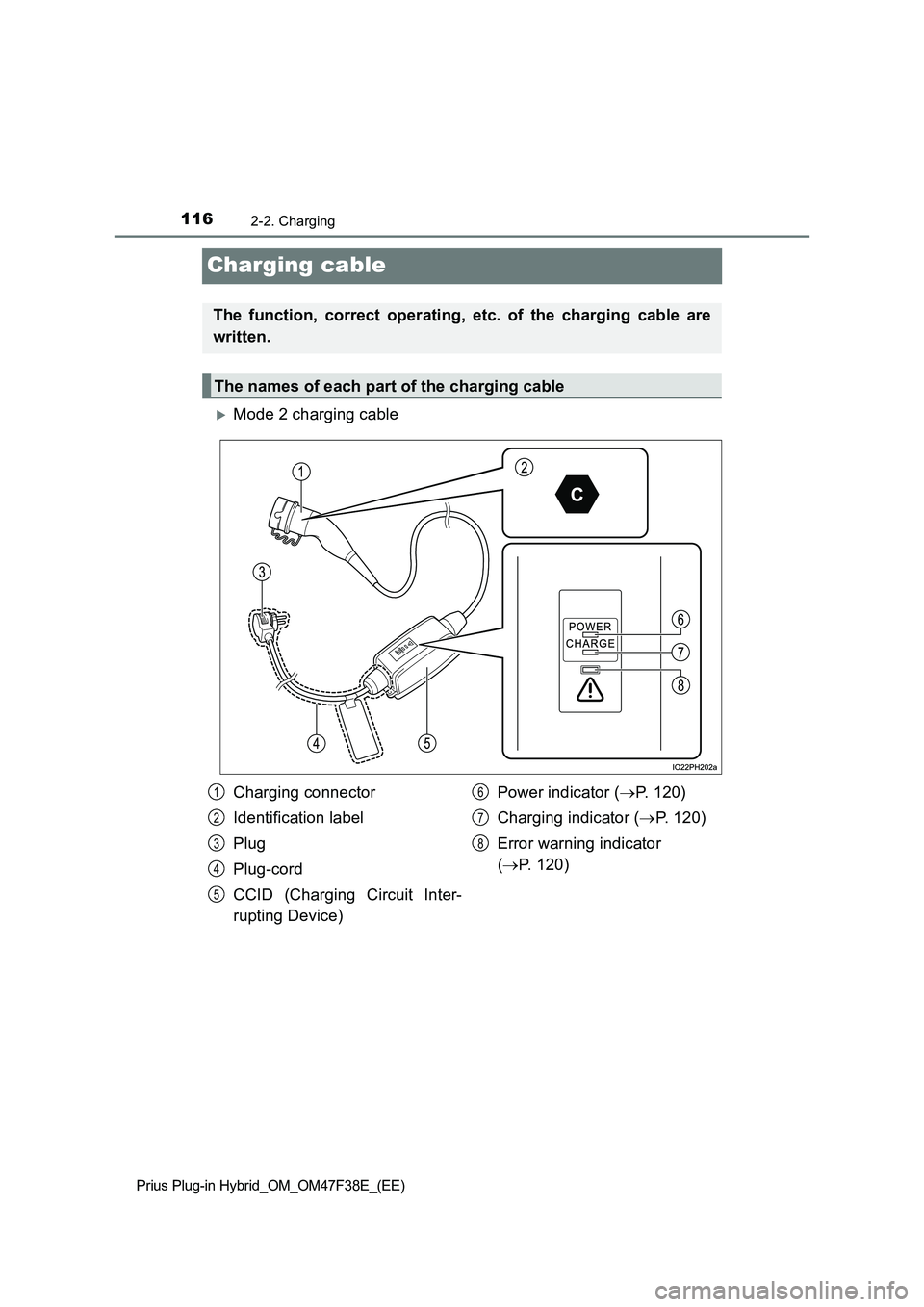

Charging cable
Mode 2 charging cable
The function, correct operating, etc. of the charging cable are
written.
The names of each part of the charging cable
Charging connector
Identification label
Plug
Plug-cord
CCID (Charging Circuit Inter-
rupting Device)
Power indicator ( P. 120)
Charging indicator ( P. 120)
Error warning indicator
( P. 120)
1
2
3
4
5
6
7
8

1172-2. Charging
2
Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

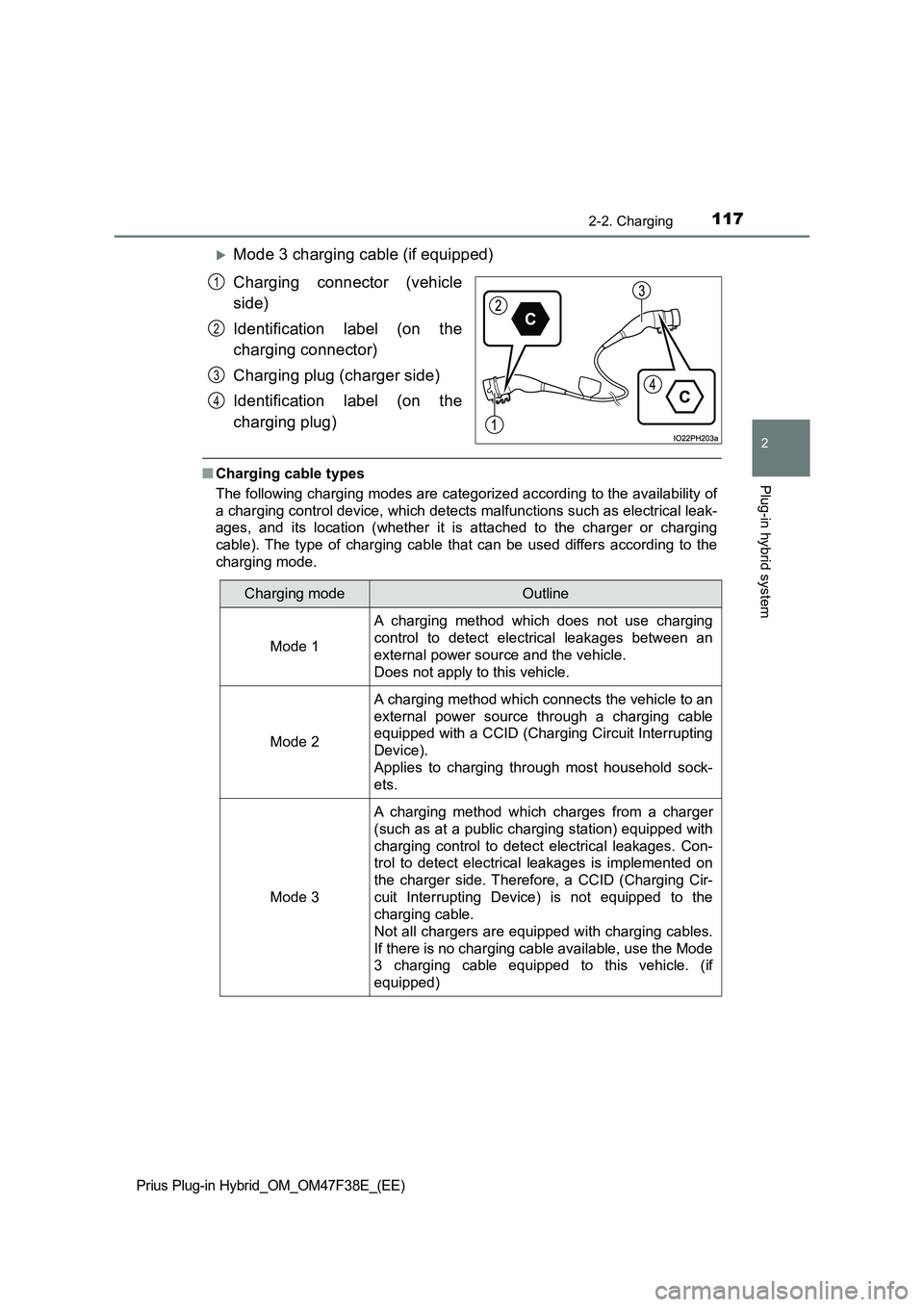

Mode 3 charging cable (if equipped)
Charging connector (vehicle
side)
Identification label (on the
charging connector)
Charging plug (charger side)
Identification label (on the
charging plug)
■ Charging cable types
The following charging modes are categorized according to the availability of
a charging control device, which detects malfunctions such as electrical leak-
ages, and its location (whether it is attached to the charger or charging
cable). The type of charging cable that can be used differs according to the
charging mode.
1
2
3
4
Charging modeOutline
Mode 1
A charging method which does not use charging
control to detect electrical leakages between an
external power source and the vehicle.
Does not apply to this vehicle.
Mode 2
A charging method which connects the vehicle to an
external power source through a charging cable
equipped with a CCID (Charging Circuit Interrupting
Device).
Applies to charging through most household sock-
ets.
Mode 3
A charging method which charges from a charger
(such as at a public charging station) equipped with
charging control to detect electrical leakages. Con-
trol to detect electrical leakages is implemented on
the charger side. Therefore, a CCID (Charging Cir-
cuit Interrupting Device) is not equipped to the
charging cable.
Not all chargers are equipped with charging cables.
If there is no charging cable available, use the Mode
3 charging cable equipped to this vehicle. (if
equipped)

1182-2. Charging
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
■Identification label
Identification labels are attached to the vehicle, charging cable and charger to
inform the user of which device they should use.
The meaning of the each identification label is as follows:
Identifi-
cation
labelSupply
typeStandardConfigura-
tionType of
accessoryVoltage
range
ACEN 62196-2TYPE 2
• Charging
port lid
• Charging
connector
≤ 480V RMS
ACEN 62196-2TYPE 2
• Charging
plug
• Charger
≤ 480V RMS
DCEN 62196-3FF
• Charging
port lid
• Charging
connector
50V to 500V
DCEN 62196-3AA
• Charging
port lid
• Charging
connector
50V to 500V
