2023 TOYOTA PRIUS PLUG-IN HYBRID remote control

TABLE OF CONTENTS4
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
5-5. Using the driving
support systems
Toyota Safety Sense .........355
PCS (Pre-Collision
System) ...........................368
LTA (Lane Tracing
Assist) ..............................379
RSA (Road Sign Assist).....395
Dynamic radar cruise
control with full-speed
range ...............................401
Driving mode select
switch...............................418
Speed limiter ......................420
BSM
(Blind Spot Monitor) .........423
• The Blind Spot Monitor
function ..........................439
• The Rear Crossing
Traffic Alert function.......443
Toyota parking
assist-sensor ...................450
Parking Support Brake
function ............................462
S-IPA (Simple Intelligent
Parking Assist
System) ...........................473
GPF (Gasoline Particulate
Filter) system ...................508
Driving assist systems .......509
5-6. Driving tips
Winter driving tips ..............5166-1. Using the air conditioning
system and defogger
Automatic air conditioning
system............................. 522
Remote Air Conditioning
System ............................ 535
Seat heaters ...................... 539
6-2. Using the interior lights
Interior lights list ................ 541
• Front interior light .......... 542
• Front personal lights ..... 542
• Rear interior light .......... 543
6-3. Using the storage features
List of storage features...... 544
• Glove box ...................... 545
• Console box .................. 545
• Cup holders .................. 546
• Bottle holders/
door pockets ................. 547
• Auxiliary boxes .............. 548
• Seat back pockets ........ 549
Luggage compartment
features ........................... 550
6-4. Using the other interior
features
Other interior features ....... 555
• Sun visors ..................... 555
• Vanity mirrors ................ 555
• Power outlets ................ 556
• Wireless charger ........... 557
• Armrest ......................... 563
• Coat hooks .................... 563
• Assist grips ................... 564
6Interior features

19Pictorial index
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
TRIP switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 214
Audio remote control switches
*2
Meter control switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 195
Vehicle-to-vehicle distance switch . . . . . . . . . . . . . . . . . . . P. 409
LTA (Lane Tracing Assist) switch . . . . . . . . . . . . . . . . . . . . . P. 387
Cruise control switch
Dynamic radar cruise control with full-speed range. . . . . . . . . P. 401
Speed limiter switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 420
Talk switch
*2
Telephone switches*2
*1: If equipped
*2: Refer to “Navigation system Owner’s manual”.
1
2
3
4
5
6
7
8
9

25Pictorial index
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
TRIP switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 214
Audio remote control switches
*2
Meter control switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 195
Vehicle-to-vehicle distance switch . . . . . . . . . . . . . . . . . . . P. 409
LTA (Lane Tracing Assist) switch . . . . . . . . . . . . . . . . . . . . . P. 387
Cruise control switch
Dynamic radar cruise control with full-speed range. . . . . . . . . P. 401
Speed limiter switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 420
Talk switch
*2
Telephone switches*2
*1: If equipped
*2: Refer to “Navigation system Owner’s manual”.
1
2
3
4
5
6
7
8
9

75
1
1-3. Theft deterrent system
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
For safety and security
Double locking system
Vehicles employing this system
have labels on the window glass
of both front doors.
Turn the power switch off, have all the passengers exit the vehicle and
ensure that all the doors are closed.
Using the entry function:
Touch the sensor area on the outside door handle twice within 5 sec-
onds.
Using the wireless remote control:
Press twice within 5 seconds.
Using the entry function: Hold the outside door handle.
Using the wireless remote control: Press .
: If equipped
Unauthorized access to the vehicle is prevented by disabling the
door unlocking function from both the interior and exterior of
the vehicle.
IO13PH004
Setting the double locking system
Canceling the double locking system
WARNING
■ Double locking system precaution
Never activate the double locking system when there are people in the vehi-
cle, because all the doors cannot be opened from inside the vehicle.

761-3. Theft deterrent system
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
Alar m
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is
set:
● A locked door or back door is unlocked or opened in any way other
than using the entry function or wireless remote control. (The doors
will lock again automatically.)
● The hood is opened.
● If equipped, the intrusion sensor detects something moving inside
the vehicle. (An intruder gets in the vehicle.)
Close the doors and hood, and
lock all the doors using the entry
function or wireless remote con-
trol. The system will be set auto-
matically after 30 seconds.
The indicator light changes from
being on to flashing when the sys-
tem is set.
Do one of the following to deactivate or stop the alarm.
● Unlock the doors using the entry function or wireless remote con-
trol.
● Start the hybrid system. (The alarm will be deactivated or stopped
after a few seconds.)
: If equipped
The alarm
Setting the alarm system
Deactivating or stopping the alarm

801-3. Theft deterrent system
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
■When the message asking if you wish to cancel the intrusion sensor is
not displayed
The message may not be displayed if other message is displayed. In this
case, turn the power switch to ON mode, follow the instructions on the display
and turn the power switch off again.
■ Canceling and automatic re-enabling of the intrusion sensor
● The alarm will still be set even when the intrusion sensor is canceled.
● After the intrusion sensor is canceled, pressing the power switch or unlock-
ing the doors using the entry function or wireless remote control will re-
enable the intrusion sensor.
● The intrusion sensor will automatically be re-enabled when the alarm sys-
tem is deactivated.
■ Intrusion sensor detection considerations
The sensor may trigger the alar m in the following situations:
• The movement of people outside the vehicle
● People or pets are in the vehicle.
● A side window is open.
In this case, the sensor may detect the
following:
• Wind or the movement of objects
such as leaves and insects inside the
vehicle
• Ultrasonic waves emitted from
devices such as the intrusion sensors
of other vehicles
IO13PH005
● Unstable items, such as dangling acces-
sories or clothes hanging on the coat
hooks, are in the vehicle.
IO13PH007

1122-2. Charging
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
■Opening the charging port lid
Press the rear edge of the
charging port lid (the position
shown in the illustration) with
the doors unlocked.
Push and take your hand away
to slightly open the charging port
lid. Then open the lid fully by
hand.
While the doors are locked, only
the charging port lid can be
unlocked by carrying an elec-
tronic key and pressing the
charging port lid. (P. 1 3 1 )
■
Closing the charging port lid
Close the charging port lid and
press the rear edge of the
charging port lid (the position
shown in the illustration).
When the doors are locked with
the smart entry & start system,
wireless remote control or door
lock switch, the charging port lid
is also locked. (P. 273, 275)
If the charging port lid is closed
with the doors locked, the
charging port lid locks.
Opening and closing the charging port lid

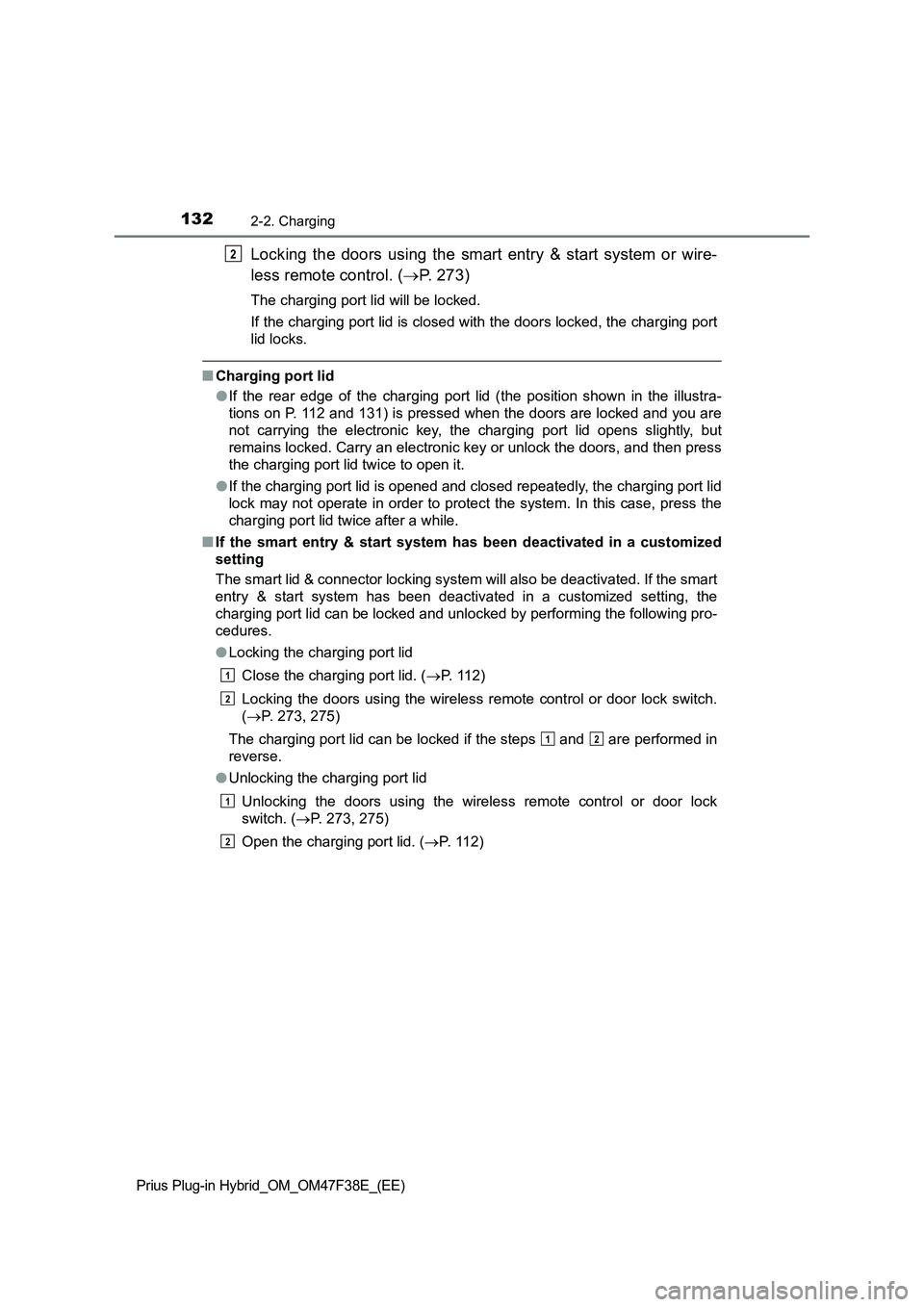

1322-2. Charging
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
Locking the doors using the smart entry & start system or wire-
less remote control. (P. 273)
The charging port lid will be locked.
If the charging port lid is closed with the doors locked, the charging port
lid locks.
■Charging port lid
●If the rear edge of the charging port lid (the position shown in the illustra-
tions on P. 112 and 131) is pressed when the doors are locked and you are
not carrying the electronic key, the charging port lid opens slightly, but
remains locked. Carry an electronic key or unlock the doors, and then press
the charging port lid twice to open it.
●If the charging port lid is opened and closed repeatedly, the charging port lid
lock may not operate in order to protect the system. In this case, press the
charging port lid twice after a while.
■If the smart entry & start system has been deactivated in a customized
setting
The smart lid & connector locking system will also be deactivated. If the smart
entry & start system has been deactivated in a customized setting, the
charging port lid can be locked and unlocked by performing the following pro-
cedures.
●Locking the charging port lid
Close the charging port lid. (P. 1 1 2 )
Locking the doors using the wireless remote control or door lock switch.
(P. 273, 275)
The charging port lid can be locked if the steps and are performed in
reverse.
●Unlocking the charging port lid
Unlocking the doors using the wireless remote control or door lock
switch. (P. 273, 275)
Open the charging port lid. (P. 112)
2
1
2
12
1
2
