4RUNNER (U)2. Instrument cluster
Warning lights and indicators .......................... 82
Gauges and meters ............ 88
Multi-information display ..... 90

82
4RUNNER (U)
2. Instrument cluster
The units used on the speedometer and some indicators may differ
depending on where the vehicle is sold.

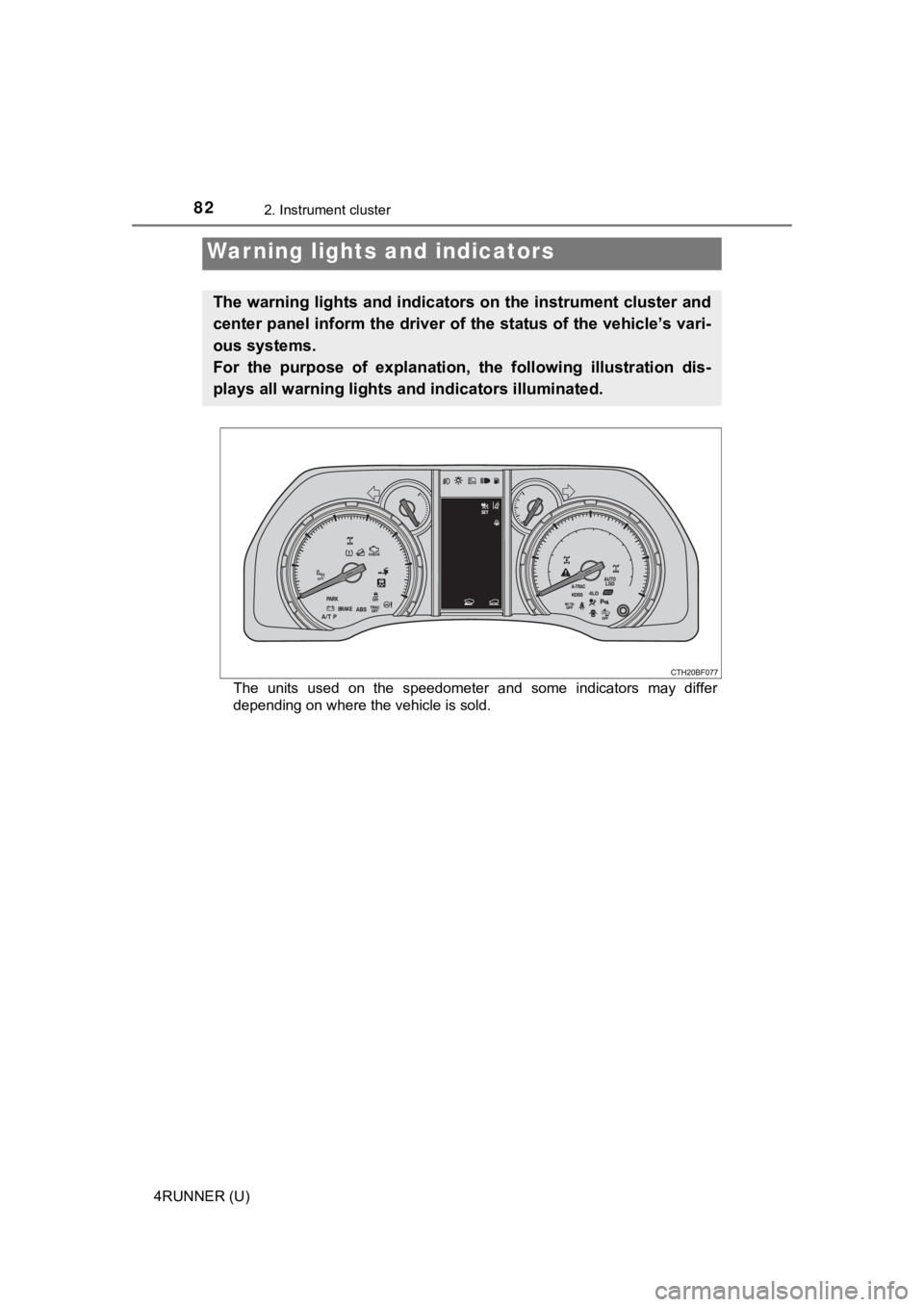

Warning lights and indicators
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, t he following illustration dis-
plays all warning lights a nd indicators illuminated.

832. Instrument cluster
2
Instrument cluster
4RUNNER (U)
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.

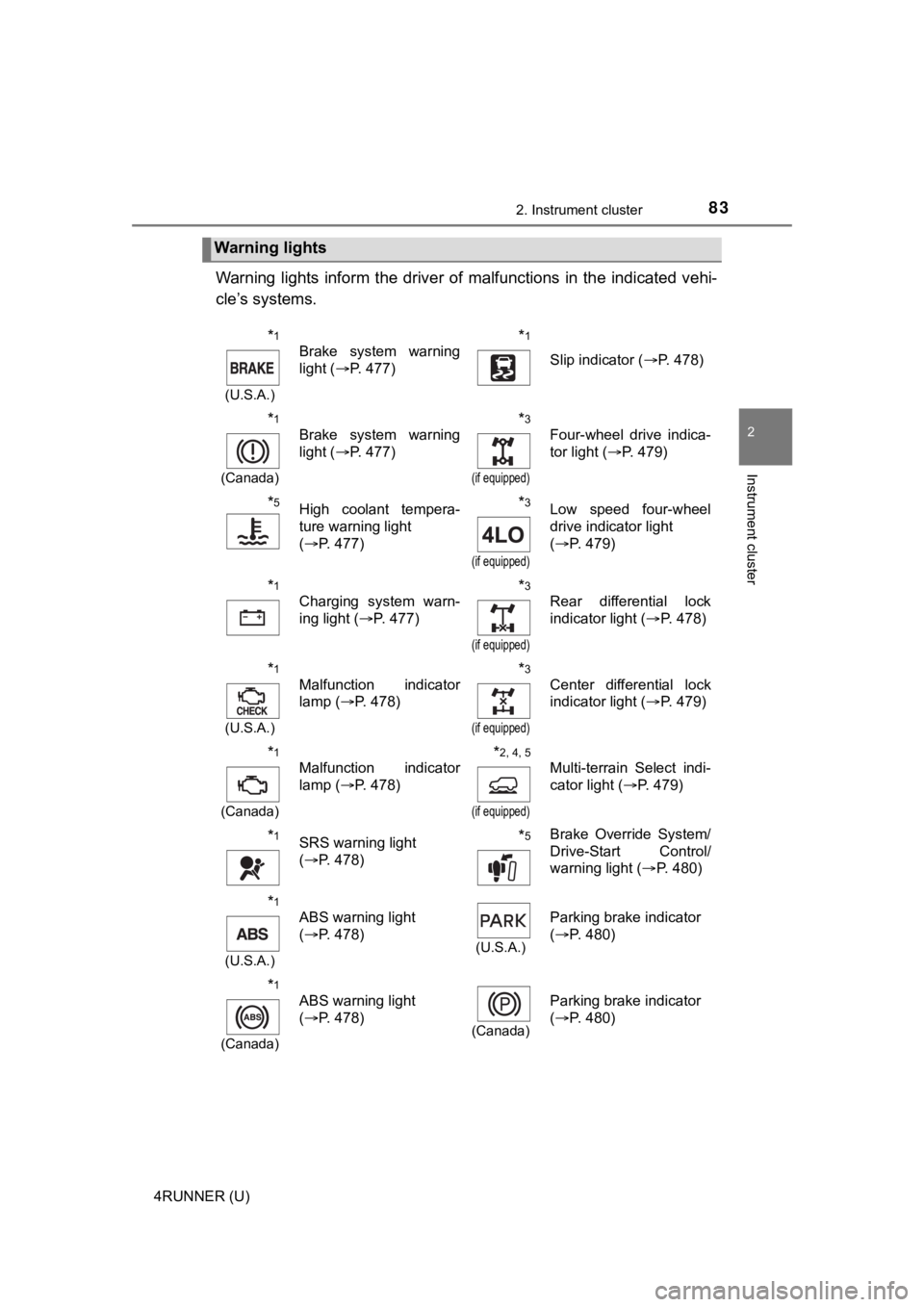

Warning lights
*1
(U.S.A.)
Brake system warning
light ( P. 477)*1
Slip indicator ( P. 478)
*1
(Canada)
Brake system warning
light (P. 477)*3
(if equipped)
Four-wheel drive indica-
tor light ( P. 479)
*5High coolant tempera-
ture warning light
(P. 477)*3
(if equipped)
Low speed four-wheel
drive indicator light
(P. 479)
*1
Charging system warn-
ing light ( P. 477)*3
(if equipped)
Rear differential lock
indicator light ( P. 478)
*1
(U.S.A.)
Malfunction indicator
lamp ( P. 478)*3
(if equipped)
Center differential lock
indicator light ( P. 479)
*1
(Canada)
Malfunction indicator
lamp ( P. 478)*2, 4, 5
(if equipped)
Multi-terrain Select indi-
cator light ( P. 479)
*1SRS warning light
(P. 478)*5Brake Override System/
Drive-Start Control/
warning light ( P. 480)
*1
(U.S.A.)
ABS warning light
(P. 478)
(U.S.A.)
Parking brake indicator
(P. 480)
*1
(Canada)
ABS warning light
(P. 478)
(Canada)
Parking brake indicator
(P. 480)

842. Instrument cluster
4RUNNER (U)
*1: These lights turn on when the engine switch is turned to IGNITION ON
mode to indicate that a system check is being performed. They w ill turn off
after the engine is started, or after a few seconds. There may be a mal-
function in a system if a light does not come on, or turn off. Have the vehi-
cle inspected by your Toyota dealer.
*2: This light flashes to indicate a malfunction.
*3: This light flashes rapidly to indicate a malfunction.
*4: This light flashes continuously to indicate a malfunction.
*5: This light illuminates on the multi-information display.
*6: This light flashes or illuminates to indicate a malfunction.
*1BSM OFF (Blind Spot
Monitor) indicator
( P. 482)*5Low engine oil pressure
warning light ( P. 477)
*1
(Flashes)
RCTA OFF (Rear Cross
Traffic Alert) indicator
(P. 482)*1
Power steering warning
light ( P. 479)
*1, 6PCS warning light
(P. 481)*1Master warning light
(P. 488)
*5
(Amber)
LDA indicator ( P. 481)
*1Tire pressure warning
light (P. 481)
Open door warning light
(P. 479)
(if equipped)
Unengaged “Park” warn-
ing light ( P. 479)
Low fuel level warning
light (P. 480)*1
(if equipped)
KDSS warning light
(P. 479)
Seat belt reminder light
(P. 480)*1, 2
(if equipped)
Automatic running
boards indicator light
(P. 479)

852. Instrument cluster
2
Instrument cluster
4RUNNER (U)
The indicators inform the driver of the operating state of the vehicle’s
various systems.

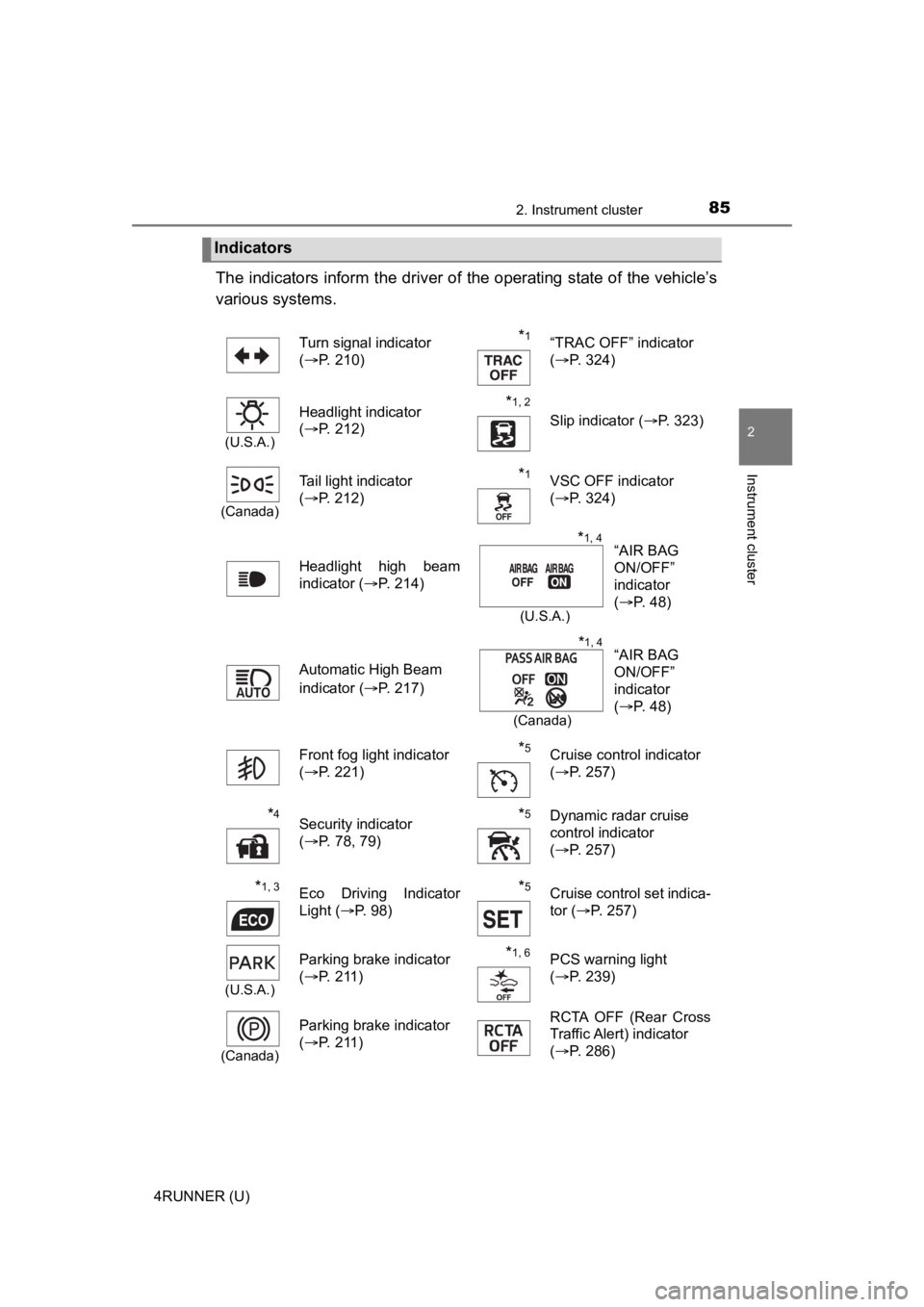

Indicators
Turn signal indicator
( P. 210)*1“TRAC OFF” indicator
(P. 324)
(U.S.A.)
Headlight indicator
(P. 212)*1, 2 Slip indicator ( P. 323)
(Canada)
Tail light indicator
(P. 212) *1VSC OFF indicator
(P. 324)
Headlight high beam
indicator ( P. 214)
Automatic High Beam
indicator ( P. 217)
Front fog light indicator
( P. 221)
*5Cruise control indicator
(P. 257)
*4Security indicator
(P. 78, 79)*5Dynamic radar cruise
control indicator
(P. 257)
*1, 3Eco Driving Indicator
Light ( P. 98)*5Cruise control set indica-
tor (P. 257)
(U.S.A.)
Parking brake indicator
(P. 211)*1, 6PCS warning light
(P. 239)
(Canada)
Parking brake indicator
(P. 211)RCTA OFF (Rear Cross
Traffic Alert) indicator
(P. 286)
“AIR BAG
ON/OFF”
indicator
(P. 48)*1, 4
(U.S.A.)
“AIR BAG
ON/OFF”
indicator
(P. 48)*1, 4
(Canada)

862. Instrument cluster
4RUNNER (U)
*1, 6BSM OFF (Blind Spot
Monitor) indicator
(P. 270)
(if equipped)
Center differential lock
indicator ( P. 298)
*1, 7, 8
(if equipped)
Outside rear view mirror
indicator ( P. 270)
(if equipped)
“A-TRAC” indicator
(P. 302)
*5
(Green)
LDA indicator ( P. 249)
*1
(if equipped)
“AUTO LSD” indicator
(P. 304)
*2, 5
(Amber)
LDA indicator ( P. 249)
*5
(if equipped)
Multi-terrain Select indi-
cator (P. 315)
(if equipped)
Four-wheel drive indica-
tor (P. 294)*5
(if equipped)
Crawl Control indicator
(P. 312)
*1
(if equipped)
Downhill assist control
system indicator
(P. 309)
(if equipped)
Intuitive parking assist
indicator ( P. 277)
(if equipped)
Low speed four-wheel
drive indicator
(P. 294, 298) *1, 2
(if equipped)
Automatic running
boards indicator
(P. 121)
(if equipped)
Rear differential lock
indicator ( P. 306)

872. Instrument cluster
2
Instrument cluster
4RUNNER (U)
*1: These lights turn on when the engine switch is turned to IGNITION ON
mode to indicate that a system check is being performed. They will turn off
after the engine is started, or after a few seconds. There may be a mal-
function in a system if a light does not come on, or turn off. Have the vehi-
cle inspected by your Toyota dealer.
*2: This light flashes to indicate that the system is operating.
*3: This light does not turn on when the system is disabled.
*4: This light illuminates on the center panel.
*5: This light illuminates on the multi-information display.
*6: This light turns on when the system is off.
*7: In order to confirm operation, the BSM outside rear view mirror indicators illuminate in the following situations:
• When the engine switch is turned to IGNITION ON mode while the sys-
tem is set to on.
• When the system is set to on while the engine switch is in IGN ITION ON
mode.
*8: This light illuminates on the outside rear view mirrors.
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning li ght not
come on when you start the engine, this could mean that these s ystems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer immedi-
ately if this occurs.

882. Instrument cluster
4RUNNER (U)
Tachometer
Displays the engine speed in revolutions per minute
Engine coolant temperature gauge
Displays the engine coolant temperature
Multi-information display
Presents the driver with a variety of vehicle data (P. 90)
Fuel gauge
Displays the quantity of fuel remaining in the tank
Speedometer
Displays the vehicle speed
Odometer/trip meter display change button
Switches the trip information.
Odometer/trip meter display
Shift position and shift range
Displays the selected shift position or selected shift range ( P. 205)

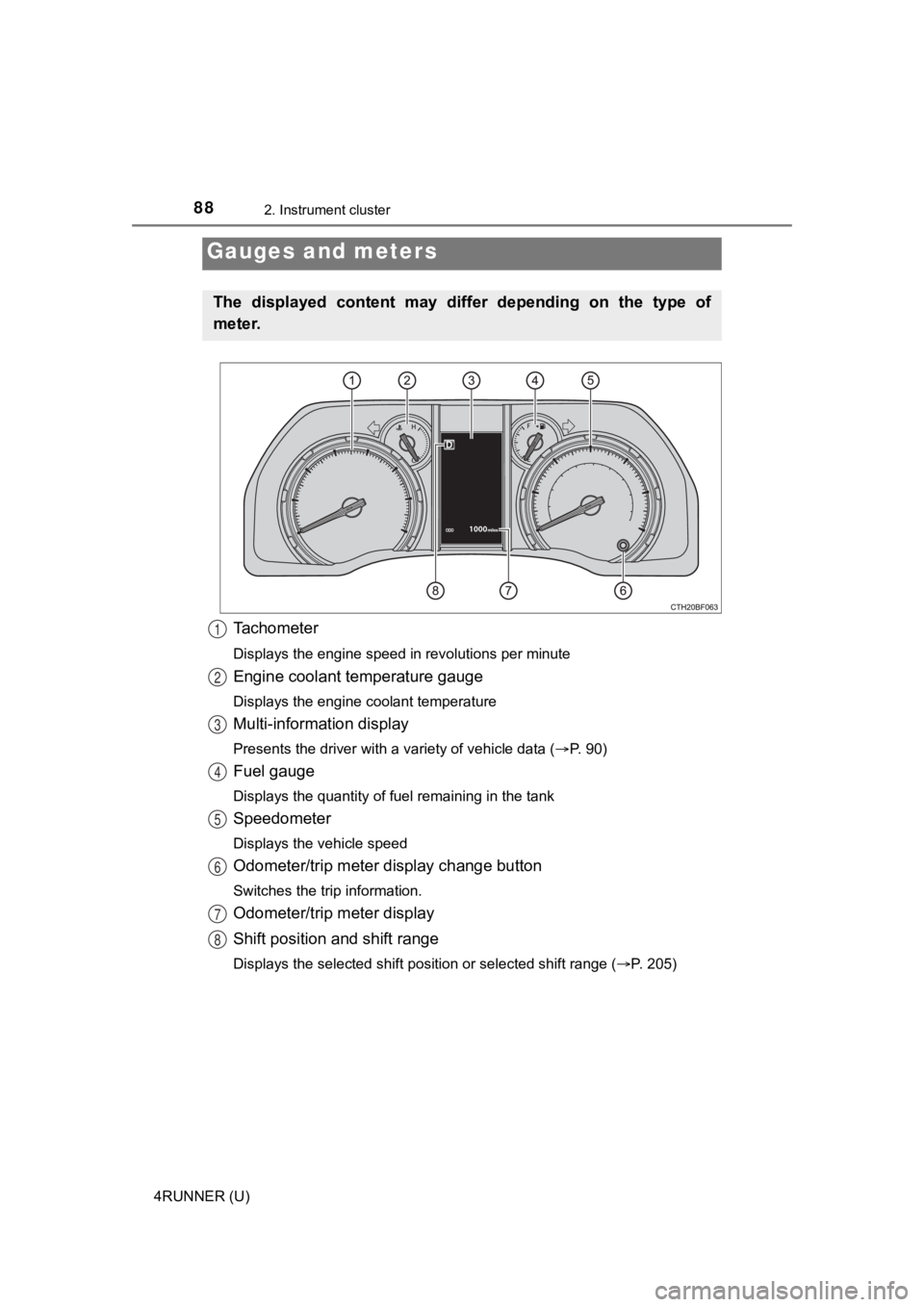

Gauges and meters
The displayed content may differ depending on the type of
meter.
1
2
3
4
5
6
7
8
