2023 PEUGEOT EXPERT steering wheel adjustment

2
Contents
 ■
OverviewOverview 4
 ■
Eco-driving
 1Dashboard instrumentsInstrument Panel 9
Head-up display 10
Warning and indicator lamps 12
Indicators 18
Distance recorders 23
Lighting dimmer 24
Trip computer 24
Touch screen 26
Remotely operable additional functions (Electric) 27
Setting the date and time 28
 2AccessElectronic key with remote control function and
built-in key 29
Unlocking/Complete or selective unlocking 31
Back-up procedures 34
Central locking 37
Electric sliding side door(s) 38
General recommendations for
the sliding side doors
39
Hands-free sliding side door(s) 42
Side-hinged rear doors 43
Tailgate 44
Tailgate rear screen 44
Alarm 45
Electric windows 47
 3Ease of use and comfortCorrect driving position 48
Front seats 48
2-seat front bench seat 50
Steering wheel adjustment 51
Mirrors 52
Moduwork 53
Precautions for the seats and bench seats 56
Fixed one-piece bench seat 57
Fixed rear seat and bench seat 59
Rear seat and bench seat on rails 61
Individual rear seat(s) on rails 63
Crew cab, fixed 65
Crew cab, folding 66
Interior fittings 67
Loading area fittings 71
Seating area fittings 72
Panoramic sunroof 74
Retractable sliding table 74
Heating and Ventilation 77
Heating 78
Manual air conditioning 78
Dual-zone automatic air conditioning 79
Front demisting - defrosting 81
Demisting/de-icing the rear screen
and/or the door mirrors
82
Rear heating - air conditioning 82
Additional heating/ventilation system 83
Temperature pre-conditioning (Electric) 85
Courtesy lamp(s) 86
 4Lighting and visibilityLighting control stalk 88
Direction indicators 89
Daytime running lamps/Sidelamps 89
Automatic illumination of headlamps 89
Guide-me-home and welcome lighting 90
Automatic lighting systems - General
recommendations
91
Automatic headlamp dipping 91
Headlamp beam height adjustment 92
Interior ambient lighting 93
Wiper control stalk 93
Automatic wipers 94
Changing a wiper blade 95
 5SafetyGeneral safety recommendations 97
Hazard warning lamps 97
Emergency or assistance 98
Horn 100
Pedestrian horn (Electric) 100
Electronic stability control (ESC) 100
Advanced Grip Control 102
Seat belts 103
Airbags 107
Child seats 109
Deactivating the front passenger airbag 111
ISOFIX and i-Size child seats 11 7
i-Size child seats 128
Manual child lock 131
Electric child lock 131
Child lock on rear windows 131
 6DrivingDriving recommendations 132
Starting/switching off the engine 134
Manual parking brake 138
Electric parking brake 138
Hill start assist 141 CarM an uals 2 .c o m

4
Overview
Presentation
Instruments and controls
These illustrations and descriptions are intended
as a guide. The presence and location of some
components varies according to the version or
trim level.


1.Glove box
Deactivation of the front passenger airbag
2.12 V (120 W) accessory sockets
3. USB socket
4. JACK socket
5. Instrument panel
6. Storage
Cup/can holder
7. Storage compartment
8. Upper storage compartment
9. 220
V (120 W) accessory socket
10.Horn
11

.Courtesy lamp
Warning lamps display for seat belts and
front passenger airbag
Interior rear view mirror
Emergency and assistance call buttons
12. Heating/Air conditioning
Front demisting – de-icing
Rear screen demisting – de-icing
13. "START/STOP" button
14. Gearbox or drive selector
Choice of driving mode
15. Monochrome screen with audio system
Touch screen
16. Bonnet release
17. Dashboard fuses
18. Head-up display
19. Electric parking brake
Depending on the vehicle's equipment,
the storage compartments may be open
or closed. This configuration is shown as an
example.
Steering-mounted controls

1. Exterior lighting/Direction indicators control
stalks
2. Wiper controls/Screenwash/Trip computer
3. Audio system setting controls
4. Controls for Cruise control/Speed limiter/
Adaptive cruise control
5. Instrument panel display mode selection
wheel
6. Voice synthesis control
Volume adjustment
7. Audio system setting controls
Central control bar


CarM an uals 2 .c o m

48
Ease of use and comfort
Correct driving position
Before taking to the road and to make the most
of the ergonomic layout of the instruments and
controls, carry out these adjustments in the
following order:
–
the height of the head restraint,
–


the seat backrest angle,
–


the seat cushion height,
–


the longitudinal position of the seat,
–


the height and reach of the steering wheel,
–


the rear view mirror and door mirrors.

Once these adjustments have been
made, check the instrument panel can be
viewed correctly from your driving position.
Manually-adjusted front
seats
For more information on the Seat belts,
refer to the corresponding section.
Longitudinal

► Raise the control bar and slide the seat
forwards or backwards.
►

Release the control bar to lock the seat in
position on one of the notches.
Before moving the seat backwards,
ensure that there is nothing that might
prevent the full travel of the seat.
There is a risk of trapping or pinching
passengers if present in the rear seats or
jamming the seat if large objects are placed
on the floor behind the seat.
Height

► Pull the control upwards to raise or push it
downwards to lower , until you obtain the position
required.
Backrest angle

► Depending on equipment, turn the knob
or pull the control all the way up and tilt the
backrest forwards or backwards to obtain the
desired angle.
Lumbar

► Turn the knob to obtain the desired level of
lumbar support.
Table position of the driver's

The table position of the driver's allows rear
passengers to be helped out of the vehicle (by
the emergency services). CarM an uals 2 .c o m

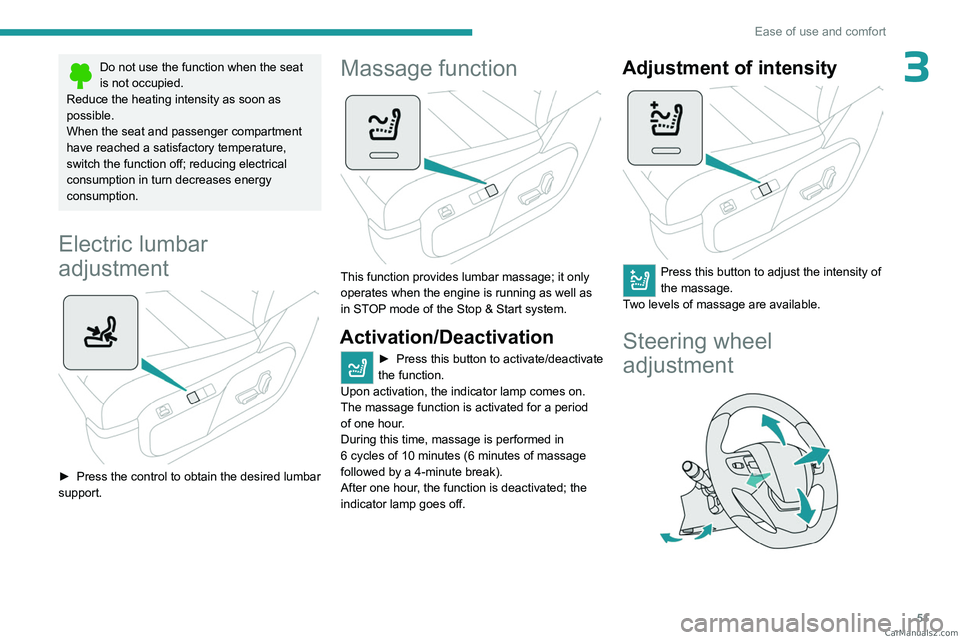

51
Ease of use and comfort
3Do not use the function when the seat
is not occupied.
Reduce the heating intensity as soon as
possible.
When the seat and passenger compartment
have reached a satisfactory temperature,
switch the function off; reducing electrical
consumption in turn decreases energy
consumption.
Electric lumbar
adjustment


► Press the control to obtain the desired lumbar
support.
Massage function

This function provides lumbar massage; it only
operates when the engine is running as well as
in STOP mode of the Stop & Start system.
Activation/Deactivation
► Press this button to activate/deactivate
the function.
Upon activation, the indicator lamp comes on.
The massage function is activated for a period
of one hour
.
During this time, massage is performed in
6

cycles of 10 minutes (6 minutes of massage
followed by a 4-minute break).
After one hour, the function is deactivated; the
indicator lamp goes off.
Adjustment of intensity

Press this button to adjust the intensity of
the massage.
Two levels of massage are available.
Steering wheel
adjustment

CarM an uals 2 .c o m

149
Driving
6It compares the information given by the wheel
speed sensors with reference values, which
must be reinitialised every time the tyre
pressures are adjusted or a wheel changed.
It takes into account the last values stored
during the reinitialisation request. It is therefore
essential that the tyre pressure is correct during
the operation. This operation is the driver’s
responsibility.
The tyre under-inflation detection cannot, in any circumstances, replace the need
for vigilance on the part of the driver.
This system does not avoid the need to
regularly check the tyre pressures (including
the spare wheel), especially before a long
journey.
Driving with under-inflated tyres, particularly
in adverse conditions (heavy load, high
speed, long journey):
–

worsens road-holding.
–


lengthens braking distances.
–


causes premature wear of the tyres.
–


increases energy consumption.
The inflation pressures defined for the vehicle can be found on the tyre pressure
label.
For more information on the Identification
markings, refer to the corresponding section.
Checking tyre pressures
This check should be done monthly
when the tyres are "cold" (vehicle stopped for
1

hour or after a journey of less than 6 miles
(10

km) at moderate speeds).
Otherwise, add 0.3
bar to the pressures
shown on the label.
Snow chains
The system does not have to be
reinitialised after fitting or removing snow
chains.
Spare wheel
The steel spare wheel does not have an
under-inflation detection sensor.
Under-inflation alert
This is signalled by the fixed illumination of this warning lamp, accompanied by an
audible signal and, depending on equipment, the
display of a message.
►

Reduce speed immediately
, avoid excessive
steering movements and avoid sudden braking.
►

Stop the vehicle as soon as it is safe to do
so.
The loss of pressure detected may not always cause visible deformation of the
tyre.
Do not rely on just a visual check.
► Using a compressor , such as the one in
the temporary puncture repair kit, check the
pressures of all four tyres when cold.
►

If it is not possible to carry out this check
immediately

, drive carefully at reduced speed.
►

In the event of a puncture, use the
temporary puncture repair kit or the spare wheel
(depending on equipment).
Driving too slowly may not ensure
optimum monitoring.
The alert is not immediately triggered in the
event of a sudden loss of pressure or tyre
blow-out. This is because analysis of the
values read by the wheel's speed sensors
can take several minutes.
The alert may be delayed at speeds below
25

mph (40 km/h), or when adopting a sporty
driving mode.
The alert is kept active until the system is reinitialised.
Reinitialisation
The system must be reinitialised after any
adjustment to the pressure of one or more tyres,
and after changing one or more wheels.
Before reinitialising the system, make
sure that the pressures of the four tyres
are correct for the conditions of use of the CarM an uals 2 .c o m

287
Alphabetical index
Dynamic stability control (DSC) 100–101, 103
E
EBFD 100
Eco-driving (advice)
7
ECO mode

147
Electric windows

47
Electronic brake force distribution (EBFD)

100
Emergency braking assistance (EBA)

100
Emergency call

98
Emergency warning lamps

97, 202
Emissions control system, SCR

21, 196
Energy economy (mode)

187
Energy economy mode

187
Energy flows

27
Energy recovery

22, 146
Engine

196
Engine compartment

191
Engine, Diesel

174, 191, 202, 224
Engines

223
Environment

7, 36, 84, 133
ESC (electronic stability control)

100
Exterior lighting

91
F
Fatigue detection 166
Filling the AdBlue® tank
193, 197
Filling the fuel tank

174–175
Filter, air 194
Filter, oil
194
Filter, particle

193–194
Filter, passenger compartment

77, 194
Finisher

2 11
Fitting a wheel

209–211
Fitting roof bars

189
Fittings, interior

67–68, 72
Fittings, rear

72
Flap, fuel filler

174–175
Flap, removable

53–55
Flashing indicators

89
Floor cab

216
Fluid, brake

193
Fluid, engine coolant

193
Fluid, power steering

193
Foglamp, rear

88, 214, 216
Foglamps, front

88, 213
Foglamps, rear

88
Frequency (radio)

271
Fuel

7, 174
Fuel consumption

7
Fuel level, low

174–175
Fuel (tank)

174
Fuses

216
G
Gauge, fuel 174–175
Gearbox, automatic
141–145, 195, 218
Gearbox, manual

141, 195
Gear lever 141
Gear lever, automatic gearbox
142–145
Gear lever, manual gearbox

141
Gear shift indicator

142
Glove box

68
G.P.S.

265
H
Hazard warning lamps 97, 202
Headlamps (adjustment)
92
Headlamps, automatic dipping

91–92
Headlamps, automatic operation

89–90
Headlamps, dipped beam

88, 212
Headlamps, halogen

211–212
Headlamps, main beam

88, 91, 212–213
Headlamps, Xenon

212
Head restraints, front

49
Head-up display

10–12
Heating

77–79, 81–84
Heating, additional

45, 83–84
Heating, programmable

27, 45, 83–85
High voltage

176
Hill start assist

141
Histogramme, fuel consumption

27
Horn

100
I
Ignition 136–137, 275 CarM an uals 2 .c o m

290
Alphabetical index
Replacing the air filter 194
Replacing the oil filter
194
Replacing the passenger
compartment filter

194
Reservoir, screenwash

193
Resetting the trip recorder

23
Reversing camera

151, 170, 172
Reversing lamp

214, 216
Roof bars

189
Roof rack

189
Running out of fuel (Diesel)

202
S
Safety, children 107, 109–113,
119–121, 128, 128–129
Saturation of the particle filter (Diesel)

194
Screen, instrument panel

24
Screen menu map

251
Screen, multifunction (with audio system)

233
Screenwash

94
Screenwash, front

93
Screenwash, rear

94–95
SCR (Selective Catalytic Reduction)

21, 196
Seat and bench seat, rear, fixed

56–57, 59–60
Seat and bench seat,
rear, on rails

56–57, 61–62
Seat angle

48
Seat belts

103–106, 112
Seat belts, rear

105
Seat, bench front, 2-seat

50, 105
Seats, electric

49
Seats, front 48–49
Seats, heated
50–51
Seat(s), individual, rear, on rails

63–65, 105
Seats, rear

57–62, 110
Selector, gear

141–142
Sensors (warnings)

151
Serial number, vehicle

231
Servicing

18, 194–196
Settings, equipment

26–27
Settings, system

254, 277
Sidelamps

88, 212–214, 216
Side repeater (turn signal)

213
Silent vehicle warning sound
(Electric)

100, 133
Sliding side door, electric

33–34, 38–41
Sliding side door, hands-free

42–43
Smartphone

28
Snow chains

149, 188, 209
Snow chains, link

188, 209
Socket, 12 V accessory

69
Socket, 220 V

70
Socket, auxiliary

237, 250, 272
Socket, Jack

237, 272
Speed limiter

151, 153–156
Speed limit
recognition

152–153, 155, 157, 161–163
Speedometer

151
Sport mode

147
Stability control (ESC)

100, 102–103
Starting a Diesel engine

174
Starting the engine

134, 136
Starting the vehicle

135, 137, 141–145
Starting using another battery

137, 217Station, radio 234, 247–248, 271
Stay, engine bonnet
190–191
Steering mounted controls,
audio

233, 245, 258
Steering wheel (adjustment)

51
Stickers, customising

200
Stopping the vehicle

136–137, 142–145
Stop & Start

25, 78, 147–148,
174, 190, 194, 220
Storage

50, 56, 65–66, 68
Storage compartments

68
Storage wells

65–66, 68
Stowing rings

71
Sunroof, panoramic glass

74
Sunshine sensor

77
Super-fast charging (Electric)

185–186, 227
Suspension

195
Switching off the engine

134, 136
Synchronising the remote control

36
T
Table position 48
Table, retractable sliding
74–76
Tables, aircraft

69
Tables of engines

227
Tables of weights

224
Table top, working

56
Tailgate

36, 44
Tailgate rear screen

44
Tank, fuel

174–175
Technical data

224, 227 CarM an uals 2 .c o m
