2023 PEUGEOT EXPERT Owners Manual

HANDBOOK
EXPERT
TR CarM an uals 2 .c o m

Access to the Handbook
ONLINE
View or download the handbook at the following
address:
http://public.servicebox.peugeot.com/APddb/Scan this QR Code for direct access.
This symbol indicates the latest
information available.
Select:
–
the language,
–


the vehicle and body style,
–


the issue period of the handbook corresponding to
the date of 1st registration of the vehicle.
MOBILE
Install the MYPEUGEOT application (content
004400590044004C004F00440045004F0048000300521089004C00510048000C0011
Also available in the
Scan
application. CarM an uals 2 .c o m

Welcome
Thank you for choosing a Peugeot Expert/e-Expert or a Peugeot
Traveller/e-Traveller.
This document contains the key information and recommendations you
will need to be able to explore your vehicle in complete safety. We strongly
recommend familiarising yourself with it, as well as the Maintenance and
Warranty Guide.
003C
00470052004600580050004800510057
country in which it was sold.
The descriptions and illustrations are for guidance only.
0024005800570052005000520045004C004F004800560003
004800540058004C00530050004800510057
If ownership of your vehicle is transferred, please ensure this Han is
passed on to the new owner.
Key
Safety warning
Additional information
Environmental protection feature
Left-hand drive vehicle
Right-hand drive vehicle002F0052004600440057004C005200510003005200490003004800540058004C0053005000480051005700120045005800570057005200510003004C00510047004C00460044005700480047000300580056004C0051004A000300440003
black area
002C0047004800510057004C00BF004600440057004C00520051
This allows you to identify the special features of the vehicle:
Va n
Crew cab with manual child lock
Crew cab with electric child lock
Combi, Business, Active, Allure, Business VIP
0029
0057004B00480003
a PEUGEOT dealer is able to provide. CarM an uals 2 .c o m

2
Contents
 ■
OverviewOverview 4
 ■

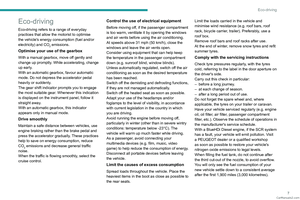

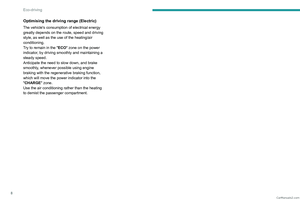

Eco-driving

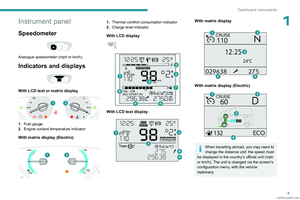

 1Dashboard instrumentsInstrument Panel 9

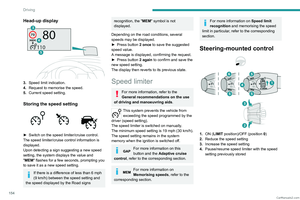

Head-up display 10

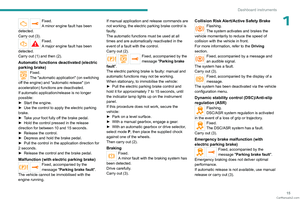

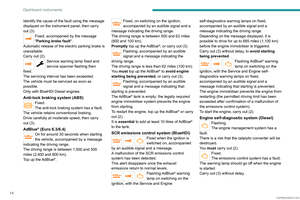

Warning and indicator lamps 12

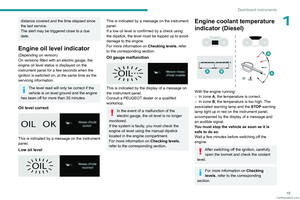

Indicators 18

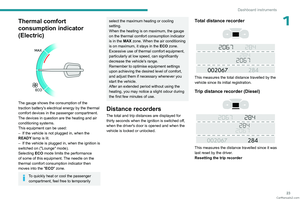

Distance recorders 23
Lighting dimmer 24

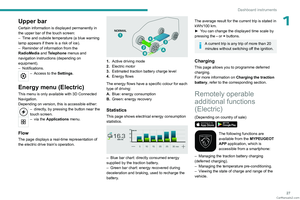

Trip computer 24

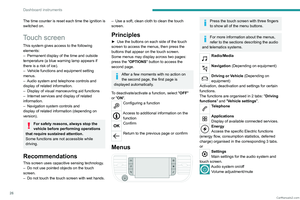

Touch screen 26
Remotely operable additional functions (Electric) 27
Setting the date and time 28
 2AccessElectronic key with remote control function and
built-in key 29

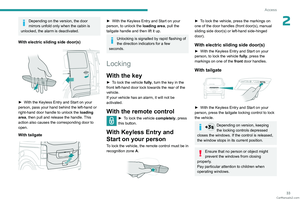

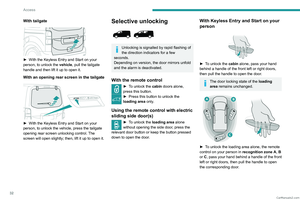

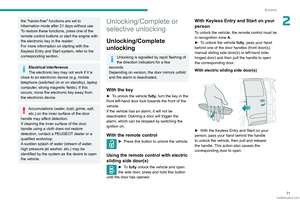

Unlocking/Complete or selective unlocking 31
Back-up procedures 34

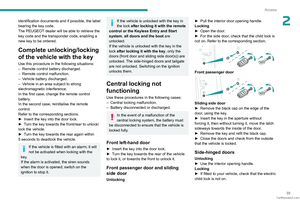

Central locking 37
Electric sliding side door(s) 38
General recommendations for
the sliding side doors
39

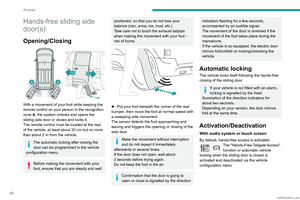

Hands-free sliding side door(s) 42

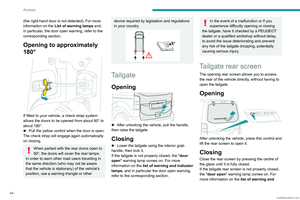

Side-hinged rear doors 43
Tailgate 44
Tailgate rear screen 44
Alarm 45

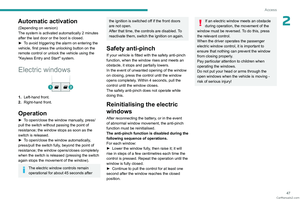

Electric windows 47

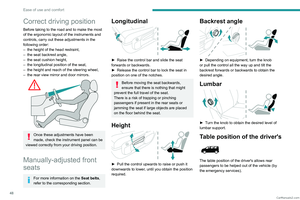

 3Ease of use and comfortCorrect driving position 48

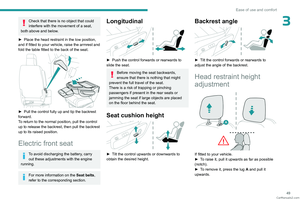

Front seats 48
2-seat front bench seat 50
Steering wheel adjustment 51
Mirrors 52

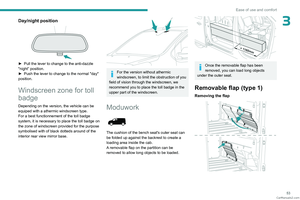

Moduwork 53
Precautions for the seats and bench seats 56
Fixed one-piece bench seat 57
Fixed rear seat and bench seat 59
Rear seat and bench seat on rails 61
Individual rear seat(s) on rails 63
Crew cab, fixed 65
Crew cab, folding 66
Interior fittings 67
Loading area fittings 71
Seating area fittings 72
Panoramic sunroof 74
Retractable sliding table 74
Heating and Ventilation 77
Heating 78

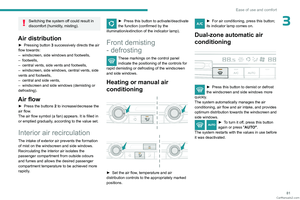

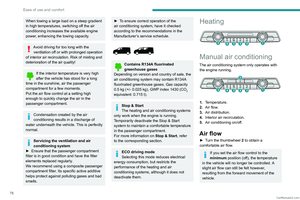

Manual air conditioning 78

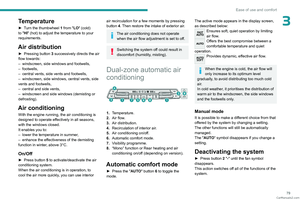

Dual-zone automatic air conditioning 79
Front demisting - defrosting 81

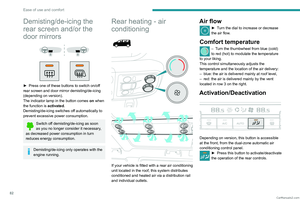

Demisting/de-icing the rear screen
and/or the door mirrors
82
Rear heating - air conditioning 82

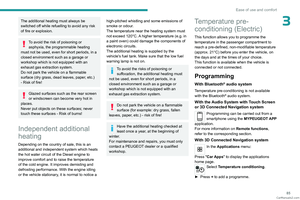

Additional heating/ventilation system 83
Temperature pre-conditioning (Electric) 85
Courtesy lamp(s) 86
 4Lighting and visibilityLighting control stalk 88

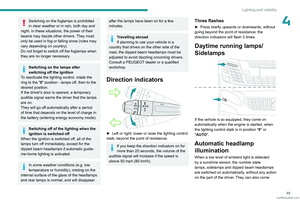

Direction indicators 89
Daytime running lamps/Sidelamps 89
Automatic illumination of headlamps 89
Guide-me-home and welcome lighting 90
Automatic lighting systems - General
recommendations
91
Automatic headlamp dipping 91

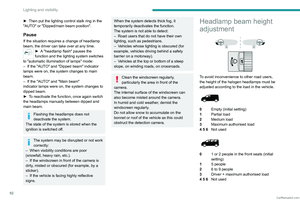

Headlamp beam height adjustment 92

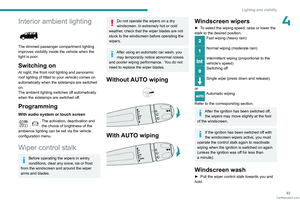

Interior ambient lighting 93
Wiper control stalk 93
Automatic wipers 94

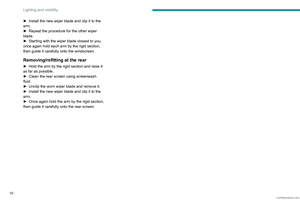

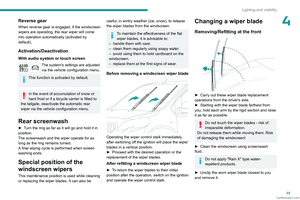

Changing a wiper blade 95
 5SafetyGeneral safety recommendations 97
Hazard warning lamps 97

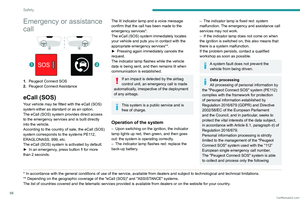

Emergency or assistance 98
Horn 100
Pedestrian horn (Electric) 100
Electronic stability control (ESC) 100
Advanced Grip Control 102

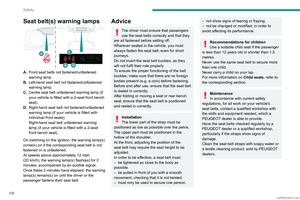

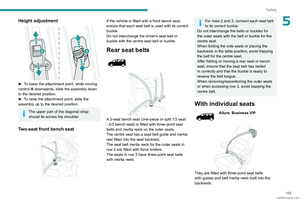

Seat belts 103
Airbags 107

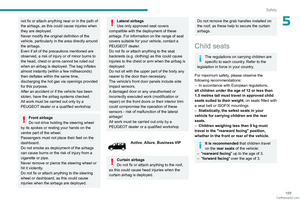

Child seats 109

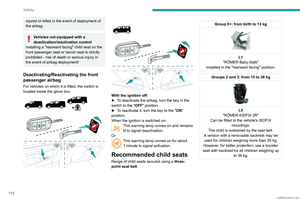

Deactivating the front passenger airbag 111

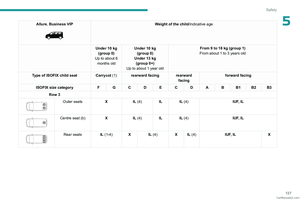

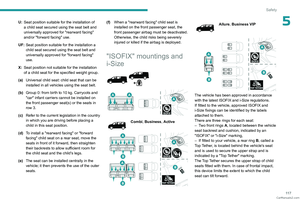

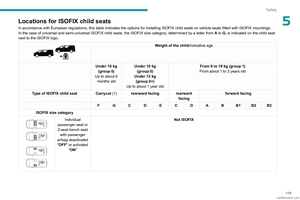

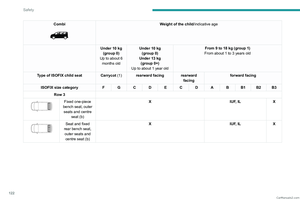

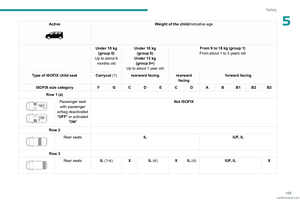

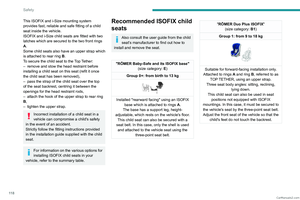

ISOFIX and i-Size child seats 11 7

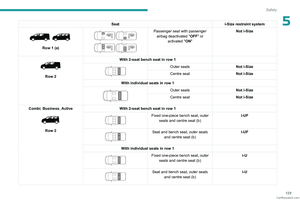

i-Size child seats 128
Manual child lock 131
Electric child lock 131
Child lock on rear windows 131

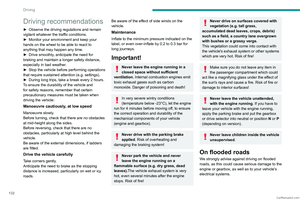

 6DrivingDriving recommendations 132
Starting/switching off the engine 134
Manual parking brake 138

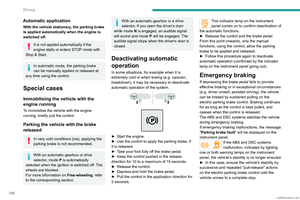

Electric parking brake 138
Hill start assist 141 CarM an uals 2 .c o m

3

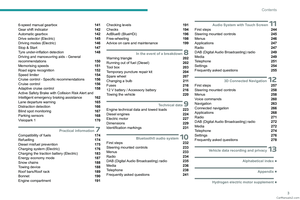

Contents
6-speed manual gearbox 141
Gear shift indicator 142

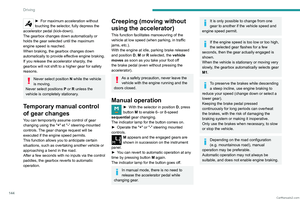

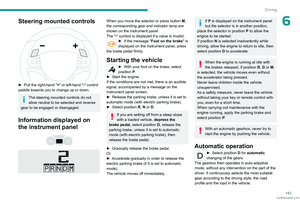

Automatic gearbox 142
Drive selector (Electric) 145
Driving modes (Electric) 146

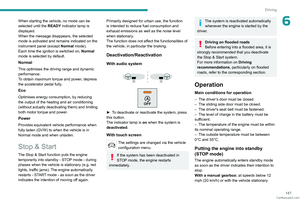

Stop & Start 147

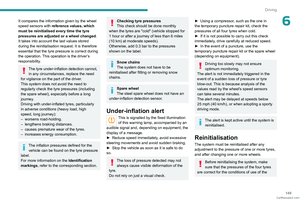

Tyre under-inflation detection 148
Driving and manoeuvring aids - General
recommendations
150

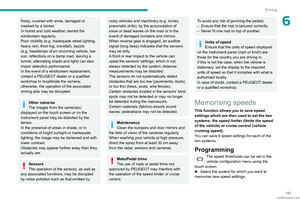

Memorising speeds 151

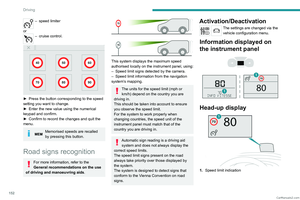

Road signs recognition 152
Speed limiter 154
Cruise control - Specific recommendations 156

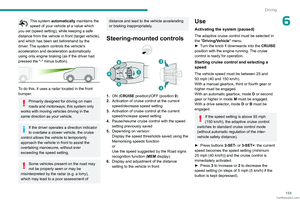

Cruise control 156
Adaptive cruise control 158

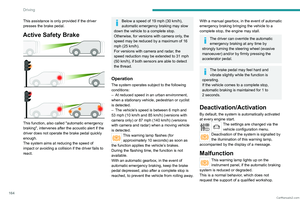

Active Safety Brake with Collision Risk Alert and
Intelligent emergency braking assistance
162
Lane departure warning 165

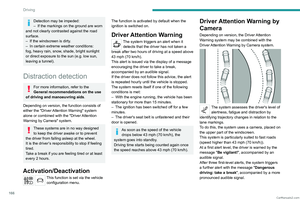

Distraction detection 166

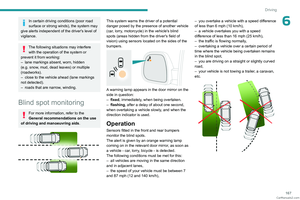

Blind spot monitoring 167

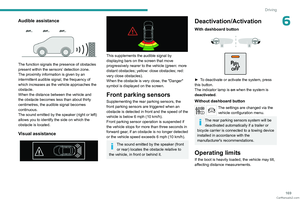

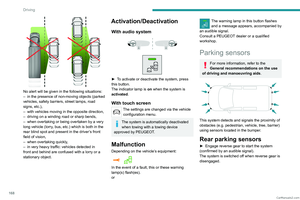

Parking sensors 168
Visiopark 1 170
 7Practical informationCompatibility of fuels 174
Refuelling 174

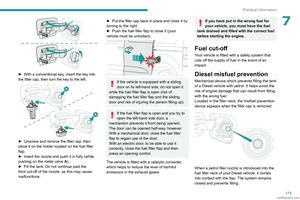

Diesel misfuel prevention 175

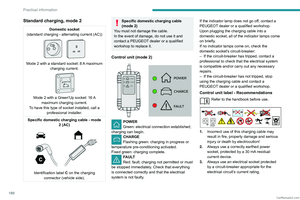

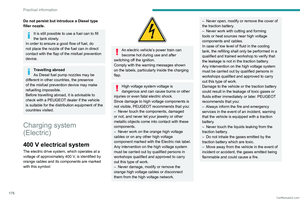

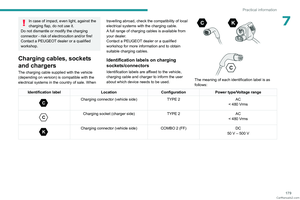

Charging system (Electric) 176

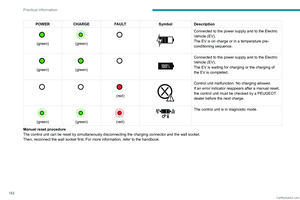

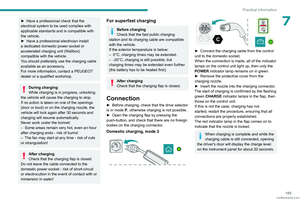

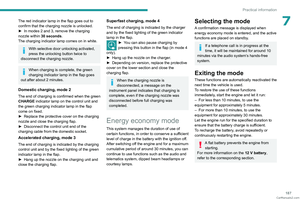

Charging the traction battery (Electric) 183
Energy economy mode 187
Snow chains 188
Towing device 188

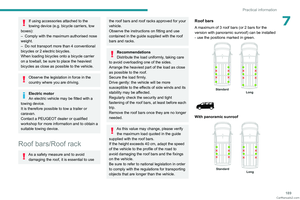

Roof bars/Roof rack 189

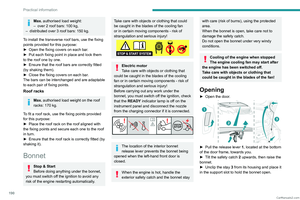

Bonnet 190

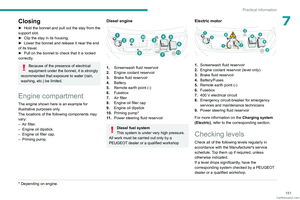

Engine compartment 191
Checking levels 191

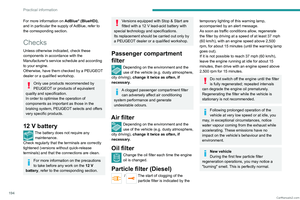

Checks 194
AdBlue® (BlueHDi) 196
Free-wheeling 198
Advice on care and maintenance 199
 8In the event of a breakdownWarning triangle 202
Running out of fuel (Diesel) 202
Tool box 203

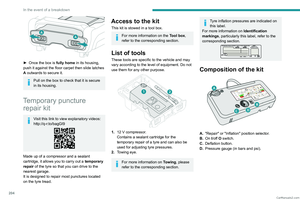

Temporary puncture repair kit 204

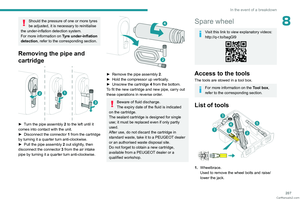

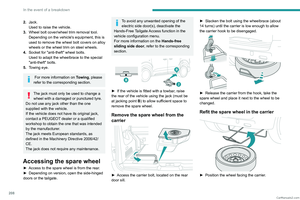

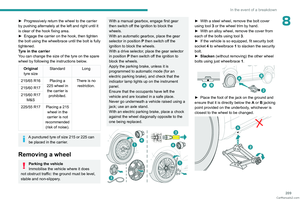

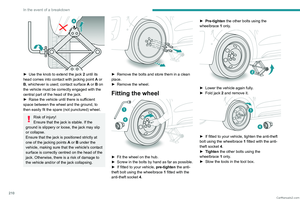

Spare wheel 207

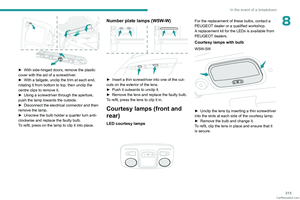

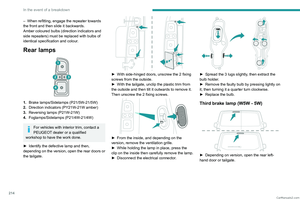

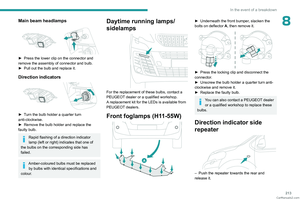

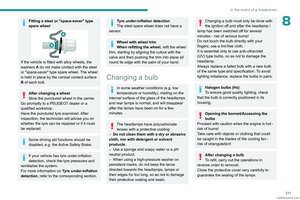

Changing a bulb 2 11
Fuses 216
12

V battery

/ Accessory battery 216

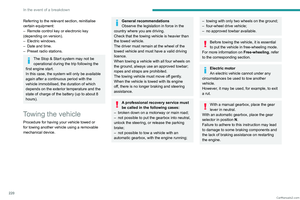

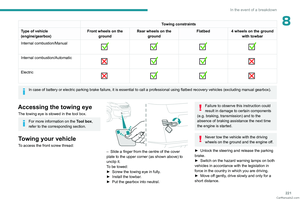

Towing the vehicle 220
 9Technical dataEngine technical data and towed loads 223

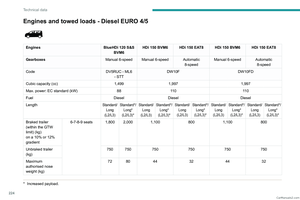

Diesel engines 224
Electric motor 227

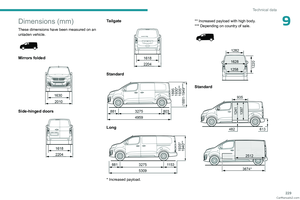

Dimensions 229
Identification markings 231
 10Bluetooth® audio systemFirst steps 232

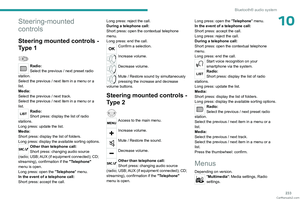

Steering mounted controls 233
Menus 233
Radio 234

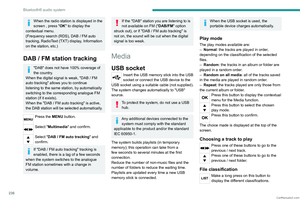

DAB (Digital Audio Broadcasting) radio 235

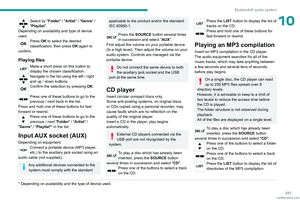

Media 236

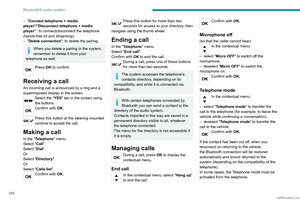

Telephone 238

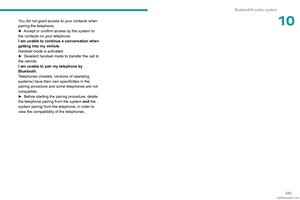

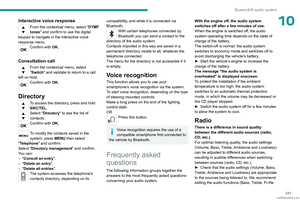

Frequently asked questions 241

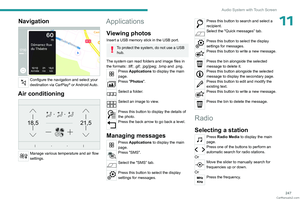

  11Audio System with Touch ScreenFirst steps 244
Steering mounted controls 245
Menus 246
Applications 247
Radio 247
DAB (Digital Audio Broadcasting) radio 249
Media 249

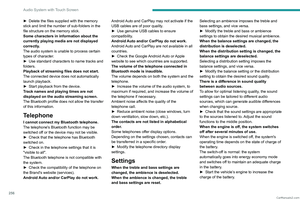

Telephone 251

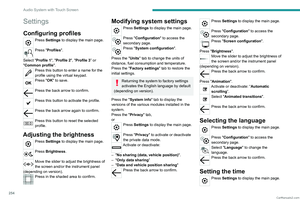

Settings 254
Frequently asked questions 255

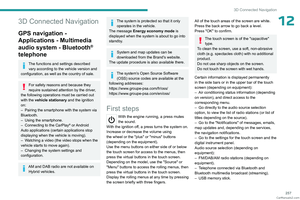

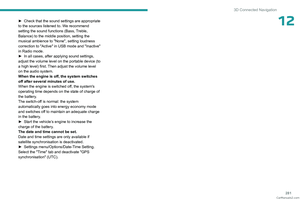

 123D Connected NavigationFirst steps 257
Steering mounted controls 258
Menus 258

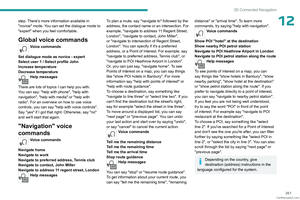

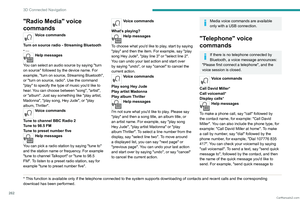

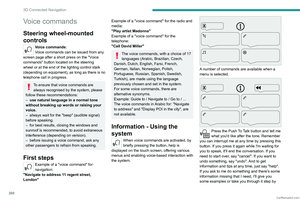

Voice commands 260

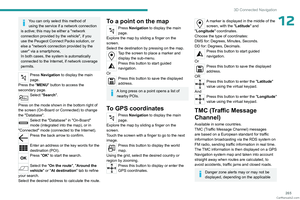

Navigation 263
Connected navigation 266
Applications 268
Radio 271
DAB (Digital Audio Broadcasting) radio 272
Media 272

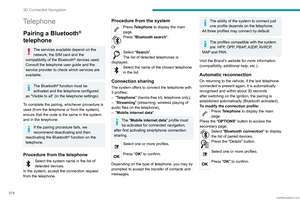

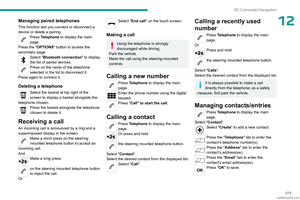

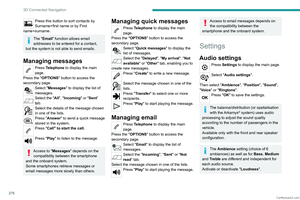

Telephone 274

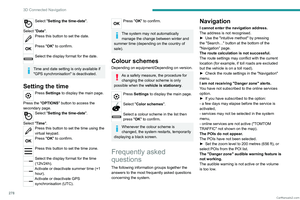

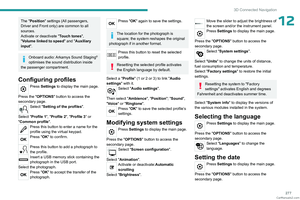

Settings 276
Frequently asked questions 278

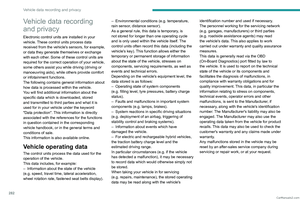

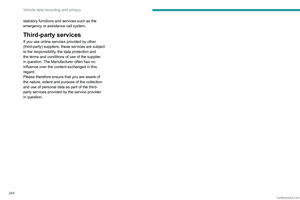

 13Vehicle data recording and privacy
 ■

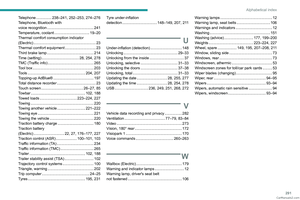

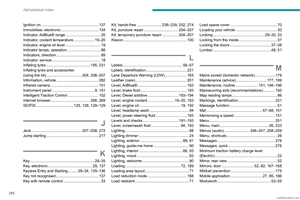

Alphabetical index
 ■
Appendix
 ■

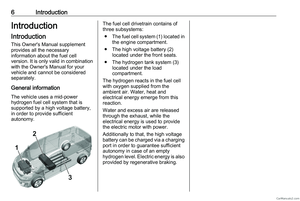

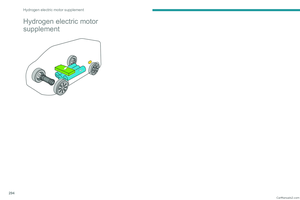

Hydrogen electric motor supplement CarM an uals 2 .c o m

4
Overview

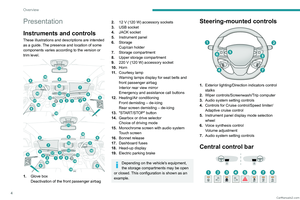

Presentation
Instruments and controls
These illustrations and descriptions are intended
as a guide. The presence and location of some
components varies according to the version or
trim level.


1.Glove box
Deactivation of the front passenger airbag
2.12 V (120 W) accessory sockets
3. USB socket
4. JACK socket
5. Instrument panel
6. Storage
Cup/can holder
7. Storage compartment
8. Upper storage compartment
9. 220
V (120 W) accessory socket
10.Horn
11

.Courtesy lamp
Warning lamps display for seat belts and
front passenger airbag
Interior rear view mirror
Emergency and assistance call buttons
12. Heating/Air conditioning
Front demisting – de-icing
Rear screen demisting – de-icing
13. "START/STOP" button
14. Gearbox or drive selector
Choice of driving mode
15. Monochrome screen with audio system
Touch screen
16. Bonnet release
17. Dashboard fuses
18. Head-up display
19. Electric parking brake
Depending on the vehicle's equipment,
the storage compartments may be open
or closed. This configuration is shown as an
example.
Steering-mounted controls

1. Exterior lighting/Direction indicators control
stalks
2. Wiper controls/Screenwash/Trip computer
3. Audio system setting controls
4. Controls for Cruise control/Speed limiter/
Adaptive cruise control
5. Instrument panel display mode selection
wheel
6. Voice synthesis control
Volume adjustment
7. Audio system setting controls
Central control bar


CarM an uals 2 .c o m

5
Overview
1.Locking/unlocking from the inside
2. Left-hand electric sliding side door
3. Electric child lock
4. Right-hand electric sliding side door
5. Hazard warning lamps
6. DSC/ASR system
7. Tyre under-inflation detection
8. Stop & Start (Diesel)
Side control bar



1. Advanced Grip Control
2. Head-up display
3. Parking sensors
4. Additional heating/ventilation system (Diesel)
5. Alarm (Diesel or Electric)
6. Headlamp beam height adjustment
7. Lane departure warning system
8. Blind spot monitoring system
9. Automatic headlamp dipping
Electric motor

1.Charging connectors
2. Traction battery
3. 12
V accessory battery
4. On-board charger
5. Electric motor
6. Charging cable
The charging connectors

1
allow 3 types of
charging:
–

Domestic chargin
g in mode 2 using a domestic
socket and associated charging cable

6
.
–

Accelerated charging in mode
3 using an
accelerated charging unit (Wallbox).
–

Superfast charging in mode
4 using a fast
public charger.
The 400
V traction battery 2 uses Lithium-Ion
technology. It stores and supplies the energy
required for the operation of the electric motor,
air conditioning and heating. Its charge level is represented by an indicator and a reserve power
warning lamp on the instrument panel.
The 12
V accessory battery 3 powers the
vehicle’s conventional electrical system. It is
recharged automatically by the traction battery
via the on-board charger.
The on-board charger
4
provides domestic
charging (mode 2) and accelerated charging
(mode 3) of the traction battery as well as
recharging of the 12 V accessory battery.
The electric motor 5 provides propulsion in
accordance with the selected driving mode and
driving conditions. It recovers energy during
vehicle braking and deceleration phases.
Labels
"Access - Side-hinged rear doors" section:

"Ease of use and comfort - Moduwork"
section:





CarM an uals 2 .c o m

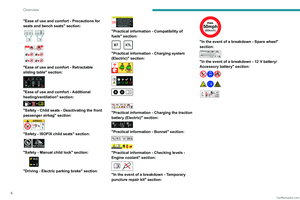

6
Overview
"Ease of use and comfort - Precautions for
seats and bench seats" section:




"Ease of use and comfort - Retractable
sliding table" section:


"Ease of use and comfort - Additional
heating/ventilation" section:


"Safety - Child seats - Deactivating the front
passenger airbag" section:


"Safety - ISOFIX child seats" section:

"Safety - Manual child lock" section:

"Driving - Electric parking brake" section:

"Practical information - Compatibility of
fuels" section:


"Practical information - Charging system
(Electric)" section:








"Practical information - Charging the traction
battery (Electric)" section:


"Practical information - Bonnet" section:



"Practical information - Checking levels -
Engine coolant" section:


"In the event of a breakdown - Temporary
puncture repair kit" section:


"In the event of a breakdown - Spare wheel"
section:


"In the event of a breakdown - 12 V battery/
Accessory battery" section:





24V12V CarM an uals 2 .c o m
