2023 PEUGEOT EXPERT Owners Manual

63
Ease of use and comfort
3► Check that nothing is obstructing the rails.

► Place the front part of the guides on the rails.
► T ip the seat to align the rear of the guides in
the rails.
►

Slide the seat forwards or backwards until it
engages in the notches.
►


Raise the backrest.
Check that the seat has correctly locked
on the floor when returned to the seating
position.
Individual rear seat(s) on
rails
Allure, Business VIP
The different equipment and settings described
hereafter vary according to the version and the
configuration of your vehicle.


The individual seat is fitted with a three-point
inertia reel seat belt.
It can be placed facing forwards or facing
rearwards .
If there is an individual seat facing
rearwards in row 2, ensure that the seat
in row 1 (driver or passenger) is not set too
far back, in order to avoid contact between
the two seats.
This could cause significant wear of the parts
which are in contact.
For more information on the Seat belts,
refer to the corresponding section.
Armrest(s)
The armrest has notches.

► Pull the armrest fully up.
► Lower it fully .
►

Raise the armrest to the desired notched
position.
Adjusting the angle of the backrest
The backrest can be adjusted to several
positions.


► To recline the backrest, pull the control
upwards (from the rear, lower the handle).
►

Release the control when the desired position
is reached. CarM an uals 2 .c o m

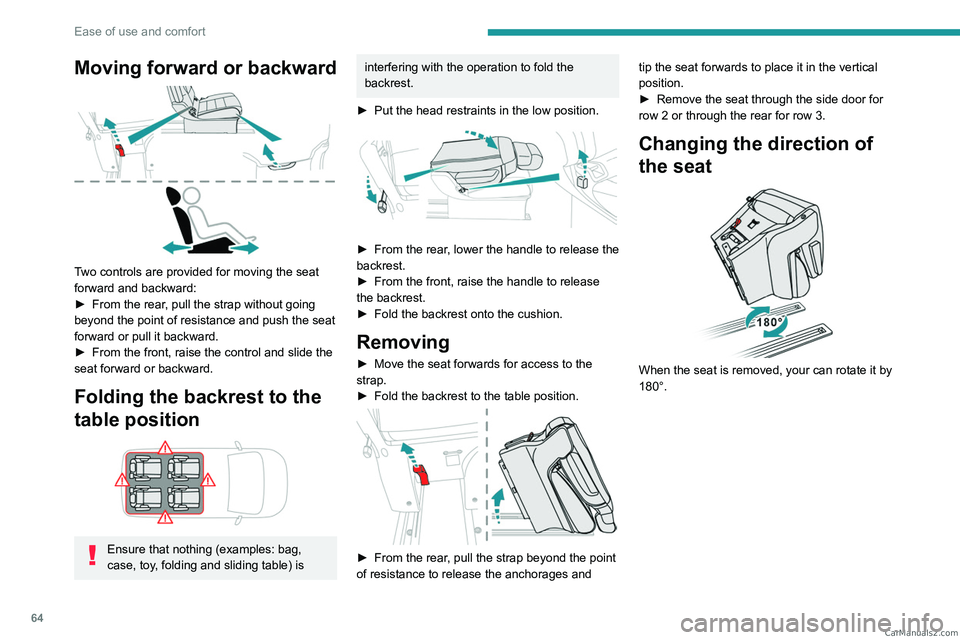

64
Ease of use and comfort
Moving forward or backward

Two controls are provided for moving the seat
forward and backward:
►
From the rear
, pull the strap without going
beyond the point of resistance and push the seat
forward or pull it backward.
►

From the front, raise the control and slide the
seat forward or backward.
Folding the backrest to the
table position


Ensure that nothing (examples: bag,
case, toy, folding and sliding table) is
interfering with the operation to fold the
backrest.
►

Put the head restraints in the low position.

► From the rear , lower the handle to release the
backrest.
►

From the front, raise the handle to release
the backrest.
►


Fold the backrest onto the cushion.
Removing
► Move the seat forwards for access to the
strap.
►

Fold the backrest to the table position.

► From the rear , pull the strap beyond the point
of resistance to release the anchorages and tip the seat forwards to place it in the vertical
position.
►

Remove the seat through the side door for
row 2 or through the rear for row 3.
Changing the direction of
the seat


When the seat is removed, your can rotate it by
180°. CarM an uals 2 .c o m

65
Ease of use and comfort
3Refitting

Before refitting the seat in the vehicle,
pull the strap fully to ensure that the
latching mechanism has engaged.


Do not use the strap to lift the seat.
►

Check that nothing is obstructing the rails.

► Fit the front part on the rails.
► T ip the seat to align the rear of the guides in
the rails.
►

Slide the seat forwards or backwards until it
engages in the notches.
►


Raise the backrest.
Check that the seat has correctly locked
on the floor when returned to the seating
position.
Fixed crew cab

The crew cab is made up of a fixed bench seat,
seat belts, storage compartments (depending
on equipment) and side windows. It is separated
from the loading area by a high-strength
partition.
Rear bench seat
This ergonomic bench seat has three seats.
The two outer seats are fitted with ISOFIX
mountings.
For more information on the ISOFIX
mountings , refer to the corresponding
section.
Storage compartment

If applicable, a storage compartment is available
at the front, underneath the bench seat. CarM an uals 2 .c o m

66
Ease of use and comfort
Under seat cushion storage
wells


If the vehicle is so equipped, they are located
underneath the centre and outer left-hand seats.
To gain access to it from the cab, tip the required
seat forwards.


Depending on the country of sale, the wells can
be dismantled and removed through the rear so
that bulky objects can be stowed underneath the
bench seat.
Do not attach anything to the cab fixing
structure.
Do not exceed the number of passengers
indicated on the registration certificate.
In the rear, the loading area is intended for
carrying goods only.
You are advised to place the goods or heavy
objects as far forwards as possible in the
loading area (towards the cab) and secure
them by means of straps using the stowing
rings on the floor.
The rear seat belt frames are not designed to
secure the load being carried.
Folding crew cab

The crew cab has a folding bench seat, seat
belts and side windows. It is separated from
the loading area by the bench seat by a high-
strength grille.
Folded position

► With just one hand, pull one of the straps A
upwards to fold the bench seat. CarM an uals 2 .c o m

67
Ease of use and comfort
3► Using handle B , guide the movement of the
bench seat until it locks in the folded position.
Bench seat position

► To put the bench seat back in place, pull the
strap C to unlock the bench seat, then release
the strap.
►

Then, using only the handle

B
, guide the
descent of the backrest to tip the assembly until
it locks in the bench seat position.
Never put your hand underneath the
bench seat to guide it downwards, as you
could get your fingers trapped.
Ensure there are no objects or feet beneath
the bench seat or obstructing the anchorage
system, preventing the assembly from being
correctly locked.
Do not attach anything to the cab fixing
structure.
Do not exceed the number of passengers
indicated on the registration certificate.
In the rear, the load space is intended for
carrying goods only.
It is recommended to place goods or heavy
objects as far forwards as possible in the load
space (towards the cab) and secure them by
means of straps using the stowing rings on
the floor.
The rear seat belt frames are not designed to
secure the load being carried.
Interior fittings
Mats
Fitting

When fitting it on the driver's side, only use the
mountings present on the carpet.
The other mats are simply laid over the carpet.
Removing/refitting
► To remove it on the driver's side, move
the seat as far back as possible and give the
fasteners a quarter turn.


► To refit it, position the mat and replace the
fasteners, giving them a quarter turn.
►

Check that the mat is secured correctly
. CarM an uals 2 .c o m

68
Ease of use and comfort
To avoid any risk of jamming the pedals:– Only use mats which are suited to the
fixings already present in the vehicle; these
fixings must be used.
–

Never fit one mat on top of another
.
The use of mats not approved by PEUGEOT
may interfere with access to the pedals and
hinder the operation of the cruise control/
speed limiter.
The approved mats have two fasteners
located underneath the seat.
In row 2 and row 3



Use the Velcro straps to attach the transverse
mat in row 2 with the longitudinal mats in rows
2 and 3.
Glove box
It houses the front passenger airbag deactivation
switch and can hold a bottle of water, the
vehicle's handbook pack, etc.
Never drive with the glove box (if
equipped) open when a passenger is
sitting at the front. It may cause injury during
sharp deceleration.
Storage compartment
This can hold a bottle of water, the vehicle's
documentation, etc.


► To open the storage compartment, press the
left-hand end of the control and guide the lid to
its open position notch.
If your vehicle is so equipped, it is lit when the lid
is opened.
When driving , keep the storage
compartment closed. Otherwise, there is
a risk of injury in the event of an accident or
sudden braking.
Front door storage pockets
Liquids carried in an open vessel (e.g. a
cup or mug) could be spilt, presenting a
risk of damage on contact with the controls in
the dashboard and centre console. Be
careful.
Upper glove box
This is located in the dashboard, behind the
steering wheel.


Press the control to open the lid (depending on
version) then guide it to its fully open position.
To close it, guide the lid then press the centre
gently. CarM an uals 2 .c o m

69
Ease of use and comfort
3Any liquid which could spill risks causing an electrical short circuit and therefore a
potential fire.
"Aircraft" type tables

Fitted to the back of each front seat.

► To use the table, lower it fully until it locks in
the low position.
►

T
o stow it, raise the table to the high position,
passing the point of resistance.
On the passenger side, do not forget to
fold the table up before placing the seat
in the "table" position.
Do not place hard or heavy objects on
the table. They could become dangerous
projectiles in the event of emergency braking
or impact.
For more information on the Front seats,
and in particular placing the backrest in
the "table" position, refer to the corresponding
section.
12 V socket(s)
Depending on version.







► To connect a 12 V accessory (maximum
power: 120 Watts), lift the cover and plug in a
suitable adapter.
Observe the maximum power rating to
avoid damaging the accessory.
The connection of an electrical device not approved by PEUGEOT, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor radio reception or
interference with displays in the screens. CarM an uals 2 .c o m

70
Ease of use and comfort
USB socket



The socket can be used to connect a portable
device or a USB memory stick.
The socket reads audio files that are sent to your
audio system to be played through the vehicle's
speakers.
These files can be managed using the steering-
mounted controls or those on the audio system.
The USB socket also allows a smartphone to be connected by
Android Auto
® or CarPlay®, enabling certain
smartphone applications to be used on the touch
screen.
For best results, use a cable made or approved
by the device manufacturer.
These applications can be managed using the
steering-mounted controls or the audio system
controls.
When the USB socket is used, the
portable device charges automatically.
While charging, a message is displayed if the
power drawn by the portable device exceeds
the current supplied by the vehicle.
For more information about how to use this
equipment, refer to the sections describing
the audio and telematics systems.
220 V socket

Depending on version, a 220 V/50 Hz socket
(maximum power: 120 W) is located underneath
the front right-hand seat and therefore
accessible from row 2.
This socket works with the engine running, as
well as in STOP mode of
Stop & Start.


► Lift the cover.
► Check that the indicator lamp is on green.
►

Connect your multimedia or other electrical
device (telephone charger

, laptop computer,
CD-DVD player, bottle warmer, etc.).
In the event of a malfunction, the
green indicator lamp flashes.
Have it checked by a PEUGEOT dealer or a
qualified workshop.
Connect only one device to the socket at
a time (do not use an extension lead or
multi-socket) and only connect devices with
Class
II insulation (indicated on the device).
Do not use devices with metallic cases.
If the power consumption becomes too
high and when required by the vehicle's
electrical system (particular weather
conditions, electrical overload, etc.), the
power supply to the socket will be cut off; the
green indicator lamp goes off
Load space cover



► To remove it, lift it up. CarM an uals 2 .c o m
