Safety

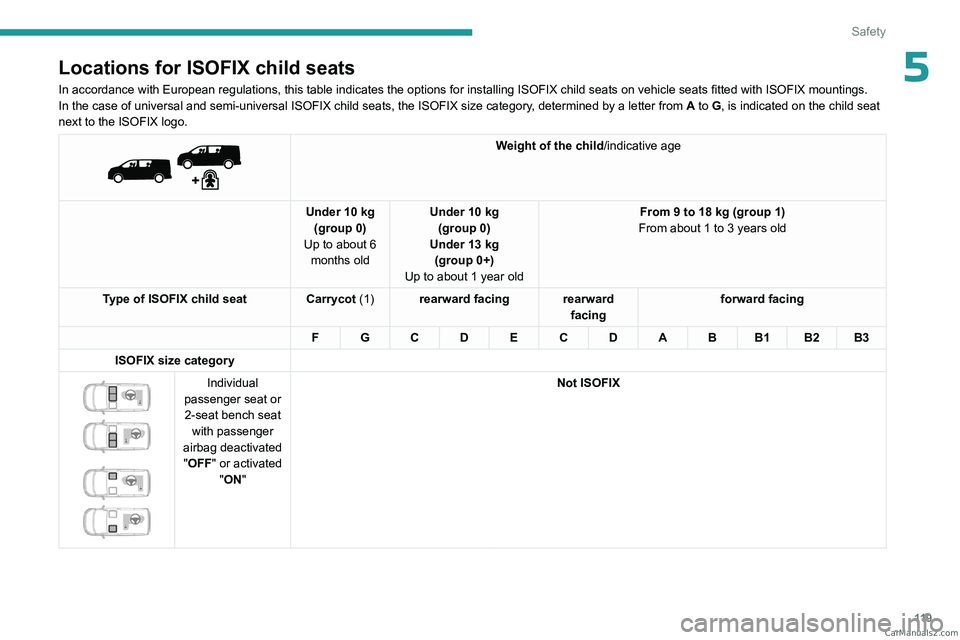

5Locations for ISOFIX child seats
In accordance with European regulations, this table indicates the options for installing ISOFIX child seats on vehicle seats fitted with ISOFIX mountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOF\
IX size category, determined by a letter from A to G, is indicated on the child seat
next to the ISOFIX logo.


Weight of the child/indicative age
Under 10 kg (group 0)
Up to about 6 months old Under 10 kg
(group 0)
Under 13 kg (group 0+)
Up to about 1 year old From 9 to 18 kg (group 1)
From about 1 to 3 years old
Type of ISOFIX child seat Carrycot (1)rearward facing rearward
facingforward facing
F G C D E C D A B B1 B2 B3
ISOFIX size category




Individual
passenger seat or 2-seat bench seat with passenger
airbag deactivated "OFF " or activated
"ON" Not ISOFIX CarM an uals 2 .c o m

121
Safety

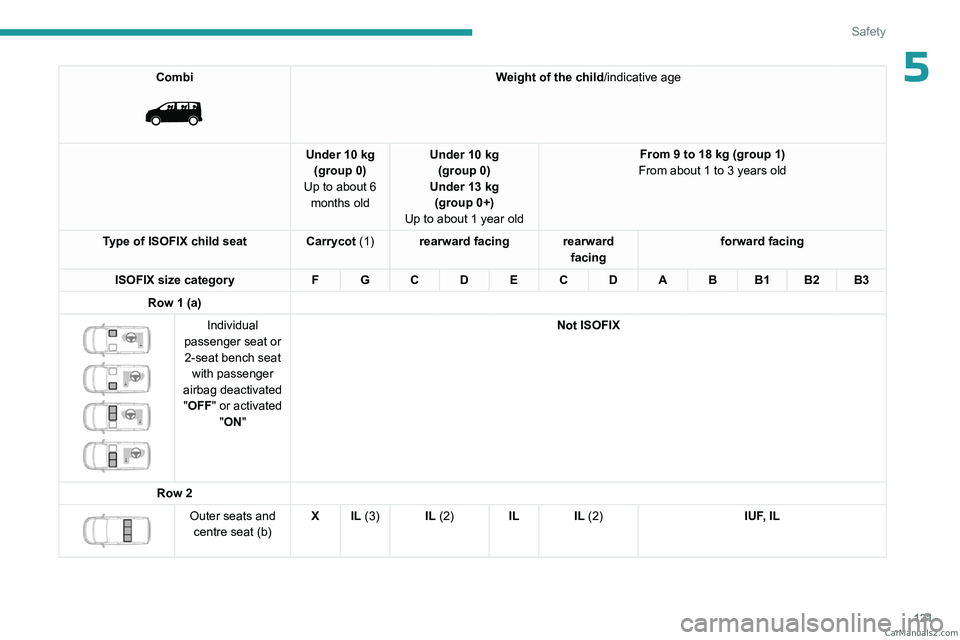

5Combi

Weight of the child/indicative age
Under 10 kg (group 0)
Up to about 6 months old Under 10 kg
(group 0)
Under 13 kg (group 0+)
Up to about 1 year old From 9 to 18 kg (group 1)
From about 1 to 3 years old
Type of ISOFIX child seat Carrycot (1)rearward facing rearward
facingforward facing
ISOFIX size category F G C D E C D A B B1 B2 B3
Row 1 (a)


Individual
passenger seat or 2-seat bench seat with passenger
airbag deactivated "OFF " or activated
"ON" Not ISOFIX
Row 2


Outer seats and centre seat (b) X IL (3)
IL (2)IL IL (2) IUF, IL CarM an uals 2 .c o m

123
Safety

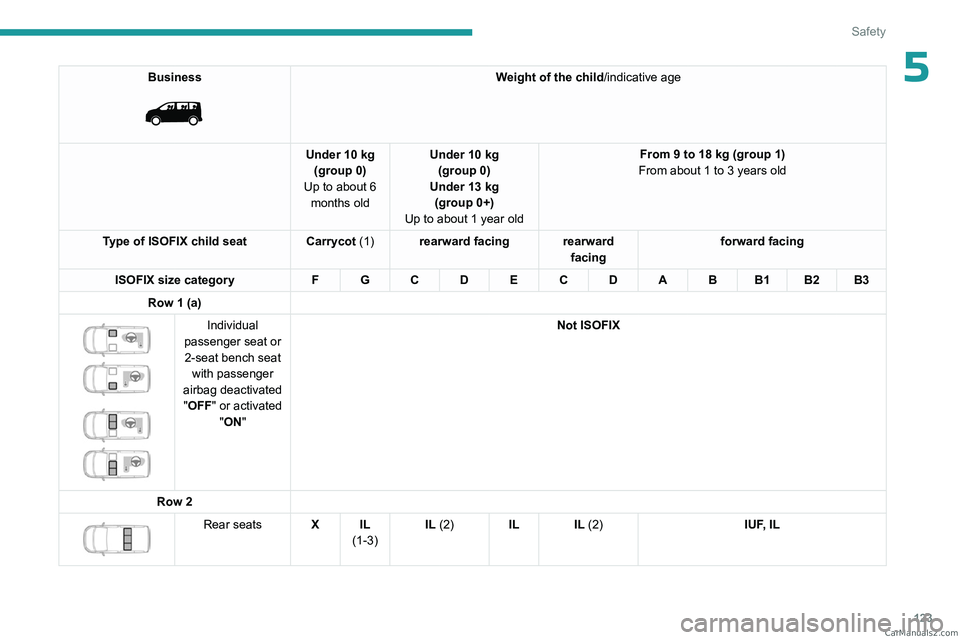

5Business

Weight of the child/indicative age
Under 10 kg (group 0)
Up to about 6 months old Under 10 kg
(group 0)
Under 13 kg (group 0+)
Up to about 1 year old From 9 to 18 kg (group 1)
From about 1 to 3 years old
Type of ISOFIX child seat Carrycot (1)rearward facing rearward
facingforward facing
ISOFIX size category F G C D E C D A B B1 B2 B3
Row 1 (a)




Individual
passenger seat or 2-seat bench seat with passenger
airbag deactivated "OFF " or activated
"ON" Not ISOFIX
Row 2


Rear seats X IL
(1-3) IL (2)
IL IL (2) IUF, IL CarM an uals 2 .c o m

125
Safety

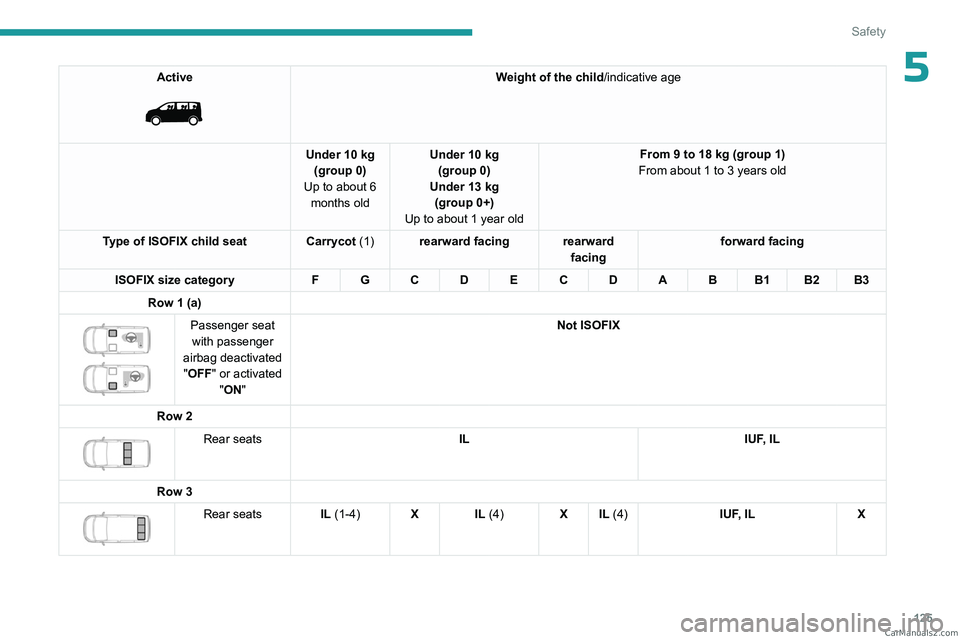

5Active

Weight of the child/indicative age
Under 10 kg (group 0)
Up to about 6 months old Under 10 kg
(group 0)
Under 13 kg (group 0+)
Up to about 1 year old From 9 to 18 kg (group 1)
From about 1 to 3 years old
Type of ISOFIX child seat Carrycot (1)rearward facing rearward
facingforward facing
ISOFIX size category F G C D E C D A B B1 B2 B3
Row 1 (a)


Passenger seat with passenger
airbag deactivated "OFF " or activated
"ON" Not ISOFIX
Row 2


Rear seats IL IUF, IL
Row 3


Rear seats IL (1-4)X IL (4) X IL (4) IUF, ILX CarM an uals 2 .c o m

126
Safety

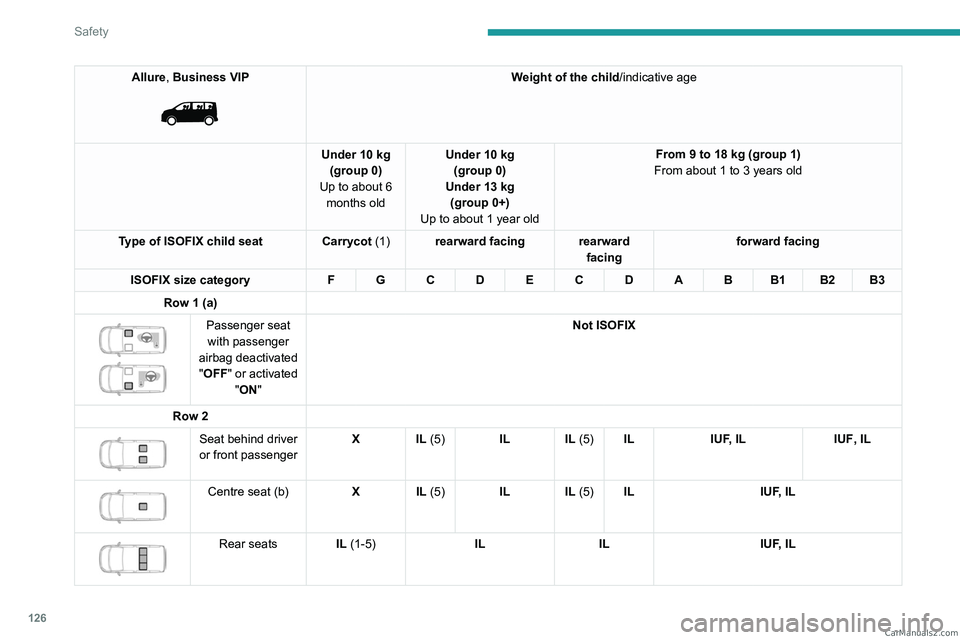

Allure, Business VIP

Weight of the child/indicative age
Under 10 kg (group 0)
Up to about 6 months old Under 10 kg
(group 0)
Under 13 kg (group 0+)
Up to about 1 year old From 9 to 18 kg (group 1)
From about 1 to 3 years old
Type of ISOFIX child seat Carrycot (1)rearward facing rearward
facingforward facing
ISOFIX size category F G C D E C D A B B1 B2 B3
Row 1 (a)


Passenger seat with passenger
airbag deactivated "OFF " or activated
"ON" Not ISOFIX
Row 2


Seat behind driver
or front passenger X IL (5)
IL IL (5)ILIUF, IL IUF, IL


Centre seat (b) X IL (5) IL IL (5)IL IUF, IL


Rear seatsIL (1-5) ILIL IUF, IL CarM an uals 2 .c o m

129
Safety

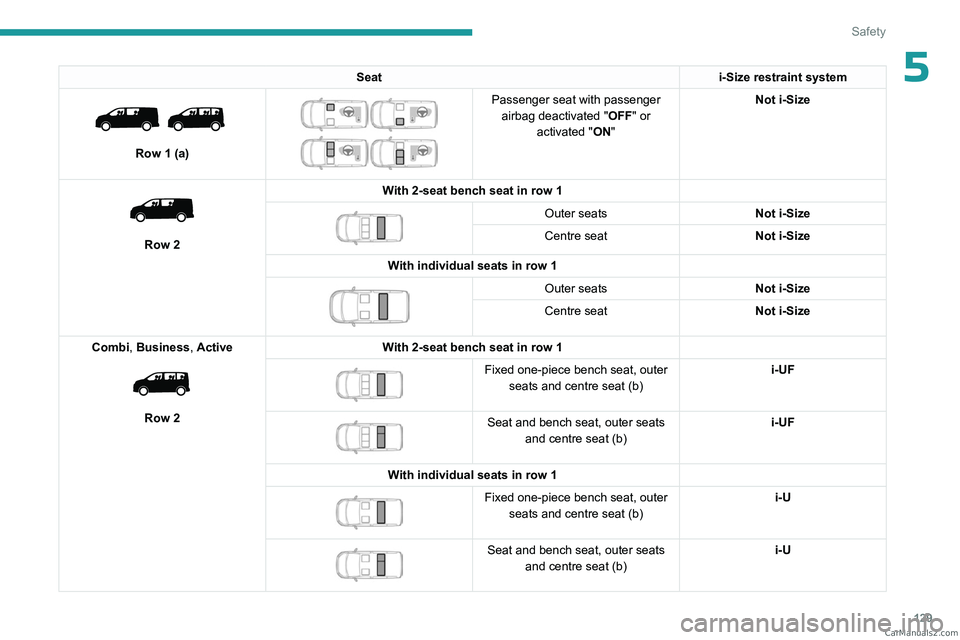

5Seati-Size restraint system

Row 1 (a)


Passenger seat with passenger
airbag deactivated " OFF" or
activated "ON" Not i-Size


Row 2 With 2-seat bench seat in row 1


Outer seats
Not i-Size
Centre seat Not i-Size
With individual seats in row 1


Outer seats Not i-Size
Centre seat Not i-Size
Combi, Business, Active


Row 2 With 2-seat bench seat in row 1


Fixed one-piece bench seat, outer
seats and centre seat (b) i-UF


Seat and bench seat, outer seats
and centre seat (b) i-UF
With individual seats in row 1


Fixed one-piece bench seat, outer seats and centre seat (b) i-U


Seat and bench seat, outer seats
and centre seat (b) i-U CarM an uals 2 .c o m

165
Driving
6This may be caused by a reduced visibility
(e.g. rain, fog, snow, blinding by low sun) or by
a real sensor blockage. In this case, stop the
vehicle and verify if the front camera or the front
radar is covered by dirt, snow, ice or anything
preventing the sensing.
In the event of a malfunction, this warning
lamp lights up on the instrument panel,
accompanied by the display of a message and
an audible signal.
Have it checked by a PEUGEOT dealer or a
qualified workshop.
If these warning lamps come on after the
engine has been switched off and then
restarted, contact a PEUGEOT dealer or a
qualified workshop to have the system checked.
These warning lamps light up on the instrument panel and/or in the
warning lamp display for seat belts and front
passenger airbag to indicate that the driver's
and/or front passenger's seat belt is not fastened
(depending on version). The automatic braking
system is deactivated until the seat belts are
fastened.
Lane departure warning
For more information, refer to the
General recommendations on the use
of driving and manoeuvring aids .
This system, using a camera which recognises
solid or broken lines, detects the involuntary
crossing of longitudinal traffic lane markings on
the ground.
If the direction indicator is not used at speeds
above 50 mph (80
km/h) and there is a risk of
one of these lines on the road surface being
crossed, the system triggers the alert.
This system is particularly useful on motorways
and main roads.


Detection - Alert
You are alerted by the flashing of this warning lamp in the instrument panel,
accompanied by an audible signal.
No warning is transmitted while the
direction indicator is active and for
approximately 20 seconds after the direction
indicator is switched off.
Activation/Deactivation
With audio system



► To activate or deactivate the system, press
this button.
The indicator lamp is on when the system is
activated.
With touch screen
The settings are changed via the vehicle configuration menu.
Malfunction
Depending on the vehicle’s equipment:The indicator lamp in this button flashes.
or
/The button flashes and a fault appears.
Consult a PEUGEOT dealer or a qualified
workshop. CarM an uals 2 .c o m

Seats, restraints 9
Permissible options for fastening a child restraint system with a three-point seat belt
Child restraint system categories Front passenger seat with activated
airbag ON Front passenger seat with
deactivated airbag OFF
Universal belted child restraint system 1)
Yes 2)
3)
Yes 2)
4)
i-size child restraint system NONO
Position equipped with a Top-tether fixing NO NO
Carry-cot (ISOFIX lateral facing child restraint
system)
ISOFIX child restraint fixture: L1, L2 NO
NO
ISOFIX rearward facing child restraint system NO NO
ISOFIX forward facing child restraint system NO NO
Booster seat - full width: B3 Yes 2)
5)
6)
NO1)
Universal child seat: chiId seat that can be installed in all vehicles using the seat belt. Applies to all stature and mass groups.
2) For a seat with height adjustment, set it to the highest and fully back longitudinal position.
3) Only a forward facing child restraint system is authorised at this seat position with the front passenger's airbag activated ON.
4) To install a rearward facing child restraint system at this seat position, the front passenger's airbag must be deactivated OFF.
5) Seat not fitted with ISOFIX compliant mountings.
6) Set the headrest to the lowest position.CarM an uals 2 .c o m
