2023 PEUGEOT EXPERT engine

241
Bluetooth® audio system
10Interactive voice response
From the contextual menu, select "DTMF
tones" and confirm to use the digital
keypad to navigate in the interactive voice
response menu.
Confirm with OK.
Consultation call
From the contextual menu, select
"Switch" and validate to return to a call
left on hold.
Confirm with OK.
Directory
To access the directory, press and hold SRC/TEL.
Select "Directory" to see the list of
contacts.
Confirm with OK.
To modify the contacts saved in the system, press MENU then select
"Telephone" and confirm.
Select "Directory management " and confirm.
You can:
–

"Consult an entry",
–

"Delete an entry",
–

"Delete all entries".
The system accesses the telephone's contacts directory, depending on its
compatibility, and while it is connected via
Bluetooth.
With certain telephones connected by
Bluetooth you can send a contact to the
directory of the audio system.
Contacts imported in this way are saved in a
permanent directory visible to all, whatever the
telephone connected.
The menu for the directory is not accessible if it
is empty.
Voice recognition
This function allows you to use your
smartphone's voice recognition via the system.
To start voice recognition, depending on the type
of steering mounted controls:
Make a long press on the end of the lighting
control stalk.
OR
Press this button.
Voice recognition requires the use of a
compatible smartphone first connected to
the vehicle by Bluetooth.
Frequently asked
questions
The following information groups together the answers to the most frequently asked questions
concerning your audio system. With the engine off, the audio system
switches off after a few minutes of use.
When the engine is switched off, the audio
system operating time depends on the state of
charge of the battery.
The switch-off is normal: the audio system
switches to economy mode and switches off to
avoid discharging the vehicle's battery.
►

Start the vehicle’
s engine to increase the
charge of the battery.
The message "the audio system is
overheated" is displayed onscreen.
To protect the installation if the ambient
temperature is too high, the audio system
switches to an automatic thermal protection
mode, in which the volume may be decreased or
the CD player stopped.
►
Switch the audio system off for a few minutes
to allow the system to cool.
Radio
There is a difference in sound quality
between the different audio sources (radio,
CD, etc.).
For optimal listening quality, the audio settings
(Volume, Bass, Treble, Ambience and Loudness)
can be adjusted to different audio sources,
resulting in audible differences when switching
between sources (radio, CD, etc.).
►

Check that the audio settings (V
olume, Bass,
Treble, Ambience and Loudness) are appropriate
to the sources being listened to. We recommend
setting the audio functions (Bass, Treble, Fr-Re CarM an uals 2 .c o m

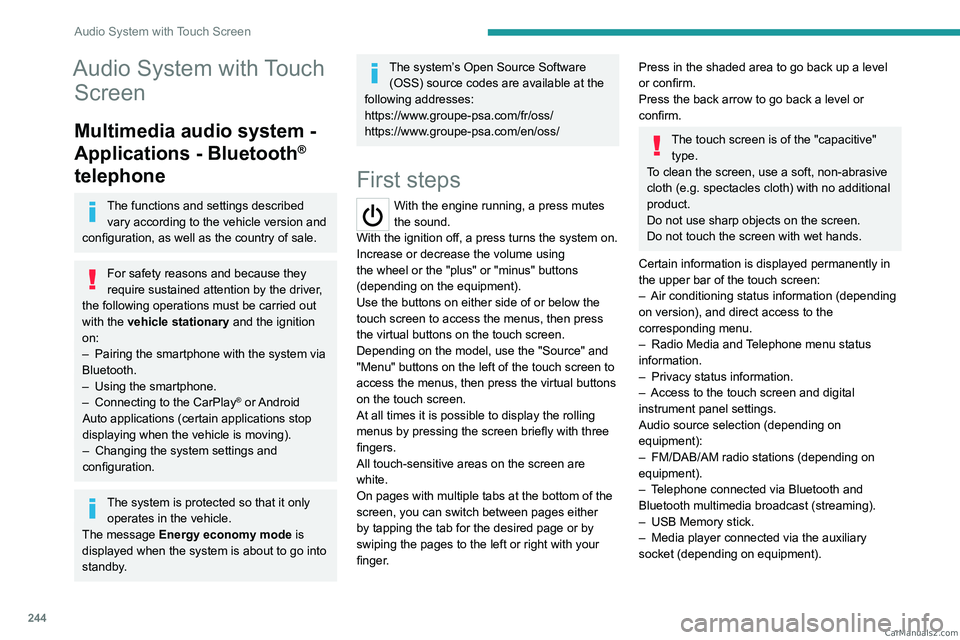

244
Audio System with Touch Screen
Audio System with Touch Screen
Multimedia audio system -
Applications - Bluetooth
®
telephone
The functions and settings described
vary according to the vehicle version and
configuration, as well as the country of sale.
For safety reasons and because they
require sustained attention by the driver,
the following operations must be carried out
with the vehicle stationary and the ignition
on:
–

Pairing the smartphone with the system via
Bluetooth.
–


Using the smartphone.
–


Connecting to the CarPlay® or Android
Auto applications (certain applications stop
displaying when the vehicle is moving).
–

Changing the system settings and
configuration.
The system is protected so that it only operates in the vehicle.
The message Energy economy mode is
displayed when the system is about to go into
standby.
The system’s Open Source Software (OSS) source codes are available at the
following addresses:
https://www.groupe-psa.com/fr/oss/
https://www.groupe-psa.com/en/oss/
First steps
With the engine running, a press mutes
the sound.
With the ignition off, a press turns the system on.
Increase or decrease the volume using
the wheel or the "plus" or "minus" buttons
(depending on the equipment).
Use the buttons on either side of or below the
touch screen to access the menus, then press
the virtual buttons on the touch screen.
Depending on the model, use the "Source" and
"Menu" buttons on the left of the touch screen to
access the menus, then press the virtual buttons
on the touch screen.
At all times it is possible to display the rolling
menus by pressing the screen briefly with three
fingers.
All touch-sensitive areas on the screen are
white.
On pages with multiple tabs at the bottom of the
screen, you can switch between pages either
by tapping the tab for the desired page or by
swiping the pages to the left or right with your
finger.
Press in the shaded area to go back up a level
or confirm.
Press the back arrow to go back a level or
confirm.
The touch screen is of the "capacitive" type.
To clean the screen, use a soft, non-abrasive
cloth (e.g. spectacles cloth) with no additional
product.
Do not use sharp objects on the screen.
Do not touch the screen with wet hands.
Certain information is displayed permanently in
the upper bar of the touch screen:
–

Air conditioning status information (depending
on version), and direct access to the
corresponding menu.
–


Radio Media and
Telephone menu status
information.
–

Privacy status information.
–


Access to the touch screen and digital
instrument panel settings.
Audio source selection (depending on
equipment):
–


FM/DAB/AM radio stations (depending on
equipment).
–


T

elephone connected via Bluetooth and
Bluetooth multimedia broadcast (streaming).
–

USB Memory stick.
–


Media player connected via the auxiliary
socket (depending on equipment).
CarM an uals 2 .c o m

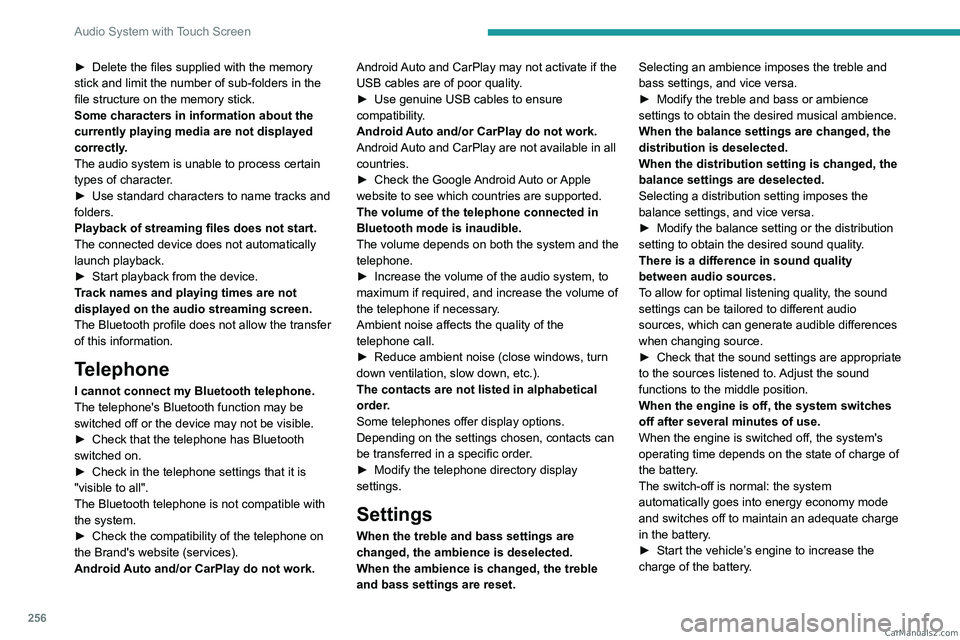

256
Audio System with Touch Screen
► Delete the files supplied with the memory
stick and limit the number of sub-folders in the
file structure on the memory stick.
Some characters in information about the
currently playing media are not displayed
correctly
.
The audio system is unable to process certain
types of character.
►

Use standard characters to name tracks and
folders.
Playback of streaming files does not start.
The connected device does not automatically
launch playback.
►


Start playback from the device.
T

rack names and playing times are not
displayed on the audio streaming screen.
The Bluetooth profile does not allow the transfer
of this information.
Telephone
I cannot connect my Bluetooth telephone.
The telephone's Bluetooth function may be
switched off or the device may not be visible.
►

Check that the telephone has Bluetooth
switched on.
►


Check in the telephone settings that it is
"visible to all".
The Bluetooth telephone is not compatible with
the system.
►


Check the compatibility of the telephone on
the Brand's website (services).
Android

Auto and/or CarPlay do not work. Android Auto and CarPlay may not activate if the
USB cables are of poor quality.
►

Use genuine USB cables to ensure
compatibility
.
Android Auto and/or CarPlay do not work.
Android Auto and CarPlay are not available in all
countries.
►
Check the Google
Android Auto or Apple
website to see which countries are supported.
The volume of the telephone connected in
Bluetooth mode is inaudible.
The volume depends on both the system and the
telephone.
►
Increase the volume of the audio system, to
maximum if required, and increase the volume of
the telephone if necessary
.
Ambient noise affects the quality of the
telephone call.
►
Reduce ambient noise (close windows, turn
down ventilation, slow down, etc.).
The contacts are not listed in alphabetical
order
.
Some telephones offer display options.
Depending on the settings chosen, contacts can
be transferred in a specific order.
►

Modify the telephone directory display
settings.
Settings
When the treble and bass settings are
changed, the ambience is deselected.
When the ambience is changed, the treble
and bass settings are reset. Selecting an ambience imposes the treble and
bass settings, and vice versa.
►

Modify the treble and bass or ambience
settings to obtain the desired musical ambience.
When the balance settings are changed, the
distribution is deselected.
When the distribution setting is changed, the
balance settings are deselected.
Selecting a distribution setting imposes the
balance settings, and vice versa.
►

Modify the balance setting or the distribution
setting to obtain the desired sound quality
.
There is a difference in sound quality
between audio sources.
To allow for optimal listening quality, the sound
settings can be tailored to different audio
sources, which can generate audible differences
when changing source.
►
Check that the sound settings are appropriate
to the sources listened to.
Adjust the sound
functions to the middle position.

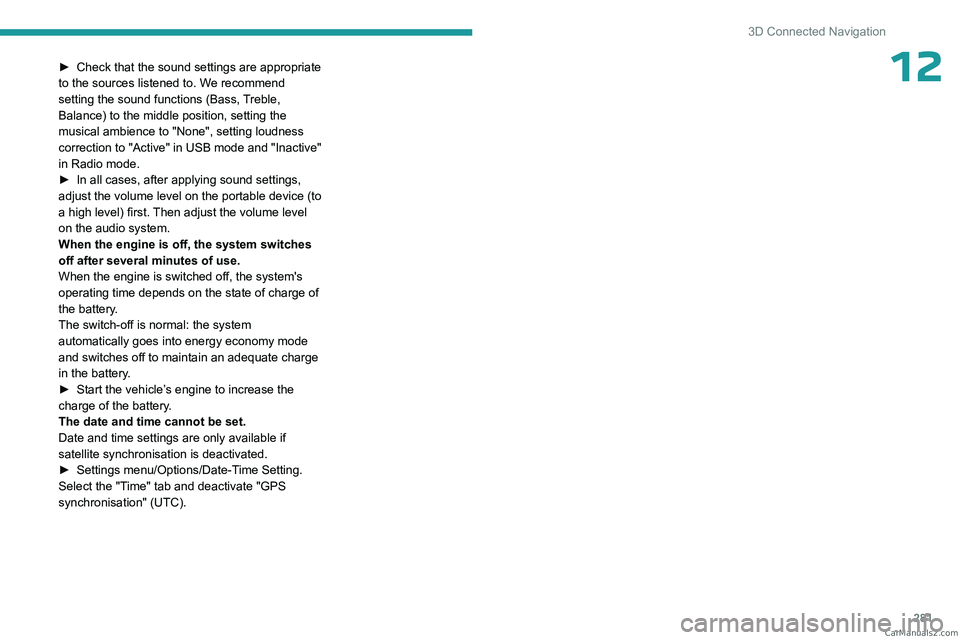

When the engine is off, the system switches
off after several minutes of use.
When the engine is switched off, the system's
operating time depends on the state of charge of
the battery.
The switch-off is normal: the system
automatically goes into energy economy mode
and switches off to maintain an adequate charge
in the battery.
► Start the vehicle’ s engine to increase the
charge of the battery. CarM an uals 2 .c o m

257

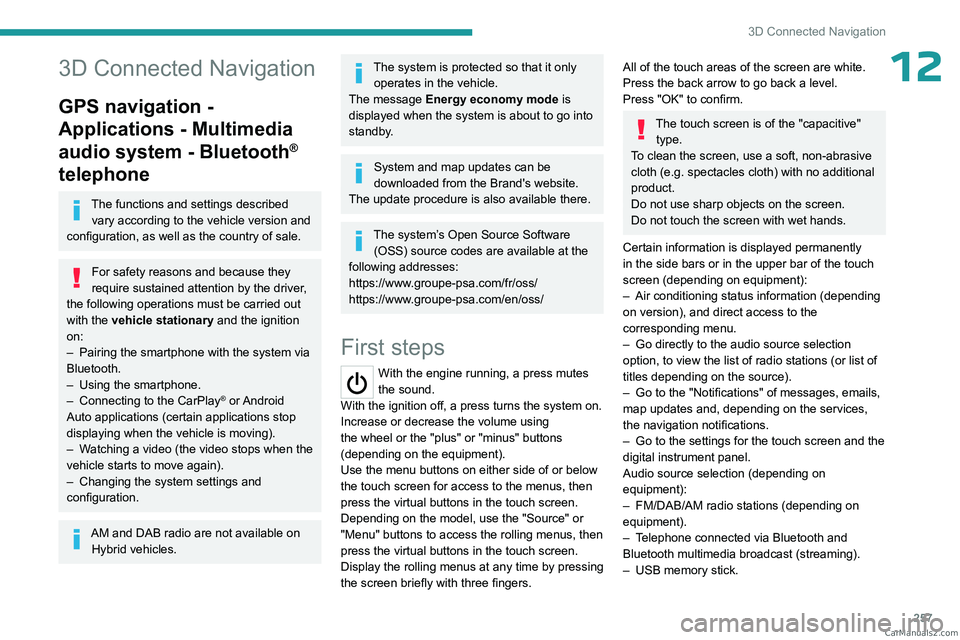

3D Connected Navigation
123D Connected Navigation
GPS navigation -
Applications - Multimedia
audio system - Bluetooth
®
telephone
The functions and settings described
vary according to the vehicle version and
configuration, as well as the country of sale.
For safety reasons and because they
require sustained attention by the driver,
the following operations must be carried out
with the vehicle stationary and the ignition
on:
–

Pairing the smartphone with the system via
Bluetooth.
–


Using the smartphone.
–


Connecting to the CarPlay® or Android
Auto applications (certain applications stop
displaying when the vehicle is moving).
–

W

atching a video (the video stops when the
vehicle starts to move again).
–

Changing the system settings and
configuration.
AM and DAB radio are not available on Hybrid vehicles.
The system is protected so that it only operates in the vehicle.
The message Energy economy mode is
displayed when the system is about to go into
standby.
System and map updates can be
downloaded from the Brand's website.
The update procedure is also available there.
The system’s Open Source Software (OSS) source codes are available at the
following addresses:
https://www.groupe-psa.com/fr/oss/
https://www.groupe-psa.com/en/oss/
First steps
With the engine running, a press mutes
the sound.
With the ignition off, a press turns the system on.
Increase or decrease the volume using
the wheel or the "plus" or "minus" buttons
(depending on the equipment).
Use the menu buttons on either side of or below
the touch screen for access to the menus, then
press the virtual buttons in the touch screen.
Depending on the model, use the "Source" or
"Menu" buttons to access the rolling menus, then
press the virtual buttons in the touch screen.
Display the rolling menus at any time by pressing
the screen briefly with three fingers.
All of the touch areas of the screen are white.
Press the back arrow to go back a level.
Press "OK" to confirm.
The touch screen is of the "capacitive" type.
To clean the screen, use a soft, non-abrasive
cloth (e.g. spectacles cloth) with no additional
product.
Do not use sharp objects on the screen.
Do not touch the screen with wet hands.
Certain information is displayed permanently
in the side bars or in the upper bar of the touch
screen (depending on equipment):
–

Air conditioning status information (depending
on version), and direct access to the
corresponding menu.
–


Go directly to the audio source selection
option, to view the list of radio stations (or list of
titles depending on the source).
–


Go to the "Notifications" of messages, emails,
map updates and, depending on the services,
the navigation notifications.
–


Go to the settings for the touch screen and the
digital instrument panel.
Audio source selection (depending on
equipment):
–


FM/DAB/AM radio stations (depending on
equipment).
–


T

elephone connected via Bluetooth and
Bluetooth multimedia broadcast (streaming).
–

USB memory stick. CarM an uals 2 .c o m

281
3D Connected Navigation
12► Check that the sound settings are appropriate
to the sources listened to. W e recommend
setting the sound functions (Bass, Treble,
Balance) to the middle position, setting the
musical ambience to "None", setting loudness
correction to "Active" in USB mode and "Inactive"
in Radio mode.
►

In all cases, after applying sound settings,
adjust the volume level on the portable device (to
a high level) first.

Then adjust the volume level
on the audio system.
When the engine is off, the system switches
off after several minutes of use.
When the engine is switched off, the system's
operating time depends on the state of charge of
the battery.
The switch-off is normal: the system
automatically goes into energy economy mode
and switches off to maintain an adequate charge
in the battery.
►

Start the vehicle’
s engine to increase the
charge of the battery.
The date and time cannot be set.
Date and time settings are only available if
satellite synchronisation is deactivated.
►

Settings
menu/Options/Date-Time Setting.
Select the "Time" tab and deactivate "GPS
synchronisation" (UTC). CarM an uals 2 .c o m

286
Alphabetical index
Charge level indicator (Electric) 22
Charging cable
180
Charging cable (Electric)

179
Charging connector
(Electric)

178, 183, 185–186
Charging flap (Electric)

178, 183, 185–186
Charging system (Electric)

5, 8, 27, 176, 191
Charging the traction battery
(Electric)

22, 176, 183, 185–186
Checking the engine oil level

19
Checking the levels

191–193
Checking tyre pressures
(using the kit)

204, 206–207
Checks

191, 194–196
Checks, routine

194–195
Child lock

131
Child lock on rear windows

131
Children

106, 113, 119–121, 128, 128–129
Children (safety)

131
Child seats

106, 109–116, 128
Child seats, conventional

112–116
Child seats, i-Size

128
Child seats, ISOFIX

119–121, 128, 128–129
Cleaning (advice)

177, 199–201
Closing the boot

44
Closing the doors

29, 33, 43–44
Collision Risk Alert

162–163
Compressor, tyre inflation

204
Configuration, vehicle

26–27
Connected applications

269
Connection, Android Auto

251, 269
Connection, Apple CarPlay

251, 268Connection,
Bluetooth
239, 252–253, 269–270, 274–275
Connection, Wi-Fi network

270
Connectivity

268
Consumptions

27
Container, AdBlue®

197
Control, emergency boot release

36
Control, emergency door

29, 34–35
Control, heated seats

50–51
Control stalk, lighting

88
Control stalk, wipers

93–95
Control unit

179–180
Courtesy lamp

86
Courtesy lamp, front

86–87, 215
Courtesy lamp, rear

86–87, 215
Courtesy lamps

86–87, 215
Crew cab, fixed

65–66
Crew cab, folding

66
Cruise control

151, 153–154, 156–158
Cruise control,
adaptive

153–154, 158, 161–163
Cruise control,
adaptive with Stop function

153–154
Cruise control by
speed limit recognition

153–154
D
DAB (Digital Audio Broadcasting) -
Digital radio
235–236, 249, 272
Date (setting)

28, 255, 277
Daytime running lamps 89, 212–213
Deactivating the passenger
airbag

107, 111–112
Deactivation of DSC (ESC)

101
Deadlocking

34
Deferred charging

27
Deferred charging (Electric)

27, 178, 183, 186
Defrosting

52, 81
Defrosting, rear screen

82
Demisting

81
Demisting, rear

82
Dimensions

229
Dipstick

19, 192
Direction indicators
(turn signals)

89, 212–214, 216
Display, head-up

11
Domestic charging

180
Domestic charging (Electric)

184–186, 227
Door pockets

68
Doors, rear

43–44
Doors, side

39
Doors, side-hinged

33–34, 43–44, 214
Drive,
electric

5, 8, 27, 176, 189, 191, 216, 220, 227
Driver’s attention warning

166
Drive selector (Electric)

145, 195
Driving

132–133
Driving aids camera (warnings)

150
Driving aids (recommendations)

150
Driving economically

7
Driving modes

146
Driving modes (Electric)

146–147 CarM an uals 2 .c o m

287
Alphabetical index
Dynamic stability control (DSC) 100–101, 103
E
EBFD 100
Eco-driving (advice)
7
ECO mode

147
Electric windows

47
Electronic brake force distribution (EBFD)

100
Emergency braking assistance (EBA)

100
Emergency call

98
Emergency warning lamps

97, 202
Emissions control system, SCR

21, 196
Energy economy (mode)

187
Energy economy mode

187
Energy flows

27
Energy recovery

22, 146
Engine

196
Engine compartment

191
Engine, Diesel

174, 191, 202, 224
Engines

223
Environment

7, 36, 84, 133
ESC (electronic stability control)

100
Exterior lighting

91
F
Fatigue detection 166
Filling the AdBlue® tank
193, 197
Filling the fuel tank

174–175
Filter, air 194
Filter, oil
194
Filter, particle

193–194
Filter, passenger compartment

77, 194
Finisher

2 11
Fitting a wheel

209–211
Fitting roof bars

189
Fittings, interior

67–68, 72
Fittings, rear

72
Flap, fuel filler

174–175
Flap, removable

53–55
Flashing indicators

89
Floor cab

216
Fluid, brake

193
Fluid, engine coolant

193
Fluid, power steering

193
Foglamp, rear

88, 214, 216
Foglamps, front

88, 213
Foglamps, rear

88
Frequency (radio)

271
Fuel

7, 174
Fuel consumption

7
Fuel level, low

174–175
Fuel (tank)

174
Fuses

216
G
Gauge, fuel 174–175
Gearbox, automatic
141–145, 195, 218
Gearbox, manual

141, 195
Gear lever 141
Gear lever, automatic gearbox
142–145
Gear lever, manual gearbox

141
Gear shift indicator

142
Glove box

68
G.P.S.

265
H
Hazard warning lamps 97, 202
Headlamps (adjustment)
92
Headlamps, automatic dipping

91–92
Headlamps, automatic operation

89–90
Headlamps, dipped beam

88, 212
Headlamps, halogen

211–212
Headlamps, main beam

88, 91, 212–213
Headlamps, Xenon

212
Head restraints, front

49
Head-up display

10–12
Heating

77–79, 81–84
Heating, additional

45, 83–84
Heating, programmable

27, 45, 83–85
High voltage

176
Hill start assist

141
Histogramme, fuel consumption

27
Horn

100
I
Ignition 136–137, 275 CarM an uals 2 .c o m

288
Alphabetical index
Ignition on 137
Immobiliser, electronic
134
Indicator, AdBlue® range

20
Indicator, coolant temperature

19–20
Indicator, engine oil level

19
Indicator lamps, operation

88
Indicators, direction

89
Indicator, service

18
Inflating tyres

195, 231
Inflating tyres and accessories
(using the kit)

204, 206–207
Information, vehicle

282
Infrared camera

151
Instrument panel

9, 151
Intelligent Traction Control

102
Internet browser

266, 269
ISOFIX

125, 128, 128–129
J
Jack 207–208, 272
Jump starting
217
K
Key 29–35
Key, electronic
29, 137
Keyless Entry and Starting

29–34, 135–136
Key not recognised

137
Key with remote control

33
Kit, hands-free 238–239, 252, 274
Kit, puncture repair
204–207
Kit, temporary puncture repair

204–207
Klaxon

100
L
Labels 56–57
Labels, identification
231
Lane Departure Warning (LDW)

165
Leather (care)

201
Level, AdBlue®

193
Level, brake fluid

193
Level, Diesel additive

193–194
Level, engine coolant

19–20, 193
Level, engine oil

19, 192
Level, headlamp wash

94
Level, power steering fluid

193
Levels and checks

191–193
Level, screenwash fluid

94, 193
Lighting

88
Lighting dimmer

24
Lighting, exterior

88, 91
Lighting, guide-me home

90
Lighting, interior

86, 93
Lighting, mood

93
Lighting, welcome

90
Loading

72, 189
Loading area layout

71
Load reduction mode

188
Load restraint

71
Load space cover 70
Locating your vehicle
30
Locking

29–30, 33
Locking from the inside

37
Locking the doors

37–38
Lumbar

48, 51
M
Mains socket (domestic network) 179
Maintenance (advice)
177, 199
Maintenance, routine

151, 194–196
Manoeuvring aids (recommendations)

150
Map reading lamps

86
Markings, identification

231
Massage function

51
Mat

67–68, 151
Memorising a speed

151
Menu

251
Menu, main

26, 233
Menus (audio)

246–247, 258–259
Menu, shortcuts

26
Messages

276
Messages, quick

276
Minimum traction battery charge level
(Electric)

22
Mirror, rear view

52
Mirrors, door

52, 82, 167–168
Misfuel prevention

175
Mobile application

27, 85, 186
Moduwork

53–55 CarM an uals 2 .c o m
