6 Introduction
Introduction
Introduction
This Owner's Manual supplement
provides all the necessary
information about the fuel cell
version.
It is only valid in combination
with the Owner's Manual for your
vehicle and cannot be considered
separately.

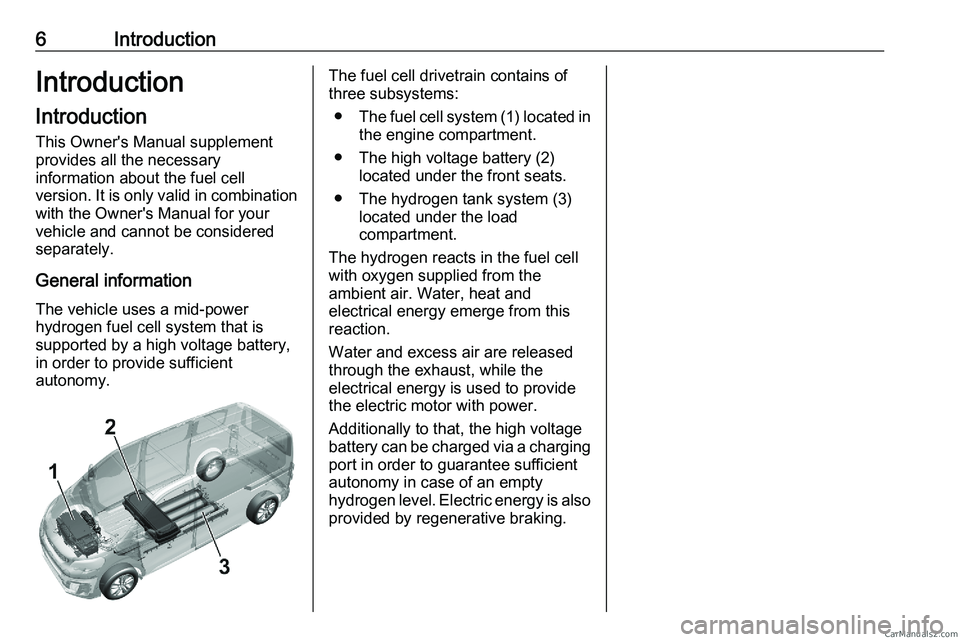

General information The vehicle uses a mid-power
hydrogen fuel cell system that is
supported by a high voltage battery,
in order to provide sufficient
autonomy. The fuel cell drivetrain contains of
three subsystems:
● The
fuel cell system (1) located in
the engine compartment.
● The high voltage battery (2) located under the front seats.
● The hydrogen tank system (3) located under the load
compartment.
The hydrogen reacts in the fuel cell
with oxygen supplied from the
ambient air. Water, heat and
electrical energy emerge from this
reaction.
Water and excess air are released
through the exhaust, while the
electrical energy is used to provide
the electric motor with power.
Additionally to that, the high voltage
battery can be charged via a charging
port in order to guarantee sufficient
autonomy in case of an empty
hydrogen level. Electric energy is also
provided by regenerative braking.CarM an uals 2 .c o m

Driving and operating 13
Driving and
operating
Starting and operating .................13
Starting the engine ....................13
Parking ...................................... 13
Driver assistance systems ...........13
Parking assist ............................ 13
Charging ...................................... 14
General information ...................14
Fuel .............................................. 14
Hydrogen ................................... 14
Refuelling .................................. 15 Starting and operating
Starting the engine Note
The operating temperature of the
vehicle is between -20 °C and +50
°C.
Vehicle
operation is restricted to this
ambient temperature range.
Parking Note
Please note that the vehicle may
emit noises after the engine has
been switched off. This is normal
and does not indicate any damage. Driver assistance
systems
Parking assist Note
If a coupling ball bar is attached to
the
vehicle, the detection zone of the
parking sensors is disturbed and
they do not operate properly.
Deactivate the parking assist
everytime a coupling ball bar is
attached to the vehicle.CarM an uals 2 .c o m

Vehicle care 17
Vehicle care
Vehicle checks ............................. 17
Fuel cell system coolant ............17
Engine coolant ........................... 17
Electrical system ..........................18
Fuses ......................................... 18
Engine compartment fuse box ...19
Vehicle tools ................................ 20
Tools .......................................... 20
Wheels and tyres .........................21
Spare wheel .............................. 21
Jump starting ............................... 21 Vehicle checks
Fuel cell system coolant Coolant level Caution
The coolant reservoir may contain
traces of hydrogen which is
normal.
Using the wrong coolant can
cause
severe damages to the fuel
cell system. Only trained service
personnel are allowed to open the
coolant reservoir and to top up
coolant. Caution
A too low coolant level can cause
damage to the fuel cell system. If the cooling system is cold, the
coolant level should be above the
MIN mark. If the cooling level is too
low, seek the assistance of a
workshop.
Engine coolant
The factory filled coolant provides
freeze protection down to approx.
-37 °C

. Caution
Only use approved antifreeze.CarM an uals 2 .c o m

18 Vehicle care
Coolant level Caution
A too low coolant level can cause
engine damage.
If the cooling system is cold, the
coolant level should be above the
MIN mark. Top up if the level is low. 9
Warning Allow the engine to cool before
opening the cap. Carefully open
the cap, relieving the pressure
slowly.
To top up, use a 1:1 mixture of
released coolant concentrate mixed
with clean tap water. If no coolant
concentrate is available, use clean
tap
water. Install the cap tightly. Have
the coolant concentration checked
and have the cause of the coolant
loss remedied by a workshop. Electrical system
Fuses
Data on the replacement fuse must
match

the data on the defective fuse.
There is a fuse box in the engine
compartment.
Before replacing a fuse, turn off the
respective switch and the ignition.
A blown fuse can be recognised by its melted wire. Caution
Do not replace the fuse until the
cause of the fault has been
remedied.
Some functions are protected by
several fuses.
Fuses may also be inserted without
existence of a function.

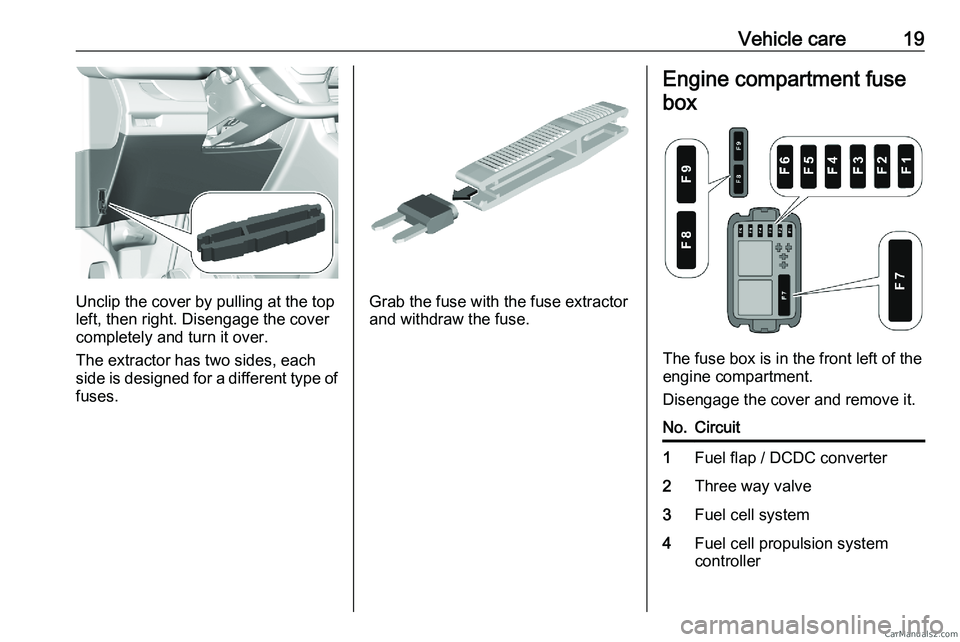

Fuse extractorA fuse extractor may be located
behind the passenger compartment
fuse box cover:CarM an uals 2 .c o m

Vehicle care 19
Unclip the cover by pulling at the top
left, then right. Disengage the cover
completely and turn it over.
The extractor has two sides, each
side
is designed for a different type of
fuses. Grab the fuse with the fuse extractor
and withdraw the fuse. Engine compartment fuse
box The fuse box is in the front left of the
engine compartment.
Disengage the cover and remove it.
No. Circuit
1 Fuel flap / DCDC converter
2 Three way valve
3 Fuel cell system
4 Fuel cell propulsion system
controllerCarM an uals 2 .c o m

Vehicle care 21
Wheels and tyres
Spare wheel In order to use the jack properly, place
it first on the jack base before lifting
the vehicle. Jump starting
Do not start with quick charger.
A vehicle with a discharged vehicle
battery can be started using jump
leads and the vehicle battery of
another vehicle. Caution
Never jump start another vehicle
with an electric vehicle.
9
Warning Be extremely careful when starting
with jump leads. Any deviation
from
the following instructions can
lead to injuries or damage caused
by battery explosion or damage to the electrical systems of both
vehicles. 9
Warning Avoid contact of the battery with
eyes, skin, fabrics and painted
surfaces. The fluid contains
sulphuric acid which can cause
injuries and damage in the event
of direct contact. ● Never
expose the vehicle battery
to naked flames or sparks.
● A discharged vehicle battery can already freeze at a temperature
of 0 °C. Defrost the frozen batterybefore connecting jump leads.
● Wear eye protection and protective clothing when
handling a battery.
● Use a booster battery with the same voltage (12 V). Its capacity
(Ah) must not be much less than
that of the discharged vehicle
battery.
● Use jump leads with insulated terminals and a cross section of
at least 16 mm 2
(25 mm 2
for
diesel engines).CarM an uals 2 .c o m
