2023 PEUGEOT 508 headlamp

162

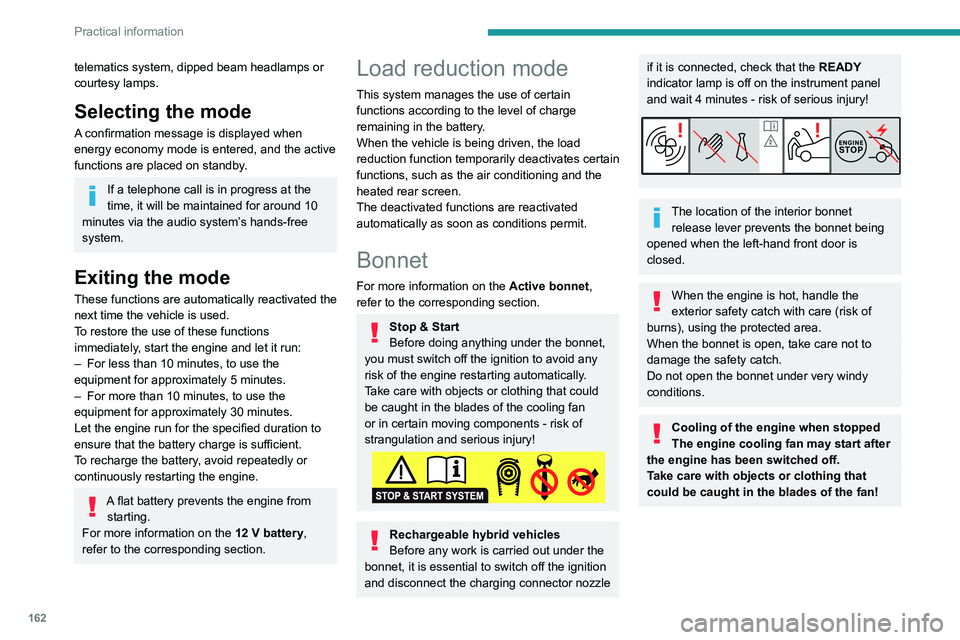

Practical information
telematics system, dipped beam headlamps or
courtesy lamps.
Selecting the mode
A confirmation message is displayed when
energy economy mode is entered, and the active
functions are placed on standby.
If a telephone call is in progress at the
time, it will be maintained for around 10
minutes via the audio system’s hands-free
system.
Exiting the mode
These functions are automatically reactivated the
next time the vehicle is used.
To restore the use of these functions
immediately, start the engine and let it run:
–

For less than 10 minutes, to use the
equipment for approximately 5 minutes.
–


For more than 10 minutes, to use the
equipment for approximately 30 minutes.
Let the engine run for the specified duration to
ensure that the battery charge is sufficient.
T

o recharge the battery, avoid repeatedly or
continuously restarting the engine.
A flat battery prevents the engine from starting.
For more information on the 12
V battery,
refer to the corresponding section.
Load reduction mode
This system manages the use of certain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates certain
functions, such as the air conditioning and the
heated rear screen.
The deactivated functions are reactivated
automatically as soon as conditions permit.
Bonnet
For more information on the Active bonnet,
refer to the corresponding section.
Stop & Start
Before doing anything under the bonnet,
you must switch off the ignition to avoid any
risk of the engine restarting automatically.
Take care with objects or clothing that could
be caught in the blades of the cooling fan
or in certain moving components - risk of
strangulation and serious injury!
Rechargeable hybrid vehicles
Before any work is carried out under the
bonnet, it is essential to switch off the ignition
and disconnect the charging connector nozzle
if it is connected, check that the READY
indicator lamp is off on the instrument panel
and wait 4 minutes - risk of serious injury!
The location of the interior bonnet release lever prevents the bonnet being
opened when the left-hand front door is
closed.
When the engine is hot, handle the
exterior safety catch with care (risk of
burns), using the protected area.
When the bonnet is open, take care not to
damage the safety catch.
Do not open the bonnet under very windy
conditions.
Cooling of the engine when stopped
The engine cooling fan may start after
the engine has been switched off.
Take care with objects or clothing that
could be caught in the blades of the fan!

180

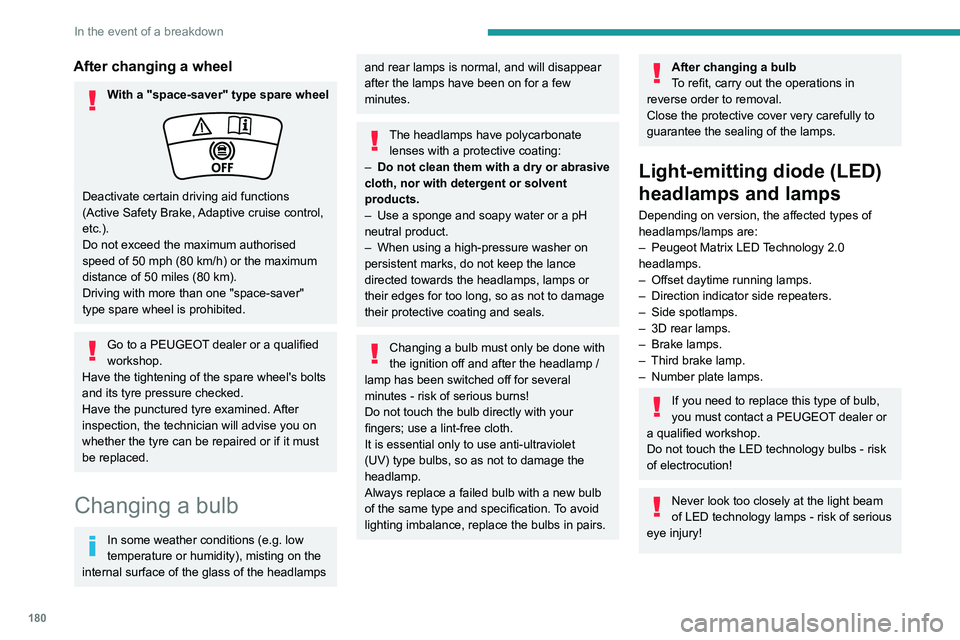

In the event of a breakdown
After changing a wheel
With a "space-saver" type spare wheel
Deactivate certain driving aid functions
(Active Safety Brake, Adaptive cruise control,
etc.).
Do not exceed the maximum authorised
speed of 50 mph (80 km/h) or the maximum
distance of 50 miles (80 km).
Driving with more than one "space-saver"
type spare wheel is prohibited.
Go to a PEUGEOT dealer or a qualified
workshop.
Have the tightening of the spare wheel's bolts
and its tyre pressure checked.
Have the punctured tyre examined. After
inspection, the technician will advise you on
whether the tyre can be repaired or if it must
be replaced.
Changing a bulb
In some weather conditions (e.g. low
temperature or humidity), misting on the
internal surface of the glass of the headlamps
and rear lamps is normal, and will disappear
after the lamps have been on for a few
minutes.
The headlamps have polycarbonate lenses with a protective coating:
–

Do not clean them with a dry or abrasive
cloth, nor with detergent or solvent
products.
–


Use a sponge and soapy water or a pH
neutral product.
–


When using a high-pressure washer on
persistent marks, do not keep the lance
directed towards the headlamps, lamps or
their edges for too long, so as not to damage
their protective coating and seals.
Changing a bulb must only be done with
the ignition off and after the headlamp /
lamp has been switched off for several
minutes - risk of serious burns!
Do not touch the bulb directly with your
fingers; use a lint-free cloth.
It is essential only to use anti-ultraviolet
(UV) type bulbs, so as not to damage the
headlamp.
Always replace a failed bulb with a new bulb
of the same type and specification. To avoid
lighting imbalance, replace the bulbs in pairs.
After changing a bulb
To refit, carry out the operations in
reverse order to removal.
Close the protective cover very carefully to
guarantee the sealing of the lamps.
Light-emitting diode (LED)
headlamps and lamps
Depending on version, the affected types of
headlamps/lamps are:
–

Peugeot Matrix LED
Technology 2.0
headlamps.
–

Offset daytime running lamps.
–


Direction indicator side repeaters.
–


Side spotlamps.
–


3D rear lamps.
–


Brake lamps.
–


Third brake lamp.
–


Number plate lamps.
If you need to replace this type of bulb,
you must contact a PEUGEOT dealer or
a qualified workshop.
Do not touch the LED technology bulbs - risk
of electrocution!
Never look too closely at the light beam
of LED technology lamps - risk of serious
eye injury!

181
In the event of a breakdown
8

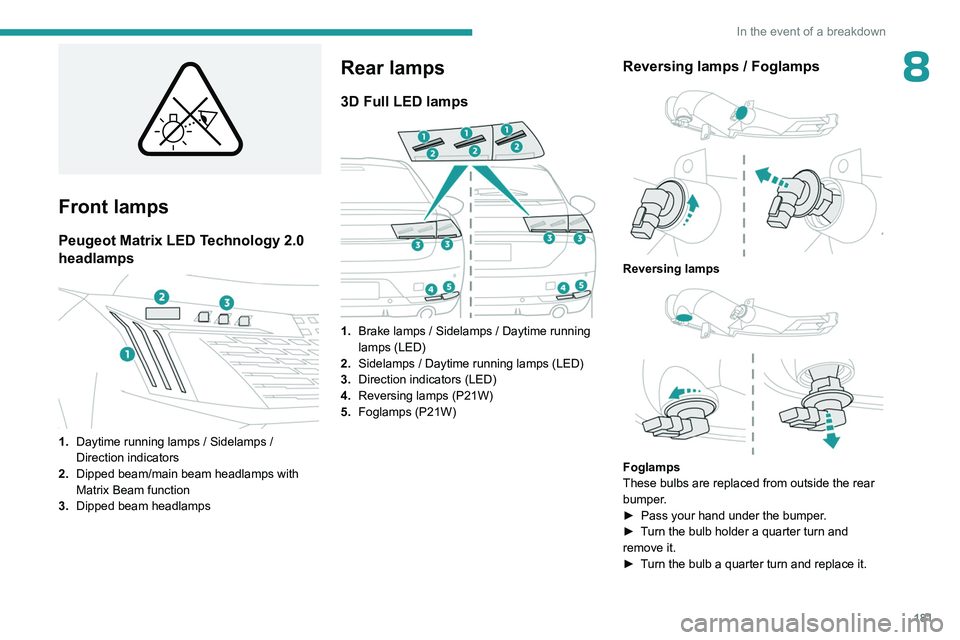

Front lamps
Peugeot Matrix LED Technology 2.0
headlamps


1.Daytime running lamps / Sidelamps /
Direction indicators
2. Dipped beam/main beam headlamps with
Matrix Beam function
3. Dipped beam headlamps
Rear lamps
3D Full LED lamps

1.Brake lamps / Sidelamps / Daytime running
lamps (LED)
2. Sidelamps / Daytime running lamps (LED)
3. Direction indicators (LED)
4. Reversing lamps (P21W)
5. Foglamps (P21W)
Reversing lamps / Foglamps

Reversing lamps

Foglamps
These bulbs are replaced from outside the rear
bumper.
►

Pass your hand under the bumper
.
►

T
urn the bulb holder a quarter turn and
remove it.
►

T
urn the bulb a quarter turn and replace it.

182
In the event of a breakdown
To change the bulb within a few minutes of switching off the ignition, take care not
to touch the exhaust - risk of burns!
Fuses
Changing a fuse
All work must be carried out only by a
PEUGEOT dealer or a qualified workshop
The replacement of a fuse by a third party
could cause a serious malfunction of the
vehicle.
Installing electrical accessories
The vehicle's electrical system is
designed to operate with standard or optional
equipment.
Before fitting other electrical equipment
or accessories to your vehicle, contact a
PEUGEOT dealer or a qualified workshop.
PEUGEOT accepts no responsibility for
the cost incurred in repairing the vehicle
or for rectifying malfunctions resulting from
the installation of accessories not supplied or
not recommended by PEUGEOT and not
installed in accordance with its
recommendations, in particular when the
combined power consumption of all of the
additional equipment connected exceeds 10
milliamperes.
12 V battery/Accessory
batteries
Lead-acid starter batteries
These batteries contain harmful
substances (sulphuric acid and lead).
They must be disposed of in accordance
with regulations and must never under any
circumstances be discarded with household
waste.
Dispose of used batteries at a designated
collection point.
Protect your eyes and face before
handling the battery.
All operations on the battery must be carried
out in a well ventilated area and away from
naked flames and sources of sparks, to avoid
any risk of explosion or fire.
Wash your hands afterwards.
Electronic control units/LED
technology headlamps
Never connect the negative jump lead to the
metal part of the electronic control units or at
the back of the headlamps.
Risk of destroying the electronic control units
and/or headlamps!
Connect to the remote earth point provided
for this purpose.
Frozen battery
Never try to charge a frozen battery - risk
of explosion!
If the battery has frozen, have it checked by a
PEUGEOT dealer or by a qualified workshop,
who will verify that the internal components
have not been damaged and that the case
has not cracked, which could lead to a risk of
leakage of toxic and corrosive acid.
Never try to start the engine by pushing
the vehicle.
Symbols
No sparks or naked flames, no smoking.
Always protect your eyes. Explosive gases can cause blindness and injury.
Keep the vehicle's battery out of the reach
of children.
The vehicle's battery contains sulphuric acid which can make you go blind or
cause severe burns.
For more information, refer to the
handbook.
Explosive gases can be present close to
the battery.
With petrol/Diesel engines
Procedure for starting the engine using another
battery or for charging a discharged battery.

215

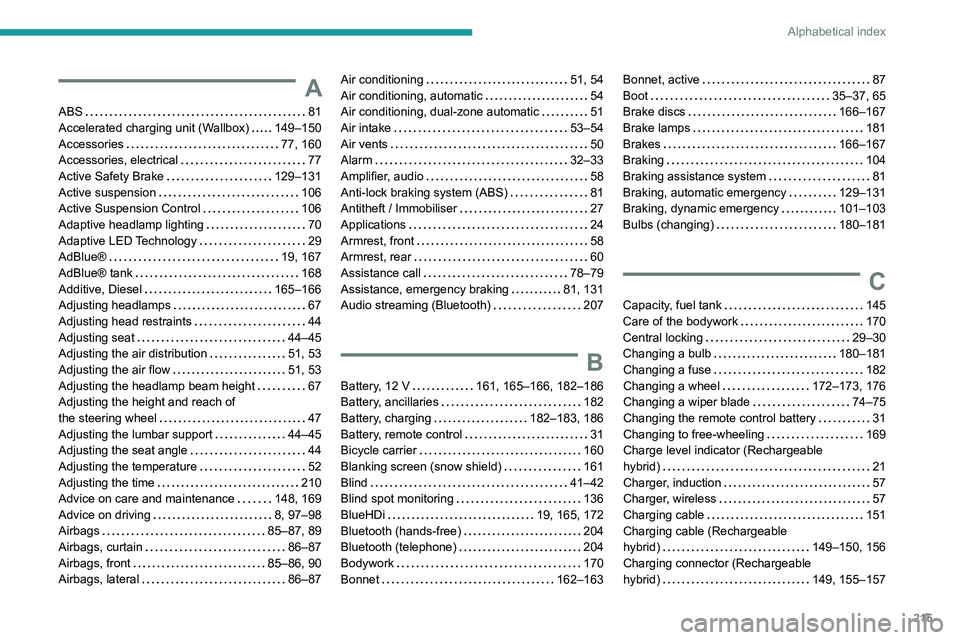

Alphabetical index
A
ABS 81
Accelerated charging unit (Wallbox)
149–150
Accessories

77, 160
Accessories, electrical

77
Active Safety Brake

129–131
Active suspension

106
Active Suspension Control

106
Adaptive headlamp lighting

70
Adaptive LED Technology

29
AdBlue®

19, 167
AdBlue® tank

168
Additive, Diesel

165–166
Adjusting headlamps

67
Adjusting head restraints

44
Adjusting seat

44–45
Adjusting the air distribution

51, 53
Adjusting the air flow

51, 53
Adjusting the headlamp beam height

67
Adjusting the height and reach of
the steering wheel

47
Adjusting the lumbar support

44–45
Adjusting the seat angle

44
Adjusting the temperature

52
Adjusting the time

210
Advice on care and maintenance

148, 169
Advice on driving

8, 97–98
Airbags

85–87, 89
Airbags, curtain

86–87
Airbags, front

85–86, 90
Airbags, lateral

86–87
Air conditioning 51, 54
Air conditioning, automatic
54
Air conditioning, dual-zone automatic

51
Air intake

53–54
Air vents

50
Alarm

32–33
Amplifier, audio

58
Anti-lock braking system (ABS)

81
Antitheft / Immobiliser

27
Applications

24
Armrest, front

58
Armrest, rear

60
Assistance call

78–79
Assistance, emergency braking

81, 131
Audio streaming (Bluetooth)

207
B
Battery, 12 V 161, 165–166, 182–186
Battery, ancillaries
182
Battery, charging

182–183, 186
Battery, remote control

31
Bicycle carrier

160
Blanking screen (snow shield)

161
Blind

41–42
Blind spot monitoring

136
BlueHDi

19, 165, 172
Bluetooth (hands-free)

204
Bluetooth (telephone)

204
Bodywork

170
Bonnet

162–163
Bonnet, active 87
Boot
35–37, 65
Brake discs

166–167
Brake lamps

181
Brakes

166–167
Braking

104
Braking assistance system

81
Braking, automatic emergency

129–131
Braking, dynamic emergency

101–103
Bulbs (changing)

180–181
C
Capacity, fuel tank 145
Care of the bodywork
170
Central locking

29–30
Changing a bulb

180–181
Changing a fuse

182
Changing a wheel

172–173, 176
Changing a wiper blade

74–75
Changing the remote control battery

31
Changing to free-wheeling

169
Charge level indicator (Rechargeable
hybrid)

21
Charger, induction

57
Charger, wireless

57
Charging cable

151
Charging cable (Rechargeable
hybrid)

149–150, 156
Charging connector (Rechargeable
hybrid)

149, 155–157

217

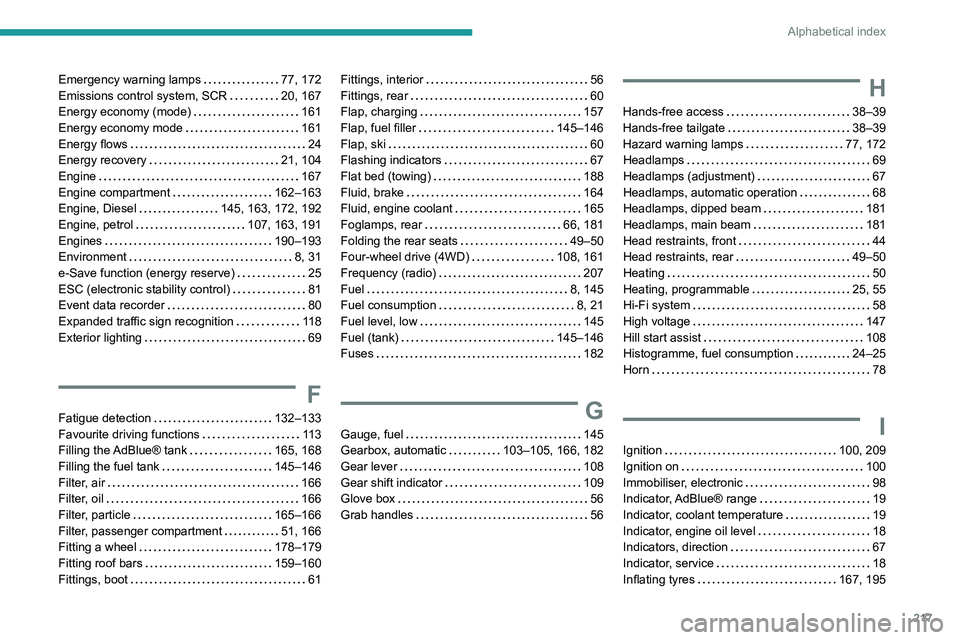

Alphabetical index
Emergency warning lamps 77, 172
Emissions control system, SCR
20, 167
Energy economy (mode)

161
Energy economy mode

161
Energy flows

24
Energy recovery

21, 104
Engine

167
Engine compartment

162–163
Engine, Diesel

145, 163, 172, 192
Engine, petrol

107, 163, 191
Engines

190–193
Environment

8, 31
e-Save function (energy reserve)

25
ESC (electronic stability control)

81
Event data recorder

80
Expanded traffic sign recognition

11 8
Exterior lighting

69
F
Fatigue detection 132–133
Favourite driving functions
11 3
Filling the AdBlue® tank

165, 168
Filling the fuel tank

145–146
Filter, air

166
Filter, oil

166
Filter, particle

165–166
Filter, passenger compartment

51, 166
Fitting a wheel

178–179
Fitting roof bars

159–160
Fittings, boot

61
Fittings, interior 56
Fittings, rear
60
Flap, charging

157
Flap, fuel filler

145–146
Flap, ski

60
Flashing indicators

67
Flat bed (towing)

188
Fluid, brake

164
Fluid, engine coolant

165
Foglamps, rear

66, 181
Folding the rear seats

49–50
Four-wheel drive (4WD)

108, 161
Frequency (radio)

207
Fuel

8, 145
Fuel consumption

8, 21
Fuel level, low

145
Fuel (tank)

145–146
Fuses

182
G
Gauge, fuel 145
Gearbox, automatic
103–105, 166, 182
Gear lever

108
Gear shift indicator

109
Glove box

56
Grab handles

56
H
Hands-free access 38–39
Hands-free tailgate
38–39
Hazard warning lamps

77, 172
Headlamps

69
Headlamps (adjustment)

67
Headlamps, automatic operation

68
Headlamps, dipped beam

181
Headlamps, main beam

181
Head restraints, front

44
Head restraints, rear

49–50
Heating

50
Heating, programmable

25, 55
Hi-Fi system

58
High voltage

147
Hill start assist

108
Histogramme, fuel consumption

24–25
Horn

78
I
Ignition 100, 209
Ignition on
100
Immobiliser, electronic

98
Indicator, AdBlue® range

19
Indicator, coolant temperature

19
Indicator, engine oil level

18
Indicators, direction

67
Indicator, service

18
Inflating tyres

167, 195
