2023 NISSAN PATHFINDER Owners Manual

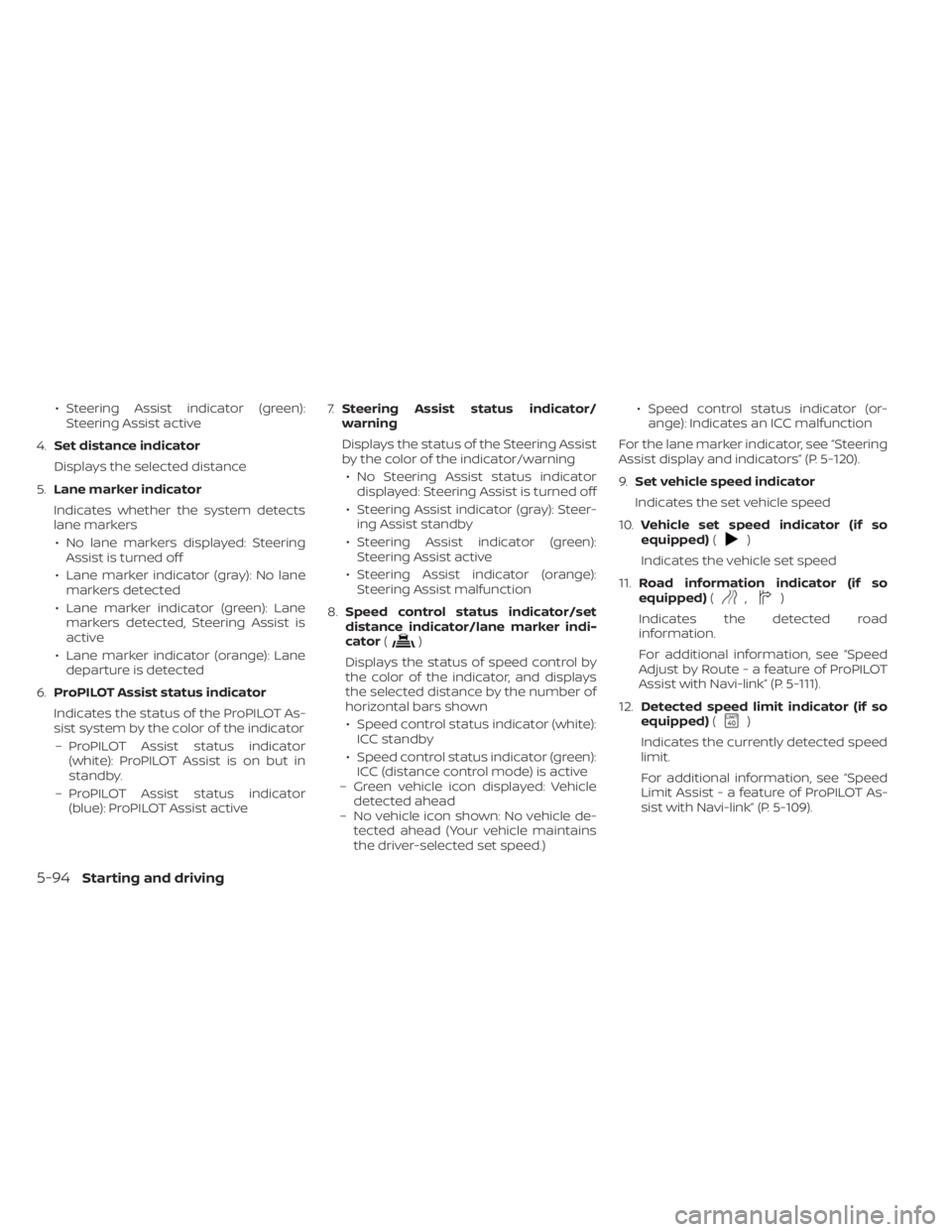

• Steering Assist indicator (green):Steering Assist active
4. Set distance indicator
Displays the selected distance
5. Lane marker indicator
Indicates whether the system detects
lane markers • No lane markers displayed: Steering Assist is turned off
• Lane marker indicator (gray): No lane markers detected
• Lane marker indicator (green): Lane markers detected, Steering Assist is
active
• Lane marker indicator (orange): Lane departure is detected
6. ProPILOT Assist status indicator
Indicates the status of the ProPILOT As-
sist system by the color of the indicator – ProPILOT Assist status indicator (white): ProPILOT Assist is on but in
standby.
– ProPILOT Assist status indicator (blue): ProPILOT Assist active 7.
Steering Assist status indicator/
warning
Displays the status of the Steering Assist
by the color of the indicator/warning
• No Steering Assist status indicator displayed: Steering Assist is turned off
• Steering Assist indicator (gray): Steer- ing Assist standby
• Steering Assist indicator (green): Steering Assist active
• Steering Assist indicator (orange): Steering Assist malfunction
8. Speed control status indicator/set
distance indicator/lane marker indi-
cator (
)
Displays the status of speed control by
the color of the indicator, and displays
the selected distance by the number of
horizontal bars shown • Speed control status indicator (white): ICC standby
• Speed control status indicator (green): ICC (distance control mode) is active
– Green vehicle icon displayed: Vehicle detected ahead
– No vehicle icon shown: No vehicle de- tected ahead (Your vehicle maintains
the driver-selected set speed.) • Speed control status indicator (or-
ange): Indicates an ICC malfunction
For the lane marker indicator, see “Steering
Assist display and indicators” (P. 5-120).
9. Set vehicle speed indicator
Indicates the set vehicle speed
10. Vehicle set speed indicator (if so
equipped) (
)
Indicates the vehicle set speed
11. Road information indicator (if so
equipped) (
,)
Indicates the detected road
information.
For additional information, see “Speed
Adjust by Rout e-afeature of ProPILOT
Assist with Navi-link” (P. 5-111).
12. Detected speed limit indicator (if so
equipped) (
)
Indicates the currently detected speed
limit.
For additional information, see “Speed
Limit Assist-afe ature of ProPILOT As-
sist with Navi-link” (P. 5-109).
5-94Starting and driving

13.Speed Limit Assist indicator (if so
equipped) (A,,)
Indicates the Speed Limit Assist activa-
tion mode or system operation.
For additional information, see “Speed
Limit Assist-afe ature of ProPILOT As-
sist with Navi-link” (P. 5-109).
TURNING THE CONVENTIONAL
(fixed speed) CRUISE CONTROL
MODE ON
NOTE:
ProPILOT Assist provides no approach
warnings, automatic braking, or steering
assist in the conventional (fixed speed)
cruise control mode.
To choose the conventional (fixed speed)
cruise control mode, push and hold the
ProPILOT Assist switch for longer than ap-
proximately 1.5 seconds. For additional in-
formation, see “Conventional (fixed speed)
cruise control mode” (P. 5-127).
OPERATING PROPILOT ASSIST
When the driving aids are enabled:
Zone Driving Aid Display
Forward Automatic Emer-
gency Braking (AEB)
with Pedestrian
Detection
Outline
Intelligent Forward
Collision Warning
(I-FCW)
Lane Lane Departure
Warning (LDW)
Outline
Intelligent Lane
Intervention (I-LI) Shaded
Blind Spot Blind Spot Warning
(BSW)
Outline
Intelligent Blind Spot
Intervention (I-BSI) Shaded
LSD4318
Example (all enabled)
Starting and driving5-95

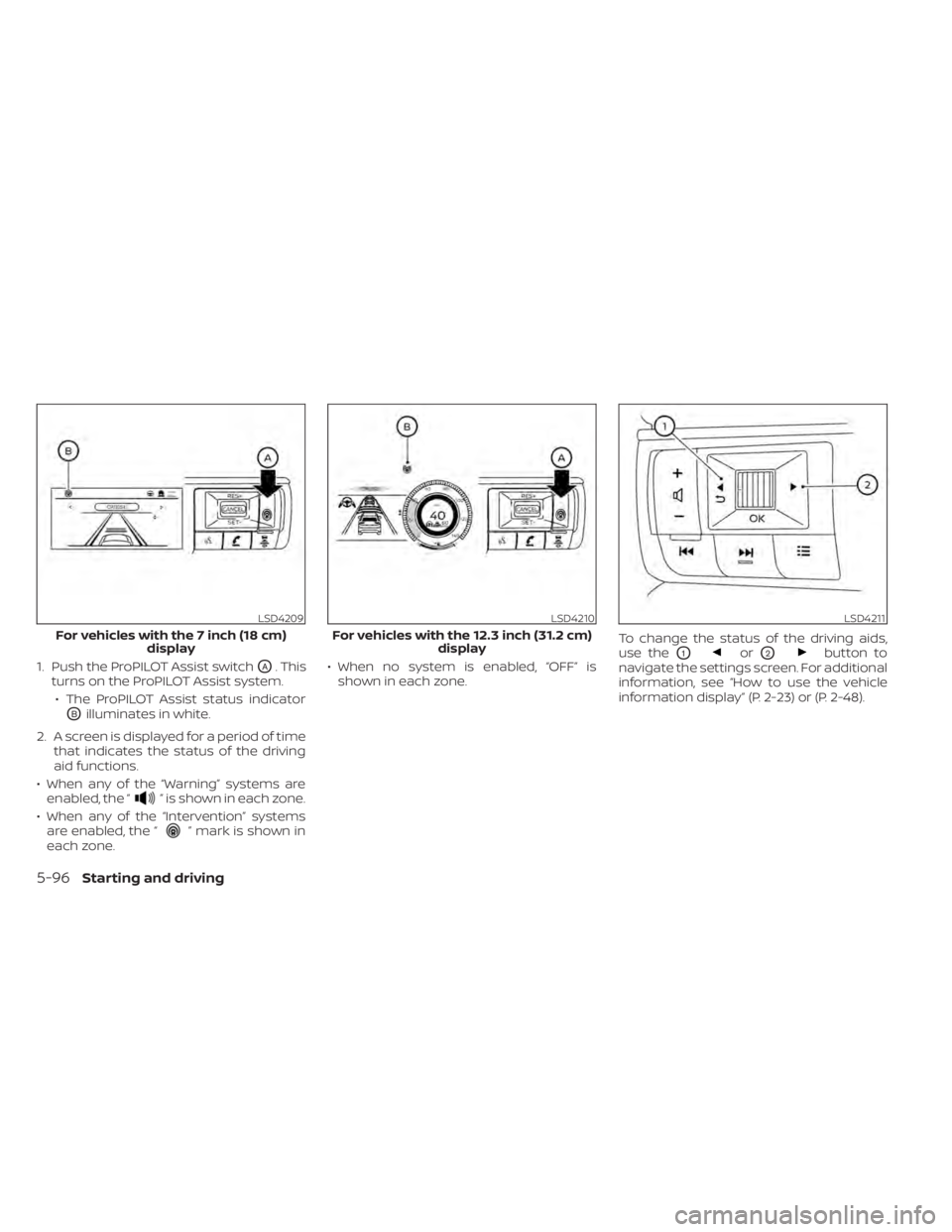

1. Push the ProPILOT Assist switchOA. This
turns on the ProPILOT Assist system.
• The ProPILOT Assist status indicator
OBilluminates in white.
2. A screen is displayed for a period of time that indicates the status of the driving
aid functions.
• When any of the “Warning” systems are enabled, the “
” is shown in each zone.
• When any of the “Intervention” systems are enabled, the “
” mark is shown in
each zone. • When no system is enabled, “OFF” is
shown in each zone. To change the status of the driving aids,
use the
O1orO2button to
navigate the settings screen. For additional
information, see “How to use the vehicle
information display” (P. 2-23) or (P. 2-48).
LSD4209
For vehicles with the 7 inch (18 cm) display
LSD4210
For vehicles with the 12.3 inch (31.2 cm) display
LSD4211
5-96Starting and driving

3. Accelerate or decelerate your vehicle tothe desired speed and push down the
SET- switch
OC.
4. The ProPILOT Assist system begins to automatically maintain the set speed.
The ProPILOT Assist activation indicator
ODand ProPILOT Assist status indicator
OEilluminate (blue). When a vehicle
ahead is traveling at a speed of 20 mph
(32 km/h) or below and the SET- switch
is pushed, the set speed of your vehicle
is 20 mph (32 km/h).
NOTE:
When the I-LI and I-BSI systems are en-
abled in the settings menu of the vehicle
information display, turning the ProPI-
LOT Assist system on will turn on the I-LI
and I-BSI systems at the same time. If
the I-LI system is disabled in the settings
menu, the I-LI system will automatically
be turned on when the Steering Assist
system is active. For additional informa-
tion, see “Intelligent Lane Intervention (I-
LI)” (P. 5-45) and “Intelligent Blind Spot
Intervention (I-BSI)” (P. 5-65).
LSD4212
For vehicles with the 7 inch (18 cm) display
LSD4303
For vehicles with the 12.3 inch (31.2 cm) display
Starting and driving5-97

When the SET- switch is pushed under the
following conditions, the ProPILOT Assist
system cannot be set and the set vehicle
speed indicator
O1blinks for approxi-
mately 2 seconds:
• When traveling below 20 mph (32 km/h) and the vehicle ahead is not detected
• When the shif t lever is not in the D (Drive) position or manual shif t mode
• When the parking brake is applied
• When the brakes are operated by the driver • When the VDC system is off. For additional
information, see “Vehicle Dynamic Con-
trol (VDC) system” (P. 5-177).
• When the VDC system (including the trac- tion control system) is operating
• When a wheel is slipping
• When any door is open
• When the driver’s seat belt is not fastened
• When the SNOW mode, or MUD/RUT or SAND modes (4WD models) are selected
LSD4234
For vehicles with the 7 inch (18 cm) display
LSD4214
For vehicles with the 12.3 inch (31.2 cm) display
5-98Starting and driving

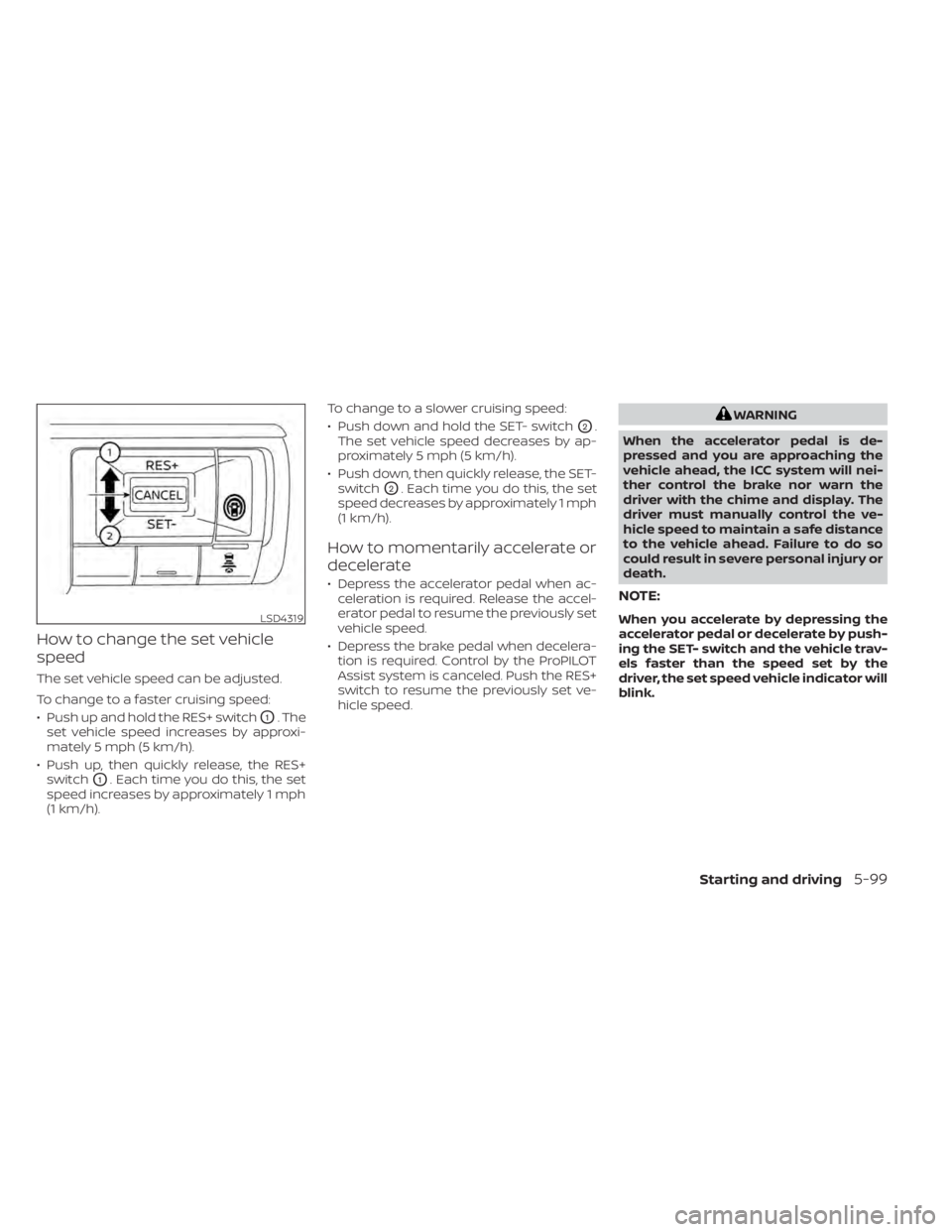

How to change the set vehicle
speed
The set vehicle speed can be adjusted.
To change to a faster cruising speed:
• Push up and hold the RES+ switch
O1. The
set vehicle speed increases by approxi-
mately 5 mph (5 km/h).
• Push up, then quickly release, the RES+ switch
O1. Each time you do this, the set
speed increases by approximately 1 mph
(1 km/h). To change to a slower cruising speed:
• Push down and hold the SET- switch
O2.
The set vehicle speed decreases by ap-
proximately 5 mph (5 km/h).
• Push down, then quickly release, the SET- switch
O2. Each time you do this, the set
speed decreases by approximately 1 mph
(1 km/h).
How to momentarily accelerate or
decelerate
• Depress the accelerator pedal when ac- celeration is required. Release the accel-
erator pedal to resume the previously set
vehicle speed.
• Depress the brake pedal when decelera- tion is required. Control by the ProPILOT
Assist system is canceled. Push the RES+
switch to resume the previously set ve-
hicle speed.
WARNING
When the accelerator pedal is de-
pressed and you are approaching the
vehicle ahead, the ICC system will nei-
ther control the brake nor warn the
driver with the chime and display. The
driver must manually control the ve-
hicle speed to maintain a safe distance
to the vehicle ahead. Failure to do so
could result in severe personal injury or
death.
NOTE:
When you accelerate by depressing the
accelerator pedal or decelerate by push-
ing the SET- switch and the vehicle trav-
els faster than the speed set by the
driver, the set speed vehicle indicator will
blink.LSD4319
Starting and driving5-99

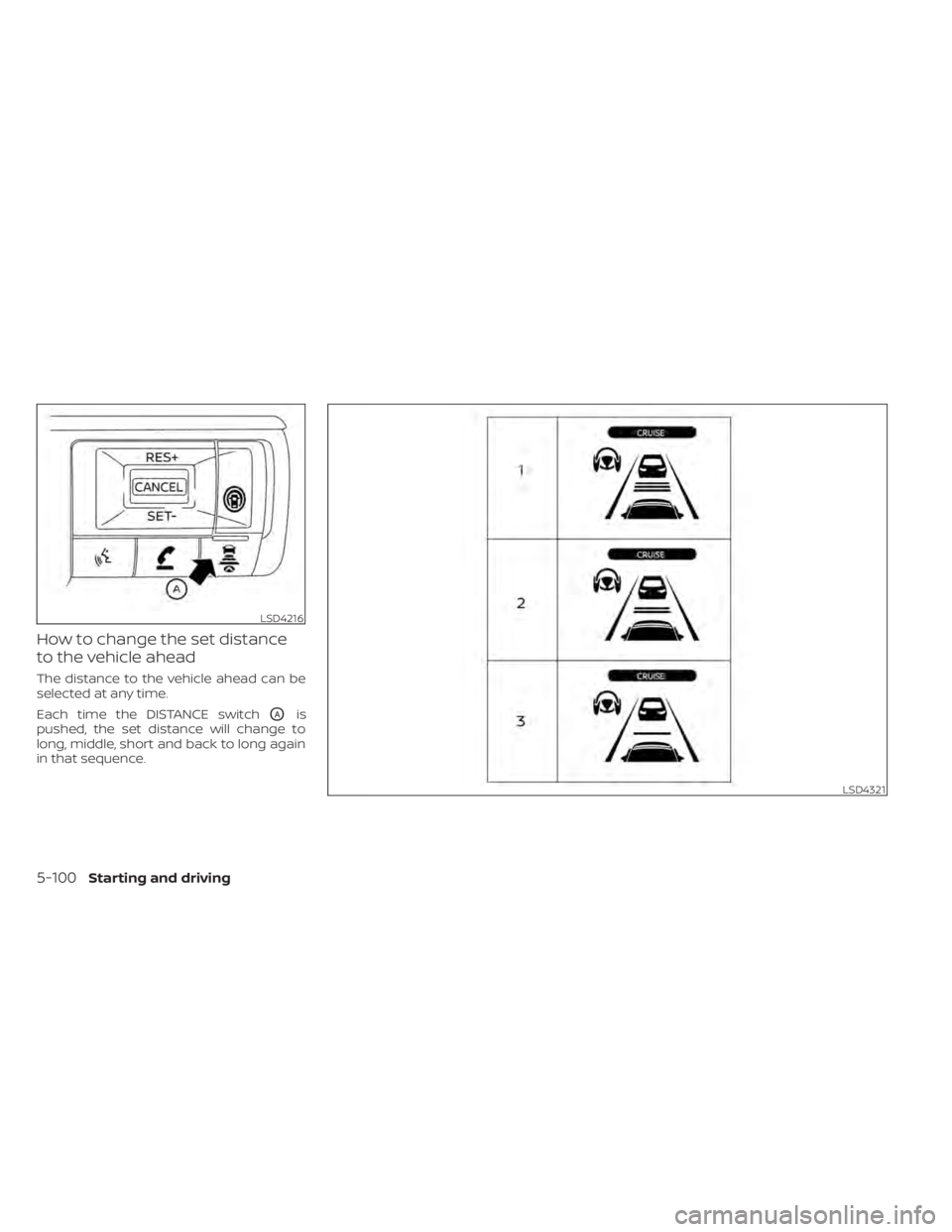

How to change the set distance
to the vehicle ahead
The distance to the vehicle ahead can be
selected at any time.
Each time the DISTANCE switch
OAis
pushed, the set distance will change to
long, middle, short and back to long again
in that sequence.
LSD4216
LSD4321
5-100Starting and driving

Distance Approximate distance at60 mph (100 km/h) [f t (m)]
1. Long 200 (60)
2. Middle 150 (45)
3. Short 90 (30)
• The distance to the vehicle ahead
changes automatically according to the
vehicle speed. The higher the vehicle
speed, the longer the distance.
• The distance setting will remain at the current setting even if the engine is
restarted.
HOW TO ENABLE/DISABLE THE
STEERING ASSIST1Steering-wheel-mounted control (lef t)
2Vehicle information display
3Steering Assist switch
LSD4270
For vehicles with the 7 inch (18 cm) display
Starting and driving5-101
