2023 NISSAN MICRA Owners Manual

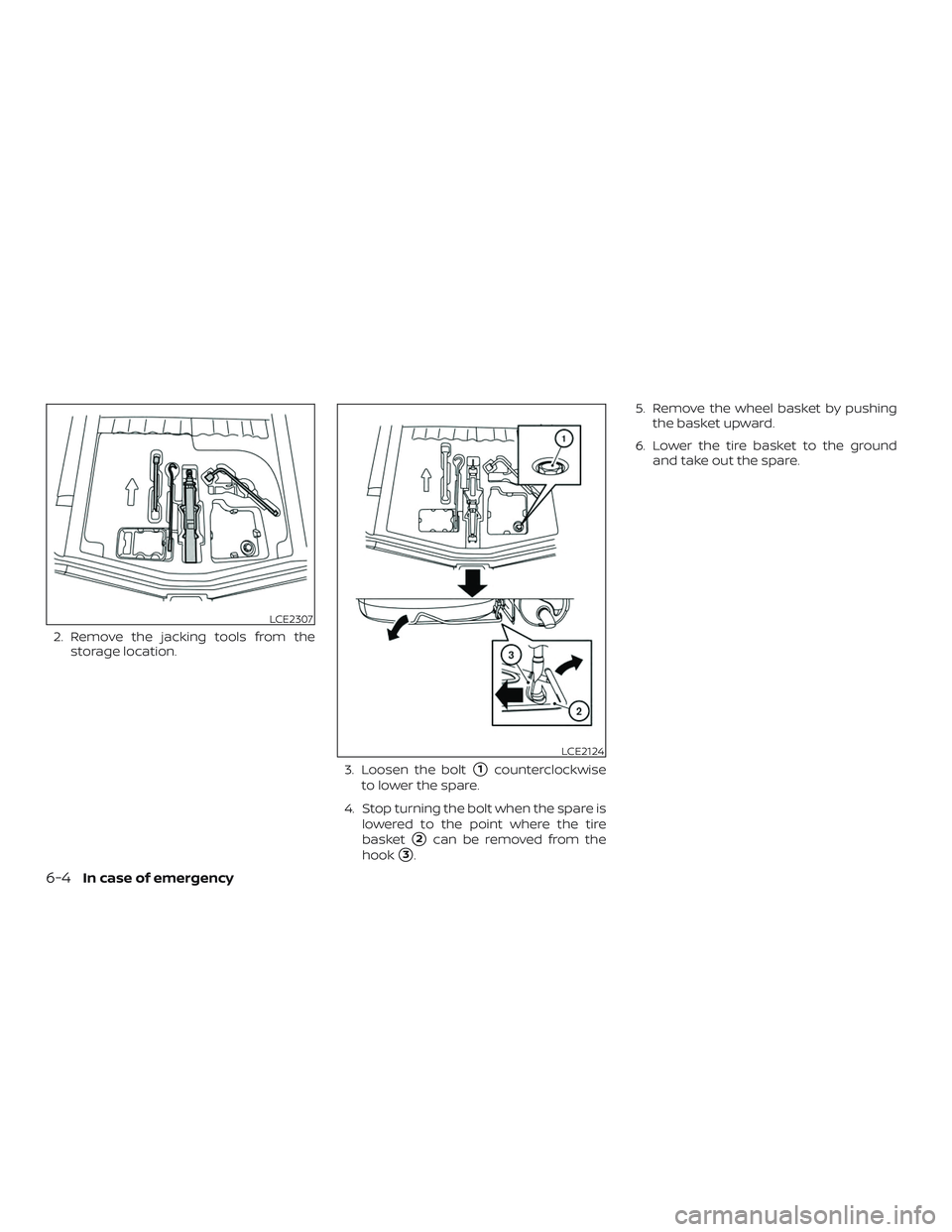

2. Remove the jacking tools from thestorage location.
3. Loosen the bolt
1counterclockwise
to lower the spare.
4. Stop turning the bolt when the spare is lowered to the point where the tire
basket
2canberemovedfromthe
hook
3. 5. Remove the wheel basket by pushing
the basket upward.
6. Lower the tire basket to the ground and take out the spare.
LCE2307
LCE2124
6-4In case of emergency

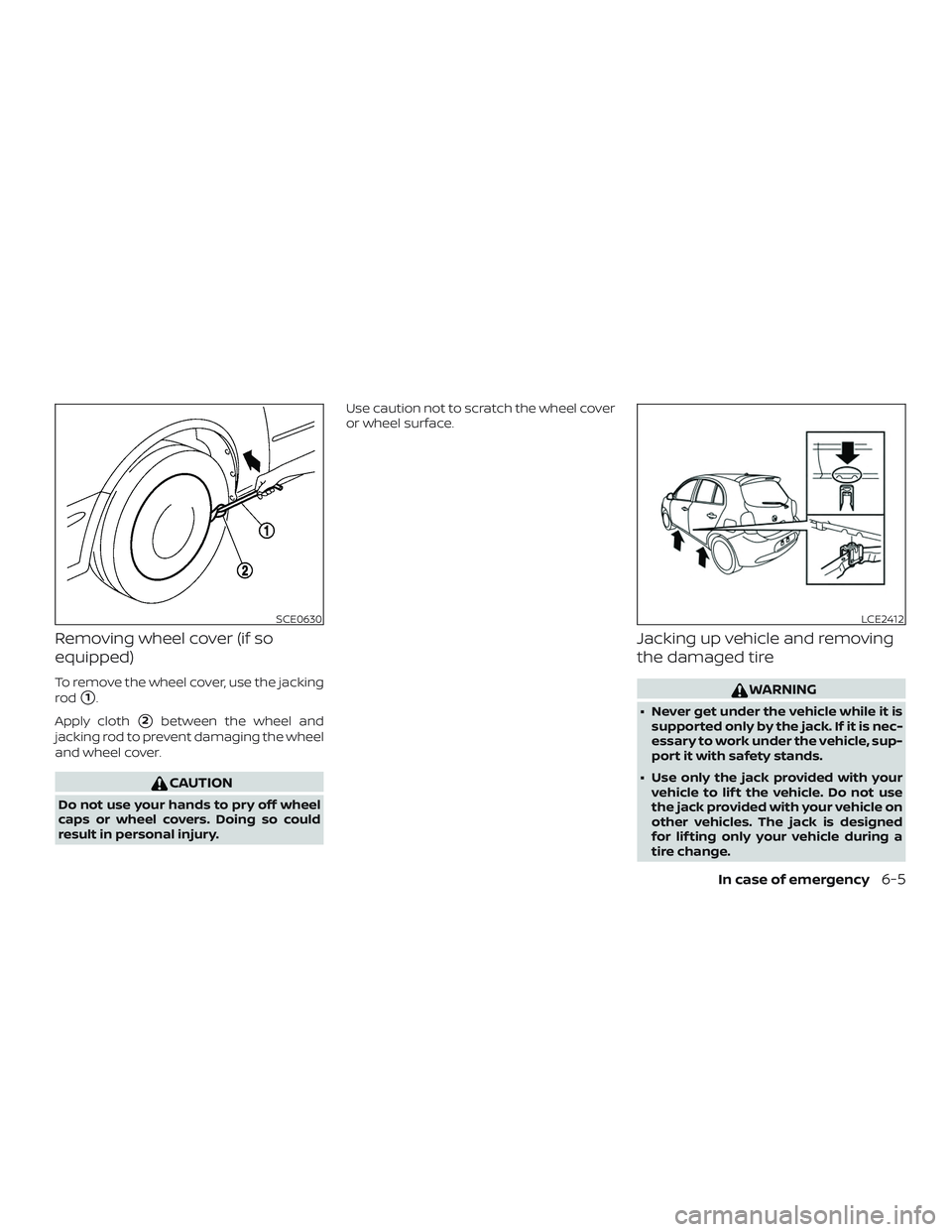

Removing wheel cover (if so
equipped)
To remove the wheel cover, use the jacking
rod
1.
Apply cloth
2between the wheel and
jacking rod to prevent damaging the wheel
and wheel cover.
CAUTION
Do not use your hands to pry off wheel
caps or wheel covers. Doing so could
result in personal injury. Use caution not to scratch the wheel cover
or wheel surface.
Jacking up vehicle and removing
the damaged tire
WARNING
∙ Never get under the vehicle while it is
supported only by the jack. If it is nec-
essary to work under the vehicle, sup-
port it with safety stands.
∙ Use only the jack provided with your vehicle to lif t the vehicle. Do not use
the jack provided with your vehicle on
other vehicles. The jack is designed
for lif ting only your vehicle during a
tire change.
SCE0630LCE2412
In case of emergency6-5

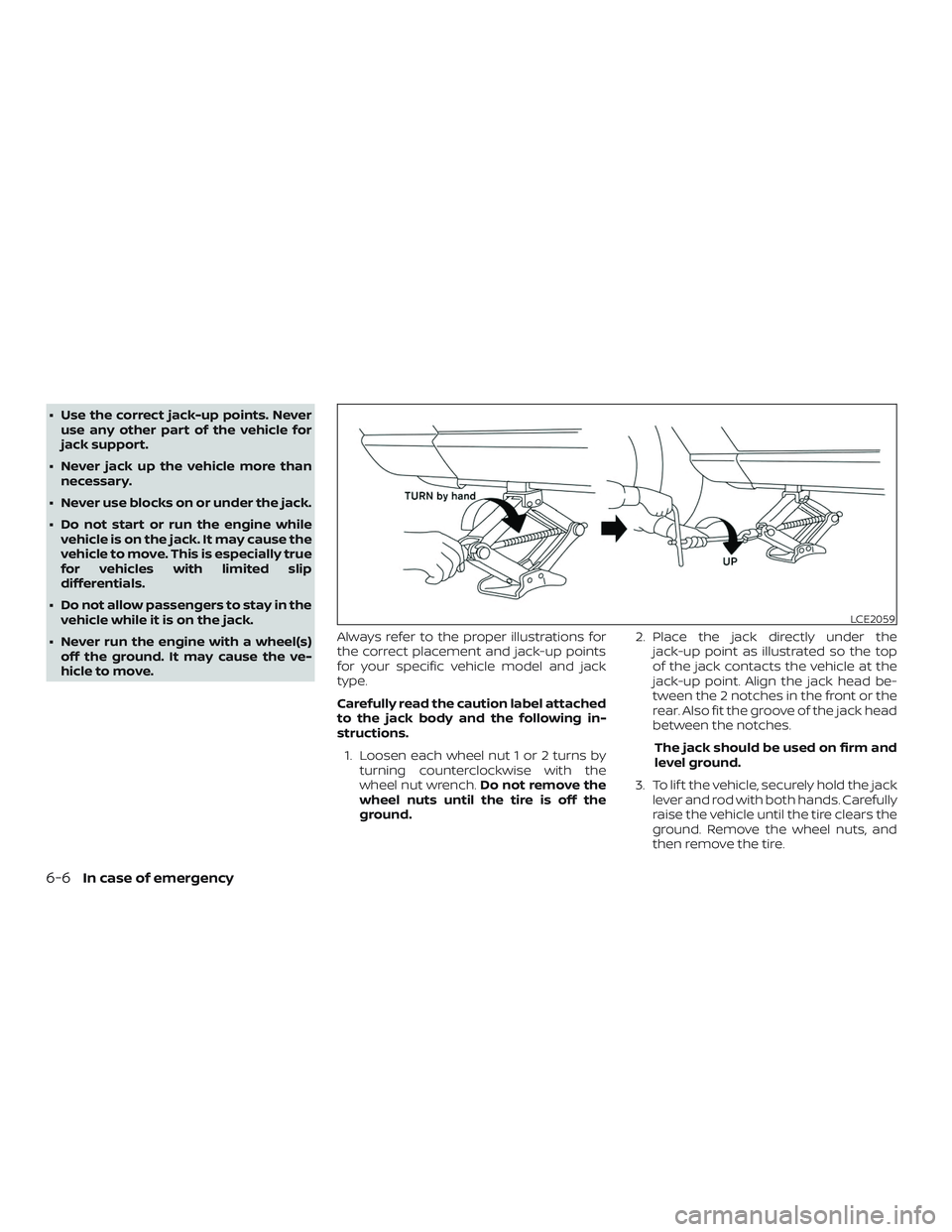

∙ Use the correct jack-up points. Neveruse any other part of the vehicle for
jack support.
∙ Never jack up the vehicle more than necessary.
∙ Never use blocks on or under the jack.
∙ Do not start or run the engine while vehicle is on the jack. It may cause the
vehicle to move. This is especially true
for vehicles with limited slip
differentials.
∙ Do not allow passengers to stay in the vehicle while it is on the jack.
∙ Never run the engine with a wheel(s) off the ground. It may cause the ve-
hicle to move. Always refer to the proper illustrations for
the correct placement and jack-up points
for your specific vehicle model and jack
type.
Carefully read the caution label attached
to the jack body and the following in-
structions.
1. Loosen each wheel nut 1 or 2 turns by turning counterclockwise with the
wheel nut wrench. Do not remove the
wheel nuts until the tire is off the
ground. 2. Place the jack directly under the
jack-up point as illustrated so the top
of the jack contacts the vehicle at the
jack-up point. Align the jack head be-
tween the 2 notches in the front or the
rear. Also fit the groove of the jack head
between the notches.
The jack should be used on firm and
level ground.
3. To lif t the vehicle, securely hold the jack lever and rod with both hands. Carefully
raise the vehicle until the tire clears the
ground. Remove the wheel nuts, and
then remove the tire.
LCE2059
6-6In case of emergency

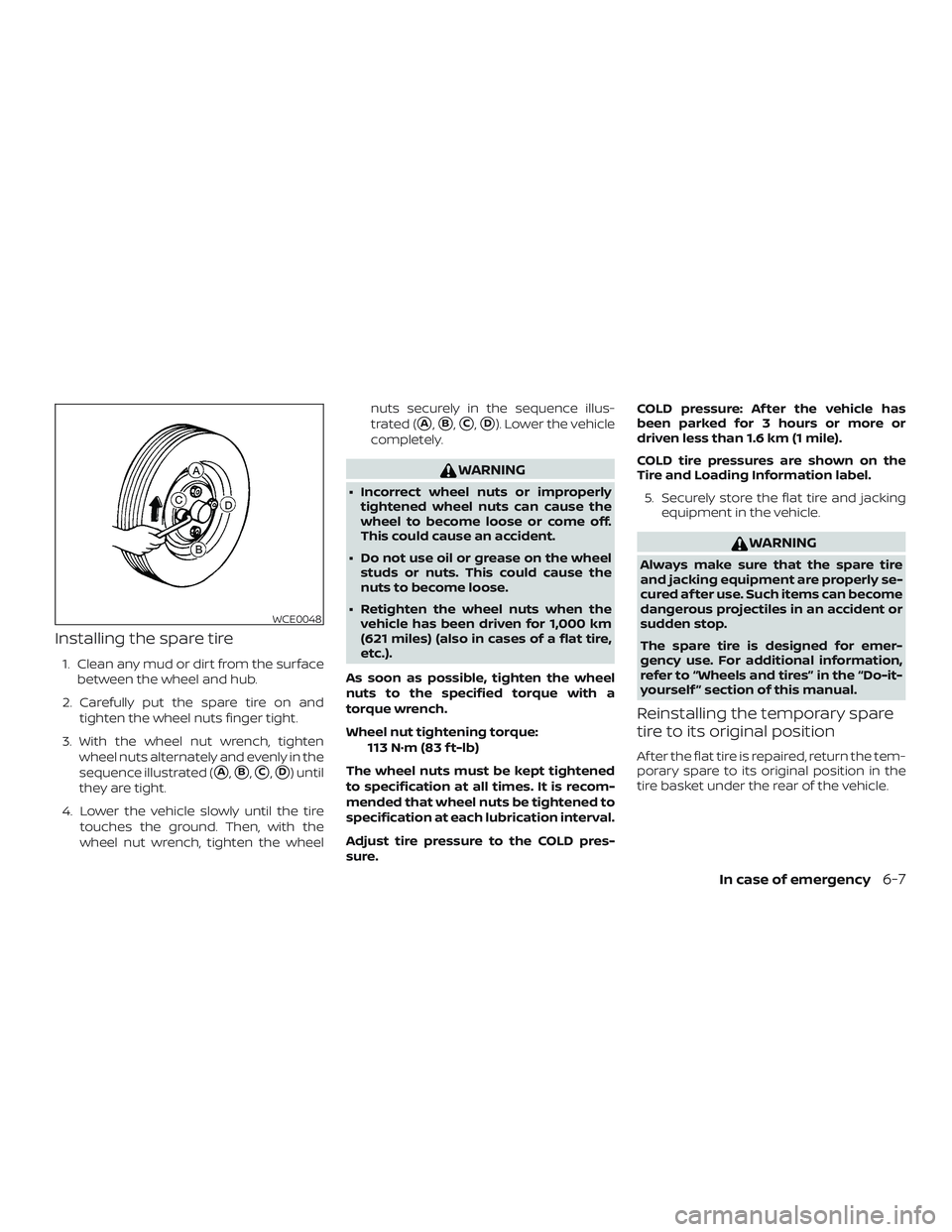

Installing the spare tire
1. Clean any mud or dirt from the surfacebetween the wheel and hub.
2. Carefully put the spare tire on and tighten the wheel nuts finger tight.
3. With the wheel nut wrench, tighten wheel nuts alternately and evenly in the
sequence illustrated (
A,B,C,D) until
they are tight.
4. Lower the vehicle slowly until the tire touches the ground. Then, with the
wheel nut wrench, tighten the wheel nuts securely in the sequence illus-
trated (
A,B,C,D). Lower the vehicle
completely.
WARNING
∙ Incorrect wheel nuts or improperly tightened wheel nuts can cause the
wheel to become loose or come off.
This could cause an accident.
∙ Do not use oil or grease on the wheel studs or nuts. This could cause the
nuts to become loose.
∙ Retighten the wheel nuts when the vehicle has been driven for 1,000 km
(621 miles) (also in cases of a flat tire,
etc.).
As soon as possible, tighten the wheel
nuts to the specified torque with a
torque wrench.
Wheel nut tightening torque: 113 N·m (83 f t-lb)
The wheel nuts must be kept tightened
to specification at all times. It is recom-
mended that wheel nuts be tightened to
specification at each lubrication interval.
Adjust tire pressure to the COLD pres-
sure. COLD pressure: Af ter the vehicle has
been parked for 3 hours or more or
driven less than 1.6 km (1 mile).
COLD tire pressures are shown on the
Tire and Loading Information label.
5. Securely store the flat tire and jacking equipment in the vehicle.
WARNING
Always make sure that the spare tire
and jacking equipment are properly se-
cured af ter use. Such items can become
dangerous projectiles in an accident or
sudden stop.
The spare tire is designed for emer-
gency use. For additional information,
refer to “Wheels and tires” in the “Do-it-
yourself ” section of this manual.
Reinstalling the temporary spare
tire to its original position
Af ter the flat tire is repaired, return the tem-
porary spare to its original position in the
tire basket under the rear of the vehicle.
WCE0048
In case of emergency6-7

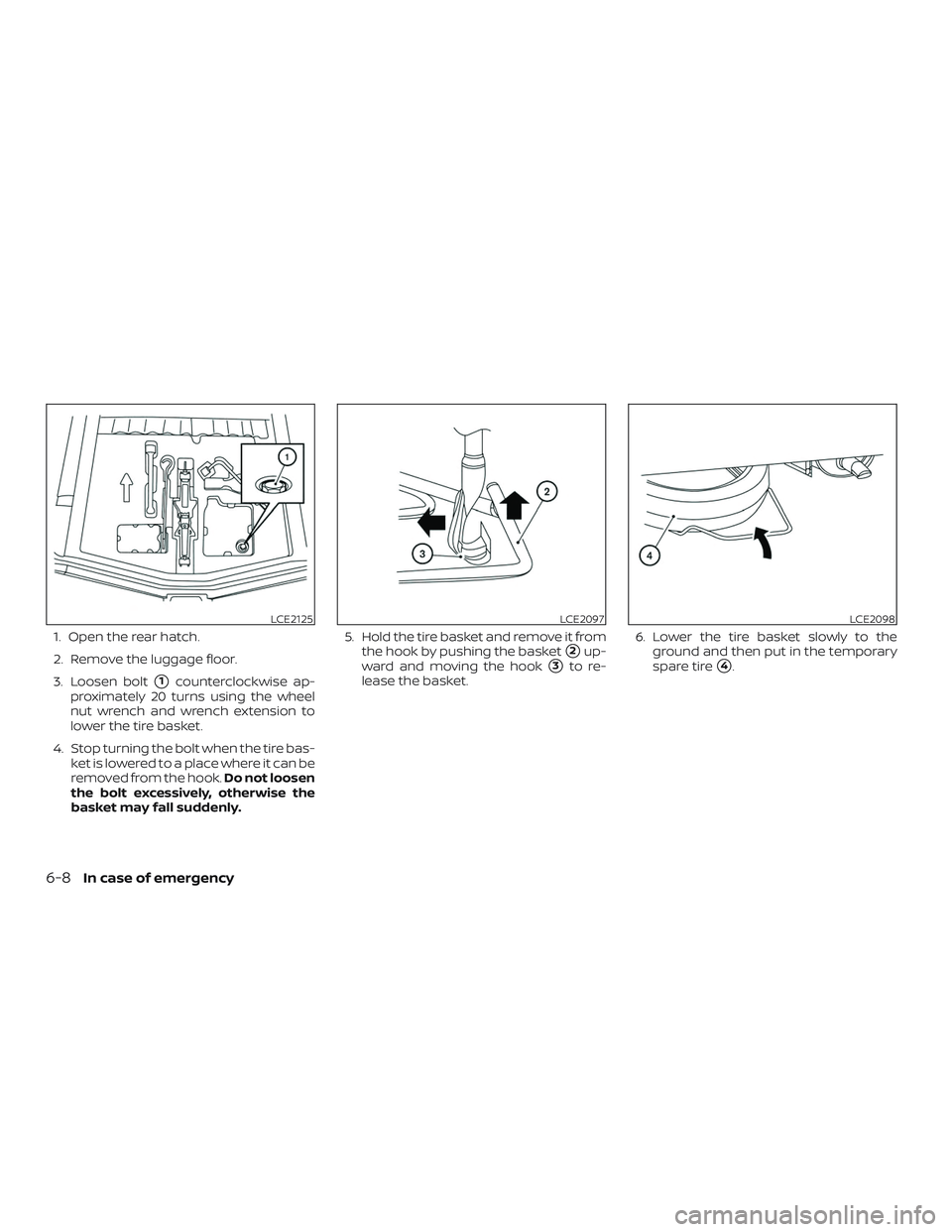

1. Open the rear hatch.
2. Remove the luggage floor.
3. Loosen bolt
1counterclockwise ap-
proximately 20 turns using the wheel
nut wrench and wrench extension to
lower the tire basket.
4. Stop turning the bolt when the tire bas- ket is lowered to a place where it can be
removed from the hook. Do not loosen
the bolt excessively, otherwise the
basket may fall suddenly. 5. Hold the tire basket and remove it from
the hook by pushing the basket
2up-
ward and moving the hook
3to re-
lease the basket. 6. Lower the tire basket slowly to the
ground and then put in the temporary
spare tire4.
LCE2125LCE2097LCE2098
6-8In case of emergency

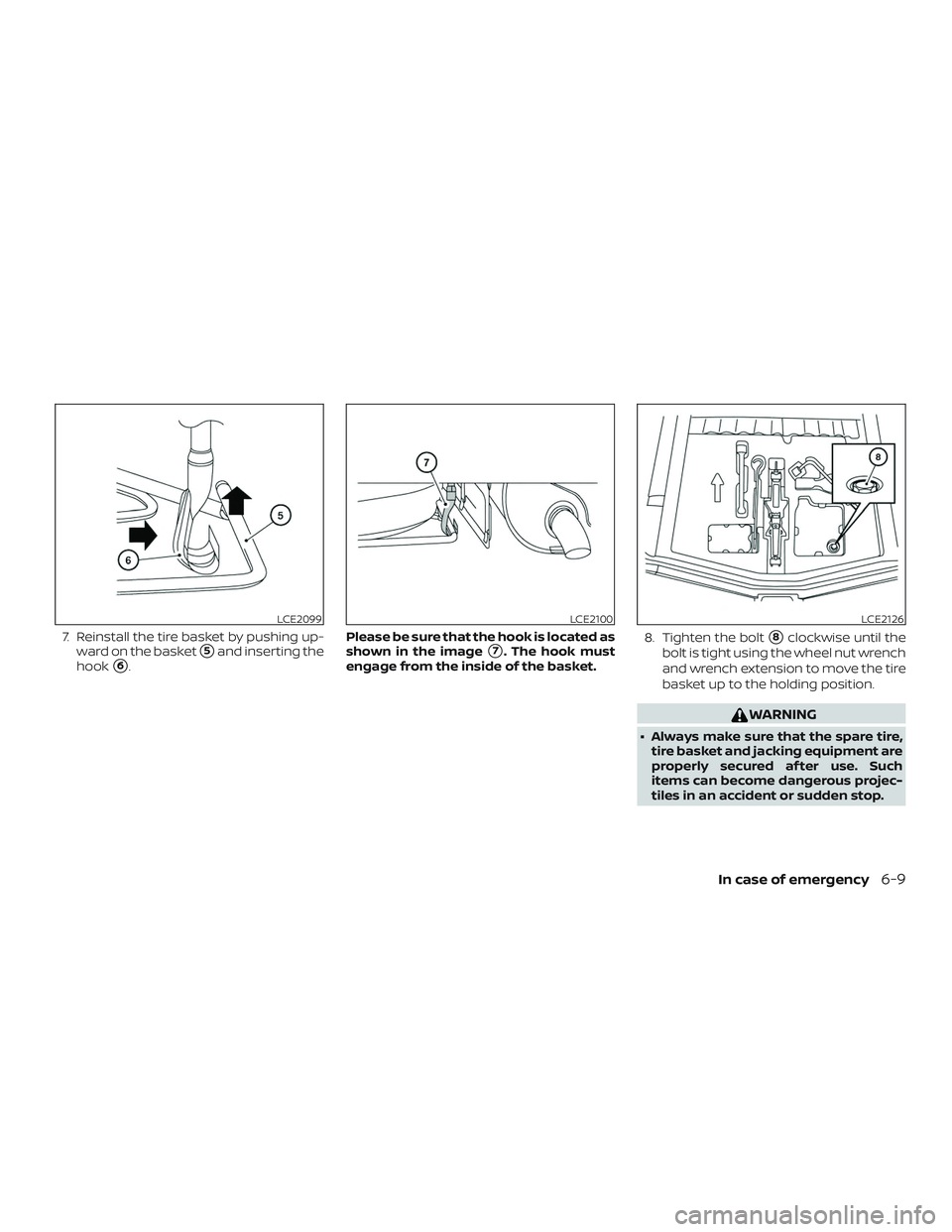

7. Reinstall the tire basket by pushing up-ward on the basket
5and inserting the
hook
6. Please be sure that the hook is located as
shown in the image7. The hook must
engage from the inside of the basket. 8. Tighten the bolt8clockwise until the
bolt is tight using the wheel nut wrench
and wrench extension to move the tire
basket up to the holding position.
WARNING
∙ Always make sure that the spare tire, tire basket and jacking equipment are
properly secured af ter use. Such
items can become dangerous projec-
tiles in an accident or sudden stop.
LCE2099LCE2100LCE2126
In case of emergency6-9

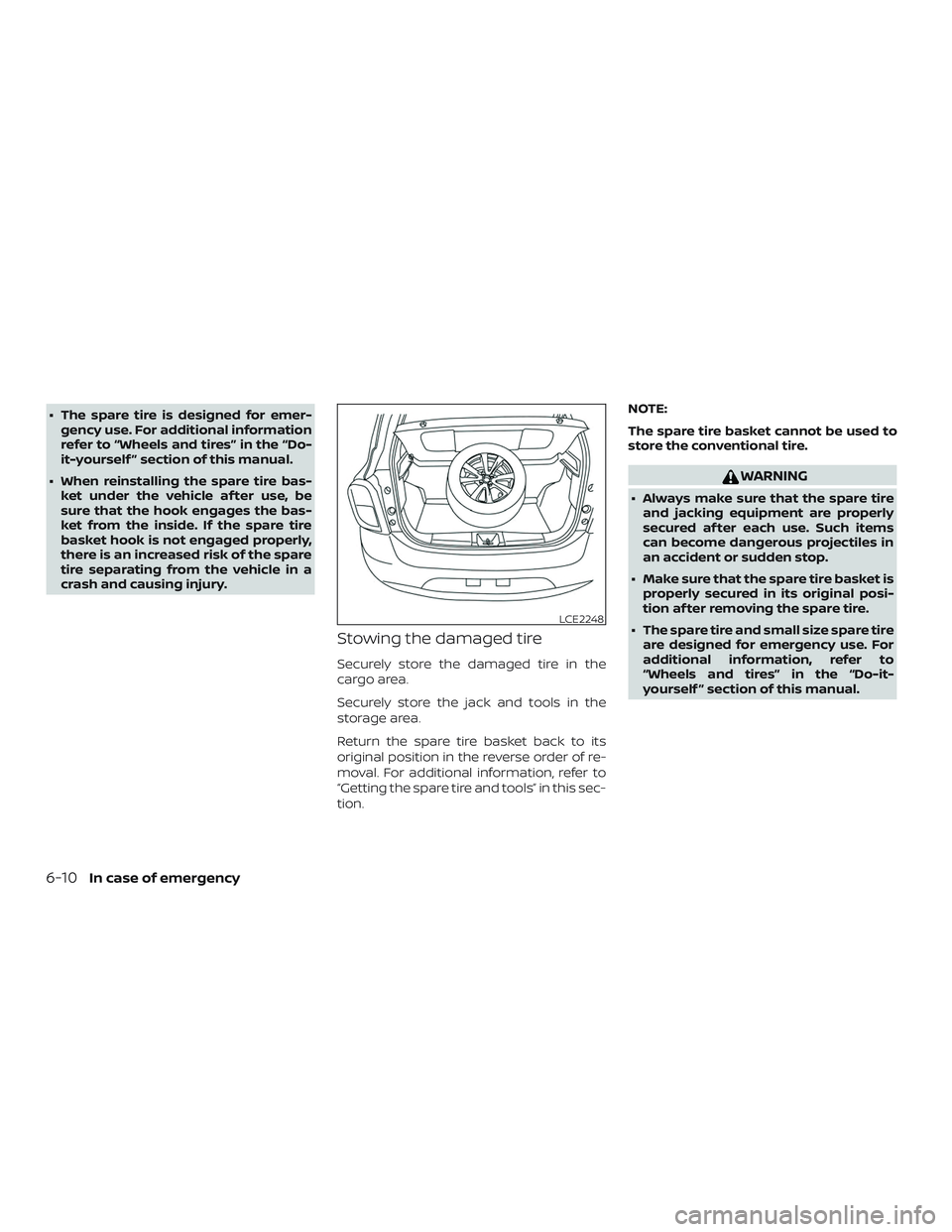

∙ The spare tire is designed for emer-gency use. For additional information
refer to “Wheels and tires” in the “Do-
it-yourself ” section of this manual.
∙ When reinstalling the spare tire bas- ket under the vehicle af ter use, be
sure that the hook engages the bas-
ket from the inside. If the spare tire
basket hook is not engaged properly,
there is an increased risk of the spare
tire separating from the vehicle in a
crash and causing injury.
Stowing the damaged tire
Securely store the damaged tire in the
cargo area.
Securely store the jack and tools in the
storage area.
Return the spare tire basket back to its
original position in the reverse order of re-
moval. For additional information, refer to
“Getting the spare tire and tools” in this sec-
tion. NOTE:
The spare tire basket cannot be used to
store the conventional tire.
WARNING
∙ Always make sure that the spare tire
and jacking equipment are properly
secured af ter each use. Such items
can become dangerous projectiles in
an accident or sudden stop.
∙ Make sure that the spare tire basket is properly secured in its original posi-
tion af ter removing the spare tire.
∙ The spare tire and small size spare tire are designed for emergency use. For
additional information, refer to
“Wheels and tires” in the “Do-it-
yourself ” section of this manual.
LCE2248
6-10In case of emergency

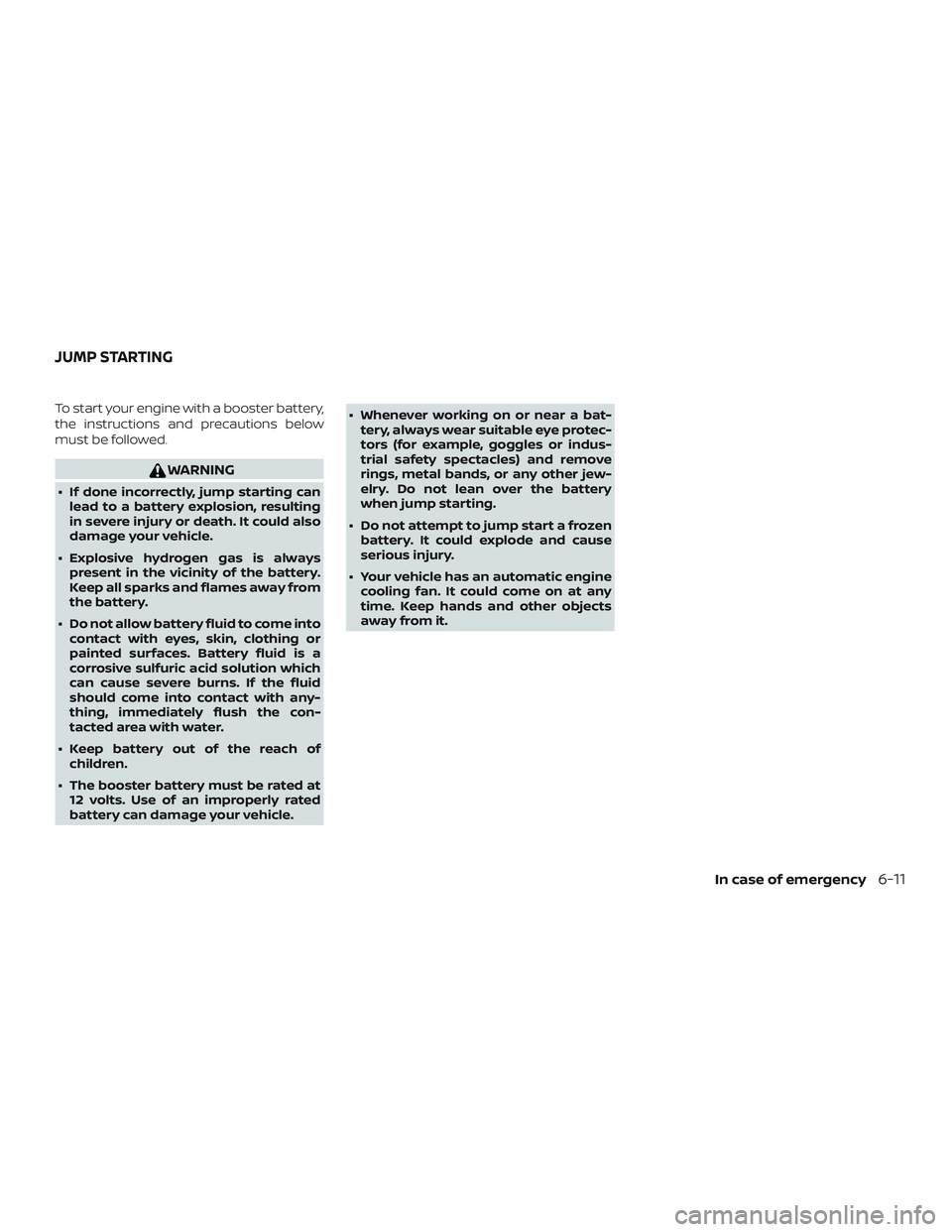

To start your engine with a booster battery,
the instructions and precautions below
must be followed.
WARNING
∙ If done incorrectly, jump starting canlead to a battery explosion, resulting
in severe injury or death. It could also
damage your vehicle.
∙ Explosive hydrogen gas is always present in the vicinity of the battery.
Keep all sparks and flames away from
the battery.
∙ Do not allow battery fluid to come into contact with eyes, skin, clothing or
painted surfaces. Battery fluid is a
corrosive sulfuric acid solution which
can cause severe burns. If the fluid
should come into contact with any-
thing, immediately flush the con-
tacted area with water.
∙ Keep battery out of the reach of children.
∙ The booster battery must be rated at 12 volts. Use of an improperly rated
battery can damage your vehicle. ∙ Whenever working on or near a bat-
tery, always wear suitable eye protec-
tors (for example, goggles or indus-
trial safety spectacles) and remove
rings, metal bands, or any other jew-
elry. Do not lean over the battery
when jump starting.
∙ Do not attempt to jump start a frozen battery. It could explode and cause
serious injury.
∙ Your vehicle has an automatic engine cooling fan. It could come on at any
time. Keep hands and other objects
away from it.
JUMP STARTING
In case of emergency6-11
