2023 NISSAN MICRA Owners Manual

4 Heater, air conditioner, audio and
phone systems
Control panel buttons...........................4-2
How to use the touch-screen .................4-2
How to use the
MENU button ...........4-4
(brightness control) button .............4-6
How to use the VOL (volume) knob /
PUSH
(power)button ...................4-6
Selecting menu from launch bar .............4-6
RearView Monitor ...............................4-7
RearView Monitor system operation ..........4-8
How to read the displayed lines ...............4-9
Difference between predicted and
actual distances ..............................4-9
Adjusting the screen ......................... 4-11
RearView Monitor system limitations .........4-11
System maintenance ........................ 4-12
Vents ........................................... 4-13
Heater (manual) (if so equipped) ................4-14
Controls ..................................... 4-15
Heater operation ............................ 4-16
Air flow charts ............................... 4-17
Heater and air conditioner (manual)
(if so equipped) ................................. 4-20
Controls ..................................... 4-21Heater operation
............................ 4-22
Air conditioner operation ....................4-23
Air flow charts ............................... 4-24
Servicing air conditioner (if so equipped) ........4-28
Audio system ................................... 4-28
Radio ........................................ 4-28
FM radio reception .......................... 4-28
AM radio reception .......................... 4-29
Audio operation precautions ................4-29
FM/AM radio ................................. 4-32
USB (Universal Serial Bus) connection
port......................................... 4-37
iPod®* player operation ......................4-40
Bluetooth® streaming audio .................4-44
Steering wheel switch for audio control ......4-47
Antenna ..................................... 4-48
Siri® Eyes Free (if so equipped) ..................4-48
Requirements ............................... 4-49
Operating Siri® Eyes Free ....................4-49
Troubleshooting guide ......................4-50
Car phone or CB radio .......................... 4-51
Bluetooth®

Hands-Free Phone System .........4-51
Regulatory information ......................4-53

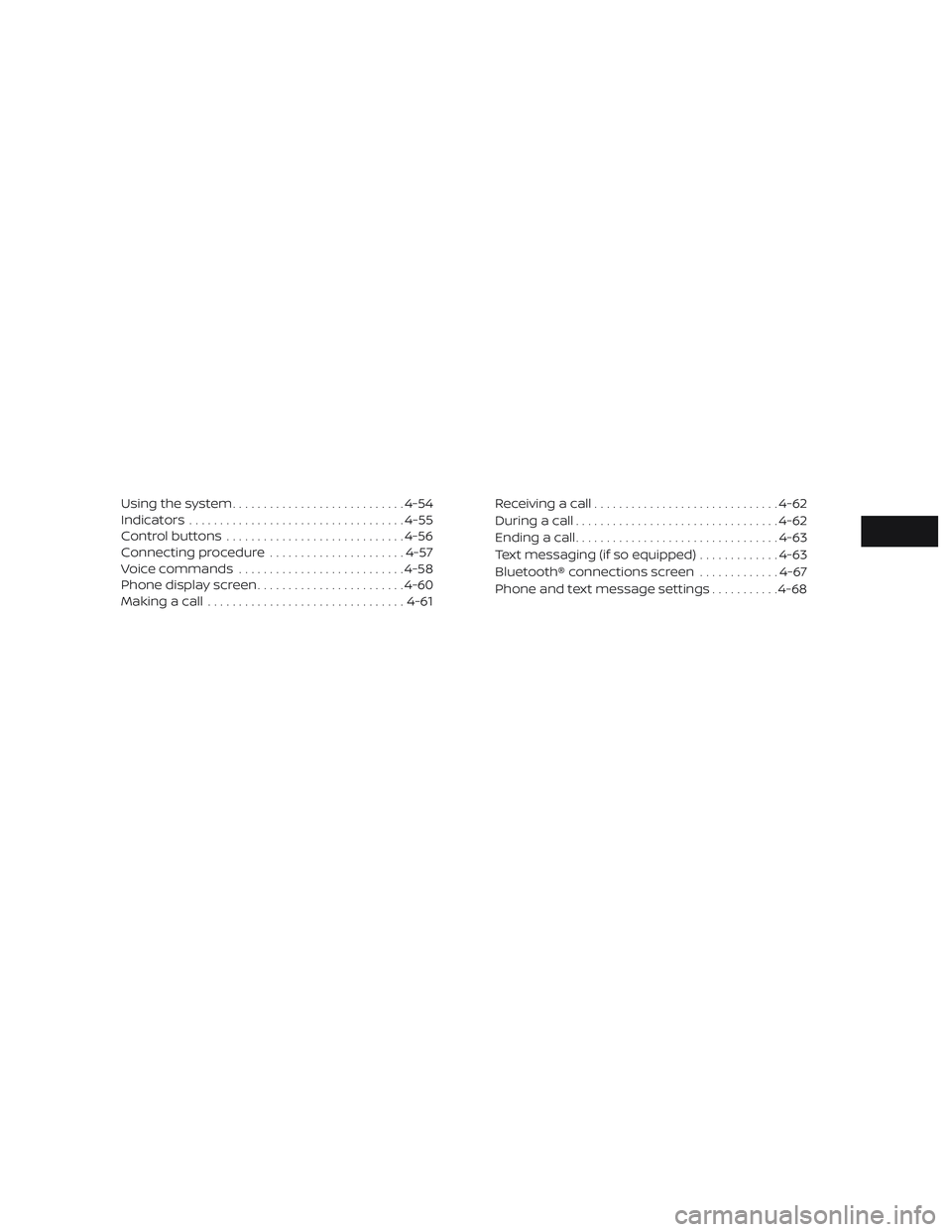

Using the system............................ 4-54
Indicators ................................... 4-55
Control buttons ............................. 4-56
Connecting procedure ......................4-57
Voice commands ........................... 4-58
Phone display screen ........................ 4-60
Making a call ................................ 4-61Receiving a call
.............................. 4-62
During a call ................................. 4-62
Ending a call ................................. 4-63
Text messaging (if so equipped) .............4-63
Bluetooth® connections screen .............4-67
Phone and text message settings ...........4-68

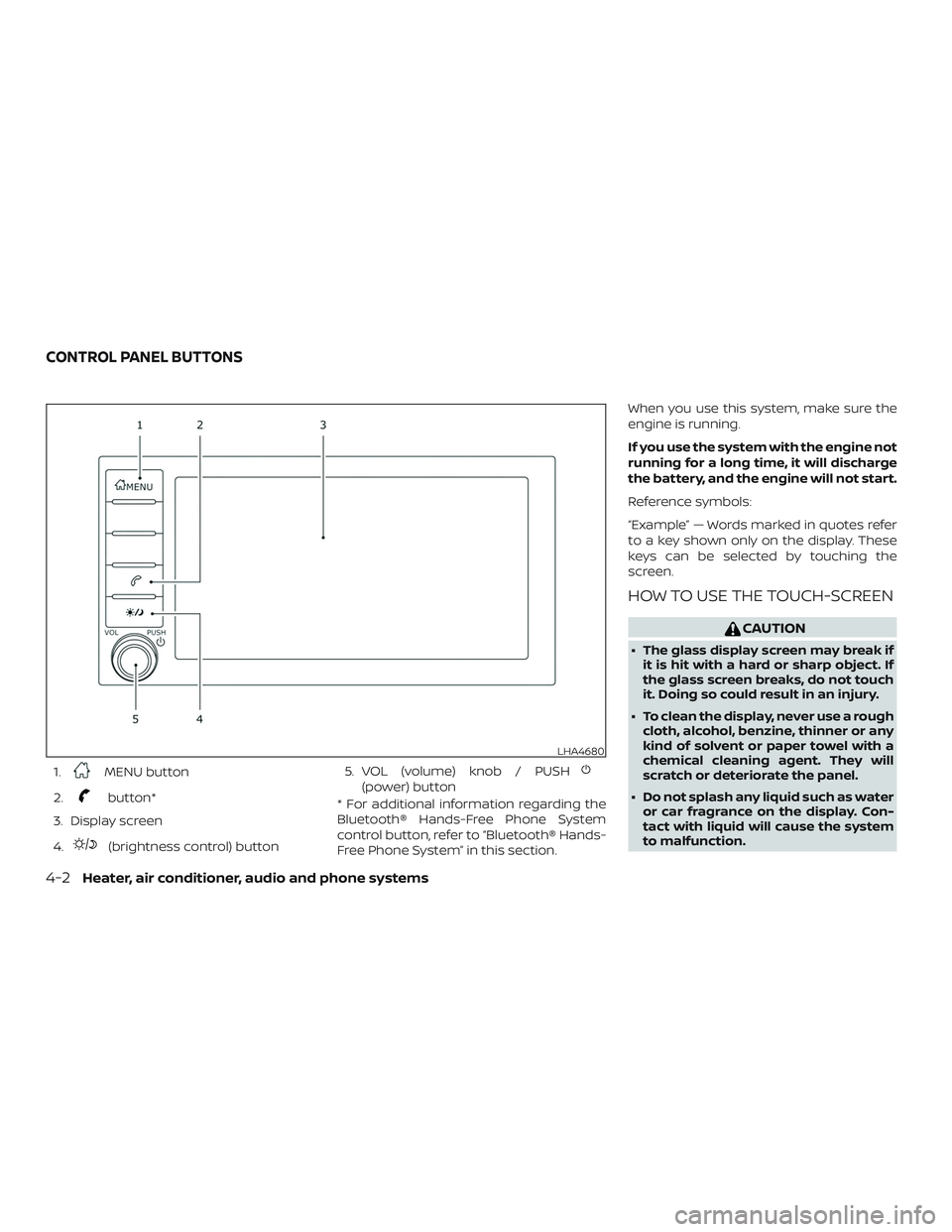

1.MENU button
2.
button*
3. Display screen
4.
(brightness control) button 5. VOL (volume) knob / PUSH
(power) button
* For additional information regarding the
Bluetooth® Hands-Free Phone System
control button, refer to “Bluetooth® Hands-
Free Phone System” in this section. When you use this system, make sure the
engine is running.
If you use the system with the engine not
running for a long time, it will discharge
the battery, and the engine will not start.
Reference symbols:
“Example” — Words marked in quotes refer
to a key shown only on the display. These
keys can be selected by touching the
screen.
HOW TO USE THE TOUCH-SCREEN
CAUTION
∙ The glass display screen may break if
it is hit with a hard or sharp object. If
the glass screen breaks, do not touch
it. Doing so could result in an injury.
∙ To clean the display, never use a rough cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.
∙ Do not splash any liquid such as water or car fragrance on the display. Con-
tact with liquid will cause the system
to malfunction.
LHA4680
CONTROL PANEL BUTTONS
4-2Heater, air conditioner, audio and phone systems

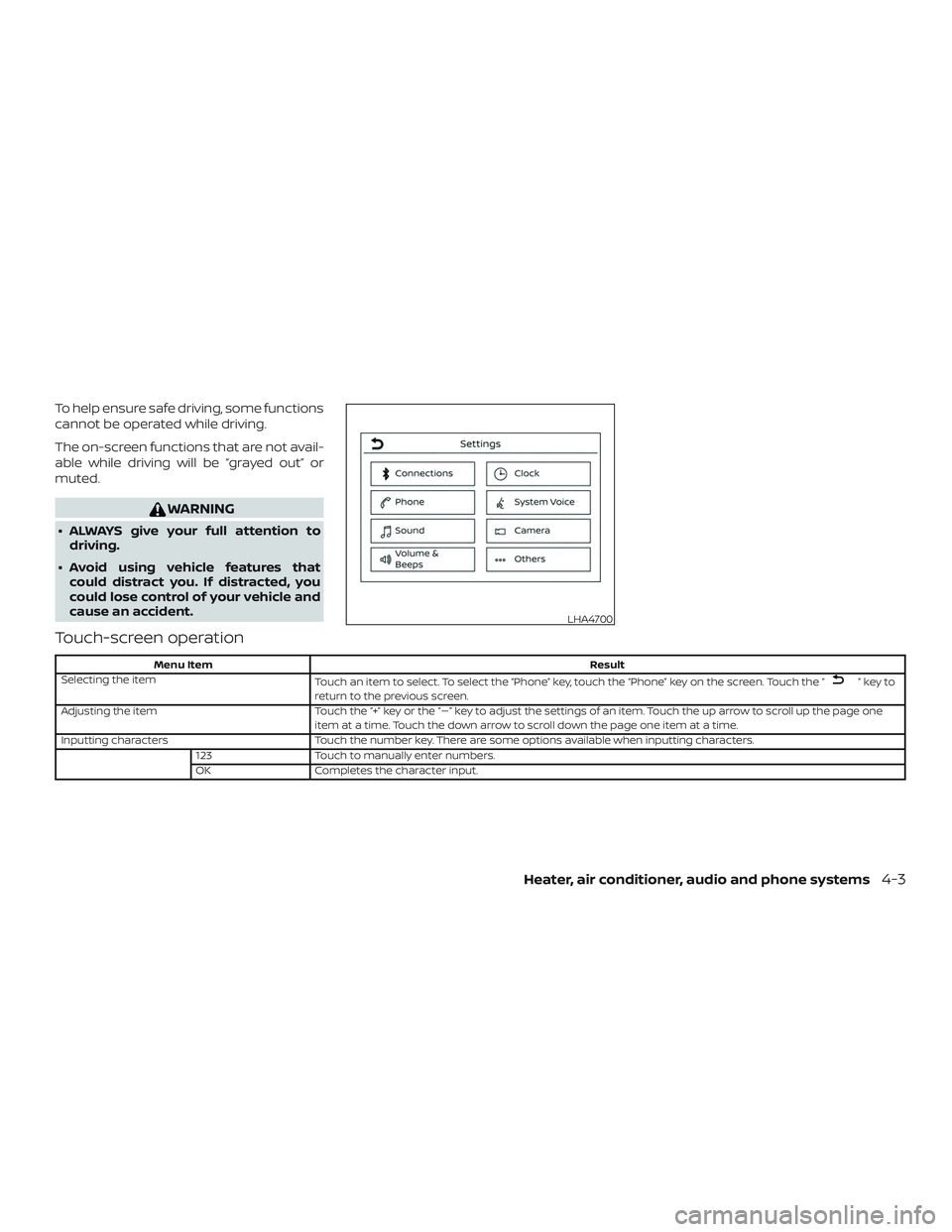

To help ensure safe driving, some functions
cannot be operated while driving.
The on-screen functions that are not avail-
able while driving will be “grayed out” or
muted.
WARNING
∙ ALWAYS give your full attention todriving.
∙ Avoid using vehicle features that could distract you. If distracted, you
could lose control of your vehicle and
cause an accident.
Touch-screen operation
Menu Item Result
Selecting the item Touch an item to select. To select the “Phone” key, touch the “Phone” key on the screen. Touch the “
”keyto
return to the previous screen.
Adjusting the item Touch the “+” key or the “” key to adjust the settings of an item. Touch the up arrow to scroll up the page one
item at a time. Touch the down arrow to scroll down the page one item at a time.
Inputting characters Touch the number key. There are some options available when inputting characters.
123 Touch to manually enter numbers.
OK Completes the character input.
LHA4700
Heater, air conditioner, audio and phone systems4-3

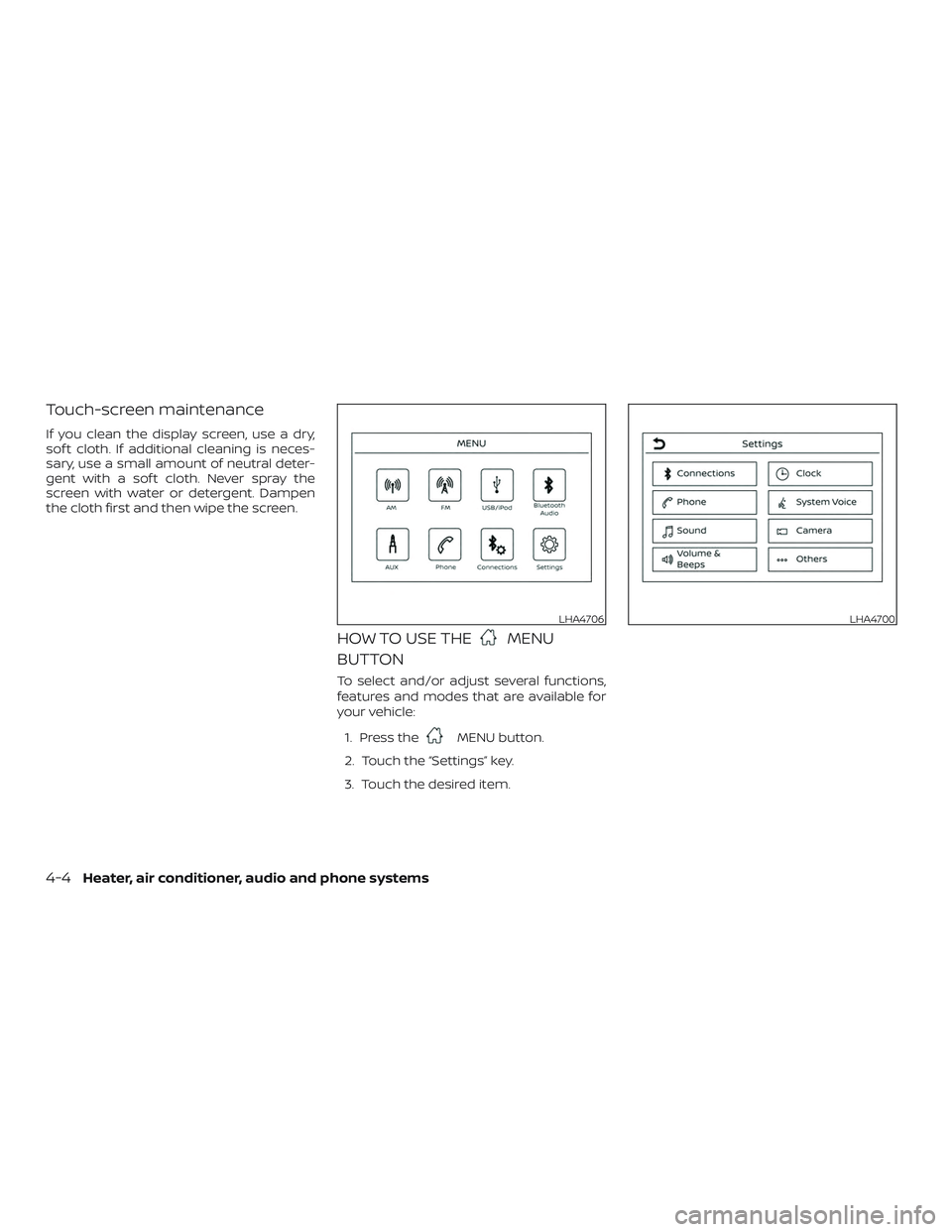

Touch-screen maintenance
If you clean the display screen, use a dry,
sof t cloth. If additional cleaning is neces-
sary, use a small amount of neutral deter-
gent with a sof t cloth. Never spray the
screen with water or detergent. Dampen
the cloth first and then wipe the screen.
HOW TO USE THEMENU
BUTTON
To select and/or adjust several functions,
features and modes that are available for
your vehicle:
1. Press the
MENU button.
2. Touch the “Settings” key.
3. Touch the desired item.
LHA4706LHA4700
4-4Heater, air conditioner, audio and phone systems

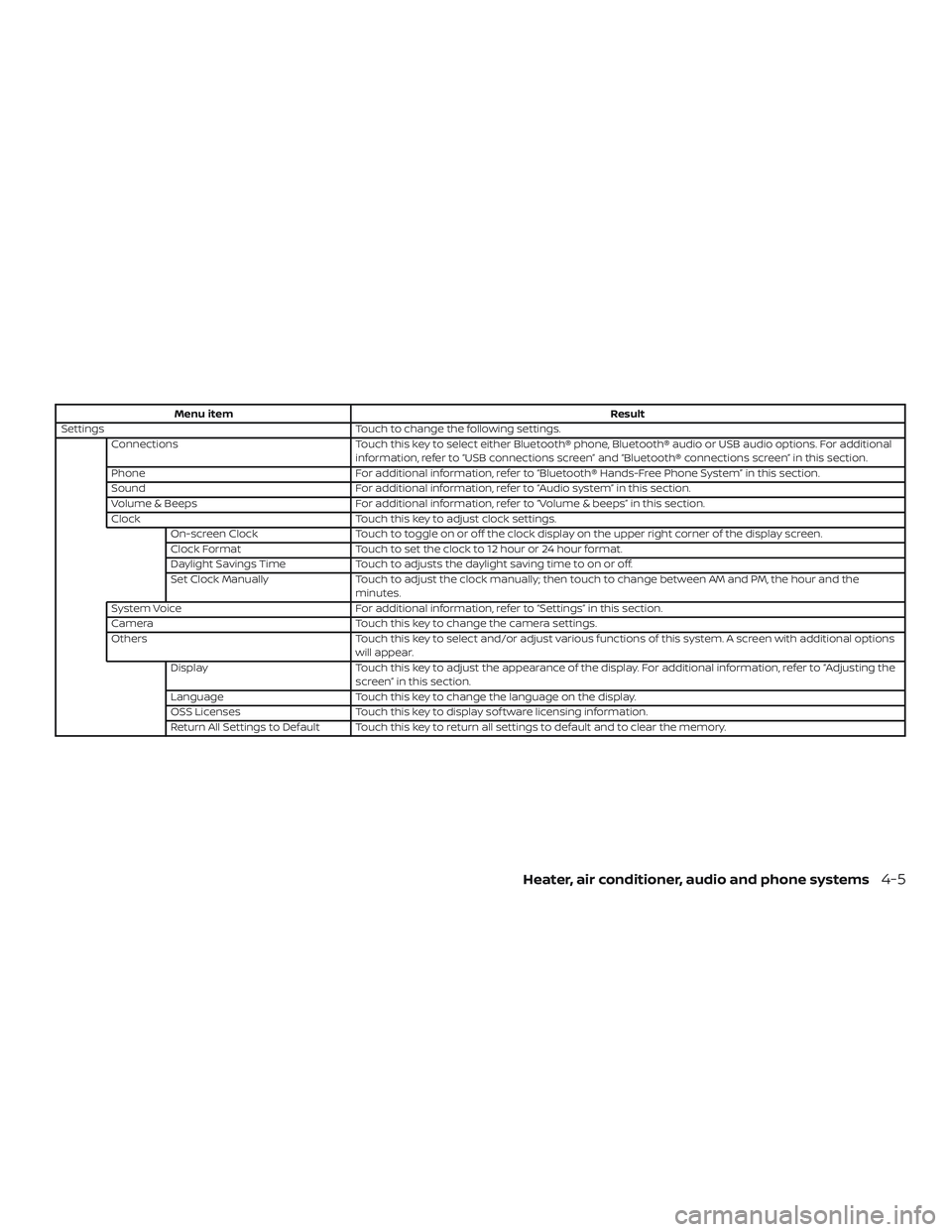

Menu itemResult
Settings Touch to change the following settings.
Connections Touch this key to select either Bluetooth® phone, Bluetooth® audio or USB audio options. For additional
information, refer to “USB connections screen” and “Bluetooth® connections screen” in this section.
Phone For additional information, refer to “Bluetooth® Hands-Free Phone System” in this section.
Sound For additional information, refer to “Audio system” in this section.
Volume & Beeps For additional information, refer to “Volume & beeps” in this section.
Clock Touch this key to adjust clock settings.
On-screen Clock Touch to toggle on or off the clock display on the upper right corner of the display screen.
Clock Format Touch to set the clock to 12 hour or 24 hour format.
Daylight Savings Time Touch to adjusts the daylight saving time to on or off.
Set Clock Manually Touch to adjust the clock manually; then touch to change between AM and PM, the hour and the
minutes.
System Voice For additional information, refer to “Settings” in this section.
Camera Touch this key to change the camera settings.
Others Touch this key to select and/or adjust various functions of this system. A screen with additional options
will appear.
Display Touch this key to adjust the appearance of the display. For additional information, refer to “Adjusting the
screen” in this section.
Language Touch this key to change the language on the display.
OSS Licenses Touch this key to display sof tware licensing information.
Return All Settings to Default Touch this key to return all settings to default and to clear the memory.
Heater, air conditioner, audio and phone systems4-5

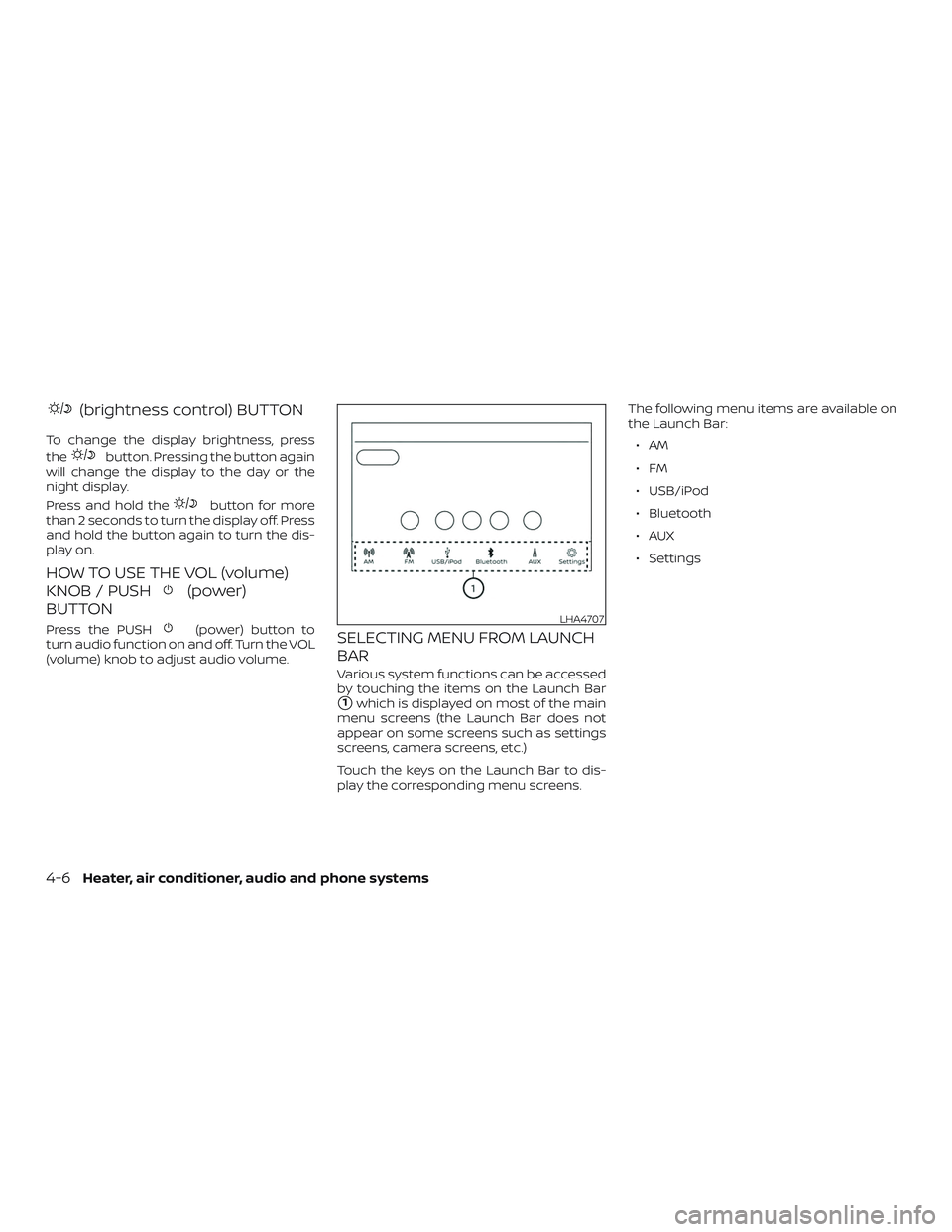

(brightness control) BUTTON
To change the display brightness, press
the
button. Pressing the button again
will change the display to the day or the
night display.
Press and hold the
button for more
than 2 seconds to turn the display off. Press
and hold the button again to turn the dis-
play on.
HOW TO USE THE VOL (volume)
KNOB / PUSH
(power)
BUTTON
Press the PUSH(power) button to
turn audio function on and off. Turn the VOL
(volume) knob to adjust audio volume.SELECTING MENU FROM LAUNCH
BAR
Various system functions can be accessed
by touching the items on the Launch Bar
1which is displayed on most of the main
menu screens (the Launch Bar does not
appear on some screens such as settings
screens, camera screens, etc.)
Touch the keys on the Launch Bar to dis-
play the corresponding menu screens. The following menu items are available on
the Launch Bar:
∙AM
∙FM
∙ USB/iPod
∙ Bluetooth
∙AUX
∙ Settings
LHA4707
4-6Heater, air conditioner, audio and phone systems

LHA4966

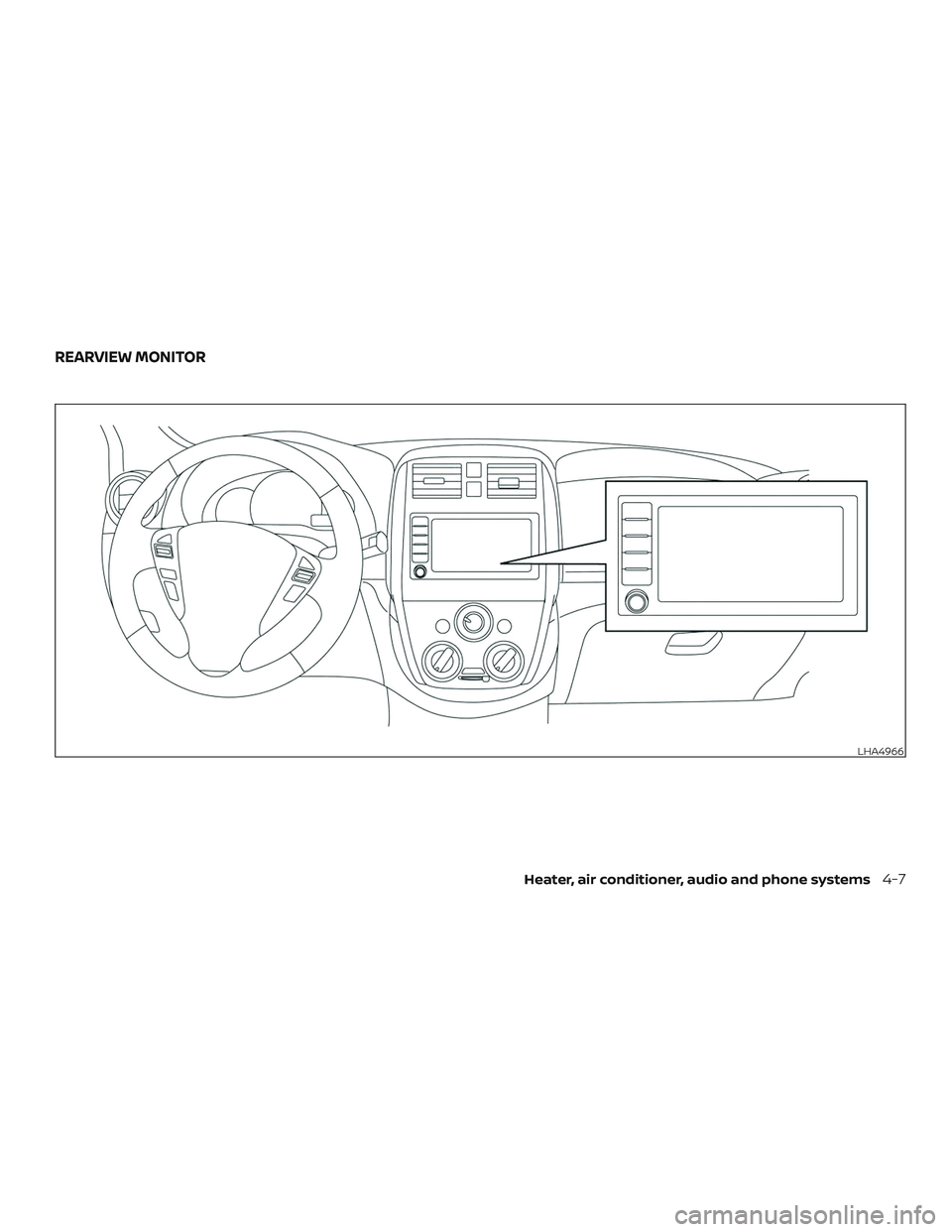

REARVIEW MONITOR
Heater, air conditioner, audio and phone systems4-7
