2023 NISSAN MICRA Owners Manual

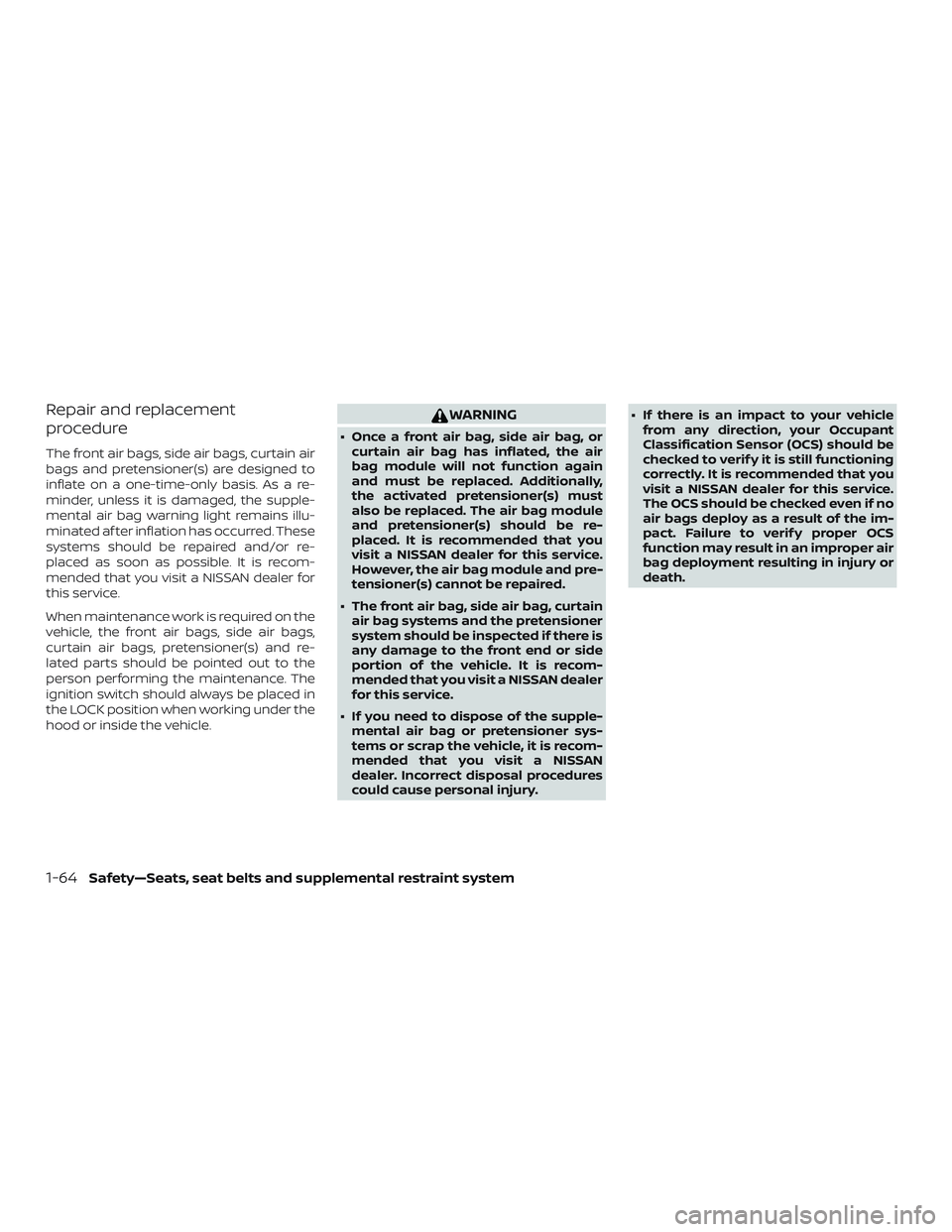

Repair and replacement
procedure
The front air bags, side air bags, curtain air
bags and pretensioner(s) are designed to
inflate on a one-time-only basis. As a re-
minder, unless it is damaged, the supple-
mental air bag warning light remains illu-
minated af ter inflation has occurred. These
systems should be repaired and/or re-
placed as soon as possible. It is recom-
mended that you visit a NISSAN dealer for
this service.
When maintenance work is required on the
vehicle, the front air bags, side air bags,
curtain air bags, pretensioner(s) and re-
lated parts should be pointed out to the
person performing the maintenance. The
ignition switch should always be placed in
the LOCK position when working under the
hood or inside the vehicle.
WARNING
∙ Once a front air bag, side air bag, orcurtain air bag has inflated, the air
bag module will not function again
and must be replaced. Additionally,
the activated pretensioner(s) must
also be replaced. The air bag module
and pretensioner(s) should be re-
placed. It is recommended that you
visit a NISSAN dealer for this service.
However, the air bag module and pre-
tensioner(s) cannot be repaired.
∙ The front air bag, side air bag, curtain air bag systems and the pretensioner
system should be inspected if there is
any damage to the front end or side
portion of the vehicle. It is recom-
mended that you visit a NISSAN dealer
for this service.
∙ If you need to dispose of the supple- mental air bag or pretensioner sys-
tems or scrap the vehicle, it is recom-
mended that you visit a NISSAN
dealer. Incorrect disposal procedures
could cause personal injury. ∙ If there is an impact to your vehicle
from any direction, your Occupant
Classification Sensor (OCS) should be
checked to verif y it is still functioning
correctly. It is recommended that you
visit a NISSAN dealer for this service.
The OCS should be checked even if no
air bags deploy as a result of the im-
pact. Failure to verif y proper OCS
function may result in an improper air
bag deployment resulting in injury or
death.
1-64Safety—Seats, seat belts and supplemental restraint system

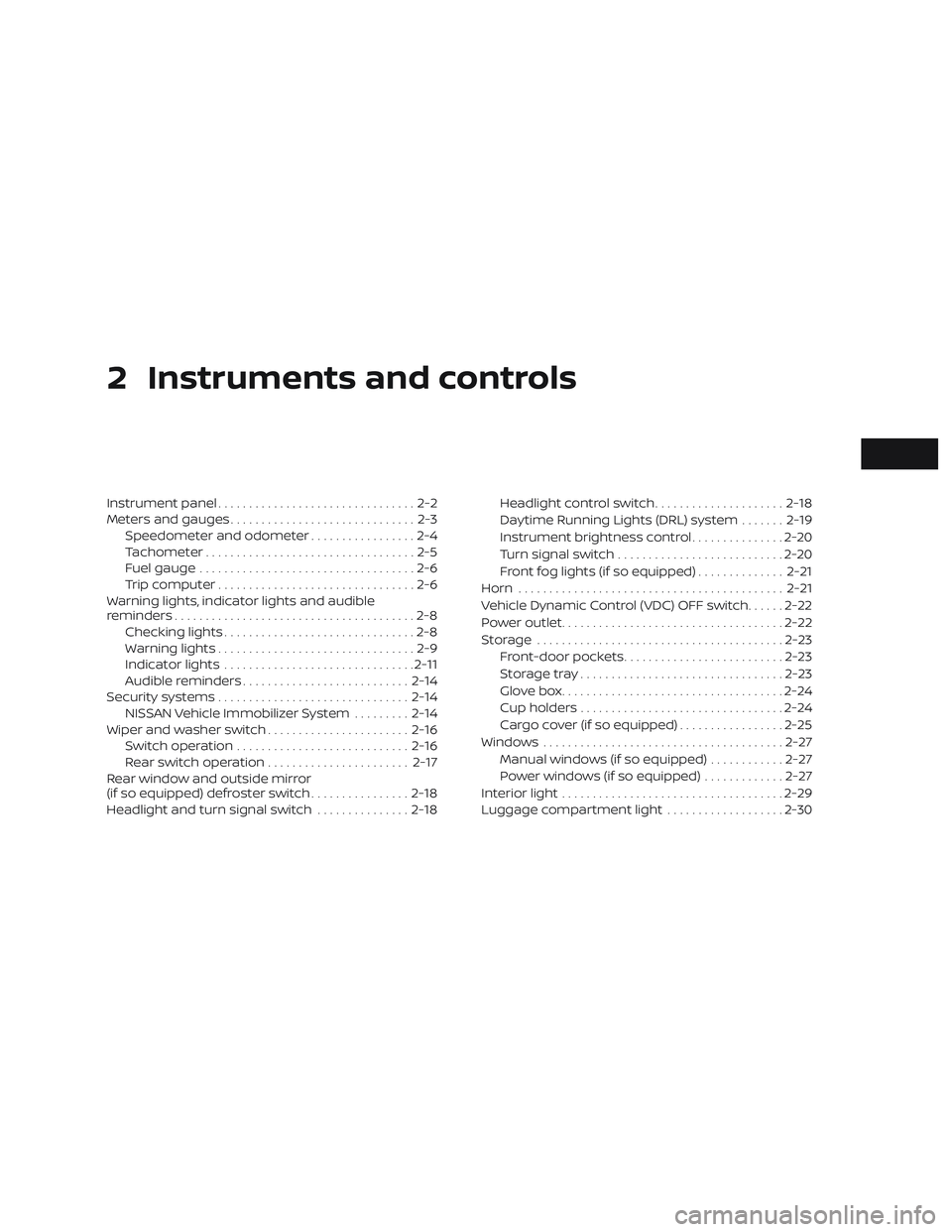

2 Instruments and controls
Instrument panel................................2-2
Meters and gauges ..............................2-3
Speedometer and odometer .................2-4
Tachometer ..................................2-5
Fuel gauge ...................................2-6
Trip computer ................................2-6
Warning lights, indicator lights and audible
reminders .......................................2-8
Checking lights ...............................2-8
Warning lights ................................2-9
Indicator lights ............................... 2-11
Audible reminders ........................... 2-14
Security systems ............................... 2-14
NISSAN Vehicle Immobilizer System .........2-14
Wiper and washer switch .......................2-16
Switch operation ............................ 2-16
Rear switch operation ....................... 2-17
Rear window and outside mirror
(if so equipped) defroster switch ................2-18
Headlight and turn signal switch ...............2-18Headlight control switch
.....................2-18
Daytime Running Lights (DRL) system .......2-19
Instrument brightness control ...............2-20
Turn signal switch ........................... 2-20
Front fog lights (if so equipped) ..............2-21
Horn ........................................... 2-21
Vehicle Dynamic Control (VDC) OFF switch ......2-22
Power outlet .................................... 2-22
Storage ........................................ 2-23
Front-door pockets .......................... 2-23
Storagetray................................. 2-23
Glovebox.................................... 2-24
Cup holders ................................. 2-24
Cargo cover (if so equipped) .................2-25
Windows ....................................... 2-27
Manual windows (if so equipped) ............2-27
Power windows (if so equipped) .............2-27
Interior light .................................... 2-29
Luggage compartment light ...................2-30

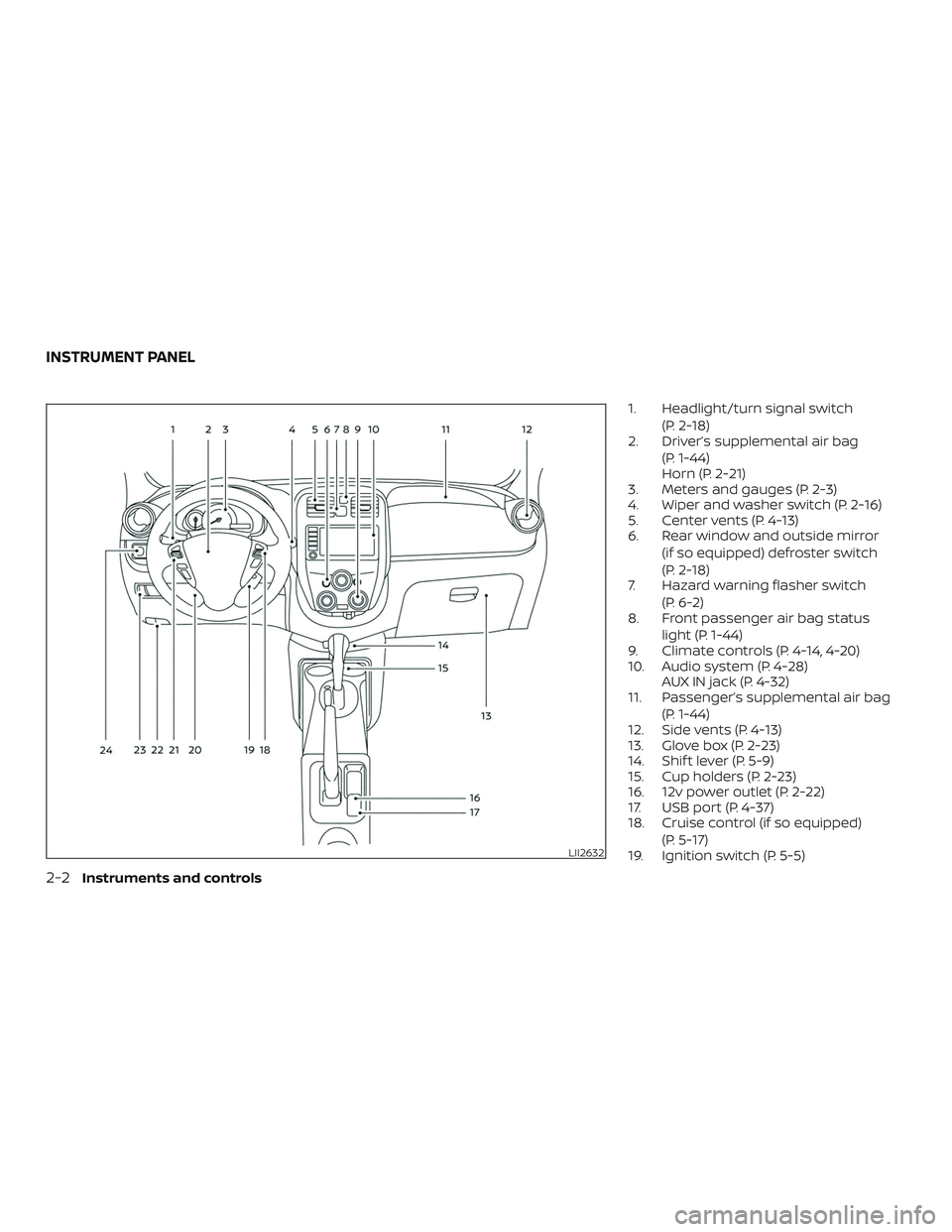

1. Headlight/turn signal switch(P. 2-18)
2. Driver’s supplemental air bag
(P. 1-44)
Horn (P. 2-21)
3. Meters and gauges (P. 2-3)
4. Wiper and washer switch (P. 2-16)
5. Center vents (P. 4-13)
6. Rear window and outside mirror
(if so equipped) defroster switch
(P. 2-18)
7. Hazard warning flasher switch
(P. 6-2)
8. Front passenger air bag status
light (P. 1-44)
9. Climate controls (P. 4-14, 4-20)
10. Audio system (P. 4-28) AUX IN jack (P. 4-32)
11. Passenger’s supplemental air bag
(P. 1-44)
12. Side vents (P. 4-13)
13. Glove box (P. 2-23)
14. Shif t lever (P. 5-9)
15. Cup holders (P. 2-23)
16. 12v power outlet (P. 2-22)
17. USB port (P. 4-37)
18. Cruise control (if so equipped)
(P. 5-17)
19. Ignition switch (P. 5-5)
LII2632
INSTRUMENT PANEL
2-2Instruments and controls

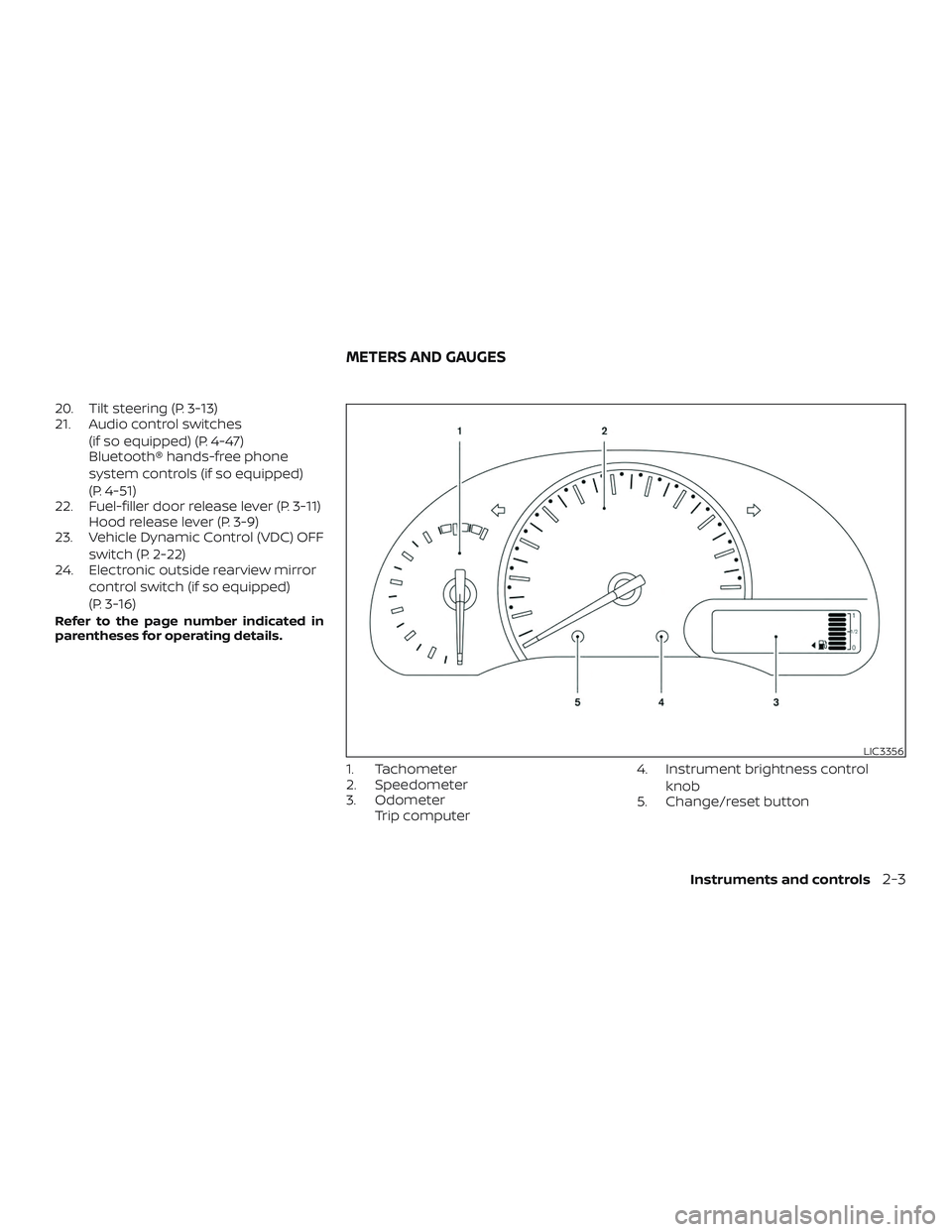

20. Tilt steering (P. 3-13)
21. Audio control switches(if so equipped) (P. 4-47)
Bluetooth® hands-free phone
system controls (if so equipped)
(P. 4-51)
22. Fuel-filler door release lever (P. 3-11) Hood release lever (P. 3-9)
23. Vehicle Dynamic Control (VDC) OFF
switch (P. 2-22)
24. Electronic outside rearview mirror
control switch (if so equipped)
(P. 3-16)
Refer to the page number indicated in
parentheses for operating details.
1. Tachometer
2. Speedometer
3. OdometerTrip computer 4. Instrument brightness control
knob
5. Change/reset button
LIC3356
METERS AND GAUGES
Instruments and controls2-3

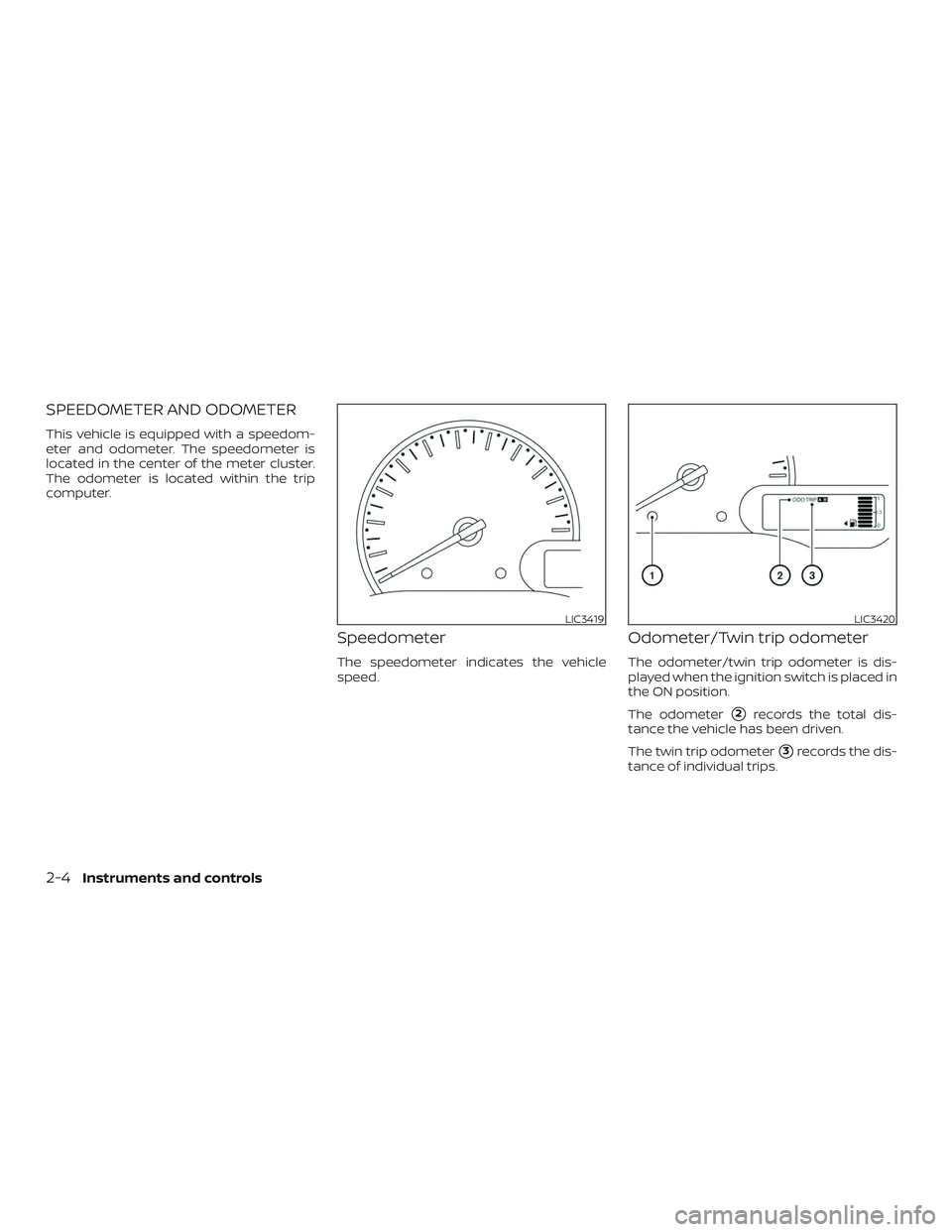

SPEEDOMETER AND ODOMETER
This vehicle is equipped with a speedom-
eter and odometer. The speedometer is
located in the center of the meter cluster.
The odometer is located within the trip
computer.
Speedometer
The speedometer indicates the vehicle
speed.
Odometer/Twin trip odometer
The odometer/twin trip odometer is dis-
played when the ignition switch is placed in
the ON position.
The odometer
2records the total dis-
tance the vehicle has been driven.
The twin trip odometer
3records the dis-
tance of individual trips.
LIC3419LIC3420
2-4Instruments and controls

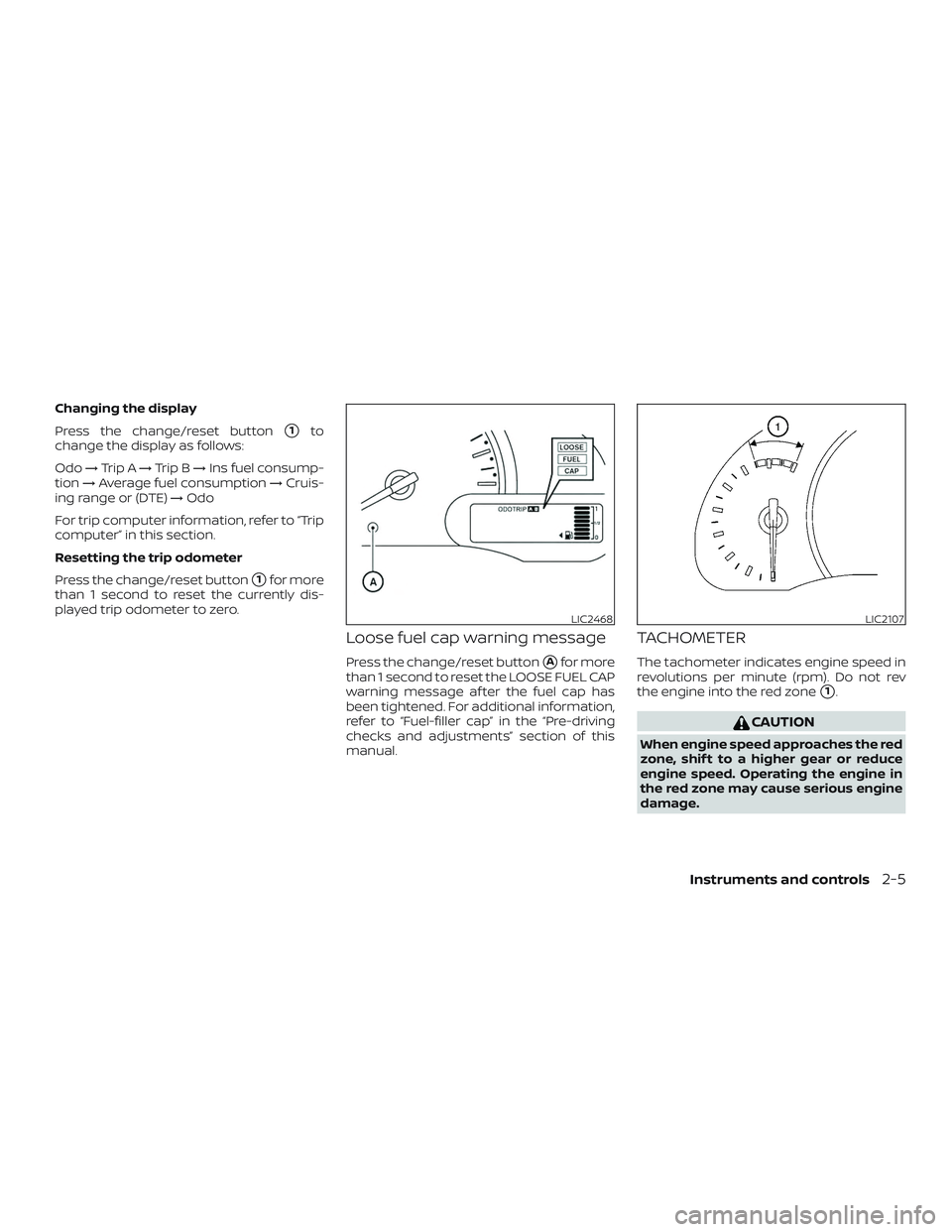

Changing the display
Press the change/reset button
1to
change the display as follows:
Odo →Trip A →Trip B →Ins fuel consump-
tion →Average fuel consumption →Cruis-
ing range or (DTE) →Odo
For trip computer information, refer to “Trip
computer” in this section.
Resetting the trip odometer
Press the change/reset button
1for more
than 1 second to reset the currently dis-
played trip odometer to zero.
Loose fuel cap warning message
Press the change/reset buttonAfor more
than 1 second to reset the LOOSE FUEL CAP
warning message af ter the fuel cap has
been tightened. For additional information,
refer to “Fuel-filler cap” in the “Pre-driving
checks and adjustments” section of this
manual.
TACHOMETER
The tachometer indicates engine speed in
revolutions per minute (rpm). Do not rev
the engine into the red zone
1.
CAUTION
When engine speed approaches the red
zone, shif t to a higher gear or reduce
engine speed. Operating the engine in
the red zone may cause serious engine
damage.
LIC2468LIC2107
Instruments and controls2-5

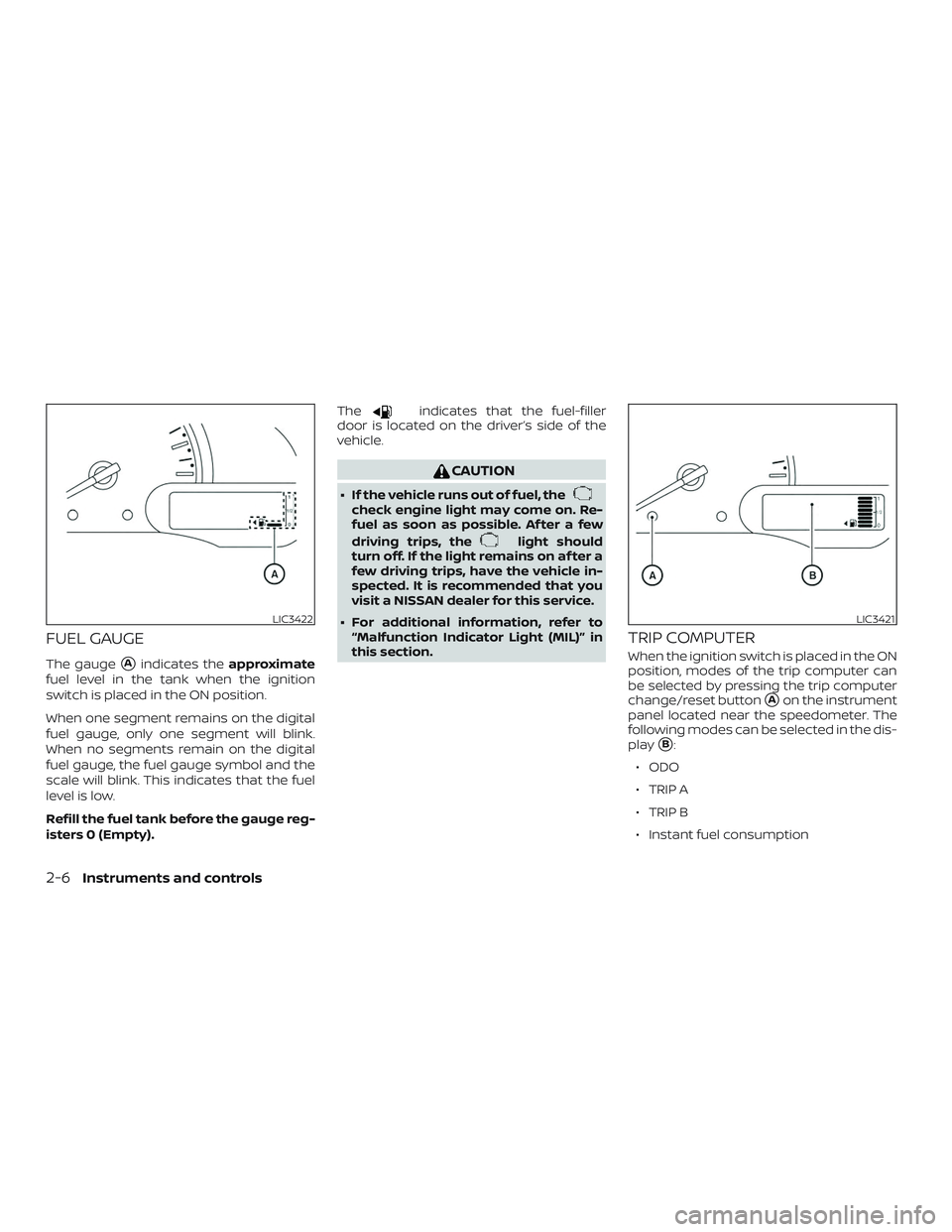

FUEL GAUGE
The gaugeAindicates theapproximate
fuel level in the tank when the ignition
switch is placed in the ON position.
When one segment remains on the digital
fuel gauge, only one segment will blink.
When no segments remain on the digital
fuel gauge, the fuel gauge symbol and the
scale will blink. This indicates that the fuel
level is low.
Refill the fuel tank before the gauge reg-
isters 0 (Empty). The
indicates that the fuel-filler
door is located on the driver’s side of the
vehicle.
CAUTION
∙ If the vehicle runs out of fuel, thecheck engine light may come on. Re-
fuel as soon as possible. Af ter a few
driving trips, the
light should
turn off. If the light remains on af ter a
few driving trips, have the vehicle in-
spected. It is recommended that you
visit a NISSAN dealer for this service.
∙ For additional information, refer to “Malfunction Indicator Light (MIL)” in
this section.
TRIP COMPUTER
When the ignition switch is placed in the ON
position, modes of the trip computer can
be selected by pressing the trip computer
change/reset button
Aon the instrument
panel located near the speedometer. The
following modes can be selected in the dis-
play
B:
∙ ODO
∙ TRIP A
∙ TRIP B
∙ Instant fuel consumption
LIC3422LIC3421
2-6Instruments and controls

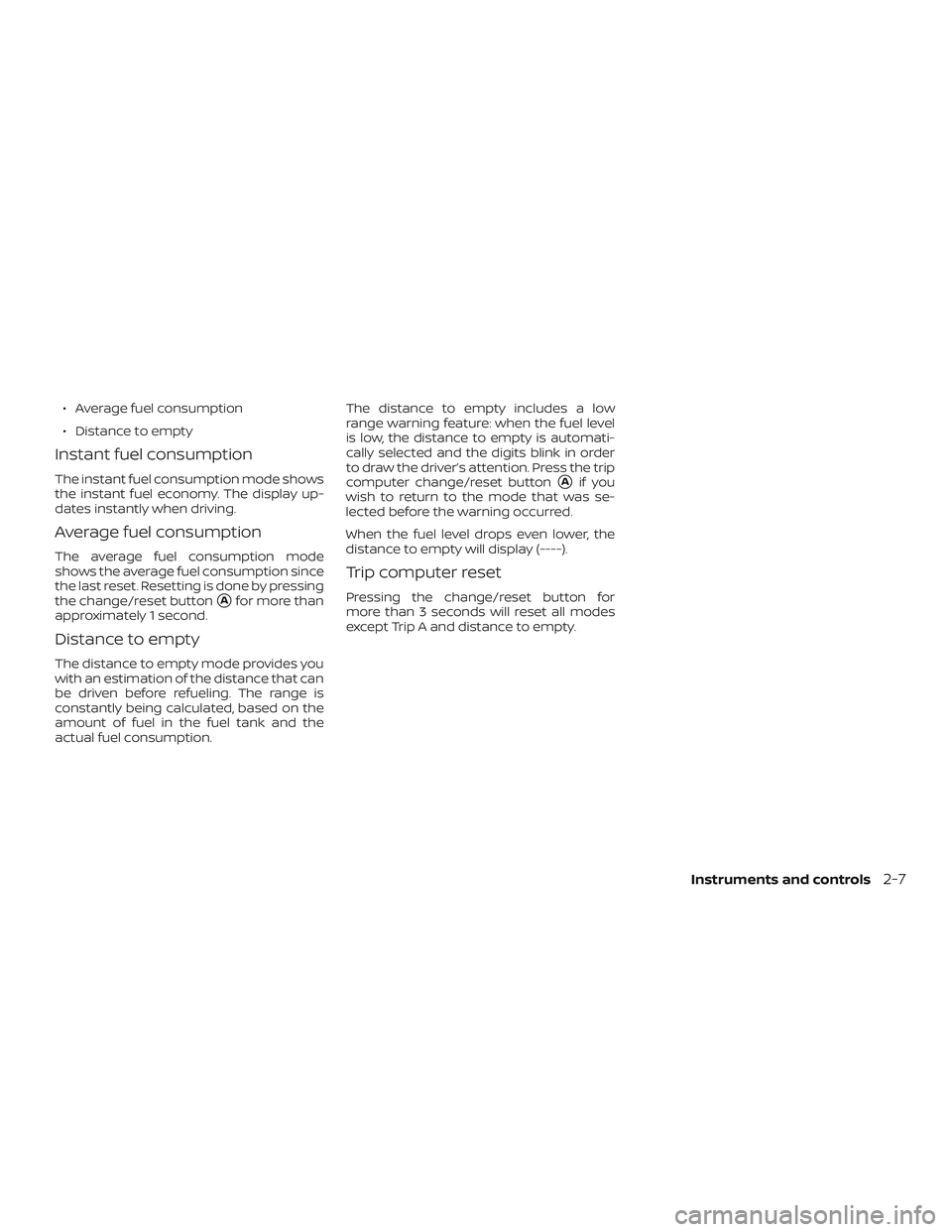

∙ Average fuel consumption
∙ Distance to empty
Instant fuel consumption
The instant fuel consumption mode shows
the instant fuel economy. The display up-
dates instantly when driving.
Average fuel consumption
The average fuel consumption mode
shows the average fuel consumption since
the last reset. Resetting is done by pressing
the change/reset button
Afor more than
approximately 1 second.
Distance to empty
The distance to empty mode provides you
with an estimation of the distance that can
be driven before refueling. The range is
constantly being calculated, based on the
amount of fuel in the fuel tank and the
actual fuel consumption. The distance to empty includes a low
range warning feature: when the fuel level
is low, the distance to empty is automati-
cally selected and the digits blink in order
to draw the driver’s attention. Press the trip
computer change/reset button
Aif you
wish to return to the mode that was se-
lected before the warning occurred.
When the fuel level drops even lower, the
distance to empty will display (----).
Trip computer reset
Pressing the change/reset button for
more than 3 seconds will reset all modes
except Trip A and distance to empty.
Instruments and controls2-7
