Page 265 of 594

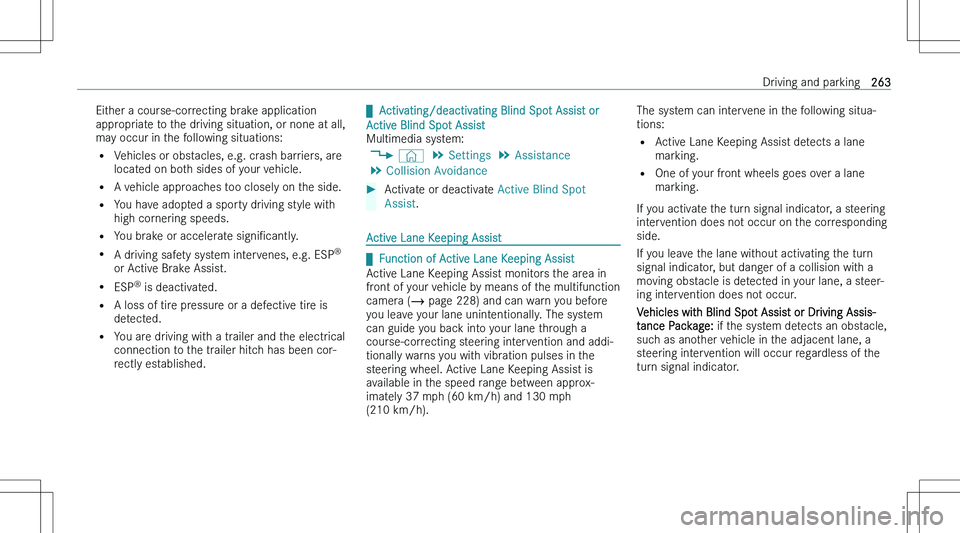

MERCEDES-BENZ GLE 2023 Owners Manual �E�i�t�h�e�r� �a� �c�o�u�r�s�e�-�c�o�r�r�e�c�t�i�n�g� �b�r�a�k�e� �a�p�p�l�i�c�a�t�i�o�n�a�p�p�r�o�p�r�i�a�t�e� �t�o� �t�h�e� �d�r�i�v�i�n�g� �s�i�t�u�a�t�i�o�n�,� �o�r� �n�o�n�e� �a�t� �a�l�l�,�m�a�y

Either a course-correcting brake applicationappropriate to the driving situation, or none at all,may occur in the following situations:
= Vehicles or obstacles, e.g. crash barriers, are
located on both sides of your vehicle.
= A vehicle approaches too closely on the side.
= You have adopted a sporty driving style with
high cornering speeds.
= You brake or accelerate signi"Ncantly.
= A driving safety system intervenes, e.g. ESP n
or Active Brake Assist.
= ESP n
is deactivated.
= A loss of tire pressure or a defective tire is
detected.
= You are driving with a trailer and the electrical
connection to the trailer hitch has been cor-
rectly established.q Activating/deactivating Blind Spot Assist or
Active Blind Spot Assist
Multimedia system:
4 © 5
Settings 5
Assistance
5 Collision AvoidanceActivate or deactivate Active Blind Spot
Assist .
Active Lane Keeping Assist
qFunction of Active Lane Keeping Assist
Active Lane Keeping Assist monitors the area in front of your vehicle by means of the multifunctioncamera ( page 228) and can warn you before
you leave your lane unintentionally. The system can guide you back into your lane through a
course-correcting steering intervention and addi-
tionally warns you with vibration pulses in the steering wheel. Active Lane Keeping Assist is
available in the speed range between approx- imately 37 mph (60 km/h) and 130 mph
(210 km/h).
The system can intervene in the following situa-
tions:
= Active Lane Keeping Assist detects a lane
marking.
= One of your front wheels goes over a lane
marking.
If you activate the turn signal indicator, a steering
intervention does not occur on the corresponding
side.
If you leave the lane without activating the turn signal indicator, but danger of a collision with amoving obstacle is detected in your lane, a steer-ing intervention does not occur.
Vehicles with Blind Spot Assist or Driving Assis-
tance Package: if the system detects an obstacle,
such as another vehicle in the adjacent lane, a steering intervention will occur regardless of the
turn signal indicator.Driving and parking263

Page 266 of 594

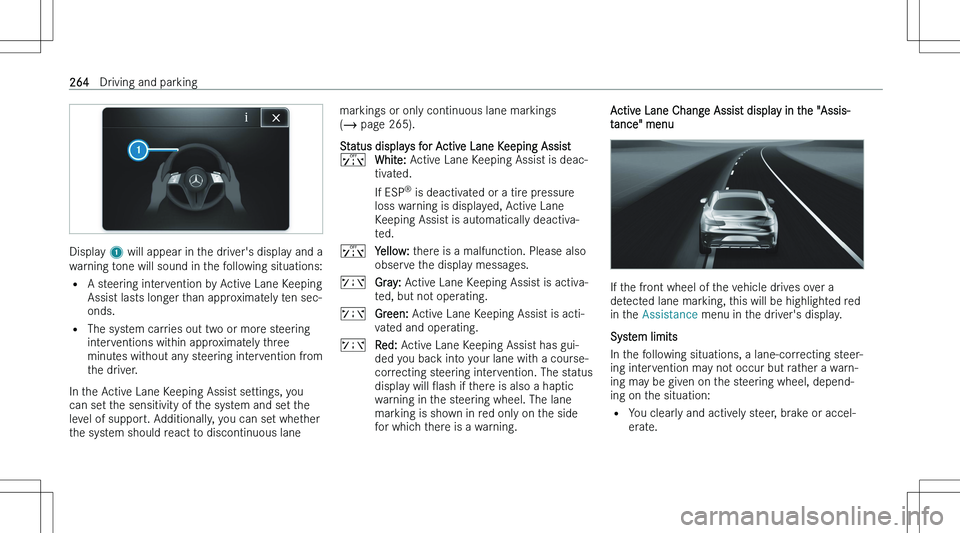

$MERCEDES-BENZ GLE 2023 Owners Manual �D�i�s�p�l�a�y� �1� �w�i�l�l� �a�p�p�e�a�r� �i�n� �t�h�e� �d�r�i�v�e�r�\b�s� �d�i�s�p�l�a�y� �a�n�d� �a �w�a�r�n�i�n�g� �t�o�n�e� �w�i�l�l� �s�o�u�n�d� �i�n� �t�h�e� �f�o�l�l�o�w�i�n�g� �s�i�t�u�a�t�i$

Page 267 of 594

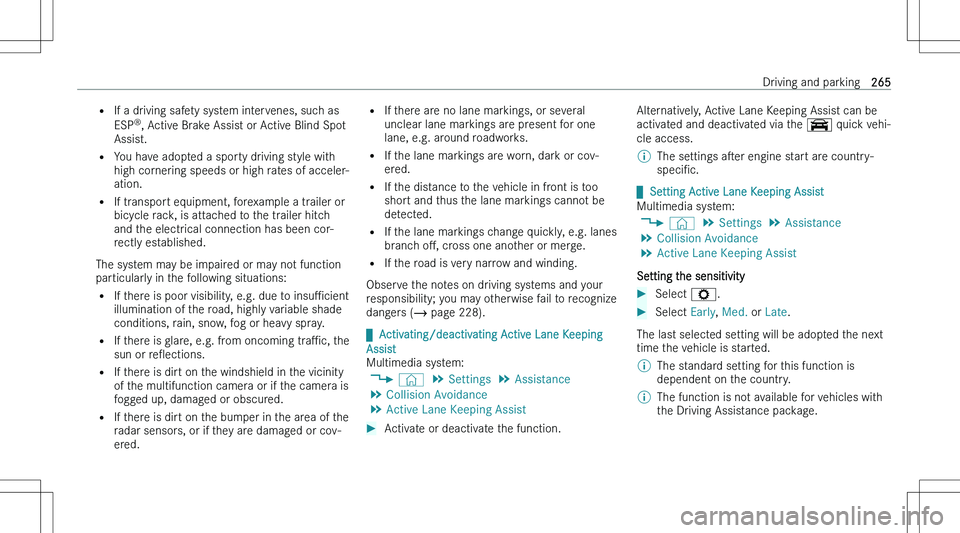

MERCEDES-BENZ GLE 2023 Owners Manual �=�I�f� �a� �d�r�i�v�i�n�g� �s�a�f�e�t�y� �s�y�s�t�e�m� �i�n�t�e�r�v�e�n�e�s�,� �s�u�c�h� �a�s
�E�S�P �n
�,� �A�c�t�i�v�e� �B�r�a�k�e� �A�s�s�i�s�t� �o�r� �A�c�t�i�v�e� �B�l�i�n�d� �S�p�o�t
�A�s�s�i�s

=If a driving safety system intervenes, such as
ESP n
, Active Brake Assist or Active Blind Spot
Assist.
= You have adopted a sporty driving style with
high cornering speeds or high rates of acceler-
ation.
= If transport equipment, forexample a trailer or
bicycle rack, is attached to the trailer hitch and the electrical connection has been cor-
rectly established.
The system may be impaired or may not function
particularly in the following situations:
= If there is poor visibility, e.g. due to insu"Pcient
illumination of the road, highly variable shade
conditions, rain, snow, fog or heavy spray.
= If there is glare, e.g. from oncoming tra"Pc, the
sun or re"Oections.
= If there is dirt on the windshield in the vicinity
of the multifunction camera or if the camera is fogged up, damaged or obscured.
= If there is dirt on the bumper in the area of the
radar sensors, or if they are damaged or cov-
ered.= If there are no lane markings, or several
unclear lane markings are present for one
lane, e.g. around roadworks.
= If the lane markings are worn, dark or cov-
ered.
= If the distance to the vehicle in front is too
short and thus the lane markings cannot be detected.
= If the lane markings change quickly, e.g. lanes
branch o"M, cross one another or merge.
= If the road is very narrow and winding.
Observe the notes on driving systems and your
responsibility; you may otherwise fail to recognize dangers ( page 228).
q Activating/deactivating Active Lane Keeping
Assist
Multimedia system:
4 © 5
Settings 5
Assistance
5 Collision Avoidance
5 Active Lane Keeping AssistActivate or deactivate the function.Alternatively, Active Lane Keeping Assist can be
activated and deactivated via the y quick vehi-
cle access.\bThe settings a"ser engine start are country-
speci"Nc.
q Setting Active Lane Keeping Assist
Multimedia system: 4 © 5
Settings 5
Assistance
5 Collision Avoidance
5 Active Lane Keeping Assist
Setting the sensitivity
Select =.Select Early, Med. or Late .
The last selected setting will be adopted the next
time the vehicle is started.
\bThe standard setting for this function is
dependent on the country.\bThe function is not available for vehicles with the Driving Assistance package.Driving and parking265

Page 268 of 594

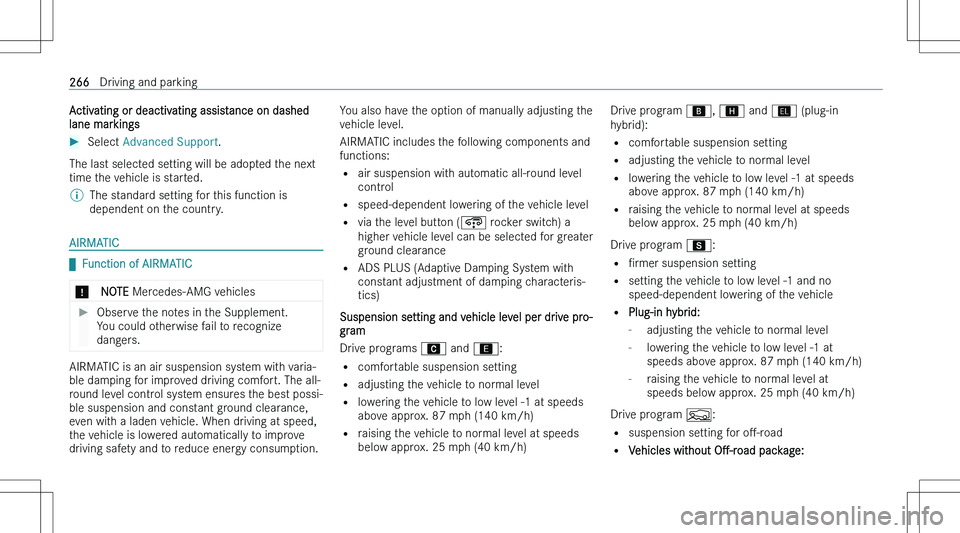

MERCEDES-BENZ GLE 2023 Owners Manual �A�c�t�i�v�a�t�i�n�g� �o�r� �d�e�a�c�t�i�v�a�t�i�n�g� �a�s�s�i�s�t�a�n�c�e� �o�n� �d�a�s�h�e�d
�l�a�n�e� �m�a�r�k�i�n�g�s��S�e�l�e�c�t� �A�d�v�a�n�c�e�d� �S�u�p�p�o�r�t �.
�T�h�e� �l�a�s�t� �s�e�l�e

Page 269 of 594

$MERCEDES-BENZ GLE 2023 Owners Manual �-�r�a�i�s�i�n�g� �t�h�e� �v�e�h�i�c�l�e� �t�o� �o"M�-�r�o�a�d� �l�e�v�e�l� �\f�1� �a�t �s�p�e�e�d�s� �b�e�l�o�w� �a�p�p�r�o�x�.� �3�7� �m�p�h� �(�6�0� �k�m�/�h�) �- �l�o�w�e�r�i�n�g� �t�h�e� �v�$

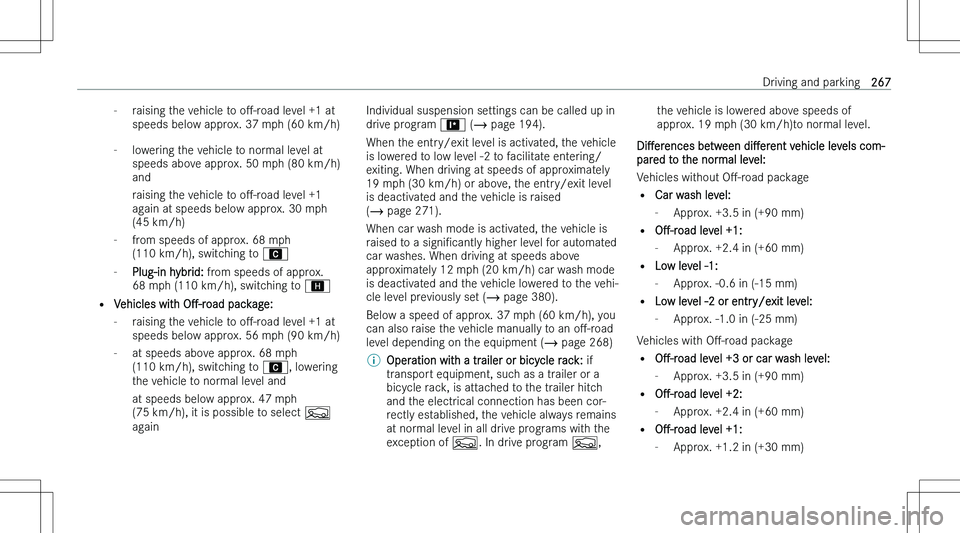

-raising the vehicle to o"M-road level \f1 at
speeds below approx. 37 mph (60 km/h)
- lowering the vehicle to normal level at
speeds above approx. 50 mph (80 km/h)
and
raising the vehicle to o"M-road level \f1
again at speeds below approx. 30 mph
(45 km/h)
- from speeds of approx. 68 mph
(110 km/h), switching to $
- Plug-in hybrid: from speeds of approx.
68 mph (110 km/h), switching to n
= Vehicles with O"M-road package:
- raising the vehicle to o"M-road level \f1 at
speeds below approx. 56 mph (90 km/h)
- at speeds above approx. 68 mph
(110 km/h), switching to $, lowering
the vehicle to normal level and
at speeds below approx. 47 mph
(75 km/h), it is possible to select F
againIndividual suspension settings can be called up in
drive program ( page 194).
When the entry/exit level is activated, the vehicle
is lowered to low level -2 to facilitate entering/
exiting. When driving at speeds of approximately
19 mph (30 km/h) or above, the entry/exit level
is deactivated and the vehicle is raised
( page 271).
When car wash mode is activated, the vehicle is raised to a signi"Ncantly higher level for automated
car washes. When driving at speeds above
approximately 12 mph (20 km/h) car wash mode
is deactivated and the vehicle lowered to the vehi-
cle level previously set ( page 380).
Below a speed of approx. 37 mph (60 km/h), you
can also raise the vehicle manually to an o"M-road
level depending on the equipment ( page 268)\bOperation with a trailer or bicycle rack: if
transport equipment, such as a trailer or a bicycle rack, is attached to the trailer hitchand the electrical connection has been cor-rectly established, the vehicle always remains
at normal level in all drive programs with the exception of F. In drive program F,the vehicle is lowered above speeds of
approx. 19 mph (30 km/h)to normal level.
Di"Merences between di"Merent vehicle levels com-
pared to the normal level:
Vehicles without O"M-road package
= Car wash level:
- Approx. \f3.5 in (\f90 mm)
= O"M-road level \f1:
- Approx. \f2.4 in (\f60 mm)
= Low level -1:
- Approx. -0.6 in (-15 mm)
= Low level -2 or entry/exit level:
- Approx. -1.0 in (-25 mm)
Vehicles with O"M-road package
= O"M-road level \f3 or car wash level:
- Approx. \f3.5 in (\f90 mm)
= O"M-road level \f2:
- Approx. \f2.4 in (\f60 mm)
= O"M-road level \f1:
- Approx. \f1.2 in (\f30 mm)
Driving and parking267

Page 270 of 594

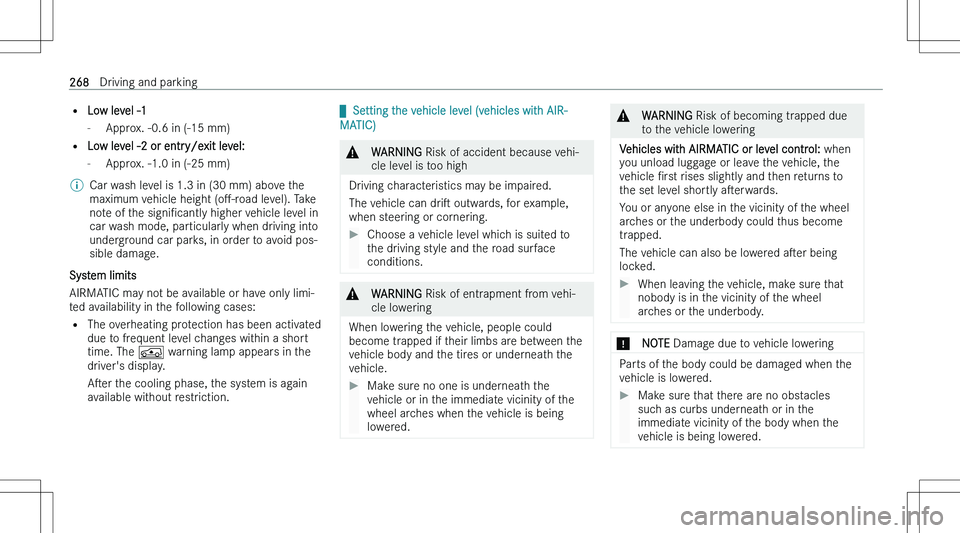

MERCEDES-BENZ GLE 2023 Owners Manual �=�L�o�w� �l�e�v�e�l� �-�1
�- �A�p�p�r�o�x�.� �-�0�.�6� �i�n� �(�-�1�5� �m�m�)
�= �L�o�w� �l�e�v�e�l� �-�2� �o�r� �e�n�t�r�y�/�e�x�i�t� �l�e�v�e�l�:
�- �A�p�p�r�o�x�.� �-�1�.�0� �i�n� �(�-�2�5� �m�m�)

=Low level -1
- Approx. -0.6 in (-15 mm)
= Low level -2 or entry/exit level:
- Approx. -1.0 in (-25 mm)\bCar wash level is 1.3 in (30 mm) above the
maximum vehicle height (o"M-road level). Take
note of the signi"Ncantly higher vehicle level in
car wash mode, particularly when driving into
underground car parks, in order to avoid pos- sible damage.
System limits
AIRMATIC may not be available or have only limi-
ted availability in the following cases:
= The overheating protection has been activated
due to frequent level changes within a short
time. The F warning lamp appears in the
driver\bs display.
A"ser the cooling phase, the system is again
available without restriction.
q Setting the vehicle level (vehicles with AIR-
MATIC)&WARNING Risk of accident because vehi-
cle level is too high
Driving characteristics may be impaired.
The vehicle can dri"s outwards, for example,
when steering or cornering.
Choose a vehicle level which is suited to
the driving style and the road surface
conditions.&WARNING Risk of entrapment from vehi-
cle lowering
When lowering the vehicle, people could become trapped if their limbs are between the
vehicle body and the tires or underneath the vehicle.
Make sure no one is underneath the
vehicle or in the immediate vicinity of the wheel arches when the vehicle is being
lowered.&WARNING Risk of becoming trapped due
to the vehicle lowering
Vehicles with AIRMATIC or level control: when
you unload luggage or leave the vehicle, the vehicle "Nrst rises slightly and then returns to
the set level shortly a"serwards.
You or anyone else in the vicinity of the wheel arches or the underbody could thus become trapped.
The vehicle can also be lowered a"ser being
locked.
When leaving the vehicle, make sure that nobody is in the vicinity of the wheelarches or the underbody.*NOTE Damage due to vehicle lowering
Parts of the body could be damaged when the
vehicle is lowered.
Make sure that there are no obstacles such as curbs underneath or in the
immediate vicinity of the body when the
vehicle is being lowered.268Driving and parking

Page 271 of 594

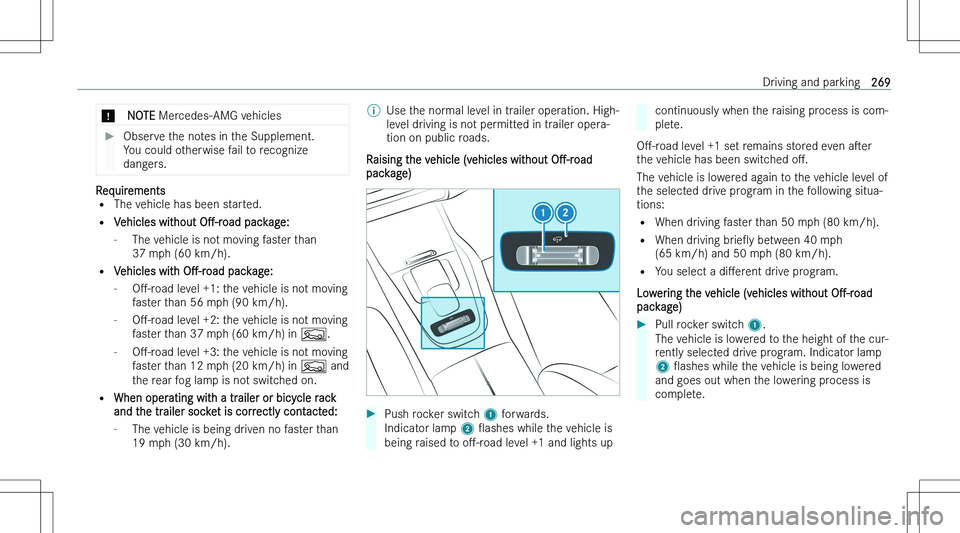

MERCEDES-BENZ GLE 2023 Owners Manual �*�N�O�T�E� �M�e�r�c�e�d�e�s�-�A�M�G� �v�e�h�i�c�l�e�s��O�b�s�e�r�v�e� �t�h�e� �n�o�t�e�s� �i�n� �t�h�e� �S�u�p�p�l�e�m�e�n�t�.
�Y�o�u� �c�o�u�l�d� �o�t�h�e�r�w�i�s�e� �f�a�i�l� �t�o� �r�e�c�o�g�n�i�

Page 272 of 594

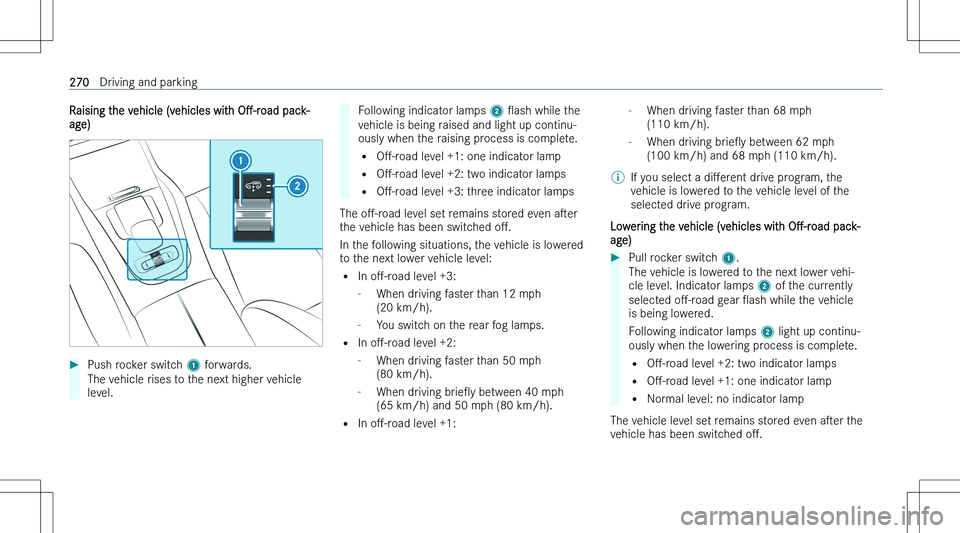

MERCEDES-BENZ GLE 2023 Owners Manual �R�a�i�s�i�n�g� �t�h�e� �v�e�h�i�c�l�e� �(�v�e�h�i�c�l�e�s� �w�i�t�h� �O"M�-�r�o�a�d� �p�a�c�k�-
�a�g�e�)��P�u�s�h� �r�o�c�k�e�r� �s�w�i�t�c�h� �1� �f�o�r�w�a�r�d�s�.
�T�h�e� �v�e�h�i�c�l�e� �r�
