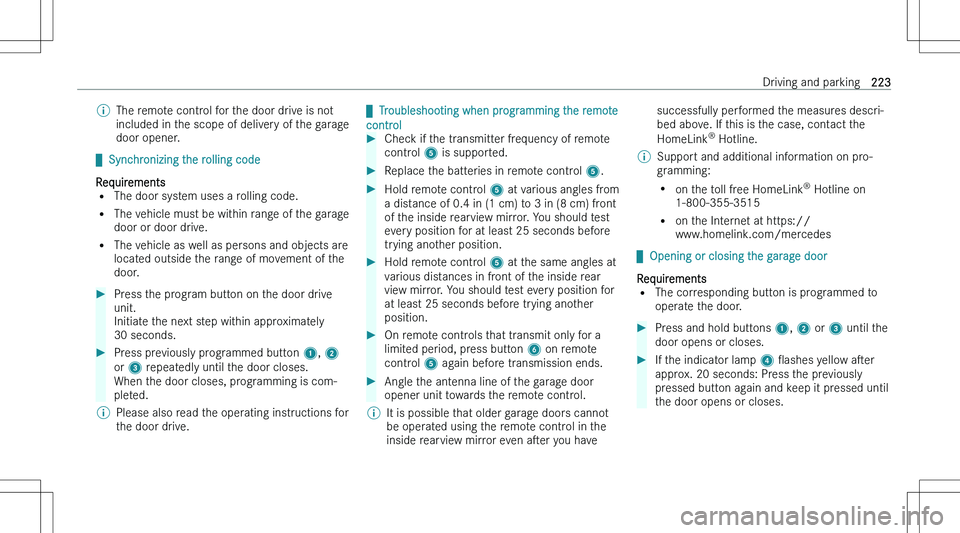

\bThe remote control for the door drive is not
included in the scope of delivery of the garage
door opener.

q Synchronizing the rolling code
Requirements
= The door system uses a rolling code.
= The vehicle must be within range of the garage
door or door drive.
= The vehicle as well as persons and objects are
located outside the range of movement of the door.
Press the program button on the door drive
unit.
Initiate the next step within approximately 30 seconds.Press previously programmed button 1, 2
or 3 repeatedly until the door closes.
When the door closes, programming is com-
pleted.\bPlease also read the operating instructions for
the door drive.
q Troubleshooting when programming the remote
controlCheck if the transmitter frequency of remote
control 5 is supported.Replace the batteries in remote control 5.Hold remote control 5 at various angles from
a distance of 0.4 in (1 cm) to 3 in (8 cm) front
of the inside rearview mirror. You should test
every position for at least 25 seconds before
trying another position.Hold remote control 5 at the same angles at
various distances in front of the inside rear
view mirror. You should test every position for
at least 25 seconds before trying another
position.On remote controls that transmit only for a
limited period, press button 6 on remote
control 5 again before transmission ends.Angle the antenna line of the garage door
opener unit towards the remote control.\bIt is possible that older garage doors cannot
be operated using the remote control in the inside rearview mirror even a"ser you havesuccessfully performed the measures descri-
bed above. If this is the case, contact the
HomeLink n
Hotline.\bSupport and additional information on pro-
gramming:
= on the toll free HomeLink n
Hotline on
1-800-355-3515
= on the Internet at https://
www.homelink.com/mercedes

q Opening or closing the garage door
Requirements
= The corresponding button is programmed to
operate the door.
Press and hold buttons 1, 2 or 3 until the
door opens or closes.If the indicator lamp 4 "Oashes yellow a"ser
approx. 20 seconds: Press the previously
pressed button again and keep it pressed until
the door opens or closes.Driving and parking223

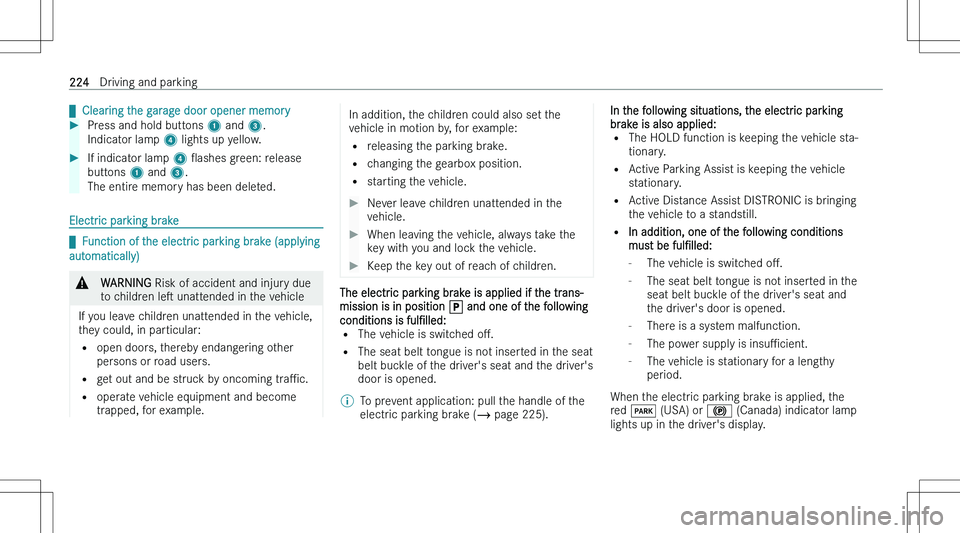

qClearing the garage door opener memoryPress and hold buttons 1 and 3.
Indicator lamp 4 lights up yellow.If indicator lamp 4 "Oashes green: release
buttons 1 and 3.
The entire memory has been deleted.
Electric parking brake

q Function of the electric parking brake (applying
automatically)
&WARNING Risk of accident and injury due
to children le"s unattended in the vehicle
If you leave children unattended in the vehicle,
they could, in particular:
= open doors, thereby endangering other
persons or road users.
= get out and be struck by oncoming tra"Pc.
= operate vehicle equipment and become
trapped, for example.
In addition, the children could also set the
vehicle in motion by, for example:
= releasing the parking brake.
= changing the gearbox position.
= starting the vehicle.Never leave children unattended in the
vehicle.When leaving the vehicle, always take the key with you and lock the vehicle.Keep the key out of reach of children.
The electric parking brake is applied if the trans-mission is in position ] and one of the following
conditions is ful"Nlled:
= The vehicle is switched o"M.
= The seat belt tongue is not inserted in the seat
belt buckle of the driver\bs seat and the driver\bs
door is opened.
\bTo prevent application: pull the handle of the
electric parking brake (  page 225).In the following situations, the electric parking
brake is also applied: = The HOLD function is keeping the vehicle sta-
tionary.
= Active Parking Assist is keeping the vehicle
stationary.
= Active Distance Assist DISTRONIC is bringing
the vehicle to a standstill.
= In addition, one of the following conditions
must be ful"Nlled:
- The vehicle is switched o"M.
- The seat belt tongue is not inserted in the
seat belt buckle of the driver\bs seat and
the driver\bs door is opened.
- There is a system malfunction.
- The power supply is insu"Pcient.
- The vehicle is stationary for a lengthy
period.
When the electric parking brake is applied, the red M (USA) or

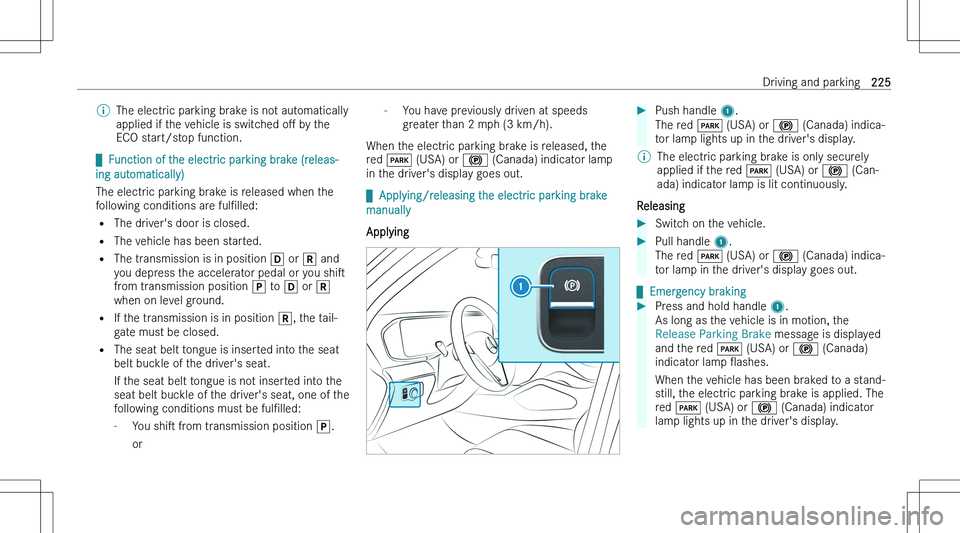

\bThe electric parking brake is not automatically
applied if the vehicle is switched o"M by the
ECO start/stop function.

q Function of the electric parking brake (releas-
ing automatically)
The electric parking brake is released when the
following conditions are ful"Nlled:
= The driver\bs door is closed.
= The vehicle has been started.
= The transmission is in position [ or ^ and
you depress the accelerator pedal or you shi"s
from transmission position ] to [ or ^
when on level ground.
= If the transmission is in position ^, the tail-
gate must be closed.
= The seat belt tongue is inserted into the seat
belt buckle of the driver\bs seat.
If the seat belt tongue is not inserted into the
seat belt buckle of the driver\bs seat, one of the following conditions must be ful"Nlled:
- You shi"s from transmission position ].
or
- You have previously driven at speeds
greater than 2 mph (3 km/h).
When the electric parking brake is released, the
red M (USA) or

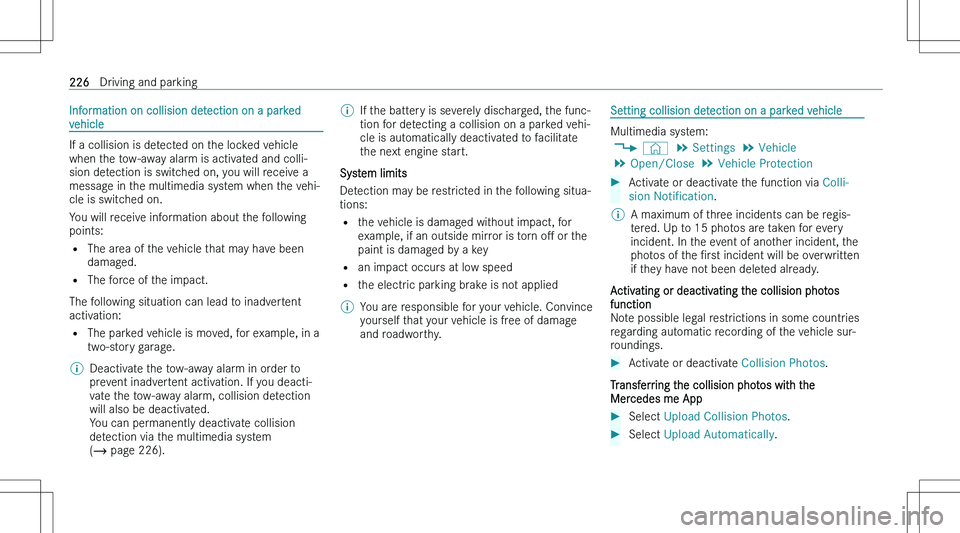

Information on collision detection on a parked
vehicle
If a collision is detected on the locked vehicle when the tow-away alarm is activated and colli-
sion detection is switched on, you will receive a
message in the multimedia system when the vehi-
cle is switched on.
You will receive information about the following points:
= The area of the vehicle that may have been
damaged.
= The force of the impact.
The following situation can lead to inadvertent
activation:
= The parked vehicle is moved, for example, in a
two-story garage.
\bDeactivate the tow-away alarm in order to
prevent inadvertent activation. If you deacti-
vate the tow-away alarm, collision detection
will also be deactivated.
You can permanently deactivate collision
detection via the multimedia system
(  page 226).\bIf the battery is severely discharged, the func-
tion for detecting a collision on a parked vehi-
cle is automatically deactivated to facilitate
the next engine start.
System limits
Detection may be restricted in the following situa- tions:
= the vehicle is damaged without impact, for
example, if an outside mirror is torn o"M or the
paint is damaged by a key
= an impact occurs at low speed
= the electric parking brake is not applied
\bYou are responsible for your vehicle. Convince
yourself that your vehicle is free of damage
and roadworthy.Setting collision detection on a parked vehicle
Multimedia system:
4 © 5
Settings 5
Vehicle
5 Open/Close 5
Vehicle Protection
Activate or deactivate the function via Colli-
sion Notification .\bA maximum of three incidents can be regis-
tered. Up to 15 photos are taken for every incident. In the event of another incident, the
photos of the "Nrst incident will be overwritten
if they have not been deleted already.
Activating or deactivating the collision photos
function
Note possible legal restrictions in some countries
regarding automatic recording of the vehicle sur- roundings.
Activate or deactivate Collision Photos.
Transferring the collision photos with the
Mercedes me App
Select Upload Collision Photos .Select Upload Automatically .226Driving and parking

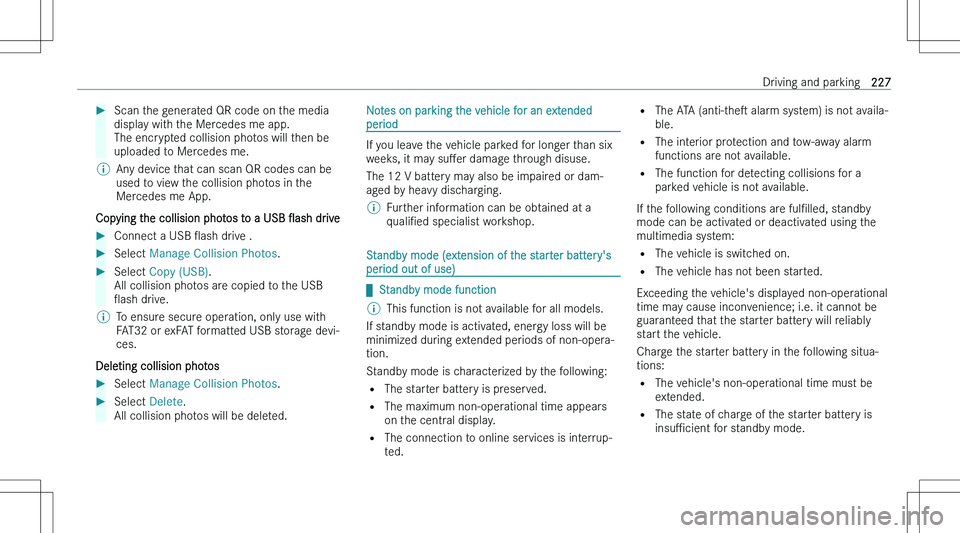

Scan the generated QR code on the media
display with the Mercedes me app.
The encrypted collision photos will then be
uploaded to Mercedes me.\bAny device that can scan QR codes can be
used to view the collision photos in the
Mercedes me App.
Copying the collision photos to a USB "Oash drive
Connect a USB "Oash drive .Select Manage Collision Photos .Select Copy (USByf .
All collision photos are copied to the USB
"Oash drive.\bTo ensure secure operation, only use with
FAT32 or exFAT formatted USB storage devi-
ces.
Deleting collision photos
Select Manage Collision Photos .Select Delete.
All collision photos will be deleted.Notes on parking the vehicle for an extended
period
If you leave the vehicle parked for longer than six
weeks, it may su"Mer damage through disuse.
The 12 V battery may also be impaired or dam-
aged by heavy discharging.
\bFurther information can be obtained at a
quali"Ned specialist workshop.
Standby mode (extension of the starter battery\bs
period out of use)

q Standby mode function
\bThis function is not available for all models.
If standby mode is activated, energy loss will be
minimized during extended periods of non-opera-
tion.
Standby mode is characterized by the following:
= The starter battery is preserved.
= The maximum non-operational time appears
on the central display.
= The connection to online services is interrup-
ted.
= The ATA (anti-the"s alarm system) is not availa-
ble.
= The interior protection and tow-away alarm
functions are not available.
= The function for detecting collisions for a
parked vehicle is not available.
If the following conditions are ful"Nlled, standby
mode can be activated or deactivated using the
multimedia system:
= The vehicle is switched on.
= The vehicle has not been started.
Exceeding the vehicle\bs displayed non-operational
time may cause inconvenience; i.e. it cannot be guaranteed that the starter battery will reliablystart the vehicle.
Charge the starter battery in the following situa- tions:
= The vehicle\bs non-operational time must be
extended.
= The state of charge of the starter battery is
insu"Pcient for standby mode.Driving and parking227

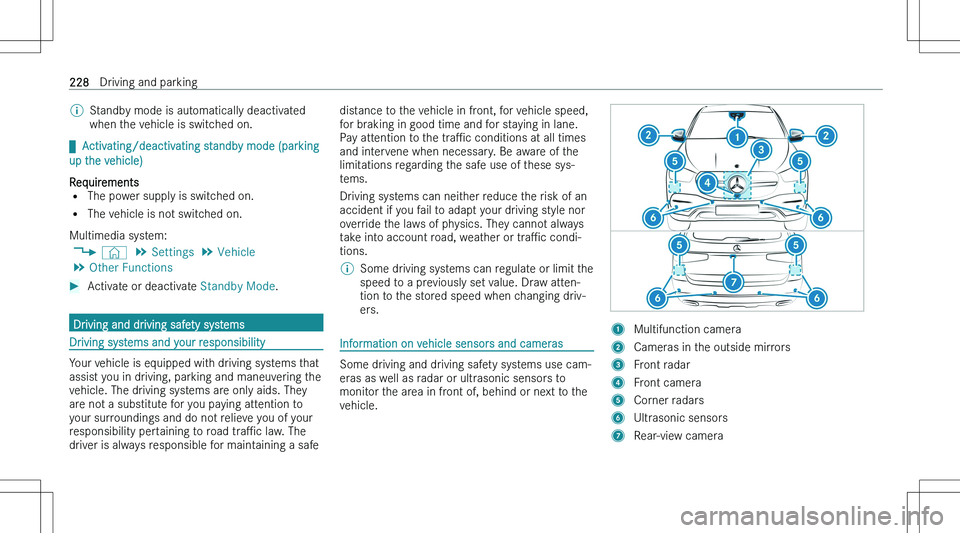

\bStandby mode is automatically deactivatedwhen the vehicle is switched on.

q Activating/deactivating standby mode (parking
up the vehicle)
Requirements
= The power supply is switched on.
= The vehicle is not switched on.
Multimedia system: 4 © 5
Settings 5
Vehicle
5 Other Functions
Activate or deactivate Standby Mode.
Driving and driving safety systems
Driving systems and your responsibility
Your vehicle is equipped with driving systems that
assist you in driving, parking and maneuvering thevehicle. The driving systems are only aids. Theyare not a substitute for you paying attention to
your surroundings and do not relieve you of your
responsibility pertaining to road tra"Pc law. The
driver is always responsible for maintaining a safe
distance to the vehicle in front, for vehicle speed, for braking in good time and for staying in lane.Pay attention to the tra"Pc conditions at all times
and intervene when necessary. Be aware of the limitations regarding the safe use of these sys-tems.
Driving systems can neither reduce the risk of an
accident if you fail to adapt your driving style nor
override the laws of physics. They cannot always take into account road, weather or tra"Pc condi-
tions.\bSome driving systems can regulate or limit the speed to a previously set value. Draw atten-tion to the stored speed when changing driv-
ers.
Information on vehicle sensors and cameras
Some driving and driving safety systems use cam- eras as well as radar or ultrasonic sensors to
monitor the area in front of, behind or next to the vehicle.
1Multifunction camera2Cameras in the outside mirrors3Front radar4Front camera5Corner radars6Ultrasonic sensors7Rear-view camera228Driving and parking

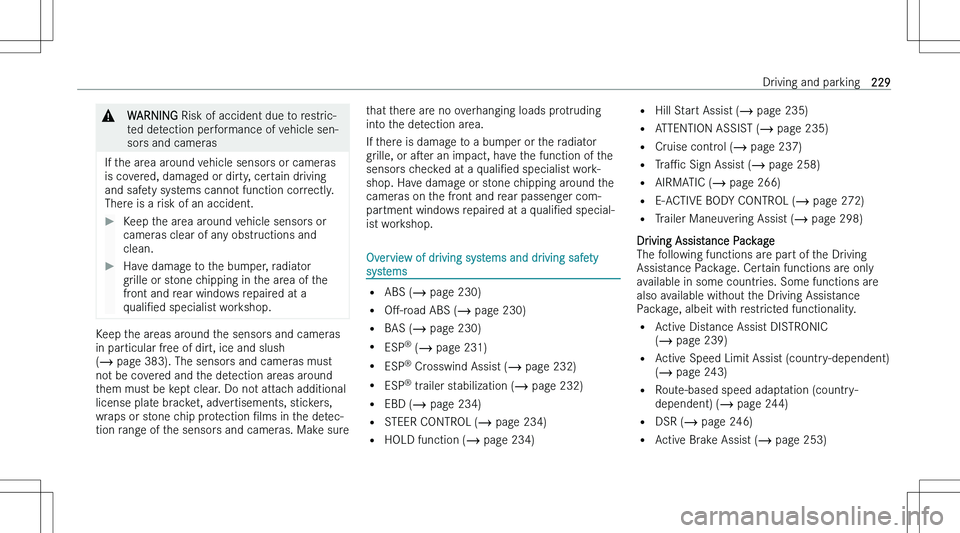

&WARNING Risk of accident due to restric-
ted detection performance of vehicle sen- sors and cameras
If the area around vehicle sensors or cameras
is covered, damaged or dirty, certain driving
and safety systems cannot function correctly.
There is a risk of an accident.
Keep the area around vehicle sensors or
cameras clear of any obstructions and
clean.Have damage to the bumper, radiator
grille or stone chipping in the area of the
front and rear windows repaired at a
quali"Ned specialist workshop.
Keep the areas around the sensors and cameras
in particular free of dirt, ice and slush (  page 383). The sensors and cameras must
not be covered and the detection areas around them must be kept clear. Do not attach additional
license plate bracket, advertisements, stickers, wraps or stone chip protection "Nlms in the detec-
tion range of the sensors and cameras. Make sure
that there are no overhanging loads protruding
into the detection area.
If there is damage to a bumper or the radiator
grille, or a"ser an impact, have the function of the
sensors checked at a quali"Ned specialist work-
shop. Have damage or stone chipping around the cameras on the front and rear passenger com-
partment windows repaired at a quali"Ned special-
ist workshop.
Overview of driving systems and driving safety
systems
= ABS (  page 230)
= O"M-road ABS ( page 230)
= BAS (  page 230)
= ESP n
( page 231)
= ESP n
Crosswind Assist (  page 232)
= ESP n
trailer stabilization (  page 232)
= EBD (  page 234)
= STEER CONTROL (  page 234)
= HOLD function (  page 234)
=
Hill Start Assist (  page 235)
= ATTENTION ASSIST (  page 235)
= Cruise control (  page 237)
= Tra"Pc Sign Assist (  page 258)
= AIRMATIC (  page 266)
= E-ACTIVE BODY CONTROL (  page 272)
= Trailer Maneuvering Assist (  page 298)
Driving Assistance Package
The following functions are part of the Driving
Assistance Package. Certain functions are only
available in some countries. Some functions are
also available without the Driving Assistance
Package, albeit with restricted functionality.
= Active Distance Assist DISTRONIC
(  page 239)
= Active Speed Limit Assist (country-dependent)
(  page 243)
= Route-based speed adaptation (country-
dependent) (  page 244)
= DSR (  page 246)
= Active Brake Assist (  page 253)Driving and parking229

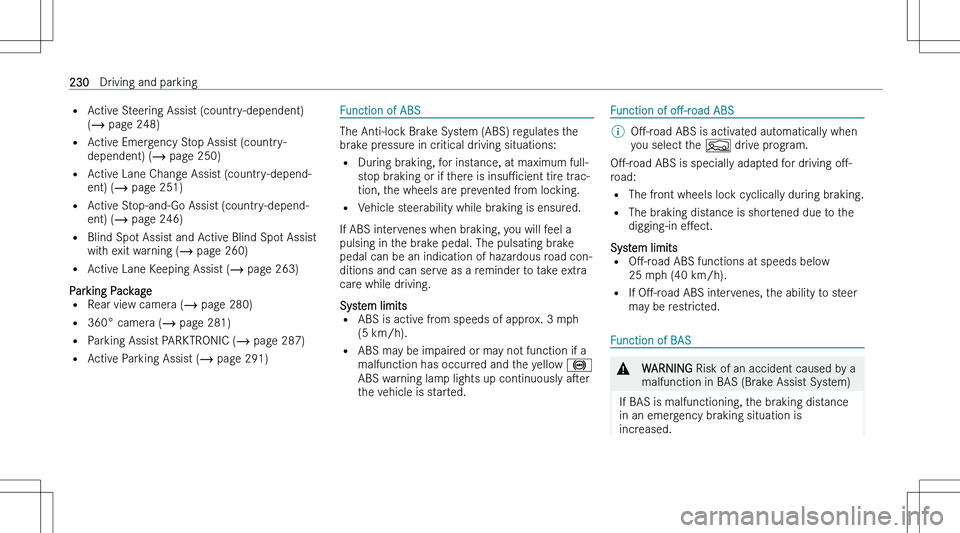

=Active Steering Assist (country-dependent)
(  page 248)
= Active Emergency Stop Assist (country-
dependent) (  page 250)
= Active Lane Change Assist (country-depend-
ent) (  page 251)
= Active Stop-and-Go Assist (country-depend-
ent) (  page 246)
= Blind Spot Assist and Active Blind Spot Assist
with exit warning (  page 260)
= Active Lane Keeping Assist (  page 263)
Parking Package
= Rear view camera (  page 280)
= 360° camera (  page 281)
= Parking Assist PARKTRONIC (  page 287)
= Active Parking Assist (  page 291)Function of ABS
The Anti-lock Brake System (ABS) regulates the
brake pressure in critical driving situations:
= During braking, for instance, at maximum full-
stop braking or if there is insu"Pcient tire trac-
tion, the wheels are prevented from locking.
= Vehicle steerability while braking is ensured.
If ABS intervenes when braking, you will feel a
pulsing in the brake pedal. The pulsating brake
pedal can be an indication of hazardous road con- ditions and can serve as a reminder to take extra
care while driving.
System limits
= ABS is active from speeds of approx. 3 mph
(5 km/h).
= ABS may be impaired or may not function if a
malfunction has occurred and the yellow %
ABS warning lamp lights up continuously a"ser
the vehicle is started.
Function of o"M-road ABS\bO"M-road ABS is activated automatically when
you select the F drive program.
O"M-road ABS is specially adapted for driving o"M-
road:
= The front wheels lock cyclically during braking.
= The braking distance is shortened due to the
digging-in e"Mect.
System limits
= O"M-road ABS functions at speeds below
25 mph (40 km/h).
= If O"M-road ABS intervenes, the ability to steer
may be restricted.
Function of BAS
&WARNING Risk of an accident caused by a
malfunction in BAS (Brake Assist System)
If BAS is malfunctioning, the braking distance
in an emergency braking situation is
increased.
230Driving and parking
