MERCEDES-BENZ GLE COUPE 2023 Owners Manual �N�o�t�e�s� �o�n� �c�a�r�e� �o�f� �c�a�r� �p�a�r�t�s�&�W�A�R�N�I�N�G� �R�i�s�k� �o�f� �e�n�t�r�a�p�m�e�n�t� �i�f� �t�h�e� �w�i�n�d�-
�s�h�i�e�l�d� �w�i�p�e�r�s� �a�r�e� �s�w�i�t�c�h�e�d� �o�n� �w�h�i�

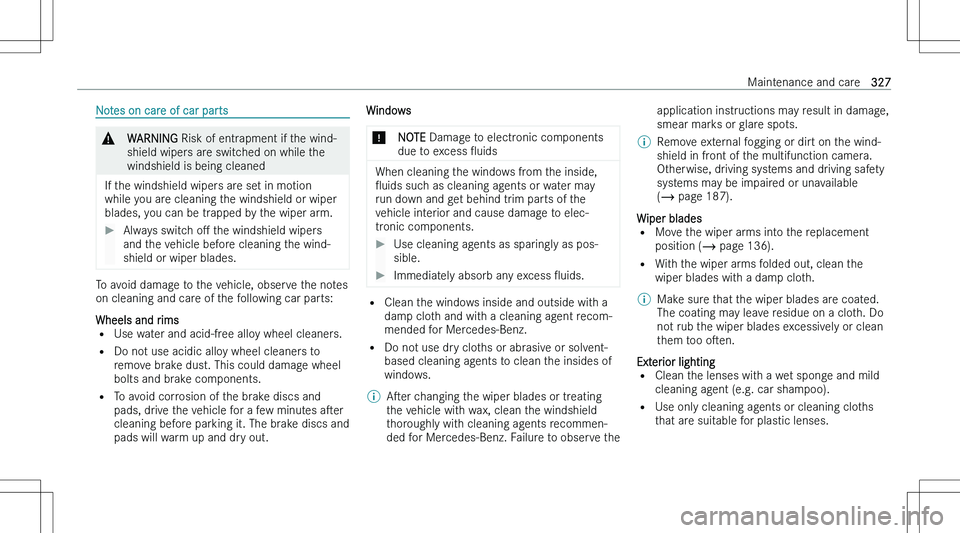

Notes on care of car parts&WARNING Risk of entrapment if the wind-
shield wipers are switched on while the
windshield is being cleaned
If the windshield wipers are set in motion
while you are cleaning the windshield or wiper
blades, you can be trapped by the wiper arm.
Always switch o"M the windshield wipers
and the vehicle before cleaning the wind-
shield or wiper blades.
To avoid damage to the vehicle, observe the notes
on cleaning and care of the following car parts:
Wheels and rims
= Use water and acid-free alloy wheel cleaners.
= Do not use acidic alloy wheel cleaners to
remove brake dust. This could damage wheel
bolts and brake components.
= To avoid corrosion of the brake discs and
pads, drive the vehicle for a few minutes a"ser
cleaning before parking it. The brake discs and pads will warm up and dry out.
Windows*NOTE Damage to electronic components
due to excess "Ouids
When cleaning the windows from the inside,
"Ouids such as cleaning agents or water may
run down and get behind trim parts of the
vehicle interior and cause damage to elec- tronic components.
Use cleaning agents as sparingly as pos-sible.Immediately absorb any excess "Ouids.
=
Clean the windows inside and outside with a
damp cloth and with a cleaning agent recom- mended for Mercedes-Benz.
= Do not use dry cloths or abrasive or solvent-
based cleaning agents to clean the insides of windows.
\bA"ser changing the wiper blades or treating
the vehicle with wax, clean the windshield
thoroughly with cleaning agents recommen- ded for Mercedes-Benz. Failure to observe theapplication instructions may result in damage,
smear marks or glare spots.\bRemove external fogging or dirt on the wind-
shield in front of the multifunction camera.
Otherwise, driving systems and driving safety
systems may be impaired or unavailable
( page 187).
Wiper blades
= Move the wiper arms into the replacement
position ( page 136).
= With the wiper arms folded out, clean the
wiper blades with a damp cloth.
\bMake sure that the wiper blades are coated.
The coating may leave residue on a cloth. Do
not rub the wiper blades excessively or clean them too o"sen.
Exterior lighting
= Clean the lenses with a wet sponge and mild
cleaning agent (e.g. car shampoo).
= Use only cleaning agents or cleaning cloths
that are suitable for plastic lenses.
Maintenance and care327

Page 330 of 510

MERCEDES-BENZ GLE COUPE 2023 Owners Manual �S�e�n�s�o�r�s�= �C�l�e�a�n� �t�h�e� �s�e�n�s�o�r�s� �i�n� �t�h�e� �f�r�o�n�t� �a�n�d� �r�e�a�r� �b�u�m�p�-
�e�r�s� �w�i�t�h� �a� �s�o"s� �c�l�o�t�h� �a�n�d� �c�a�r� �s�h�a�m�p�o�o
�( � � �p�a�g

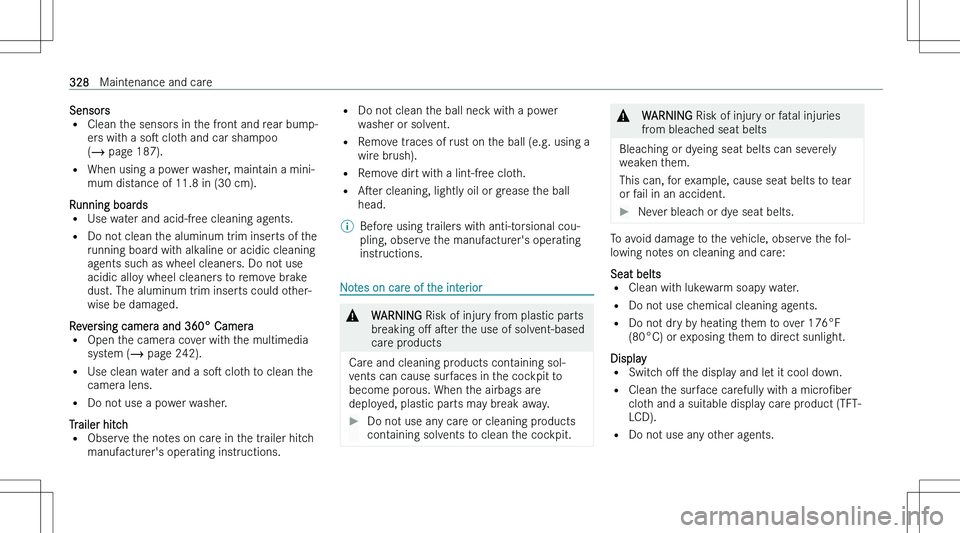

Sensors= Clean the sensors in the front and rear bump-
ers with a so"s cloth and car shampoo
( page 187).
= When using a power washer, maintain a mini-
mum distance of 11.8 in (30 cm).
Running boards
= Use water and acid-free cleaning agents.
= Do not clean the aluminum trim inserts of the
running board with alkaline or acidic cleaning
agents such as wheel cleaners. Do not use
acidic alloy wheel cleaners to remove brake
dust. The aluminum trim inserts could other- wise be damaged.
Reversing camera and 360p Camera = Open the camera cover with the multimedia
system ( page 242).
= Use clean water and a so"s cloth to clean the
camera lens.
= Do not use a power washer.
Trailer hitch
= Observe the notes on care in the trailer hitch
manufacturer\bs operating instructions.= Do not clean the ball neck with a power
washer or solvent.
= Remove traces of rust on the ball (e.g. using a
wire brush).
= Remove dirt with a lint-free cloth.
= A"ser cleaning, lightly oil or grease the ball
head.\bBefore using trailers with anti-torsional cou-
pling, observe the manufacturer\bs operating
instructions.
Notes on care of the interior
&WARNING Risk of injury from plastic parts
breaking o"M a"ser the use of solvent-based
care products
Care and cleaning products containing sol-
vents can cause surfaces in the cockpit to
become porous. When the airbags are
deployed, plastic parts may break away.
Do not use any care or cleaning products
containing solvents to clean the cockpit.&WARNING Risk of injury or fatal injuries
from bleached seat belts
Bleaching or dyeing seat belts can severely weaken them.
This can, for example, cause seat belts to tear
or fail in an accident.
Never bleach or dye seat belts.
To avoid damage to the vehicle, observe the fol- lowing notes on cleaning and care:
Seat belts = Clean with lukewarm soapy water.
= Do not use chemical cleaning agents.
= Do not dry by heating them to over 176pF
(80pC) or exposing them to direct sunlight.
Display
= Switch o"M the display and let it cool down.
= Clean the surface carefully with a micro"Nber
cloth and a suitable display care product (TFT-
LCD).
= Do not use any other agents.
328Maintenance and care

Page 331 of 510

MERCEDES-BENZ GLE COUPE 2023 Owners Manual �H�e�a�d�-�u�p� �d�i�s�p�l�a�y
�= �C�l�e�a�n� �w�i�t�h� �a� �s�o"s�,� �n�o�n�-�s�t�a�t�i�c�,� �l�i�n�t�-�f�r�e�e� �c�l�o�t�h�.
�= �D�o� �n�o�t� �u�s�e� �c�l�e�a�n�i�n�g� �a�g�e�n�t�s�.
�P�l�a�s�t

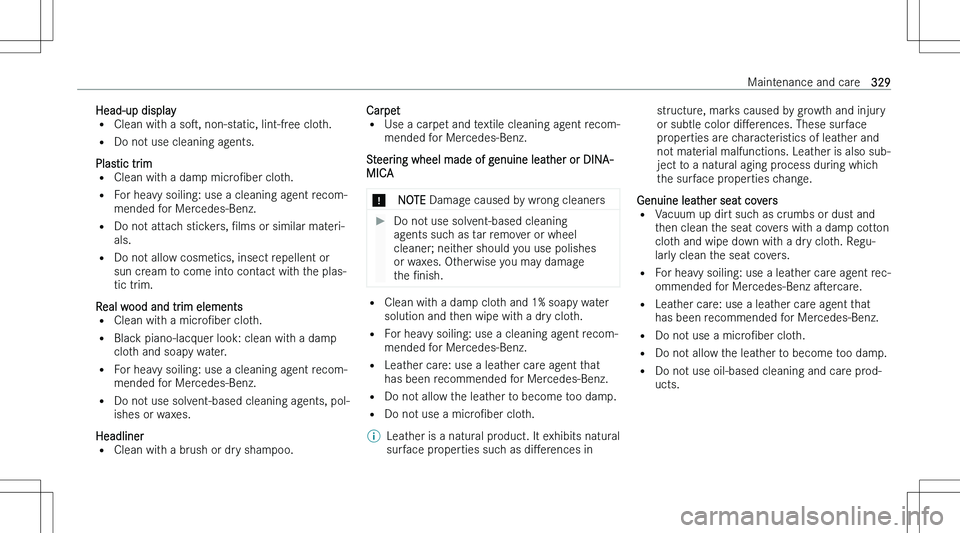

Head-up display
= Clean with a so"s, non-static, lint-free cloth.
= Do not use cleaning agents.
Plastic trim
= Clean with a damp micro"Nber cloth.
= For heavy soiling: use a cleaning agent recom-
mended for Mercedes-Benz.
= Do not attach stickers, "Nlms or similar materi-
als.
= Do not allow cosmetics, insect repellent or
sun cream to come into contact with the plas-
tic trim.
Real wood and trim elements = Clean with a micro"Nber cloth.
= Black piano-lacquer look: clean with a damp
cloth and soapy water.
= For heavy soiling: use a cleaning agent recom-
mended for Mercedes-Benz.
= Do not use solvent-based cleaning agents, pol-
ishes or waxes.
Headliner = Clean with a brush or dry shampoo.Carpet
= Use a carpet and textile cleaning agent recom-
mended for Mercedes-Benz.
Steering wheel made of genuine leather or DINA-
MICA*NOTE Damage caused by wrong cleanersDo not use solvent-based cleaning
agents such as tar remover or wheel
cleaner; neither should you use polishes
or waxes. Otherwise you may damage
the "Nnish.
=
Clean with a damp cloth and 1% soapy water
solution and then wipe with a dry cloth.
= For heavy soiling: use a cleaning agent recom-
mended for Mercedes-Benz.
= Leather care: use a leather care agent that
has been recommended for Mercedes-Benz.
= Do not allow the leather to become too damp.
= Do not use a micro"Nber cloth.
\bLeather is a natural product. It exhibits natural
surface properties such as di"Merences instructure, marks caused by growth and injury
or subtle color di"Merences. These surface
properties are characteristics of leather and not material malfunctions. Leather is also sub-
ject to a natural aging process during which
the surface properties change.
Genuine leather seat covers
= Vacuum up dirt such as crumbs or dust and
then clean the seat covers with a damp cotton
cloth and wipe down with a dry cloth. Regu-
larly clean the seat covers.
= For heavy soiling: use a leather care agent rec-
ommended for Mercedes-Benz a"sercare.
= Leather care: use a leather care agent that
has been recommended for Mercedes-Benz.
= Do not use a micro"Nber cloth.
= Do not allow the leather to become too damp.
= Do not use oil-based cleaning and care prod-
ucts.
Maintenance and care329

Page 332 of 510

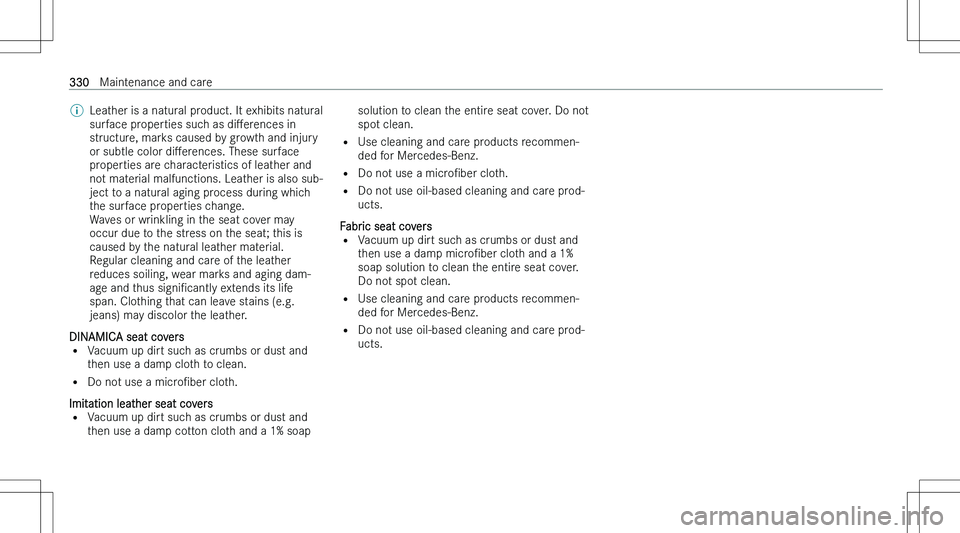

$MERCEDES-BENZ GLE COUPE 2023 Owners Manual �\b�L�e�a�t�h�e�r� �i�s� �a� �n�a�t�u�r�a�l� �p�r�o�d�u�c�t�.� �I�t� �e�x�h�i�b�i�t�s� �n�a�t�u�r�a�l �s�u�r�f�a�c�e� �p�r�o�p�e�r�t�i�e�s� �s�u�c�h� �a�s� �d�i"M�e�r�e�n�c�e�s� �i�n �s�t�r�u�c�t$

Page 333 of 510

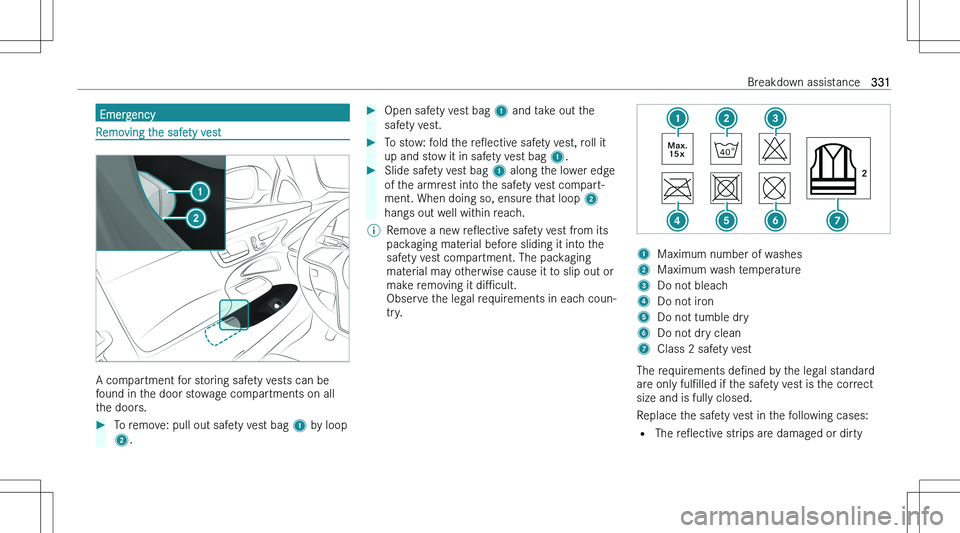

MERCEDES-BENZ GLE COUPE 2023 Owners Manual �E�m�e�r�g�e�n�c�y
�R�e�m�o�v�i�n�g� �t�h�e� �s�a�f�e�t�y� �v�e�s�t
�A� �c�o�m�p�a�r�t�m�e�n�t� �f�o�r� �s�t�o�r�i�n�g� �s�a�f�e�t�y� �v�e�s�t�s� �c�a�n� �b�e�f�o�u�n�d� �i�n� �t�h�e� �d�o�o�r� �s�t�o

Page 334 of 510

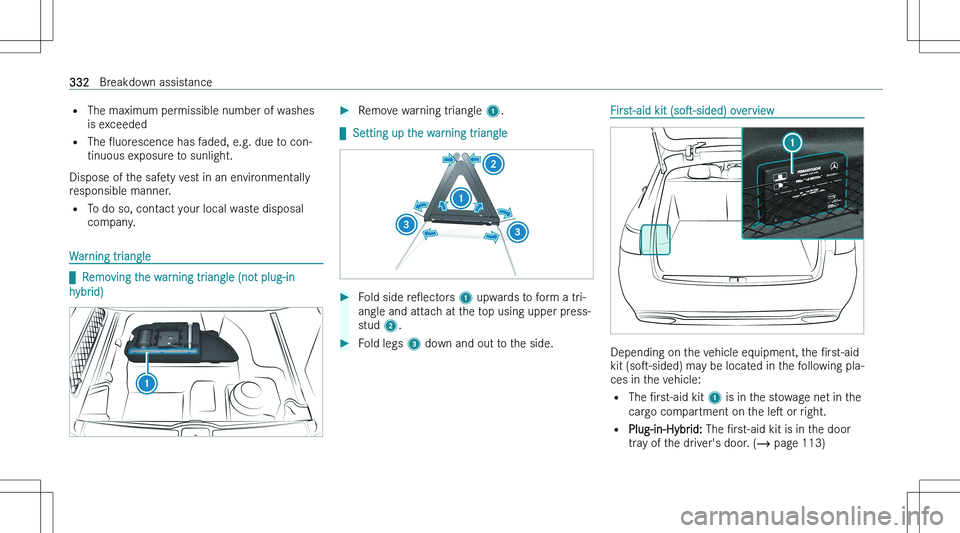

MERCEDES-BENZ GLE COUPE 2023 Owners Manual �=�T�h�e� �m�a�x�i�m�u�m� �p�e�r�m�i�s�s�i�b�l�e� �n�u�m�b�e�r� �o�f� �w�a�s�h�e�s
�i�s� �e�x�c�e�e�d�e�d
�= �T�h�e� "O�u�o�r�e�s�c�e�n�c�e � �h�a�s� �f�a�d�e�d�,� �e�.�g�.� �d�u�e� �t�o� �c�o�n�

Page 335 of 510

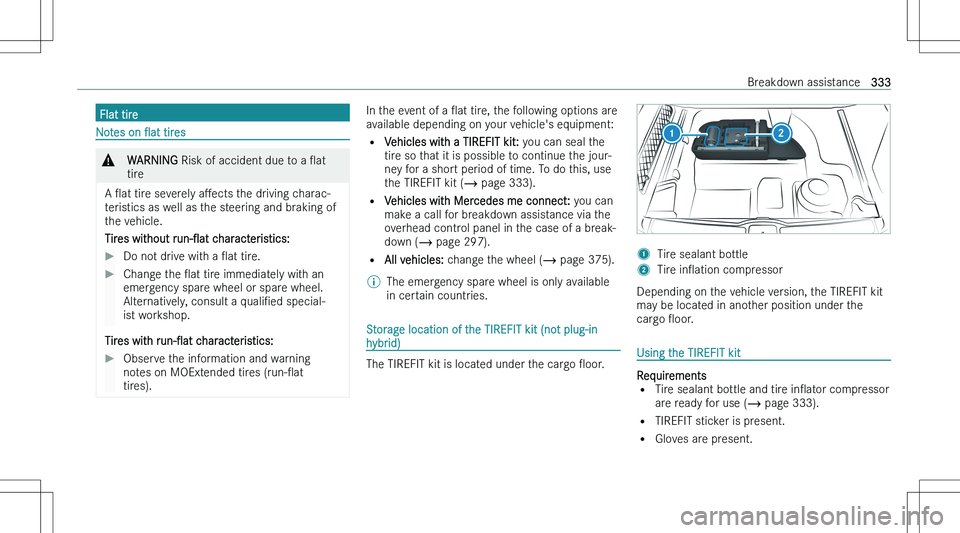

MERCEDES-BENZ GLE COUPE 2023 Owners Manual �F�l�a�t� �t�i�r�e
�N�o�t�e�s� �o�n� "O�a�t� �t�i�r�e�s
�&�W�A�R�N�I�N�G � �R�i�s�k� �o�f� �a�c�c�i�d�e�n�t� �d�u�e� �t�o� �a� "O�a�t
�t�i�r�e
�A� "O�a�t � �t�i�r�e� �s�e�v�e�r�e�l�y� �

Page 336 of 510

MERCEDES-BENZ GLE COUPE 2023 Owners Manual �Y�o�u� �c�a�n� �u�s�e� �T�I�R�E�F�I�T� �t�i�r�e� �s�e�a�l�a�n�t� �t�o� �s�e�a�l� �p�e�r�f�o�r�a�-
�t�i�o�n� �d�a�m�a�g�e� �o�f� �u�p� �t�o� �0�.�1�6� �i�n� �(�4� �m�m�)�,� �p�a�r�t�i�c�u�l�a�r�l�y
�t
