2023 LINCOLN CORSAIR fuse

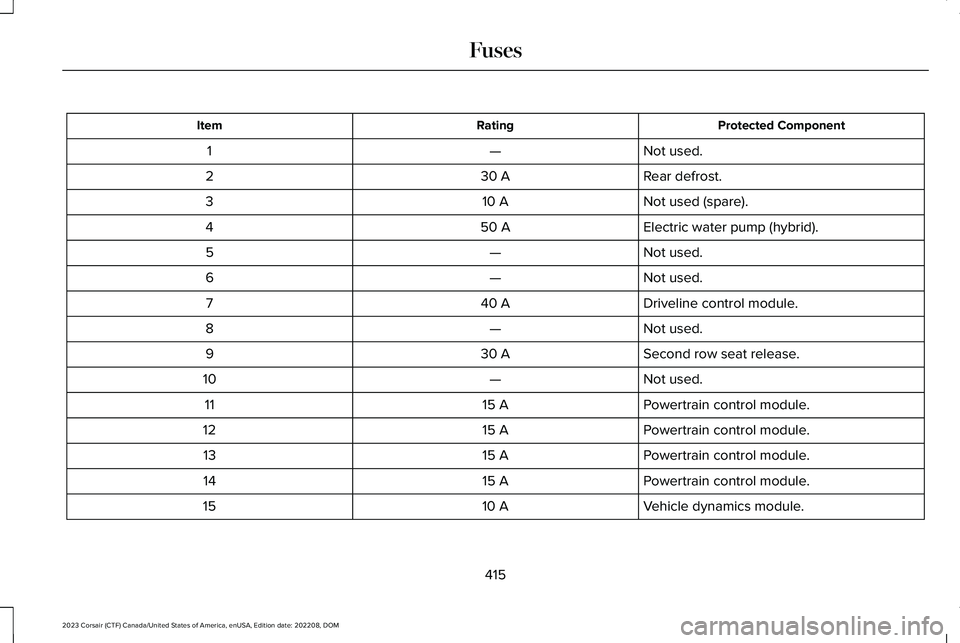

Protected ComponentRatingItem
Not used.—1
Rear defrost.30 A2
Not used (spare).10 A3
Electric water pump (hybrid).50 A4
Not used.—5
Not used.—6
Driveline control module.40 A7
Not used.—8
Second row seat release.30 A9
Not used.—10
Powertrain control module.15 A11
Powertrain control module.15 A12
Powertrain control module.15 A13
Powertrain control module.15 A14
Vehicle dynamics module.10 A15
415
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMFuses

Protected ComponentRatingItem
Not used.—16
Heated wiper park.15 A17
Air conditioning clutch.10 A18
Not used (spare).10 A19
DC/DC converter (hybrid).5 A20
Battery charge control module (hybrid).10 A21
Not used (spare).5 A22
Charge port light ring (hybrid).5 A23
Battery electronic control module (hybrid).5 A24
Left-hand enhanced exterior lighting module.25 A25
Right-hand enhanced exterior lighting module.25 A26
Powertrain control module (hybrid).5 A27
Anti-lock brake system module.10 A28
Powertrain control module.10 A29
Electronic stability control.10 A30Transmission oil pump.
416
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMFuses

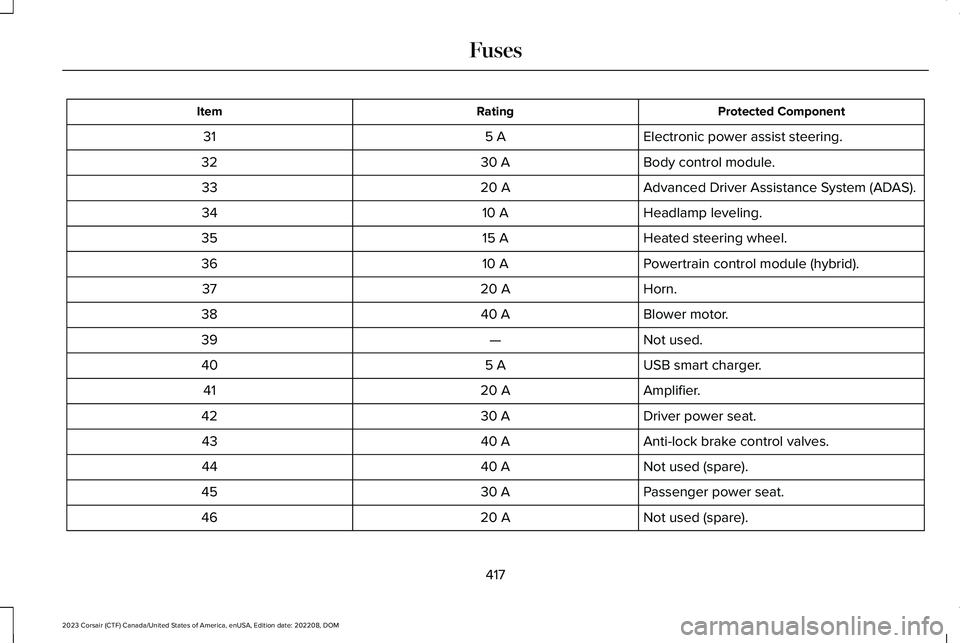

Protected ComponentRatingItem
Electronic power assist steering.5 A31
Body control module.30 A32
Advanced Driver Assistance System (ADAS).20 A33
Headlamp leveling.10 A34
Heated steering wheel.15 A35
Powertrain control module (hybrid).10 A36
Horn.20 A37
Blower motor.40 A38
Not used.—39
USB smart charger.5 A40
Amplifier.20 A41
Driver power seat.30 A42
Anti-lock brake control valves.40 A43
Not used (spare).40 A44
Passenger power seat.30 A45
Not used (spare).20 A46
417
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMFuses

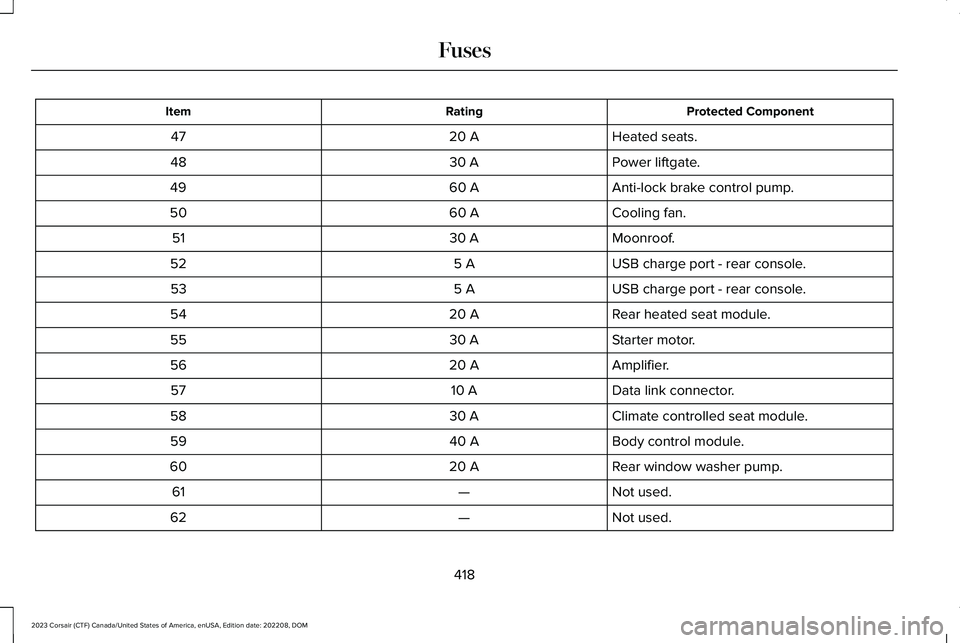

Protected ComponentRatingItem
Heated seats.20 A47
Power liftgate.30 A48
Anti-lock brake control pump.60 A49
Cooling fan.60 A50
Moonroof.30 A51
USB charge port - rear console.5 A52
USB charge port - rear console.5 A53
Rear heated seat module.20 A54
Starter motor.30 A55
Amplifier.20 A56
Data link connector.10 A57
Climate controlled seat module.30 A58
Body control module.40 A59
Rear window washer pump.20 A60
Not used.—61
Not used.—62
418
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMFuses

Protected ComponentRatingItem
Not used.—63
Not used.—64
Not used.—65
Not used.—66
Not used.—67
Mass air flow and intake air temperaturesensor.5 A68
Port fuel injectors.15 A69
Rear cargo power point.20 A70
Rear console power point.20 A71
Rear window wiper.20 A72
Not used.—73
Windshield wiper motor.30 A74
Not used (spare).20 A75
Not used.—76
Not used.—77
419
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMFuses

Protected ComponentRatingItem
Multi-contour seats.15 A78
Not used (spare).10 A79
Fuel pump.20 A80
Not used.—81
Not used (spare).40 A82
Not used.—83
Auxiliary power distribution box (hybrid).40 A84
Rain sensor.5 A85
Not used.—86
Not used.—87
Not used.—88
420
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMFuses

BODY CONTROL MODULE FUSE BOX
LOCATING THE BODY CONTROLMODULE FUSE BOX
ACCESSING THE BODY CONTROLMODULE FUSE BOX
421
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMFusesE329070 E329071

IDENTIFYING THE FUSES IN THE BODY CONTROL MODULE FUSE BOX
Protected ComponentRatingItem
Not used.5 A1
Rear heated seats.5 A2Air quality sensor.Particulate matter sensor.
Not used (spare).10 A3
Integrated control panel.10 A4
422
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMFusesE293328
